CB08 - Electric brush Vevor - Free user manual and instructions

Brand	Vevor
Model	CB08
Product Type	Chimney Sweeping Brush
Total Length	8 m (26 ft)
Rod Diameter	12 mm
Number of Rods	8
Net Weight	2.1 kg
Power Supply	Electric drill (24 V DC or AC, 500 W, 350-2000 rpm)
Main Functions	Sweeping soot and creosote from chimney flues
Included Accessories	Brush head, extension rods, safety goggles, leather gloves, storage bag, sponge, dust sheet, ash brush, connector chuck, hex key
Material	Steel (rods), nylon or steel (brush)
Safety	Use a drill with a safety handle, do not overtighten the rods, keep rods straight when connecting, avoid jerky movements
Maintenance and Cleaning	Store in a cool, dry place
Warranty	Electronic warranty via www.vevor.com/support
Spare Parts and Repairability	Spare parts available on request from the manufacturer
General Information	Suitable for flues of various shapes and sizes; facilitates complete combustion and winter heating

Frequently Asked Questions - CB08 Vevor

How to use the Vevor CB08 chimney brush?

Connect the rods one by one, attach the brush head, insert the assembly into the flue, then connect the drill to the last rod. Rotate the drill at moderate speed (350-2000 rpm) while moving the brush up and down.

What type of drill is recommended?

Use a professional drill with a safety handle, with a power of at least 500 W and capable of operating at 24 V DC or AC, with a speed range of 350 to 2000 rpm.

Is the brush suitable for all types of chimneys?

Yes, it is suitable for smoke flues of various shapes and sizes, including hard-to-reach areas.

What safety precautions should I take?

Only sweep when the stove and chimney are cold. Always use a drill with a safety handle. Do not overtighten the rods and keep them straight. Avoid starting the drill abruptly.

How to maintain the brush after use?

Store the brush in a cool, dry place. Clean the brush head and rods with a dry cloth if necessary.

What accessories are included with the CB08 model?

The kit includes 8 rods, a brush head, safety goggles, leather gloves, a storage bag, a sponge, a dust sheet, an ash brush, a connector chuck, and a hex key.

What is the total length of the rods?

The total length is 8 meters (26 ft), each rod measuring 1 meter.

Can I use the brush with a cordless drill?

Yes, provided the cordless drill delivers at least 24 V and 500 W, and is equipped with a safety handle.

What to do if a rod gets stuck in the flue?

Stop the drill immediately. Do not force it. Try to gently rotate the rod in the opposite direction while pulling gently. If it remains stuck, contact a professional.

How to get technical support or a spare part?

Go to www.vevor.com/support for technical assistance and the electronic warranty certificate. You can also contact the manufacturer via the contact details provided in the manual.

USER MANUAL CB08 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CB07 / CB08 / CB09 / CB10 / CB12

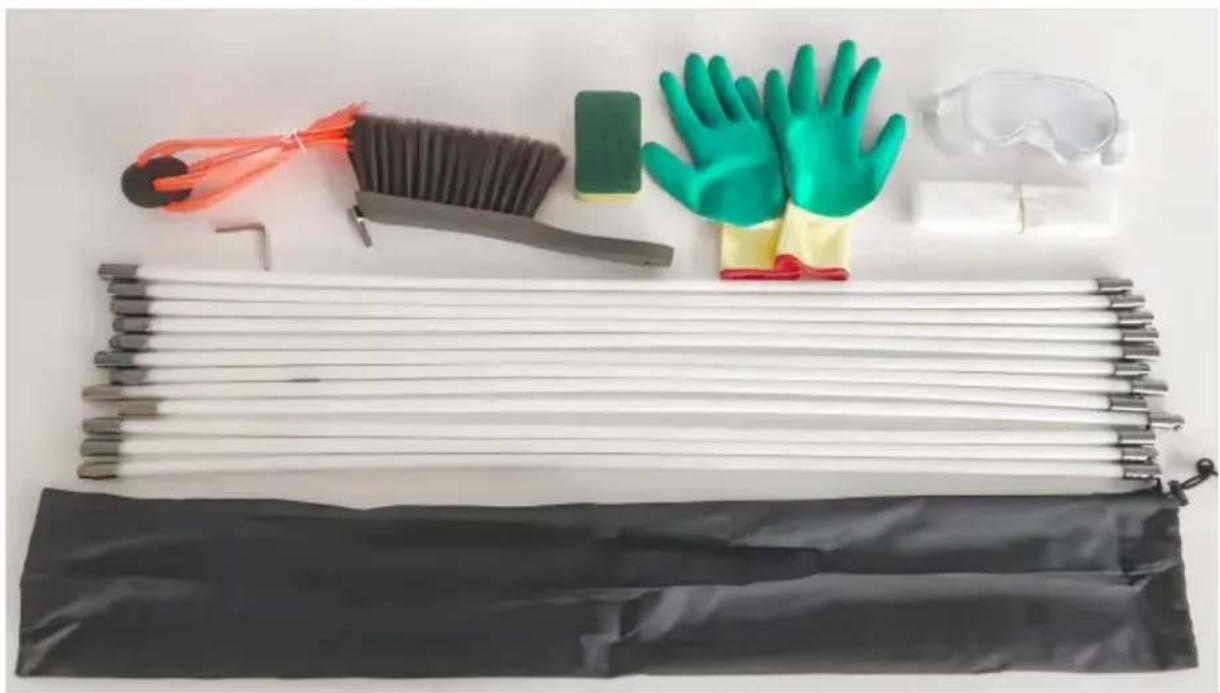

Assorted cleaning and anti-poison supplies including brushes, gloves, safety goggles, and a black tarp (no text or symbols visible)

The picture is for reference only, the number of accessories for each model is slightly different, subject to the actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

model	CB07	CB08	CB09	CB10	CB12
length	23ft/7m	26ft/8m	30ft/9m	33ft/10m	39ft/12m
Single rod length/rod diameter	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter, and the diameter of the rod is 12mm	The length of the single rod is 1 meter, and the diameter of the rod is 12mm
net weight(kg)	1.9	2.1	2.3	2.5	2.8

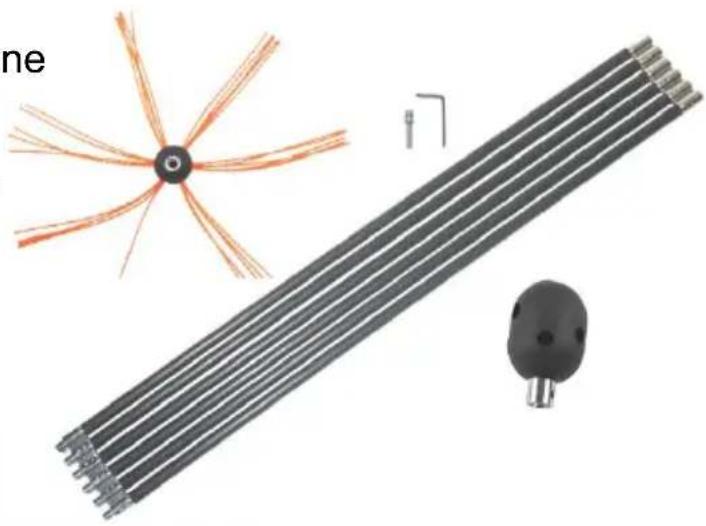

PART LIST

model	picture	CB07	CB08	CB09	CB10	CB12
Fireplace brush - Pole		7	8	9	10	12

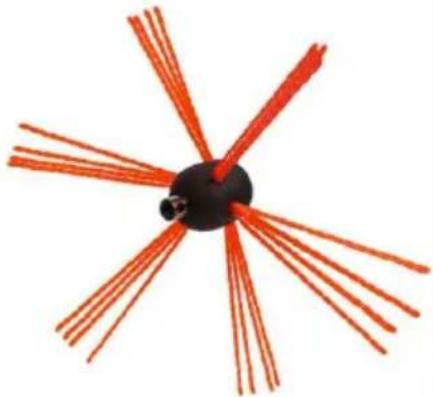

Fireplace brush - Brush head		1	1	1	1	1
Dust goggles		1	1	1	1	1
leather working gloves		1	1	1	1	1
storage bag		1	1	1	1	1
scrub sponge		1	1	1	1	1
Dustproof plastic sheet		1	1	1	1	1
Ash brush		1	1	1	1	1
Chuck connector		1	1	1	1	1
hex wrench		1	1	1	1	1

SECURITY & WARNINGS

In this section, you will find all the important information you need to aware of before engaging in using your chimney brush. Safety should your top priority while using this product.

Please read this information carefully, as improper use could dam the chimney brush.

- Use professional drills for power sweeping with a safety auxiliary handle that will stop the drill immediately when necessary.

- Use drills with a speed range from 350rpm to 2000rpm, 24V or at DC powered drill, or 500W and AC powered drill.

- Use your drill to rotate the chimney brush gradually and evenly, an avoid sudden trigger press, which will cause sudden high torque force to damage the rods and chimney.

- Never grip the rods too tightly; this could pull your gloves off.

- When connecting the rods, keep them as straight as possible.

- Never keep the rods spinning in the chimney if you are not movin

rods up or down, as friction can cause the rods to heat up and break.

- Do the sweeping only when the stove and chimney have cooled down already;

OPERATION

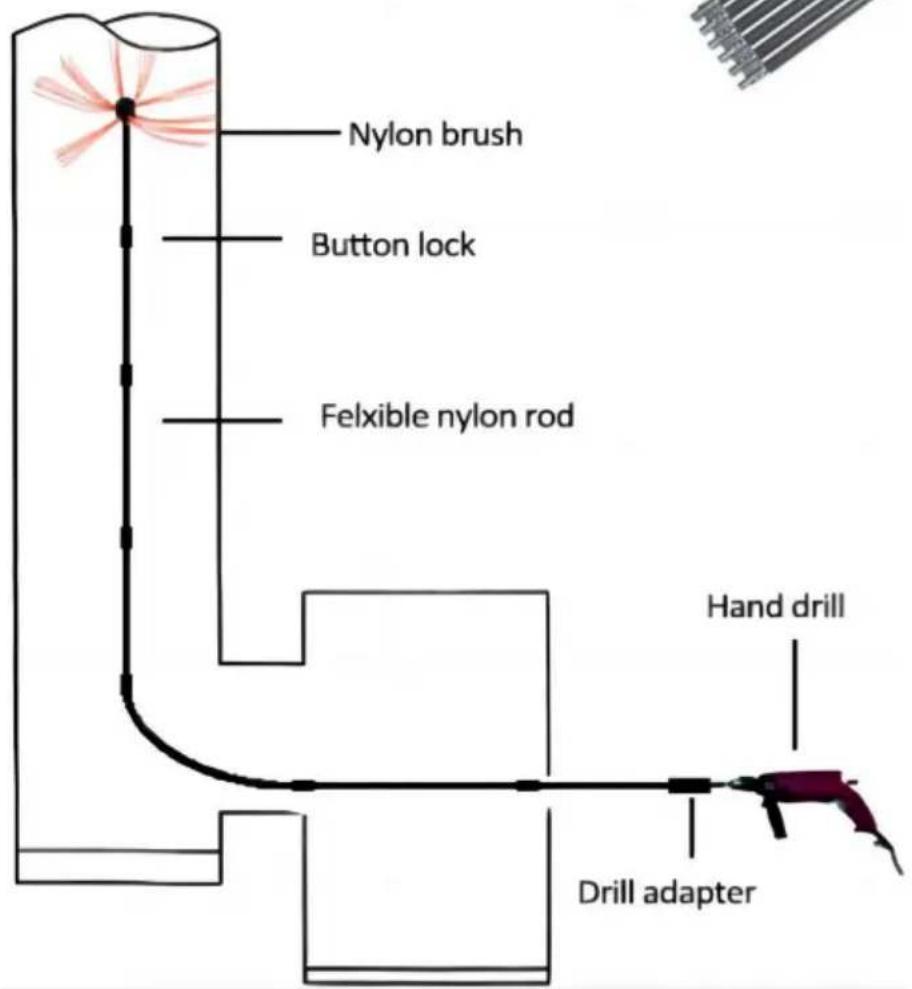

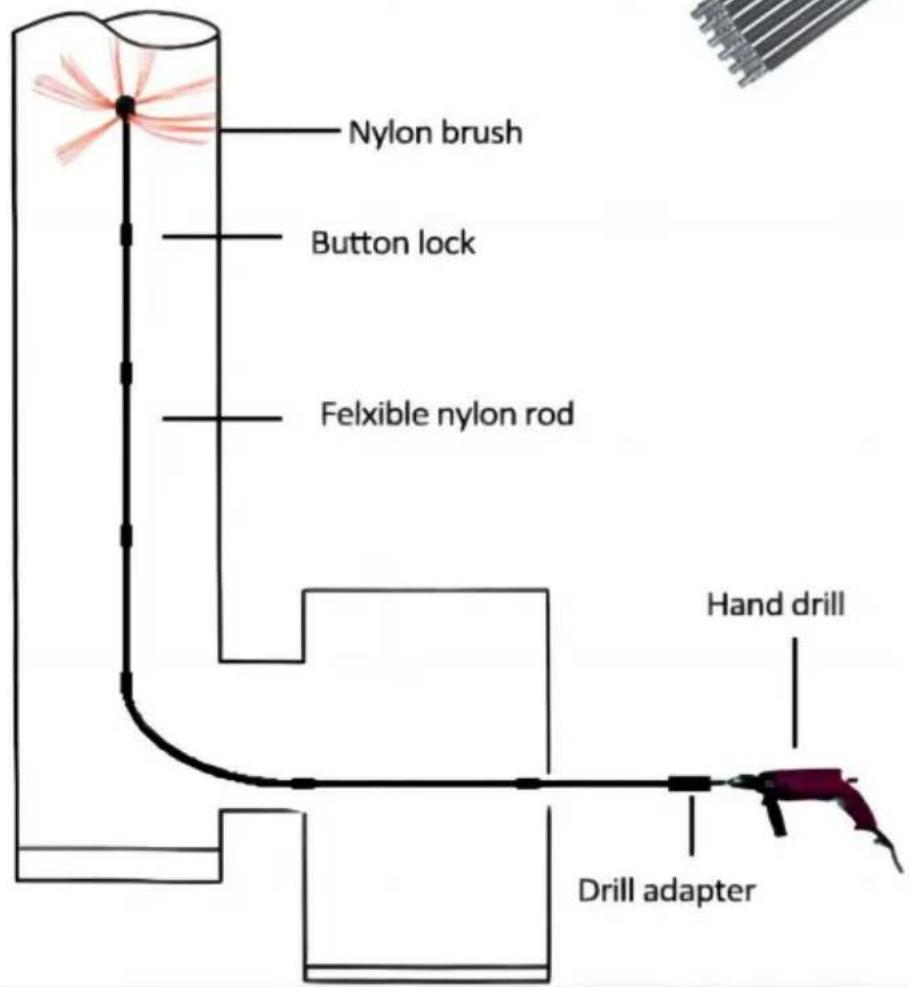

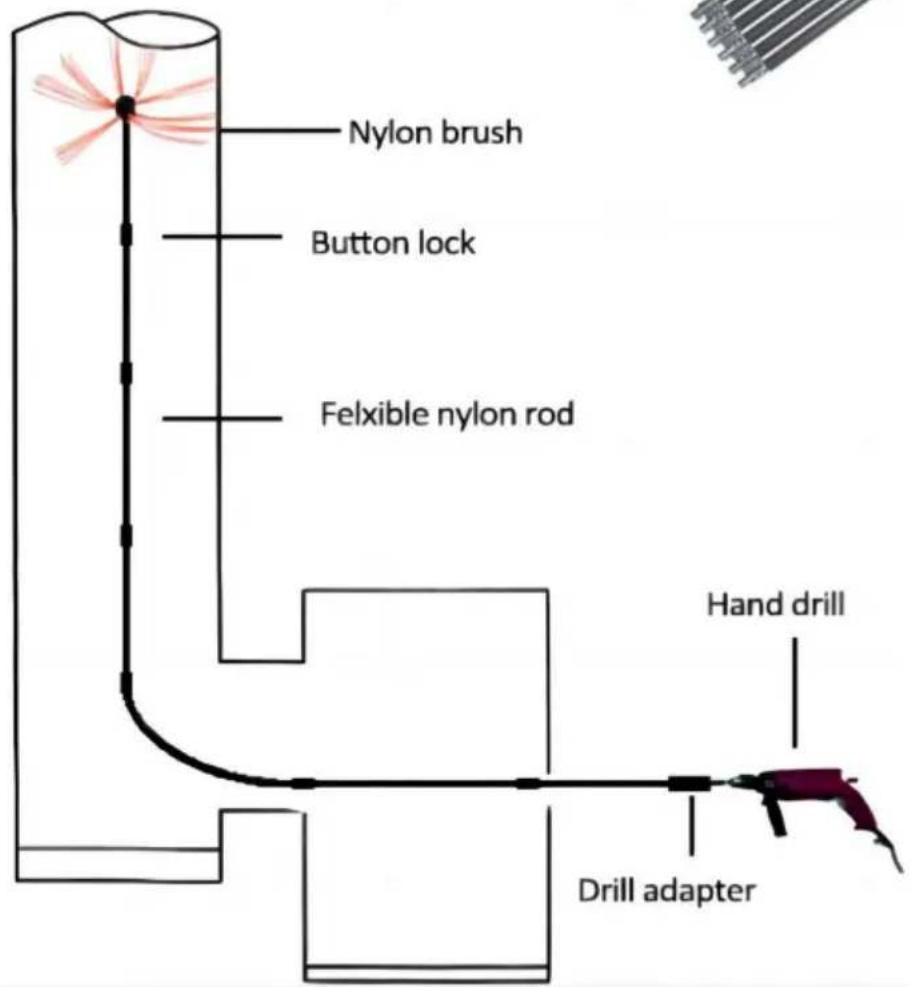

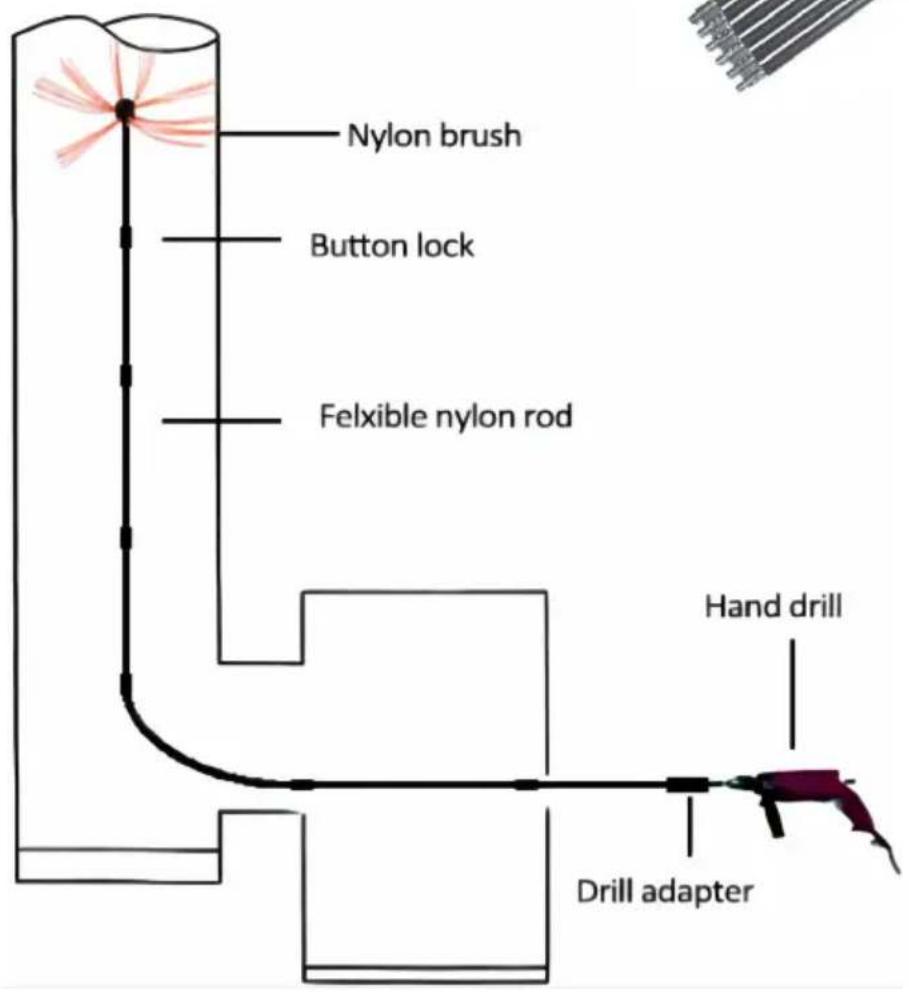

How to use:

1. Connect the rods one by one
   2, Attach the bristle with rods
2. Put the brush into the flue.
   4, Slide the rod into the flue.
   5, Attached the drill with rod
   6, Start cleaning the chimney

Illustration of a multi-wire electrical connector with a pin and terminal socket, accompanied by a separate diagram showing a star-like structure (no text or symbols)

STORAGE

Store the chimney brush in a cool, dry place.

APPLICATION

This chimney cleaning tool can effectively sweep away soot and creos buildup inside the chimney or on the roof to help prevent flue fires.

• The chimney brush is suitable for flues of various shapes and size clean other difficult-to-reach areas quickly&easily.
• When the chimney is cleaned, the air enters the chimney more sm which can help burn more completely in the fireplace and make the warmer in winter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Assorted cleaning and anti-poaching tools including gloves, brushes, and protective gear arranged on a white surface (no text or symbols visible)

Illustration of a multi-wire antenna with a star-shaped antenna and a small antenna (no text or symbols)

STOCKAGE

A/S YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Assorted cleaning and anti-poaching tools including gloves, brushes, and protective gear arranged on a white surface (no text or symbols visible)

Illustration of a multi-wire antenna with a star-shaped antenna and a small antenna (no text or symbols)

LAGERUNG

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

Assorted cleaning and anti-poaching tools including gloves, brushes, and protective gear arranged on a white surface (no text or symbols visible)

Illustration of a multi-wire antenna with a star-shaped antenna and a small antenna (no text or symbols)

MAGAZZINAGGIO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames, Surrey, TW184AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Assorted cleaning and anti-poaching tools including gloves, brushes, and protective gear arranged on a white surface (no text or symbols visible)

Illustration of a multi-wire antenna with a star-shaped antenna and a small antenna (no text or symbols)

ALMACENAMIENTO

Casa, London Road, Staines-upon-Thames, Surrey,

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Assorted cleaning and anti-poison supplies including gloves, tools, and protective gear arranged on a white surface (no text or symbols visible)

Illustration of a multi-wire antenna with a star-shaped antenna and a small antenna (no text or symbols)

SKŁADOWANIE

C/O YH Consulting Limited Biuro 147, Centurion

Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Assorted cleaning and anti-poison supplies including gloves, tools, and protective gear arranged on a white surface (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Product display of a multi-wire cable with a star-shaped connector and a small mechanical component (no text or symbols visible)

OPSLAG

C/O YH Consulting Limited Kantoor 147, Centurion Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

BORDRIV SKORSTEN SOPBORSTE

MODELL: CB07 / CB08 / CB09 / CB10 / CB12

Assorted cleaning and anti-poison supplies including gloves, tools, and protective gear arranged on a white surface (no text or symbols visible)

Illustration of a multi-wire antenna with a star-shaped antenna and a small antenna (no text or symbols)

LAGRING

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
