B3502 - Shower stool Vevor - Free user manual and instructions

Product Type	Shower Stool
Brand	Vevor
Model	B3502
Maximum Load Capacity	330 kg
Product Dimensions (L x W x H)	485 x 288 x 465 mm
Net Weight	4.03 kg
Seat Material	Reinforced Plastic
Height-Adjustable Legs	Stainless Steel with Rubber Tips
Number of Legs	4
Assembly Type	Requires assembly with screws and Allen key supplied
Main Functions	Stable seating for shower, storage under seat
Care and Cleaning	Wipe with a soft damp cloth; dry after use
Safety	Do not use as step stool; do not exceed load capacity; inspect before each use
Spare parts and repairability	Replacement legs and screws supplied; seals and tips available
Warranty	Technical support via www.vevor.com/support

Frequently Asked Questions - B3502 Vevor

What is the maximum weight supported by the B3502 stool?

The Vevor B3502 shower stool supports up to 330 kg.

Is the stool delivered assembled?

No, it requires simple assembly. Assembly instructions and tools (Allen key) are included.

How to adjust the height of the legs?

The legs are equipped with height-adjustable rubber tips. Turn them to adjust stability on uneven floors.

What materials are used?

The seat is made of reinforced plastic, the legs are stainless steel with non-slip rubber tips.

How to maintain the shower stool?

Clean regularly with a damp cloth and mild soap. Rinse and dry to prevent limescale marks.

Is the stool stable on tiled floors?

Yes, the rubber tips provide good grip and prevent slipping. You can also adjust the legs to compensate for unevenness.

How long does it take to assemble the stool?

Assembly takes about 15 minutes thanks to clear instructions and provided hardware.

Is there a warranty on this product?

Yes, Vevor offers technical support via www.vevor.com/support. Check the website for warranty details.

Can the stool be used as a step ladder?

No, it is designed only as a seat. Do not stand or jump on it to avoid tipping.

How to check that the stool is properly assembled?

After assembly, check that all screws are tight. Shake the stool gently: it should not wobble. Retighten every 3 months.

USER MANUAL B3502 Vevor

SHOWER STOOL

MODEL: B3500/B3501/B3502/B3503

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

MODEL: B3500/B3501/B3502/B3503

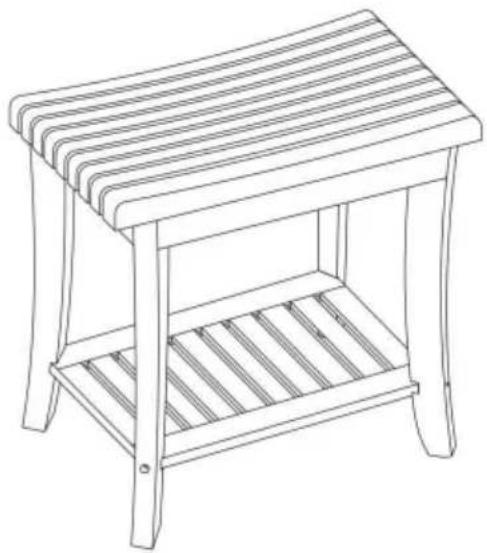

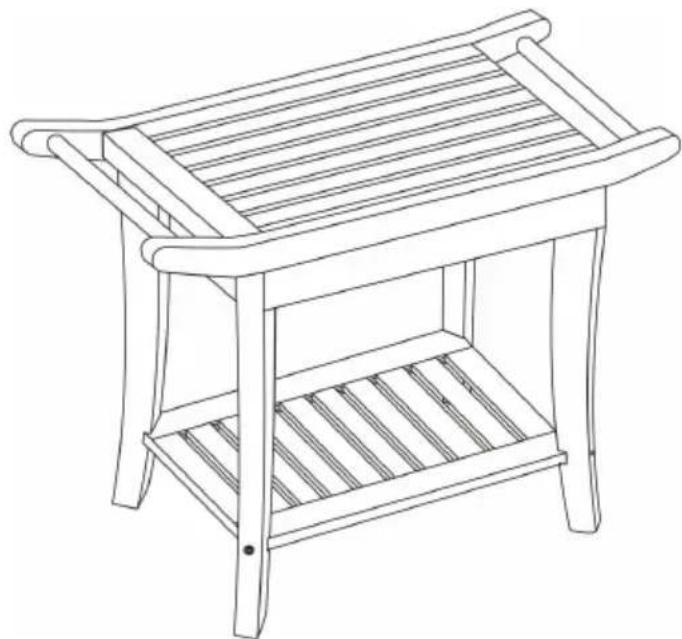

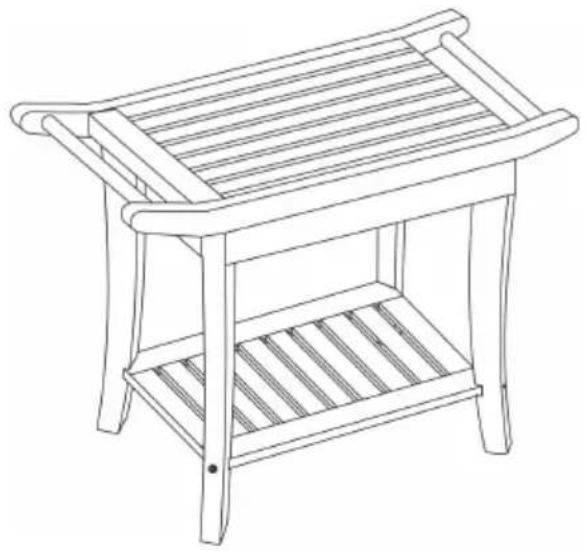

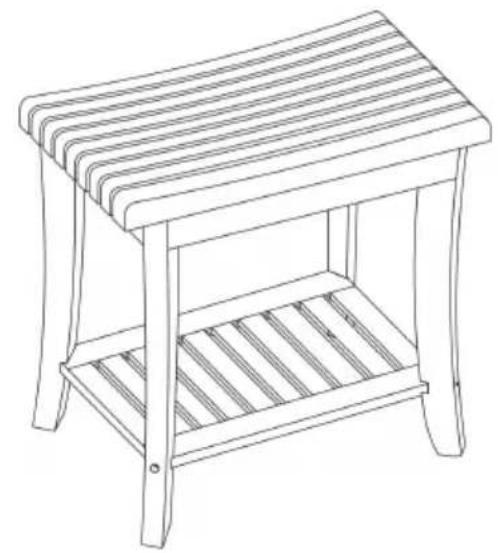

B3501/B3503 B3500/B3502

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PARAMETER LIST

Model	B3500	B3501	B3502	B3503
Maximum load bearing (Ibs)	400	300	330	300
product size(mm) (No adjustable rubber feet)	500*363*455	610*350*480	485*288*465	560*365*470
net weight (kg)	4.6	4.96	4.03	4.65

PART LIST

number	name	picture		quantity(B3500/B3501 /B3502/B3503)
1	thwart	B3501/B3503	B3500/B3502	1
2	shelf			1
3	bench legs			4
4	M6*34hex socket head cap screw			8+ (spare1)
5	M5*29 tapping screw			4+ (spare1)
6	gasket	[ DYH ]		8+ (spare1)
7	Elastomeric gasket	[2/33]		8+ (spare1)
8	L-type Allen wrench			1
9	Adjustable height stainless steel + rubber foot mat			4+ (spare 2)

SECURITY & WARNINGS

ASSEMBLY PRECAUTIONS

1. Assembly needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING

1. This product is not a toy. Please keep the product away from children while assembling.
2. Use as intended only. Do not let children play or jump on the product. Do not stand on the item or use it as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening of the
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTIONS

OPERATION

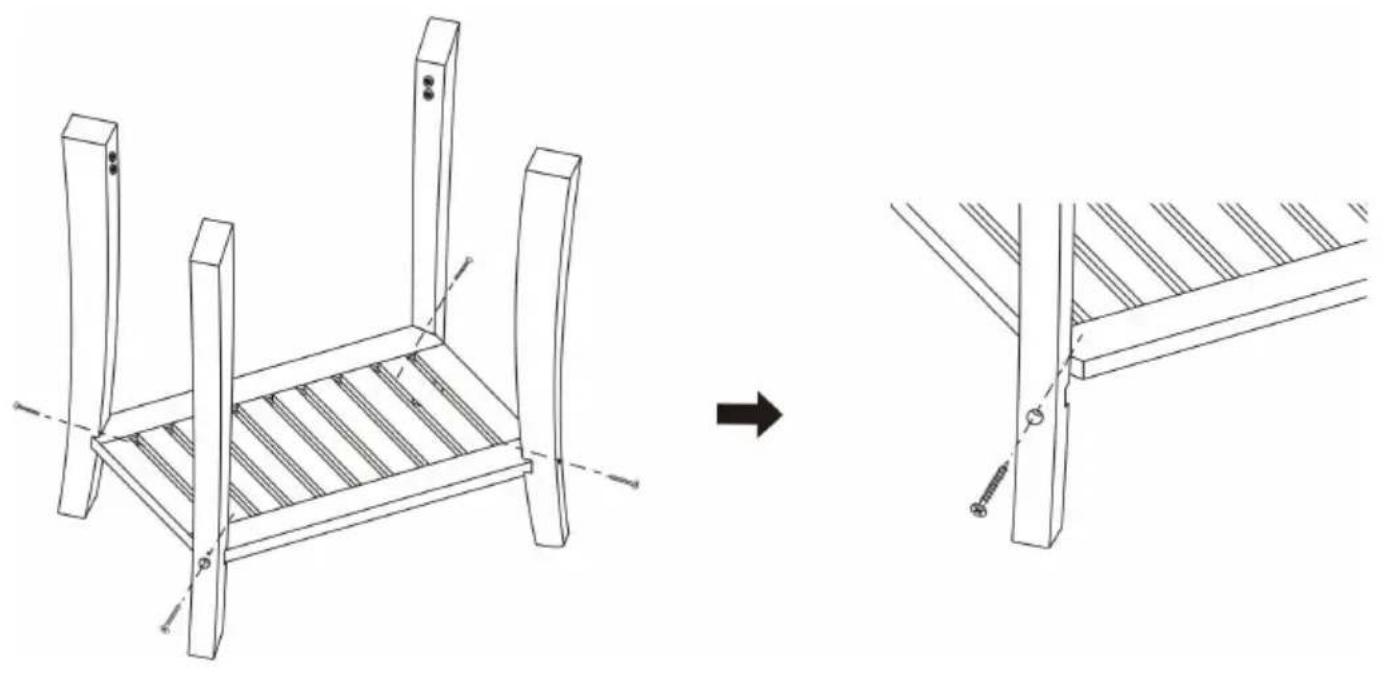

Step 1: Insert the 4 stool legs (3) into the storage board (2) and tighten them with an L-type Allen wrench and 4 self-tapping screws (5) as shown below.

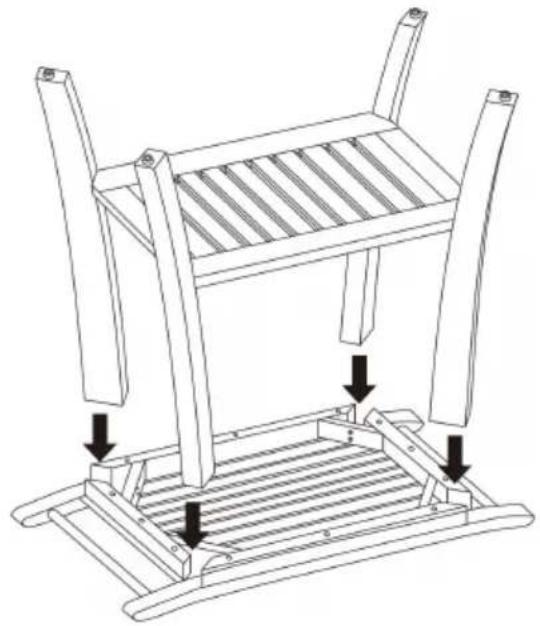

Step 2:

Turn the stool upside down and insert the legs (3) upside down into the bo

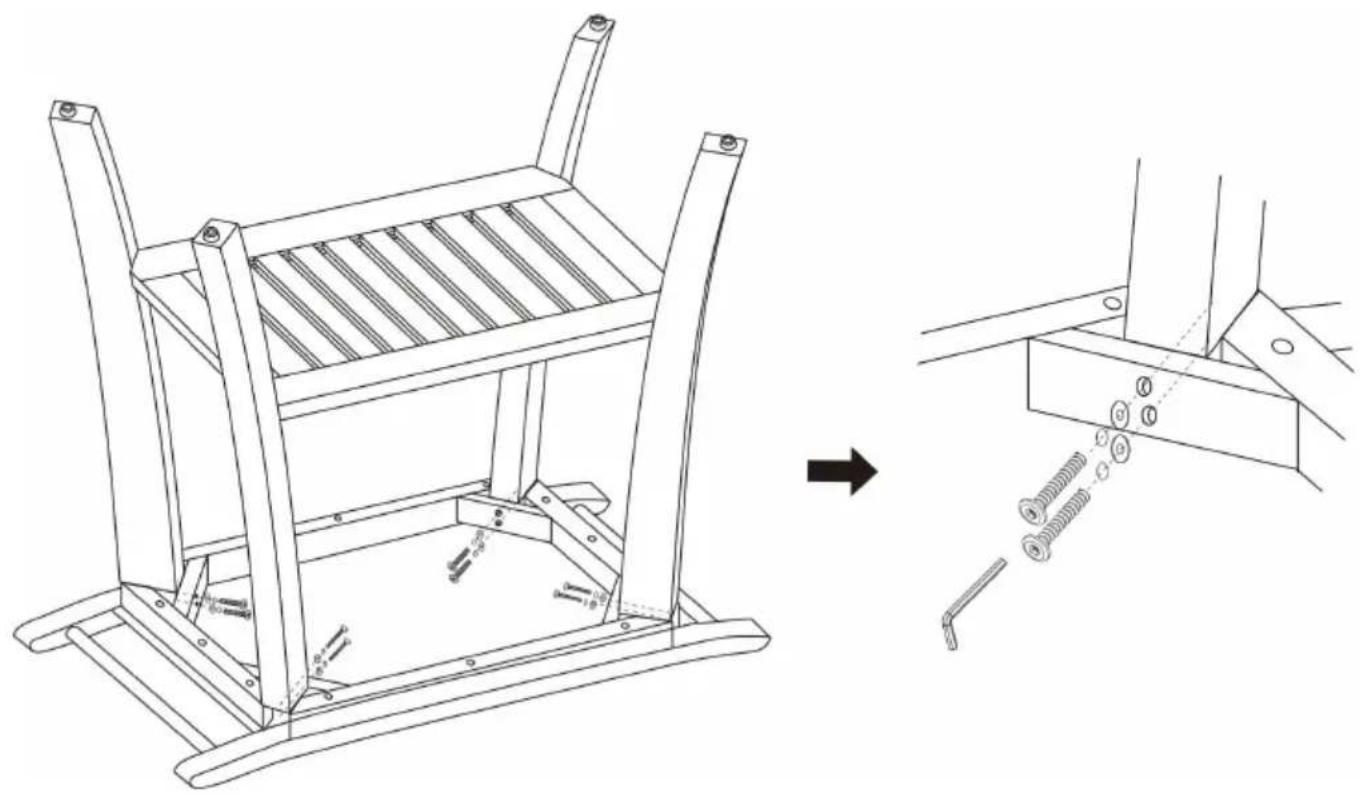

Step 3: Connect 8 M6*34 hex bolts (4), gaskets (6), and ejector (7) to the seat plate (1) and stool leg (3) with an L-shaped hex wrench.

Step 4. Adjustable height stainless steel + rubber foot pads are installed at the bottom of the stool legs.

FINISH
