Product type	Shower stool
Brand	Vevor
Model	B3503
Maximum load capacity	300 kg
Dimensions (L x W x H)	560 x 365 x 470 mm
Net weight	4.65 kg
Frame material	Stainless steel
Seat material	Polypropylene plastic (PP)
Foot caps	Non-slip rubber
Adjustable height	Yes, with adjustable rubber caps
Number of feet	4
Assembly required	Yes, hex key provided
Screws included	8 bolts M6x34 + 4 self-tapping screws M5x29
Gaskets included	8 elastomer gaskets
Tools provided	L-type Allen key
Safety	Do not use as a step stool, do not let children play
Maintenance	Clean with a damp cloth, dry after use
Periodic check	Tighten screws every 3 months
Warranty	Electronic warranty via www.vevor.com/support
Intended use	Shower only, indoor
Spare parts included	Spare screws, gaskets and foot caps
General information	Manual available in multiple languages, online technical support

Frequently Asked Questions - B3503 Vevor

How to assemble the Vevor B3503 shower stool?

Follow the steps in the manual: insert the 4 feet into the storage board, fix them with the self-tapping screws using the Allen key. Then, turn the stool over, fix the seat with the M6x34 hexagon bolts and gaskets, then tighten. Finally, screw the adjustable rubber caps under the feet.

What is the maximum load capacity of the stool?

The maximum load capacity is 300 kg. Never exceed this limit to avoid any risk of tipping or breaking.

How to adjust the height of the feet?

The feet are equipped with adjustable rubber caps. Turn each cap clockwise or counterclockwise to adjust the height and compensate for floor irregularities. Make sure all feet are in full contact with the floor before use.

How to clean and maintain the stool?

Clean the stool with a soft, damp cloth. Use a mild detergent if necessary. Avoid abrasive or corrosive products. Dry thoroughly after each use to prevent rust. Check and tighten screws every 3 months.

Can I use this stool as a step stool?

No, this stool is designed only for sitting in the shower. Never stand on it and do not use it as a step stool, as this could cause serious injury.

What to do if screws are loose?

Use the provided Allen key to tighten the screws. It is recommended to check and tighten all screws every 3 months to ensure stability. Spare screws are included in the package.

Are spare parts included?

Yes, the package contains spare parts: 1 extra M6x34 screw, 1 self-tapping screw M5x29, 1 gasket, 1 elastomer gasket and 2 rubber caps. Refer to the parts list in the manual.

Can the stool be used by a tall person?

Yes, the stool has a seat height of approximately 470 mm and supports up to 300 kg. It is suitable for most adults. However, make sure your feet touch the floor when seated for added safety.

How to contact Vevor customer service?

For any questions or technical support, visit www.vevor.com/support. You will find a contact form, electronic warranty certificate and additional information.

Is the stool stable on a tiled floor?

Yes, the non-slip rubber caps provide good grip on tiled surfaces. Make sure the floor is clean and dry. If the stool wobbles, adjust the adjustable caps for even contact.

USER MANUAL B3503 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHOWER STOOL

MODEL: B3500/B3501/B3502/B3503

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: B3500/B3501/B3502/B3503

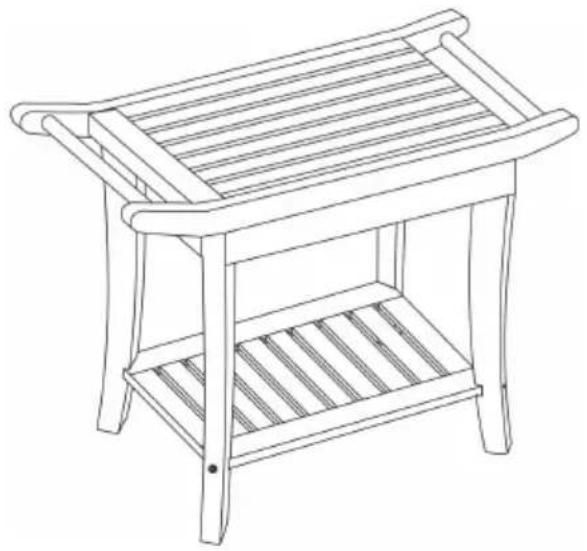

Line drawing of a wooden side table with slatted backrest and side legs (no text or symbols)

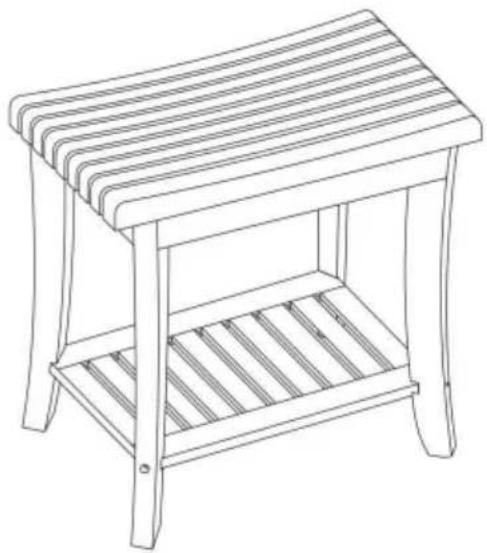

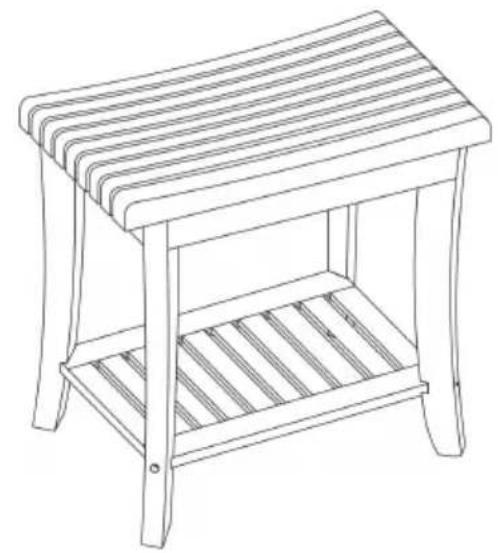

Line drawing of a wooden side table with slatted top and slatted bottom (no text or symbols)

B3501/B3503 B3500/B3502

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Model	B3500	B3501	B3502	B3503
Maximum load bearing (Ibs)	400	300	330	300
product size(mm) (No adjustable rubber feet)	500*363*455	610*350*480	485*288*465	560*365*470
net weight (kg)	4.6	4.96	4.03	4.65

PART LIST

number	name	picture		quantity(B3500/B3501 /B3502/B3503)
1	thwart	B3501/B3503	B3500/B3502	1
2	shelf			1
3	bench legs			4
4	M6*34hex socket head cap screw			8+ (spare1)
5	M5*29 tapping screw			4+ (spare1)
6	gasket			8+ (spare1)
7	Elastomeric gasket			8+ (spare1)
8	L-type Allen wrench			1
9	Adjustable height stainless steel + rubber foot mat			4+ (spare 2)

SECURITY & WARNINGS

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.

2. Wear safety goggles and heavy-duty work gloves during assembly.

3. Do not assemble when tired or when under the influence of alcohol, drug medication.

4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROI TIPPING

1. This product is not a toy. Please keep the product away from children w assembling.
2. Use as intended only. Do not let children play or jump on the product. I stand on the item or use it as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening of the
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTION

OPERATION

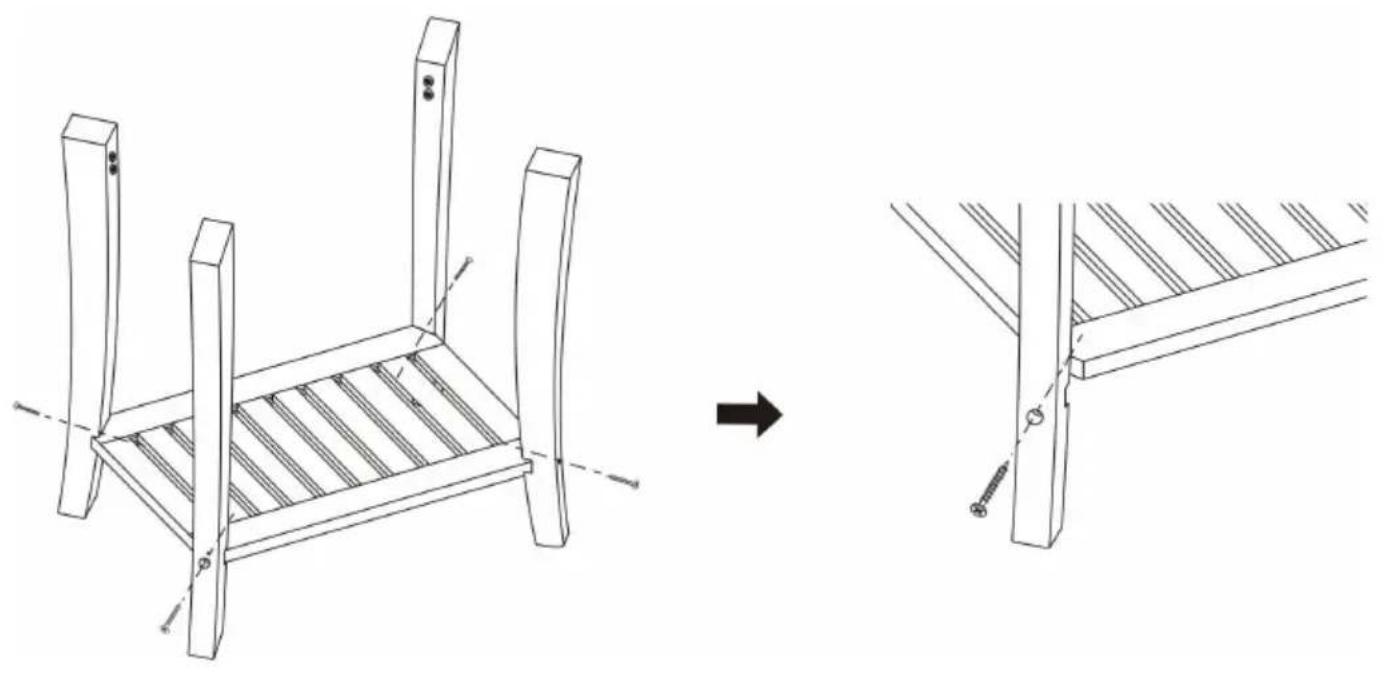

Step 1: Insert the 4 stool legs (3) into the storage board (2) and tighten them with an L-type Allen wrench and 4 self-tapping screws (5) as shown below.

Technical line drawing of a wooden deck structure before and after assembly, showing structural change (no text or symbols)

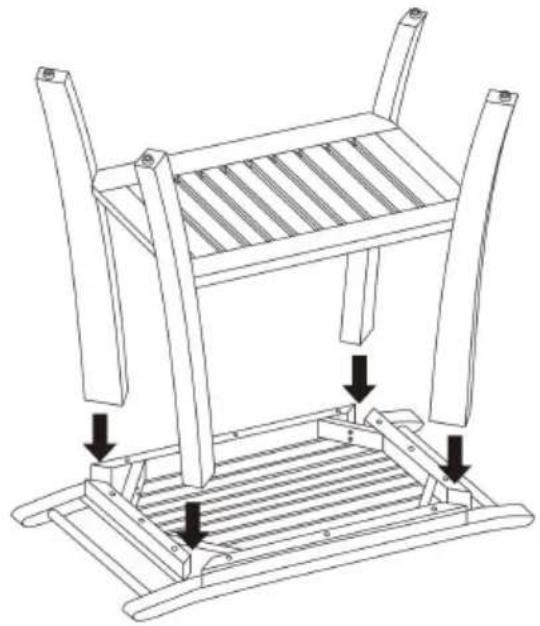

Step 2:

Turn the stool upside down and insert the legs (3) upside down into the bo

Line drawing of a wooden table with slatted backrest and two legs, showing structural supports and a base plate (no text or symbols)

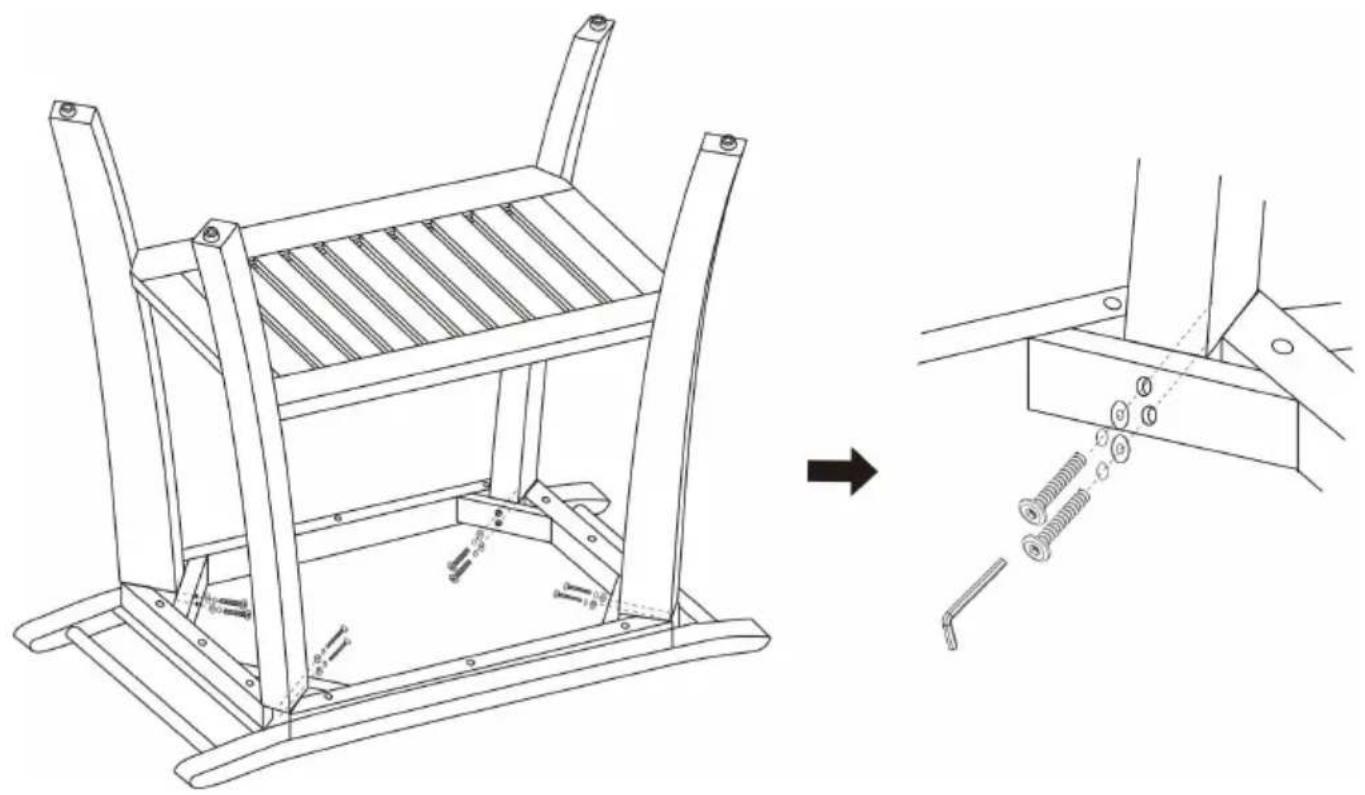

Step 3: Connect 8 M6*34 hex bolts (4), gaskets (6), and ejector (7) to the seat plate (1) and stool leg (3) with an L-shaped hex wrench.

Technical line drawing of a mechanical structure before and after assembly, showing structural components and mounting details (no text or symbols)

Step 4. Adjustable height stainless steel + rubber foot pads are installed at the bottom of the stool legs.

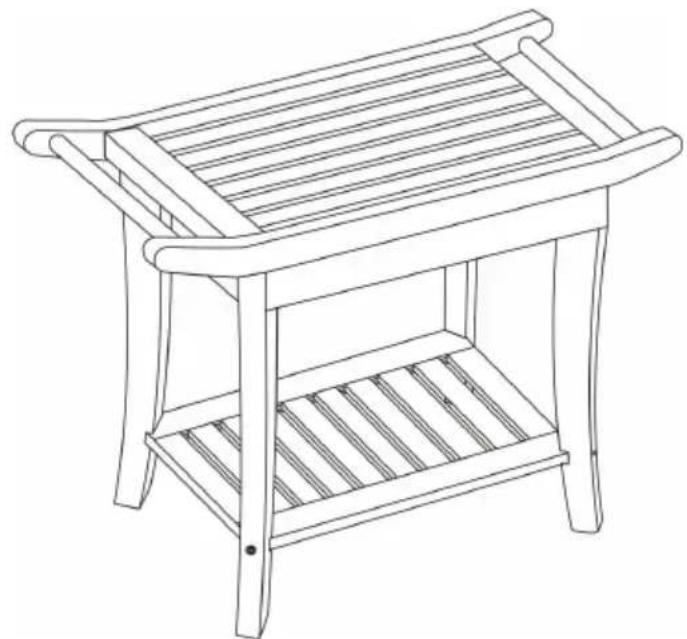

FINISH

Line drawing of a wooden side table with slatted backrest and slatted floor (no text or symbols)
