CB10 - Electric cleaning brush Vevor - Free user manual and instructions

Product Type	Electric Chimney Brush
Brand	Vevor
Model	CB10 (compatible with CB07, CB08, CB09, CB12)
Power Supply	Via drill (24 V or more, 500 W, 350-2000 RPM)
Main Functions	Sweep soot and creosote from flue pipes
Included Accessories	Safety glasses, leather gloves, storage bag, sponge, dust sheet, ash brush, chuck connector, hex key
Safety	Use a drill with auxiliary handle; do not overtighten rods; do not let run without moving; sweep only when cold
Maintenance	Store in a cool, dry place
Application	Fireplaces, stoves, ducts of various shapes and sizes
Manufacturer	Shanghai Muxin Muye Youxian Gongsi, Shanghai, China
EU Importer	E-CrossStu GmbH, Frankfurt am Main, Germany
UK Importer	YH CONSULTING LIMITED
Australia Importer	SIHAO PTY LTD
USA Importer	Sanven Technology Ltd
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - CB10 Vevor

Which drill to use with the CB10 brush?

Use a professional drill with safety handle, with power of at least 500 W, voltage 24 V or more (AC or DC), and a speed range of 350 to 2000 RPM.

How to connect the brush rods?

Connect the rods one by one by screwing them, keeping them as straight as possible. Then attach the brush to the end and the chuck to the drill.

Can the brush be used on a hot chimney?

No, perform sweeping only when the stove and chimney are completely cooled to avoid any risk of burns or fire.

What accessories are included with the CB10 model?

Safety glasses, leather gloves, storage bag, sponge, dust sheet, ash brush, chuck connector and hex key.

How to maintain the chimney brush?

After use, clean the brush with a sponge, let it dry and store it in a cool, dry place to prevent rust.

Is the CB10 brush compatible with all duct diameters?

The brush fits various duct shapes and sizes, thanks to its flexible bristles. For very large diameters, check that the brush head is suitable.

What to do if the rods get stuck in the chimney?

Do not force. Stop the drill, disconnect it and gently rotate the rods by hand to free them. If necessary, remove the rods one by one.

Can the brush be used without a drill?

No, the brush is designed to be driven by a drill. Manual use is not effective and could damage the kit.

Where to find the complete user manual?

The manual is available for free download on notice-facile.com for the Vevor CB10 model. You can also contact support via www.vevor.com/support.

What is the warranty for the Vevor CB10 brush?

Vevor offers an electronic warranty. Please register your product at www.vevor.com/support to obtain the warranty certificate.

USER MANUAL CB10 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CB07 / CB08 / CB09 / CB10 / CB12

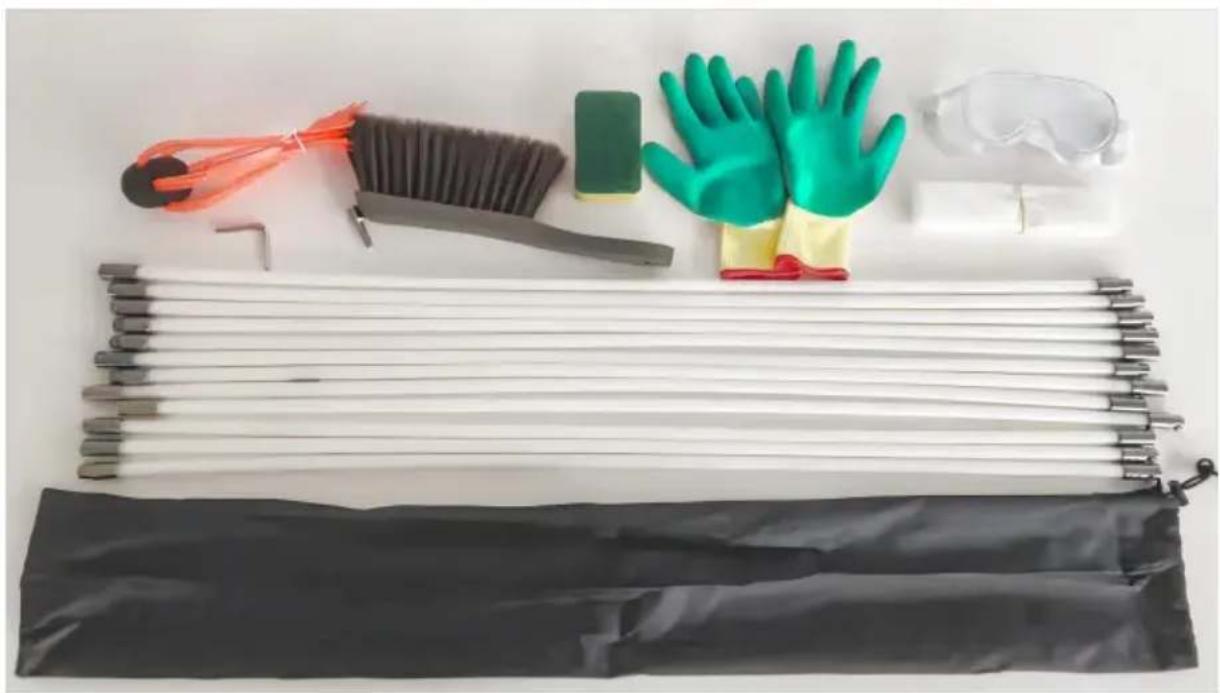

Assorted cleaning and anti-poison supplies including brushes, gloves, safety goggles, and a black tarp (no text or symbols visible)

The picture is for reference only, the number of accessories for each model is slightly different, subject to the actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

model	CB07	CB08	CB09	CB10	CB12
length	23ft/7m	26ft/8m	30ft/9m	33ft/10m	39ft/12m
Single rod length/rod diameter	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter, and the diameter of the rod is 12mm	The length of the single rod is 1 meter, and the diameter of the rod is 12mm
net weight(kg)	1.9	2.1	2.3	2.5	2.8

PART LIST

model	picture	CB07	CB08	CB09	CB10	CB12
Fireplace brush - Pole		7	8	9	10	12

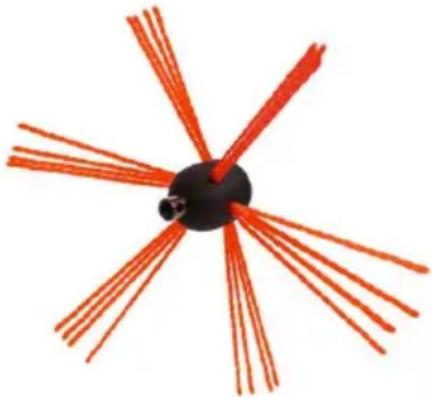

Fireplace brush - Brush head		1	1	1	1	1
Dust goggles		1	1	1	1	1
leather working gloves		1	1	1	1	1
storage bag		1	1	1	1	1
scrub sponge		1	1	1	1	1
Dustproof plastic sheet		1	1	1	1	1
Ash brush		1	1	1	1	1
Chuck connector		1	1	1	1	1
hex wrench		1	1	1	1	1

SECURITY & WARNINGS

In this section, you will find all the important information you need to aware of before engaging in using your chimney brush. Safety should your top priority while using this product.

Please read this information carefully, as improper use could dam the chimney brush.

- Use professional drills for power sweeping with a safety auxiliary handle that will stop the drill immediately when necessary.

- Use drills with a speed range from 350rpm to 2000rpm, 24V or at DC powered drill, or 500W and AC powered drill.

- Use your drill to rotate the chimney brush gradually and evenly, an avoid sudden trigger press, which will cause sudden high torque force to damage the rods and chimney.

- Never grip the rods too tightly; this could pull your gloves off.

- When connecting the rods, keep them as straight as possible.

- Never keep the rods spinning in the chimney if you are not movin

rods up or down, as friction can cause the rods to heat up and break.

- Do the sweeping only when the stove and chimney have cooled down already;

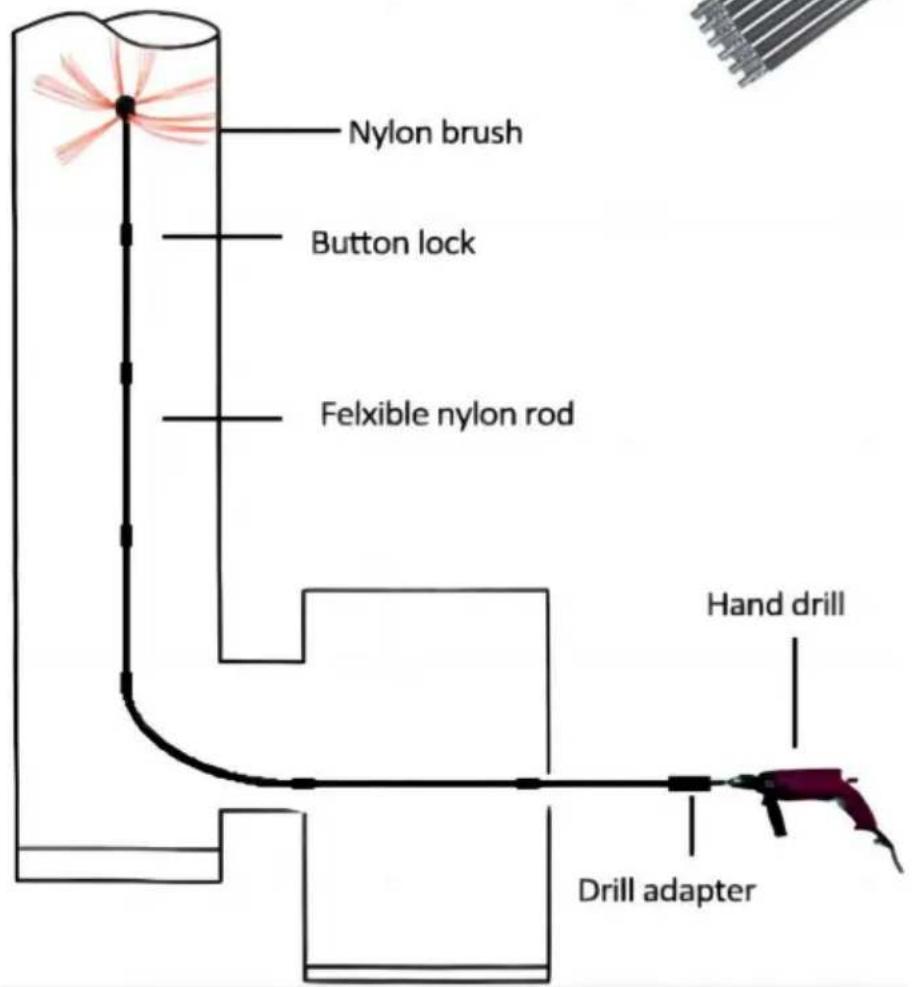

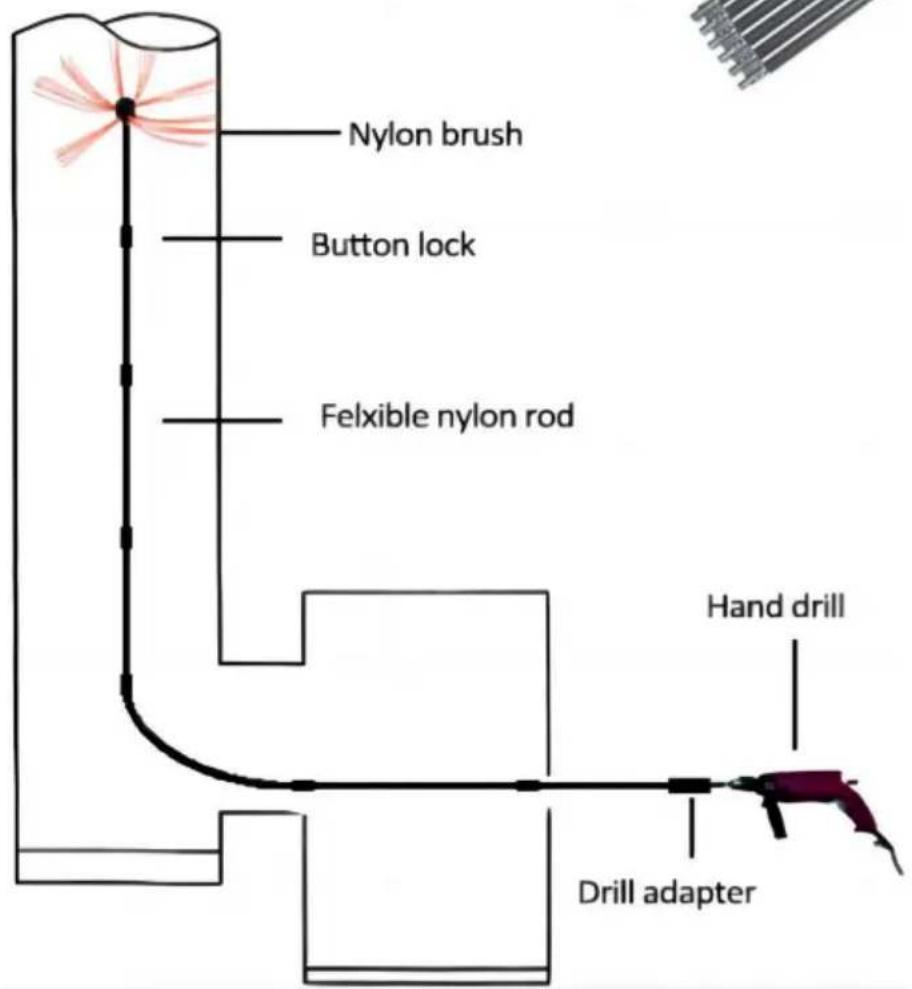

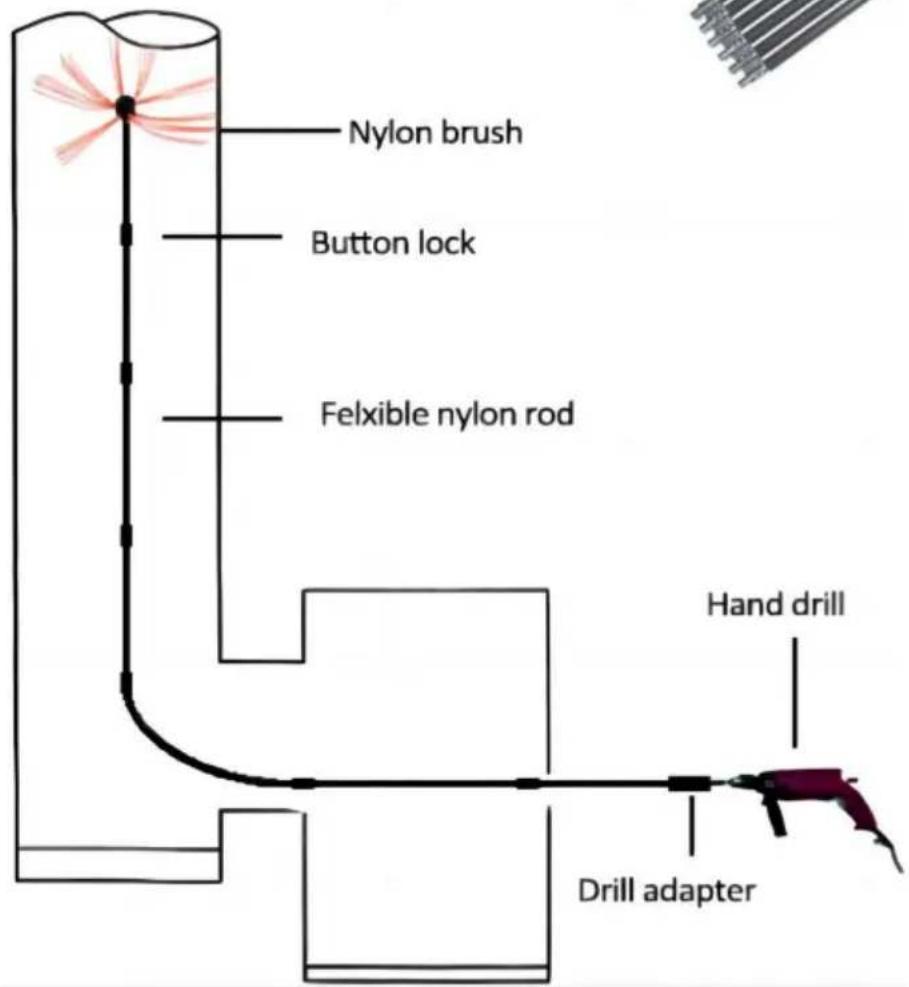

OPERATION

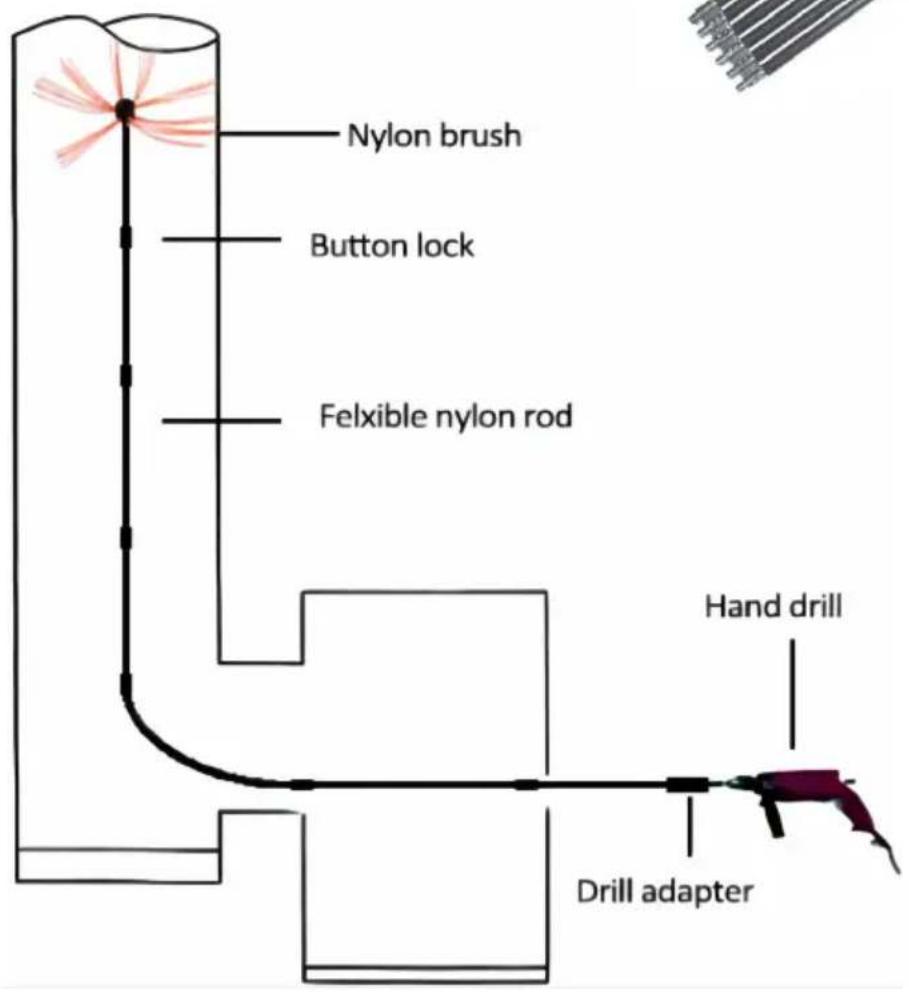

How to use:

1. Connect the rods one by one
   2, Attach the bristle with rods
2. Put the brush into the flue.
   4, Slide the rod into the flue.
   5, Attached the drill with rod
   6, Start cleaning the chimney

Illustration of a multi-wire electrical connector with a pin and terminal, accompanied by a separate diagram showing a star-like structure and a small circular component (no text or symbols)

STORAGE

Store the chimney brush in a cool, dry place.

APPLICATION

This chimney cleaning tool can effectively sweep away soot and creos buildup inside the chimney or on the roof to help prevent flue fires.

• The chimney brush is suitable for flues of various shapes and size clean other difficult-to-reach areas quickly&easily.
• When the chimney is cleaned, the air enters the chimney more sm which can help burn more completely in the fireplace and make the warmer in winter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
