CB07 - Electric rotary brush Vevor - Free user manual and instructions

Product Type	Electric rotary chimney sweeping brush
Brand	Vevor
Model	CB07
Total rod length	7 meters (23 feet)
Individual rod length	1 meter
Rod diameter	12 mm
Package weight	1.9 kg
Power source	Drill-driven (drill not included)
Recommended drill specifications	24 V DC or 230 V AC, 500 W, 350-2000 rpm
Number of sweeping rods included	7
Brush head included	1
Other accessories included	Safety goggles, leather gloves, storage bag, sponge, dust sheet, ash brush, chuck connector, hex key
Rod material	Steel
Application	Cleaning flue pipes, removing soot and creosote
Safety	Use only on cold chimney, use drill with auxiliary handle, do not squeeze trigger abruptly
Maintenance	Store in a cool, dry place after use
Warranty	Technical support and electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
CE Representative	E-CrossStu GmbH, Frankfurt
UK Representative	YH CONSULTING LIMITED

Frequently Asked Questions - CB07 Vevor

Which drill to use with the Vevor CB07 chimney sweeping brush?

Use a drill with a speed range of 350 to 2000 rpm, 24 V or higher (DC or AC) and at least 500 W. A drill with a safety auxiliary handle is recommended for quick stop.

How to assemble the rods of the brush?

Connect the rods one by one by screwing them together. Be careful not to overtighten to avoid damaging the rods. Keep the rods as straight as possible when connecting.

Can I use the brush for an oval-shaped chimney flue?

Yes, the brush is suitable for flues of different shapes and sizes. It is designed to effectively clean soot and creosote.

What should I do if the rod gets stuck in the chimney?

Do not force it. Stop the drill and gently remove the rod. Make sure the chimney is cold and the rods are properly connected. If stuck, contact a professional.

How to clean and maintain the brush after use?

Clean the bristles and rods with a brush or cloth. Store the set in a cool, dry place. Use the provided storage bag.

Is the brush compatible with my cordless drill?

Yes, provided your cordless drill has at least 24 V voltage and adjustable speed between 350 and 2000 rpm.

What accessories are included in the CB07 kit?

The kit includes 7 rods of 1 m, 1 brush head, safety goggles, leather gloves, storage bag, sponge, dust sheet, ash brush, chuck connector, and hex key.

Can I use the brush while the stove is still hot?

No, perform sweeping only when the stove and chimney are completely cool to avoid fire or burn risk.

Is warranty included?

Yes, technical support and electronic warranty certificate are available at www.vevor.com/support. Check the website for details.

How much does the entire kit weigh?

The CB07 kit weighs approximately 1.9 kg.

USER MANUAL CB07 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CB07 / CB08 / CB09 / CB10 / CB12

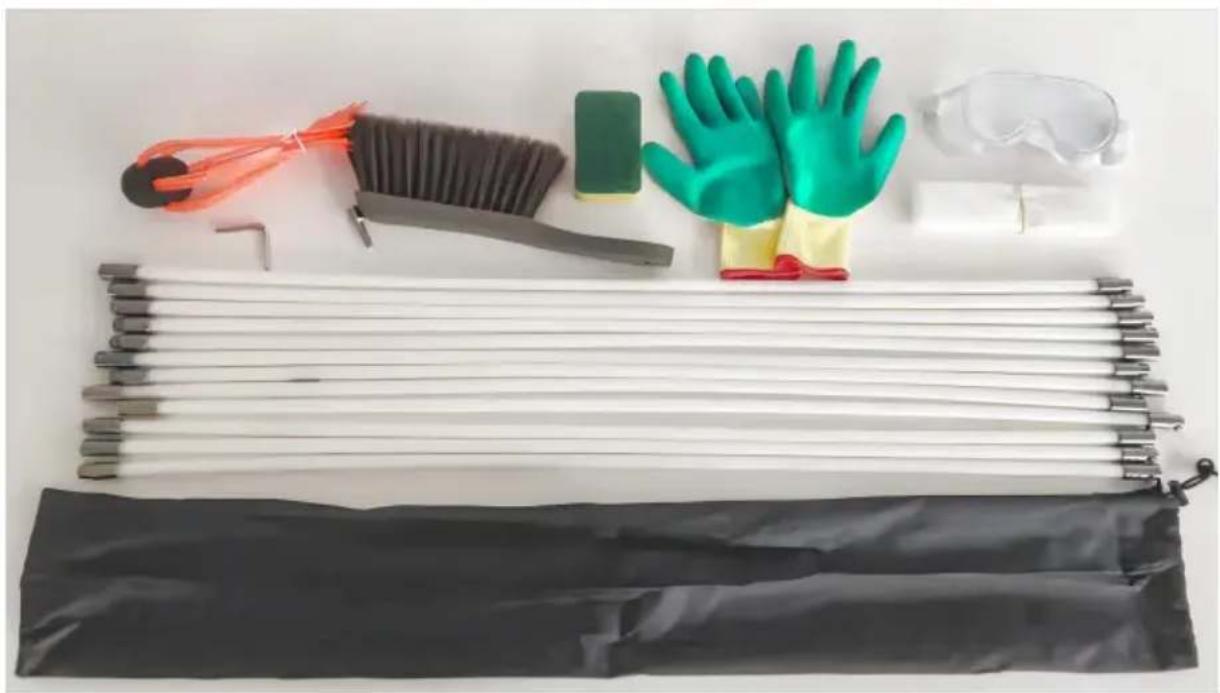

Assorted cleaning and cleaning tools including brooms, gloves, and safety goggles arranged on a white surface (no text or symbols visible)

The picture is for reference only, the number of accessories for each model is slightly different, subject to the actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

model	CB07	CB08	CB09	CB10	CB12
length	23ft/7m	26ft/8m	30ft/9m	33ft/10m	39ft/12m
Single rod length/rod diameter	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter, and the diameter of the rod is 12mm	The length of the single rod is 1 meter, and the diameter of the rod is 12mm
net weight(kg)	1.9	2.1	2.3	2.5	2.8

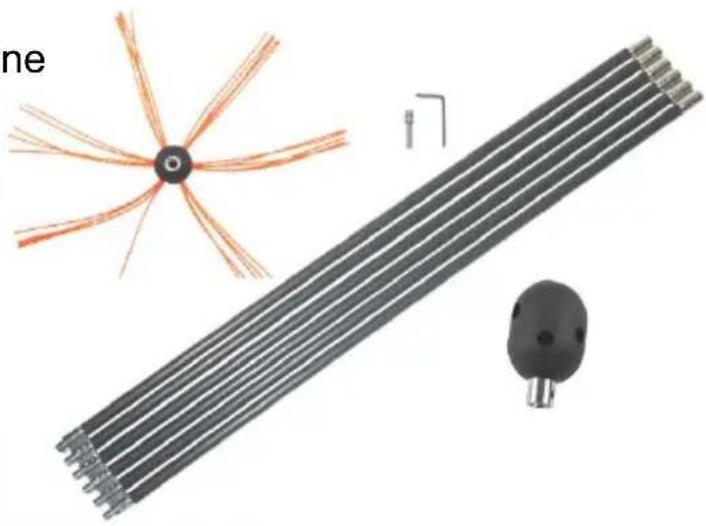

PART LIST

model	picture	CB07	CB08	CB09	CB10	CB12
Fireplace brush - Pole		7	8	9	10	12

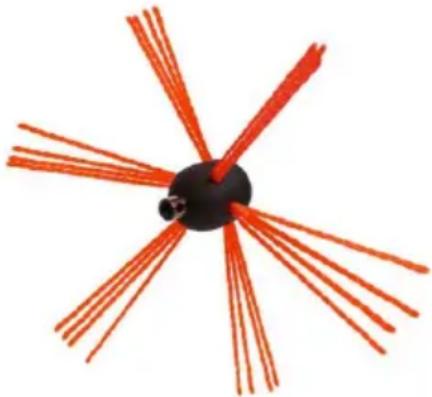

Fireplace brush - Brush head		1	1	1	1	1
Dust goggles		1	1	1	1	1
leather working gloves		1	1	1	1	1
storage bag		1	1	1	1	1
scrub sponge		1	1	1	1	1
Dustproof plastic sheet		1	1	1	1	1
Ash brush		1	1	1	1	1
Chuck connector		1	1	1	1	1
hex wrench		1	1	1	1	1

SECURITY & WARNINGS

In this section, you will find all the important information you need to aware of before engaging in using your chimney brush. Safety should your top priority while using this product.

Please read this information carefully, as improper use could dam the chimney brush.

- Use professional drills for power sweeping with a safety auxiliary handle that will stop the drill immediately when necessary.

- Use drills with a speed range from 350rpm to 2000rpm, 24V or at DC powered drill, or 500W and AC powered drill.

- Use your drill to rotate the chimney brush gradually and evenly, an avoid sudden trigger press, which will cause sudden high torque force to damage the rods and chimney.

- Never grip the rods too tightly; this could pull your gloves off.

- When connecting the rods, keep them as straight as possible.

- Never keep the rods spinning in the chimney if you are not movin

rods up or down, as friction can cause the rods to heat up and break.

- Do the sweeping only when the stove and chimney have cooled down already;

OPERATION

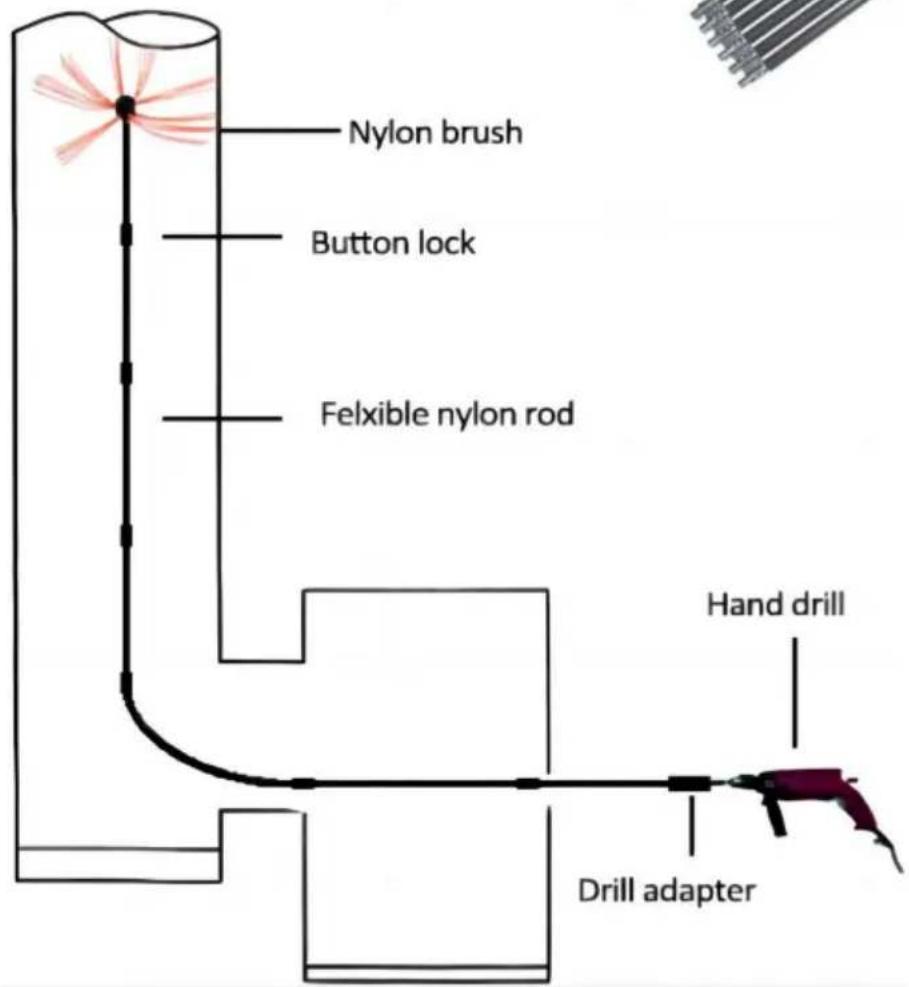

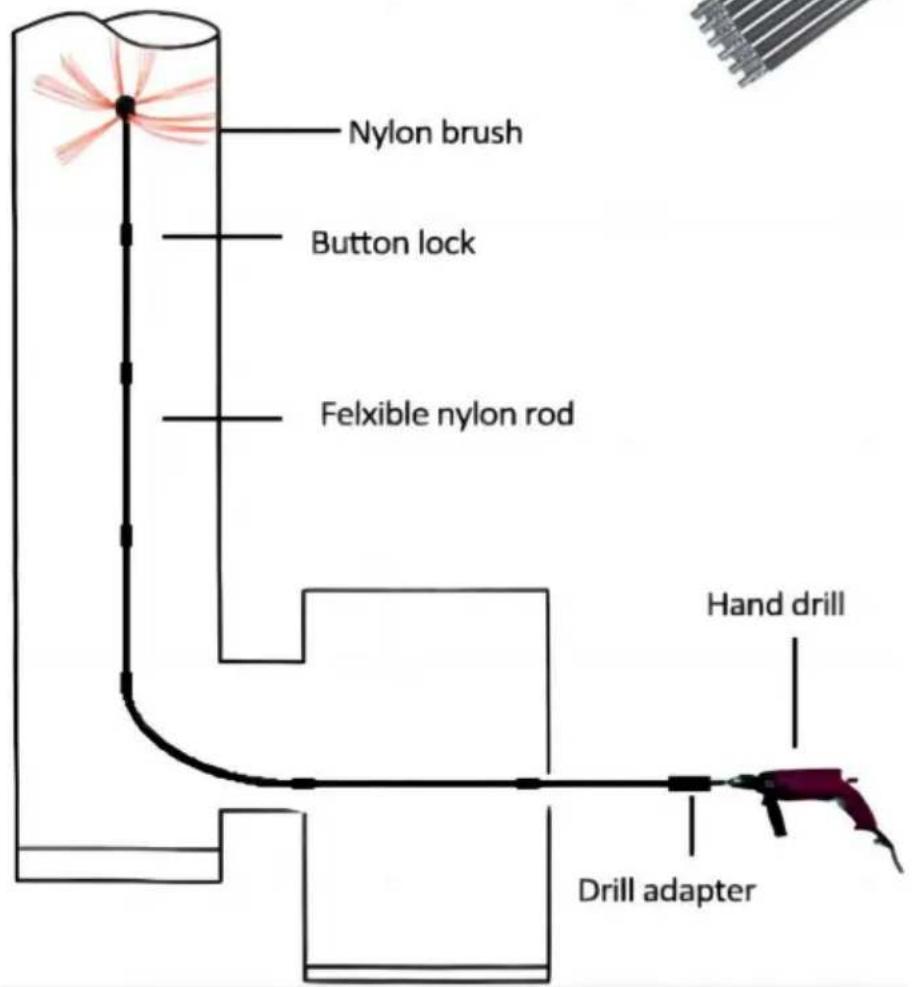

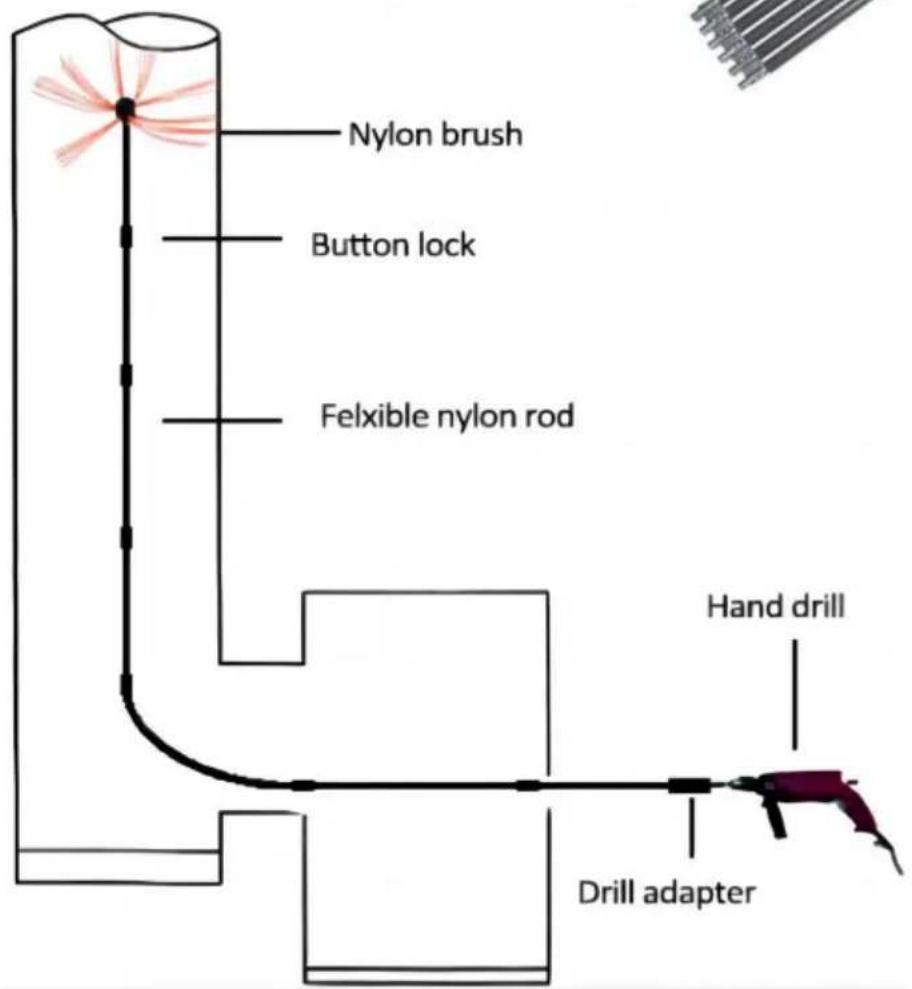

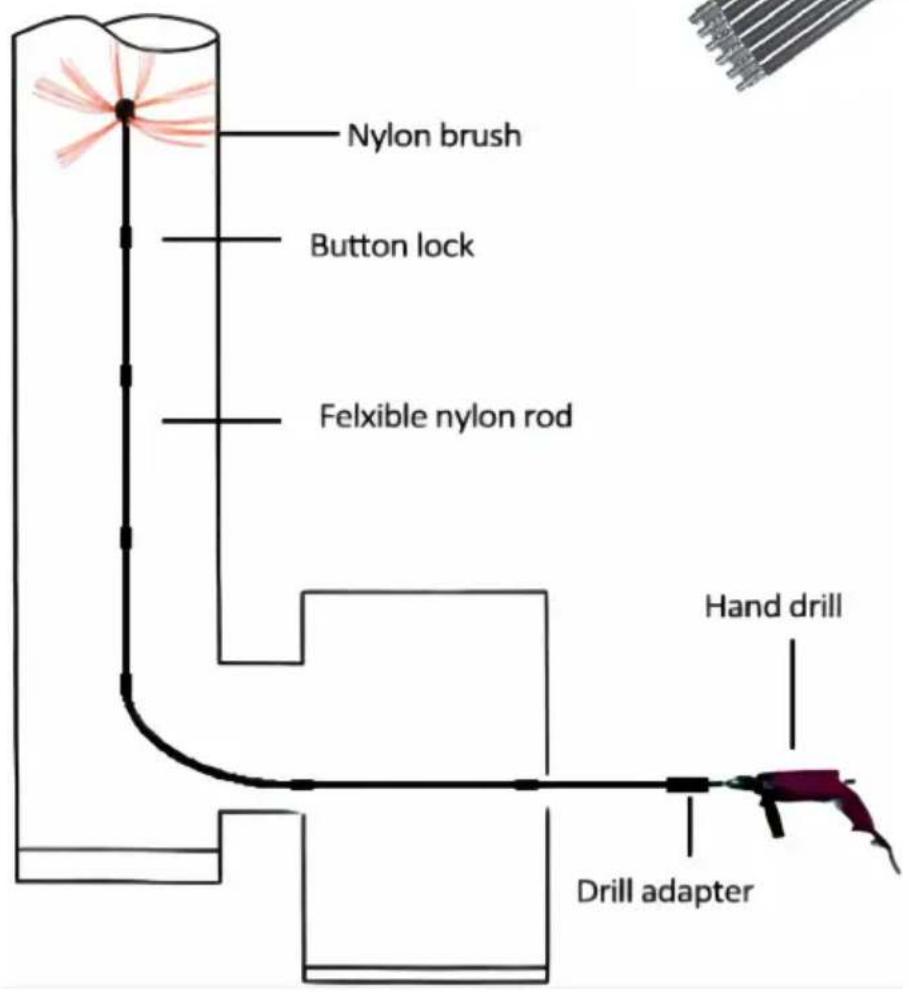

How to use:

1. Connect the rods one by one
   2, Attach the bristle with rods
2. Put the brush into the flue.
   4, Slide the rod into the flue.
   5, Attached the drill with rod
   6, Start cleaning the chimney

Illustration of a multi-wire electrical connector with a pin and terminal, accompanied by a separate diagram showing a star-like structure and a small head (no text or symbols)

STORAGE

Store the chimney brush in a cool, dry place.

APPLICATION

This chimney cleaning tool can effectively sweep away soot and creos buildup inside the chimney or on the roof to help prevent flue fires.

• The chimney brush is suitable for flues of various shapes and size clean other difficult-to-reach areas quickly&easily.
• When the chimney is cleaned, the air enters the chimney more sm which can help burn more completely in the fireplace and make the warmer in winter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
