USER MANUAL 5in-104 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GUTTER GUARD

SERIES: 5in/6in

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

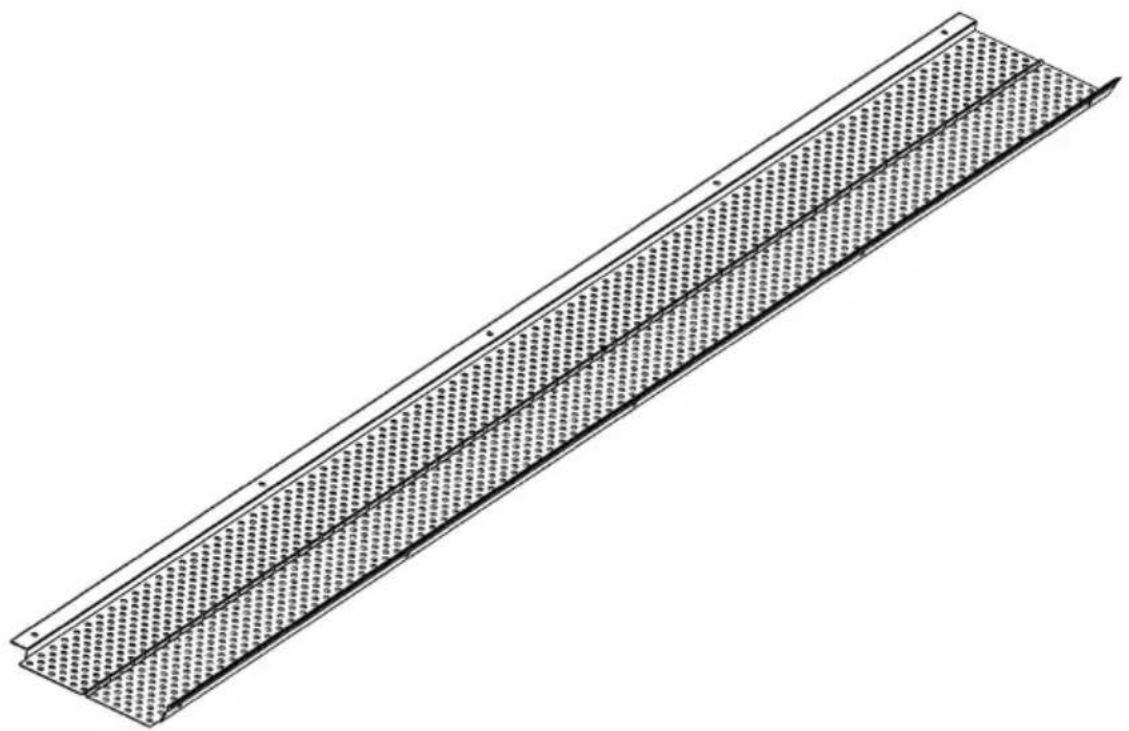

GUTTER GUARD

SERIES:5in/6in

Technical line drawing of a metal grate with uniform perforated fill (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INTRODUCTION

Gutter guards are constructed with mill finish aluminum. It is time-saving in the process of installation and cleaning. DIY cut the length and bend to any shall all hangers, including K-style hangers. A complete set of mounting screws and pre-drilled holes is easily installed on all types of roofs.

KEY FEATURES

Well-worked Guards

Leaf guards are an excellent choice for helping you enjoy the life of no mol cleaning. In addition, gutter covers can avoid being troubled by wet basement and standing water-caused cracked foundations.

Aluminum Alloy Structure

The durable aluminum gutter screens help your gutters withstand the elements year after year and won't rust, corrosion in all seasons and climates.

Easy to Install

Measuring the right size for your gutter, then slide the gutter cover into your gutter, next tabbed the gutter cover one by one, at last, tighten the screws

No Clog Design

Raised vent ridge and perforate surface ensure that the leaves and debris with clog in your gutters. Meanwhile, it has no interference with the roofing structure adjusted the shape of its own.

Away from Noise

Traditional gutter screens and covers are a nesting shelter for wasps, bees, l and rodents. With our gutter covers, your gutter can away from leaves and a breeding.

Wide Application

The gutter brush leaf guard can be used widely, and you can install it on 1 of metal, shingle, and wood at ease.

PRODUCT SPECIFICATIONS

Model	5in- (52 / 104 / 208)	6in- (104 / 208)
Wide	5in	6in
Splice length	52 / 104 / 208	104 / 208
Hole Diameter	0.157" / 4mm	0.157" / 4mm
Hole Arrange	23	29
Pieces	13 / 26 / 52	26 / 52
Pieces Size	5"×48" (127×1220mm)	6"×48" (152×1220mm)
Thickness	0.5mm	0.5mm

TOOLS REQUIRED

1. Zip Screws - 12 inch .
2. Drill or Screwdriver to match zip screws Tin Snips.

METHODS OF INSTALLATION

1. Clean and flush existing gutters and downspouts, reinforce if necessary.

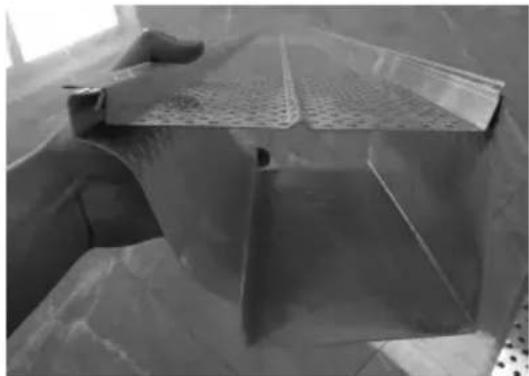

2. Snap in gutter, right side up(refer to photo A)1/8 inch from gutter end ca of A-M Gutter Guard should be laying flat and resting on hangers.

3. Zip screw every 24 inches on outer edge of gutter(screws not required for every hole in guard). Metal roofs in snow states & high wind areas require screwed both into facia board on back and also on front of guard.

4. Snap in next A-M Gutter Guard overlapping1/2 inch and zip screw front a back of overlapped, securing overlapped guards(back flange has no pre-drilled holes).

5. Continue to the end of gutter or miter corner. See instructions below for m 6. All inside corners and concentrated areas require splash guards (refer to ph 3-A). Splash Guards not included and may be purchased at Home Depot (for example).

Close-up of a metallic industrial component with a perforated metal plate and textured base (no visible text or symbols)

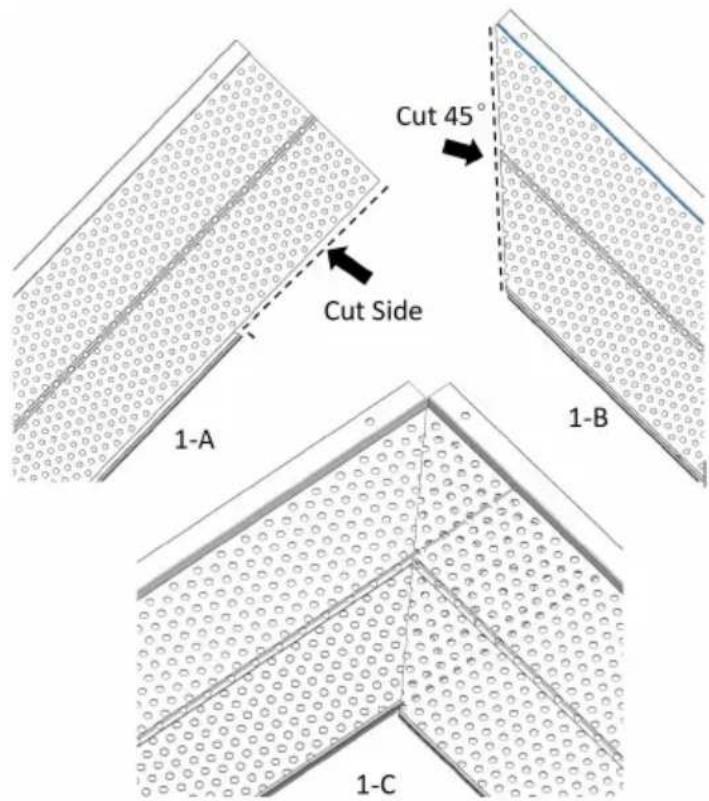

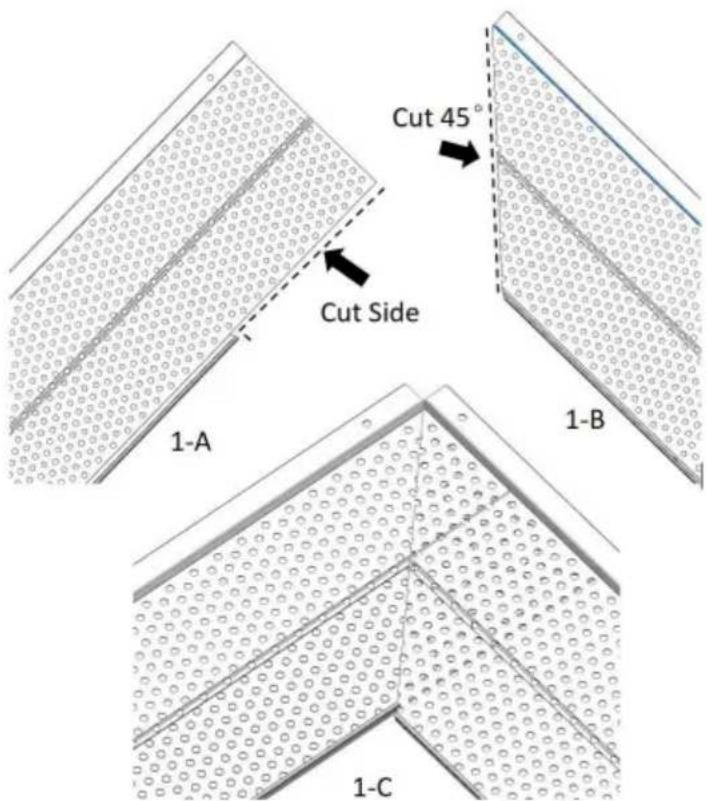

FOR CORNERS, Follow Mitering Instructions(see photos) ● INSIDE CORNER/MITER

Cut 45° Cut Side 1-A 1-B 1-C

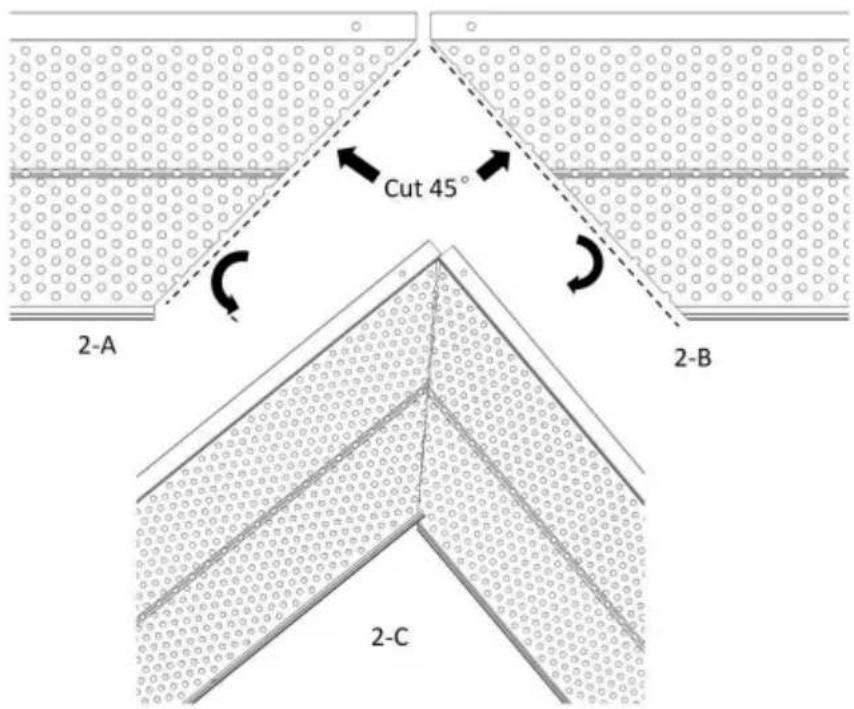

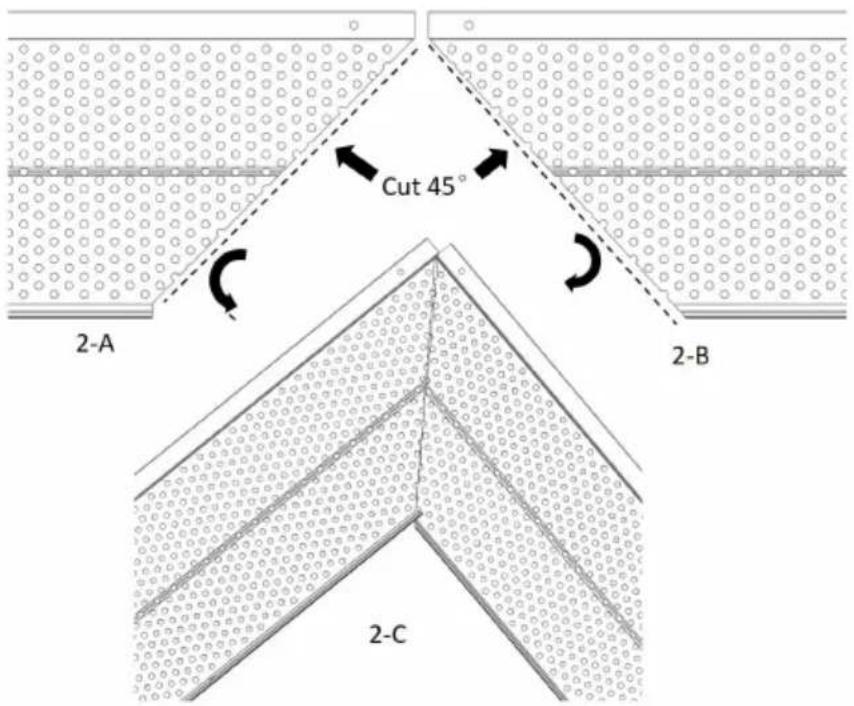

• OUTSIDE CORNER/MITER

Cut 45° 2-A 2-B 2-C

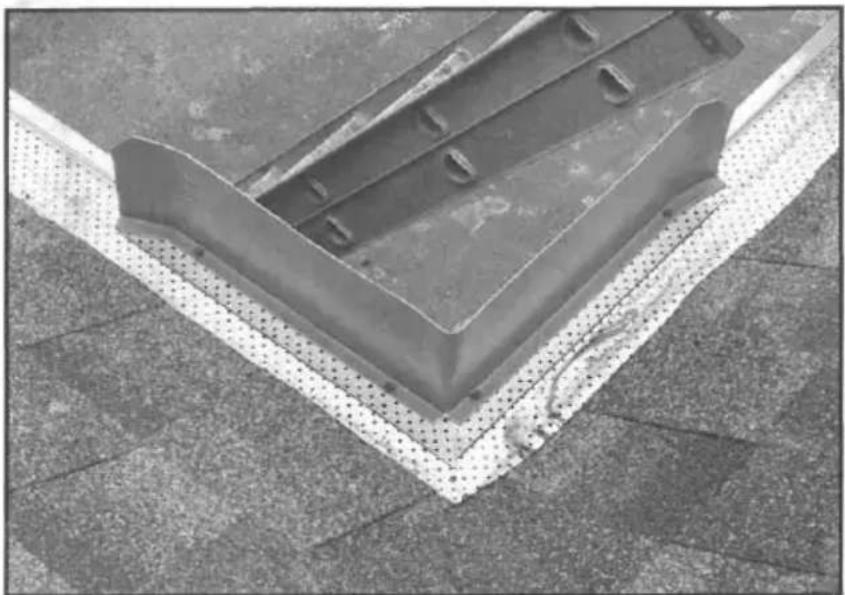

- SPLASH GUARDS

Photo of splash guard on inside corner or concentrated areas.

Close-up of a metal structural component with bolt holes and perforated base, mounted on a textured surface (no text or symbols visible)

photo 3-A

Splash Guards not included. See manufacturers assembly instructions.

5" A-M Gutter Guard

5"

6" A-M Gutter Guard

6"

See other side for installation instructions
