Product Type	Log Grapple
Brand	Vevor
Model	4SC32
Static Load Capacity	1000 kg (2200 lb)
Dynamic Load Capacity	900 kg (2000 lb)
Maximum Gripping Size	710 mm (28 inches)
Color	Orange
Material	Steel
Power Source	None (manual tool)
Main Functions	Grasp, lift, and move logs
Assembly Instructions	Assemble the connecting rod subassembly and the claw subassembly with the pre-assembled screws, leaving a gap to allow flexible rotation.
Safety Instructions	Do not exceed load capacity, wear safety glasses and gloves, use on a flat and stable surface, inspect before each use, do not sit or stand on the tool.
Maintenance and Cleaning	Inspect parts before each use, check that screws are tight, clean with a dry cloth.
Spare Parts	Contact Vevor customer service via www.vevor.com/support
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghai muxinmuyeyouxiangongsi, Shuangchenglu 803 nong 11 hao 1602A-1609 shi, Baoshanqu, Shanghai 200000, China
Technical Support	www.vevor.com/support

Frequently Asked Questions - 4SC32 Vevor

How to assemble the Vevor 4SC32 log grapple?

Assemble the connecting rod subassembly and the claw subassembly with the pre-assembled screws. Do not fully tighten the screws: leave a slight gap to allow the parts to rotate flexibly. Refer to the assembly diagram in the manual.

What is the maximum load capacity of the 4SC32 grapple?

The static load capacity is 1000 kg (2200 lb) and the dynamic capacity is 900 kg (2000 lb). Never exceed these limits.

Can I use a charger or power supply with this tool?

No, the 4SC32 log grapple is a manual tool. No power supply is required or compatible.

How to maintain the log grapple?

Inspect the tool before each use. Check that all screws are tight and parts are not damaged. Clean with a dry cloth. Store in a dry place.

Where can I find spare parts?

Contact Vevor customer service via www.vevor.com/support for spare parts.

Is the grapple suitable for all types of wood?

Yes, it can grip most logs, but respect the maximum gripping size of 710 mm (28 inches) and load limits.

What are the important safety instructions?

Wear safety glasses and work gloves. Use on a flat and stable surface. Do not exceed the load capacity. Do not use if parts are loose or damaged. Keep children away.

Can I use the grapple on uneven terrain?

It is recommended to use the tool only on a flat, level, hard, and smooth surface to ensure stability and safety.

How to contact Vevor customer service?

Go to www.vevor.com/support for technical support and the electronic warranty certificate.

What is the product warranty?

Vevor provides an electronic warranty certificate. Visit www.vevor.com/support for more details on warranty conditions.

USER MANUAL 4SC32 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LOG TONGS

USER MANUAL

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LOG TONGS

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unpack and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Wooden Hall Tree.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

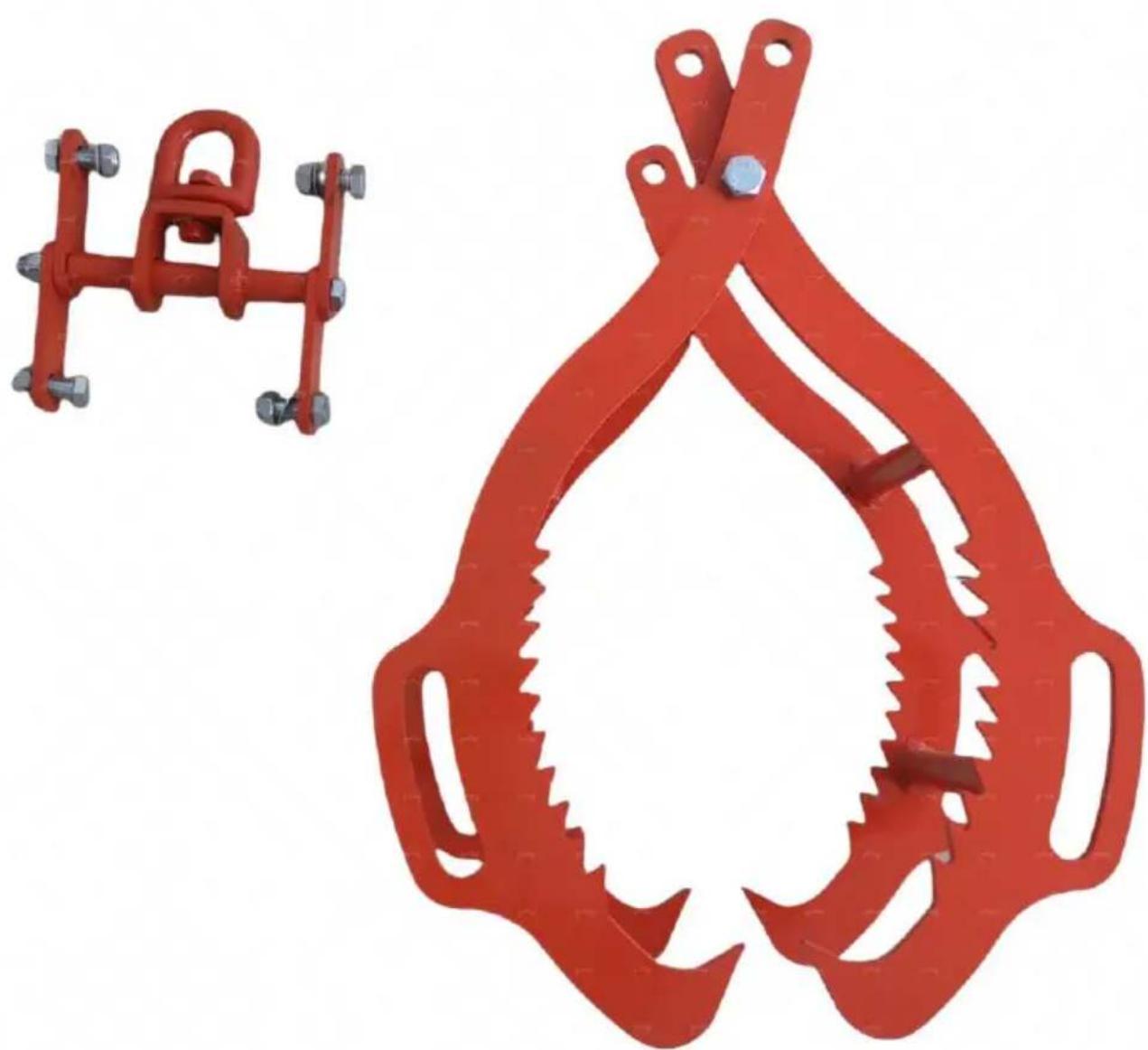

PARTS LIST

Part#	Description	Qty.
1	Connecting Rod subassembly	1
2	Claws subassembly	1

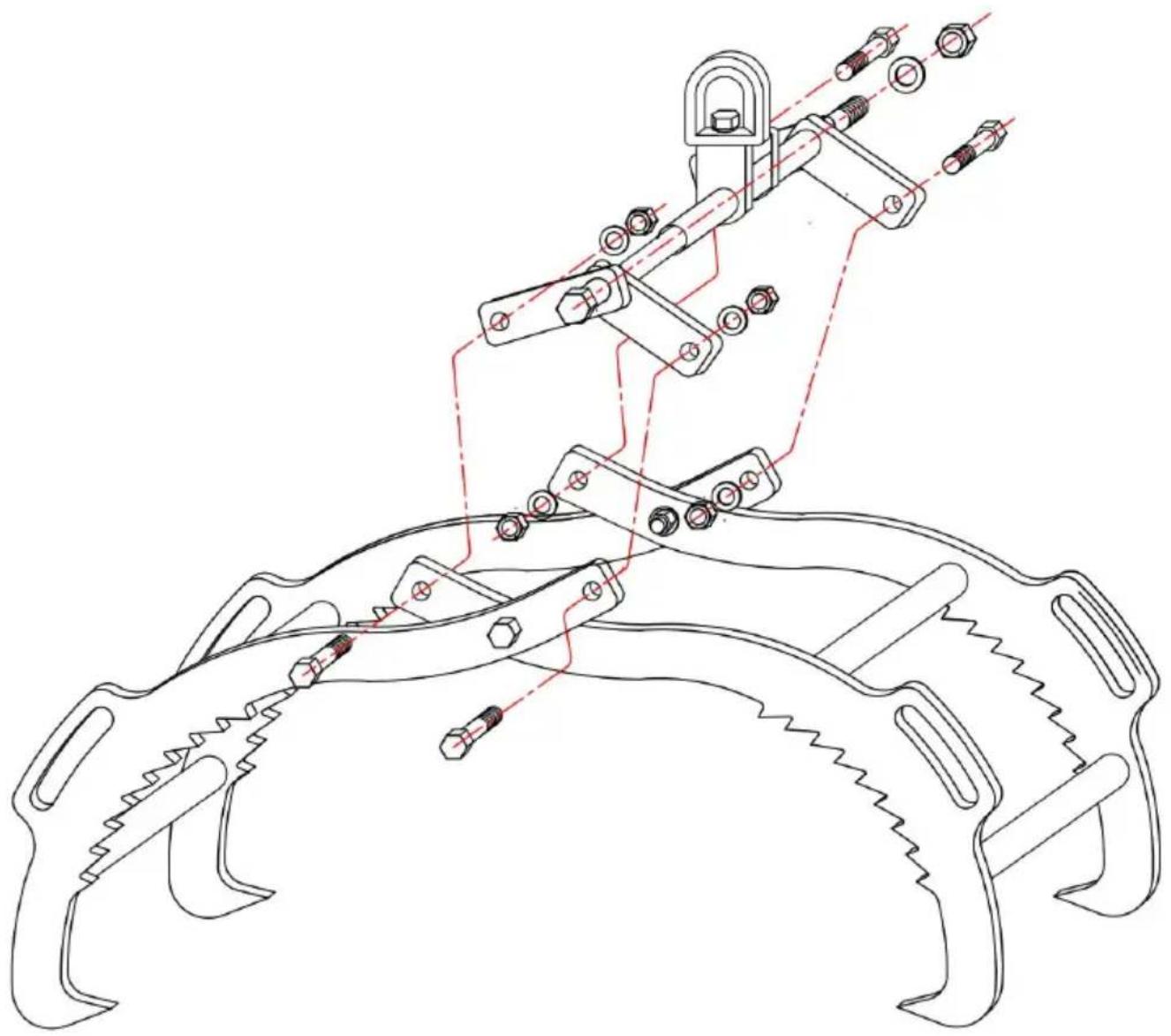

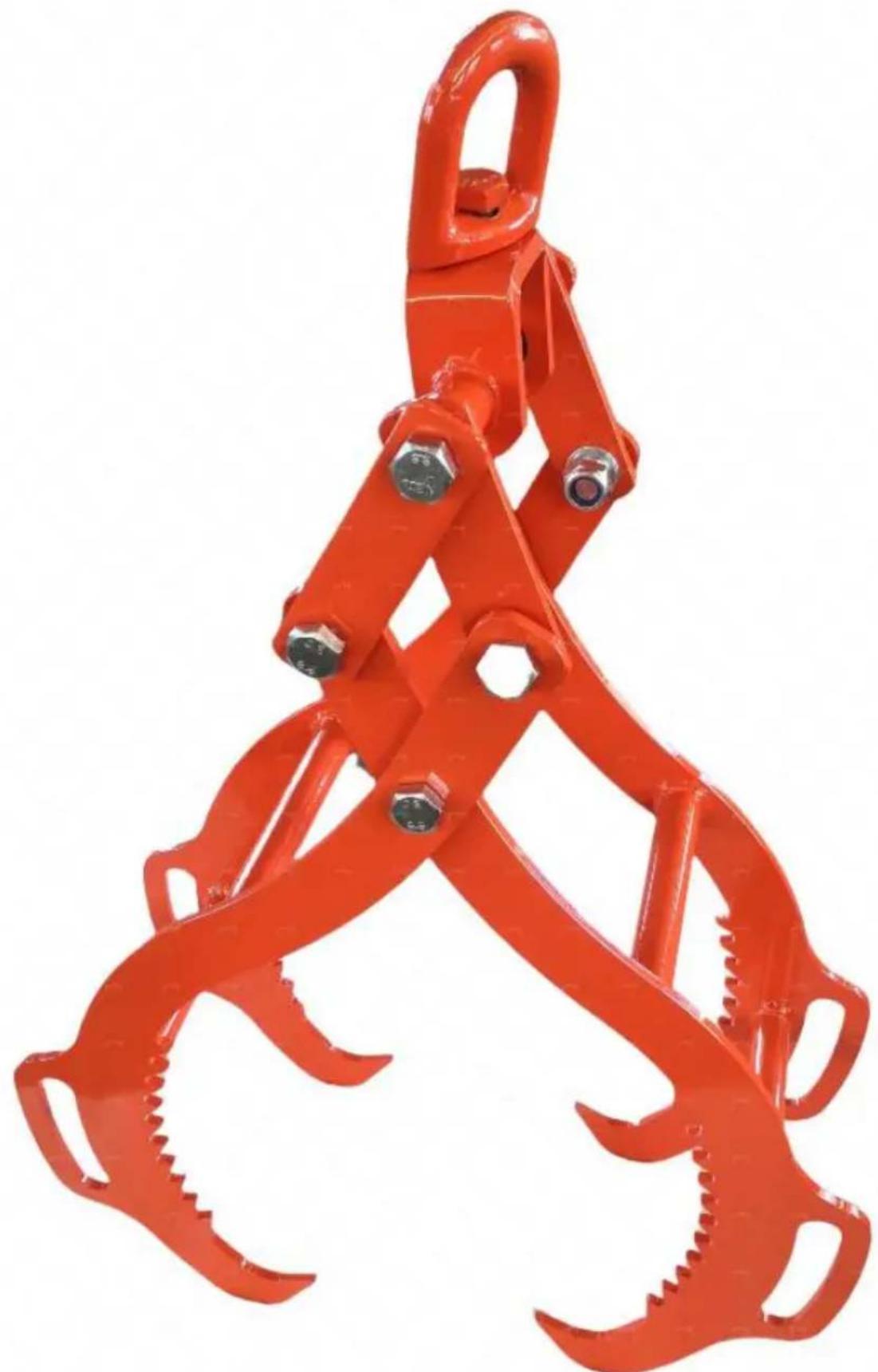

ASSEMBLY STEP

1. All screws are pre-assembled on the parts.
2. Please remove the screws first.
3. Assemble Connecting Rod subassembly and Claws subassembly with the removed screws.

Do not lock all the screws completely, and leave clearance to allow the parts to rotate flexibly.

PRODUCT PARAMETER

Model	4SC28	4SC32	4SC36
Safe Loading Weight (Static)	1000lb(453kg)	2200lb(1000kg)	3300lb(1500kg)
Safe Loading Weight (Dynamic)	800lb(362kg)	2000lb(900kg)	2866lb(1300kg)
Maximum gripping size	24in(609mm)	28in(710mm)	32in(812mm)
Colour	Orange	Orange	Orange

Do not exceed specified weight capacities.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangcheng Road 803 Nong 11 Hao 1602A-1609 Shi, Baoshan District,

Shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH Consulting Limited.

C/O YH Consulting Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW184AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET, EASTWOOD, NSW 2122, Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
