LOG TONGS

Red industrial claw lift with multiple levers and hooks (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soI updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Wooden Hall Tree.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

Two red metal chain linkages: one with a looped arm and the other with a triangular handle (no text or symbols visible)

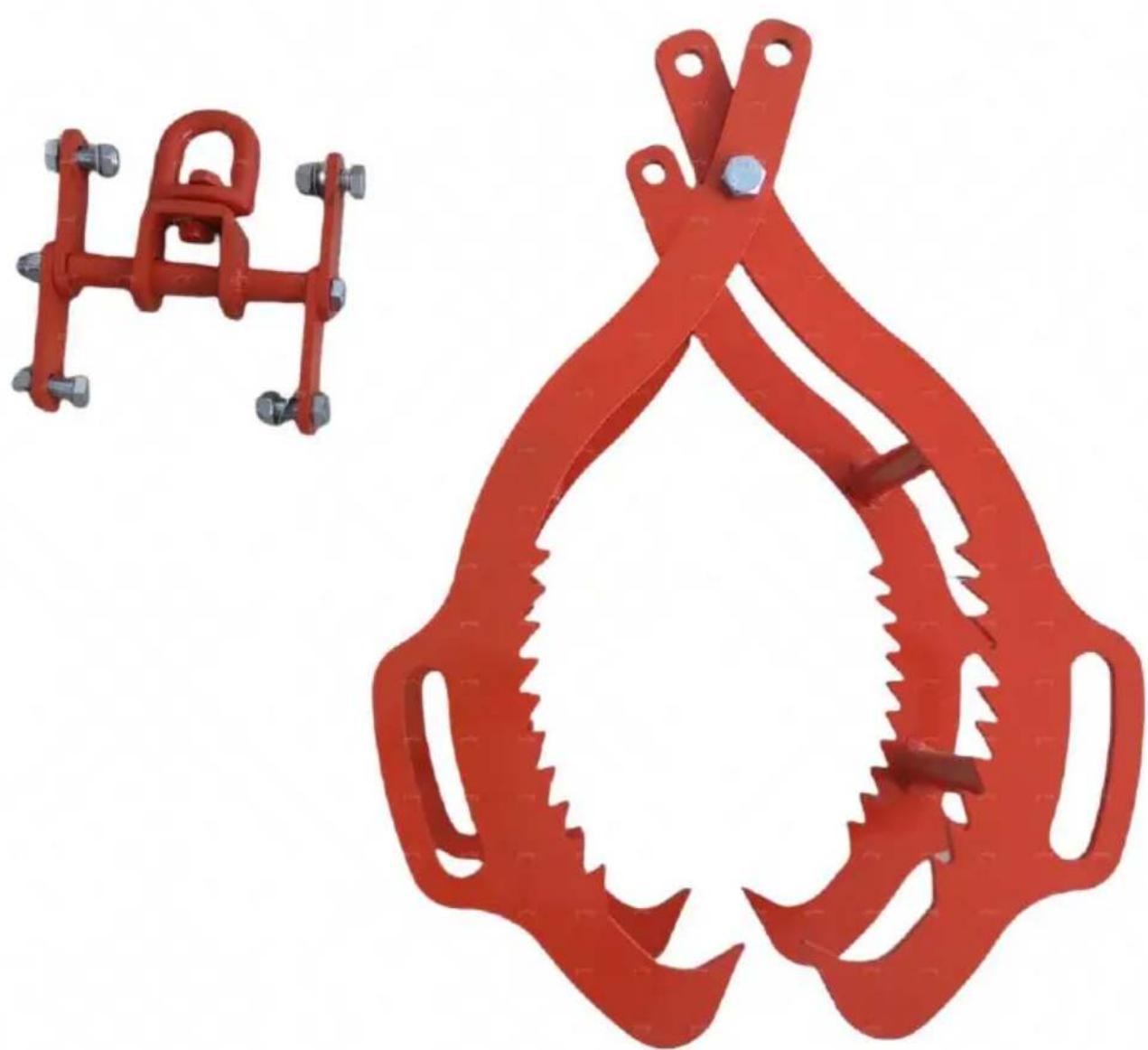

Part#	Description	Qty.
1	Connecting Rod subassembly	1
2	Claws subassembly	1

ASSEMBLY STEP

Technical line drawing of a mechanical assembly with bolts and linkages (no text or symbols)

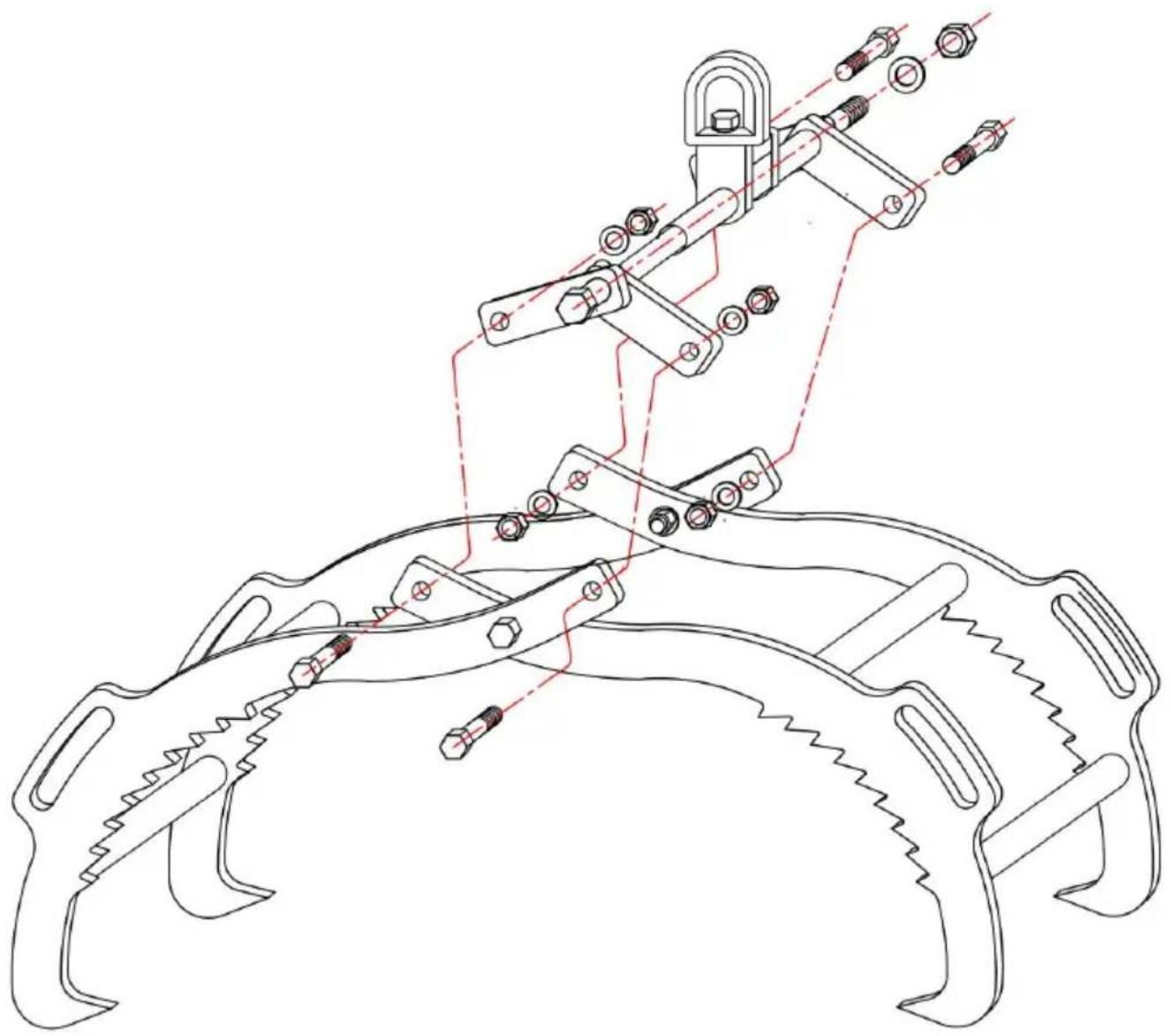

1. All screws are pre-assembled on the parts.
2. Please remove the screws first.
3. Assemble Connecting Rod subassembly and Claws subassembly with the removed screws.

Red industrial claw lift with multiple arms and hooks, no visible text or symbols

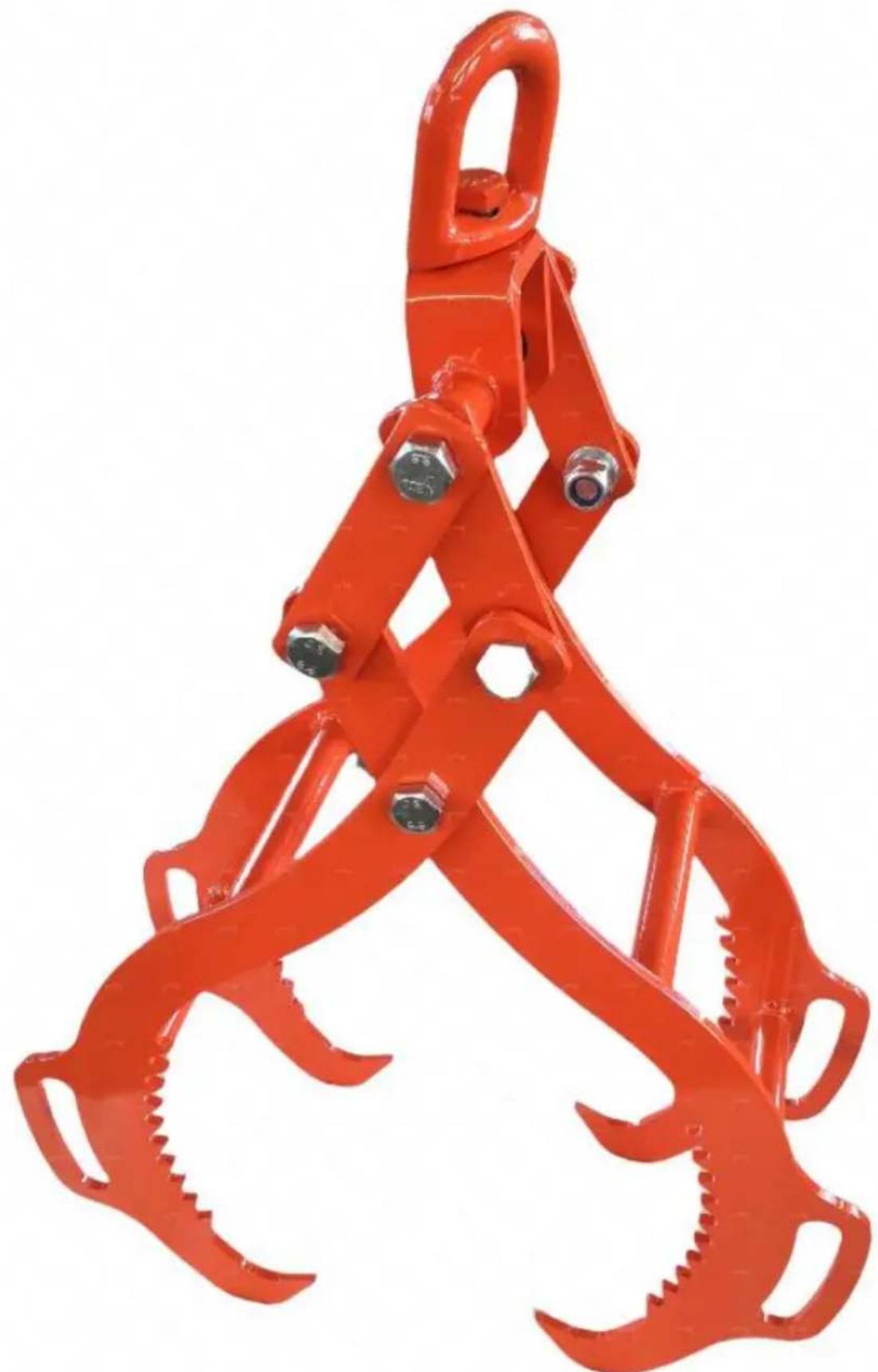

Do not lock all the screws completely, and leave clearance to allow the parts to rotate flexibly.

PRODUCT PARAMETER

Model	4SC28	4SC32	4SC36
Safe Loading Weight (Static)	1000lb(453kg)	2200lb(1000kg)	3300lb(1500kg)
Safe Loading Weight (Dynamic)	800lb(362kg)	2000lb(900kg)	2866lb(1300kg)
Maximum gripping size	24in(609mm)	28in(710mm)	32in(812mm)
Colour	Orange	Orange	Orange

Do not exceed specified weight capacitie

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,

shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
