Model	3PCS-A*6.35mm
Product Type	Router Bit Set
Number of Pieces	3
Shank Diameter	6.35 mm (1/4 inch)
Material	Carbon Steel 45, NT8
Set Composition	1 x ogee stile and rail router bit set (D41.5, H6.35), 1 x ogee stile and rail router bit set (D41.5, H6.35), 1 x ogee raised panel router bit (D63.5, H12)
Intended Use	Woodworking, profiling, grooving, joinery
Safety Instructions	Wear PPE (gloves, goggles); check condition before use; do not use if damaged; keep work area clean and dry; use after professional training
Maintenance	Clean after each use; keep router clean to extend service life
Repairability	Spare parts not specified; contact manufacturer for assistance
Manufacturer	Shanghaimuxinmuyeyouxiangongsi (Shanghai, China)
EU Importer	E-CrossStu GmbH, Mainzer Landstr.69, 60329 Frankfurt am Main
UK Importer	YH CONSULTING LIMITED
Warranty	Electronic warranty certificate available at www.vevor.com/support
Standards	Type P (conforms to safety standards)

Frequently Asked Questions - 3PCS-A*6.35mm Vevor

What types of wood can I work with these router bits?

These router bits are suitable for working with soft and hard woods, such as pine, oak, or walnut. For very hard woods, use a reduced rotation speed to avoid overheating.

Is the 6.35 mm shank universal?

Yes, the shank diameter of 6.35 mm (1/4 inch) is standard and compatible with most routers equipped with a 1/4-inch collet.

How to maintain these router bits to extend their lifespan?

After each use, clean the router bits with a soft brush to remove wood residues. Avoid moisture and store them in a dry place. Lightly lubricate metal parts if necessary.

Can I use these router bits on a handheld router?

Yes, these router bits are designed for use on a handheld or table router, provided the rotation speed is suitable (generally between 10,000 and 24,000 RPM).

What to do if a router bit is damaged?

Never use a damaged router bit. Replace it immediately. Contact VEVOR support via www.vevor.com/support for spare parts or advice.

Are these router bits delivered with a warranty certificate?

Yes, the electronic warranty certificate is available at www.vevor.com/support. Keep the proof of purchase to activate the warranty.

What is the recommended rotation speed?

The speed depends on the bit diameter and wood. As a general rule, for the bits in this set (up to 63.5 mm diameter), use a speed between 10,000 and 18,000 RPM. Consult your router manual.

Can I sharpen these router bits myself?

It is not recommended to sharpen these router bits without specialized tools as this could affect their balance and precision. Prefer replacement or have them sharpened by a professional.

Are the router bits suitable for intensive professional use?

These carbon steel 45 router bits are suitable for semi-professional use. For daily intensive use, opt for tungsten carbide router bits.

How to correctly install a router bit in the router?

Make sure the router is unplugged. Insert the bit shank into the collet until it bottoms out, then back off about 1 mm. Tighten firmly with the wrench. Check that the bit rotates freely.

USER MANUAL 3PCS-A*6.35mm Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

ROUTER BITS USER MANUAL

MODEL:15PCS-A*6.35MM /3PCS-A*6.35MM

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ROUTER BITS

15PCS-A*6.35MM 3PCS-A*6.35MM

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning - To reduce the risk of injury, user must read the manual carefully.

SAFETY NOTICE

WARNING!

1. Before using this product, please read the instructions carefully and understand the specifications.
2. Inspect before every use; do not use if damaged.
3. Keep away from children.
4. When using this product, be sure to wear personal protective equipment such as protective gloves and goggles to prevent accidental injury.
5. When using this product, pay attention to keep the lathe turning tool clear to prolong its service life.
6. When using this product, do not put your fingers or other objects into the turning tool to avoid injury.
7. Please do not use the lathe turning tool head instead of a hammer to strike.
8. Use the product only after receiving professional metalworking training.
9. Ensure that the workspace remains clean, dry, and well-ventilated during operation.
10. Do not use the anvil in flammable, explosive, or damp environments.
11. To reduce the risk of injury when using it, ensure that the lathe turning tool is securely installed and stable to prevent movement or tipping during use.
12. Follow safe operating procedures when using the lathe turning tool, avoiding excessive force or incorrect techniques.

SAVE THESE INSTRUCTIONS

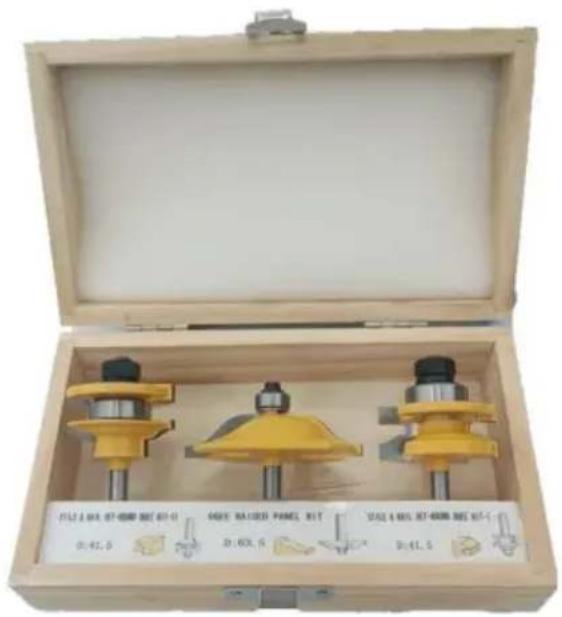

MODEL: 3PCS-A*6.35mm

P-type		L*H*B(mm)	Material
Designation	Quantity
STILE & RAIL SET-OGEE BIT -	1	D41.5 , H6.35	Carbon steel 45,YG8
STILE & RAIL SET-OGEE BIT -	1	D41.5 , H6.35
OGEE RAISED PANEL BIT	1	D63.5 , H12

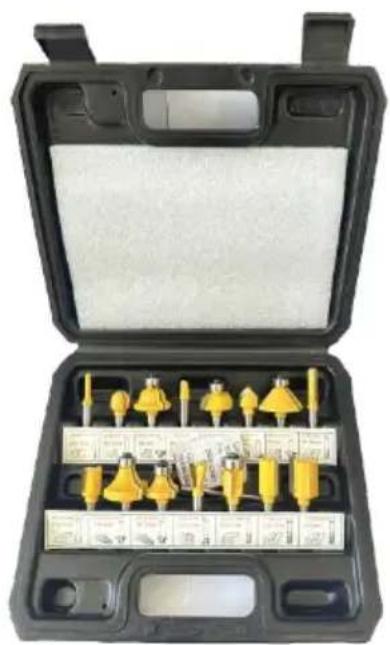

MODEL: 15PCS-A*6.35mm

P-type		L*H*B(mm)	Material
Designation	Quantity
STRAIGHT BIT	1	D3.17 H10	Carbon steel45,YG8
COVE BOX BIT	1	D12.7, R6.35
ROMAN OGEE BIT WITH BEARIN	1	D25.9 R4
COVE BOX BIT	1	D6.35 R3.17
COVE BIT WITH BEARING	1	D22.8 R6.35
V TYPE SLOTTING CUTTER BIT	1	D12.7
45 CHAMFER BIT	1	D32
STRAIGHT BIT	1	D6.35 H20
MORTISING BIT	1	D12.7 H12
CORNER ROUND BIT	1	D29 R9.5
PANEL PILOT BIT WITH DRILL PC	1	D6.35
DOVETAIL BIT	1	D12.7
FLUSH TRIM BIT	1	D12.7 H13
STRAIGHT BIT	1	D12.7 H20
STRAIGHT BIT	1	D15.9 H20

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road. Staines-upon-Thames. Surrey. TW18 4A>

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: 3PCS-A*6.35mm

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

15 PIECES-A*6.35 MM

3 PIECES-A*6.35 MM

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

electronics www.vevor.com/support

USER MANUAL ROUTER BITS

MODEL: 15 PCS-A*6.35 MM /3 PCS-A*6.35 MM

3 pieces: A * 6.35 mm15 pieces-A*6.35 mm

NEED HELP? CONTACT US!

Imported in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

15PCS-A*6.35MM

3PCS-A*6.35MM

MODEL: 3PCS-A*6.35mm

tipo P		L*H*B(mm)	Material
Designación	Cantidad
JUEGO DE MONTANTES Y RAILES - BROCA OGEE -	1	D41.5 , H6.35	Acero carbono 45, TE8
JUEGO DE MONTANTE Y RIEL - BROCA OGEE -	1	D41.5 , H6.35
BROCA PARA PANEL ELEVADO OGEE	1	D63.5 , H12

MODEL: 15PCS-A*6.35mm

tipo P		L*H*B(mm)	Material
Designación	Cantidad
PUNTO RECTO	1	D3.17 H10	Acero carbono45, TE8
BROCA DE CAJA DE CALA	1	D12.7, R6.35
BROCA OGEE ROMANA CON RODAMIENTO	1	D25.9 R4
BROCA DE CAJA DE CALA	1	D6.35 R3.17
BROCA DE CALETA CON RODAMIENTO	1	D22.8 R6.35
BROCA PARA RANURAR TIPO V	1	D12.7
BROCA DE 45 CHAFLÁN	1	D32
PUNTO RECTO	1	D6.35H20
BROCA PARA EMBOLETAR	1	D12.7 H12
BROCA REDONDA DE ESQUINA	1	D29 R9.5
BROCA PILOTO PARA PANEL CON PUNTA DE PERFORACIÓN	1	D6.35
CORTE COLA DE MILANO	1	D12.7
BROCA DE RECORTE AL RAS	1	D12.7 H13
PUNTO RECTO	1	D12.7 H20
PUNTO RECTO	1	D15.9 H20

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803, Nong 11, Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported into AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DE LA CE

E-CrossStu GmbH

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines upon Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Imported into AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

USER MANUAL FOR ROUTER BITS

MODEL: 15PCS-A*6.35MM /3PCS-A*6.35MM

15PCS-A*6.35MM

3PCS-A*6.35MM

NEED HELP? CONTACT US!

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ROUTER BITS USER MANUAL

MODEL: 15PCS-A*6.35MM / 3PCS-A*6.35MM

15PCS-A*6.35MM

3PCS-A*6.35MM

NEED HELP? CONTACT US!

MODEL: 3PCS-A*6.35MM

P-typ		L*H*B(mm)	Material
Beteckning	Kvantitet
STILE & RAIL SET-OGEE BIT - y	1	D41.5 , H6,35	Kolstål45, NT8
STILE & RAIL SET-OGEE BIT - y	1	D41.5 , H6,35
OGEE HÖJD PANELBIT	1	D63,5 , H12

MODEL: 15PCS-A*6.35MM

P-typ		L*H*B(mm)	Material
Beteckning	Kvantitet
RAK BITS	1	D3,17 H10	Kolstål45, NT8
COVE LÅDA BIT	1	D12,7, R6,35
ROMAN OGEE BIT MED LAGER	1	D25,9 R4
COVE LÅDA BIT	1	D6,35 R3,17
HÅLLBIT MED LAGER	1	D22,8 R6,35
V TYP SLÅSFÄRSBITS	1	D12,7
45 CHAMFER BIT	1	D32
RAK BITS	1	D6,35 H20
MORTISANDE BIT	1	D12,7 H12
HÖRN RUND BIT	1	D29 R9,5
PANELPILOTBITS MED BORRSPUNKT	1	D6.35
DOVESTAIL BIT	1	D12,7
FLUSH TRIM BIT	1	D12,7 H13
RAK BITS	1	D12,7 H20
RAK BITS	1	D15,9 H20

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
