ABS-6UL - Toolbox Vevor - Free user manual and instructions

Product Type	Rack Storage Enclosure
Brand	Vevor
Model	ABS-6UL
Height	6U (266.7 mm)
Width	19.25 inches (488.95 mm)
Depth	400 mm (estimated)
Weight	3.5 kg (estimated)
Main Material	ABS (Acrylonitrile Butadiene Styrene)
Color	Black
Mounting Type	19-inch Rack Mount
Door	Front Door with Locking Latch
Included Accessories	24 screws, 24 plastic washers
Recommended Use	Data centers, laboratories, audio/video installations, network equipment
Main Functions	Storage and protection of electronic equipment, servers, network equipment
Maintenance and Cleaning	Regular cleaning with a soft, dry cloth to prevent dust accumulation
Safety	Distribute weight evenly, lock doors, regularly check hinges and latches
General Information	Manufactured by Shanghaimuxinmuyeyouxiangongsi, imported by various subsidiaries

Frequently Asked Questions - ABS-6UL Vevor

How to install the Vevor ABS-6UL rack enclosure?

Unpack the product and ensure all accessories are complete. Install the doors by aligning the latches. Secure the enclosure in a standard 19-inch rack using the provided screws and washers. Make sure the weight is evenly distributed.

What is the maximum weight supported by the enclosure?

The manual does not specify an exact maximum load. For safety, distribute weight evenly and place the heaviest equipment at the bottom. Do not exceed an estimated 20 kg for the entire enclosure.

Can this enclosure be mounted in a standard rack?

Yes, the ABS-6UL model is designed for mounting in a 19-inch rack with a height of 6U. Use the provided screws to secure it firmly.

What types of equipment can I store in this enclosure?

It is suitable for servers, network equipment, audio/video devices, industrial control systems, and any standard 19-inch rack-mount electronic equipment.

Is the enclosure lockable?

Yes, the front door is equipped with a locking latch. You can lock it to secure access to your equipment.

How to clean the ABS-6UL enclosure?

Use a soft, dry cloth to remove dust. Avoid abrasive or liquid cleaners that could damage the ABS material.

What safety precautions should be taken?

Place the enclosure on a stable surface, distribute weight evenly, lock the door when not in use, and perform regular inspections of latches and hinges.

Does the enclosure come with mounting accessories?

Yes, the ABS-6UL model comes with 24 screws and 24 plastic washers for rack mounting.

Can I stack multiple ABS-6UL enclosures?

It is not recommended to stack enclosures without proper support. Use a standard rack to install them in a column securely.

Where can I find technical support for this product?

Visit www.vevor.com/support to get technical support and the electronic warranty certificate.

USER MANUAL ABS-6UL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RACK CASE USER MANUAL

MODEL:ABS-2UL / ABS-4UM / ABS-4UL / ABS-6UM / ABS-6UL / ABS-8UL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rack case

ABS-2UL	ABS-4UM	ABS-4UL
ABS-6UM	ABS-6UL	ABS-8UL

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

INSTRUCTIONS

Warning - To reduce the risk of injury, user must read the manual carefully.

NOTICE:

Environmental Conditions

- Temperature and Humidity: Ensure the cabinet is placed in an environment with controlled temperature and humidity. Avoid overheating or excessive cooling, which could affect the performance of the internal equipment.

Power Management

1. Stable Power Supply: Ensure all equipment in the cabinet is connected to a stable and interference-free power supply. Using an uninterruptible power supply (UPS) can protect equipment from damage in case of failures.
2. Cable Management: Properly plan cable paths, use cable ties or cable management systems to keep them tidy, preventing faults or safety hazards caused by disorganized cables.

Weight Distribution

1. Evenly Distribute Weight: When placing equipment in the cabinet, be mindful of balancing the weight. Heavier equipment should be placed at the bottom of the cabinet to prevent tipping or tilting.
2. Check Load Capacity: Ensure not to exceed the maximum load capacity of the cabinet to maintain structural stability and safety.

Security and Access

1. Lock Doors: If the cabinet has locking features, keep it locked when in use, especially in restricted access areas.
2. Regular Inspections: Regularly check the locks and hinges of the cabinet to ensure they are intact and that only authorized personnel can access internal equipment.

Cleaning and Maintenance

1. Regular Cleaning: Regularly clean the cabinet and its internal equipment to prevent dust accumulation that could lead to overheating or short-circuiting.
2. Inspection and Maintenance: Regularly conduct integrity checks on the cabinet, ensuring all fixtures, screws, and components are securely fastened and undamaged.

PERFORMANCE PARAMETER

Model	Specifications	Main materials
ABS-2UL	2U 19.25"	ABS
ABS-4UM	4U 14.25"	ABS
ABS-4UL	4U 19.25"	ABS
ABS-6UM	6U 14.25"	ABS
ABS-6UL	6U 19.25"	ABS
ABS-8UL	8U 19.25"	ABS

Product availability

• Server Installation ● Network Equipment Storage ● Communication Equipment Protection
• Industrial Control Systems ● Audio and Video Equipment Installation ● Laboratories and R&D Environments ● Power Management ● Security and Protection ● Data Centers and Server Rooms

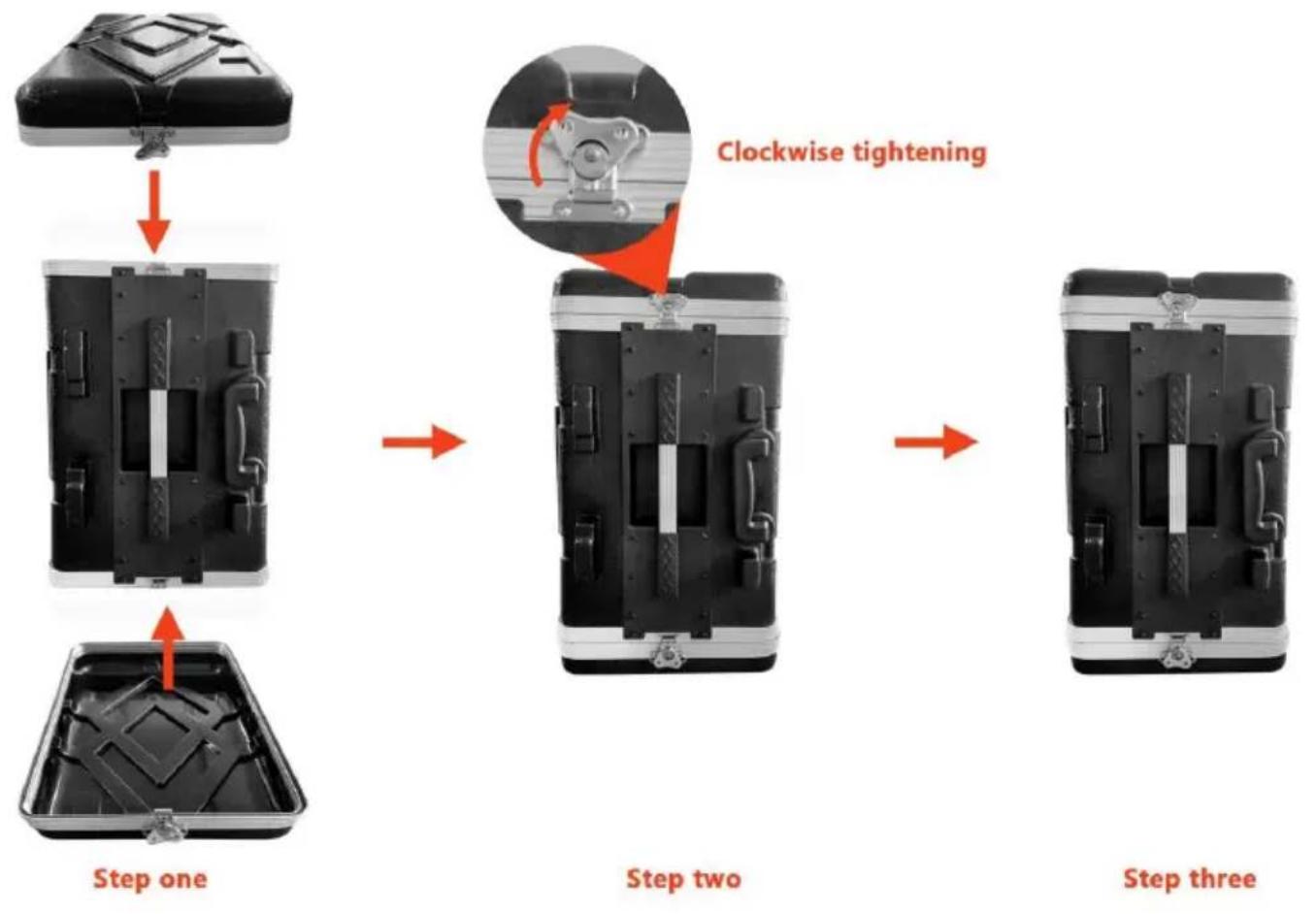

Installation Steps

Open the package and ensure all components and accessories are complete and undamaged.

- Install Doors:

1. Check the Latch:

Ensure the latch and corresponding catch are correctly aligned and free of obstructions.

1. Open the Latch:

Locate the central raised part of the latch (usually looks like butterfly wings).

Pull the central raised part outward until the latch pops open.

1. Insert the Catch:

Insert the catch or locking piece into the corresponding slot, making sure it is fully inserted.

1. Lock the Latch:

Push the central raised part back into place until you hear a "click," indicating the latch is securely locked.

1. Check Stability:

Gently shake the latch to ensure it is fully locked and cannot be easily opened.

ACCESSORIES LIST

Model	Accessories list
ABS-2UL	Screw *8、Plastic gasket *8
ABS-4UM	Screw *16、Plastic gasket *16
ABS-4UL	Screw *16、Plastic gasket *16
ABS-6UM	Screw *24、Plastic gasket*24
ABS-6UL	Screw *24、Plastic gasket*24
ABS-8UL	Screw *32、Plastic gasket*32

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4
