ABS-4UL - Toolbox Vevor - Free user manual and instructions

Product Type	Rack storage case (tool box)
Brand	Vevor
Model	ABS-4UL
Main Material	ABS
Height	4U (about 7 inches)
Width	19.25 inches (standard rack)
Recommended Use	Installation of servers, network equipment, control systems, audio/video
Security	Lockable door with butterfly latch
Included Accessories	16 screws, 16 plastic washers
Installation	Open packaging, install doors, check and lock the latch
Maintenance	Regular cleaning to prevent dust buildup; inspection of locks and hinges
Environmental Conditions	Controlled temperature and humidity; avoid overheating or excessive cooling
Power Management	Stable power supply recommended; use of UPS advised
Cable Management	Plan cable routes; use ties or management systems
Weight Distribution	Place heavy equipment at bottom to avoid tipping
Warranty and Support	Technical support and electronic warranty certificate at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
EU Importer	E-CrossStu GmbH, Frankfurt am Main
UK Importer	YH CONSULTING LIMITED

Frequently Asked Questions - ABS-4UL Vevor

What is the height in U of the ABS-4UL case?

The ABS-4UL case has a height of 4U (about 7 inches).

What accessories are included with the case?

The ABS-4UL model comes with 16 screws and 16 plastic washers.

How to install the door latch?

Locate the raised central part of the latch (butterfly shaped), pull it outward to open, insert the latch into the slot, then push the central part until you hear a click to lock.

What type of material is used for the case?

The case is made of ABS, a sturdy and lightweight plastic.

How to maintain the case?

Clean the case and its interior regularly to prevent dust buildup. Periodically check the locks, hinges, screws and components to ensure they are in good condition.

Can I lock the case door?

Yes, the case is equipped with a lockable butterfly latch. Keep it locked when the cabinet is not in use, especially in restricted access areas.

What safety precautions should be taken?

Ensure a stable power supply (UPS recommended), distribute weight evenly (heavy equipment at bottom), and perform regular inspections of locks and hinges.

How to distribute equipment weight in the case?

Place heavier equipment at the bottom of the cabinet to avoid tipping or tilting. Do not exceed the maximum load capacity.

Where to find technical support for this product?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support.

What is the width of the ABS-4UL case?

The width is 19.25 inches, which corresponds to the standard for 19-inch racks.

USER MANUAL ABS-4UL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RACK CASE USER MANUAL

MODEL:ABS-2UL / ABS-4UM / ABS-4UL / ABS-6UM / ABS-6UL / ABS-8UL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rack case

ABS-2UL	ABS-4UM	ABS-4UL
ABS-6UM	ABS-6UL	ABS-8UL

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

INSTRUCTIONS

Warning - To reduce the risk of injury, user must read the manual carefully.

NOTICE:

Environmental Conditions

- Temperature and Humidity: Ensure the cabinet is placed in an environment with controlled temperature and humidity. Avoid overheating or excessive cooling, which could affect the performance of the internal equipment.

Power Management

1. Stable Power Supply: Ensure all equipment in the cabinet is connected to a stable and interference-free power supply. Using an uninterruptible power supply (UPS) can protect equipment from damage in case of failures.
2. Cable Management: Properly plan cable paths, use cable ties or cable management systems to keep them tidy, preventing faults or safety hazards caused by disorganized cables.

Weight Distribution

1. Evenly Distribute Weight: When placing equipment in the cabinet, be mindful of balancing the weight. Heavier equipment should be placed at the bottom of the cabinet to prevent tipping or tilting.
2. Check Load Capacity: Ensure not to exceed the maximum load capacity of the cabinet to maintain structural stability and safety.

Security and Access

1. Lock Doors: If the cabinet has locking features, keep it locked when in use, especially in restricted access areas.
2. Regular Inspections: Regularly check the locks and hinges of the cabinet to ensure they are intact and that only authorized personnel can access internal equipment.

Cleaning and Maintenance

1. Regular Cleaning: Regularly clean the cabinet and its internal equipment to prevent dust accumulation that could lead to overheating or short-circuiting.
2. Inspection and Maintenance: Regularly conduct integrity checks on the cabinet, ensuring all fixtures, screws, and components are securely fastened and undamaged.

PERFORMANCE PARAMETER

Model	Specifications	Main materials
ABS-2UL	2U 19.25"	ABS
ABS-4UM	4U 14.25"	ABS
ABS-4UL	4U 19.25"	ABS
ABS-6UM	6U 14.25"	ABS
ABS-6UL	6U 19.25"	ABS
ABS-8UL	8U 19.25"	ABS

Product availability

• Server Installation ● Network Equipment Storage ● Communication Equipment Protection
• Industrial Control Systems ● Audio and Video Equipment Installation ● Laboratories and R&D Environments ● Power Management ● Security and Protection ● Data Centers and Server Rooms

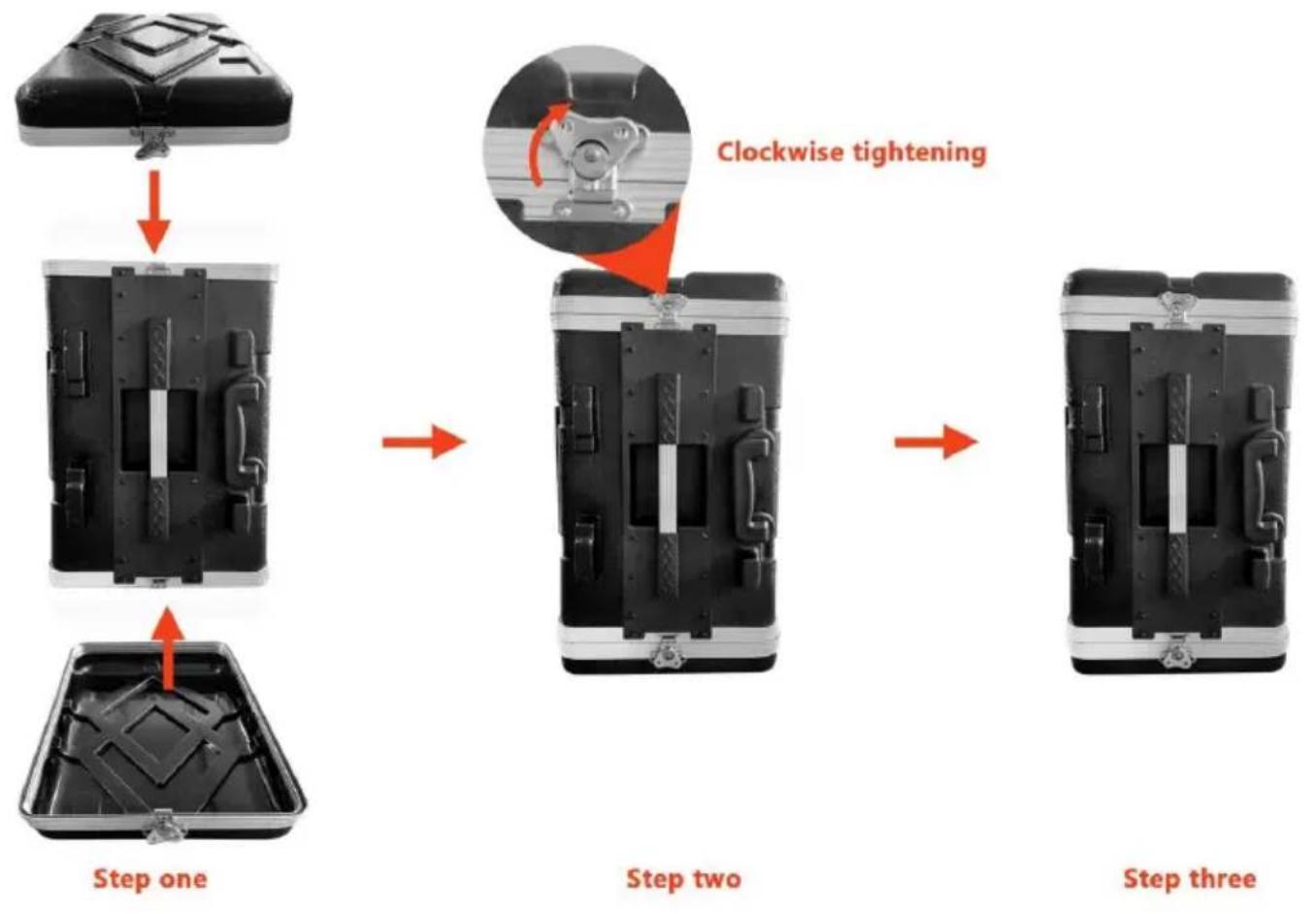

Installation Steps

Open the package and ensure all components and accessories are complete and undamaged.

- Install Doors:

1. Check the Latch:

Ensure the latch and corresponding catch are correctly aligned and free of obstructions.

1. Open the Latch:

Locate the central raised part of the latch (usually looks like butterfly wings).

Pull the central raised part outward until the latch pops open.

1. Insert the Catch:

Insert the catch or locking piece into the corresponding slot, making sure it is fully inserted.

1. Lock the Latch:

Push the central raised part back into place until you hear a "click," indicating the latch is securely locked.

1. Check Stability:

Gently shake the latch to ensure it is fully locked and cannot be easily opened.

ACCESSORIES LIST

Model	Accessories list
ABS-2UL	Screw *8、Plastic gasket *8
ABS-4UM	Screw *16、Plastic gasket *16
ABS-4UL	Screw *16、Plastic gasket *16
ABS-6UM	Screw *24、Plastic gasket*24
ABS-6UL	Screw *24、Plastic gasket*24
ABS-8UL	Screw *32、Plastic gasket*32
