523923 - Waterproof box Vevor - Free user manual and instructions

Brand	Vevor
Model	523923
Product Type	Waterproof case (weather-resistant housing)
External Dimensions	573 x 450 x 277 mm
Lining Material	PU (polyurethane)
Approximate Weight	5 kg (estimate)
Color	Black (typical)
Primary Use	Protection of sensitive equipment against weather, water, and impact
Interior Foam	Customizable grid foam (cut to desired shape)
Closure Type	Lever latches with padlock capability
Maximum Load Capacity	Not specified, but designed for heavy load on a flat surface
Waterproofing	Weather-resistant (not submersible)
Impact Resistance	Robust construction to protect against light to moderate impacts
Operating Temperature	-20 °C to +60 °C (standard estimate)
Cleaning and Maintenance	Wipe with a damp cloth and mild detergent. Air dry.
Repairability	Not user-serviceable; contact technical support
Warranty	Manufacturer's warranty (contact VEVOR website for details)
Package Contents	1 x waterproof case, instruction manual

Frequently Asked Questions - 523923 Vevor

How to customize the interior foam?

Cut the grid foam to the desired dimensions and shapes using a sharp knife or scissors. Ensure you remove only the necessary pieces for a perfect fit of the equipment.

Is the case fully waterproof?

It is weather-resistant and water-resistant, but not designed for prolonged submersion. It effectively protects against rain, splashes, and humidity.

Can I lock the case with a padlock?

Yes, the latches are designed to accommodate a standard padlock (not included). This adds extra security against unauthorized opening.

What are the internal dimensions?

The internal dimensions are slightly smaller than the external ones. For an estimate, subtract about 10 to 15 mm from each side for wall thickness. Exact dimensions are not provided by the manufacturer.

How to clean the case?

Use a soft, damp cloth with mild soap. Avoid harsh solvents. Dry thoroughly before storing.

What maximum weight can it support?

The manufacturer does not specify an exact weight limit. It is recommended not to exceed a load that the case can support without deforming on a flat, hard surface.

Can I use the case as a seat?

No, sitting or standing on it is prohibited. This could damage the case and cause injury. It is not designed to support human weight.

How to contact Vevor customer service?

Visit www.vevor.com/support for technical assistance and electronic warranty.

Are there safety precautions to follow?

Yes: do not expose to open flame (material is flammable), avoid sharp objects, inspect before each use, and use only on a flat surface.

What is the warranty of this case?

The warranty is provided by the manufacturer. Check the electronic warranty certificate on the Vevor website or contact support for details.

USER MANUAL 523923 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WEATHERPROOF CASE

USER MANUAL

342413 564320 1063532

512920 523923 574427

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

WEATHERPROOF CASE

342413 564320 1063532

512920 523923 574427

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Read these instructions before using this product. Failure to do so may result in serious injury.
2. DO NOT SIT OR STAND ON THIS ITEM.
3. This product is not a toy. Do not allow children to play with or in the item.
4. Do not exceed weight capacities.
5. Use only on a flat, level, hard, and smooth surface capable of supporting a fully loaded Weatherproof Case.
6. Inspect before every use. Do not use it if parts are loose or damaged.
7. Flammable: Keep away from open flame. This product will ignite and burn if brought into contact with an open flame.
8. Keep away from sharp points, blades, and other items to avoid scratching the product.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

Model	Lining Material	Product Size
342413		380*300*140mm
564320		620*490*225mm
1063532		1120*405*342mm
512920	PU	550*340*240mm
523923		573*450*277mm
574427		630*500*318mm

INSTRUCTIONS

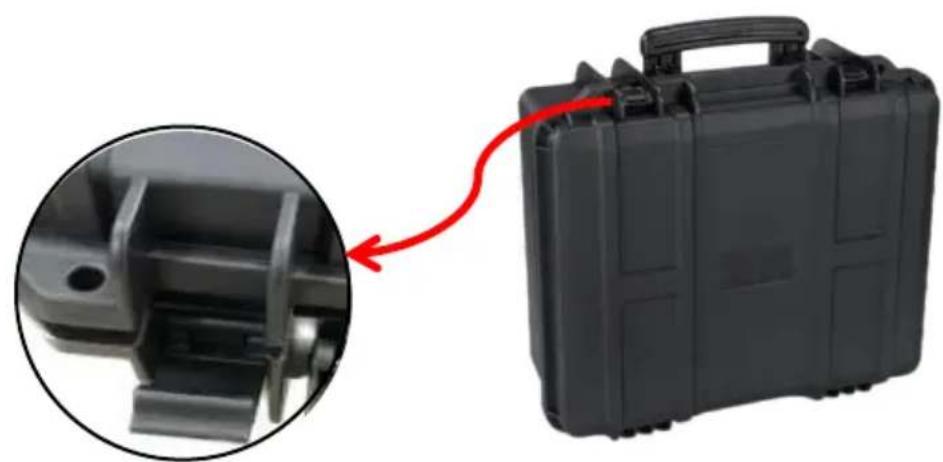

STEP 1

Open the buckle

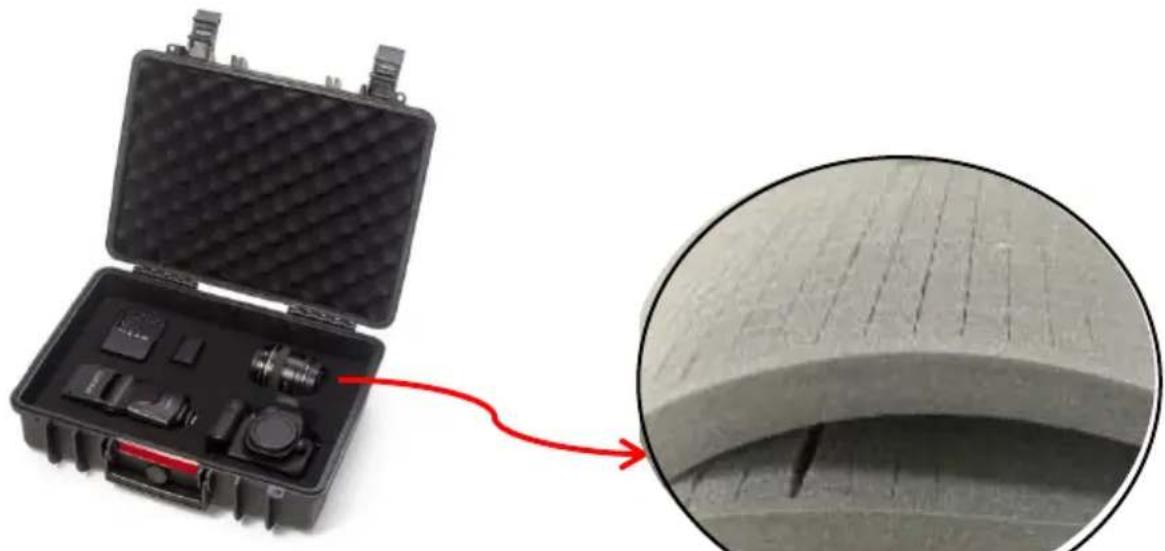

STEP 2

According to the actual use, tear the plain cotton to the appropriate size and shape.

STEP 3

Close the box and close the buckle.

Manufacturer: Shanghai Xinmu Yeyou Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
