USER MANUAL 250-2-31 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

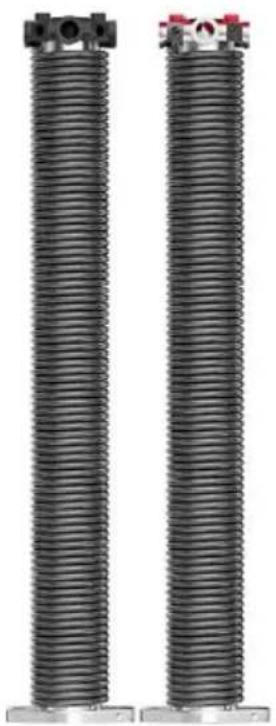

GARAGE DOOR SPRING

MODEL: 207-2-24/250-2-35/225-2-27/250-2-31/234-2-28/234-2-31/250-2-32/218-2-26/225-2-24 GZ-22/GZ-23/GZ-24/GZ-28/GZ-29/GZ-30

We continue to be committed to providing you with tools at competitive prices.

"Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us. Kindly be reminded to verify carefully when you are placing an order with us if you are saving half in comparison with the top major brands.

MODEL: 207-2-24/250-2-35/225-2-27/250-2-31/234-2-28/

234-2-31/250-2-32/218-2-26/225-2-24/GZ-22/GZ-23/GZ-24/GZ-28/GZ-29/

GZ-30

Two identical cylindrical industrial heat exchanger components with mounting flanges and red valves (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

  1. Properly handle and install torsion springs, expansion springs, and other garage door hardware, otherwise, serious injury or death may occur!
  2. Read and understand all the instructions before you start working.
  3. Professional installation is recommended.
  4. Do not attempt to install yourself unless you have the right tools, reasonable mechanical ability, experience, and upper arm strength.
  5. Springs and accessories are under extreme tension at all times. Tension must be released from springs before any work is performed.
  6. Pay attention to the safety of surrounding personnel during installation.

MODEL AND PARAMETERS

Model\DescriptionWire Diameter x Inside Diameter x LeMaterial
207-2-240.207x2x24inch82B & CastAluminum
250-2-350.250x2x35inch
225-2-270.225x2x27inch
250-2-310.25x2x31inch
234-2-280.234x2x28inch
234-2-310.234x2x31inch
250-2-320.25x2x32inch
218-2-260.218x2x26inch
225-2-240.225x2x24inch
GZ-220.207x2x22inch82B & Cast Aluminum
GZ-230.218x2x23inch
GZ-240.218x2x24inch
GZ-280.25x2x28inch
GZ-290.25x2x29inch
GZ-300.25x2x30inch

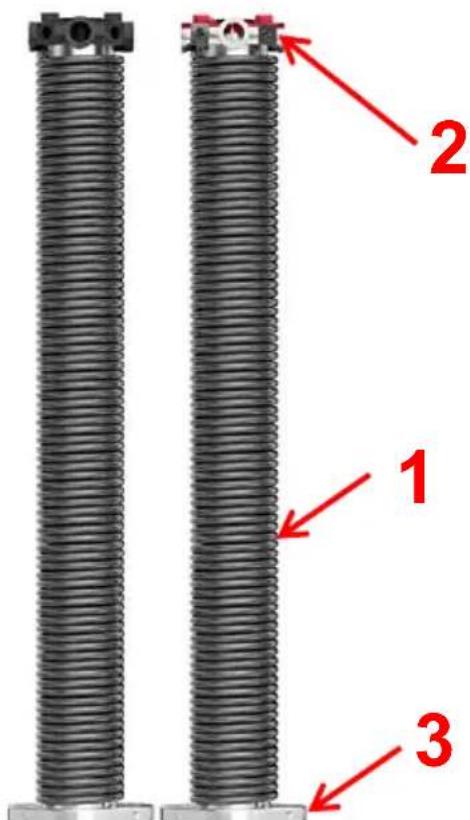

STRUCTURE DIAGRAM1 2 3

  1. Torsion Spring 2. Regulating Block 3. Fixed Block

COMPONENTS

No.Pictu reNameQty
1Vevor 250-2-31 - COMPONENTS - 1Spring(Dextrorotary)1
2Vevor 250-2-31 - COMPONENTS - 2Spring(Levorotary)1
3Vevor 250-2-31 - COMPONENTS - 3Winding Bars2
4Vevor 250-2-31 - COMPONENTS - 4Gloves1 Pair
5Vevor 250-2-31 - COMPONENTS - 5Mounting Wrench1
6Vevor 250-2-31 - COMPONENTS - 6User Manual1

PRODUCT USAGE

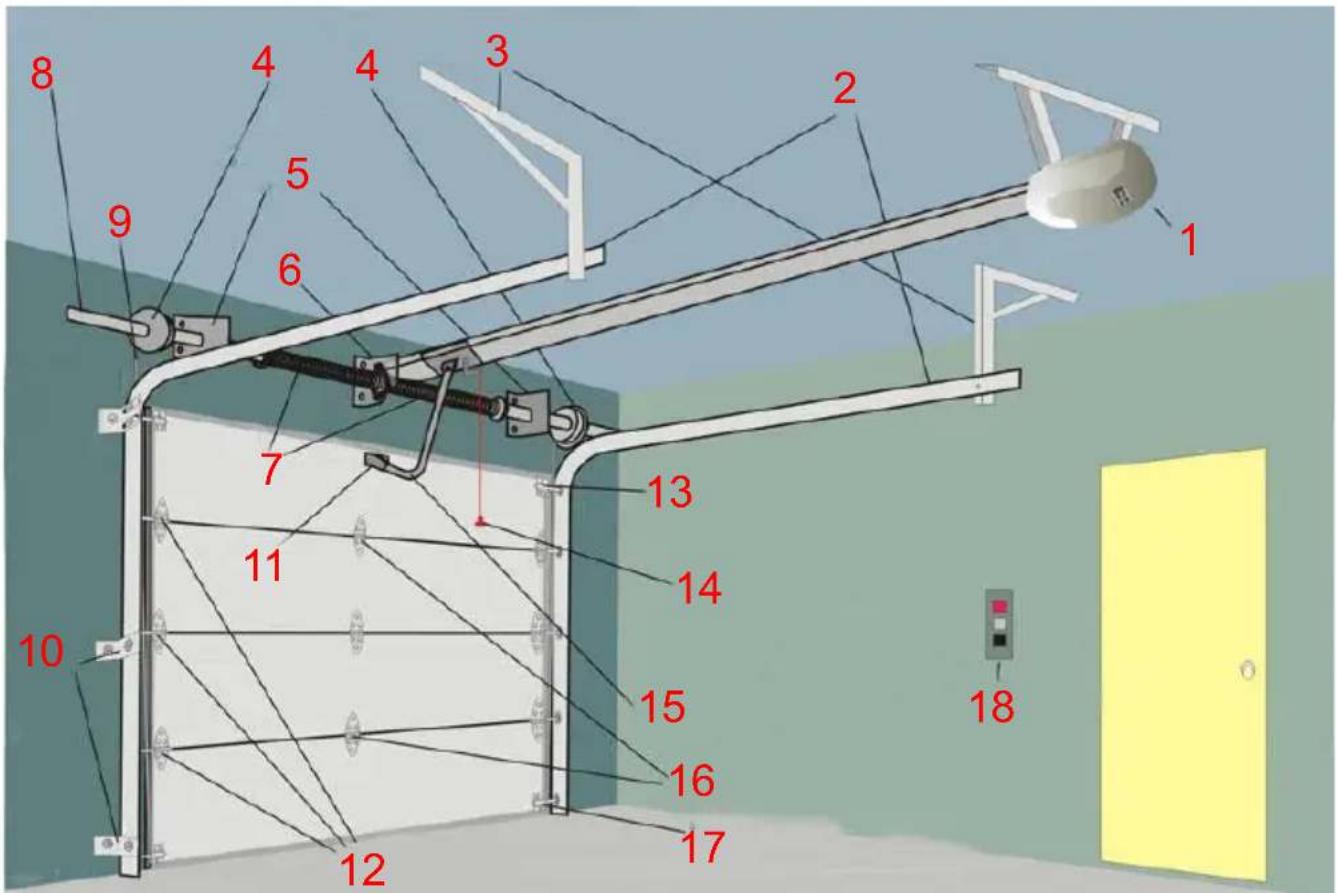

Technical diagram of a mechanical or electrical assembly with numbered components, likely for maintenance or installation purposes.

  1. Door Machine 2. Horizontal Guide Rail 3. Horizontal Guide Rail Bracket
  2. The Wire Wheel 5. Edge Shaft Shelf 6. Axis Shelf 7. Torsion Spring
  3. Torsion Spring Shaft 9. Wire Rope 10. Vertical Guide Rail Bracket
  4. Door Stents 12. On both sides of the Hinge and Roller 13. Top Bracket and Roller 14. Emergency Release Shake Handshandle
  5. Connecting Rod 16. Center Hinge 17. Bottom Bracket and Roller
  6. Wall Button Switches

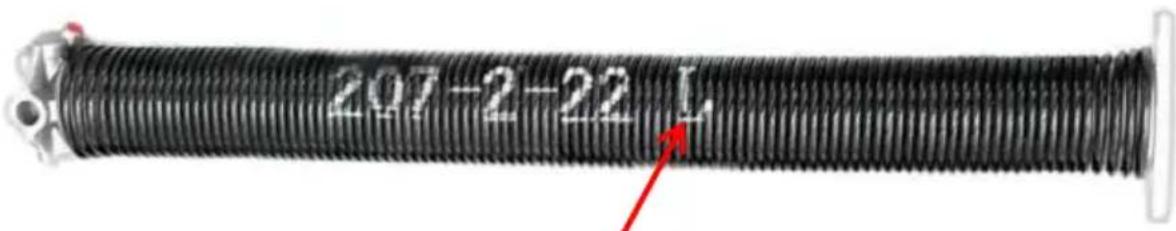

Levorotary/Dextrorotary Distinction:

207-2-22 L

L (Levorotary) / R (Dextrorotary)

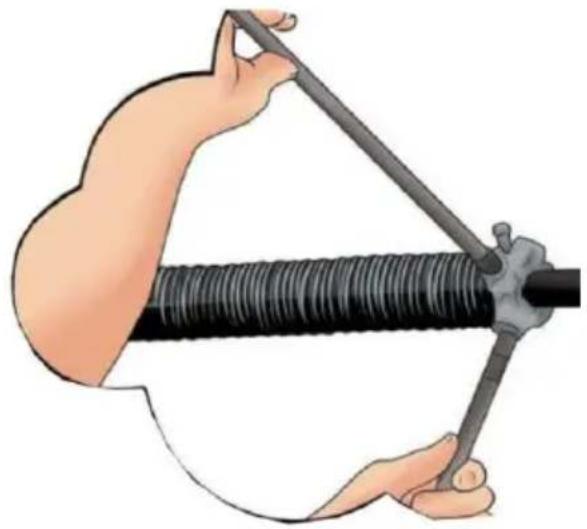

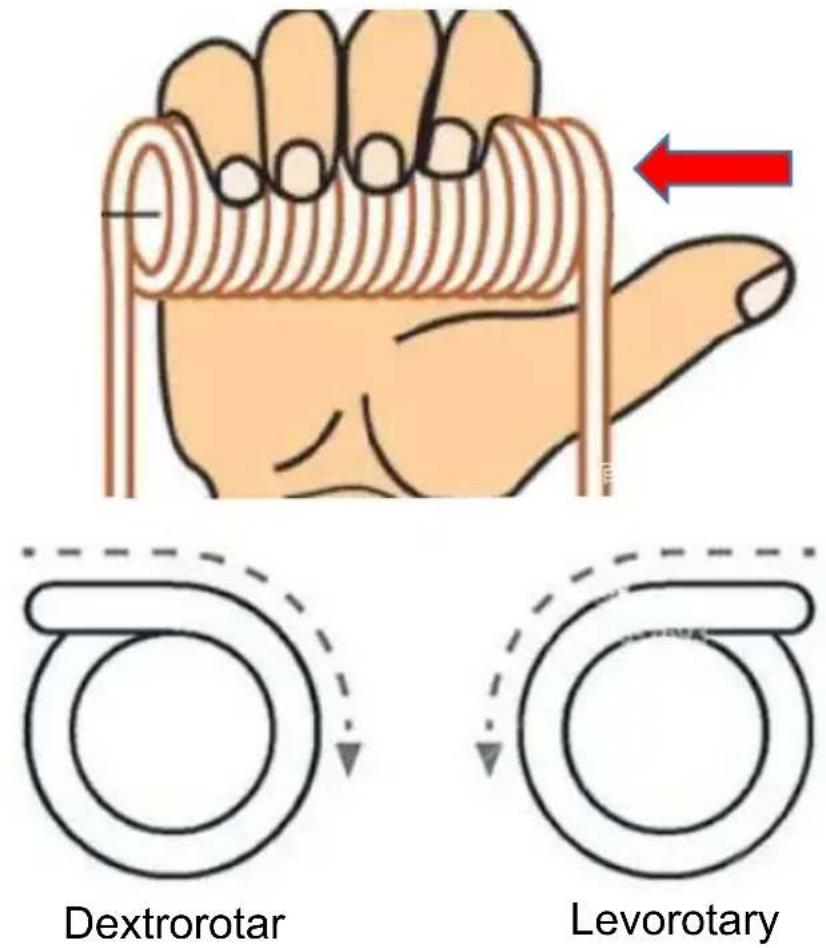

HELPFUL TRICK: Make an "O" with your index finger and thumb. Using the tip of your finger as the end of the wire, follow the direction down your finger and it will give you the direction the spring is coiled.

Vevor 250-2-31 - Levorotary/Dextrorotary Distinction: - 2

Adjust the Spring Tension: It is dangerous to adjust the torsion spring. Please call a professional to adjust.

Illustration of hands holding a black cable with a string, no text or symbols present

REMOVING THE OLD SPRINGS

WARNING

It is dangerous to remove the torsion spring. Please call a professional to operate.

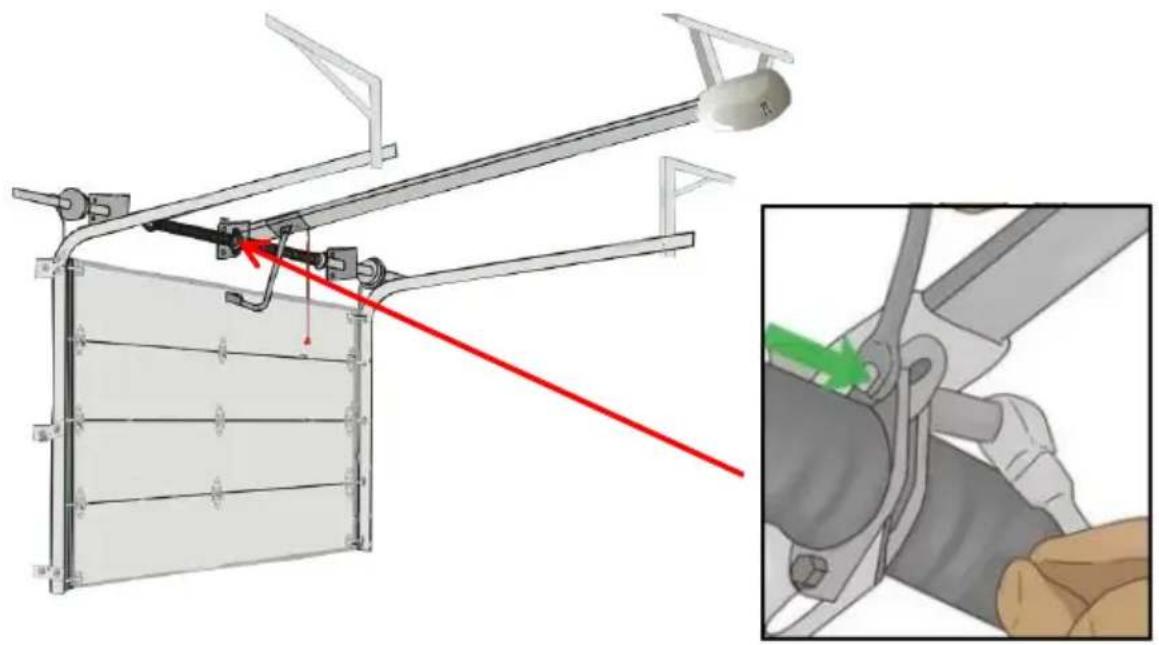

Technical diagram of a mechanical assembly with a magnified inset showing a bracket detail (no text or symbols present)

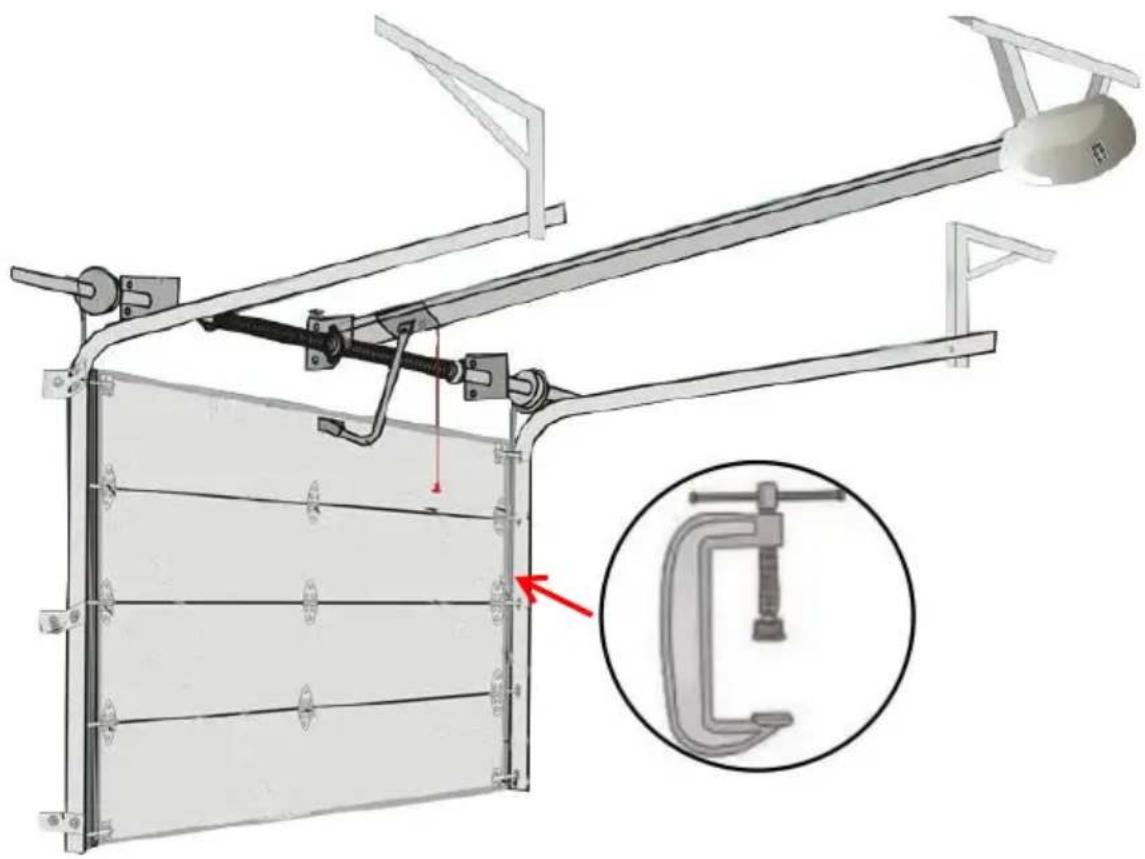

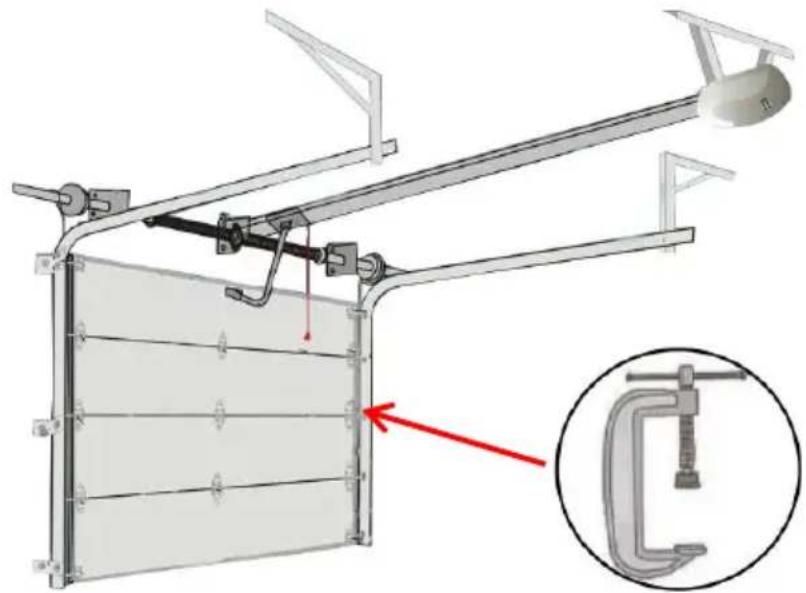

  1. Unplug the garage door opener and clamp the door to the track. Disconnect the garage door opener so the door remains closed. Use locking pliers or a C-clamp to secure the door to the track to keep it from opening when you release the tension on the springs.

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating direction, alongside a close-up of a hand holding a tool (no text or symbols present)

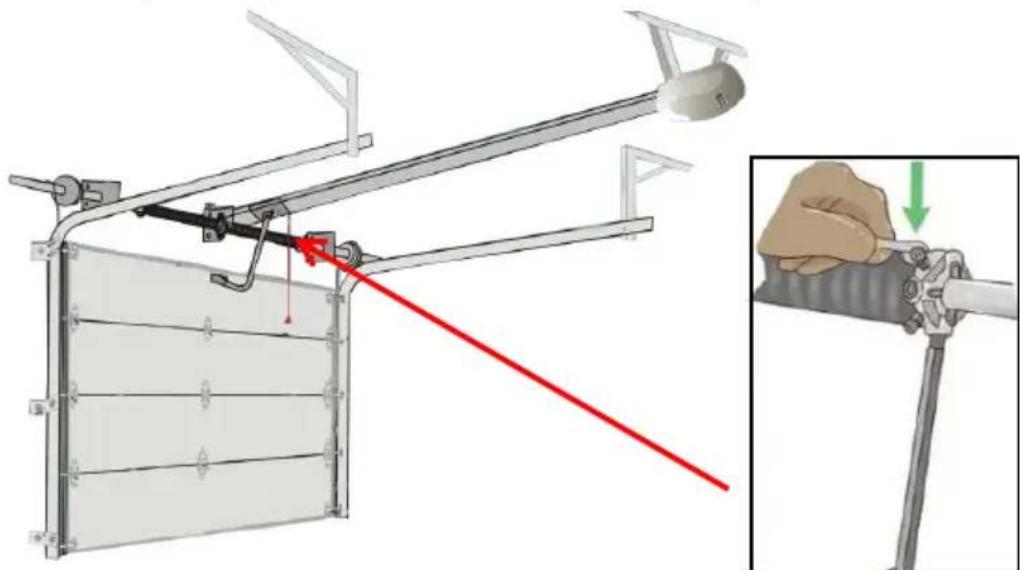

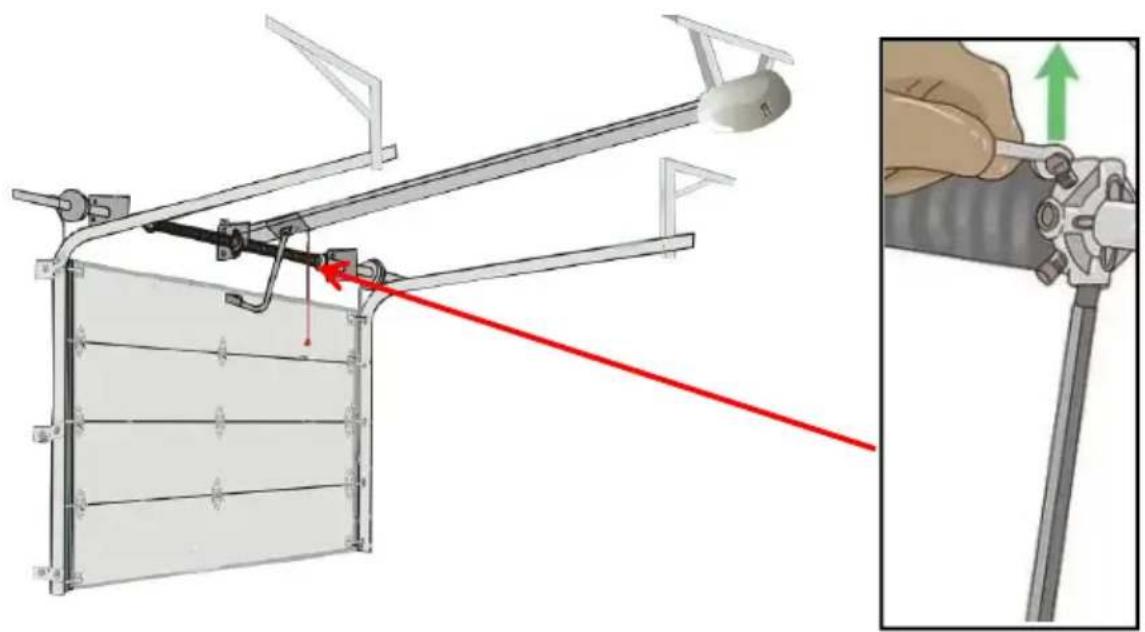

  1. Loosen the set screws while holding each spring with a winding bar. Position a sturdy ladder to the side of the springs, rather than working directly in front of them, for safety reasons. Put on eye protection and leather gloves. Push a winding bar into the bottom hole of the winding cone on the outside of 1 spring. Use a wrench to loosen the 2 set screws. Keep a firm grip on the bar as the spring will expand powerfully as screws are released. Repeat on the other side. To ensure the bars fit securely into the winding cone holes, file down the ends.

Note:

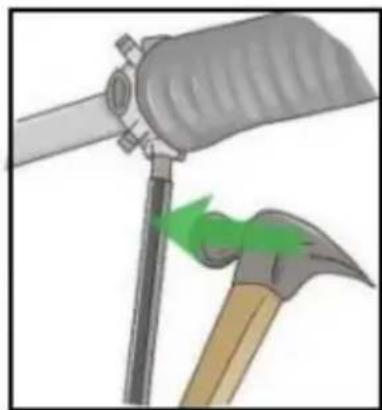

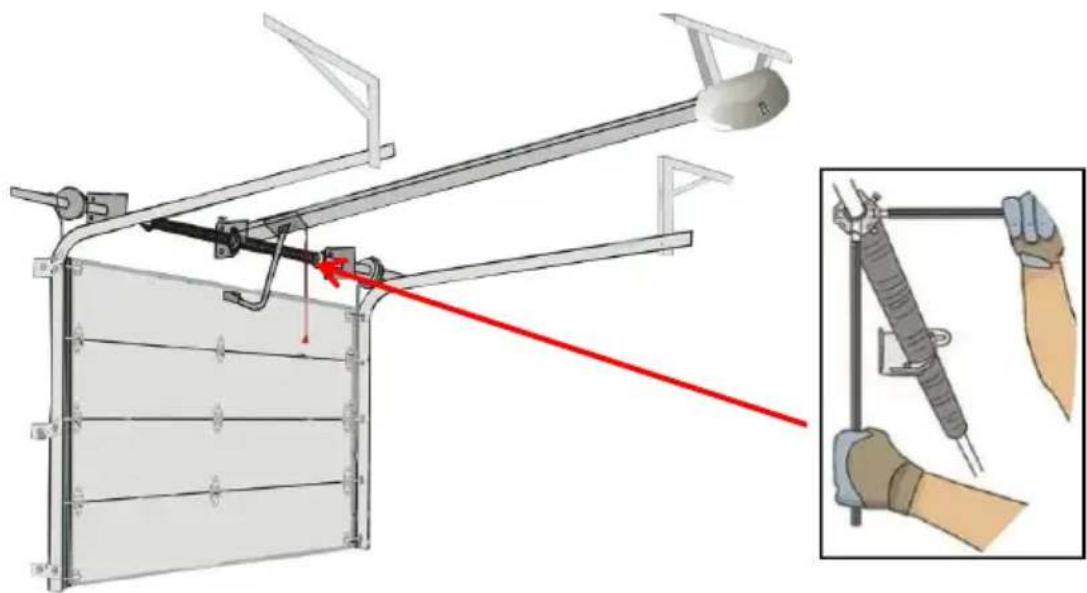

A: Using a screwdriver, pin punch, or plier handles to unwind the bar could result in serious injury, as these tools aren't designed to hold the spring in place.

B: Avoid standing on a bucket or chair to reach the springs. Use a ladder to minimize the risk of injury.

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating force direction, and an inset close-up of a hand holding a cylindrical tool (no text or symbols present)

  1. Unwind each spring with the help of 2 winding bars.

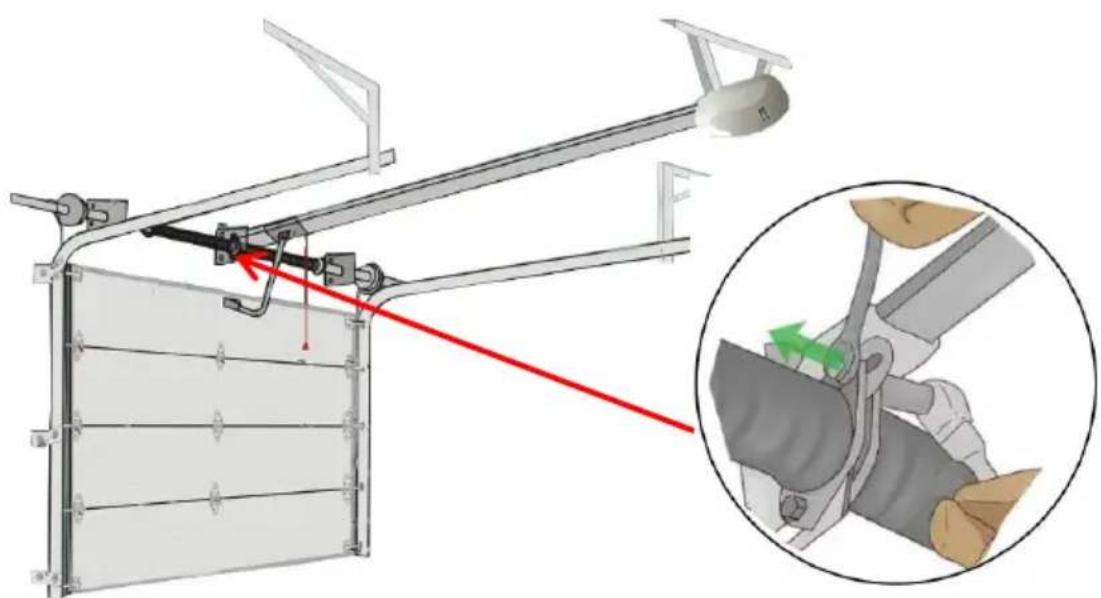

Position the second winding bar into a hole on the winding cone at a perpendicular angle to the first. Unwind the spring 1/4 turn at a time, moving the winding bar to the next open perpendicular position after each 1/4 turn. Repeat on the other spring.

Mechanical assembly diagram showing a lever mechanism with red directional arrows and a magnified inset of a hand operating a car (no text or symbols present)

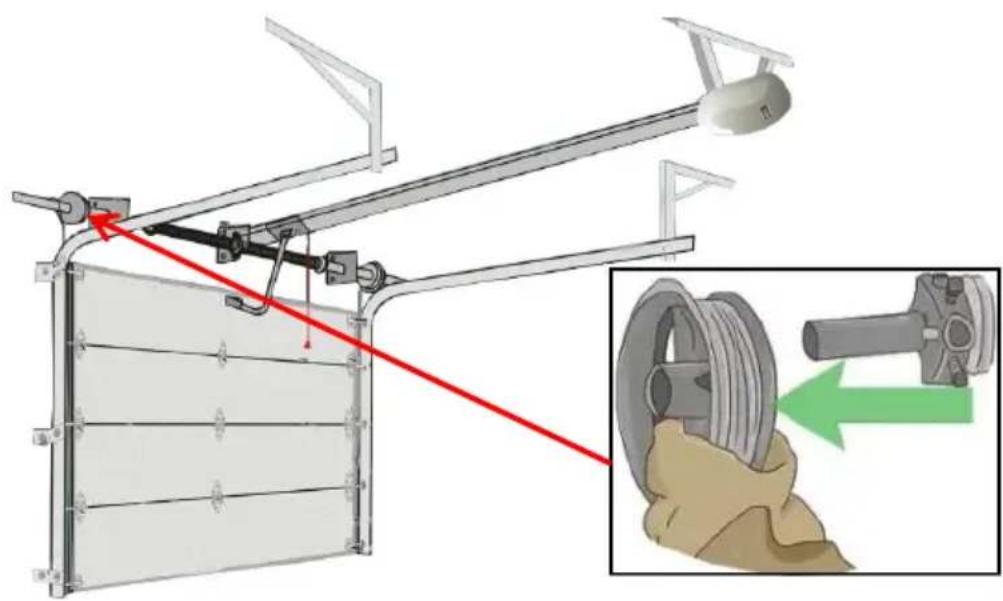

  1. Remove the nuts and bolts, then slide the springs to the end brackets. Using a wrench, remove the 2 nuts and bolts that secure each spring to the center bracket. Then slide each spring toward the end bracket.

Technical diagram of a mechanical assembly with red arrows indicating motion and green arrows highlighting a specific component, accompanied by an inset close-up of hands operating a tool.

  1. Secure the tube and remove the springs, cables, and cable drums. Use locking pliers or a C-clamp to secure the torsion tube to the center bracket to keep it from moving. Then, use a wrench to loosen the set screws on both lift cable drums. Disconnect the lift cables, then slide cable drums and springs off the torsion tube.

Note: Securing the tube is an essential step that will prevent the tube from moving around and potentially injuring you, so be sure to fully lock it in place.

WARNING

It is dangerous to install the torsion spring. Please call a professional to operate.

Technical diagram showing a mechanical lifting device with red and green arrows indicating force directions, including a magnified view of the component being lifted.

  1. Slide the left spring onto the tube and add the cable drum.

When your new springs arrive, put the new left spring on the torsion tube, making sure that the stationary cone on the end of the spring faces the center bracket. After sliding the new spring into place, replace the cable drum and insert the torsion bar into the left bearing bracket.

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating direction, alongside a close-up of a hand holding a tool (no text or symbols present)

  1. Install the center bearing and the right spring, then secure the cones. Slide the torsion bar to the left then add the center bearing. Slide the right spring onto the bar and press the bearing into the stationary cone. Connect both stationary cones to the center bracket with the nuts and bolts you removed previously. Remove the locking pliers or clamp from the center bracket.
  2. Thread the cables and tighten the drums.

Run the lift cable between the roller and the doorjamb. Slip the lift cable through the cable slot on the drum. Then attach locking pliers to the torsion tube to secure it in place. Spin the drum to wind the cable into the grooves, then tighten the set screws. Repeat on the other side, leaving the locking pliers in place. Note: For the door to operate properly, you need the same amount of tension on both sides, so take care to tighten each side evenly.

  1. Wind the springs.

Insert 2 winding bars into the winding cone so they are perpendicular to each other. Use the bars to turn the spring 1/4 turn at a time, moving the bars to holes in the cone as necessary. Follow the supplier's recommendation for the number of turns to complete. Repeat on the other spring.

Note:

A: Generally, you'll need 30 quarter-turns for a 7 ft (2.1 m) tall door and 34 quarter-turns for an 8 ft (2.4 m) tall door.

B: Winding the spring too tight could cause it to break and injure you, so it is important to follow the supplier's recommendation and don't over-wind the spring.

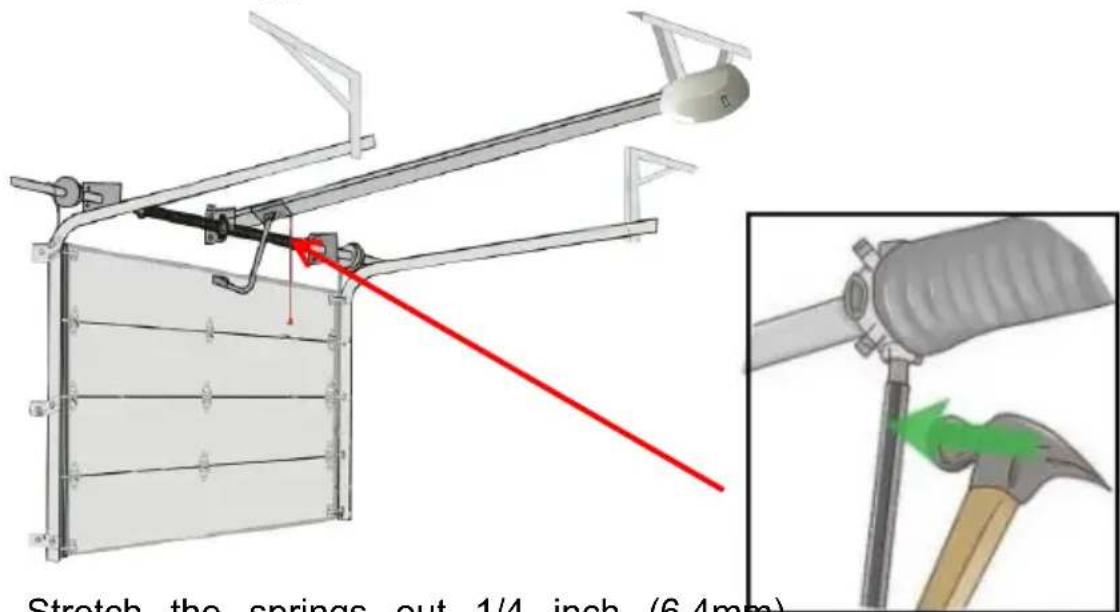

Stretch the springs out 1/4 inch (6.4mm)

  1. Stretch the springs out 1/4 inch (6.4 mm).

When the spring is fully wound, leave 1 winding bar in a slot of the cone perpendicular to the floor. Tap the winding bar with a hammer to stretch the 1/4 inch (6.4 mm) out from the center. Repeat on the other side.

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating force direction, and a magnified inset showing hand positioning on a pipe (no text or symbols)

  1. Tighten the set screws.

Tighten each set screw until it contacts the torsion tube. Tightening the screw more than this could distort or puncture the torsion tube, so be sure to make no more than 1 full rotation once the screws touch the torsion tube.

Mechanical assembly diagram showing a frame with clamping mechanism and a magnified inset of the frame detail (no text or symbols)

  1. Remove the clamps or pliers.

It is now safe to remove the clamps or pliers you used to hold both the torsion bar and the garage door itself in place.

Note: When you need to add or unwind 1 or 2 quarter turns, you must hold the clamps or pliers again.

Illustration of a person kneeling beside a wall with an upward arrow, no text or symbols present.

  1. Check the balance after installation.

Leave the door at half way position:

If the door moves up on its own, it means the torsion springs are wound too tight. In this case, unwind both torsion springs 1 or 2 quarter turns until the door balances itself.
