TRACK SAW GUIDE RAIL USER MANUAL

MODEL:0.7M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:0.7M

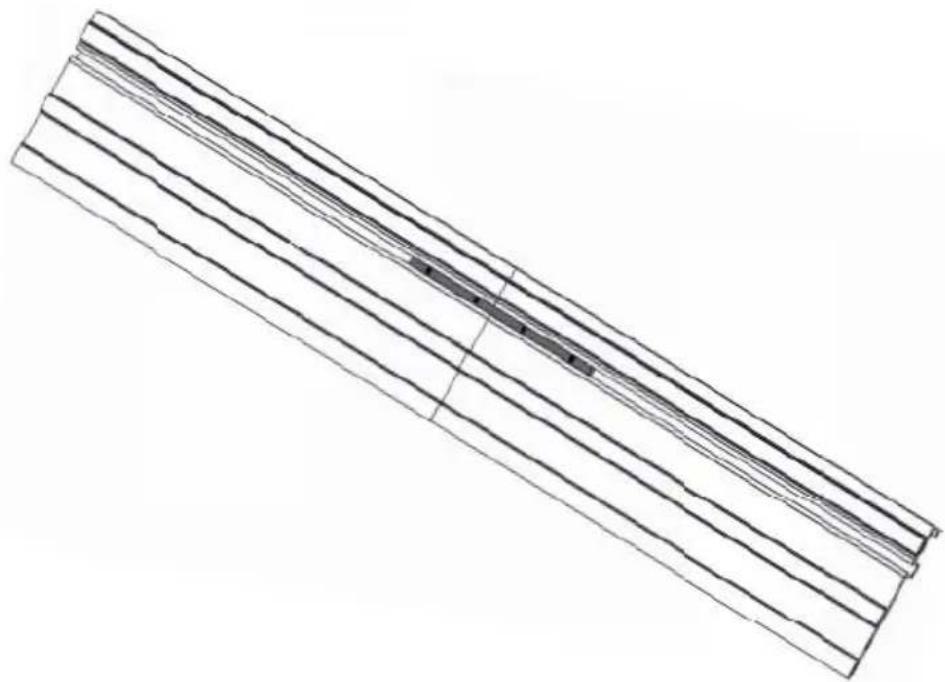

Pure technical line drawing of a diagonal structural beam with no text or symbols

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

Overview

Guide rail

Connecting element

Grub screw

Allen key

Description of functions

With the saw guide rail, you can perform straight cuts along the rail. refer to the descriptions below for information on how the operating elements work.

Technical date:

Length(m)	0.7
Material	Aluminium

General safety instructions

1. The guide rails have tension tear protection (black rubber lip) on the undersides. This tension tear protection must be shortened to be flush the length of the guide rail before the first cut Place the guide rail piece. Set a cutting depth of approx. 10 mm on the plunge saw and plunge saw on. Guide the plunge saw evenly in the cutting direction, applying slight pressure. Slide the connecting element into the groove of the guide rails .The connecting element should be in the middle between the two guide rails.

2. Tighten the grub screws using the Allen key.

Working instructions

Place the guide rail with the foam rubber elements on the work piec the plunge saw with the groove on the guide rail.Right-angle cuts Ho the plunge saw at the handle using both hands, switch it on and sa moving forward applying moderate pressure.

Mitre cuts up to 45°

Set the cutting angle as described in the instruction manual for the p-saw.Hold on the plunge saw at the handles using both hands, switch and move forward applying moderate pressure.

Plunge cuts Set the desired cutting depth as described in the instruct manual for the plunge saw. Place the rear edge against a stop (as far possible). Hold on the plunge saw at the handles using both hands, so on and move forward applying mode rate pressure.

Cleaning and servicing

Keep the product free of dust.Do not use any cleaning agents or sol They could damage the device irreparably.

Maintenance

The device is maintenance-free.

Storage

Store the device in a dry and dustproof location and out of reach of children.
