U103E - Stroller Vevor - Free user manual and instructions

Product Type	Lightweight Stroller for Baby
Brand / Model	Vevor / U103E
Category	Foldable Stroller
Recommended Age	6 to 36 months
Maximum Supported Weight	18 kg (40 lbs)
Materials	Metal frame, synthetic fabric, plastic
Unfolded Dimensions (approx.)	Height ~100 cm, width ~50 cm, depth ~80 cm
Folding	Manual folding with locking
Safety Harness	5-point harness with buckle
Brakes	Rear lever brake
Backrest Adjustment	Reclining backrest with buttons
Canopy	Removable canopy with clips and Velcro
Included Accessories	Bumper bar, cup holder, swivel front wheels
Care and Cleaning	Clean with warm water and mild detergent; avoid abrasives
Country of Origin	China (Shanghai)

Frequently Asked Questions - U103E Vevor

How to assemble the Vevor U103E stroller?

To assemble the stroller, start by unfolding the frame by spreading the handles and feet until you hear a click. Then, attach the front wheels by pushing them onto the axles until they click. Attach the canopy by sliding the clips onto the frame and wrapping the Velcro around the handlebar. Finally, attach the cup holder.

What is the recommended age and maximum weight for this stroller?

This stroller is designed for children aged 6 to 36 months and supports a maximum weight of 18 kg (40 lbs). Never exceed this limit.

How to clean and maintain the stroller?

Clean plastic or fabric surfaces with warm water and a mild detergent. For metal parts, use a soft, damp cloth. Do not use abrasives or solvents. Store the stroller in a dry place, away from moisture and extreme temperatures.

How to fold and unfold the stroller?

To unfold, release the folding latch and spread the handles and feet in opposite directions until you hear a click. To fold, first close the canopy, then move the metal lever to the left and lift the bar to unlock. Bring the front wheels and handles together, then lock the frame with the side hook.

How to use the safety harness?

The harness is a 5-point system. To fasten, insert both buckles into the buckle until they click. Adjust the straps to fit snugly around your child. To unfasten, press the button between the buckles.

How to engage the brakes?

To brake, lower the brake lever located at the rear of the stroller. To release the brakes, lift the lever. Always brake before placing or removing a child.

Can I use the stroller for jogging?

No, this stroller is not suitable for running, skating, or similar activities. It is designed for everyday use on walks.

How to install the canopy?

Slide the canopy clips onto the frame until they click. Then wrap the Velcro strap around the handlebar in the middle and on both sides (see figures 8a, 8b, 8c in the manual).

What to do if the stroller does not unfold completely?

Make sure you have released the latch and spread the handles and feet until you hear a click. If it does not lock, check that the metal bar is fully lowered with your foot. Incomplete unfolding may cause collapse. Refer to figures 3 and 4 in the manual.

Where to find spare parts or technical support?

For any technical or warranty questions, contact support at www.vevor.com/support. Spare parts are not listed in the manual; contact the manufacturer or retailer.

USER MANUAL U103E Vevor

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

CLEANING & MAINTENANCE

AVOID SERIOUS INJURY. PLEASE DO A ROUTINE MAINTENANCE INSPECTION.

1. Never force any folding or adjustable parts. 2. Ensure that all the devices are correctly engaged before use. 3. To clean plastic or cloth surfaces, use lukewarm water with mild detergent only. To clean metal surfaces, wipe clean with a soft, damp cloth. Do not use abrasives or solvents. 4. Do not keep the stroller in a damp, cold, or hot place. 5. Check the folding lock when not in use. 6. Do not leave your stroller outside unprotected. 7. Regularly check the unit to ensure no parts are loose or broken.

PACKAGING LIST

No.	Components	Picture	QTY
1	Frame With Bumper		1PCS
2	Canopy		1PCS
3	Front Wheels		2PCS
4	Cup Holder	E	1PCS
5	Handle		1PCS

Opening and Assembling the Stroller

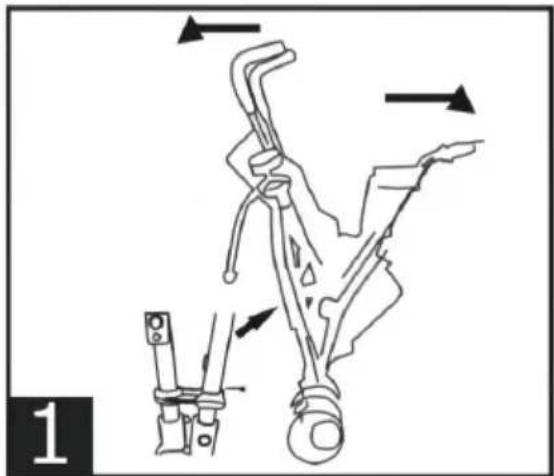

1. Release the folding latch and unfold the stroller by spreading handles and legs in opposite directions as shown in Figure 1.

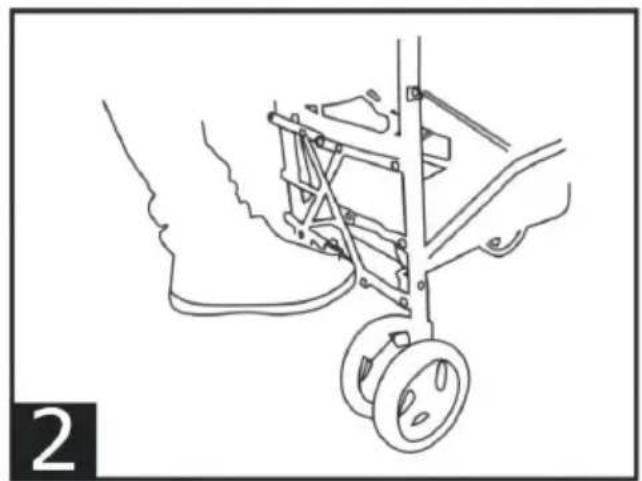

2. Using your foot, lower the metal bar, locking the stroller in the position as shown in Figure 2. Lower the metal bar until you hear a click.

WARNING

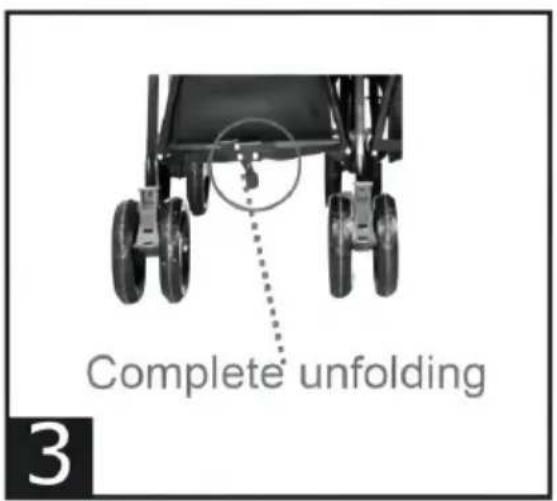

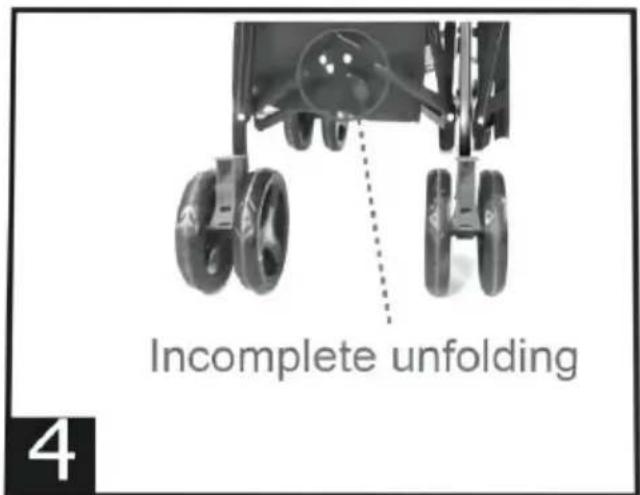

Incomplete unfolding of the stroller may cause the stroller to collapse in use. Please see Figures 3 and 4 for reference.

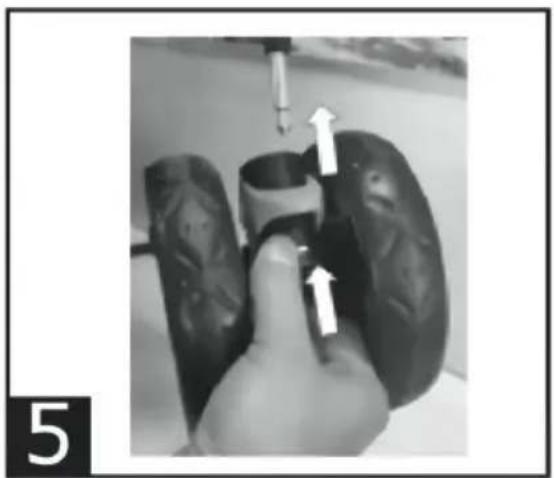

1. Press the metal button on the wheel onto the metal peg until you hear a click, as shown in Figure 5.

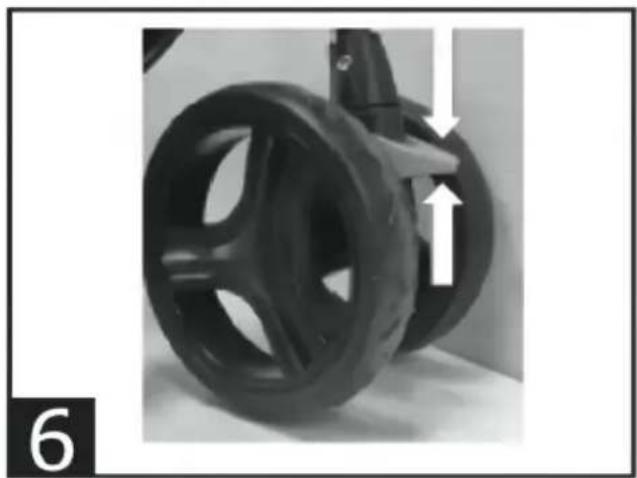

To lock the wheel, press the red lever down. To swivel, press it up as shown in Figure 6.

WARNING

Tug at it to make sure it's on correctly. Incorrect assembly could cause serious injury.

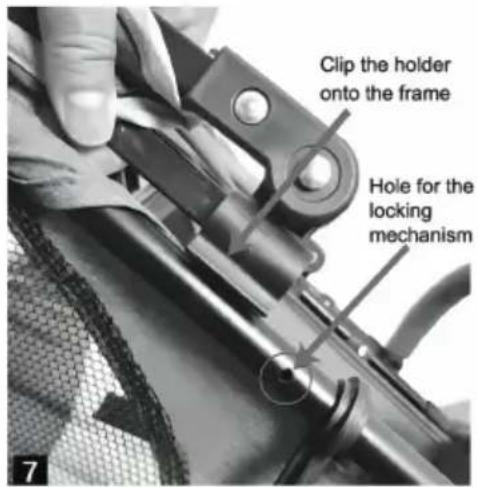

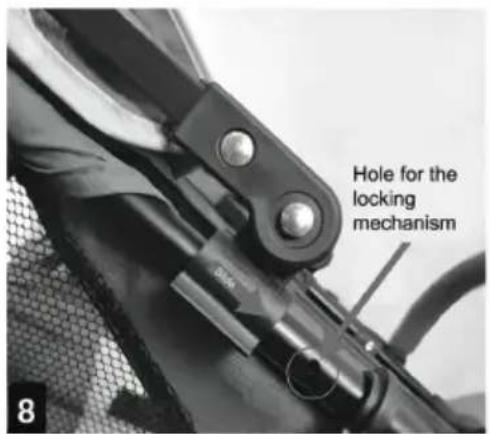

1. Attach the canopy onto the frame as shown in Figure 7. Slide the clip down the frame until it clicks into place as shown in Figure 8.

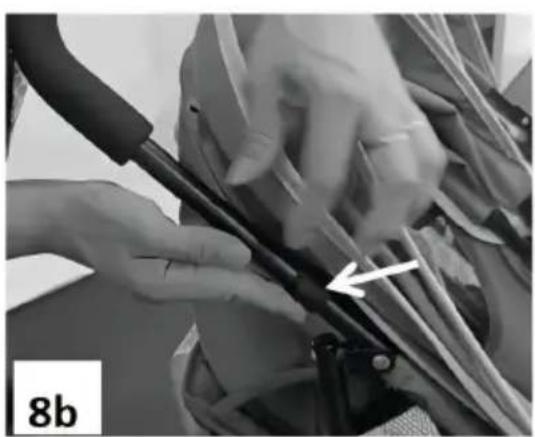

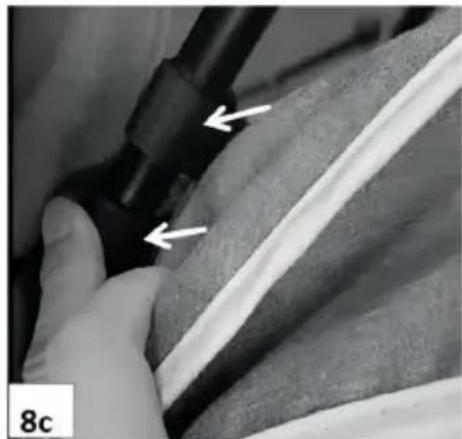

b) Wrap the Velcro strap on the handlebar in the middle and on both sides as shown in Figures 8a, 8b, and 8c.

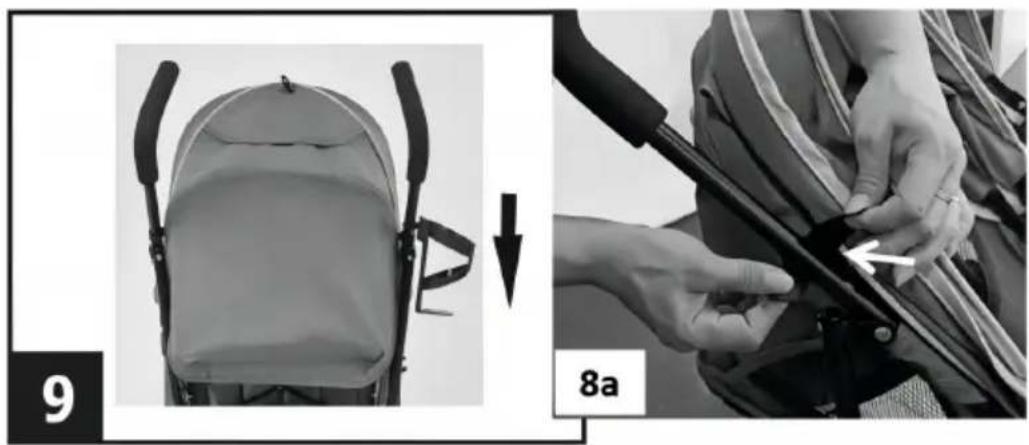

1. Attach the cup holder, as shown in Figure 9.

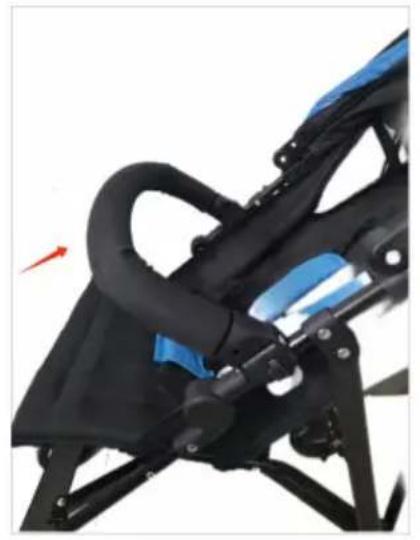

NOTE: The correct installation method of the handle is shown in Figure A, and the incorrect installation method is shown in Figure B.

A

B

Fitting the harness

Avoid serious injury from falling or sliding out.

Always use the harness.

After fastening buckles, adjust the harness to get a snug fit around the child.

To attach the harness

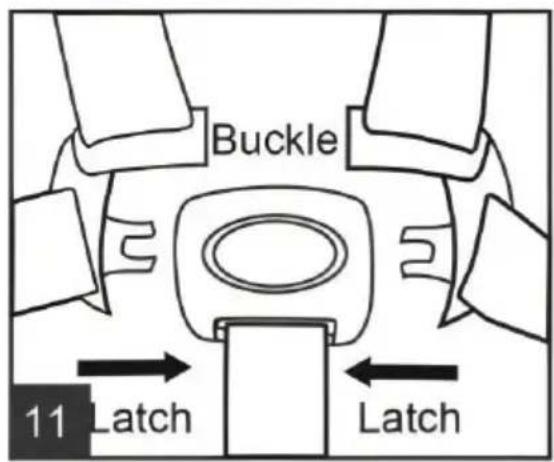

Insert both buckles into the clasp, see Figure 11.

To undo the harness:

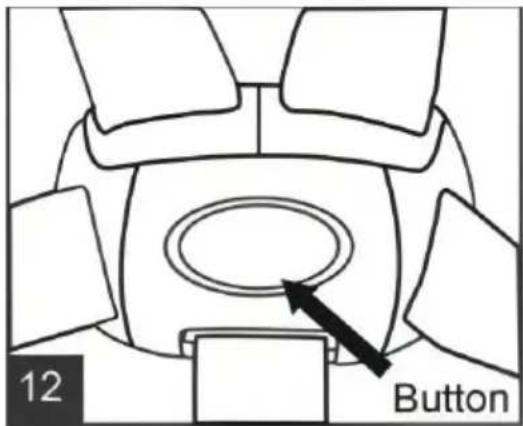

Press the button between the clasps to release the buckles. See Figure 12.

WARNING

Never leave child unattended.

Avoid serious injury from falling or sliding out.

Always use the harness.

How to fold the stroller:

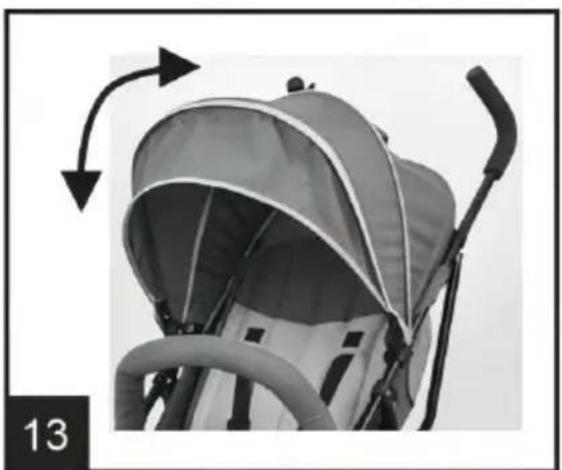

1. Close the canopy, see Figure 13.

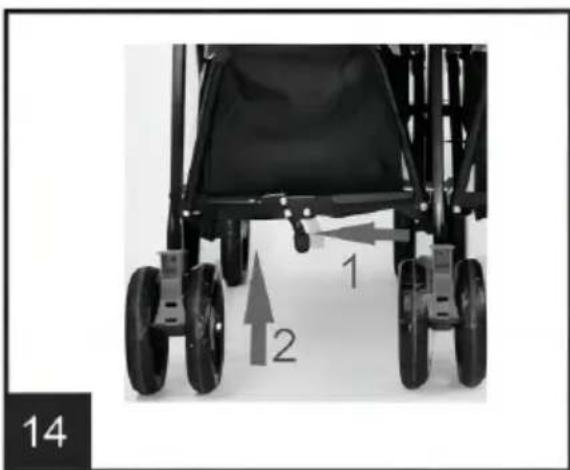

2. Move the metal lever to the left and kick up the metal bar to unfold. Figure 14.

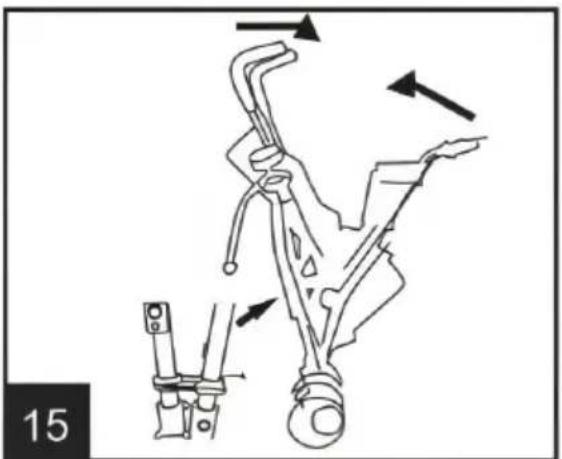

3. Bring together the front wheels and handles to fold the stroller. See Figure 15.

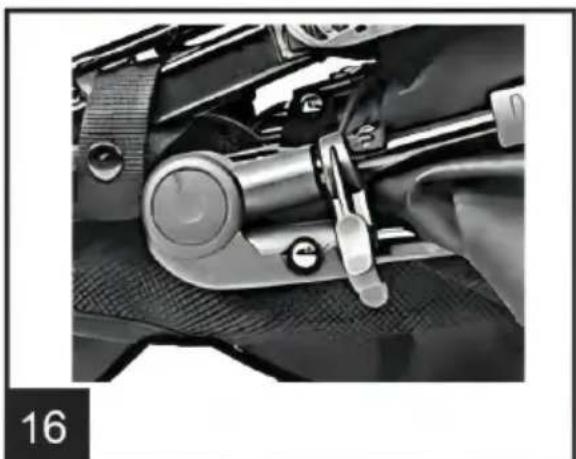

4. Lock the frame with the hook on the side of the frame, see Figure 16.

Using the Stroller

Using the Brakes

1. Step down on the brake lever to lock the stroller. 2. Lift it up to release. See Figure 17.

Adjusting the Seat

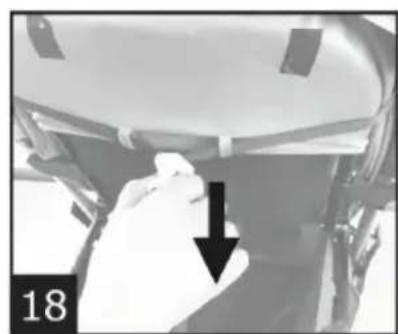

1. Squeeze the buttons and pull to lower the backrest. See Figure 18.

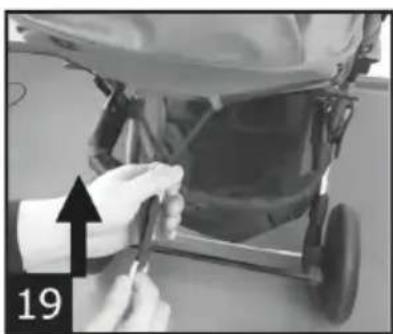

2. Squeeze the buttons with one hand, and pull on the other end with the other hand. See Figure 19.

WARNING

Failure to follow these warnings and the assembly instructions could result in serious injury or death.

1. Adult assembly is required. This stroller contains small parts, which are for adult assembly only. Keep small children away while assembling the stroller.
2. Remove protective material and plastic bags and dispose of them before assembling the stroller.
3. Stroller is suitable for children from 6 to 36 months.
4. Ensure that all locking devices are engaged before use. Check that the stroller or seat attachment devices are correctly engaged before use.
5. Avoid serious injury from falling or sliding out. ALWAYS use the seat belt. After fastening buckles, adjust belts to get a snug fit around your child.
6. Stroller is for one child only per seat.
7. DO NOT use storage basket to carry children.
8. NEVER lift the stroller by the front bumper.
9. ALWAYS set the brakes when placing child into or removing child from the stroller.
10. Stay clear of child when opening the stroller.
11. DO NOT keep stroller near hot surfaces or electrical fluxes. 12 NEVER leave child unattended while in the stroller.
12. DO NOT allow child to crawl out under or over the front bumper stand in the stroller.
13. DO NOT lift stroller with child inside.
14. The backrest should be adjusted by an adult.
15. Any accessories which are not approved by Dream On Me shall be used.
16. DO NOT hang or place items on the stroller handle, canopy or
17. This product is not suitable for running, skating or other similar activities.
18. ALWAYS use the crotch strap in combination with the waist belt using the harness.
19. Use of the stroller with a child weighing more than 40 lbs (18 kg) each seat could be unsafe.
20. To prevent a hazardous, unstable condition. DO NOT place more than 11 lbs (5 kg) in basket. DO NOT place more than 1.7 lbs (0.8 kg) in the parent tray or cu
21. To prevent the chance of serious burns NEVER place hot liquids in front of tray or in the cup holder.
22. Follow the washing instructions on the seat pad.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
