USER MANUAL T33 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TANDEM STROLLERS OPERATING INSTRUCTIONS

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Line drawing of a baby stroller with three wheels and a back cover (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

WARNING

1. Be sure to read this instruction manual before using the product the instruction manual well and put it in the place which is easy to
2. Please make sure the second lock is in locked state while the opened.
3. To avoid injury ensure that your child is kept away when unfoldi folding this product.
4. Do not let your child play with this product.
5. Never leave child unattended while using.
6. When baby is sitting on the seat, must use the safety belt con
7. t is necessary to start the brake device before you put the child stroller or carry the child away.
8. Don't allow your child to climb out from the guardrail or stand of stroller.
9. Do not use the stroller at dangerous area, such as on rough around stove.
10. This product is not suitable for running or skating.
11. Avoid to use or store the stroller at wet, cold and high temp environment, and keep away from fire or strong heater source.
12. Forbid to use any accessories which are not provided by manuf
13. Do not put things on the handle because it could affect the stability.
14. The weight of each seat must be no more than 16KG. the s be no more than 32KG.
15. The weight of basket is no more than 2KG.
16. For use from 6 months to about 3 years old.
17. The vehicle shall be used only for 2 child.
    18 The stroller should not be used for babies below 6 months.
18. In the applicable condition, the tickle of cushion which over 25 can't be added on the seat.

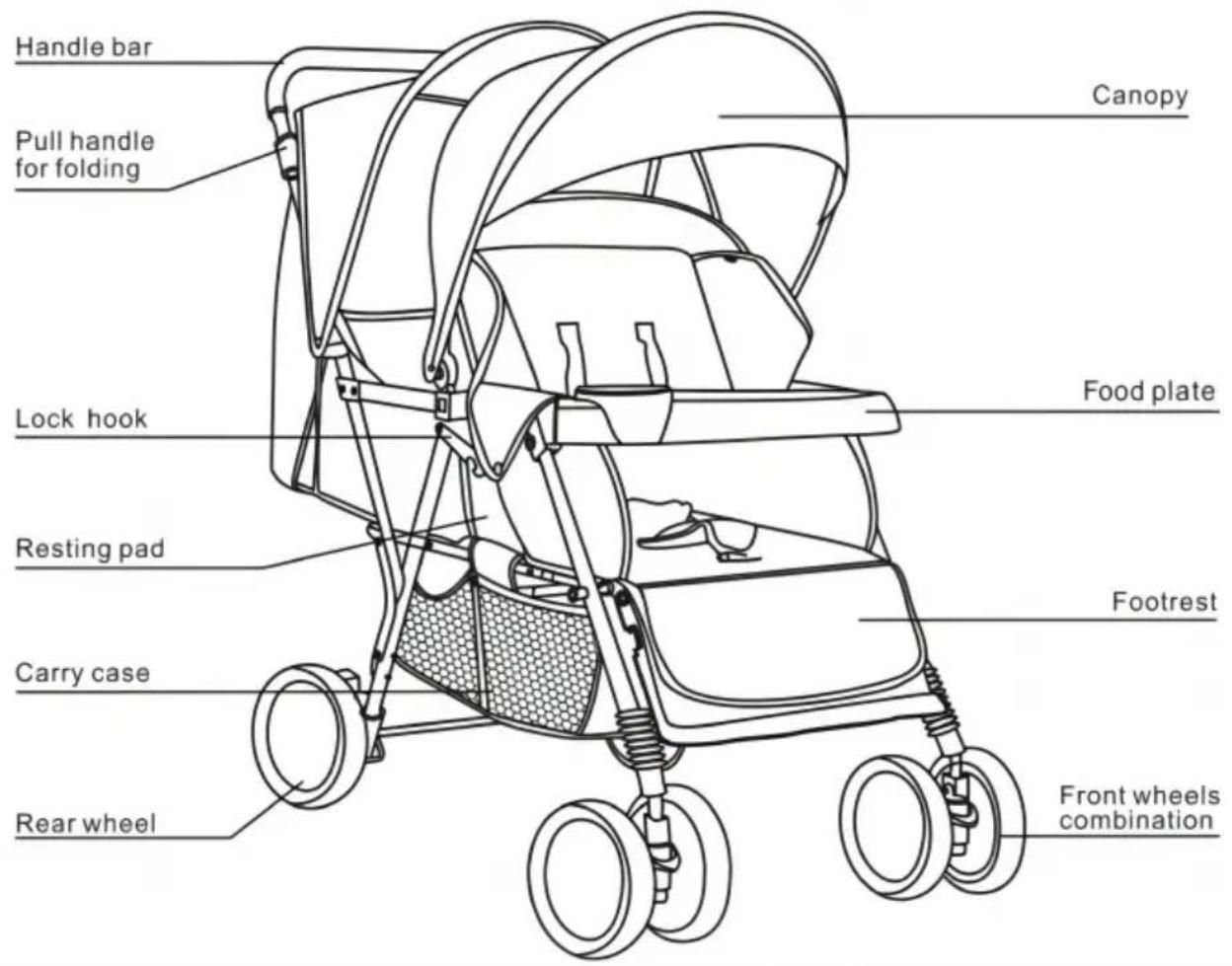

Name of Parts :

Handle bar Canopy Pull handle for folding Lock hook Food plate Resting pad Footrest Carry case Rear wheel Front wheels combination

Stroller Parts:

Stroller main frame: 1pc

Front canopy: 1pc

Front wheel combination: 2pcs

Rear wheel: 2pcs

Food plate: 1pc

brake frame: 1pc

Instructions: 1pc

Rear wheel assembling parts pack:

steel hoop: 2pcs

Rear wheel: 2pcs

Plastic liner: 2pcs

Plastic cap buckle : 2pcs

USE INSTRUCTIONS

Diagram showing mechanical linkage with labeled components and directional arrows

Diagram of a mechanical assembly with a tool and two circular components, no text or symbols present

3 ① ② ③ ④ ⑤

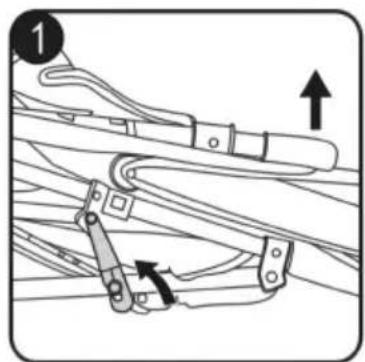

1. Open the hook: ( as shown in Figure 1 ), open the hook and handle up to fully expand the body.

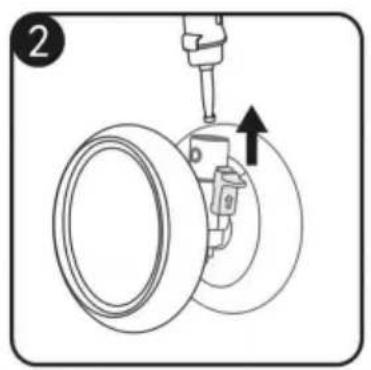

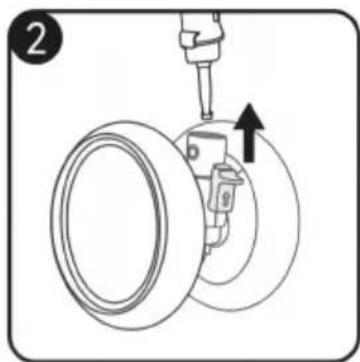

2. Front wheels installation: ( as photo 2 ), The front wheel assembly into the front pipe and check whether the clip is erected in the ring on the front pipe, confirm the front wheel combination wont break off.

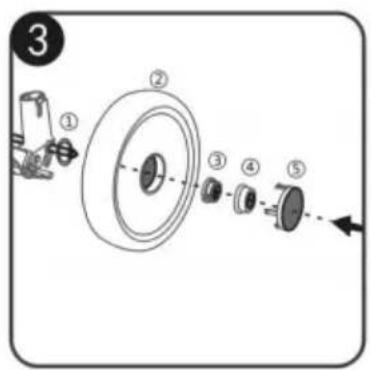

3. Rear wheels assembling: assemble all rear wheels accessories step step as photo 5 for both sides. The installation sequence is shown in diagram

①Steel hoop ②Rear wheel ③Plastic liner ④Plastic cop buckle ⑤Wheed cop

4

Diagram of a mechanical assembly with two wheels and a central valve, showing directional arrows (no text or symbols)

6

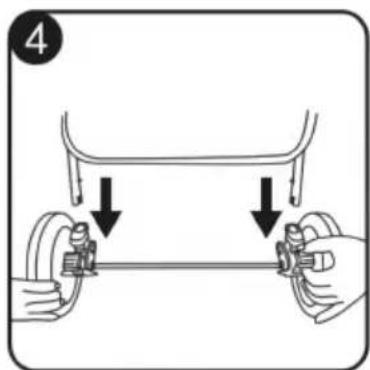

1. Rear wheels installation: ( as photo 4 ), The rear wheels assemble into the rear wheel pipe and check whether the clip is erected in the groove on the rear pipe.

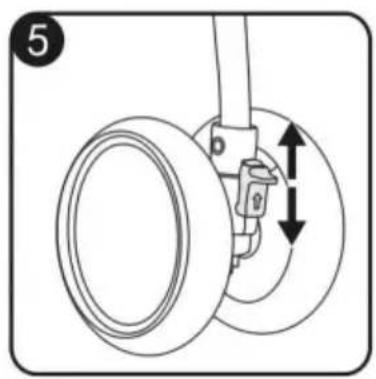

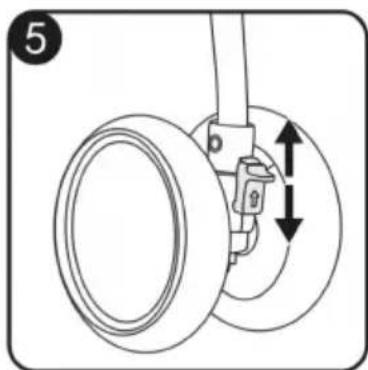

2. Front wheels orientation: Push chassis down or up as photos to r wheel in fixed or swivelled position.

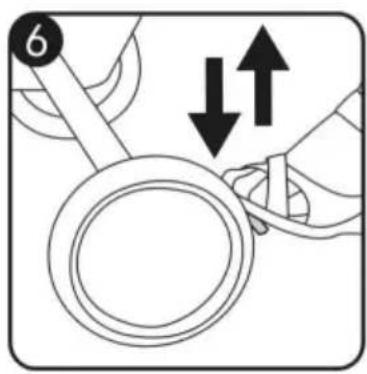

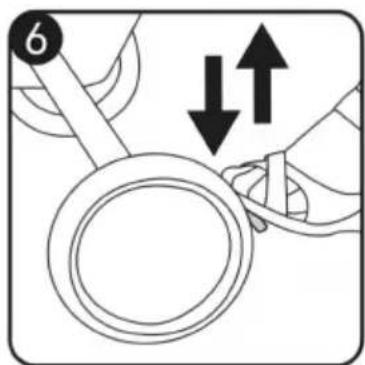

3. Brake lever: ( as photo 6 ), Orientation construction and is univ

Diagram showing a car seatbelt mechanism with labeled parts and an inset magnified view of the handle mechanism.

8

9

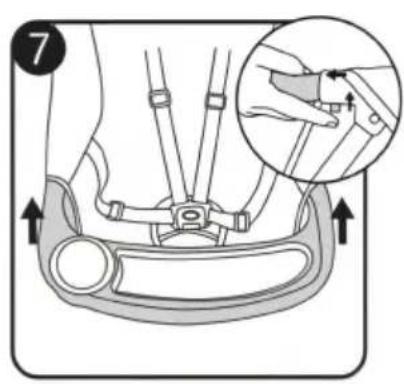

1. Front armrest installation and disassembly : ( As picture 7 ), inst front armrest into the card position and put it in to hear the click so Press the disassembly button up and remove the front armrest , then forward.

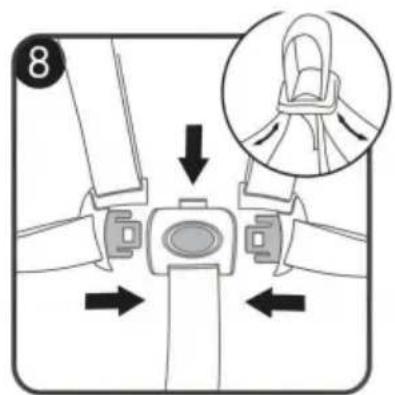

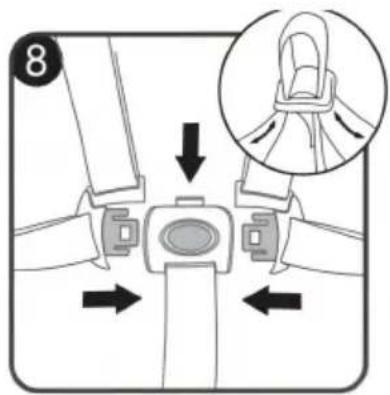

2. Using harness : ( as photo 8 ), Insert the tongue into buckle a the tongue out of the buckle( note : please clock the safety button ) baby in the stroller , and unlock the it when take out the baby ).

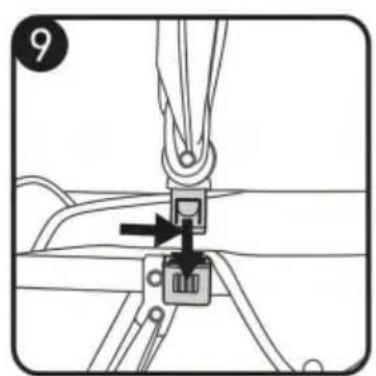

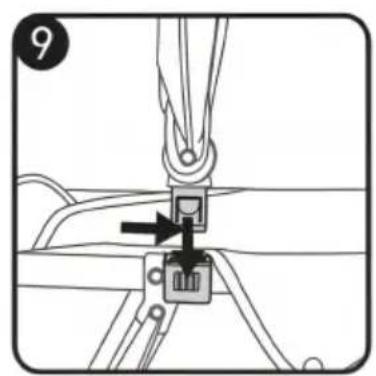

3. Canopy installation : ( as photo 9 ), Put the canopy pin insert whole inside joint , “ka ta” is OK .

Diagram of a mechanical assembly with a folded component and directional arrow (no text or symbols)

Line drawing of a hand pressing down on a small object, with an arrow indicating motion (no text or symbols)

12

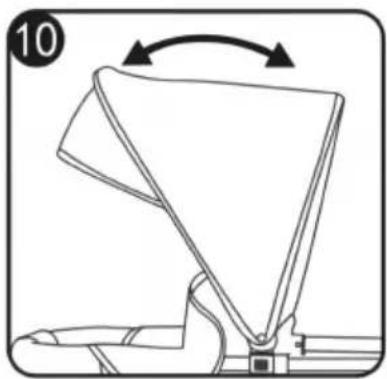

1. Canopy adjusting push / pull the canopy edge, the canopy will be adjusted.

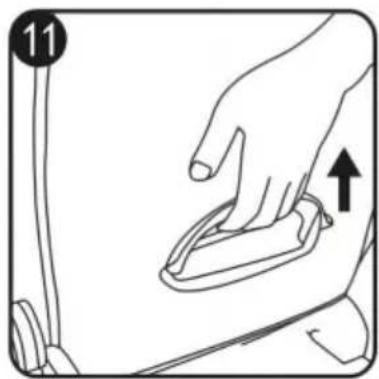

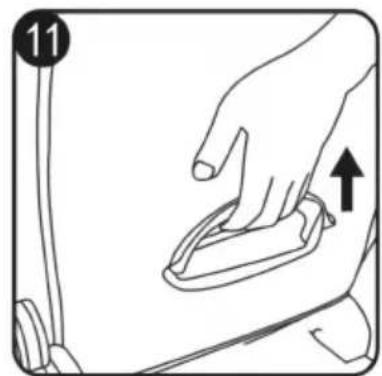

2. Front seat backrest adjusting: Pull up (as the arrow) them pull downwards.

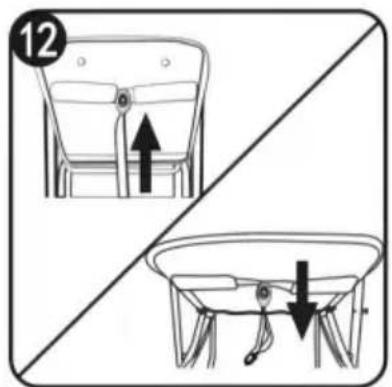

3. Back seat backrest adjusting: ( as photo 12 ), Fasten and loos backrest belt whilst pressing the middle button to adjust the backrest position.

Line drawing of a hand gripping a car seatbelt with directional arrows indicating rotation (no text or symbols)

14

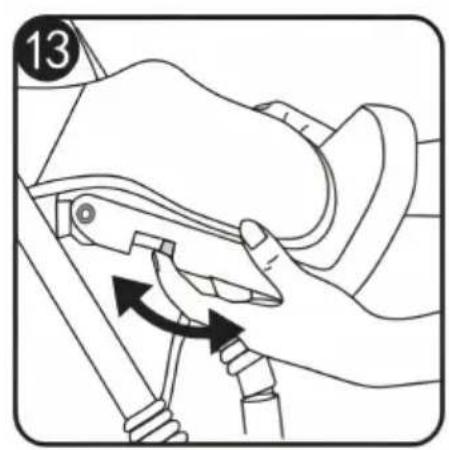

1. Front seat footrest adjusting: Press the buttons as photo 13 to downwards and upwards the height.

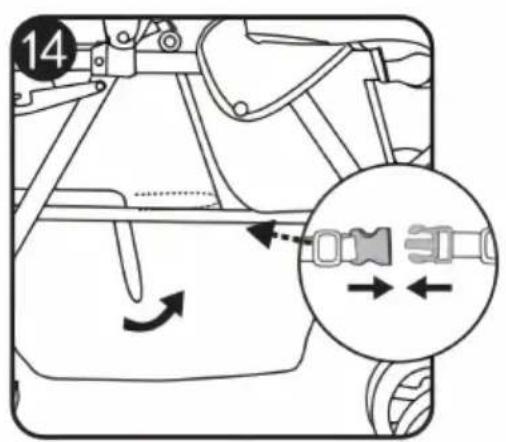

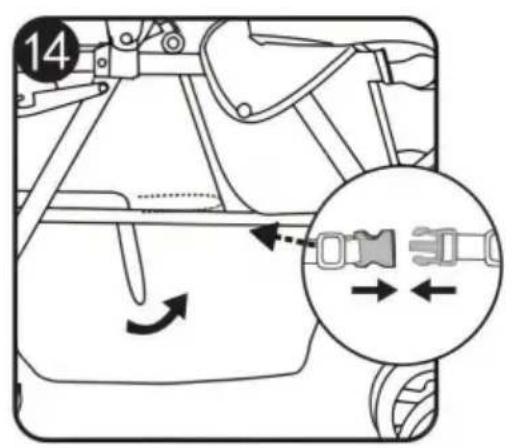

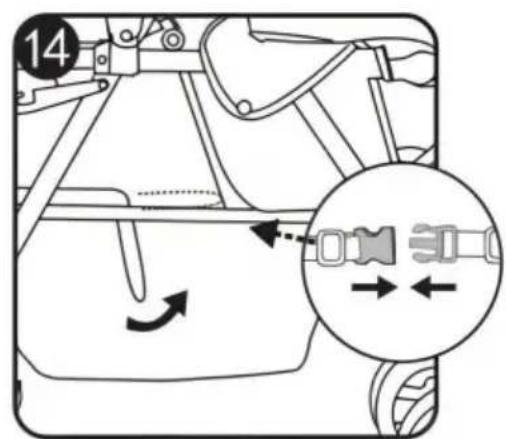

2. Back seat footrest adjusting: As shown in figure 14, fasten the accommodation zone when you need leveling the footrest, and unfaste the button when you don't need.

Folding instruction:

Diagram illustrating a mechanical device with labeled parts and an inset showing the step of adjustment or assembly.

Mechanical linkage diagram showing a chain with springs and a lever mechanism (no text or labels)

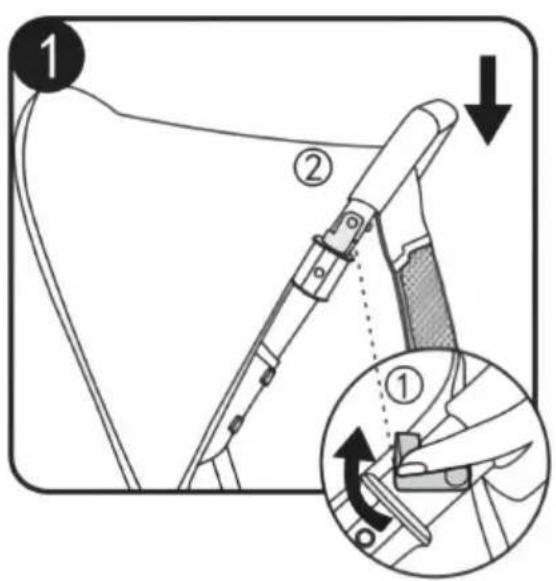

1. Close stroller: (as photo ①) Put forward the second lock, s be opened, hold the handle bar, lift up the handle button aside (as ②) Lower handle of the bracket after unlocked the stroller until the is locked.

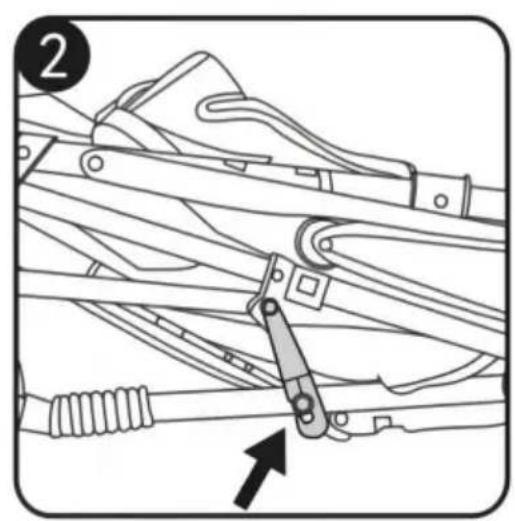

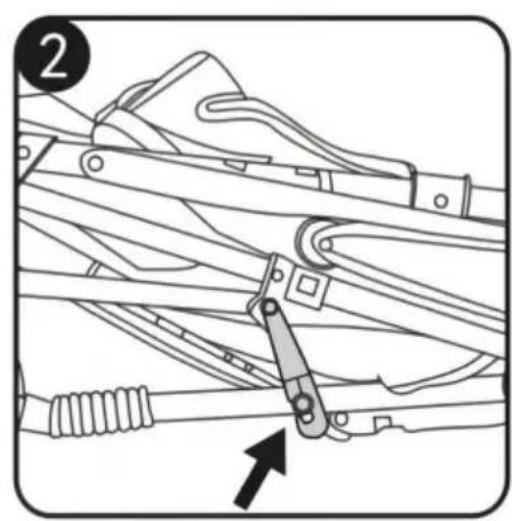

2. Lock the stroller: (as photo 2) Use the hook after folded the

WARNING:

WARNING: Ensure that all the locking devices are engaged before us WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING: Do not let your child play with this product.

WARNING: This product is not suitable for running or skating.

That the parking device shall be engaged when placing and removing children.

MAINTENANCE INSTRUCTIONS:

1. Avoid serious injury for your baby, please often check and maintain stroller
2. Hand wash with brush for the fabric, please use soap or mild oil to wash the other parts
3. Periodically check if all screws are tight, parts damaged or suture chapped, please change the damaged parts if needed.
4. Please carefully follow the instruction manual to operate when you removing the parts in order not to make unnecessary damage.

Manufacturer: Dongguan Chuanghua Industrial Co., Ltd.

Address: No.32, Ditangling road, Datang, Dalingshan, Dongguan

City, Guangdong Province, China

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730
