MINIB - Heat press machine Vevor - Free user manual and instructions

Product Type	Heat Press Machine
Brand	Vevor
Model	MINIB
Heating Plate Size	3.5 x 2.5 inches (90 x 60 mm)
Power Supply	120 V ~ 60 Hz / 220-240 V ~ 50 Hz
Rated Power	85 W (120 V) / 80 W (220-240 V)
Temperature Range	145-185 °C (285-365 °F)
Display	Digital LED Screen
Temperature Setting	3 preset speeds (145, 160, 185 °C)
Temperature Unit	Selectable °C/°F
Handle	Ergonomic
Non-slip Base	Yes, insulated
Housing Material	Fire-resistant ABS and PA
Plate Material	Aluminum alloy
Overheat Protection	Auto shut-off after 10 minutes of inactivity
Safety	Auto shut-off, overheat protection
Maintenance	Unplug before cleaning, wipe with a damp cloth
Repairability	Do not disassemble yourself, contact technical support
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate
Number of Pages in the Manual	102 pages

Frequently Asked Questions - MINIB Vevor

Why does the temperature not reach the set value and does the timer start a countdown?

This is normal. The timer should only be activated once the temperature has reached the desired value. Wait for the display to show the set temperature before pressing the timer. Make sure the temperature reaches the recommended settings for a successful transfer.

What are the tips for successful transfers with the Vevor Press?

For perfect and long-lasting transfers, three elements are important: a firm and even surface (avoid ironing boards and plastic tables), use the recommended settings for the heat transfer vinyl and base material, and apply firm pressure during transfer.

How much pressure should I apply to the press?

It depends on the application. A firm pressure corresponds to two hands with a body weight of 15 to 40 pounds (about 7 to 18 kg). A gentle pressure corresponds to one hand with a weight of 5 to 15 pounds (about 2 to 7 kg). Use a waist-height table to facilitate application.

Why does the color of the design fade after pressing on clothing?

This can come from three causes: the pressure is too low, the temperature is not hot enough, or the design was not pressed long enough. Try adjusting these parameters to get the desired result.

I followed the instructions but the heat transfer vinyl did not stick. What should I do?

Common reasons are: the press did not fully contact the material (due to seams or zippers), the settings are not correct, or the heat was not applied to the front and back of the design for the recommended duration. Touch up the front and back with heat for an additional 15 seconds.

The temperature of the press decreases when I apply it to the image. Is this normal?

Yes, this is normal. The temperature may fluctuate briefly due to the difference between the heated plate and the base material. The machine quickly returns to the selected setting and the adhesion of the image will not be affected.

My machine turns off by itself. Why?

This is the auto shut-off safety feature. After 10 minutes of inactivity or without pressing a button, the device will alert you and then turn off. Simply turn it back on to continue.

Can I use the press for materials other than textile?

Yes, you can use the press on various heat-resistant materials, such as wood, ceramic or metal, provided you use the appropriate temperature and pressure settings. Consult the manual for specific recommendations.

How to clean the heating plate?

Make sure the machine is unplugged and completely cooled down. Wipe the plate with a soft, damp cloth. Do not use abrasive products or liquids that could seep into the device.

What to do in case of breakdown or malfunction?

Do not attempt to repair the device yourself. Contact Vevor technical support via the website www.vevor.com/support for assistance and to claim the electronic warranty.

USER MANUAL MINIB Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HEAT PRESS MACHINE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when you are placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HEAT PRESS MACHINE

MODEL: MINIB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates a of precaution, warning, or danger. Ignoring this warning ma lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation sho below.
	CORRECT DISPOSAL: This product is subject to the provision of European Directive 2012/ 19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

WARNING

1. Warnings must be followed carefully to avoid body injury. Improper use may result in electric shock, fire, personal injury, and other damage. 1) Keep unplugged when moving the machine. 2) Keep unplugged when installing accessories. 3) Place on a flat and stable platform and operate under ventilated conditions. 4) Wear special protective equipment when operating the machine. 5) Do not use this machine in a hazardous location. 6) Do not use when the machine is not working properly. 7) Do not disassemble and repair this machine. 8) Do not use an unsuitable AC outlet. 9) Do not touch the heating plate when the machine is heating.

10) Do not use in a humid environment or contact with water. Do not infiltrate liquid into the machine to prevent fire or electric shock caused by short circuit.

11) Do not use a power supply that does not meet the rated voltage. A power supply that does not meet the specified voltage may cause fire or electric shock.

12) Ensure that the machine is grounded so as not to cause harm. 13) Do not touch the rotating rod or bearing part with your fingers during use, in case of injuries.

14) If the machine is not in use for a long time, please unplug the cord from the socket.

15) Do not use the machine during thunderstorms or lightning to avoid damage to the machine.

16) Place the machine smoothly on the flame-retardant table and keep away from flammable and explosive items.

17) Please stop using it if the machine smokes, emits a peculiar smell, becomes noisy, or other abnormal conditions occur.

18) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

19) Type Y attachment: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

20) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

INTRODUCTION

A heat press machine uses temperature and pressure with a certain amount of tin.

transfer designs onto items. The transfer is permanently embedded into the product. Thank you for choosing the Heat Press Machine. Please read this user manual carefully and keep it for future reference. If you need any assistance, please email us with your order number and details.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

SPECIFICATION

Model	MINIB
Heat Plate Size	3.5x2.5 inch (90×60 mm)
Voltage	120V~ 60Hz	220-240V~ 50Hz
Power	85W	80W

What's in the box

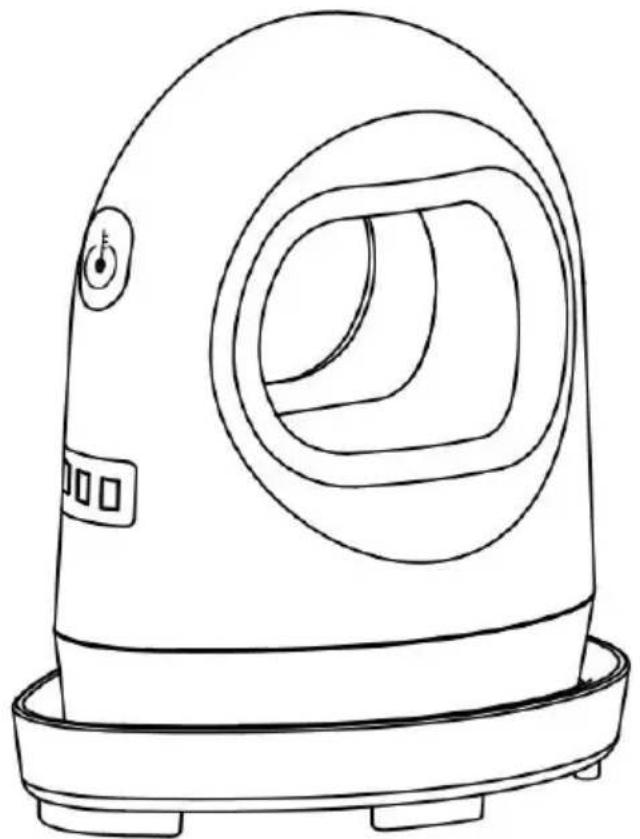

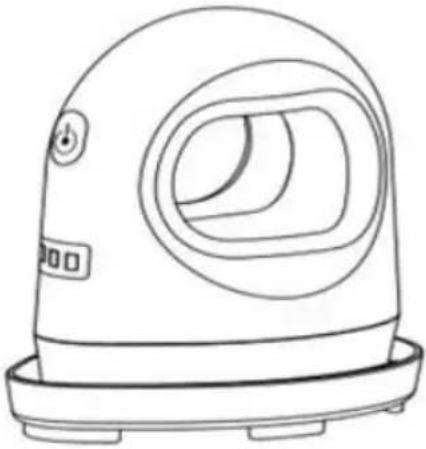

1 Heat Press Machine	2 Safety Base

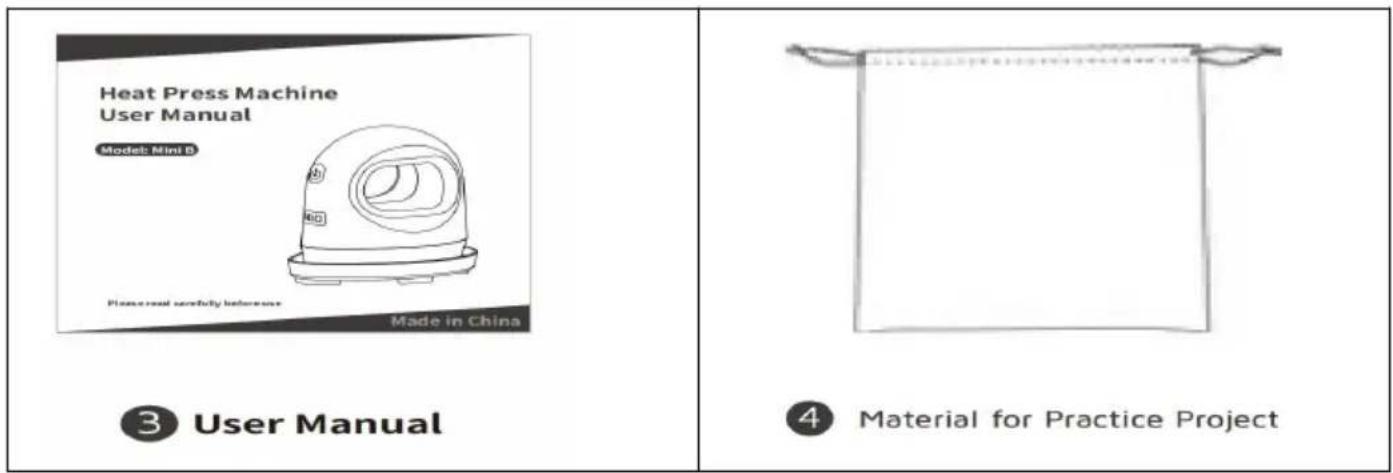

3 User Manual	4 Material for Practice Project

Glance Features

LED Screen Digital Controls Clear display, easy to set temperature

Fahrenheit/Celsius Option

Temp: 285-365°F/145-185°C

Ergonomic Handle

Counterbalanced, back that mass up, ensure your smooth operation.

Evenly Heated Plate

Highly durable aluminum alloy provides flawless transfers.

Insulated Antislip Base

Not only a placement to settle the machine but also prevent your workbench away from scorching.

Fireproof Design

Made with premium fire retardant ABS&PA.

Auto Shutoff Overheat Protect

The machine shuts off automatically after 10 mins without operation. Overheat protector is installed.

Glance Features

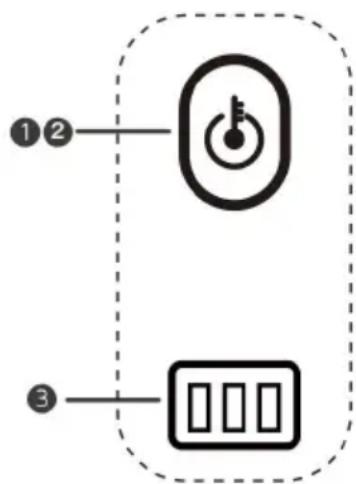

①Power Switch Key In the shutdown state, press the key in a short to power on. In the power on state, press and the key for 3 seconds to shutdown or select the temperature gear. ②Temperature Settings Key In the power on state, press the key in a short switch the temperature.

③Description of three indicators:

1. The left indicator is on, indicating that the temperature is the first C/285°F).
2. The left indicator and the middle indicator are on at the same indicating the second gear temperature (160°C/320°F).
3. The three indicators are on at the same time, indicating the third erature (185°C/365°F).

▶ Operation guide

A. Setting: Plug in and switch on. Set the temperature according to different base materials and iron-on types. B. Get prepared: Make your workbench flat and stable. Use a heat-proof material or a folded fluffy towel to protect your workbench surface. C. Preheat the base material: Place your base material on the mat/towel for a few seconds to remove wrinkles and moisture. D. Position and press: Place your design wherever you want on the base material, and place the machine on the design. E. Flip and repeat: Flip the base material and apply heat on the backside of the design for 15 seconds. If the transfer paper or heat transfer vinyl doesn't lift easily, reapply and reheat

for a few more seconds.

F. Peel to finish: Peel off transfer paper or HTV (Please check if the transfer is warm peel or cold peel, and peel off accordingly).

Note

Please switch off the machine and unplug the power cord when the machine is not in use. It may be easy, but it's also HOT. Handle with care.

▶ TROUBLESHOOTING

Q: Why does the temperature not reach the set value and when I press the Timer button, the machine begins to countdown. Is there something wrong?

A: Please don't worry, it is normal. After the temp reaches your desired value (setting value), you can press the Timer. Make sure that your temp reaches the recommended settings.

Q: What are the tips for successful transfers with VEVOR Press? A: For perfect transfers that last, three things are important:

1. A firm, even surface. Iron boards and plastic tables cannot provide the firm, even surface needed for successful transfers. We suggest you use our silicone mat.
2. Use the recommended settings for the iron-on and base material you're using.
3. Make sure you apply firm pressure when transferring.

Q: How hard do I have to press?

A: Some applications call for "gentle" pressure, and some call for "firm" pressure. Firm pressure means pressing down with two hands and 15-40 lbs body weight. Gentle pressure means one hand with 5-15 lbs of body weight. In all cases, a waist-high table is recommended for ease in applying the recommended pressure.

Q: When pressed onto the garments, the color of the design is faded?

A: The reason comes from three aspects: the pressure is too low, the temperature is not hot enough, or the design has not been pressed for enough time. You need to try more to get the right temperature, time, and pressure.

Q: I followed the instructions and my iron-on didn't stick. What happened? How do I get it to work?

A: The most common reasons for your images not sticking:

1. Press machine did not make full contact with the base material. This could be because of seams, zippers, or anything else that will cause you to not have a flat surface.
2. Verify that your press machine is set to the recommended settings.
3. Be sure heat has been applied to both the front and the back of the design for the recommended time.
4. Re-touch the front and back of the material with heat for an additional 10-15 seconds.

Q: The Press Machine temperature goes down when I apply it to the image. Is this something wrong? A: Press temperature may fluctuate briefly when placed on the base material after heating. This is due to the difference in temperature of the heated plate and the base material.

Don't worry, the machine temperature will quickly return to the selected setting. Your image adhesion will not be affected.

Q: My machine keeps turning off, and I have to turn it back on. Why?

A: This is the auto-shut off safety feature of the Heat Press Machine. After 10 minutes of inactivity, or no button pushes, the device will alert you and then shut off.
