USER MANUAL MST003-3W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SADDLE STOOL

USER MANUAL

MODEL:MST003-3B/MST003-3W

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SADDLE STOOL

MODEL:MST003-3B MST003-3W

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly may create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Saddle Stool.
8. For additional information regarding the parts listed in the following page, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. This product is not a toy. Do not allow children to play with or near
2. Do not exceed weight capacities.
3. Do not use alcohol based cleaners when cleaning the vinyl. This could cause damage to the vinyl material. Use warm soapy water and wipe
4. Use only on a flat, level, hard and smooth surface capable of safely supporting a fully loaded Saddle Stool.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PRODUCT PARAMETER

Model	MST003-3B	MST003-3W
Maximum Loaded Weight	450 lbs
Adjustable Height	550-710 mm
Product Size	540*540*H550~710 mm
Colour	Black	White
Net Weight	4.7 kg

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PARTS LIST

x 1 (FOR MST003-3B)

x 1 (FOR MST003-3W)

x1

x1

x5

ASSEMBLY STEP

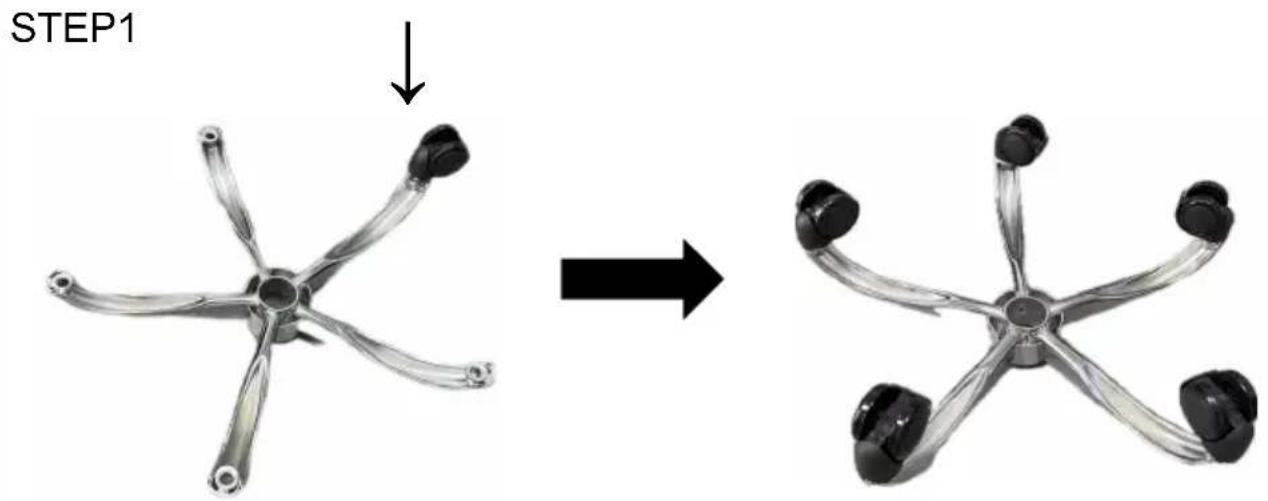

Insert the wheels to the five star base, please make sure that wheels can match the base very well.

STEP2

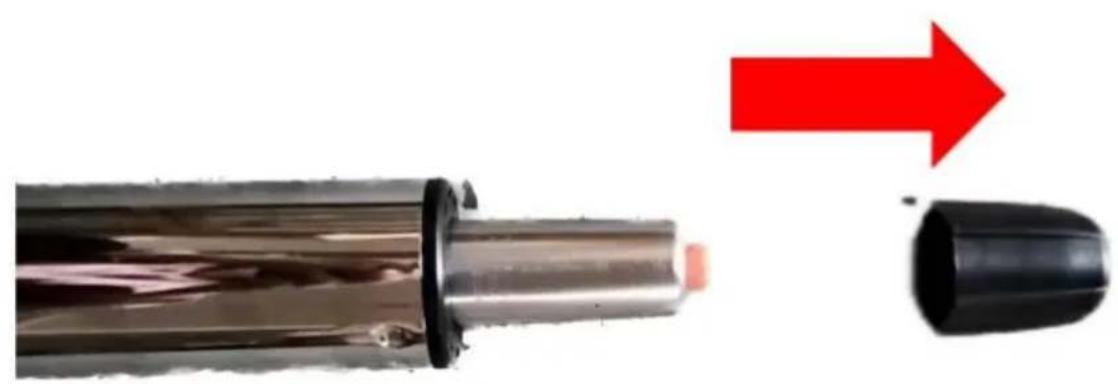

Remove the black cover from the cylinder. (Tip:The black lid difficult to remove, you can borrow tools or destroy it.)

STEP3

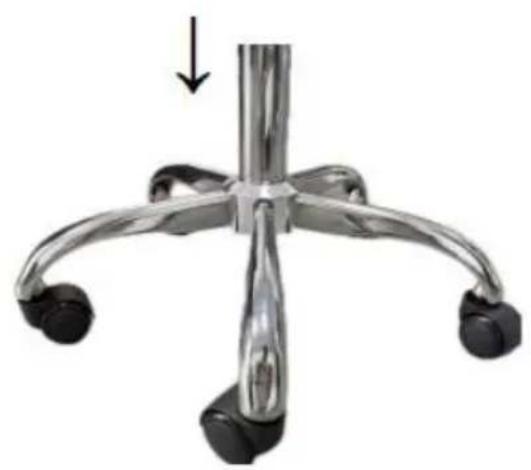

Insert the gas lift into the hole of the five star base

STEP4

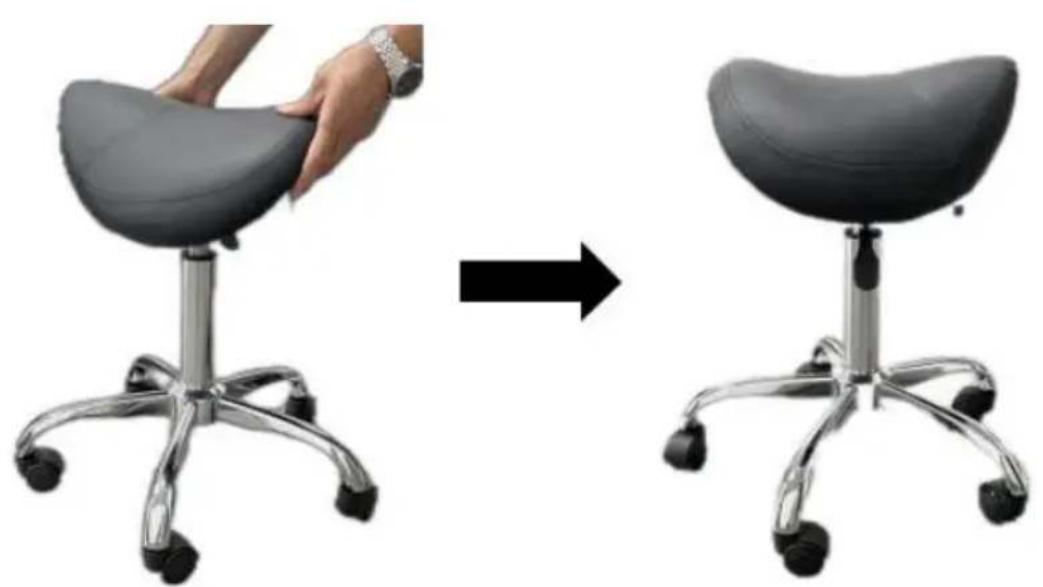

Put the seat pad on the gas lift.

STEP5

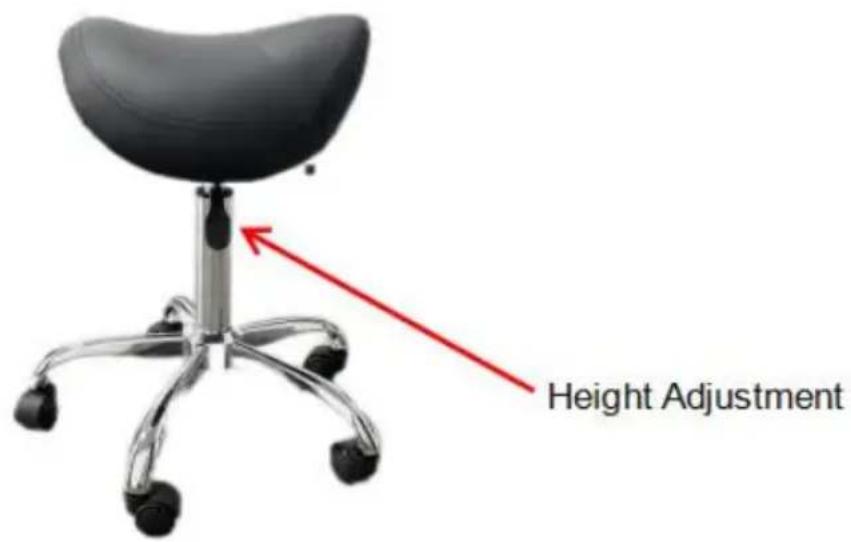

Sit on the stool, and then adjust the height of the stool to t make you feel comfortable.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
