WS-YY-10 - Chair Vevor - Free user manual and instructions

USER MANUAL WS-YY-10 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

OUTDOOR ROCKING CHAIR

MODEL: WS-YY-09、WS-YY-10

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: WS-YY-09、WS-YY-10

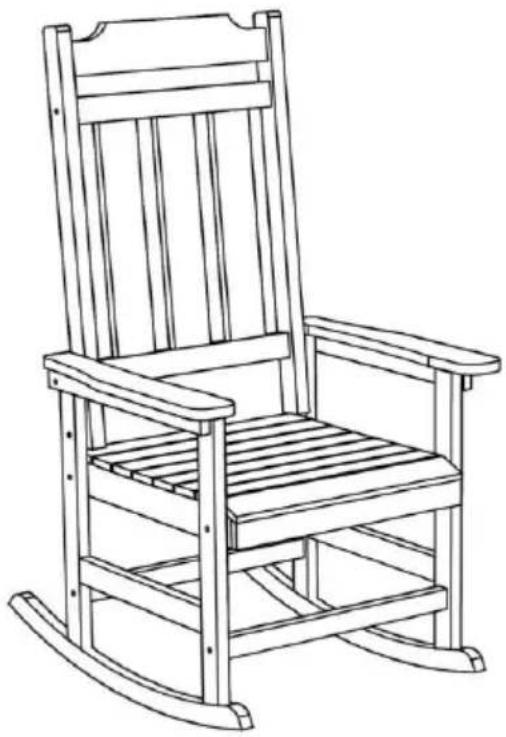

Line drawing of a wooden rocking chair with slatted backrest and wooden beams (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

PARAMETER LIST

Model	WS-YY-09	WS-YY-10
Color	Black
Material	HIPS
Maximum load bearing (lbs)	400
Product size (mm)	870*710*1100
Net weight (kg)	16.7	33.5
Packing	1 pcs/box	2 pcs/box

PART LIST

Model: WS-YY-09
No.	name	picture	Quantity
A	Back		1
B	Seat		1
C	Right Arm		1
D	Left Arm		1
E	Headrest Board		1
F	Side Support		1
G	Leg Frame		2
H	Bocker Bar		2
I	Leg Support		2
J	Seat Brace		1
AA	Screw (M4*35mm)		4
BB	Screw (M6*95mm)		4
CC	Bolt (M6*70mm)		2
DD	Bolt with nut (M6*70mr)		4
EE	Bolt with nut (M6*60mr)		2
FF	Bolt (M6*50mm)		10
GG	Phillips screwdriver		1
HH	Allen Wrench		1
	User manual		1
Model: WS-YY-10
No.	name	picture	Quantity
A	Back		1*2
B	Seat		1*2
C	Right Arm		1*2
D	Left Arm		1*2
E	Headrest Board		1*2
F	Side Support		1*2
G	Leg Frame		2*2
H	Bocker Bar		2*2
I	Leg Support		2*2
J	Seat Brace		1*2
AA	Screw (M4*35mm)		4*2
BB	Screw (M6*95mm)		4*2
CC	Bolt (M6*70mm)		2*2
DD	Bolt with nut (M6*70mr)		4*2
EE	Bolt with nut (M6*60mr)		2*2
FF	Bolt (M6*50mm)		10*2
GG	Phillips screwdriver		1*2
HH	Allen Wrench		1*2
	User manual	OUTDOOR ROCKING CHAIRKISSIP KITCHENK	1

SECURITY & WARNINGS

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.

2. Wear safety goggles and heavy-duty work gloves during assembly.

3. Do not assemble when tired or when under the influence of alcohol drugs, or medication.
4. Weight and other product properties are only applicable to correctly completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING

1. This product is not a toy. Please keep the product away from ch while assembling.

2. Use as intended only. Do not let children play or jump on the product. Do not stand on the item or use it as a step ladder.

3. Inspect before every use. Do not use it if parts are loose or damaged.

4. Tighten the lower screws every three months to prevent loosening legs.

5. Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

STEP 1

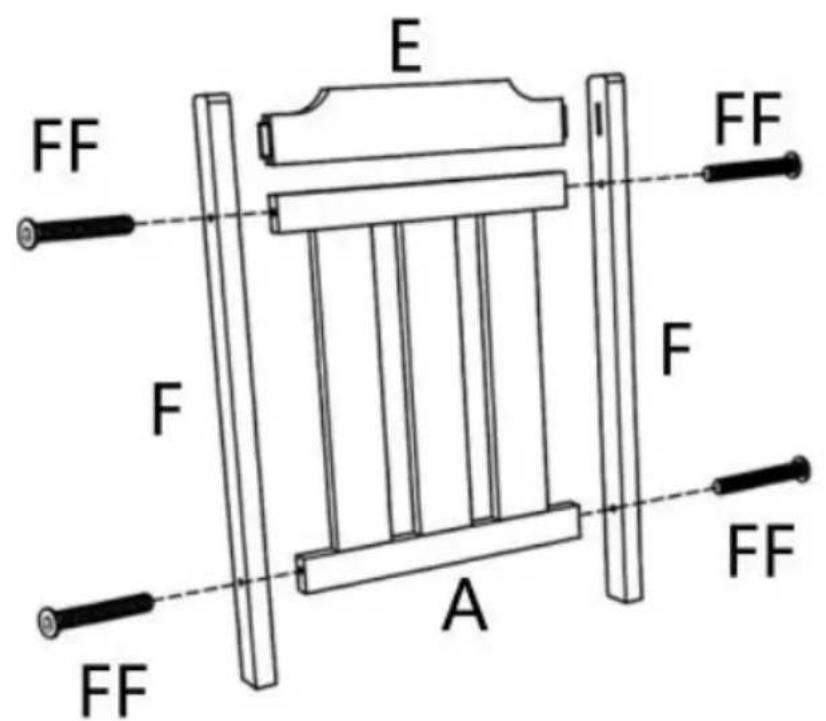

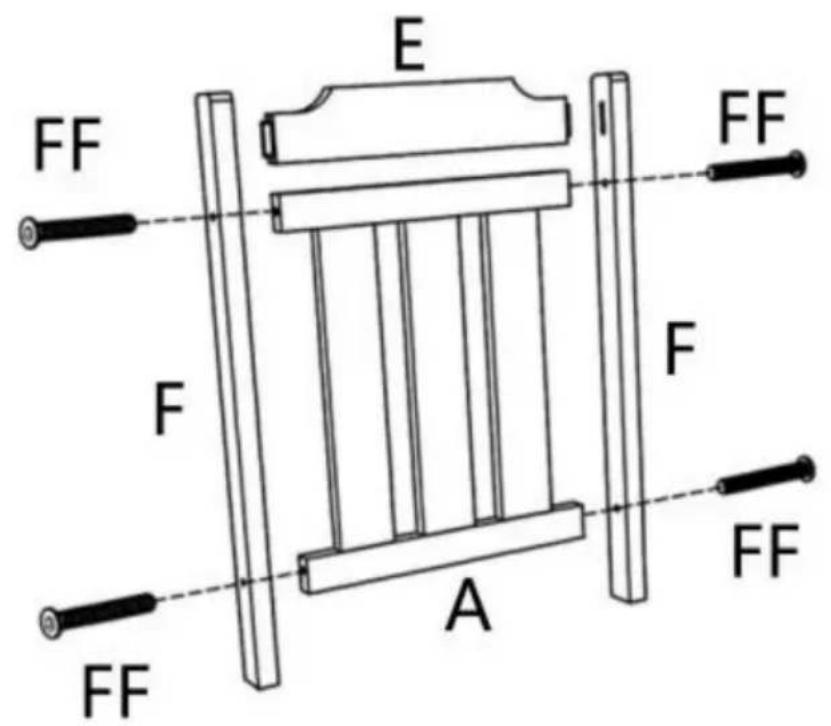

E FF F A FF FF F FF

STEP 2

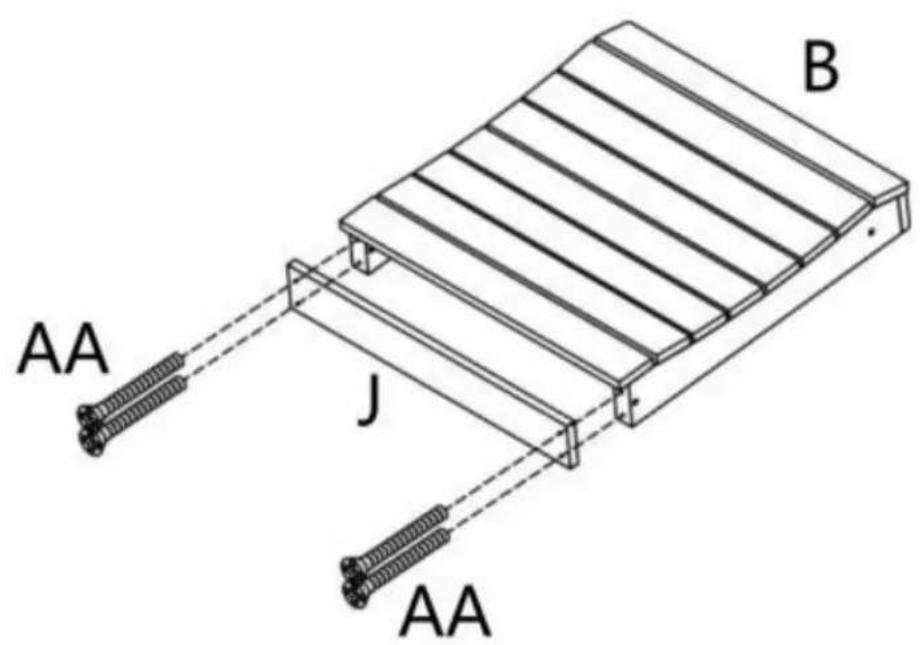

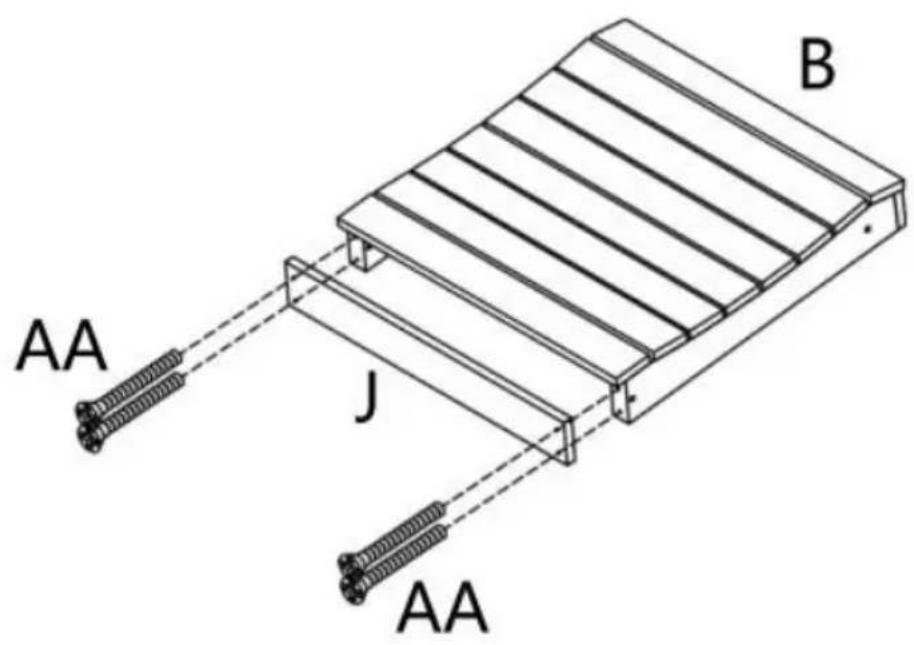

B AA J AA

STEP 3

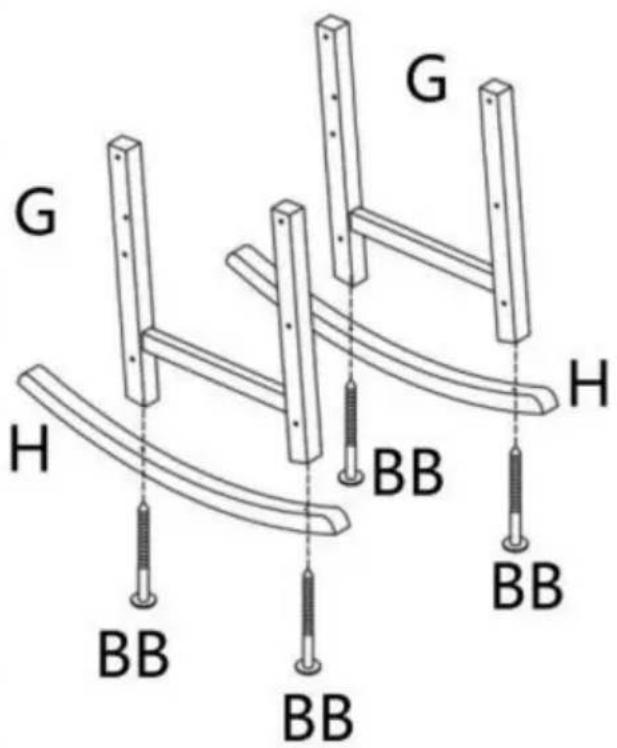

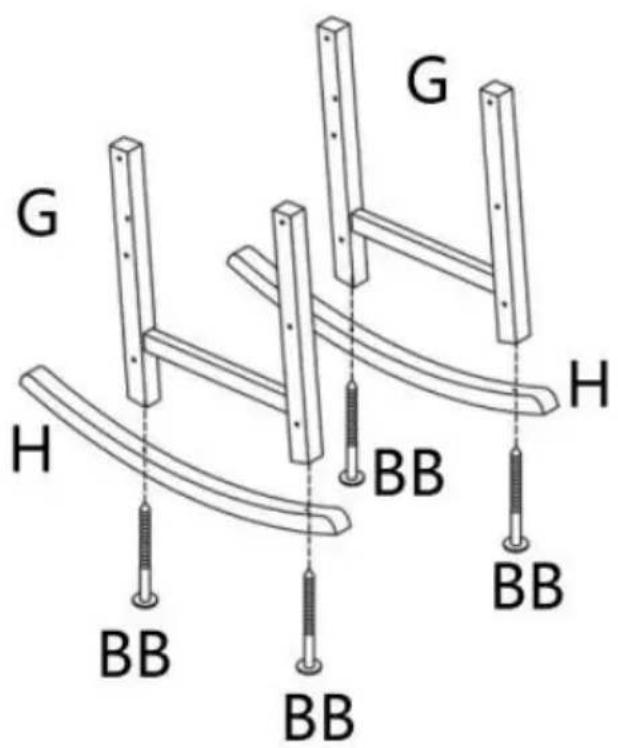

G H BB BB G H BB BB

Simple line drawing of a curved structure with labeled points G and H (no text or symbols beyond labels)

STEP 4

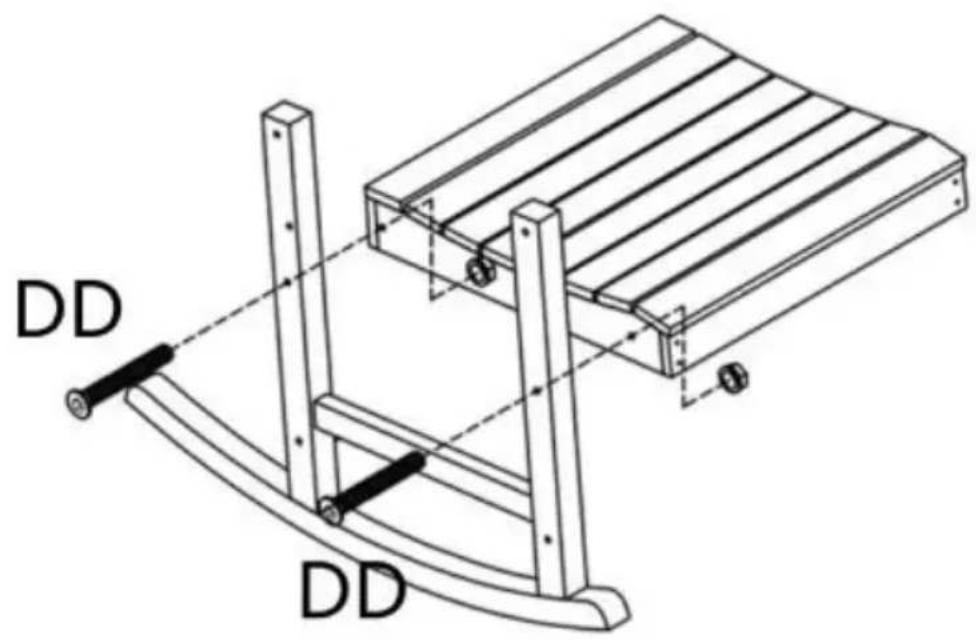

DD DD

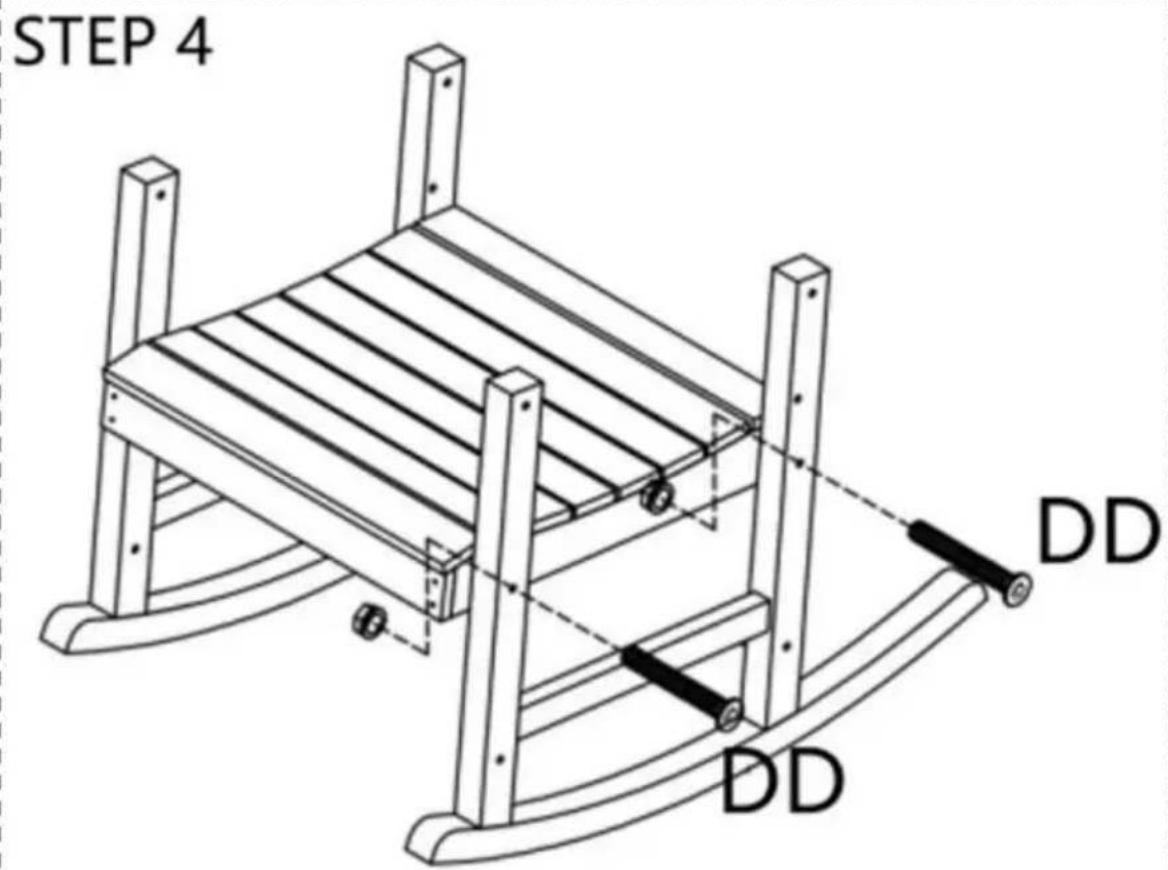

STEP 4

STEP 4 DD DD

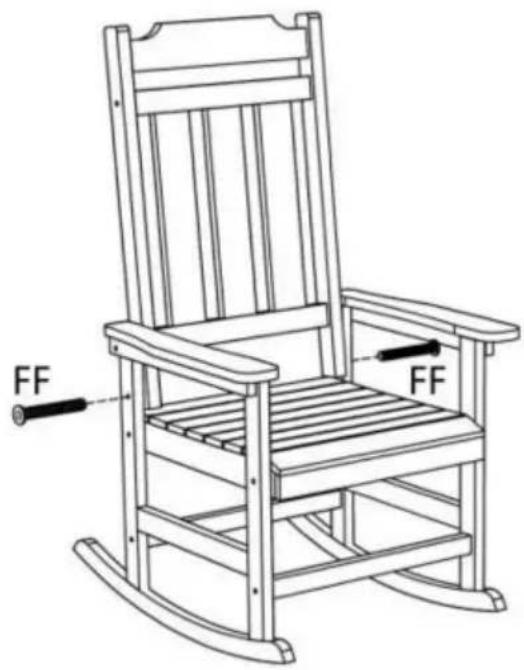

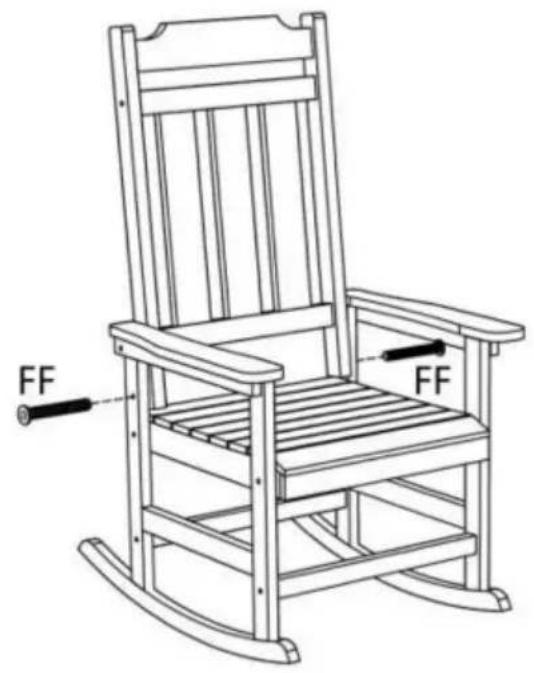

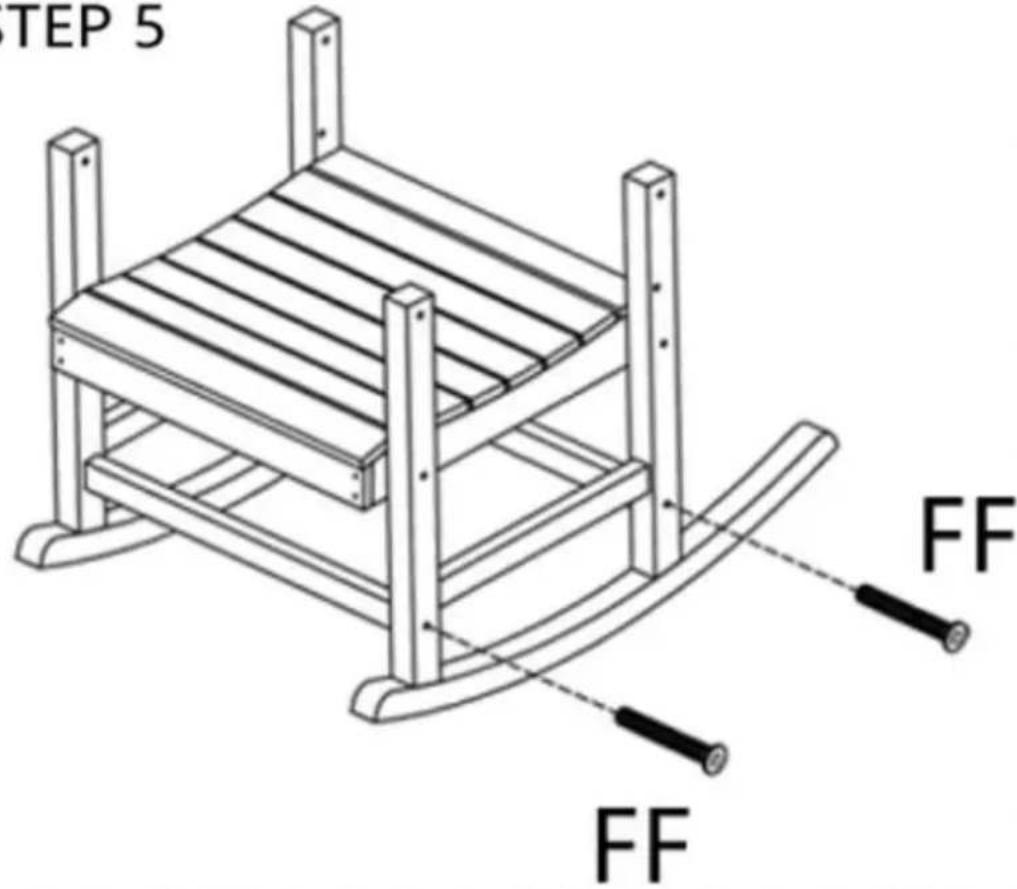

STEP 5

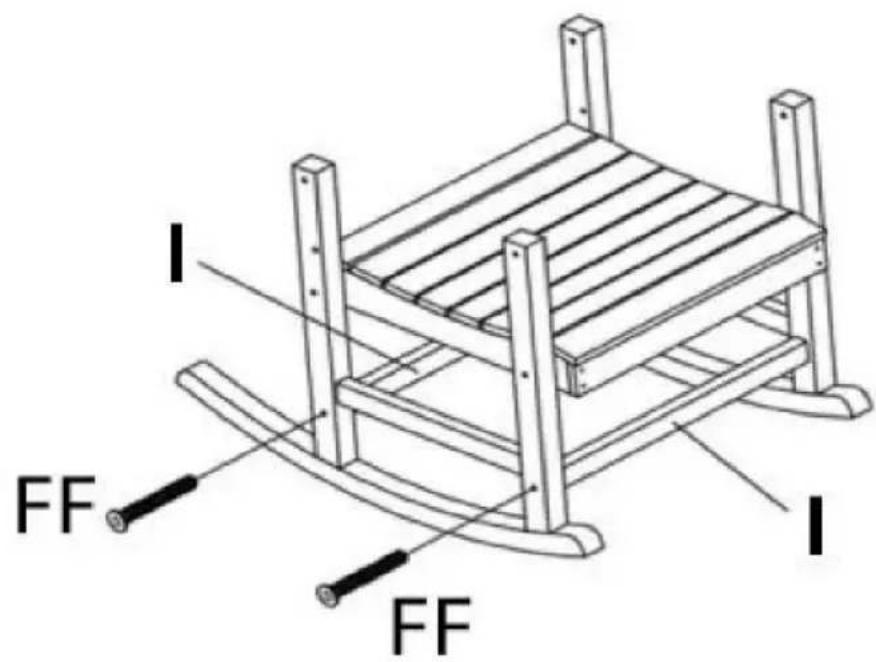

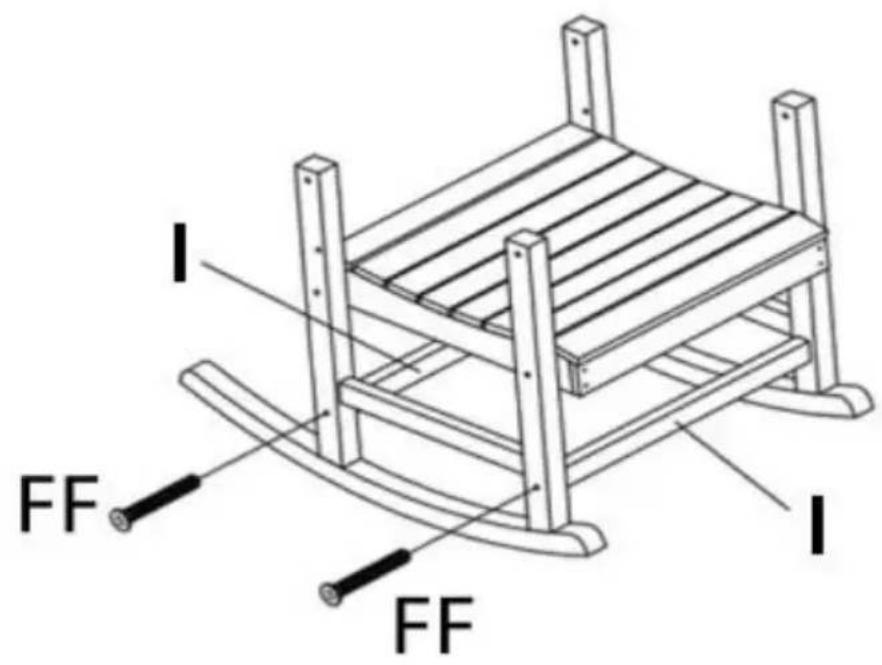

I FF FF I

STEP 5

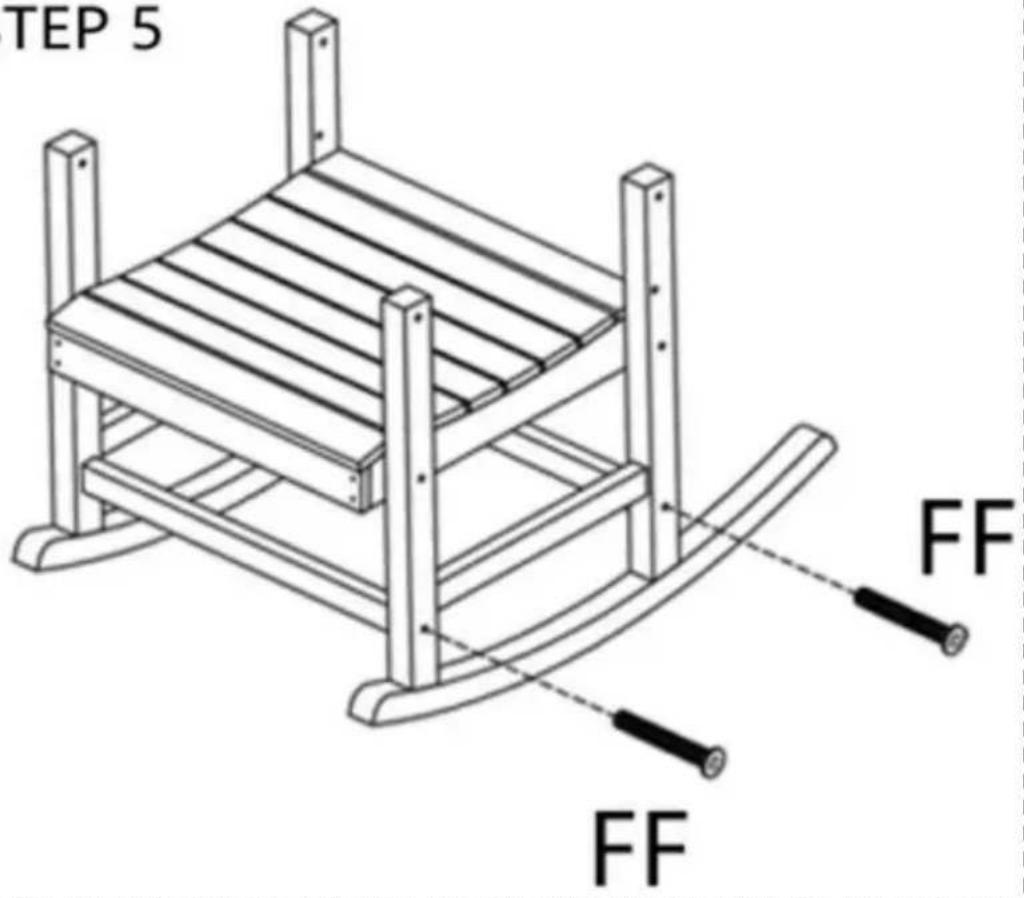

TEP 5 FF FF

STEP 6

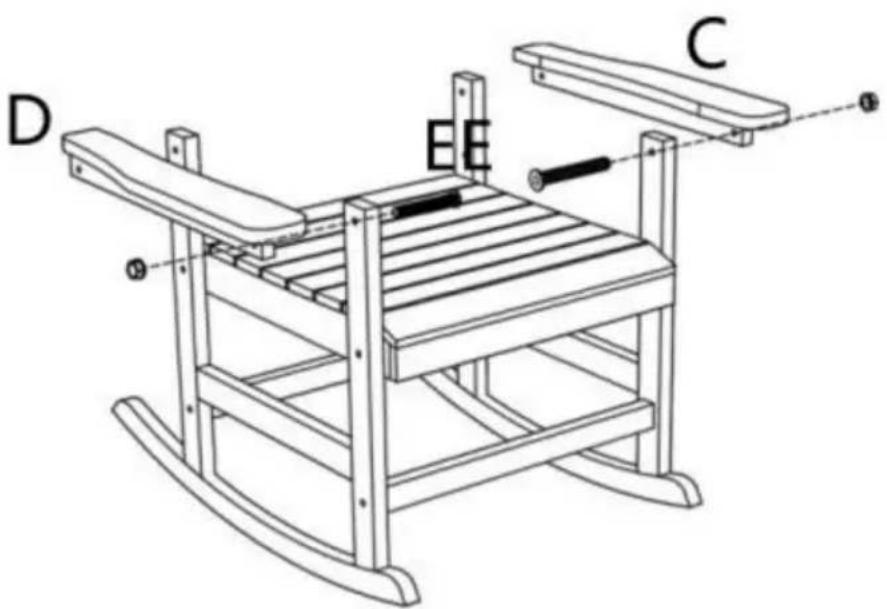

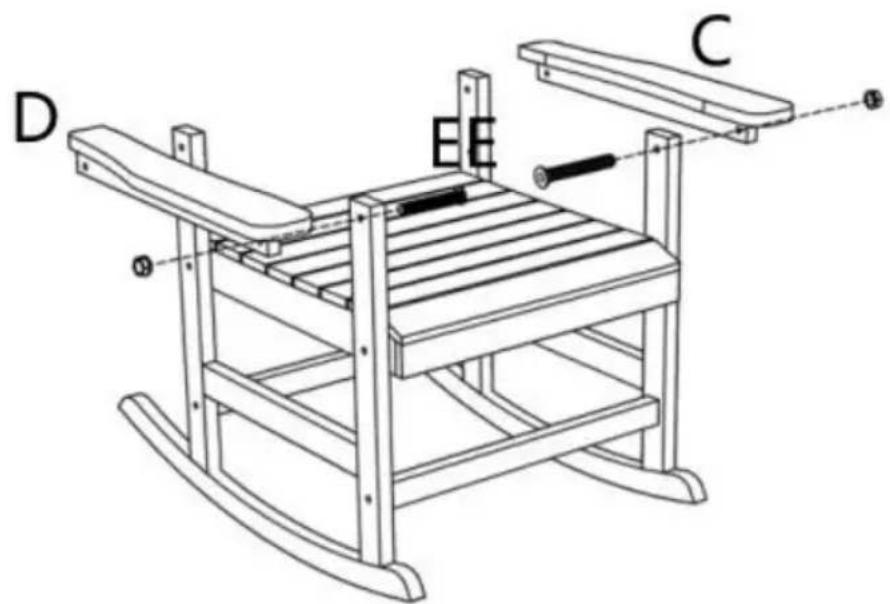

D E C

STEP 7

FF FF

STEP 8

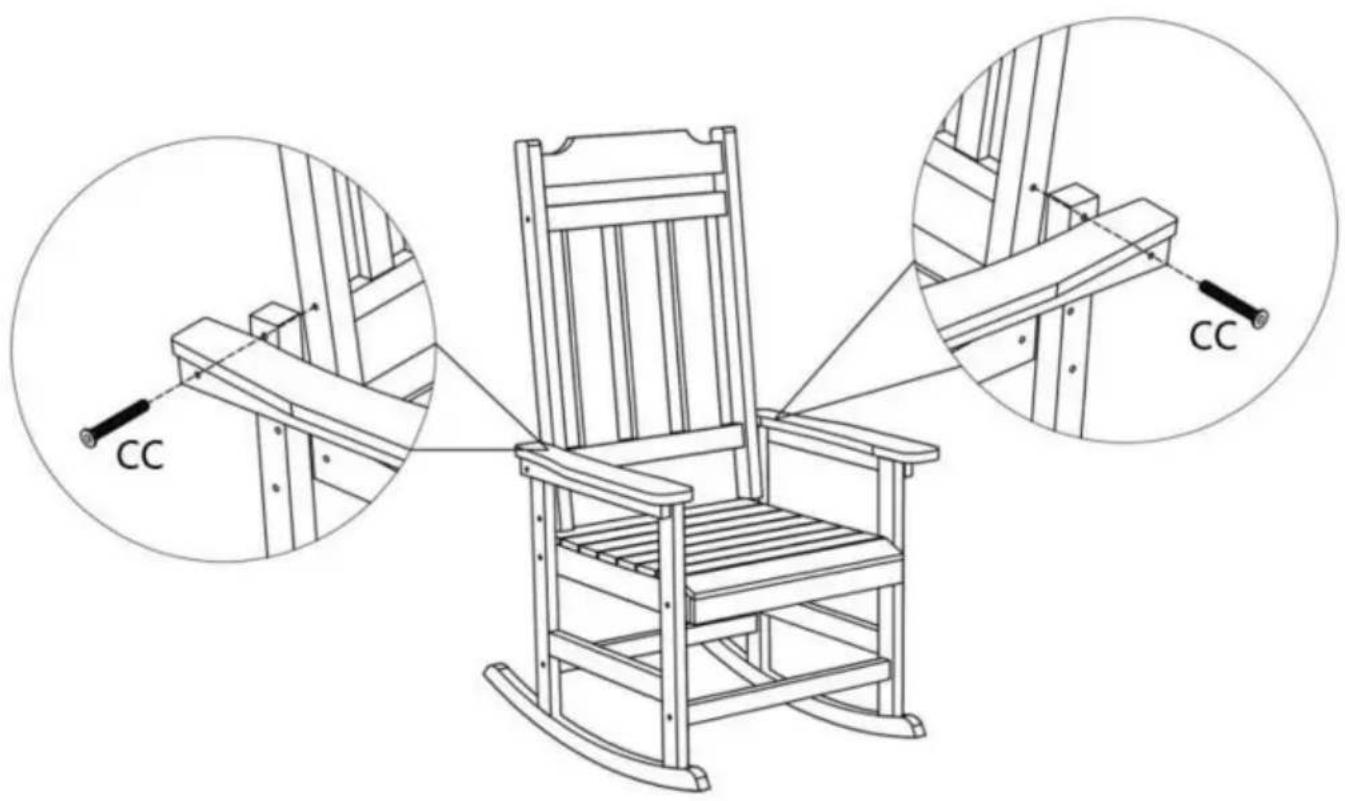

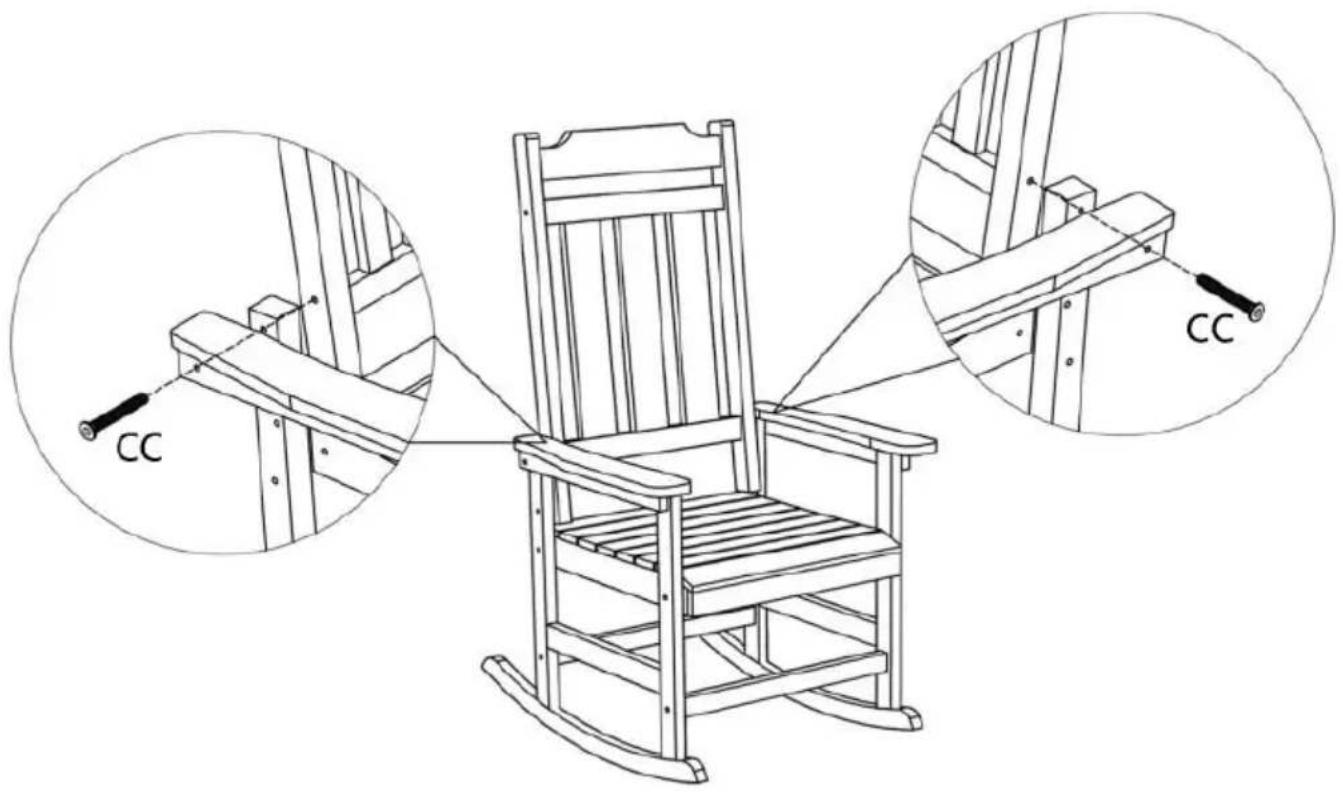

CC CC

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am M

UK

REP

YH CONSULTING LIMITED.

C/0 YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a wooden rocking chair with slatted backrest and curved legs (no text or symbols)

E FF F A F FF FF FF

STEP 2

B AA J AA

INSTALLATION UND BETRIEB

STEP 3

G H BB BB G H BB BB

Simple line drawing of a curved structure with labeled points G and H (no text or symbols beyond labels)

STEP 4

DD DD

INSTALLATION UND BETRIEB

STEP 4 DD DD

STEP 5

I FF FF I

INSTALLATION UND BETRIEB

STEP 5

TEP 5 FF FF

STEP 6

D E C

INSTALLATION UND BETRIEB

STEP 7

FF FF

STEP 8

CC CC

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Ort, Rancho Cucamonga, CA 91730

Vertreter der EG

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP

YH CONSULTING LIMITED.

C/0 YH Consulting Limited Office 147, Centurion Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a wooden rocking chair with slatted backrest and curved legs (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

E FF F A F FF FF FF

STEP 2

B AA J AA

INSTALLATION ET FONCTIONNEMENT

STEP 3

G H BB BB G H BB BB

Simple line drawing of a curved structure with labeled points G and H (no text or symbols beyond labels)

STEP 4

DD DD

INSTALLATION ET FONCTIONNEMENT

STEP 4 DD DD

STEP 5

I FF FF I

INSTALLATION ET FONCTIONNEMENT

STEP 5

TEP 5 FF FF

STEP 6

D E C

INSTALLATION ET FONCTIONNEMENT

STEP 7

FF FF

STEP 8

CC CC

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

C/0 YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a wooden rocking chair with slatted backrest and curved legs (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

E FF F A F FF FF FF

STEP 2

B AA J AA

INSTALLATIE EN BEDIENING

STEP 3

G H BB BB G H BB BB

Simple line drawing of a curved structure with labeled points G and H (no text or symbols beyond labels)

STEP 4

DD DD

INSTALLATIE EN BEDIENING

STEP 4 DD DD

STEP 5

I FF FF I

INSTALLATIE EN BEDIENING

STEP 5

TEP 5 FF FF

STEP 6

D E C

INSTALLATIE EN BEDIENING

STEP 7

FF FF

STEP 8

CC CC

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/0 YH Consulting Limited Kantoor 147, Centurion Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a wooden rocking chair with slatted backrest and curved legs (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

E FF F A F FF FF FF

STEP 2

B AA J AA

INSTALLATION OCH DRIFT

STEP 3

G H BB BB G H BB BB

Simple line drawing of a curved structure with labeled points G and H (no text or symbols beyond labels)

STEP 4

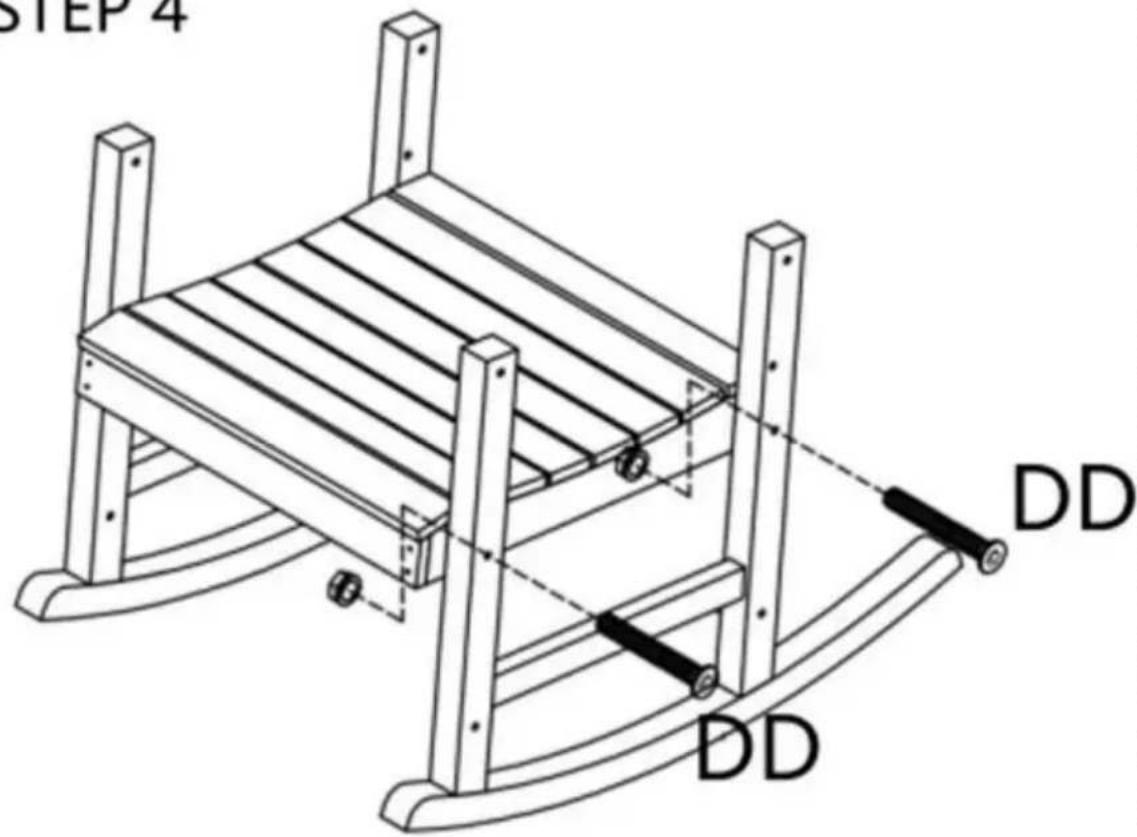

DD DD
