USER MANUAL 80E20A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BOAT FENDER

MODEL: 80E20A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

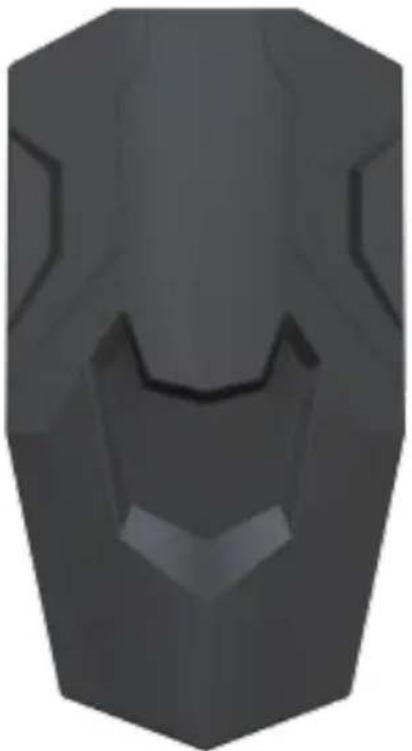

Boat Fender

MODEL:80E20A

3D-rendered abstract geometric shape with no text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Model	80E20A
Product Size (mm)	405*220*85 mm
Quantity (pcs)	2
Product Weight (kg/pcs)	0.9

PART LIST

Model	Picture	Specification	Quantity
Fender		Size: 405*220*85 mm	2
Ropes		Size: Φ 9.5mm*1.6m	2
Storage Bag			2
Reinforced Lock

SECURITY & WARNINGS

1. The use of the fender is voluntary and done at your own risk.
2. VEVOR makes no claims regarding the protective qualities of the fender for your specific docking application.
3. Never use the fender in extreme weather conditions.
4. Supervise its use until you understand how it works and performs your particular docking application.
5. For daytime use only.
6. Never use the fender for long-term mooring or boat storage
7. VEVOR is not responsible for any damage to your boat or other property resulting from your use of the fender.
8. Remove the fender from your dock or boat after each use.
9. Updates on our product.

OPERATION

1. Use rope to fix the fender on each boat side

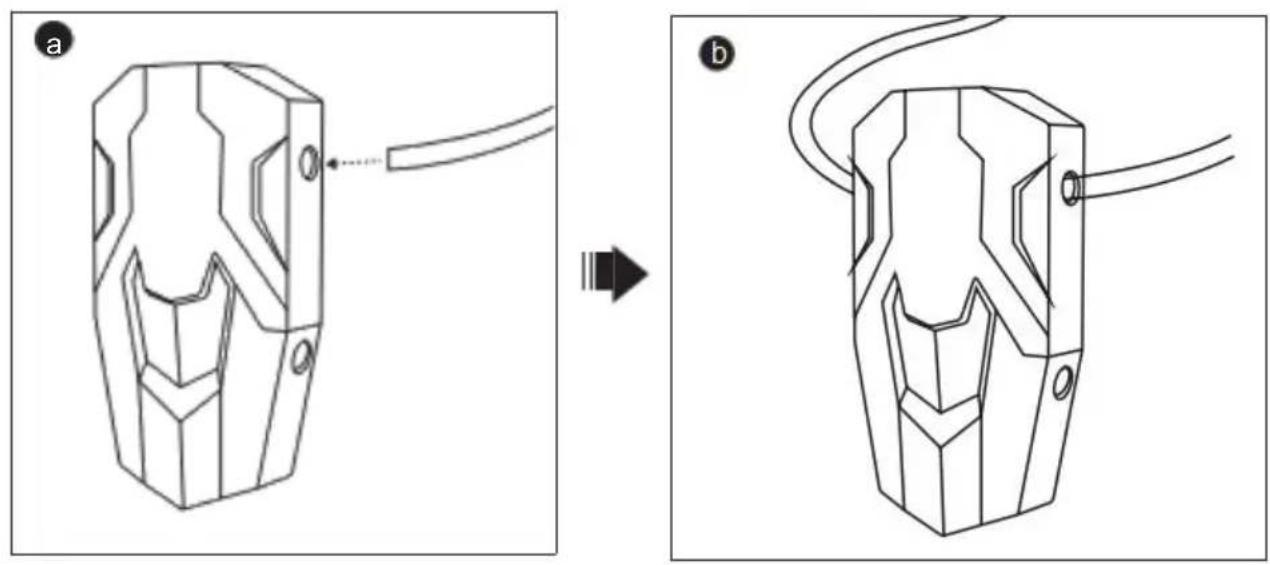

1.1 Let the rope go through the fender top eyelets and rope loop

Technical line drawing of a mechanical component before and after assembly (no text or symbols)

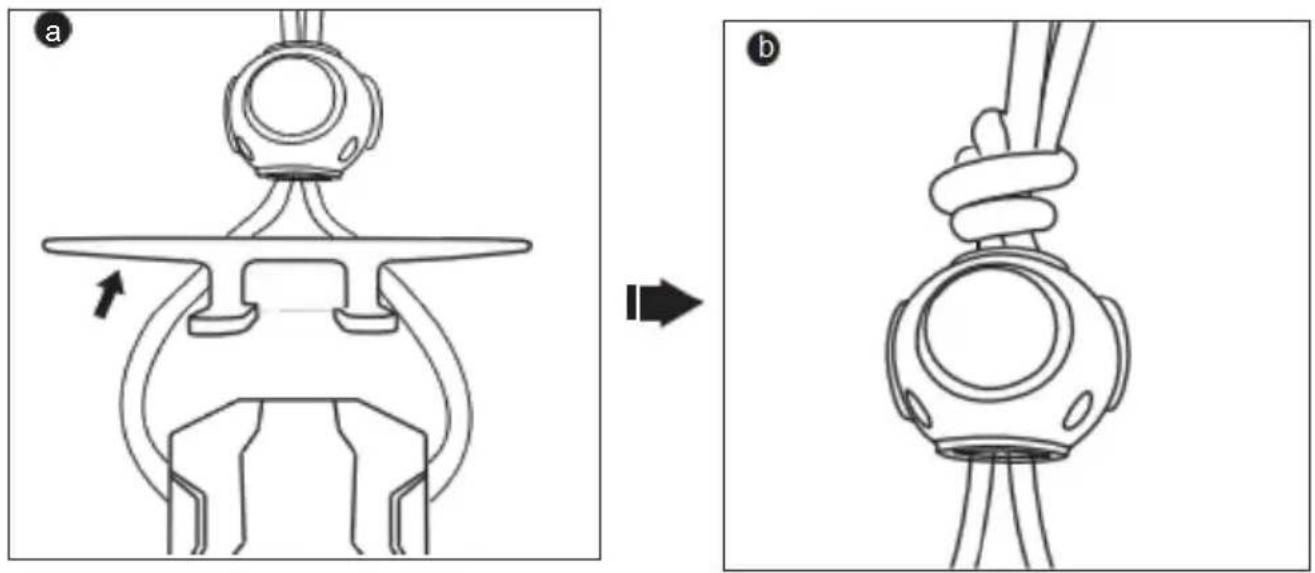

1.2 Thread the rope through the reinforcing lock

a Push down b

1.3 Tie a knot, ensuring it doesn't fall; attach the fender rope on the

Technical illustration showing two steps (a and b) of a mechanical assembly with no visible text or symbols

STORAGE

• Please take off the fender when you are not using it. And store it dark place. Rinse with clean water and dry with a dry towel.
• Avoid high temperatures, exposure to chemicals, and contact with sh objects.
• Saving in dark place is more conducive to prolonging product life
• Before use, please check the fender surface for any damage. If it damaged, please replace it with a new fender in time to avoid data to your hull.
• Please use the fender correctly; please be careful during the suspension process to avoid the fender falling into the sea.

APPLICATION

Place one fender at every 10ft of waterline, with at least 3 fenders side.

Boat Length	Minimum Fender at One S
15-20FT	3
20-30FT	3
30-40FT	4
40-50FT	5
50-60FT	6
