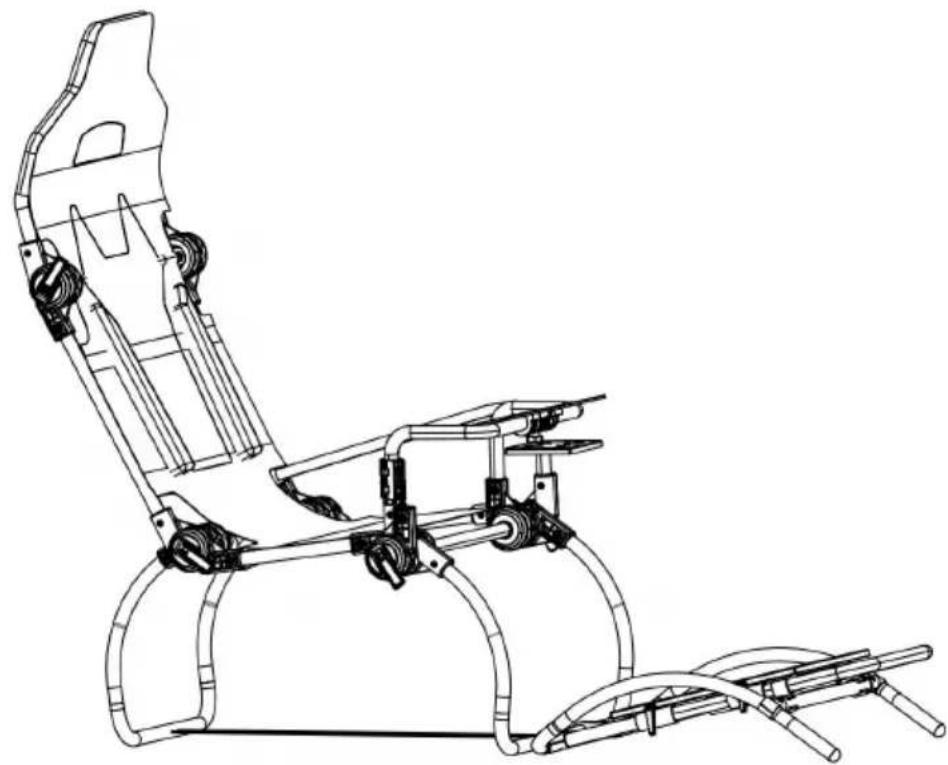

USER MANUAL FC-P04 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STEERING WHEEL STAND

MODEL: FC-P04

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us. are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

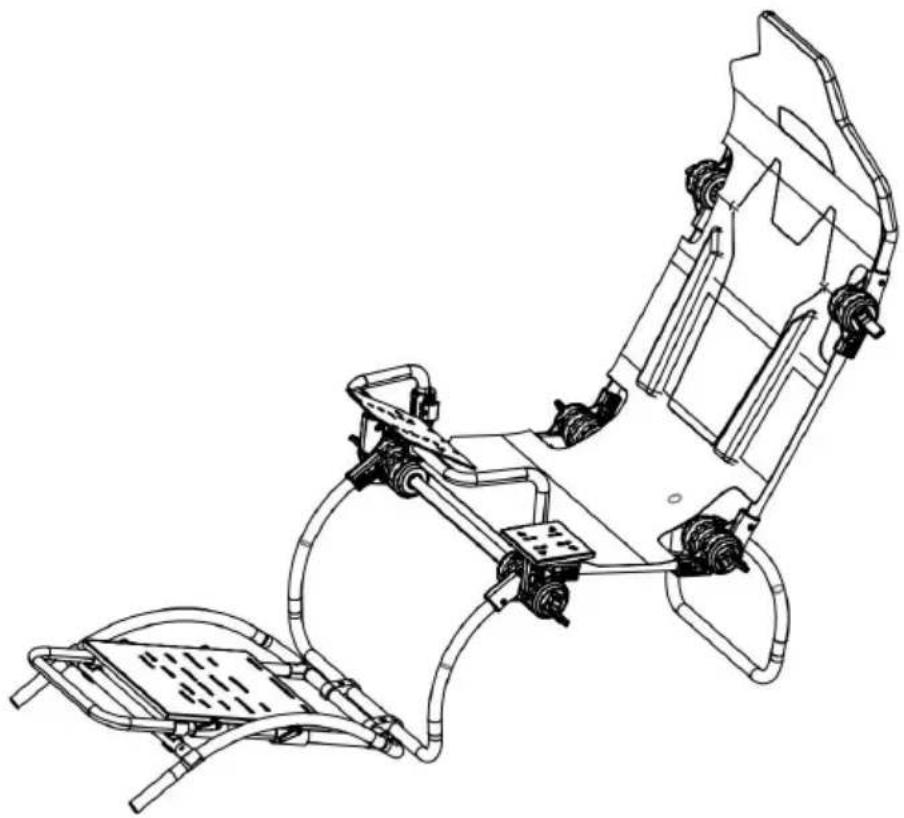

MODEL: FC-P04

Technical line drawing of a vehicle chassis with attached motors and structural components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must instructions manual carefully.

Attention

• Please install and use the stand according to instructions.
• Please install moderately and avoid strong vibration.

Don't keep in humid conditions, high temperatures, or a dusty location.

• The product structure is flexible; wear work gloves during assets. Please take care of the hurting hand when installation.
  • Children should be under adult supervision when using the preSave the manual.

Part List
Code	Picture	Name	QTY.
1		Rack	1
2		Supporting Leg	1
3		Pedal Support	1
4		Fastener	1
5		Shifter Plate	1
6		Steering Wheel Bracket	1
7		Hold-down Block	2
8		Fixed Block	2
9		Washer	5
10		Screw M5*25	2
11		Screw M5*40	3
12		Screw M6*16	12
13		Nut M5	5
14		Hex key 4	1
15		Wench	1
16		Phillips Screwdriver	1
17		Binding Strap	6

Note: 12pcs screws M6*16 are complimentary.

NOTE :

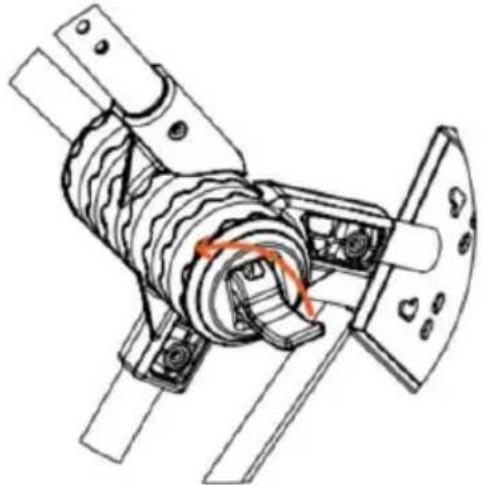

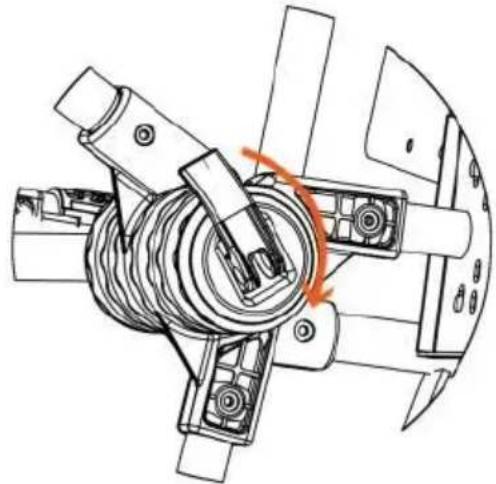

Loosen the rotating fastener as shown below:

Technical line drawing of a mechanical assembly with no visible text or symbols

Lock the rotary fastener as shown below:

Technical line drawing of a mechanical assembly with no visible text or symbols

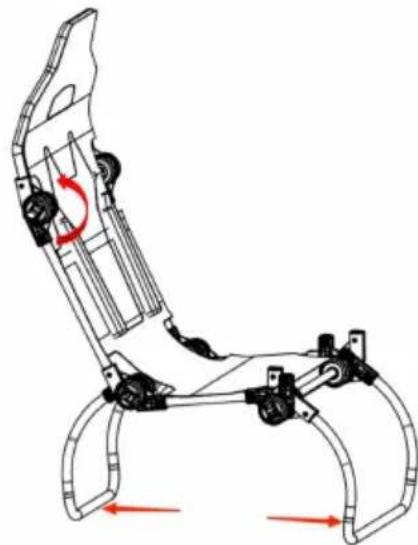

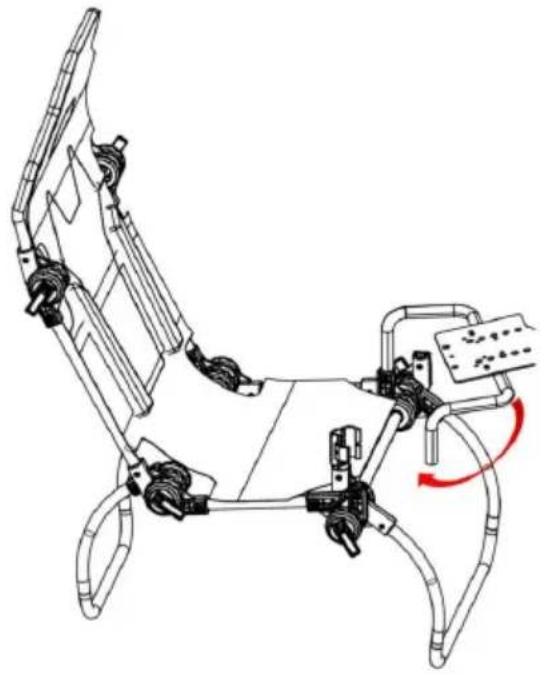

STEP 1: Unfold bracket.

Diagram of a vehicle chassis with red directional arrows indicating motion or movement (no text or symbols present)

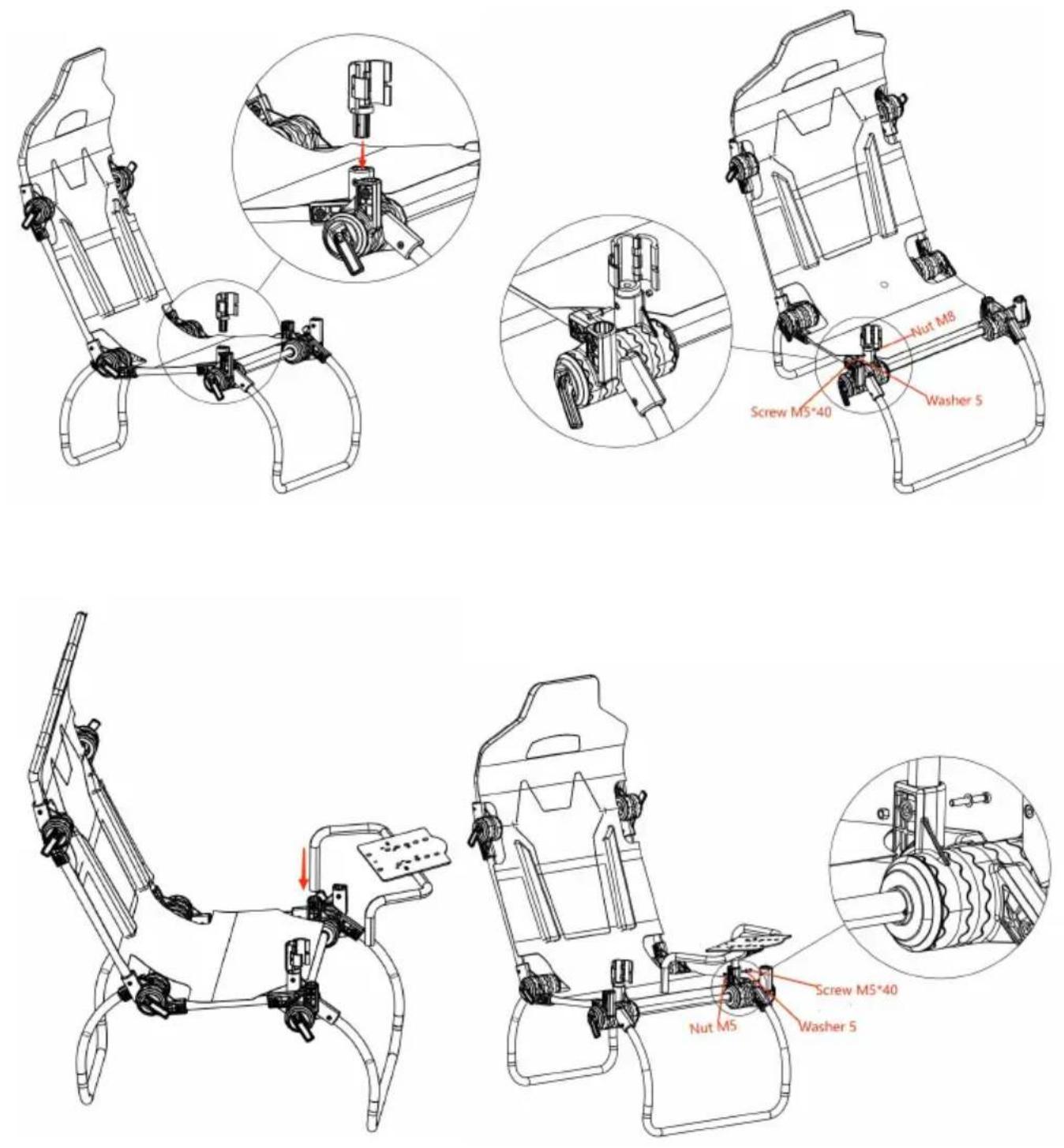

STEP 2: Installation of Steering Wheel Bracket

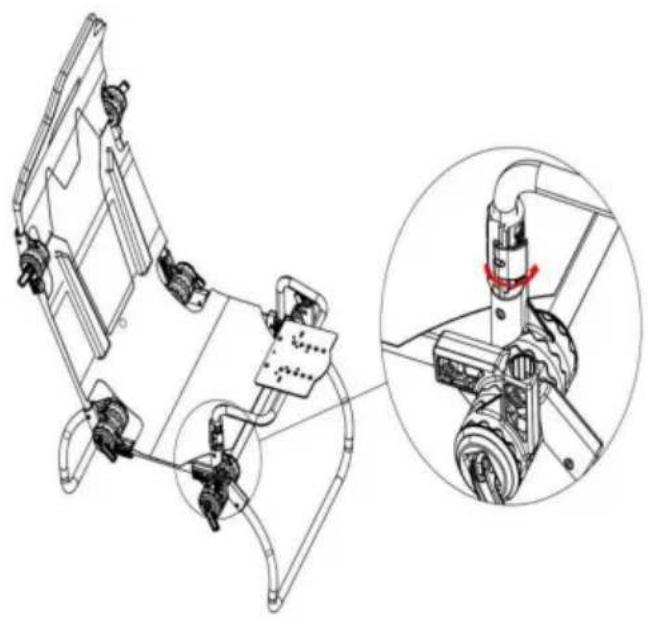

STEP 3: Pull the wrench to secure the steering wheel bracket

Line drawing of a robotic device with articulated limbs and a red rotation arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component detail (no text or symbols present)

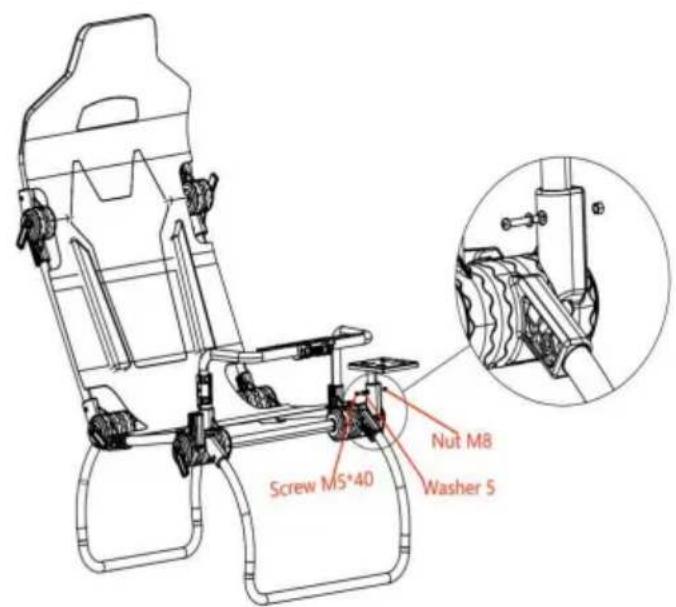

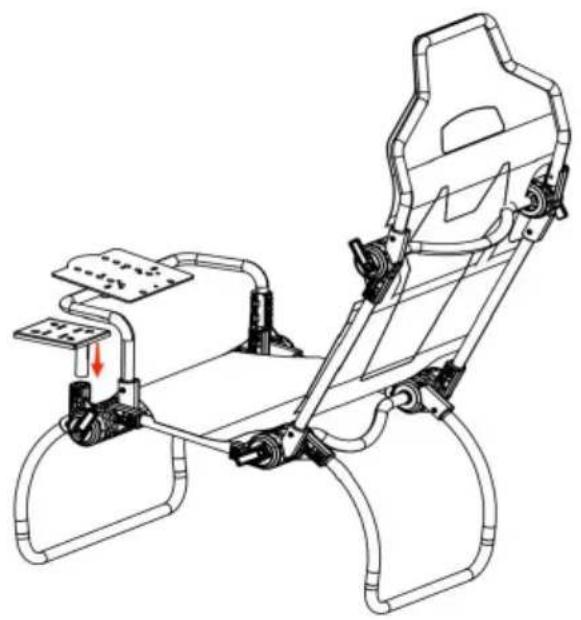

STEP 5 : Installation of shifter bracket panel

Line drawing of a vehicle chassis with attached sensors and a control panel (no text or symbols)

Screw M5*40 Nut M8 Washer 5

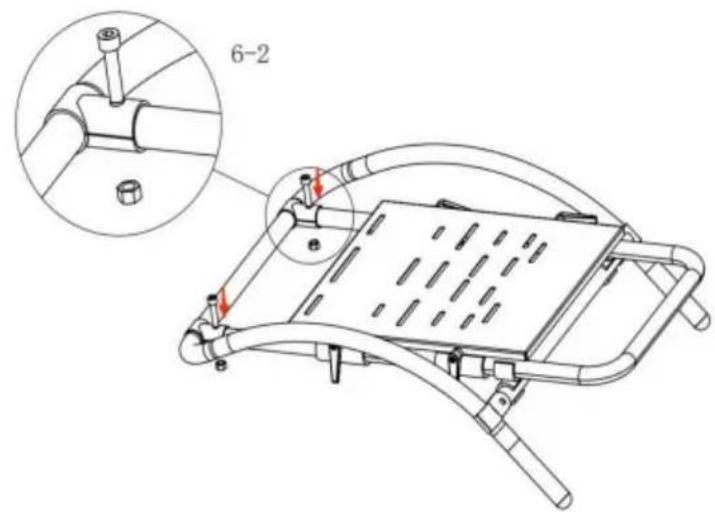

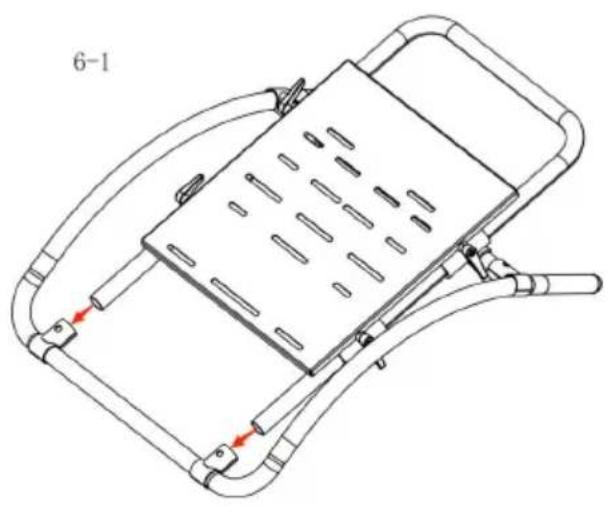

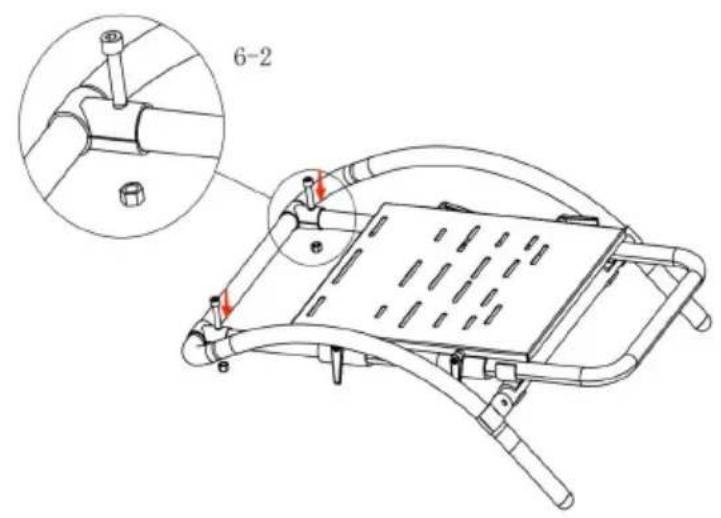

STEP 6: Install footrest bracket and attach to seat

Technical line drawing of a mechanical device with red arrows indicating ports or connections (no text or symbols)

6-3

6-2

6-4

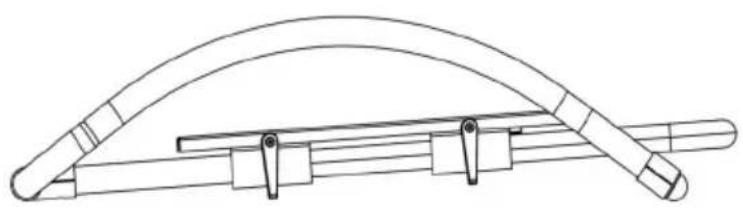

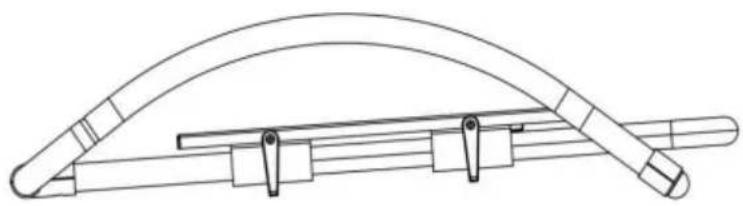

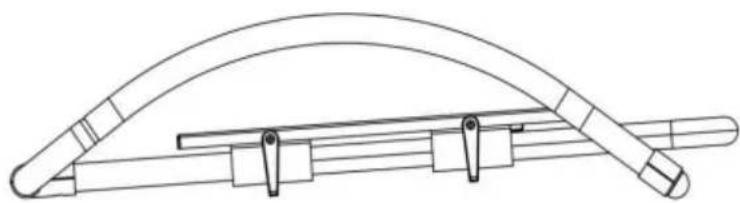

Technical line drawing of a curved mechanical component with red directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical assembly with curved and straight components (no text or symbols)

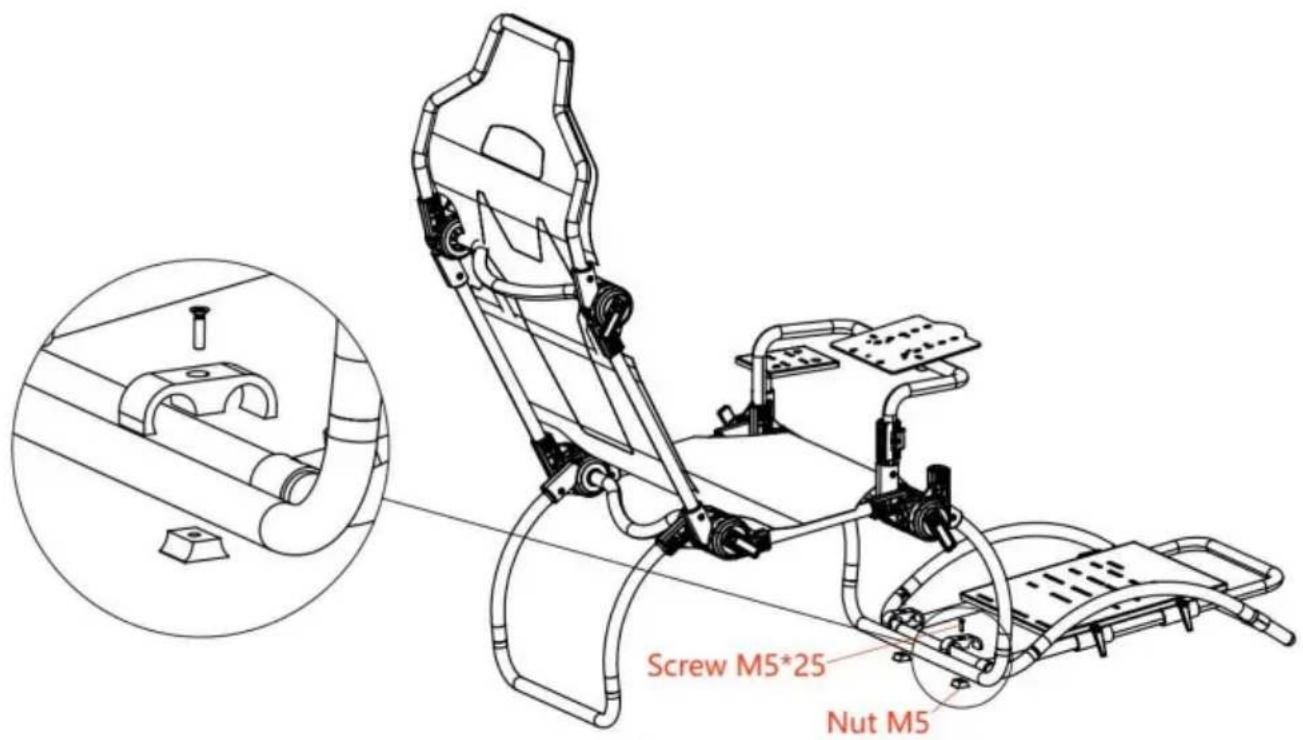

Screw M5*25 Nut M5

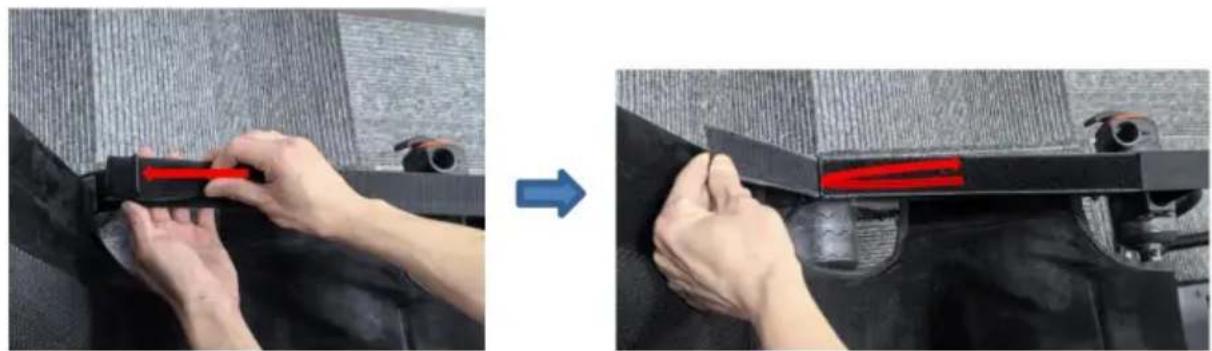

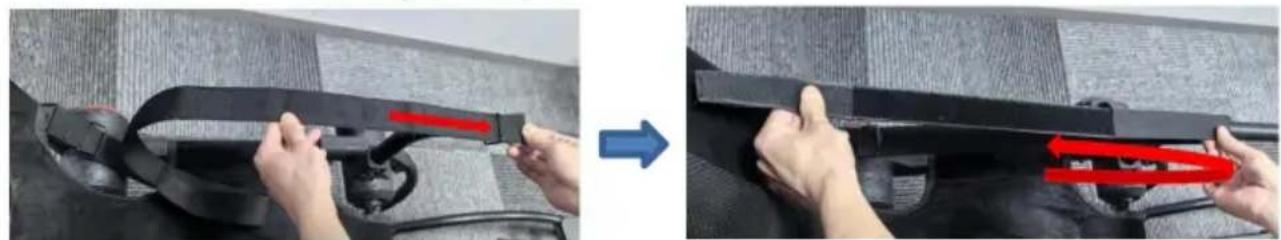

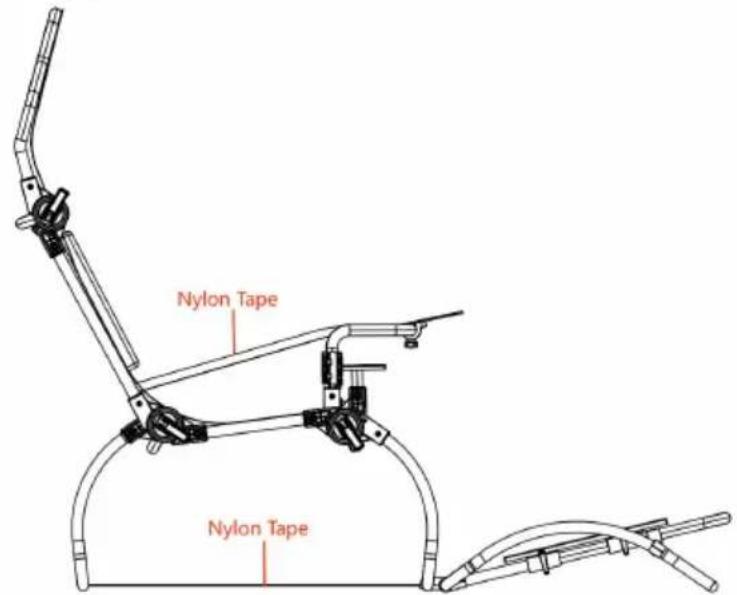

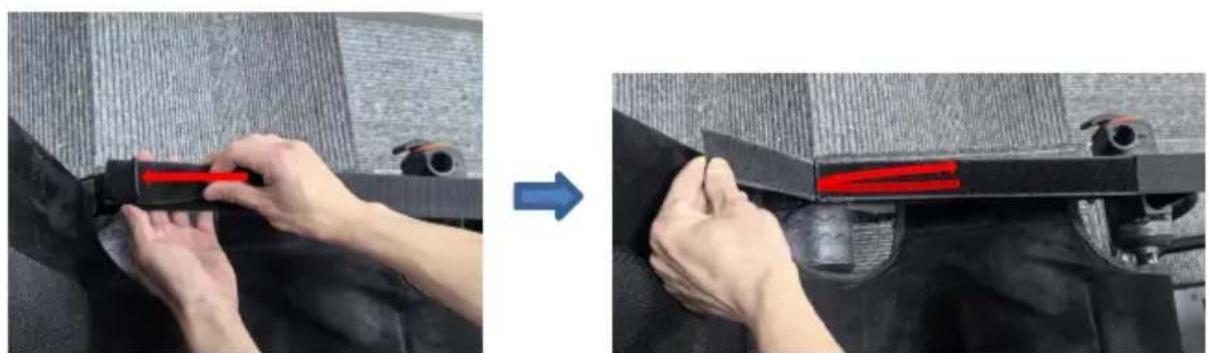

STEP 7: Tighten the nylon straps on the bottom support foot and steering wheel support.

Nylon Tape Nylon Tape

Nylon Tape Installation Schematic.

Two-step photo showing hands adjusting a black mechanical component with red arrows indicating motion (no text or symbols)

Two-step photo showing hands installing a black mechanical component with red adhesive strips, before and after assembly (no text or symbols visible)

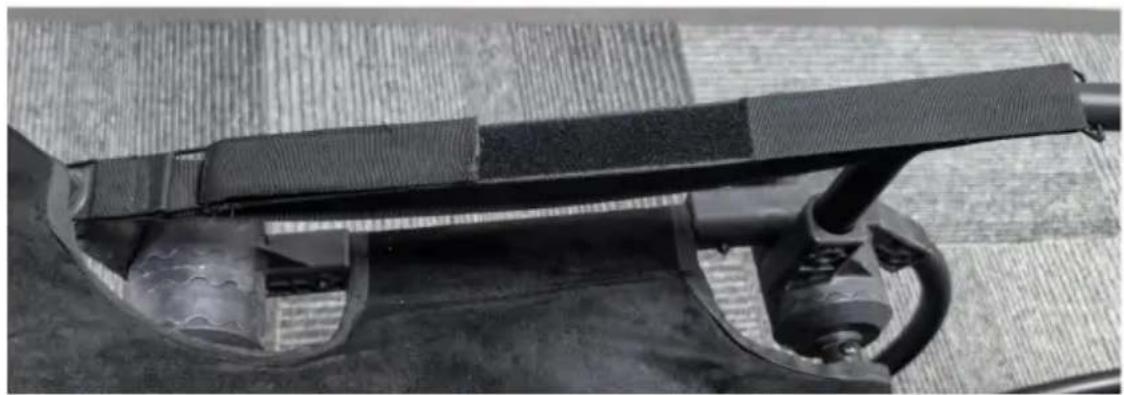

Close-up of a black mechanical component with textured grip and mounting bracket (no visible text or symbols)

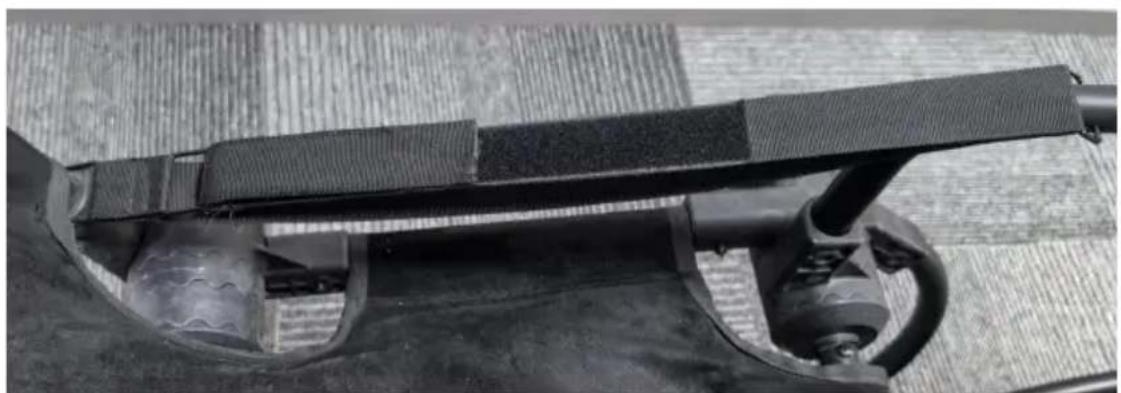

◆ The nylon tape at the bottom is installed in this way.

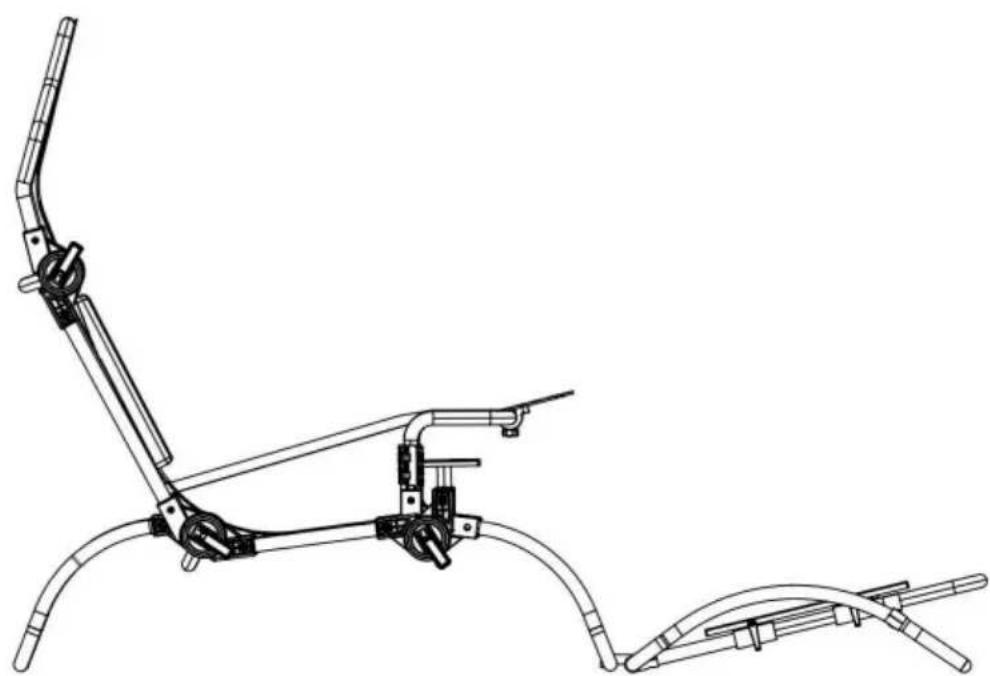

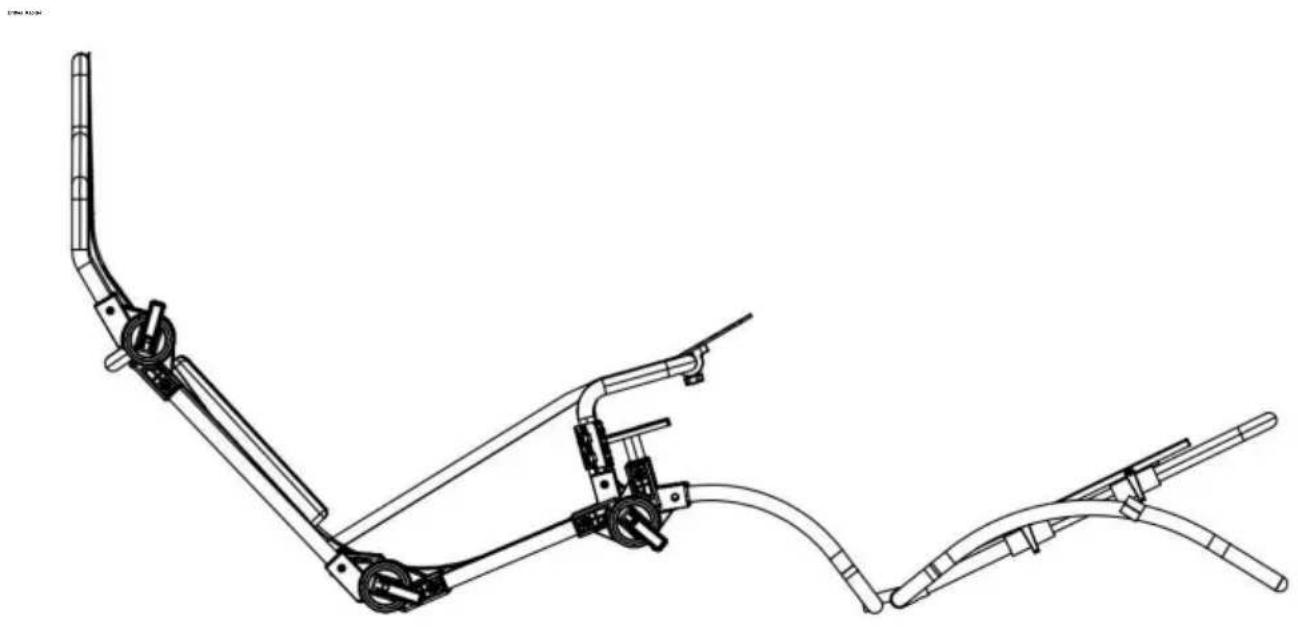

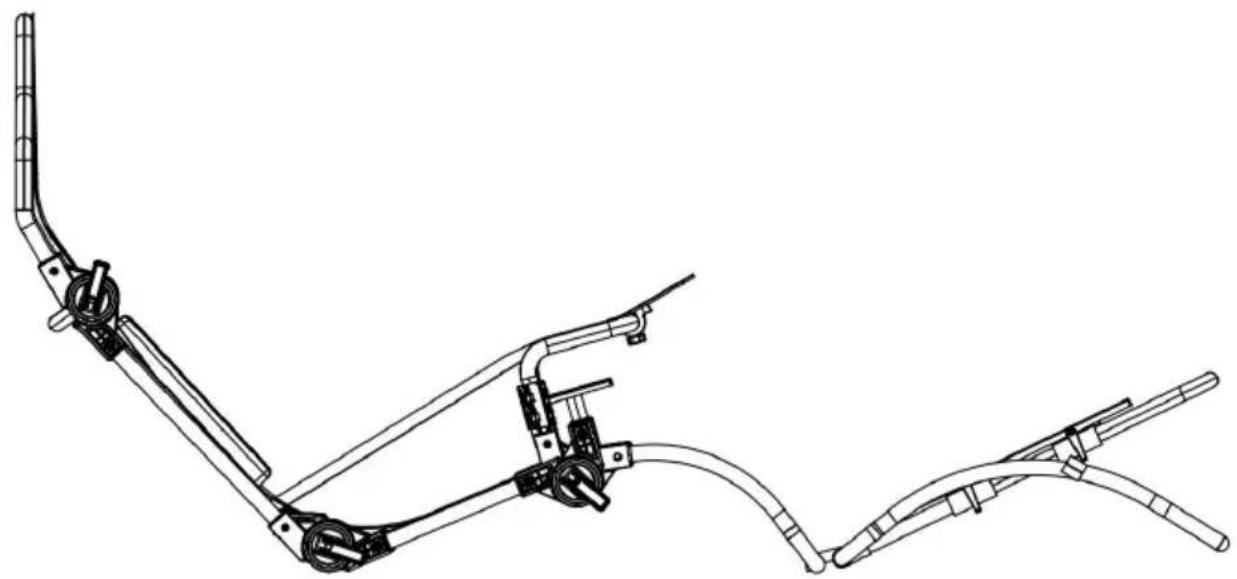

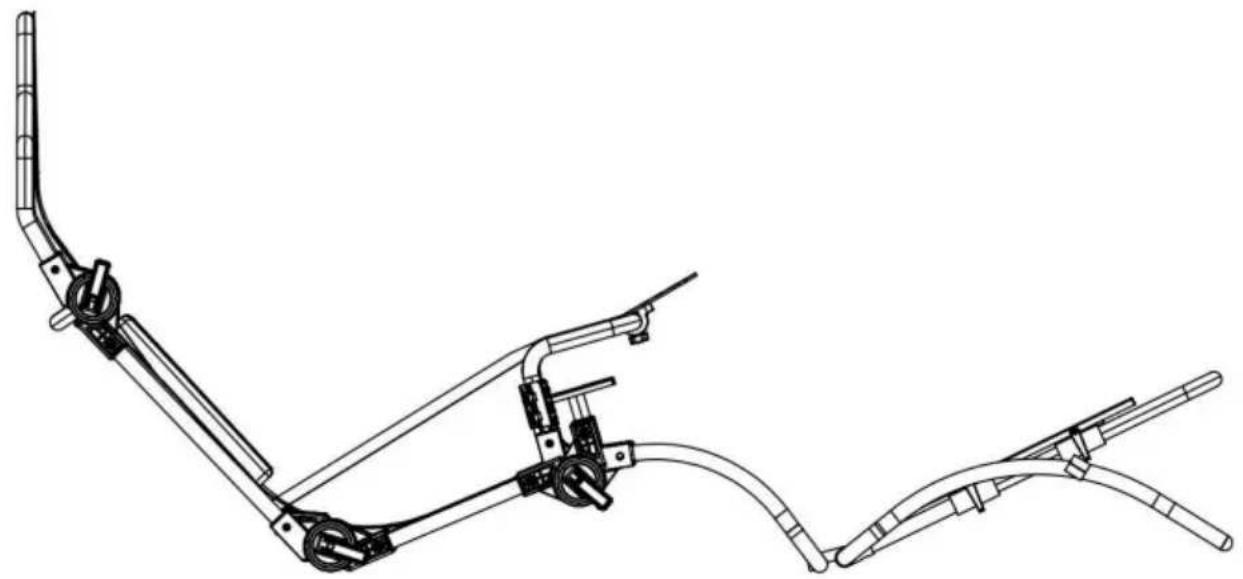

You can adjust the seat pattern:

|

Line drawing of a car simulator chair with adjustable arm and seat (no text or symbols)

||

Technical line drawing of a mechanical device with curved arms and connectors (no text or symbols)

III

Technical line drawing of a mechanical linkage system (no text or symbols)
