APD24 - Pizza maker Vevor - Free user manual and instructions

Product Type	Manual Pizza Press
Model	APD24
Brand	Vevor
Main Function	Flatten pizza dough by pulling the handle
Mechanism	Manual Lever
Components	Body (fuselage), long support plate, short pull plate
Initial stroke of pressure plate	35 mm
Thickness Adjustment	Two adjustment screws on top of the fuselage
Material	Metal (likely stainless steel)
Power Supply	None (manual)
Maintenance	Clean immediately after each use by hand; do not put in dishwasher
Lubrication	Wipe the guide rod with mineral oil (food grade) when necessary; do not use cooking oil
Safety Precautions	Keep out of reach of children; use only supplied accessories; do not use in wet environment
Repairability	Spare parts available via technical support; electronic warranty certificate
Troubleshooting: uneven thickness	Reorient the dough and press again
Troubleshooting: dough too small	Let it ferment longer or brush with food oil

Frequently Asked Questions - APD24 Vevor

How to install the pizza press?

Place the fuselage (A) inside the long support plate (B) by bringing the upper end of the connector close. Then, place the short sliding plate (C) on the long support plate (B): it can be moved back and forth. Lock one end of the spring with a screw, then pull firmly to hook it.

How to adjust dough thickness?

At the top of the fuselage, there are two adjustment screws on both sides of the spring. Adjust them up and down to limit the thickness of the product.

How to clean the device?

Always clean immediately after each use. Do not put the device in the dishwasher or any other automatic cleaning device. Use a damp cloth and mild soap.

What oil to use for lubrication?

Use food-grade mineral oil. Wipe the guide rod with a cloth soaked in mineral oil when lubrication is needed. Do not use cooking oil or other grease, as this would make the device sticky.

What to do if the dough is too thick to press?

The initial stroke of the pressure plate is 35 mm. If the dough is thicker, pre-press it with your palm to less than 35 mm before pressing with the machine.

Why are the dough cakes uneven in thickness?

You can change the thicker side to another position and press again to even out the thickness.

Why are the dough cakes not big enough?

Make sure to leave enough time for the dough to ferment. Well-fermented dough presses more easily. You can also brush the surface with food oil to facilitate pressing.

Can I use the press with children?

No, the device should not be used by children. Place it in a position out of reach of children to avoid accidents.

What accessories are provided?

The set includes three parts: the fuselage body (A), the long support plate (B), and the short pull plate (C). Use only the accessories provided by the manufacturer.

Where to find spare parts or assistance?

Contact Vevor technical support via the electronic warranty certificate to obtain spare parts and assistance.

USER MANUAL APD24 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PIZZA DOUGH PRESSER

MODEL:APD24

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

PIZZA DOUGH PRESSER

MODEL:APD24

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Always follow basic safety precautions when using these devices. These include:

1. The device should not be used with children. Children may encounter injury accidents. Therefore, this product should be placed in a position touched by children. 2.For optimal operation and service life of the device, please follow the instructions. 3.Food acids will corrode the metal. Always clean this food preparation equipment immediately after every use. To maintain the appearance and increase the service life, clean it daily.
2. Do not put these devices in a dishwasher or other automatic cleaner device for cleaning.
3. The use of accessories or modifications not provided by the manufacturer may cause hazards. 7. Before using this equipment for the first time, please remove all packaging and fixing materials according to the illustration and use after installation.
4. These devices require regular lubrication. Wipe the guide rod with mineral oil, food-grade lubricant, or a towel when lubrication is needed. Do not lubricate with cooking oil or another grease. Otherwise, it will be viscous and affect the use.

SAVE THESE INSTRUCTIONS

I. Accessories and Installation

1.1. This product is a manual tool, which flattens the product by pulling the handle.

handle.

1.2. The whole equipment is divided into three parts: fuselage body (A), long supporting plate (B), and short pulling plate (C). As shown in figure (I).

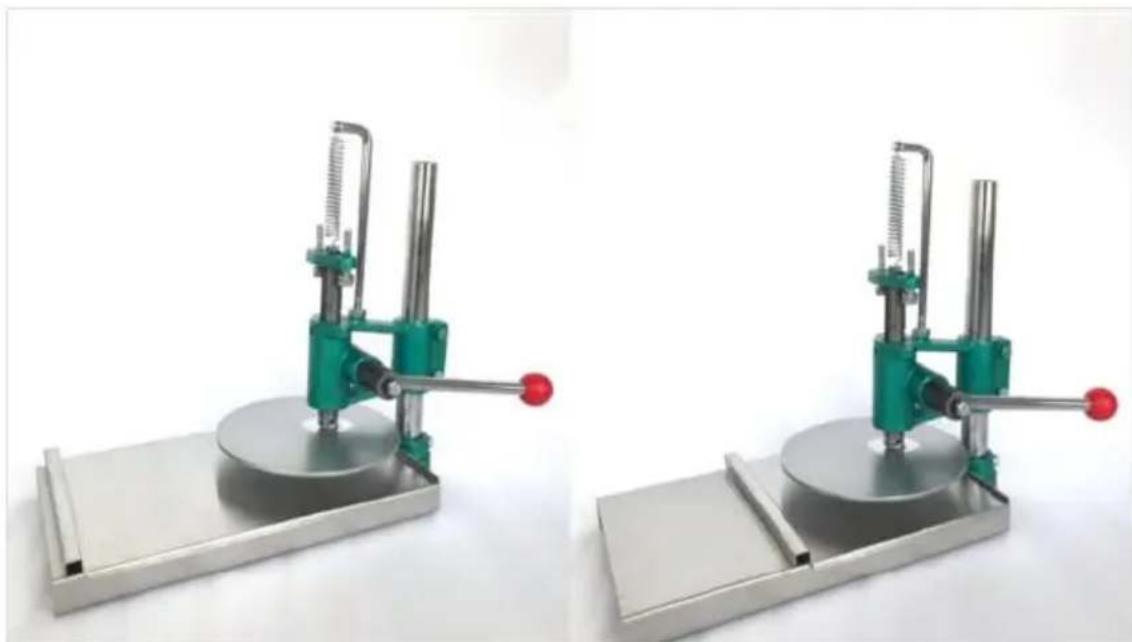

1.3. Place the fuselage (A) inside the long support plate (B). Make the higher end of fitting (B) close to the fuselage, as shown in figure (II). A short pull-out plate (C) is placed on the long support plate (B) and removed back and forth. The overall effect is shown in figure (III).

figure (II)

figure (III)

Lock one end of the spring with a screw, and then pull the spring firmly to hook it.

II. Use

1. The initial stroke of the pressure plate is 35 mm. If the dough is thick, please pre-press the dough with your palm to less than 35 mm before pressing the dough.
2. Put the dough on the pulling plate (C), push it directly below the indenter, and press down the handle.
3. The prepared dough should be soft enough for pressing. Proof for a long time and apply some edible oil to its surface, then it would be easier to press. It is also recommended to wrap the pressure plate in a plastic bag or brush the back of the pressure head with oil.

III. Adjust the Thickness of the Product

At the top of the fuselage, there are two set screws on both sides of the spring, which can be adjusted up and down to limit the thickness of the product.

IV. Precautions

It is not recommended to use in a humid environment.

V. Other

Frequently Asked Questions and Solutions

5.1. Dough cakes being uneven in thickness: You can change the thi

side to another position and press it again.

5.2. Dough cakes being not large enough: Enough time should be given for the dough in place, and then you can press it effortlessly. You can brush the dough surface with edible oil, the lubrication of which makes it easier to press.
