BOAT SEAT DEPESTAL

MODEL: AP75305/AP75306/AD75304

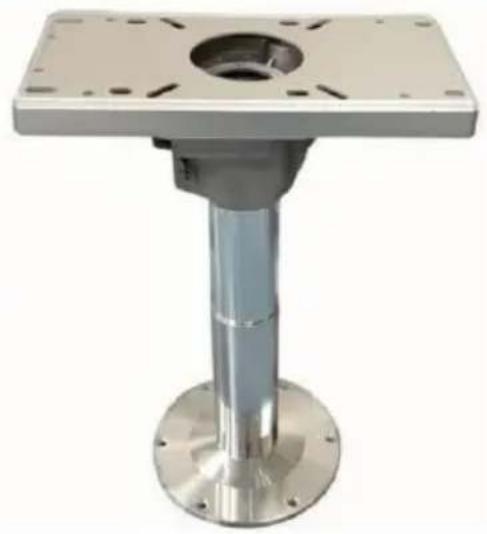

Mechanical component with metallic flange and central hub (no visible text or symbols)

AP75305

Metallic cylindrical mechanical base with flange and central hole (no text or symbols visible)

AP75306

Mechanical device with a cylindrical component and a tool, no visible text or symbols

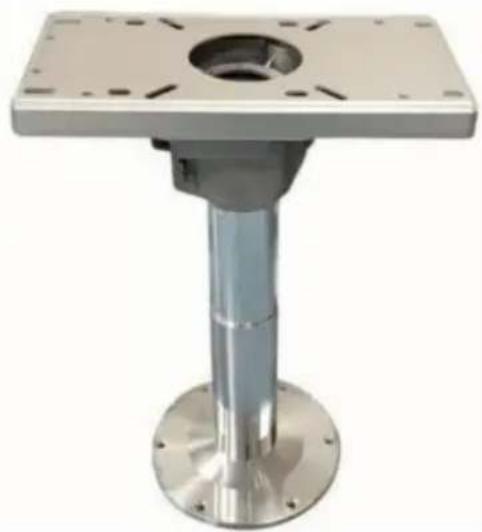

AD75304

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.
  ● While assembling and using this product, keep work area clean and well lighted, and keep spectators and children out of the work area.
• Assemble only according to boat seat parameter. Improper assembly can create hazards.
• Use as intended only. Product capabilities apply to properly and completely assembled product only.
• Keep anyone not wearing the appropriate safety equipment away from the work area when assembly.
  ● Control the boat seat, personal movement, and the work environment to avoid personal injury or damage to the tool.
• Do not operate any product when tired or under the influence of drugs, alcohol or medications.
• Do not overreach when operating the product. Proper balance enables better control in unexpected situations.
• Do NOT operate if any part is damaged or broken.
• Be careful not to trap fingers or hands in any of the moving parts when opening and closing the rolling boat seat.

SAVE THESE INSTRUCTIONS

PRODUCT CONFIGURATION

Model	AP75305	AP75306	AD75304
Height adjustment range (inch/mm)	12.76-18.7/324-475	13.39-19.2/340-490	-

PARTS LIST

ITEM	Name	Picture	AP75305	AP75306	AD75304
1	Boat Seat Depestal		1PCS	-	-
2	Boat Seat Depestal		-	1PCS	-

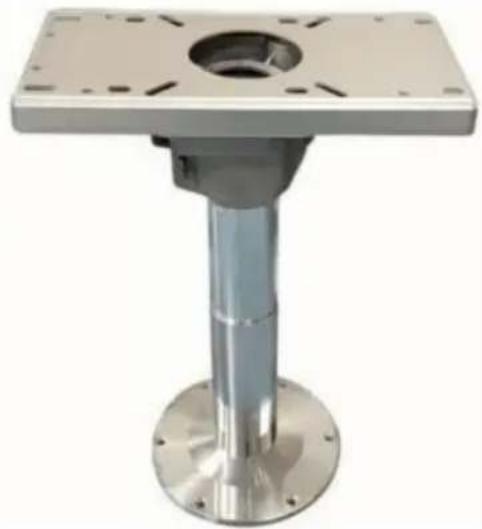

3	Boat Seat Depestal		-	-	1PCS
4	Manual		1PCS	1PCS	1PCS

AP75305:

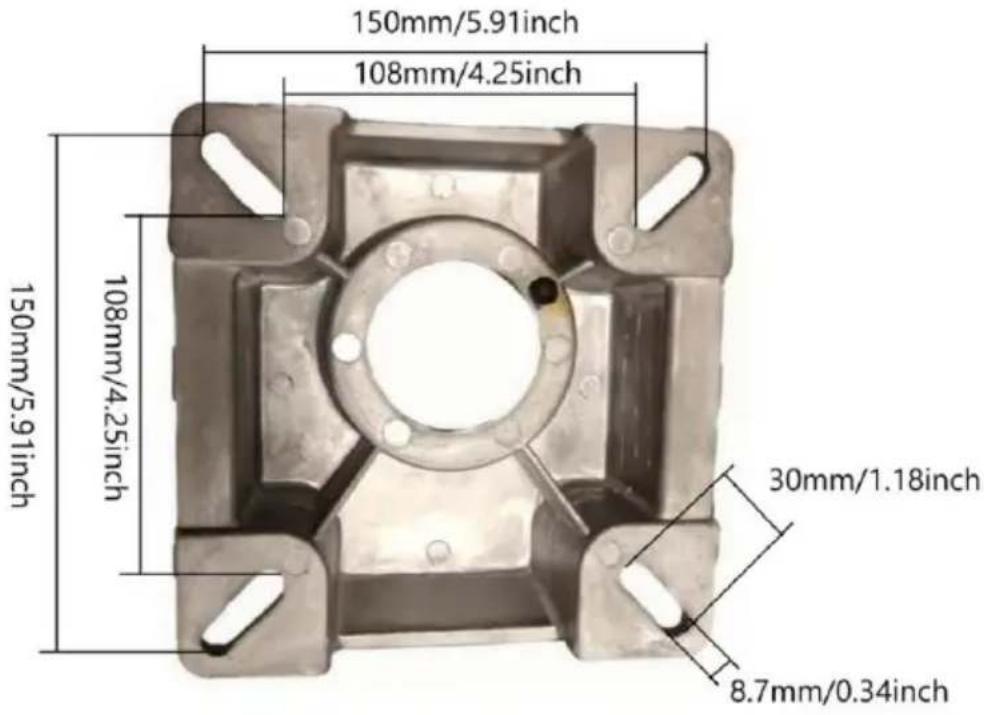

150mm/5.91inch 108mm/4.25inch 108mm/4.25inch 150mm/5.91inch 30mm/1.18inch 8.7mm/0.34inch

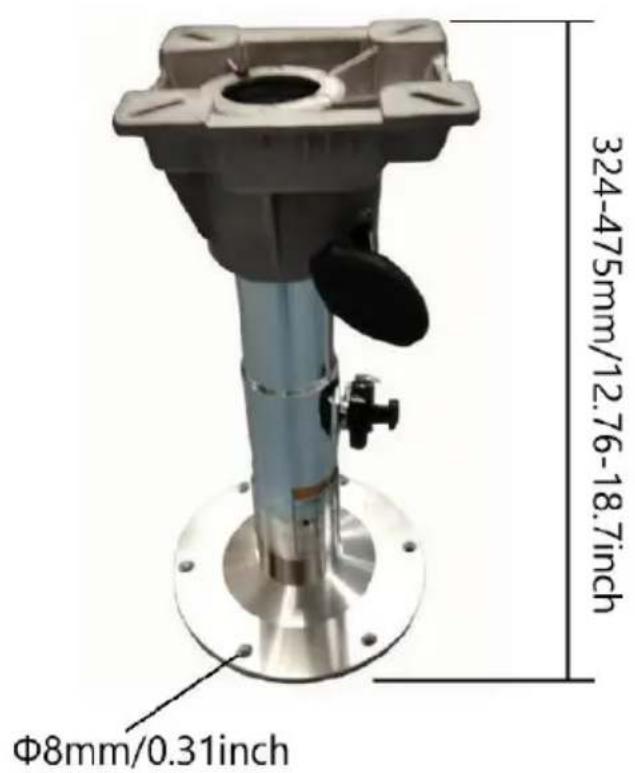

324-475mm/12.76-18.7inch Φ8mm/0.31inch

AP75306:

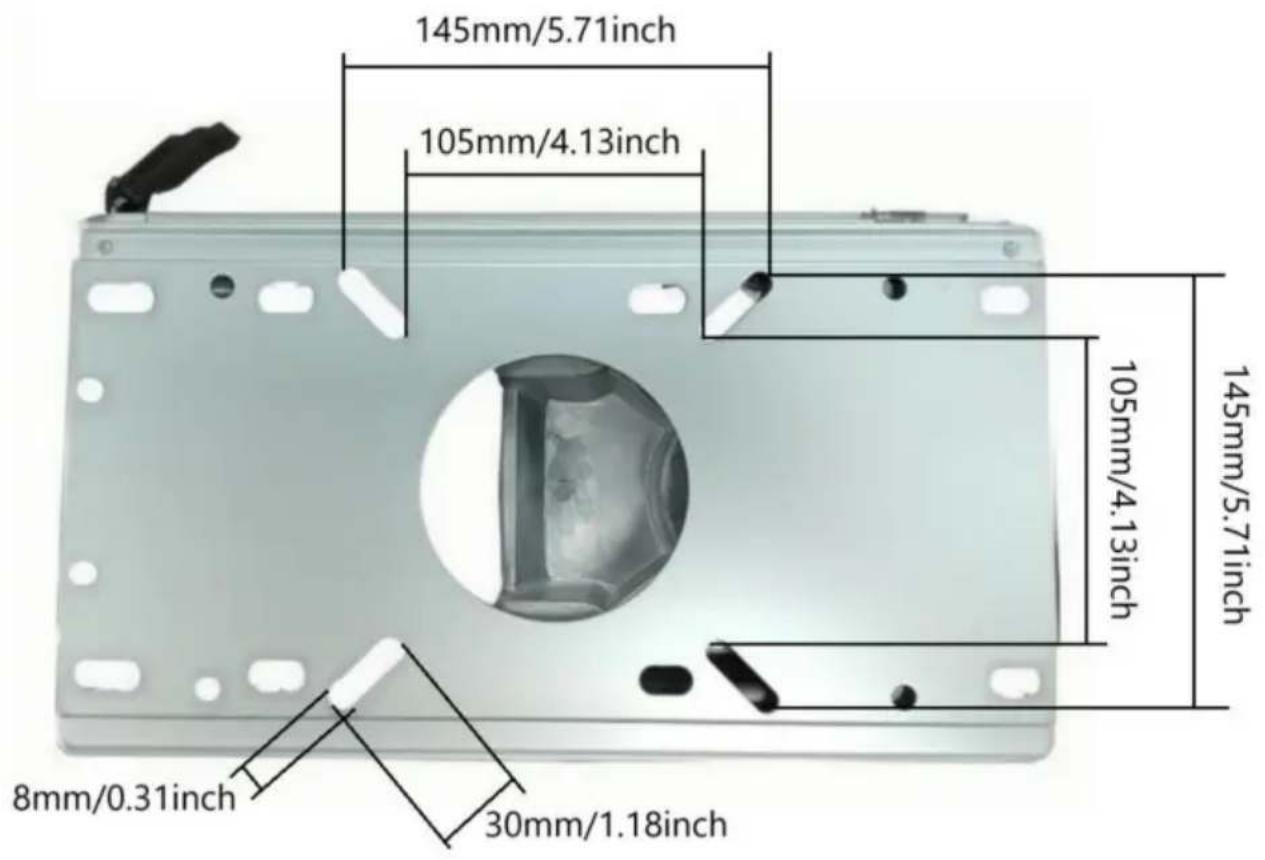

145mm/5.71inch 105mm/4.13inch 105mm/4.13inch 145mm/5.71inch 8mm/0.31inch 30mm/1.18inch

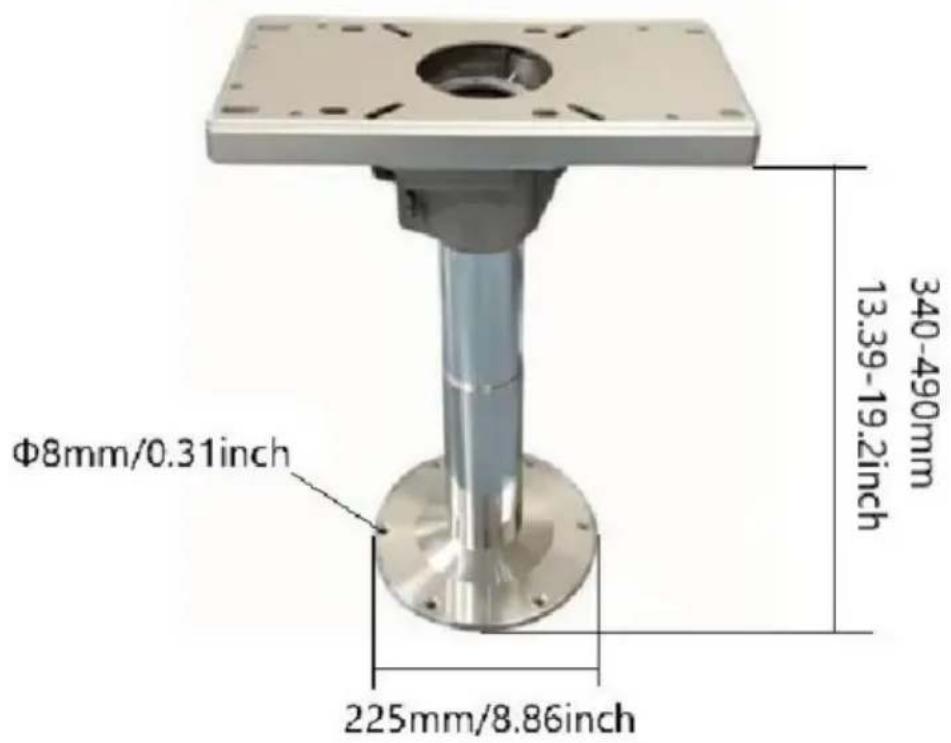

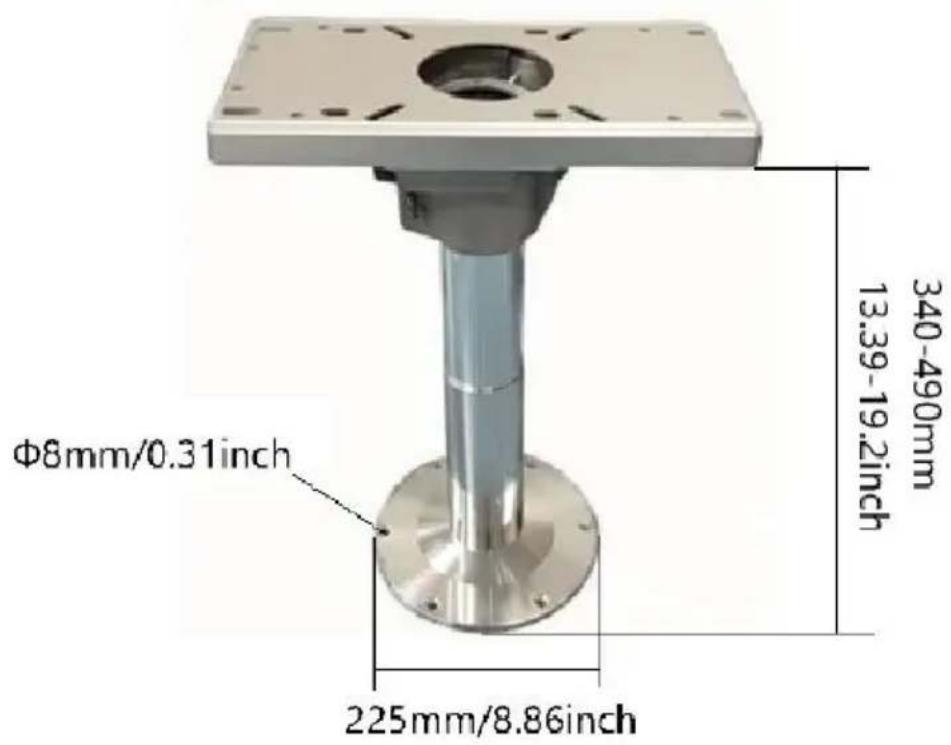

340-490mm 13.39-19.2inch Φ8mm/0.31inch 225mm/8.86inch

AD75304:

145mm/5.71inch 105mm/4.13inch 105mm/4.13inch 145mm/5.71inch 8mm/0.31inch 30mm/1.18inch

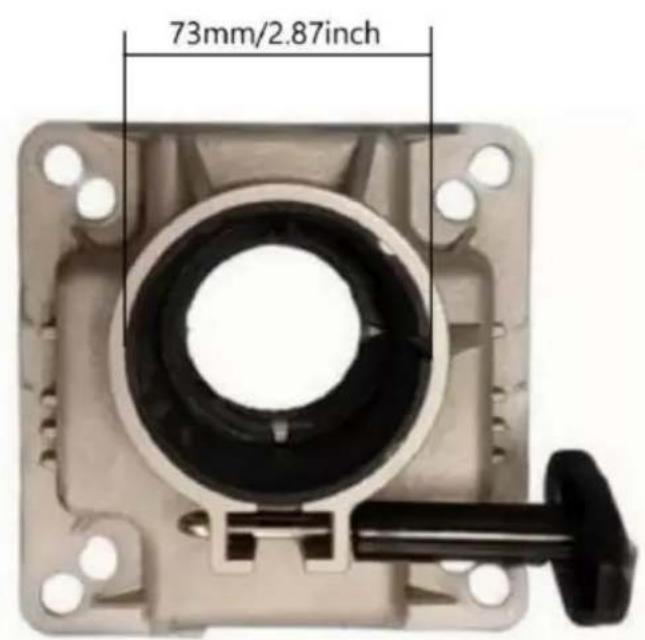

73mm/2.87inch

INSTRUCTIONS

1. Depestal rotation:

As shown in the figure below, turn the handle counterclockwise, adjust the rotating slide to the appropriate position, and screw the handle clockwise.

Note: Be sure to tighten the handle after adjustment.

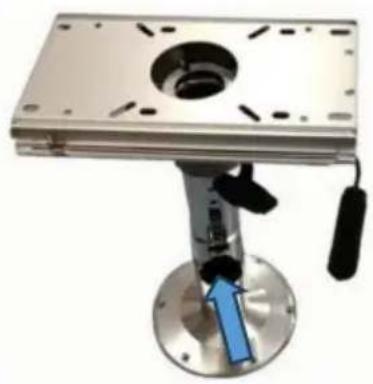

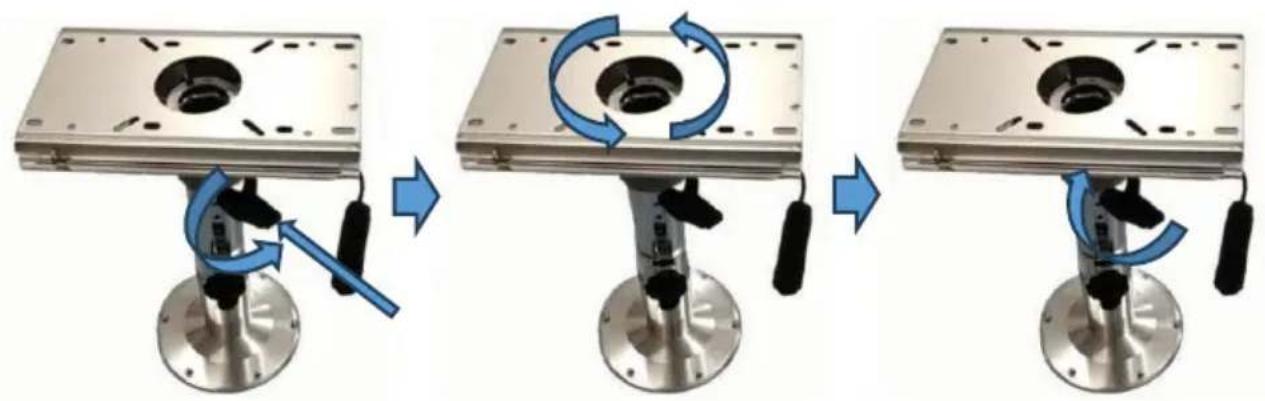

Three-step diagram showing a mechanical assembly with blue arrows indicating rotational or clockwise motion (no text or symbols present)

2. Depestal left and right adjustment:

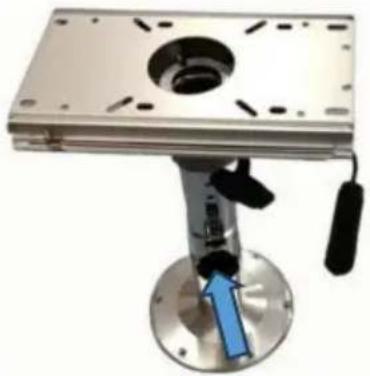

As shown in the figure below, lift the handle upwards and keep it up. Adjust the slider left and right to the appropriate position, and release the handle downwards to complete the adjustment.

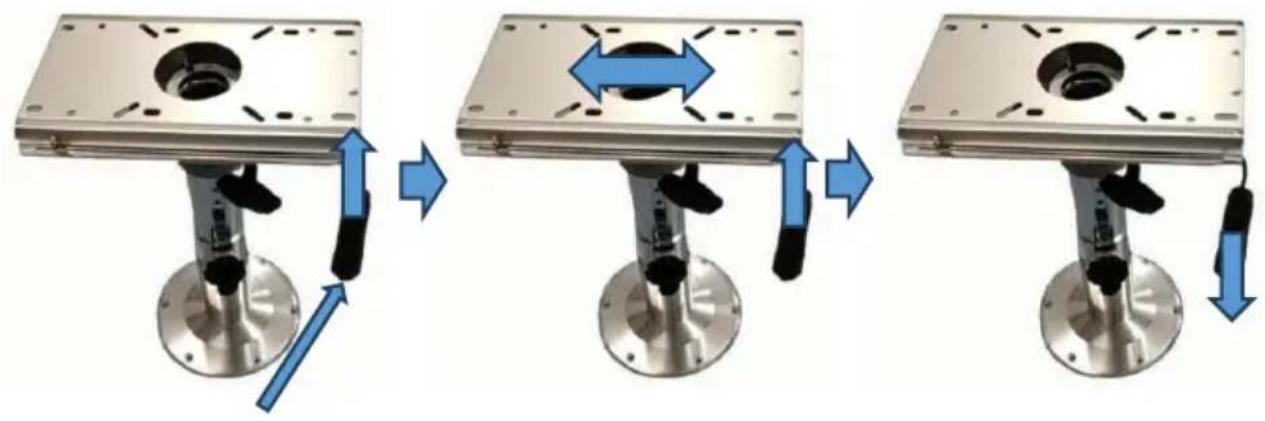

Three-step mechanical assembly diagram showing a metal frame with mounting base and three sequential views of the device (no text or symbols)

3. Depestal height adjustment:

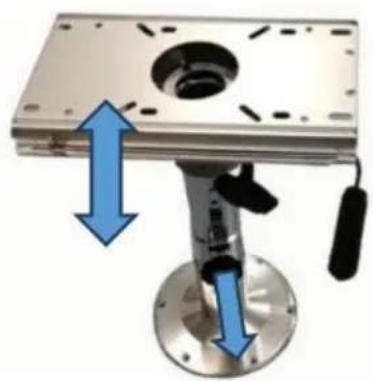

As shown in the figure below, pull out the handle outward and keep it facing outward, adjust the slider to the appropriate height, and release the handle inward to complete the adjustment.

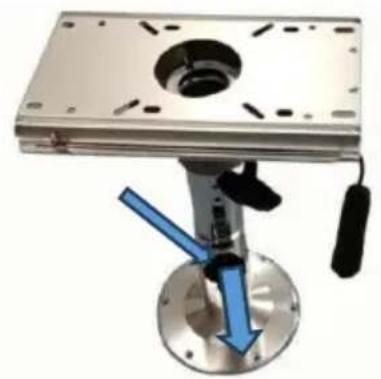

Mechanical assembly diagram showing a rotating component with blue arrows indicating force or movement (no text or symbols present)

Mechanical assembly diagram showing a metal frame with a central rotating component and blue arrows indicating direction (no text or symbols)

Metallic mechanical device with a central hub and mounting base, featuring a blue arrow pointing to a component (no visible text or symbols)
