Product Type	Integrated Garage Creeper
Brand	Vevor
Model	CC36
Maximum Load Capacity	350 lbs (approx. 159 kg)
Length	36 inches (approx. 91 cm)
Main Material	Sturdy Plastic
Included Wheels	6 universal wheels
Screws and Nuts Provided	14 M6×20mm screws, 14 M6 nuts, 14 washers, 14 drive tubes, 14 dust caps
Tool Provided	Hex Key
Assembly Required	Yes, by an adult
Recommended Use	Stable and flat surface
Maintenance	Clean with a damp cloth, regularly check stability
Safety Instructions	Do not overload, do not use by children without supervision, stop if damaged
Warranty and Support	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - CC36 Vevor

How to assemble the CC36 creeper?

Follow the steps: place the M6×20mm screw into the wheel caster hole, insert the sleeve, then secure with the washer and M6 nut. Use the provided hex key to tighten.

What is the maximum load capacity of the CC36?

The maximum load capacity is 350 lbs (approx. 159 kg).

What tools are needed for assembly?

All necessary tools are provided, including a hex key. No additional tools are required.

Can I use the creeper on uneven surfaces?

It is recommended to use the creeper on a stable and flat surface. Uneven surfaces could compromise stability and safety.

How to clean the garage creeper?

Clean it with a damp cloth and mild detergent. Avoid abrasive products. Regularly check the condition of the wheels and fasteners.

Are the wheels replaceable?

Yes, the wheels are universal wheels and can be replaced. Replacement parts are available.

Is there a warranty for the Vevor CC36?

Yes, Vevor offers technical support and an electronic warranty certificate. Visit www.vevor.com/support for more information.

Is the creeper suitable for children?

Assembly must be done by an adult. Children should not use it without adult supervision.

What are the dimensions of the CC36 model?

The length is 36 inches (approx. 91 cm). Width and height are not specified in the manual.

What is the difference between the CC36 and CC40 models?

The main difference is the length: the CC40 is 40 inches (approx. 102 cm) while the CC36 is 36 inches. The load capacity is the same (350 lbs).

USER MANUAL CC36 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

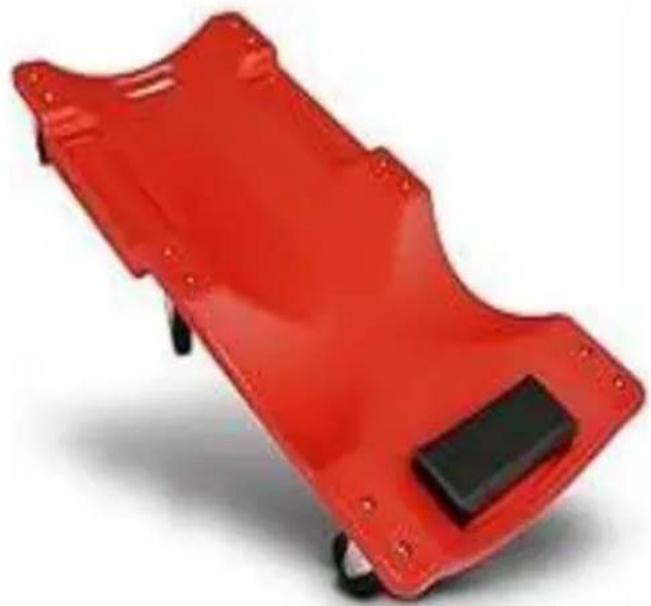

INTEGRATED GARAGE CREEPER

MODEL: CC40/CC36

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

MODEL: CC40/CC36

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. The Integrated Garage Creeper should be mounted on a stable surface. Do not overload.
2. The installation should be done by an adult, and children should not use without supervision.
3. Check the stability and safety of the product regularly and stop the use immediately in case of damage or suspicious problems.
4. Please read and understand this manual carefully before using the Integrated Garage Creeper.
5. If there is any difference between the color of this product and the picture in the instruction manual, please refer to the physical object.

PARAMETER LIST

Model	CC40	CC36
Maximum load bearing	350lbs	350lbs
Length:	40inch	36inch

PARTS LIST

Name	Quantity	Picture
Service Creeper	1
Universal Wheel	6
M6*20mm Round Head Screw	14
M6 Hexagon Check Nut	14
Gasket	14
12.5*10mm Drive Pipe	14
Dust Cap	14
Hex Key	1

INSTRUCTIONS

STEP-1: PUT THE SCREW (#7) THROUGH THE HOLE OF THE CASTER, THEN THROUGH THE HOLE OF THE PLASTIC BODY (#1).

STEP-2: PUT THE SLEEVE (#6) OVER THE SCREW (#7).

STEP-3: SECURE THE CASTER WITH THE FLAT WASHER (#4) AND NUT M6.
