Product Type	Recessed Shower Niche
Brand	Vevor
Model	BA2-306010-BR
Dimensions (L x W x H)	4 x 13 x 25 inches
Material	Stainless Steel
Color	Brushed Silver (Standard Finish)
Recommended Use	Bathroom, Shower
Installation	Wall Recess, Stud Mounting
Main Functions	Recessed wall storage, integrated waterproofing, tile support
Maintenance	Clean with a soft cloth and mild soap, avoid abrasives
Safety	Wear gloves and safety glasses during assembly
Load Capacity	Maximum load: 15 kg (proper assembly required)
Package Contents	Niche, frame, waterproof membrane, mounting screws, instructions
Required Installation Tools	Stud finder, level, pencil, utility knife, silicone sealant
Surface Compatibility	Tile, marble, stone
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate, see website
Country of Origin	China

Frequently Asked Questions - BA2-306010-BR Vevor

How to install the Vevor BA2-306010-BR niche?

Locate wall studs with a stud finder. Mark the cutout with a pencil, cut the existing tile, insert the frame and fix it to the studs. Apply a continuous silicone sealant bead around the niche before inserting it. Hold in place until drying.

What are the exact dimensions of the niche?

The dimensions are 4 inches deep, 13 inches wide, and 25 inches high (approximately 10.2 x 33 x 63.5 cm).

Is this niche compatible with all types of tile?

Yes, it is suitable for most wall coverings such as tile, marble, or stone. It is recommended to lay tile symmetrically around the niche for a perfect finish.

How to ensure the niche is waterproof?

Stick the provided waterproof membrane inside the cavity, extending it 6 inches onto adjacent walls. Then apply a continuous silicone sealant in the interior corners before fixing the niche.

Can I use this niche with a glass shower partition?

Yes, it can be installed in a tiled shower wall, including near a glass partition. Just ensure perfect waterproofing at the joints.

How much weight can the Vevor niche support?

The maximum load capacity is approximately 15 kg, provided the assembly is correct and the niche is securely fixed to wall studs.

Is there a version with LED lighting?

Yes, model BAL-306010-MB is equipped with LED light strips. The BA2-306010-BR models do not have built-in lighting.

How to clean the shower niche?

Use a soft cloth and soapy water (mild soap). Avoid abrasive or acidic products that could damage the stainless steel finish.

What tools are needed for installation?

You will need a stud finder, a level, a pencil, a utility knife or tile saw, and silicone sealant. Gloves and safety glasses are recommended.

Where to find spare parts or technical support?

Visit www.vevor.com/support for technical support and electronic warranty certificate. Spare parts are not provided separately.

USER MANUAL BA2-306010-BR Vevor

Affordable. Reliable. Home Improvement.

SHOWER NICHE

MODEL:

BA-306010-MB/BA2-306010-BR/BA-303010-MB/BAL-306010-MB/BTF-306010-MB

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:BA-306010-MB/BA2-306010-BR/BA-303010-MB/BAL-306010-MB/BTF-306010-MB

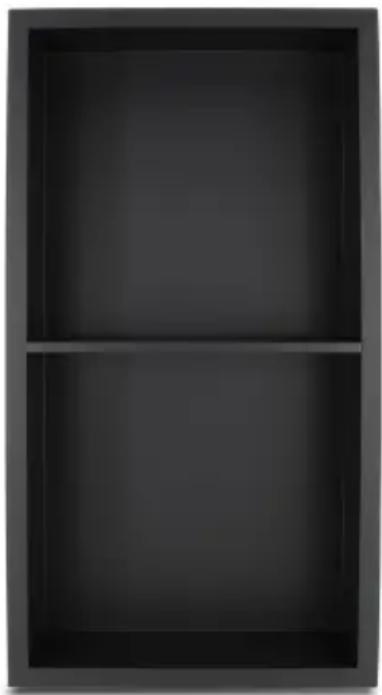

Empty dark gray rectangular bookshelf with two horizontal bars at the bottom (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap

separate all parts in a clean work area.

SAVE THIS MANUAL

The following installation details are applicable for existing wallbefore tiling , do not cover every possible situation Always conswith licenced professional during preparation and installation.

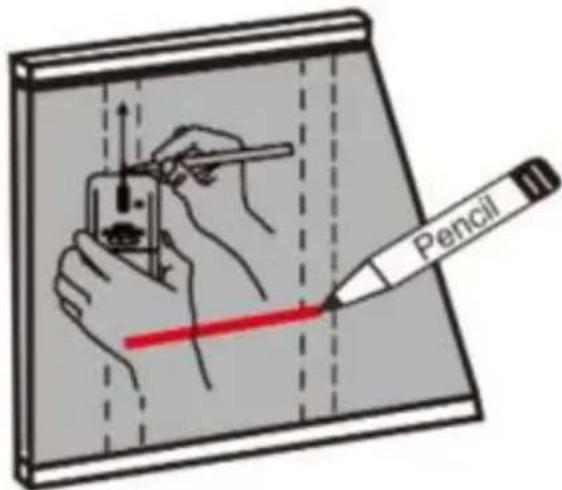

1. Locate and mark the center lines of adjacent framing studs using finder or by tapping the wall . Draw level line between the two wall your desired height of niche.

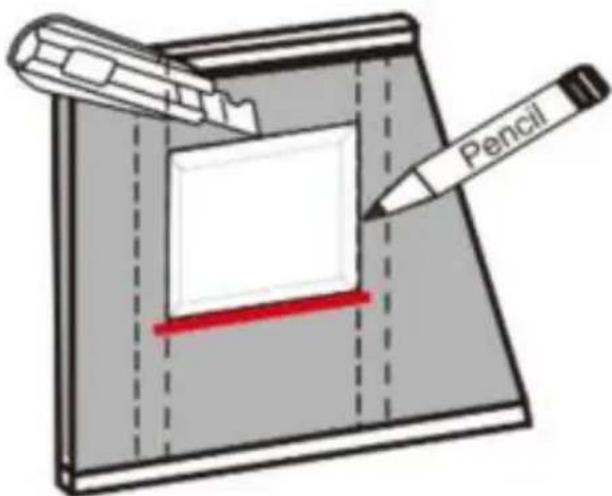

1. Trace the cut line with pencil, above the center line , cut out a car wall board along the traced line . Be sure the top and bottom lines level.

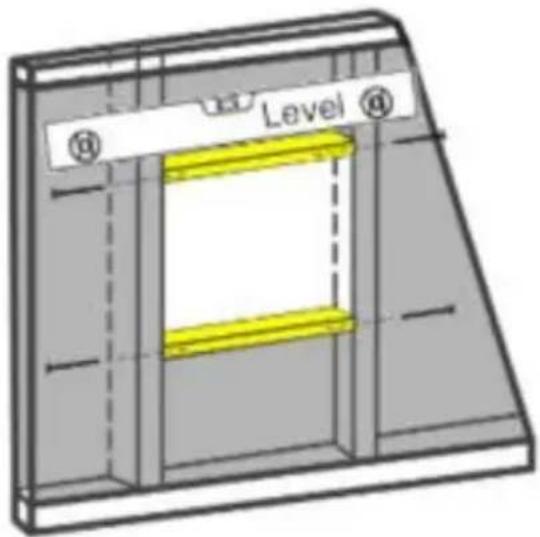

1. Level and fasten the surrounding framing to adjacent vertical studs make the dimension matches the niche flange.

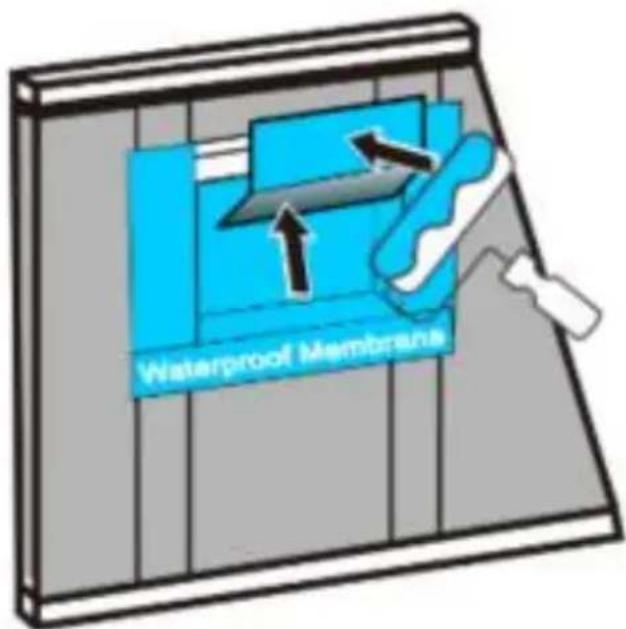

1. Glue waterproofing membrane inside to seal the whole cave and 6-inch to four sides of surrounding wall. Create watertight seal cave very important.

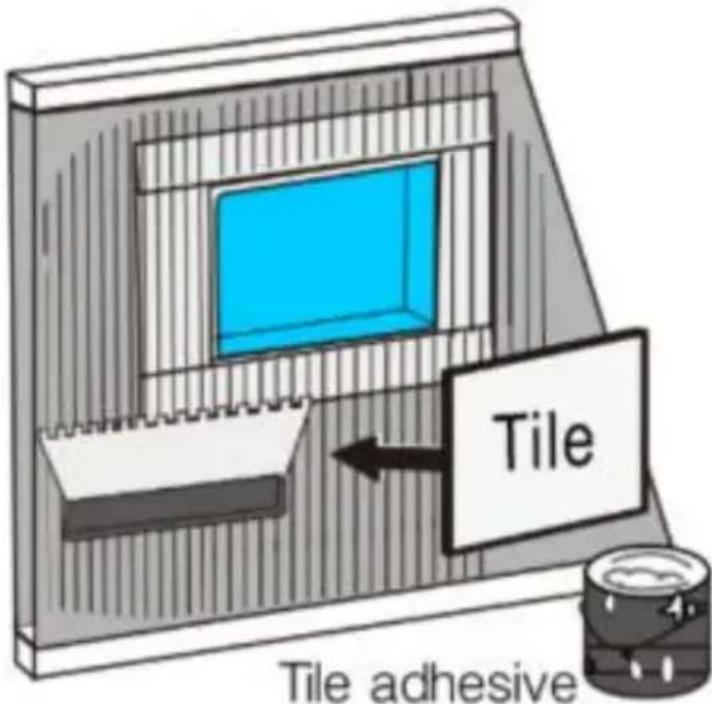

1. Apply your setting material and set your tile, marble or stone dire shower wall. It is best for tile to be symmetric around the cave. The can end right on the niche for a very clean look.

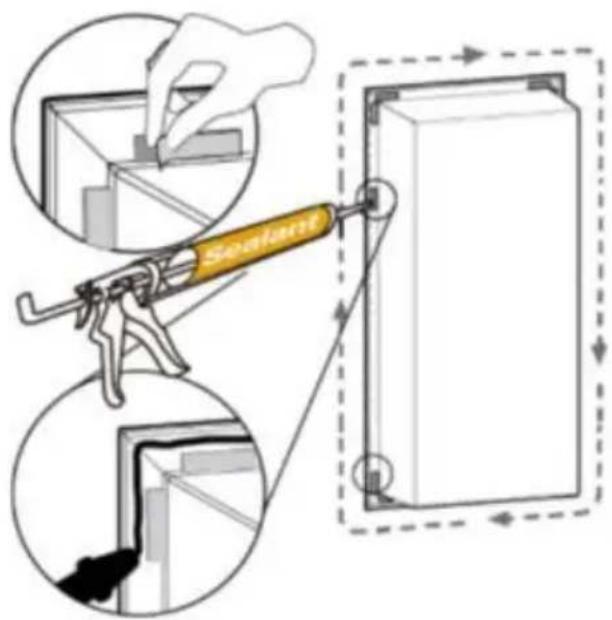

1. Remove the protective film of the tape, apply a uninterrupted bead silicon sealant from the inside corner of the niche to the edge. Ensur sealant applied thickness.

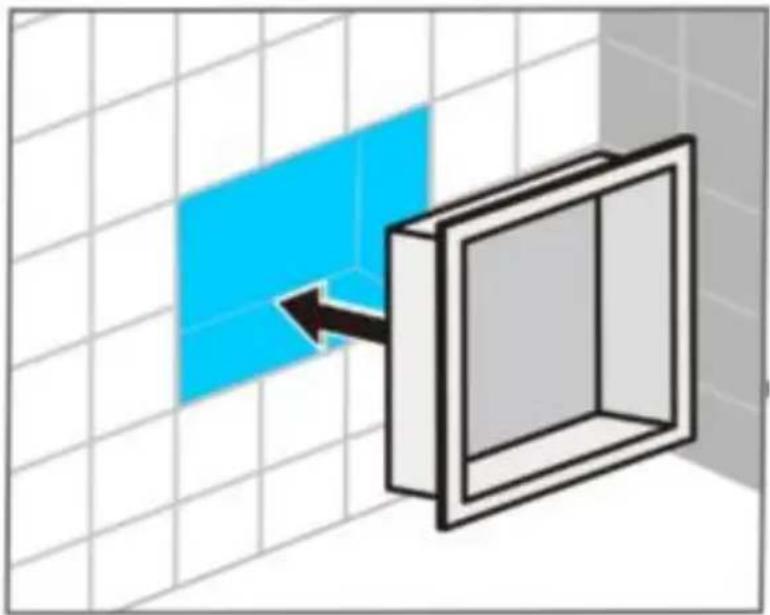

1. Insert the niche fixture into the cave . Press the flange tightly and ensure the niche plumb and level . Wipe off the excess sealant along perimeter edges.

8.

3D diagram of a window with a blue panel and arrow pointing to the front panel, set against a grid background (no text or symbols)

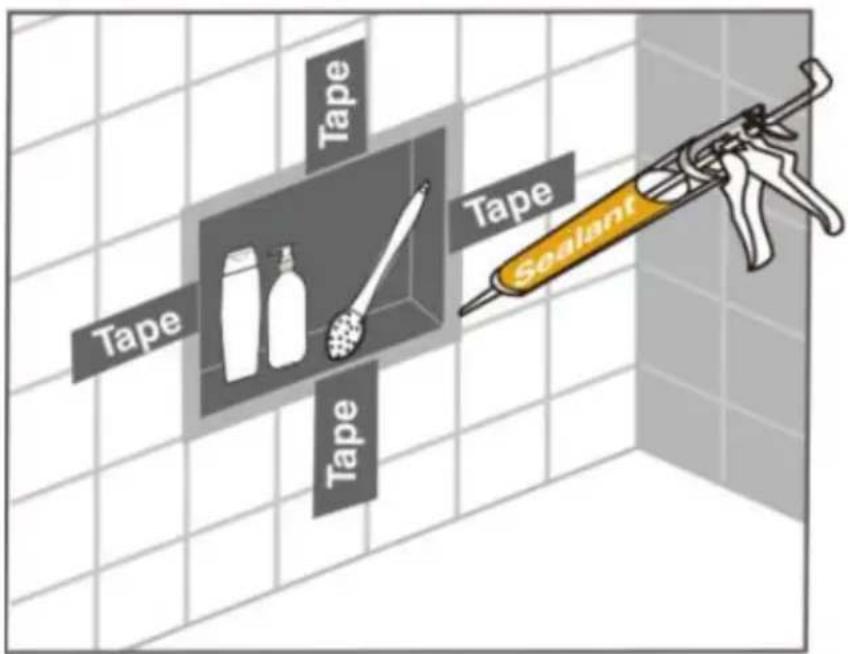

1. Tape the flanges with wall to hold the niche in place until the secured.

Model	BA-306010-MB	BA2-306010-BR	BA-303010-MB	BAL-306010-MB	BTF-306010-MB
Product Size (inch)	4*13*25	4*13*25	4*13*13	4*13*25	4*13*25

The BAL-306010-MB is equipped with LED light strips, and the installation of light strips is as follows:

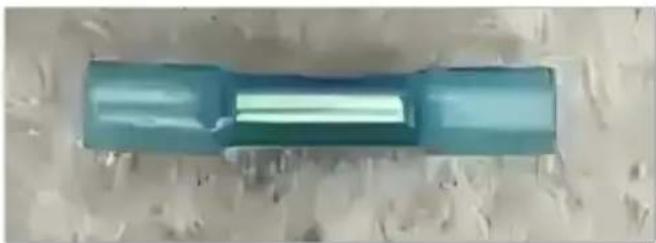

1. Use the wiring terminal shown in Figure A;

Top-down view of a blue cylindrical object with a horizontal bar and central highlight, placed on a textured surface (no visible text or symbols)

A

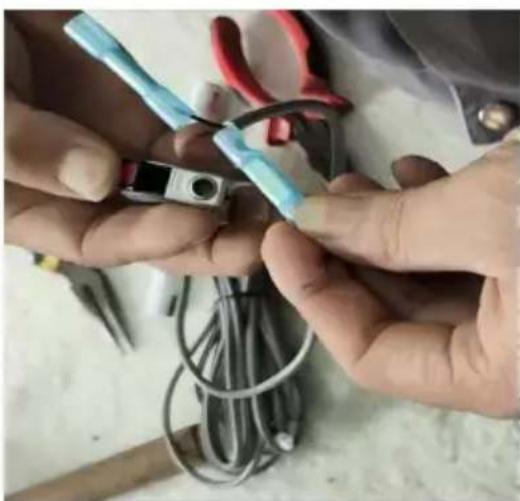

1. Pass the two ends of the power cord through the terminal block and se with a tool;

Close-up of hands using a pair of metal tools to cut a blue plastic clip, with coiled wires and a red-handled tool in the background (no visible text or symbols)

B

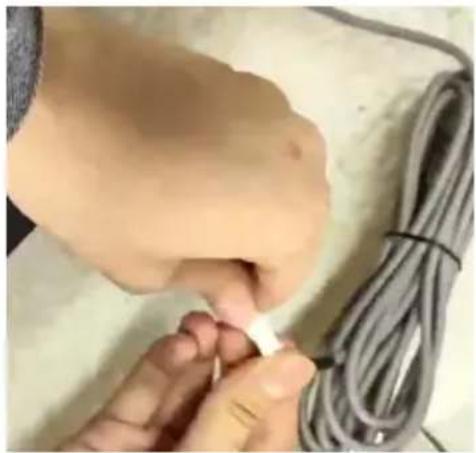

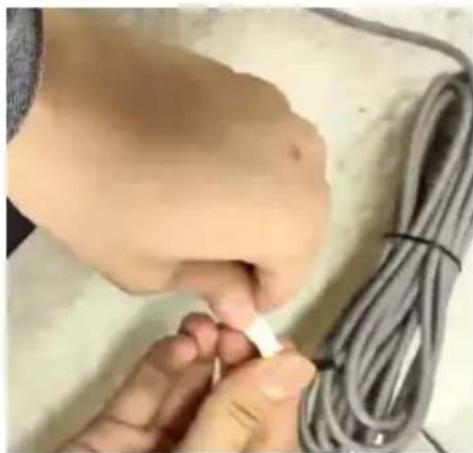

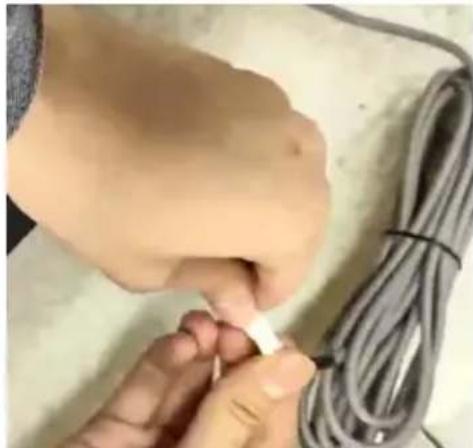

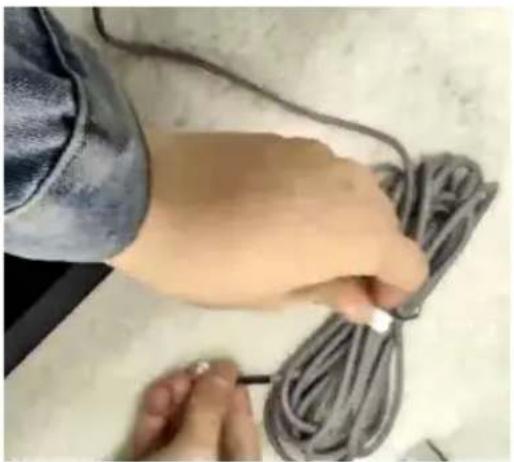

1. Connect the white wiring terminals and hear a "click" sound to indicate that they are installed properly, as shown in Figures C and D.

Close-up of hands holding a bundle of gray cables on a white surface (no text or symbols visible)

C

Close-up of hands holding a small white object next to a coiled gray cable (no text or symbols visible)

D

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support
