BA2-306010-MB - Bathroom accessory Vevor - Free user manual and instructions

Product Type	Recessed shower niche
Brand	Vevor
Model	BA2-306010-MB
Dimensions (inches)	4 x 13 x 13 inches (depth x width x height)
Dimensions (cm)	10.2 x 33 x 33 cm
Material	Stainless steel
Finish	Brushed
Installation	Recessed into wall, requires cutting and sealing
Package Contents	Niche support, flange, waterproof membrane, manual
Maximum Load	Not specified
Usage	Storage for shower products (shampoo, soap, etc.)
Water Resistance	Yes, with waterproof membrane and silicone sealant
Maintenance	Clean with a soft cloth and non-abrasive cleaner
Required Tools	Spirit level, pencil, saw, drill, silicone sealant
Warranty	Electronic warranty via www.vevor.com/support
Country of Manufacture	China (Shanghai)
Importer (EU)	YH CONSULTING LIMITED, United Kingdom
Safety Standards	ANSI (safety glasses), mounting recommendations

Frequently Asked Questions - BA2-306010-MB Vevor

What is the product type?

It is a recessed shower niche for storing your bathroom products.

What are the exact dimensions of the BA2-306010-MB model?

The dimensions are 4 x 13 x 13 inches (approximately 10.2 x 33 x 33 cm).

How to install the shower niche?

Installation requires cutting an opening in the wall between two studs, applying a waterproof membrane, then fixing the niche with silicone sealant. Refer to the manual for detailed steps.

What is the weight capacity of the niche?

The weight capacity is not specified by the manufacturer. It is advised not to place very heavy objects in it.

Is the niche waterproof?

Yes, if installation is correct. Use the provided waterproof membrane and apply a bead of silicone sealant to ensure watertightness.

What tools are needed for installation?

You will need a spirit level, pencil, saw, drill, and silicone sealant. Wear safety glasses and gloves.

How to clean the shower niche?

Clean with a soft cloth and non-abrasive cleaner. Avoid acidic or abrasive products that could scratch the surface.

Is the niche compatible with all wall types?

It is designed for existing walls before tiling. It is recommended to consult a professional for installation on non-standard walls.

Where to find warranty and technical support?

Technical support and the electronic warranty certificate are available at www.vevor.com/support.

What is the difference between the BA-303010-BR and BA2-306010-MB models?

The BA-303010-BR model has dimensions of 4 x 13 x 25 inches, while the BA2-306010-MB is 4 x 13 x 13 inches. Check the size suitable for your space.

USER MANUAL BA2-306010-MB Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHOWER NICHE

MODEL: BA-303010-BR/BA2-306010-MB

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL:BA-303010-BR/BA2-306010-MB

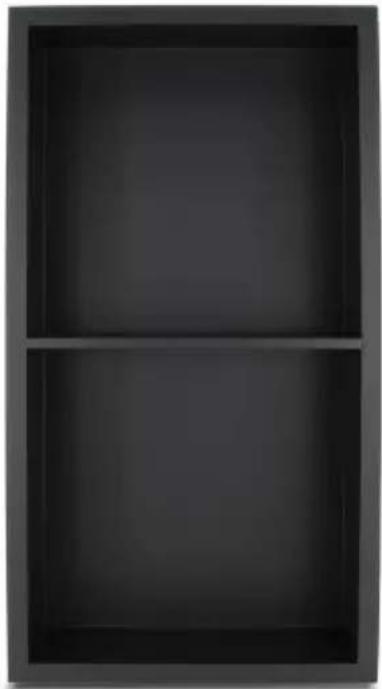

Empty dark rectangular bookshelf with two horizontal sections (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THIS MANUAL

The following installation details are applicable for existing wall before tiling , do not cover every possible situation Always consu with licenced professional during preparation and installation.

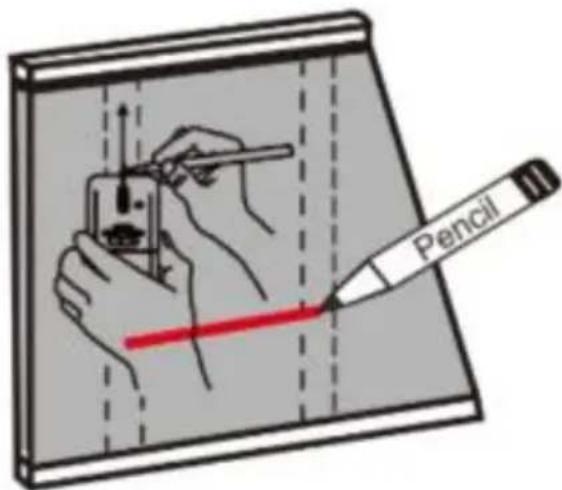

1. Locate and mark the center lines of adjacent framing studs using finder or by tapping the wall . Draw level line between the two wall your desired height of niche.

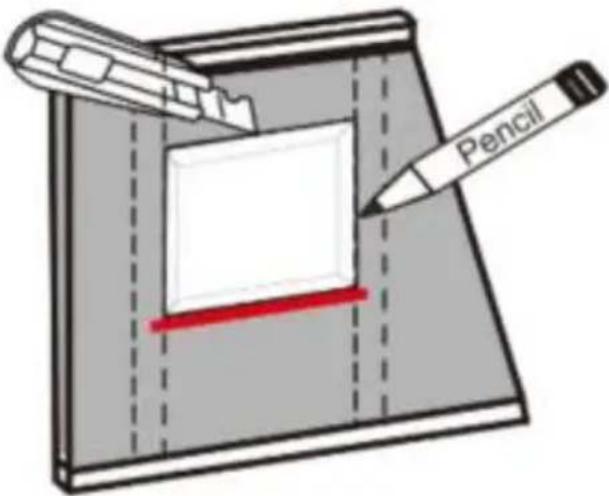

1. Trace the cut line with pencil, above the center line , cut out a wall board along the traced line . Be sure the top and bottom lines level.

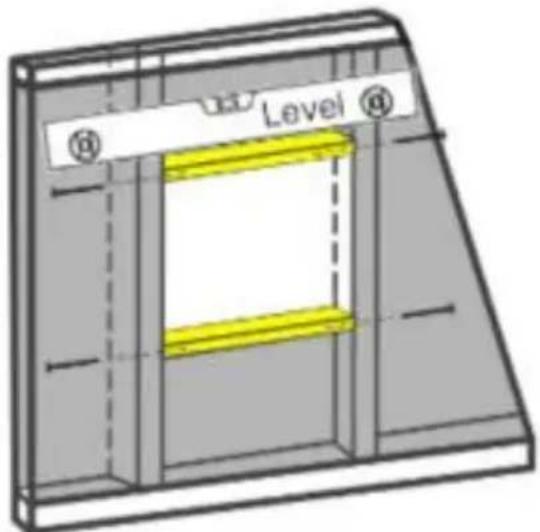

1. Level and fasten the surrounding framing to adjacent vertical studs make the dimension matches the niche flange.

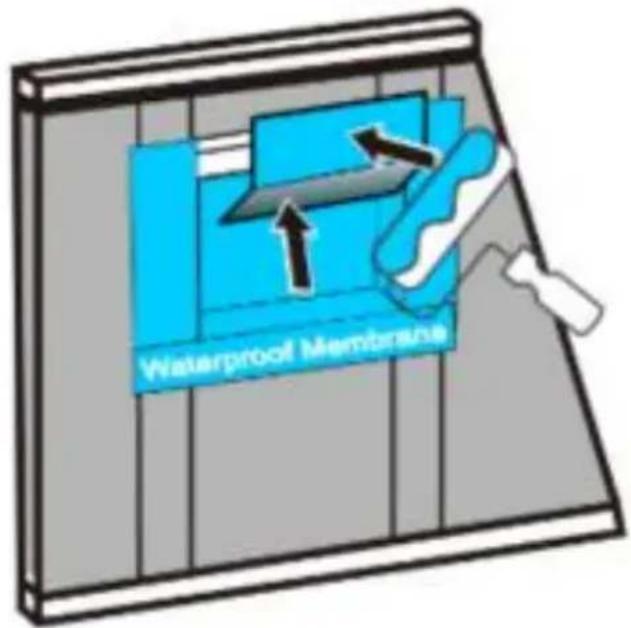

1. Glue waterproofing membrane inside to seal the whole cave and 6-inch to four sides of surrounding wall. Create watertight seal cave very important.

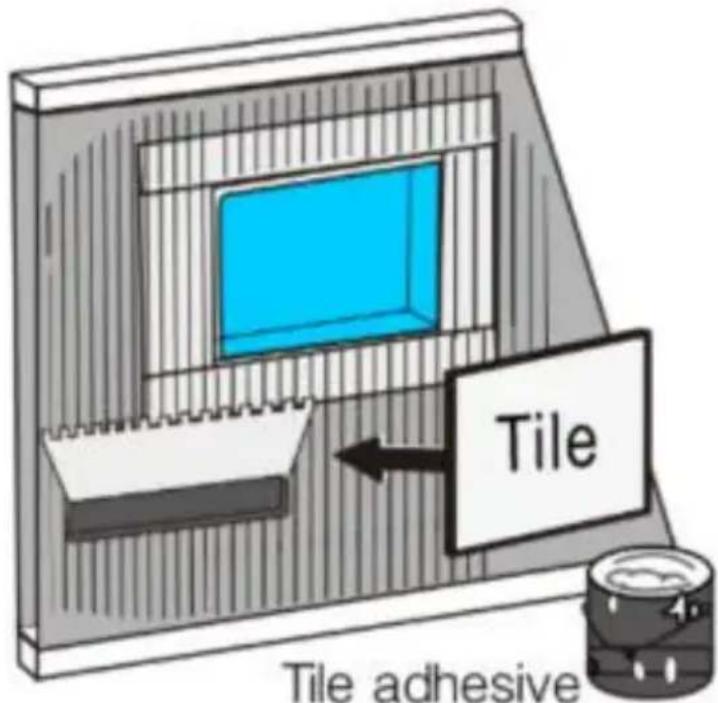

1. Apply your setting material and set your tile, marble or stone dire shower wall. It is best for tile to be symmetric around the cave. The can end right on the niche for a very clean look.

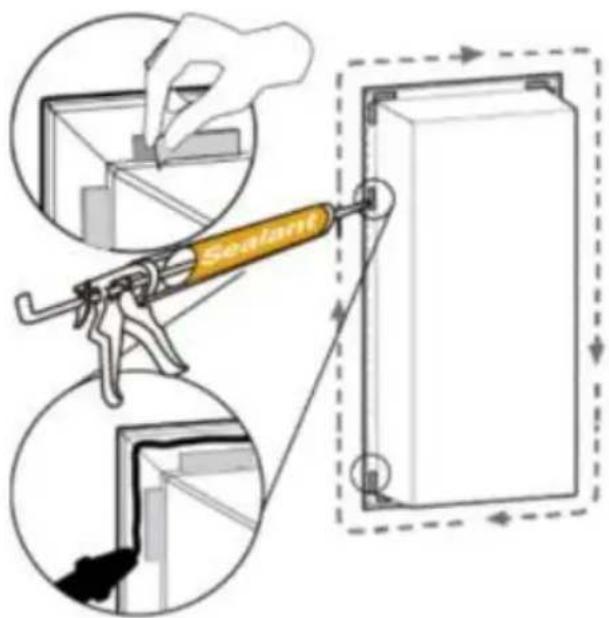

1. Remove the protective film of the tape, apply a uninterrupted bea silicon sealant from the inside corner of the niche to the edge Ensur

sealant applied thickness.

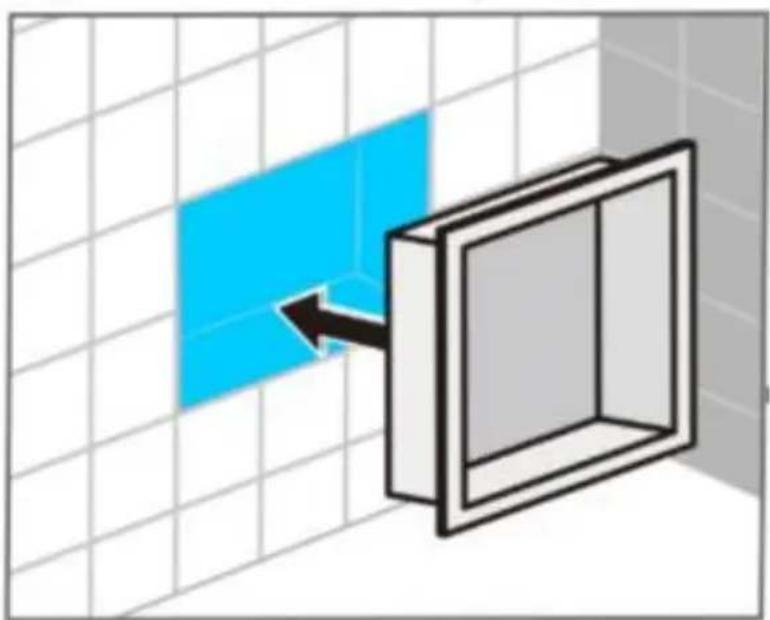

1. Insert the niche fixture into the cave . Press the flange tightly and ensure the niche plumb and level . Wipe off the excess sealant along perimeter edges.

8.

3D diagram of a window with a blue panel and arrow pointing to it, set against a grid background (no text or symbols)

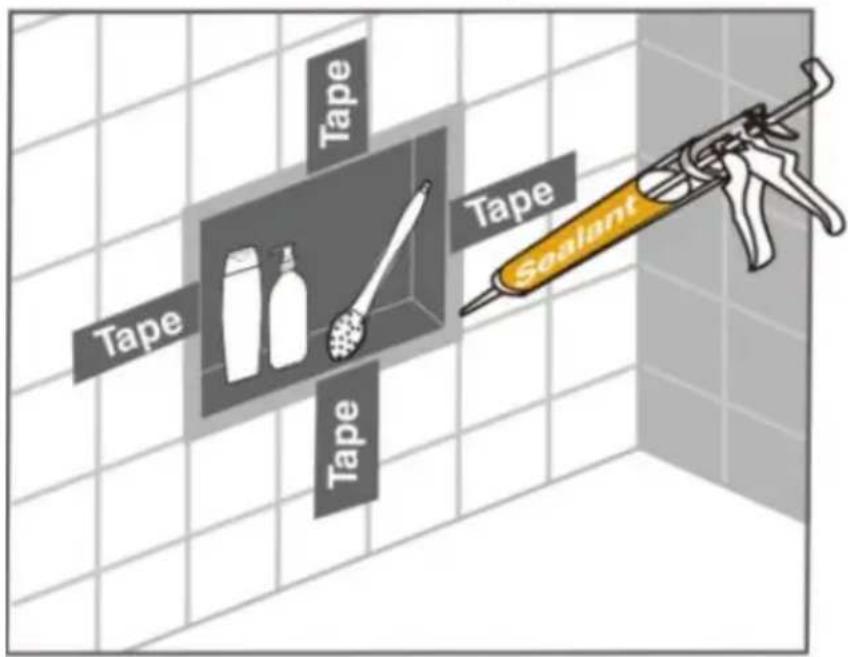

1. Tape the flanges with wall to hold the niche in place until the secured.

Model	BA-303010-BR	BA2-306010-MB
Product Size (inch)	4*13*13	4*13*25

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
