Product Type	Recessed shower niche
Brand	Vevor
Model	BA-306010-MB (compatible with BA2-306010-BR, BA-303010-MB, BAL-306010-MB, BTF-306010-MB)
External dimensions (W x H x D)	10.2 x 33 x 63.5 cm (4 x 13 x 25 inches)
Material	304 Stainless Steel
Finish	Brushed
Net weight	Approximately 2.5 kg
Maximum load capacity	15 kg (estimated)
Installation type	Recessed (into a wall cavity)
Waterproofing	Silicone seal and waterproof membrane included
Included accessories	Frame, mounting screws, waterproof membrane, adhesive tape
Features	Integrated shelf, shower product storage
LED lighting	Optional on model BAL-306010-MB (LED strip)
Maintenance	Clean with a soft cloth and soapy water, avoid abrasive products
Safety	Fixing brackets for support, waterproof test recommended

Frequently Asked Questions - BA-306010-MB Vevor

How to install the Vevor shower niche?

Installation requires cutting a cavity in the tiled wall, fixing a frame to the studs, applying a waterproof membrane, then sliding the niche and sealing it with silicone. It is recommended to call a professional to ensure waterproofing.

What type of wall is suitable?

The niche can be installed on any sufficiently thick tiled wall, preferably with wood or metal studs behind the tile.

Should I call a professional?

Although the manual provides instructions, installing a recessed niche involves masonry and waterproofing work. It is advisable to consult a professional installer.

How to ensure the niche is waterproof?

Apply the provided waterproof membrane to the cavity, then use a continuous silicone bead around the flange to seal the niche to the wall.

Can I store heavy items in the niche?

The maximum load capacity is estimated at 15 kg. Avoid exceeding this limit to prevent damage to the niche or wall.

How to clean the niche?

Use a soft cloth and soapy water. Never use abrasive products or acidic cleaners that could scratch the surface.

Can the niche be equipped with LED lighting?

Yes, the model BAL-306010-MB comes with an LED strip. Other models can be retrofitted, but check compatibility.

What tools are needed for installation?

You will need a stud finder, a level, a tile saw, a pencil, silicone sealant, a caulking gun, and protective gloves.

Is the niche compatible with all tiles?

Yes, it can be installed on any type of tile, but it is important to respect the tile thickness for a perfect fit.

What to do in case of defect or installation problem?

Contact Vevor support via www.vevor.com/support. The warranty covers manufacturing defects, but not installation errors.

USER MANUAL BA-306010-MB Vevor

Affordable. Reliable. Home Improvement.

SHOWER NICHE

MODEL:

BA-306010-MB/BA2-306010-BR/BA-303010-MB/BAL-306010-MB/BTF-306010-MB

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:BA-306010-MB/BA2-306010-BR/BA-303010-MB/BAL-306010-MB/BTF-306010-MB

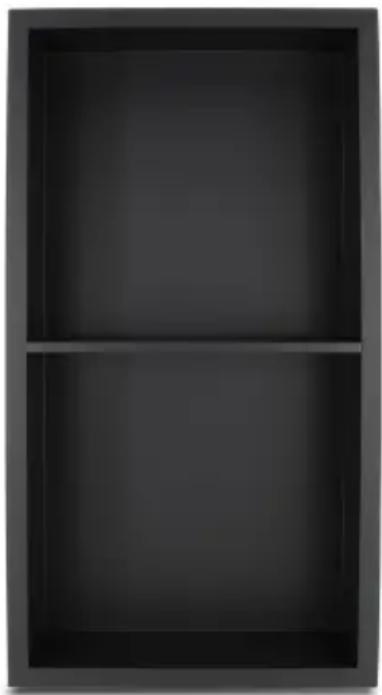

Empty dark rectangular bookshelf with two horizontal bars (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap

separate all parts in a clean work area.

SAVE THIS MANUAL

The following installation details are applicable for existing wallbefore tiling , do not cover every possible situation Always conswith licenced professional during preparation and installation.

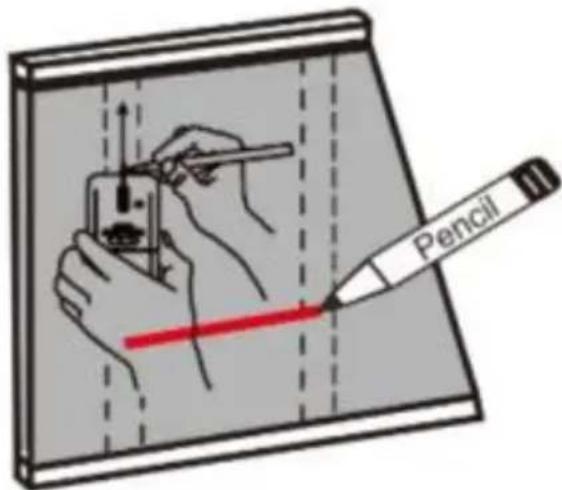

1. Locate and mark the center lines of adjacent framing studs using finder or by tapping the wall . Draw level line between the two wall your desired height of niche.

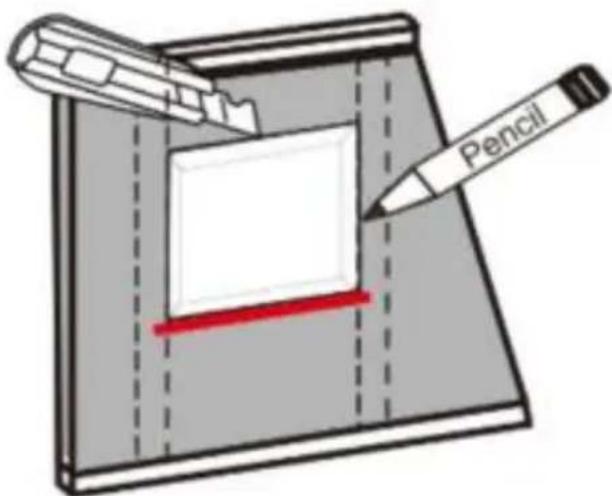

1. Trace the cut line with pencil, above the center line , cut out a car wall board along the traced line . Be sure the top and bottom lines level.

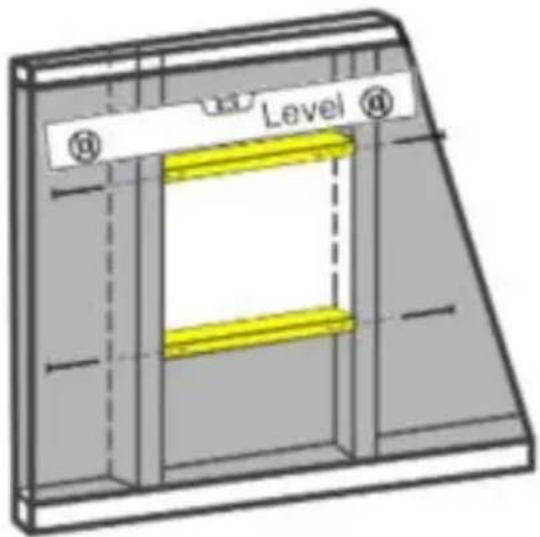

1. Level and fasten the surrounding framing to adjacent vertical studs make the dimension matches the niche flange.

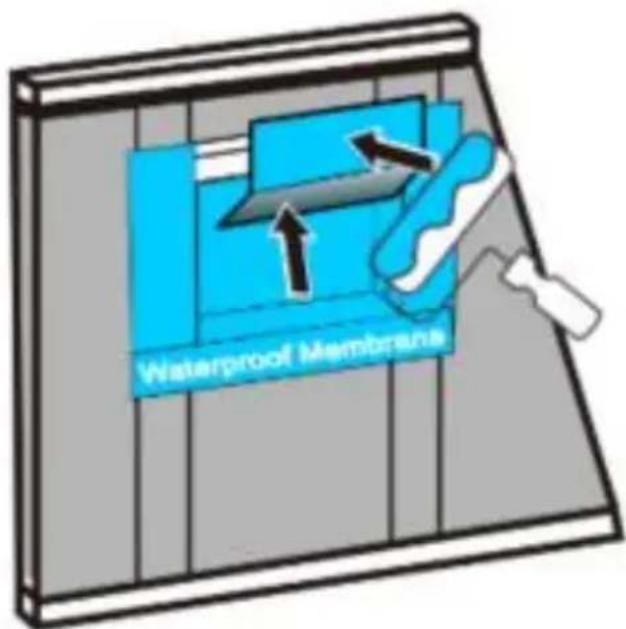

1. Glue waterproofing membrane inside to seal the whole cave and 6-inch to four sides of surrounding wall. Create watertight seal cave very important.

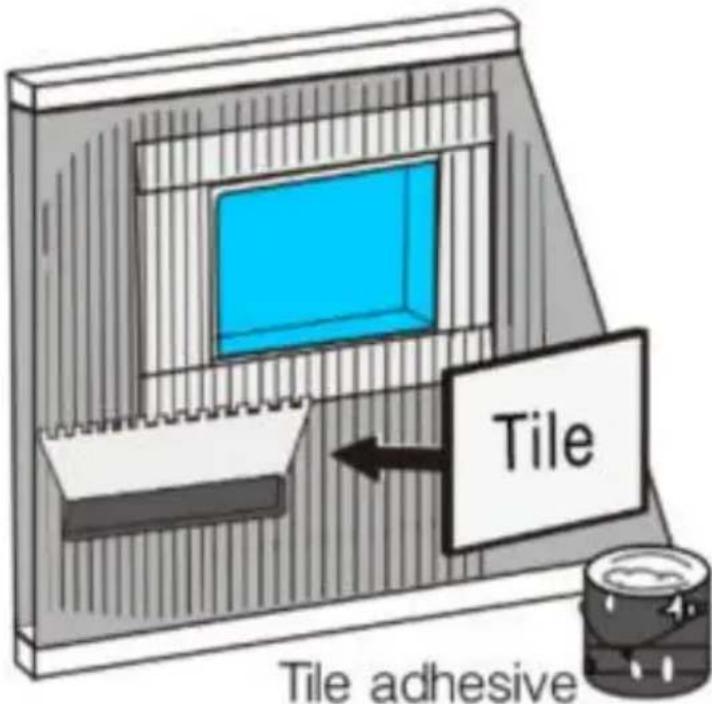

1. Apply your setting material and set your tile, marble or stone dire shower wall. It is best for tile to be symmetric around the cave. The can end right on the niche for a very clean look.

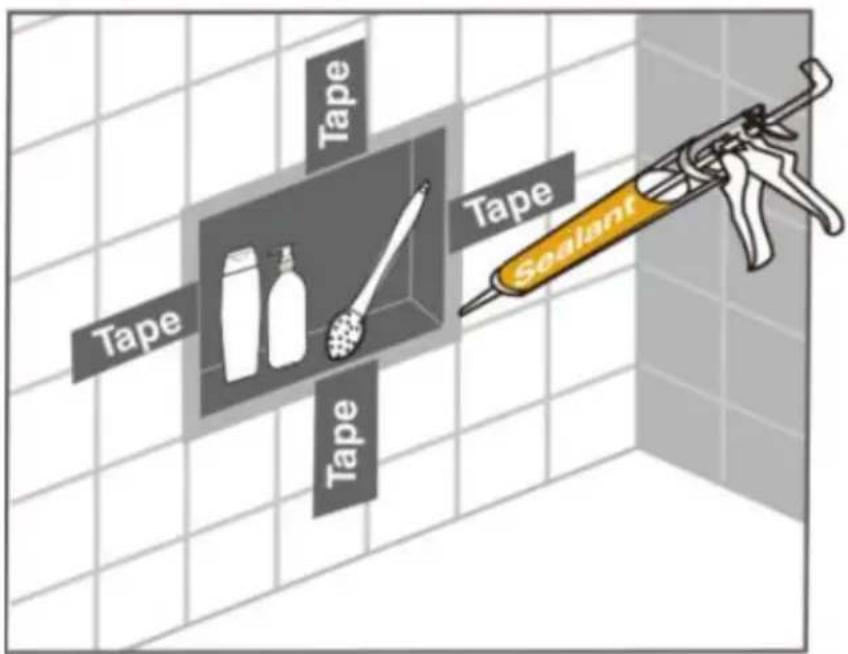

1. Remove the protective film of the tape, apply a uninterrupted bead silicon sealant from the inside corner of the niche to the edge. Ensur sealant applied thickness.

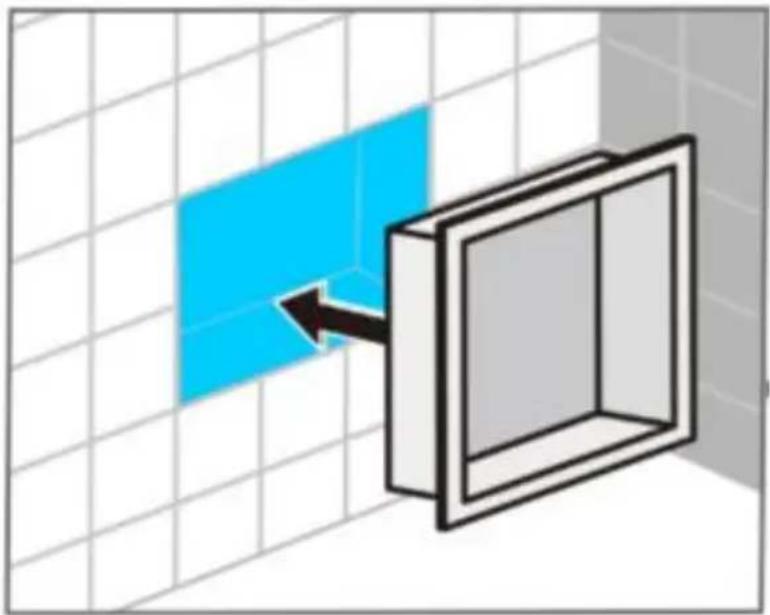

1. Insert the niche fixture into the cave . Press the flange tightly and ensure the niche plumb and level . Wipe off the excess sealant along perimeter edges.

8.

3D diagram of a window with a blue panel and arrow pointing to it, set against a grid background (no text or symbols)

1. Tape the flanges with wall to hold the niche in place until the secured.

Model	BA-306010-MB	BA2-306010-BR	BA-303010-MB	BAL-306010-MB	BTF-306010-MB
Product Size (inch)	4*13*25	4*13*25	4*13*13	4*13*25	4*13*25

The BAL-306010-MB is equipped with LED light strips, and the installation of light strips is as follows:

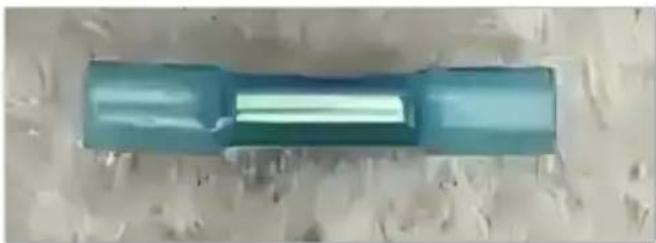

1. Use the wiring terminal shown in Figure A;

Top-down view of a blue cylindrical object with a horizontal bar and central highlight, placed on a textured surface (no visible text or symbols)

A

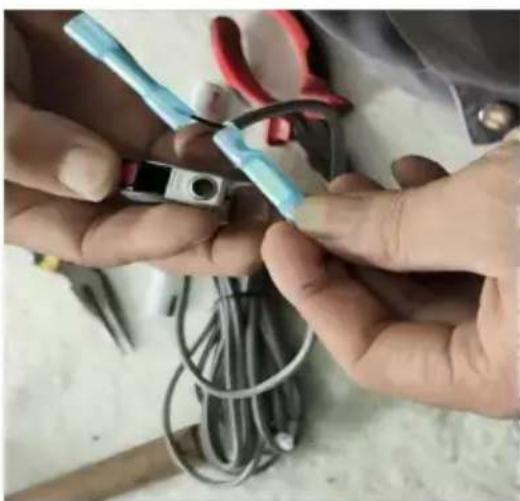

1. Pass the two ends of the power cord through the terminal block and set with a tool;

Close-up of hands using a pair of metal tools to cut a blue plastic clip, with wires and scissors in the background (no visible text or symbols)

B

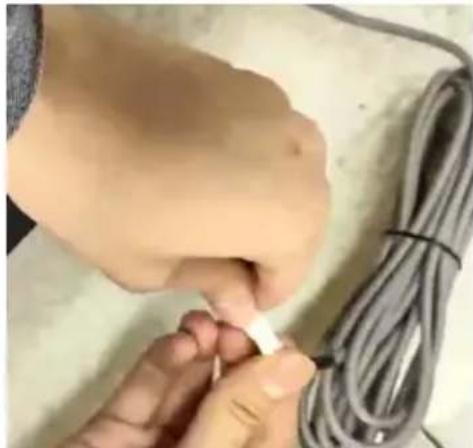

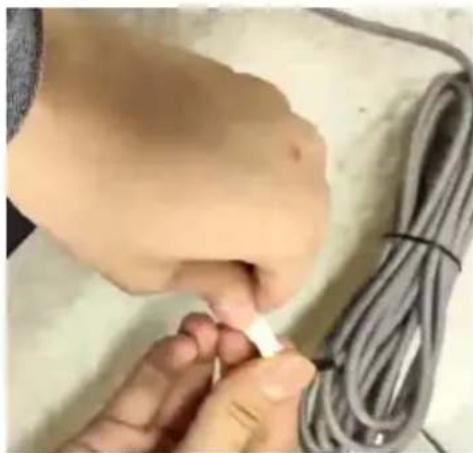

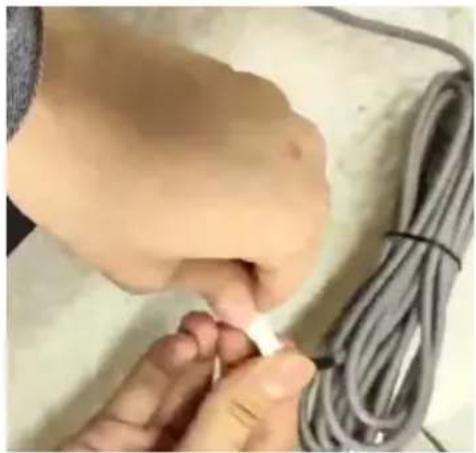

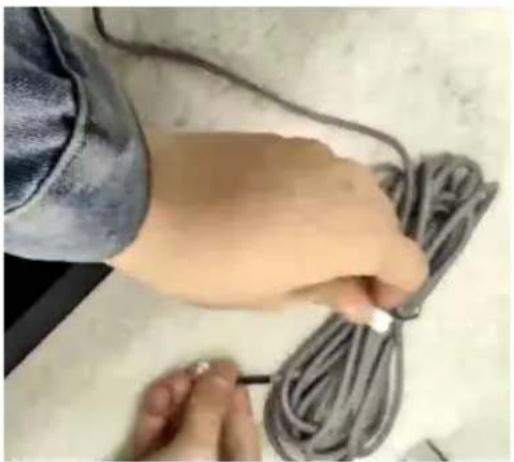

1. Connect the white wiring terminals and hear a "click" sound to indicate that they are installed properly, as shown in Figures C and D.

Close-up of hands holding a bundle of gray cables on a white surface (no text or symbols visible)

C

Close-up of hands holding a small white object next to a coiled gray cable (no text or symbols visible)

D

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support
