55L-B - Storage box Vevor - Free user manual and instructions

Product Type	Motorcycle storage trunk (top case)
Model	55L-B
Capacity	55 liters
Color	Black
Material	High-strength ABS plastic
Lock	Key lock included (2 keys)
Reflective strip	2 pairs of reflective strips included
Mounting kit	Bottom plate, M6x40 and M6x20 screws, anti-slip nuts, L-shaped tool, and flat wrench
External dimensions	Approximately 55 x 45 x 35 cm (estimated for 55L)
Weight	Approximately 5 kg
Interior volume	55 liters
Fixation type	Fixation by bottom plate with screws on the motorcycle
Included accessories	Cleaning cloth, keys, reflective strips, user manual
Care and cleaning	Clean with a soft cloth and soapy water. Avoid harsh solvents.
Safety	Use the lock to secure the trunk. Regularly check the fixation.
Repairability	Spare parts available on request from the manufacturer. Repair possible by a professional.
Warranty	Electronic warranty via www.vevor.com/support
Brand	VEVOR

Frequently Asked Questions - 55L-B Vevor

How to install the Vevor 55L-B storage trunk on my motorcycle?

Follow the provided installation instructions: align the bottom plate with the screw holes on the motorcycle, use the provided M6 screws (40 mm or 20 mm as needed) and tighten with the hex key. Then, place the trunk onto the plate's pillars and push inward to lock.

Which motorcycle models are compatible with this top case?

The trunk is designed to be universal thanks to its adjustable mounting plate. It fits most motorcycles with a luggage rack. Check the hole spacing and load capacity.

Is the trunk waterproof?

The trunk is not guaranteed waterproof. It is splash-resistant, but it is recommended to use a waterproof bag inside to protect your belongings in rainy weather.

What is the maximum load capacity?

The maximum load capacity is not specified in the manual. For safety reasons, do not exceed 10 kg to avoid compromising motorcycle stability.

How to maintain the Vevor 55L-B trunk?

Clean regularly with a soft cloth and soapy water. Avoid abrasive products. Check the screws and lock periodically. A cleaning cloth is included.

Can I replace the lock if it is damaged?

The lock is not easily replaceable. Contact Vevor customer service at www.vevor.com/support for a replacement part or assistance.

Are the reflective strips mandatory?

The reflective strips are provided to improve nighttime visibility. Their installation is recommended for safety, but not mandatory.

What is the difference between the 45L-B, 55L-B, and 65L-B models?

The main difference is the capacity: 45L, 55L, and 65L respectively. The 'B' models are black, the 'S' model is silver. Dimensions and weight vary proportionally.

Is the trunk provided with a warranty?

Yes, Vevor offers an electronic warranty. Register your product at www.vevor.com/support to benefit from after-sales service.

How to avoid abnormal noises while riding?

Adjust the locking screw on the bottom plate to secure the trunk firmly. Tighten all screws properly. If the noise persists, check that the trunk is properly in place.

USER MANUAL 55L-B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

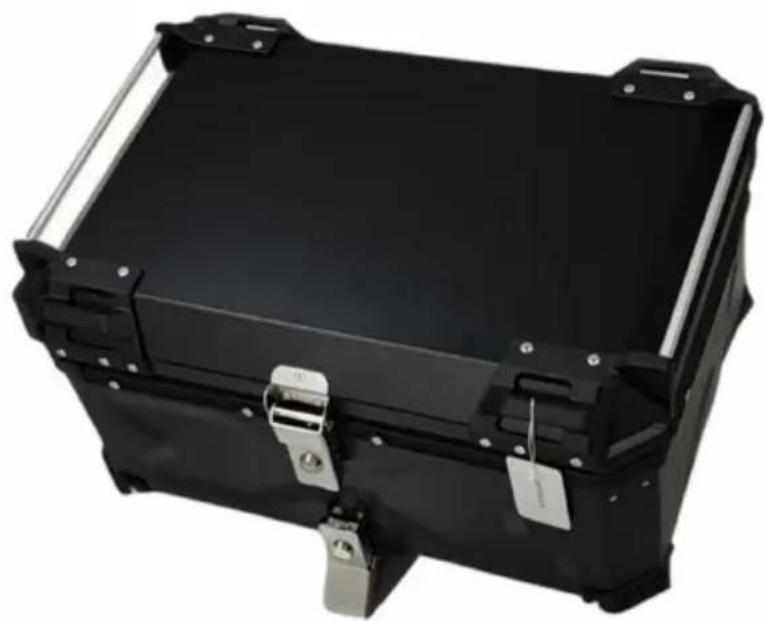

MOTORCYCLE TOP CASE

MODEL: 45L-B/55L-B/65L-B/45L-S

Black rectangular electronic device with metal clamps and a metallic clip, no visible text or symbols

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCTION CONFIGURATION

Model	45L-B	55L-B	65L-B	45L-S
Capacity	45L	55L	65L	45L
Colour	BLACK	BLACK	BLACK	SILVERY

PARTS LIST

ITEM	Name	PICTURE	Q'TY	ITEM	Name	PICTURE	Q'TY
1	W-shaped positioning		4PC	8	Reflective stripe		2 pairs
2	M6*40 Screw		4PC	9	key		2PC
3	M6*20 Screw		4PC	10	Floor		1PC
4	Anti slip nu M6		4PC	11	manual		1PC
5	Large flat cushion		4PC	12	Upper backrest		1PC
6	L-shaped wrench		1PC	13	Lower backrest		1PC
7	Open wrench		1PC	14	Cleaning cotton		2PC

INSTALLATION INSTRUCTIONS

Close-up of hands adjusting a white plastic component with red arrows indicating upward motion (no text or symbols visible)

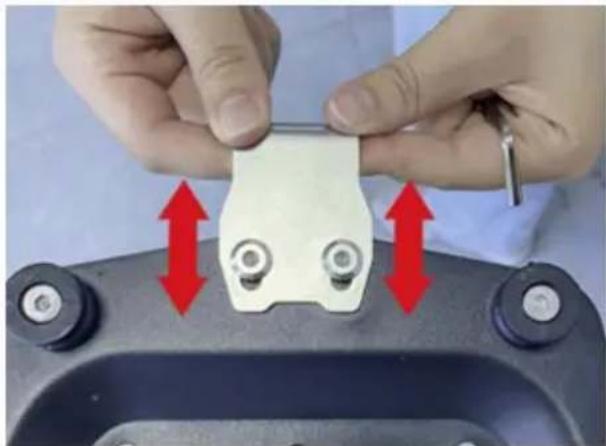

1. Adjust the bottom plate locking screw to prevent abnormal noise caused by loose fixing of the box

Close-up of a mechanical component with multiple screw holes and a finger pointing to it (no visible text or symbols)

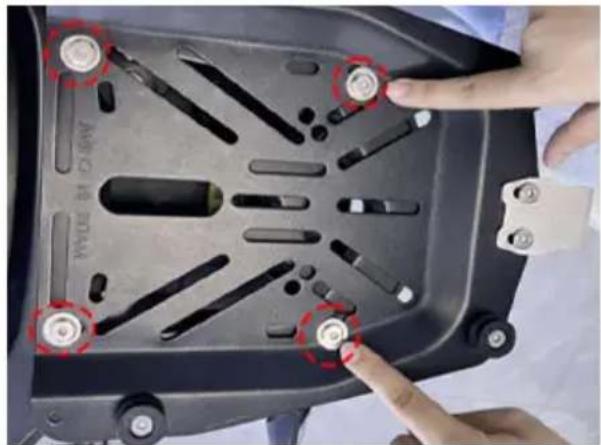

1. Align the bottom plate with the screw holes on the locomotive tailstock.

Close-up of a hand using a screwdriver to adjust or install a black metal bracket with cutouts (no text or symbols visible)

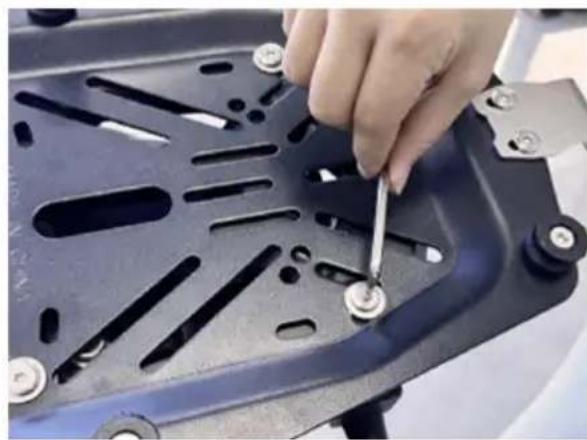

1. Use the provided hex wrench to tighten the screws. The product co with two types of screws of different lengths, and users can choose to them according to their actual installation needs.

Close-up of hands adjusting a black mechanical component with a clip (no visible text or symbols)

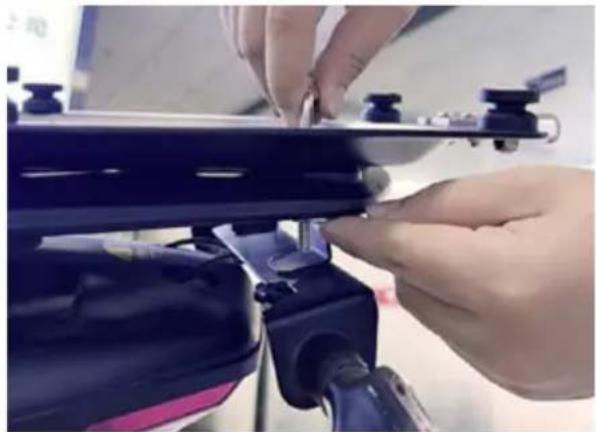

1. Use a wrench to tighten the ga and nut at the bottom of the tails

5. Align the four holes at the bott the trunk with the four fixed colum on the bottom plate.

6. Push the trunk inward and lock bottom plate. Check if the bottom lock is loose.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
