NMDS7 - Storage box Vevor - Free user manual and instructions

Product Type	Rear storage trunk for ATV
Brand	Vevor
Model	NMDS7
Main Material	Polyester 600D
Capacity	68 L
Approximate Dimensions	60 x 40 x 30 cm
Approximate Weight	2.5 kg
Color	Black
Compatible Vehicle	ATV, UTV, Can-Am (with rear luggage rack)
Intended Use	Storage of equipment and cargo
Package Contents	1 storage trunk, 4 divider plates A, 4 B, 2 C, 2 D, 1 manual
Key Features	Removable divider plates, tie-down straps
Assembly	Assembly required, follow the steps in the manual
Safety Precautions	Read the manual, wear gloves, do not let children use, secure cargo
Maintenance and Cleaning	Clean with a damp cloth, avoid abrasive products
Warranty	Electronic warranty certificate, technical support via www.vevor.com/support
Technical Support	www.vevor.com/support
Manufacturer	Shanghaiuxinmuyeyouxianggsi
Importers	SIHAO PTY LTD (Australia), Sanven Technology Ltd (United States), YH CONSULTING LIMITED (Europe)
Repairability	Separator plates available as replacement
Included Accessories	Tie-down straps, divider plates

Frequently Asked Questions - NMDS7 Vevor

How to assemble the Vevor NMDS7 storage trunk?

After unpacking, take out the side bag and open the lid. Install the inner support plates on both sides to keep the bag upright. Then, cover the top of the bag and attach the tie-down straps at the bottom. Refer to the manual for more details.

What vehicles are compatible with this trunk?

The NMDS7 trunk is designed for ATVs, UTVs, and Can-Am vehicles with a rear luggage rack. Check the compatibility of mounting brackets with your vehicle.

What is the maximum load capacity?

The volume capacity is 68 liters. The recommended maximum weight is not specified, but we advise not exceeding 10 kg to avoid damaging the trunk or vehicle.

Is this trunk waterproof?

The 600D polyester material offers good water resistance, but the trunk is not waterproof. In case of rain, protect your belongings with an additional cover.

How to clean and maintain this trunk?

Clean the trunk with a damp cloth and mild soap. Avoid abrasive products or solvents. Allow to air dry before storing.

Can I use this trunk without the divider plates?

Yes, the divider plates are removable. You can remove them to increase storage space or configure them as needed.

How to secure the trunk to the luggage rack?

Use the provided tie-down straps. Pass the straps under the luggage rack and tighten them firmly. Make sure the trunk is stable before riding.

Is this product under warranty?

Yes, Vevor offers an electronic warranty certificate. Register your product at www.vevor.com/support to benefit from technical support and warranty.

What to do if a part is missing?

Contact customer service via the website www.vevor.com/support. Provide your order number and product reference (NMDS7) for a quick replacement.

Is it possible to replace the straps?

Yes, the straps are replaceable. You can order replacement straps from Vevor or use universal straps of the same size.

USER MANUAL NMDS7 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

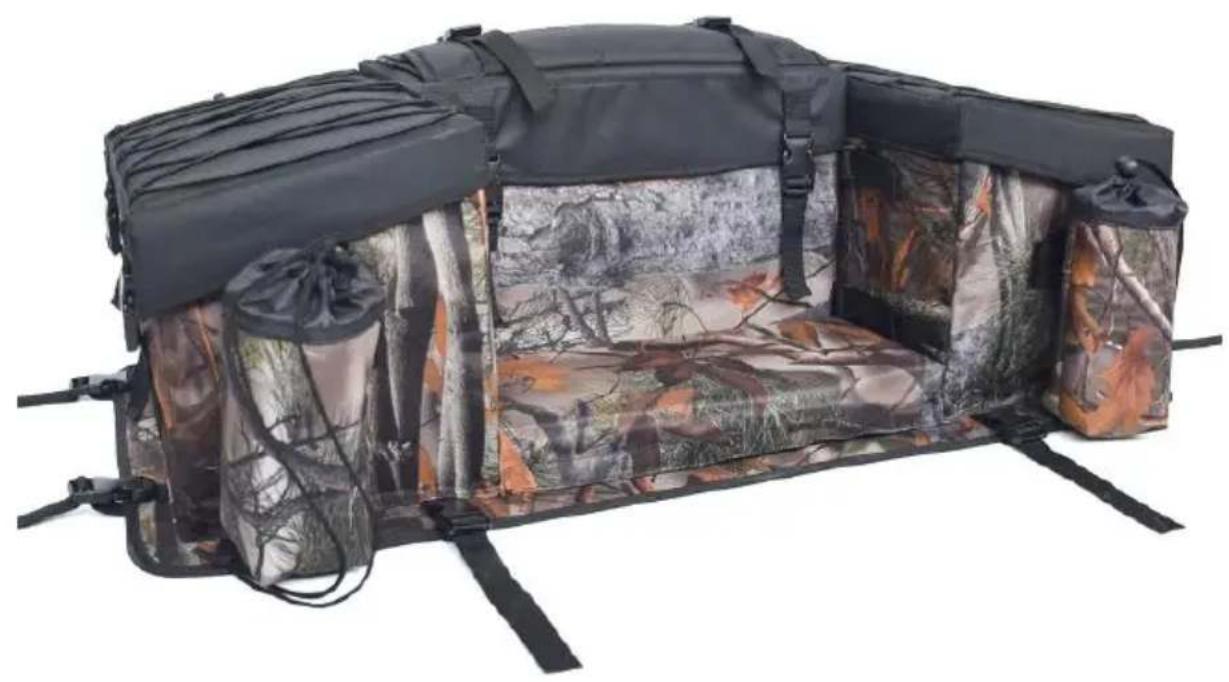

ATV REAR STORAGE BOX

MODEL:NMDS7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:NMDS7

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operation or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear work gloves during assembly.
3. Avoid children using the product. And this product is not a toy. Do not a children to play.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. Do not assemble when tired or when under the influence of alcohol, drug medication.
7. Product capabilities apply to properly and completely assembled product only
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's
9. Block any cargo stowed in the quad seat(moving loads can adversely affe vehicle handling).

SAVE THESE INSTRUCTIONS

SPECIFICATION

Model	NMDS7
Material	600D
Capacity	68L
Color	Black
Suitable vehicle	ATV/UTV/Can-Am (with a rear rack)

PACKAGE LIST

No.	Name	Picture	QTY
1	ATV Rear Storage Box		1
2	Partition plate (A)		4
3	Partition plate (B)		4
4	Partition plate (C)		2
5	Partition plate (D)		2
6	Manual		1

INSTALLATION

The style and dimensions of ATV mounts vary by manufacturer a vehicle size. Determine the mounting locations that best match yo ATV.

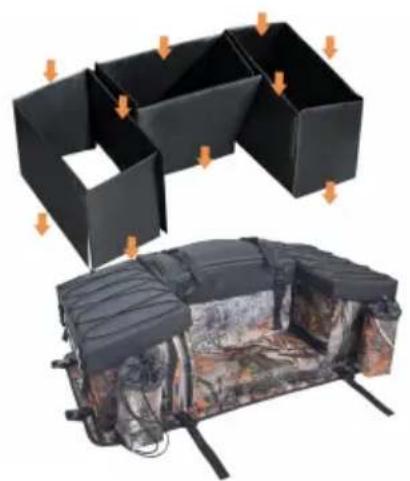

STEP 1: Assembled support plate.

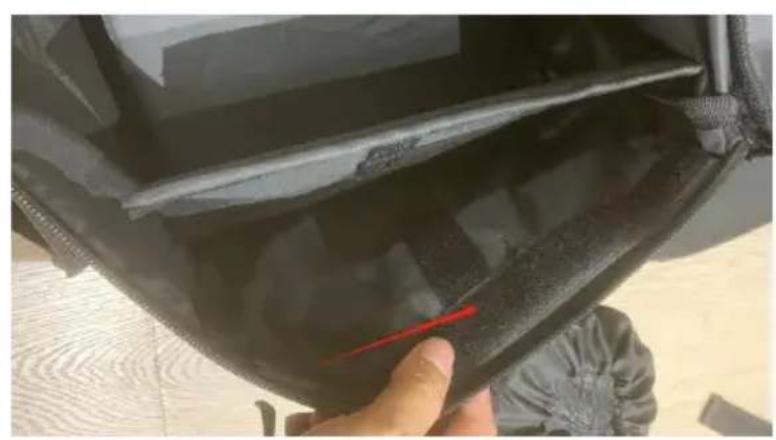

After unpacking, take out the side bag, open the lid, install the inner si plate to stand up to both sides,

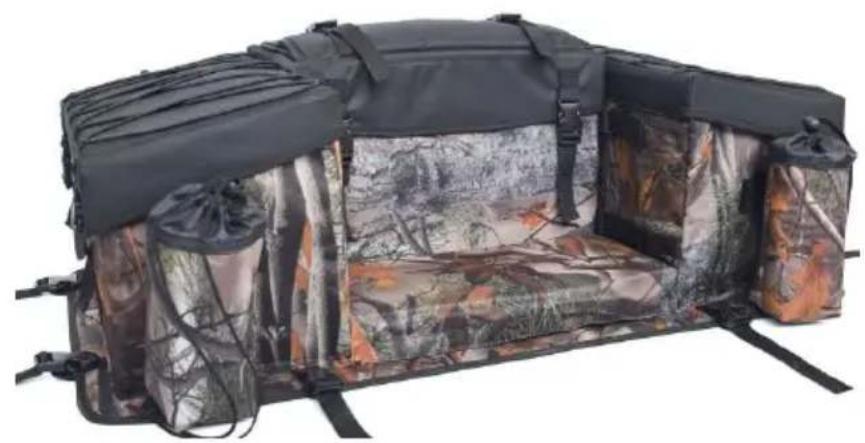

STEP 2:Cover the top of the bag.

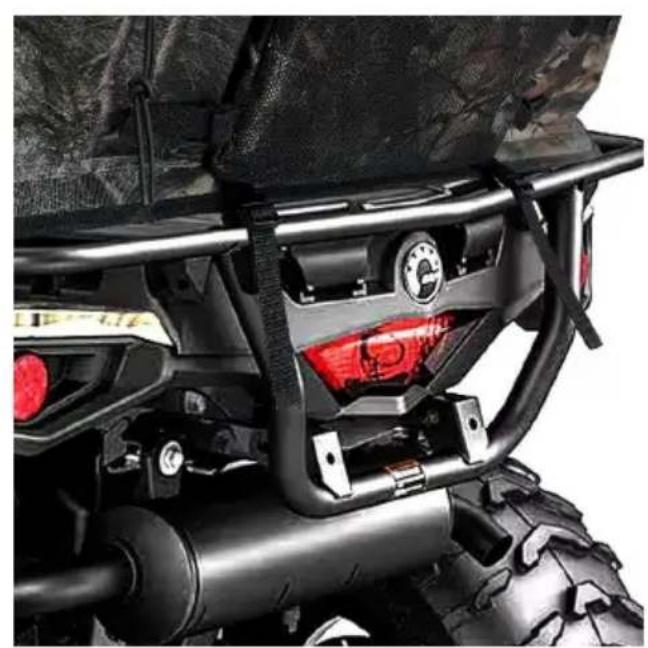

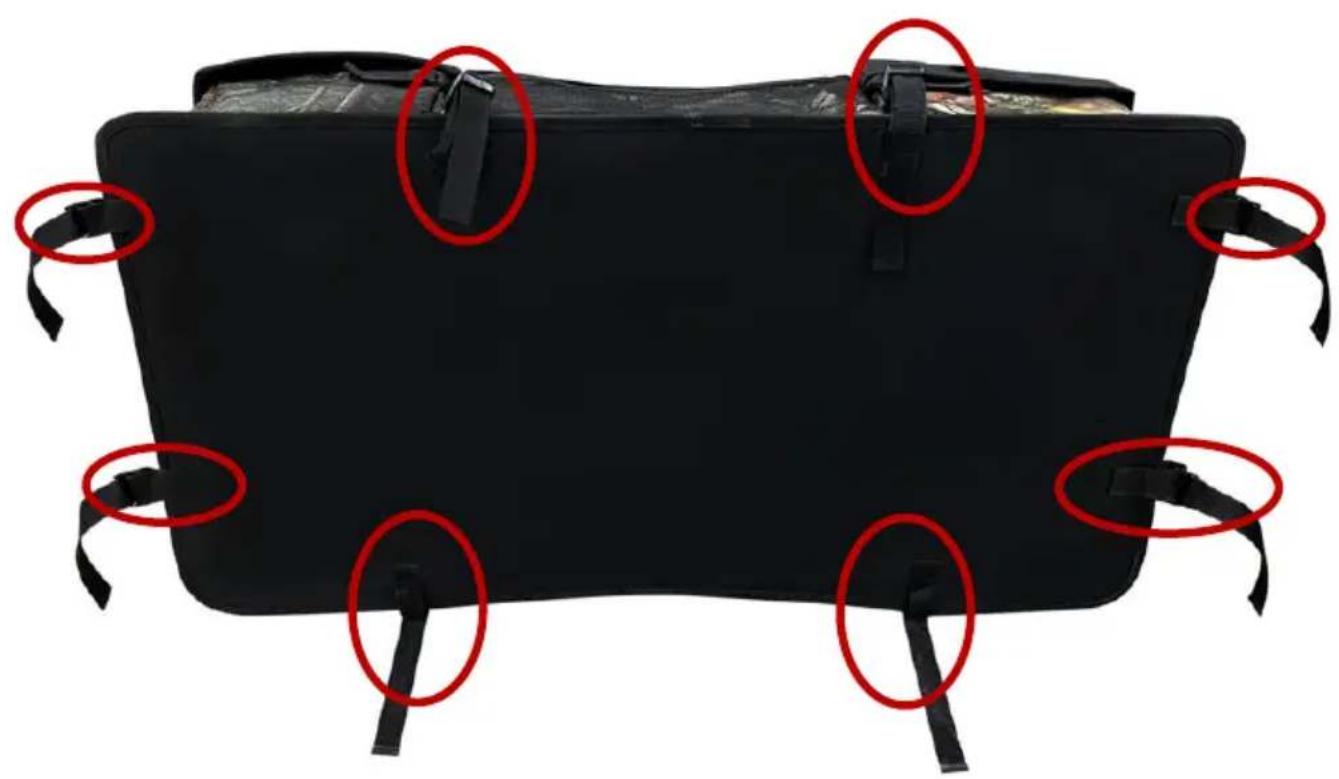

STEP 3: Fasten the straps and secure the ATV Rear Storage Box to support. The bag has fixed straps at the bottom, please install all the with the buckle.

Congratulations, you're here to enjoy your new ATV Rear Storage Box.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
