SHOWER NICHE

MODEL:

BA-306010-MB/BA2-306010-BR/BA-303010-MB/BAL-306010-MB/BTF-306010-MB

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:BA-306010-MB/BA2-306010-BR/BA-303010-MB/BAL-306010-MB/BTF-306010-MB

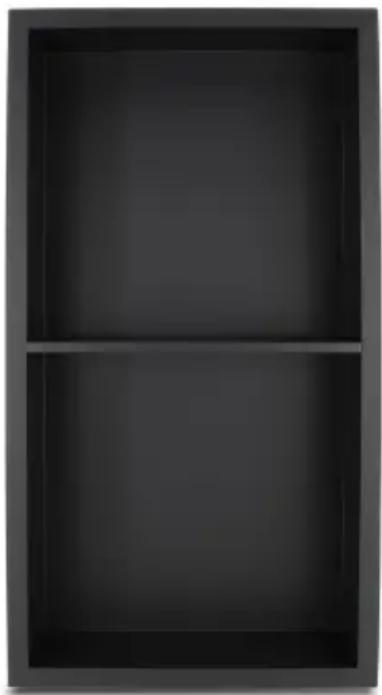

Empty dark gray rectangular bookshelf with two horizontal bars at the bottom (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap

separate all parts in a clean work area.

SAVE THIS MANUAL

The following installation details are applicable for existing wallbefore tiling , do not cover every possible situation Always conswith licenced professional during preparation and installation.

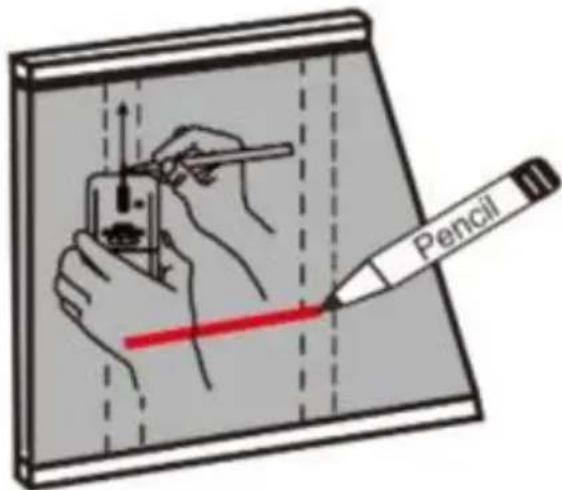

1. Locate and mark the center lines of adjacent framing studs using finder or by tapping the wall . Draw level line between the two wall your desired height of niche.

Pencil

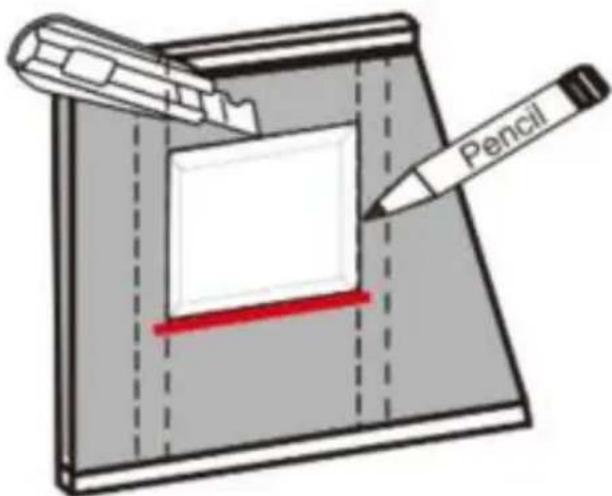

1. Trace the cut line with pencil, above the center line , cut out a car wall board along the traced line . Be sure the top and bottom lines level.

Pencil

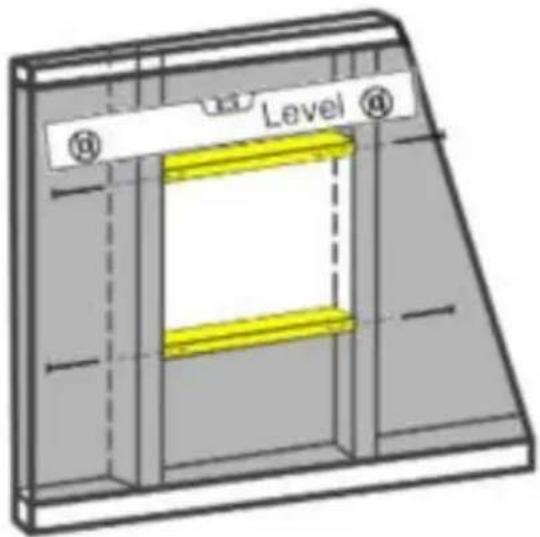

1. Level and fasten the surrounding framing to adjacent vertical studs make the dimension matches the niche flange.

Level

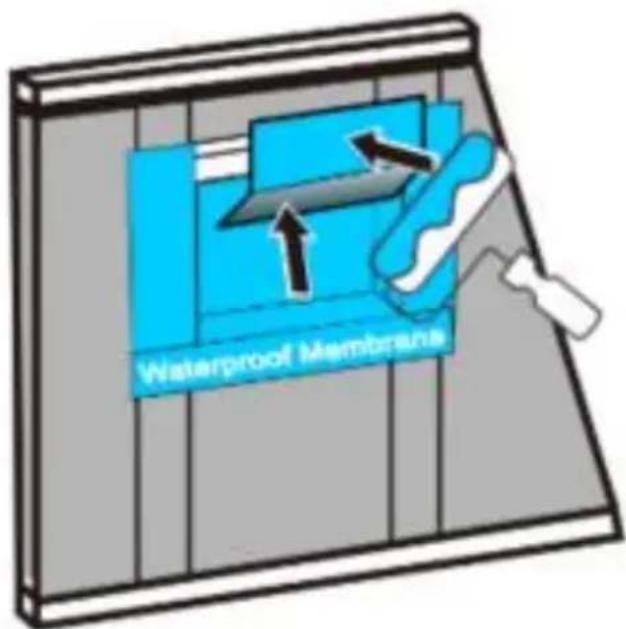

1. Glue waterproofing membrane inside to seal the whole cave and 6-inch to four sides of surrounding wall. Create watertight seal cave very important.

Waterproof Membranes

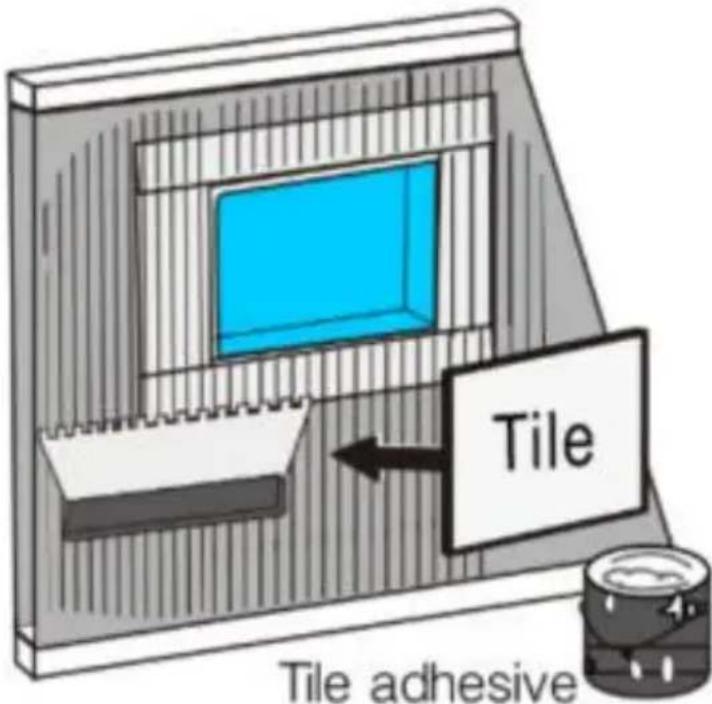

1. Apply your setting material and set your tile, marble or stone dire shower wall. It is best for tile to be symmetric around the cave. The can end right on the niche for a very clean look.

Tile Tile adhesive

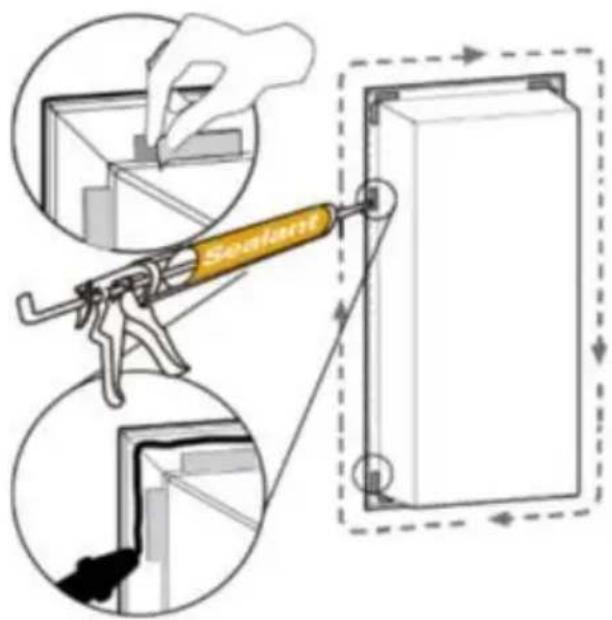

1. Remove the protective film of the tape, apply a uninterrupted bead silicon sealant from the inside corner of the niche to the edge. Ensur sealant applied thickness.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or force.

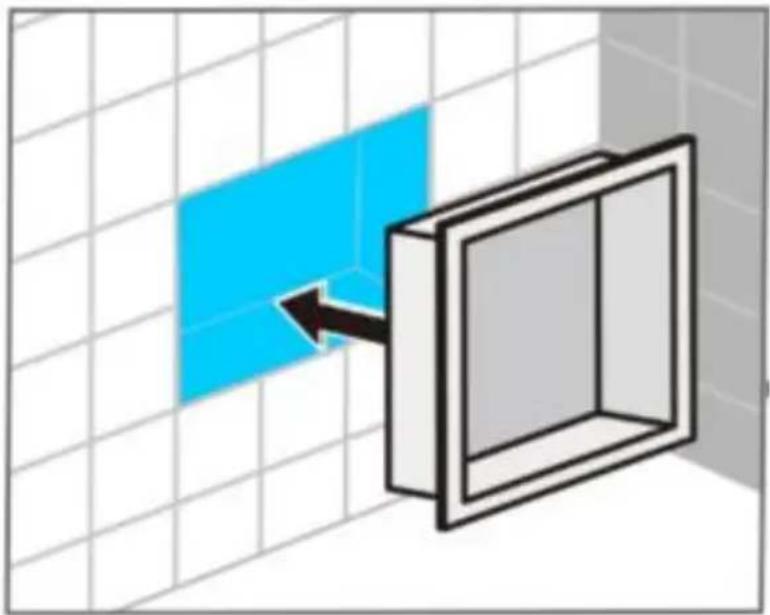

1. Insert the niche fixture into the cave . Press the flange tightly and ensure the niche plumb and level . Wipe off the excess sealant along perimeter edges.

8.

3D diagram of a window with a blue panel and arrow pointing to it, set against a grid background (no text or symbols)

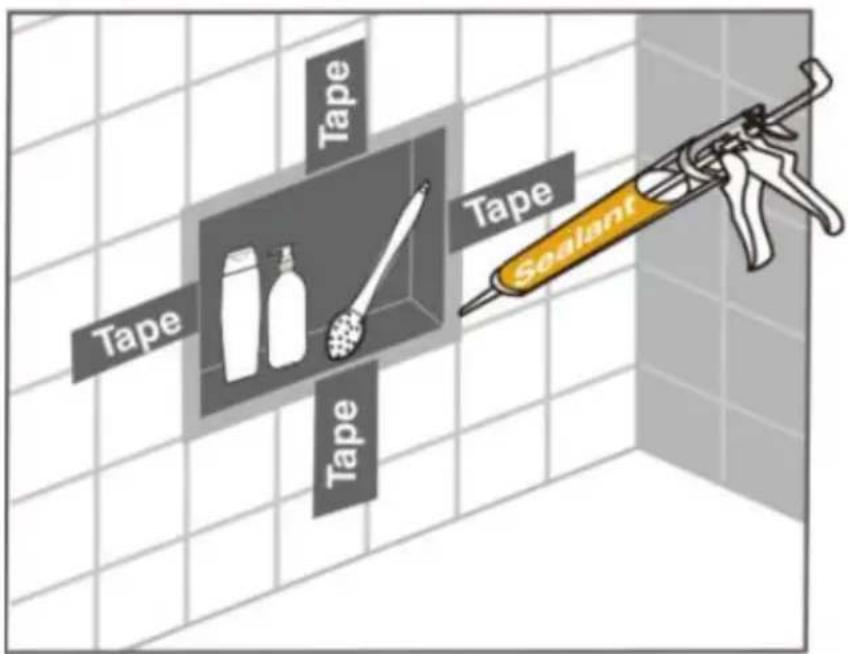

1. Tape the flanges with wall to hold the niche in place until the secured.

Tape Tape Tape Tape Sealant

Model	BA-306010-MB	BA2-306010-BR	BA-303010-MB	BAL-306010-MB	BTF-306010-MB
Product Size (inch)	4*13*25	4*13*25	4*13*13	4*13*25	4*13*25

The BAL-306010-MB is equipped with LED light strips, and the installation of light strips is as follows:

1. Use the wiring terminal shown in Figure A;

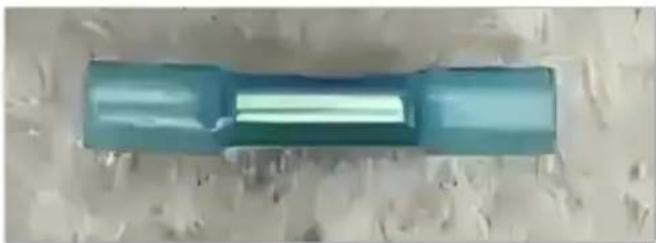

Top-down view of a blue cylindrical object with a horizontal bar, placed on a textured surface (no visible text or symbols)

A

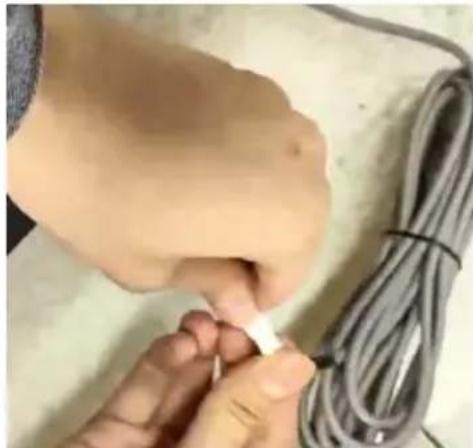

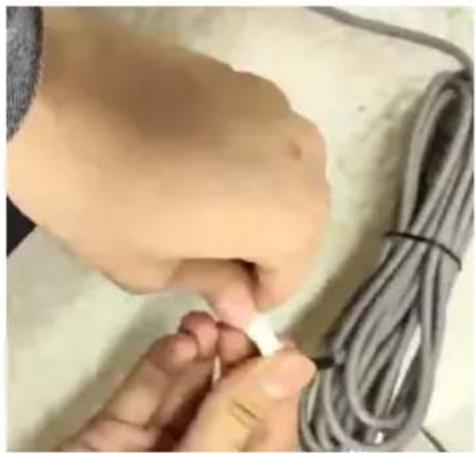

1. Pass the two ends of the power cord through the terminal block and set with a tool;

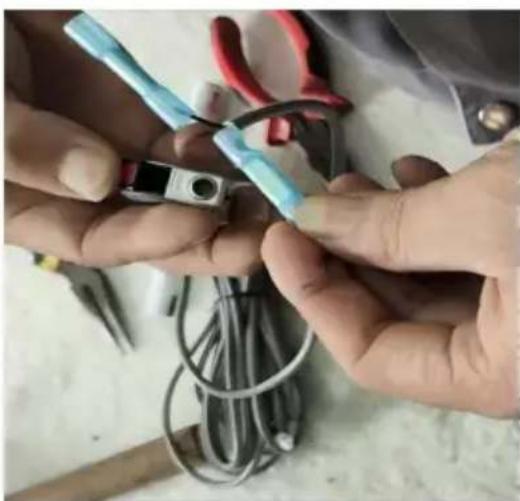

Close-up of hands using a pair of metal tools to cut a blue plastic clip, with coiled wires and a red-handled tool in the background (no visible text or symbols)

B

1. Connect the white wiring terminals and hear a "click" sound to indicate that they are installed properly, as shown in Figures C and D.

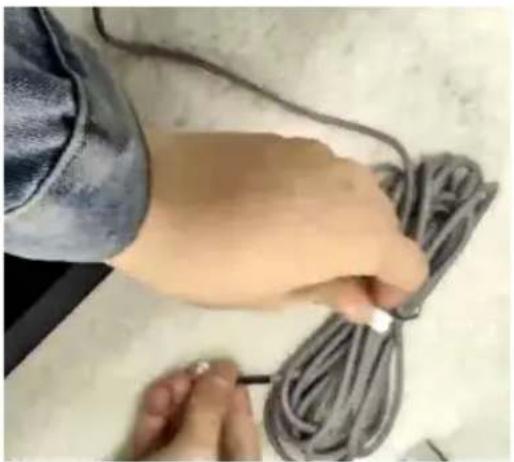

Close-up of hands holding a bundle of gray cables on a white surface (no text or symbols visible)

C

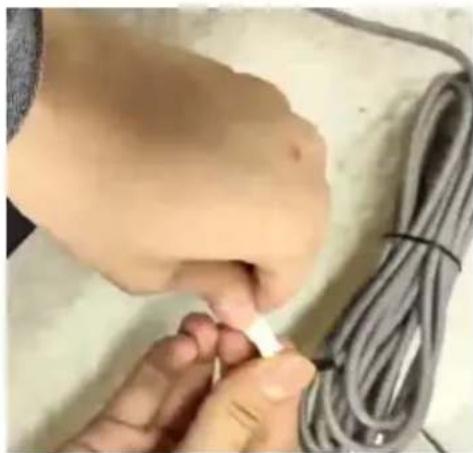

Close-up of hands holding a small white object next to a coiled gray cable (no text or symbols visible)

D
