USER MANUAL SS-650QR Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SAFE BOX

USER MANUAL

MODEL:SS-650QR

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAFE BOX

MODEL:SS-650QR

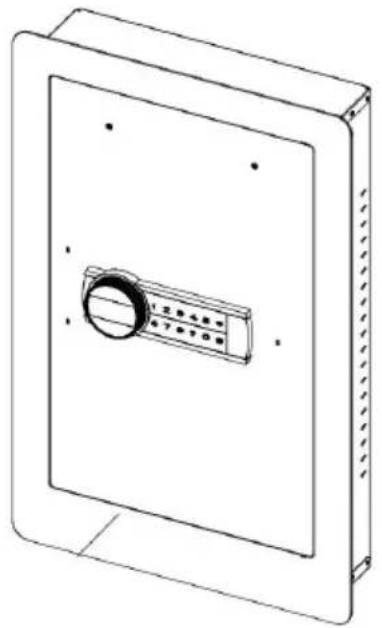

Technical line drawing of a rectangular electronic device with a circular button and mounting holes (no text or symbols)

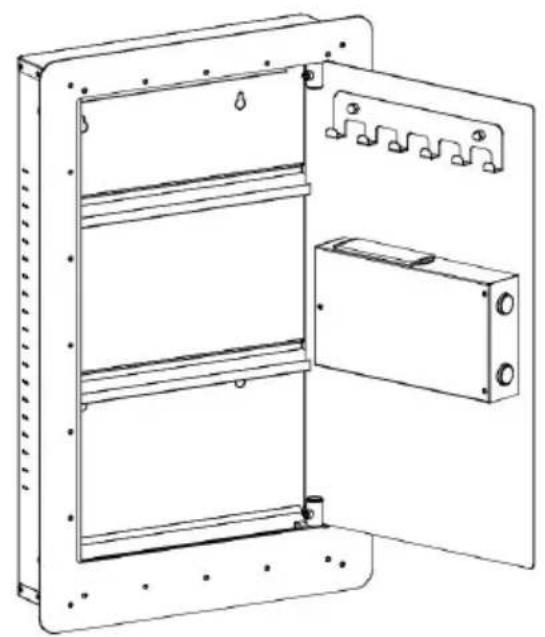

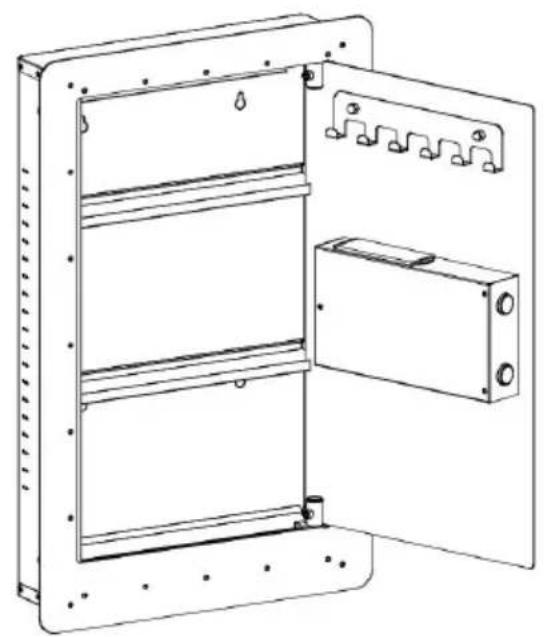

Technical line drawing of an open electrical enclosure with internal compartments and mounting holes (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
FC	This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessor marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

INSTRUCTIONS

Thank you very much for choosing this safe box. Please read all of instructions before using it. The information will help you achieve the b possible results.

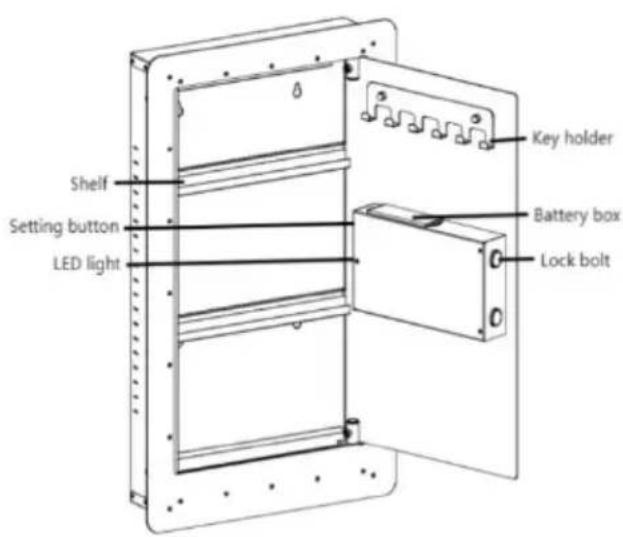

Key holder Shelf Setting button LED light Battery box Lock bolt

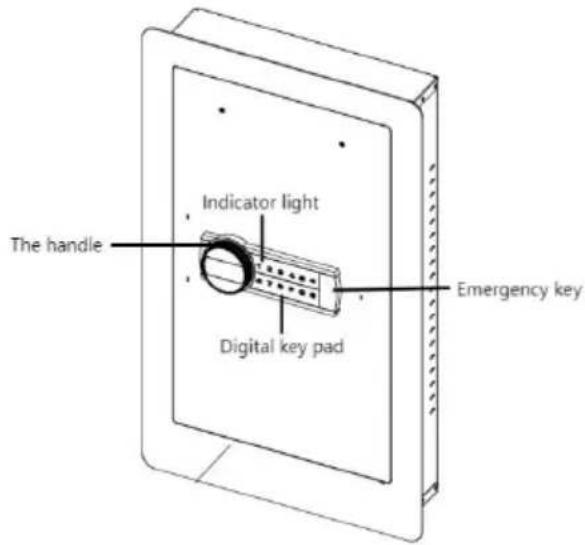

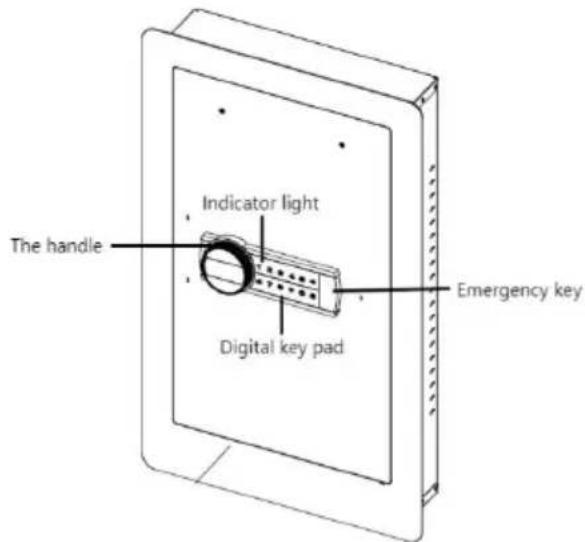

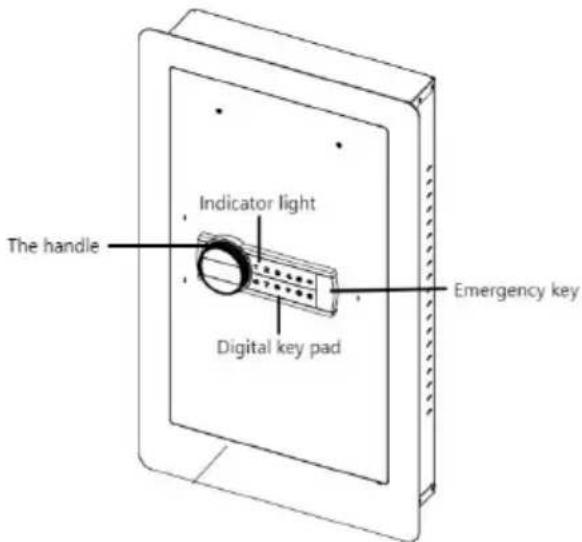

The handle Indicator light Digital key pad Emergency key

TECHNICAL PARAMETERS

Model	SS-650QR
Working Voltage Range	4.2-6.8Vdc
Product Size	650*420*100 mm
Working Power	4 x AA(1.5V) batteries

PARTS LIST

Built-in Storage Key*2
Expansion Bolt*4
External Power Box*1
Diaphragm Buckle*4

OPENING YOUR SAFE FOR THE FIRST TIME

Open the door for the first time, use the configured emergency key to the door. The operation steps are as follows:

1. Slide down to open the emergency lock cover.	4. Install batteries into battery box.
2. Insert the emergency key in the keyhole and rotate it 65° counterclockwise.	5.Make sure the battery matches ‘+’ and ‘-’. (not including 4 alkalin 1.5V batteries)
3.Turn the handle clockwise to open the door.	6.Weak power, emergency method: Emergency key

DESCRIPTION:

1. This product has 2 sets of passwords. Factory original passw "123456", factory management you need set it up your self.
2. Yellow light: normal indicator, or wrong password indicator.
3. Green light: unlock and light up for 6-7 seconds.
4. Red light: low battery indicator.

PERSONAL PASSWORD SETTING

1. In the state of opening the door, press internal setting button of the buzzer will sound once, and the yellow indicator light will be on.
2. Enter any new 3-12 digits password within 3 seconds. Press "#" to cc If the buzzer sounds once and the yellow light goes off, the password h been set successfully.

Notice: After your password is set, please test the new password to make it is valid. If you enter wrong password, the yellow light will on and 'beesound three times, just re-enter the correct password.

MANAGE PASSWORD SETTINGS

1. In the state of opening the door, press number key "0" twice, then p internal setting button. The buzzer sounds once and the yellow indicator I on.
2. Enter any new 3-12 digits password within 3 seconds. Press "#" to cc the buzzer will sound once and the yellow indicator light will off which s the management password has been set successfully.

Notice: Do not set personal password same with management code.

THREE WAYS TO OPEN THE SAFE

1. Emergency Key + Knob: Under the following situations like the first t using, forget password or battery is out of power.
2. Password + Knob: Daily unlock. Enter your personal password or management password, press "#" or "*", and then turn the knob clockwise
3. Password + Knob + External Power Box: The internal battery is dead key is damaged or lost. Insert the external power box, enter personal password or management password, press "#", then turn the knob anticlockwise to open the door.

HOW TO REMOVE THE SHELF

Gently push 4 bendable iron strips under the shelf, when strips are show vertical, you can easily take out the shelf.

LOW BATTERY ALERT

1. If battery voltage is below 4.8V, the red light will on and warning.
2. If the battery voltage is below 3.8V, user operation is prohibited. 6 be will indicate that the battery is low and needs to be replaced.

VIGILANCE SETTING AND DEACTIVATION

1. Alarm on setting: In the standby state, press "*" key, buzzer will sound and the yellow indicator light on. Then it active vibrating alarm state.
2. Conditions for the automatic alarm to sound: ①The safe will alarm wh hit by a certain external force or vibration; ②Enter wrong password three consecutive times.
3. The duration of the alarm sound: automatically stop after 30 seconds.
4. Alarm cancellation setting: ①Enter correct password, the green indicator light on. It immediately stop the alarm sound and turn off the vibration a ②Open the door with the key and take out battery.

HOW TO WALL OR FLOOR MOUNTING

* Drill the appropriate size holes for the anchors you are using
* Mount the safe by running screws from inside of the safe and securing anchors
* Use proper drill tools depending on the type of floor you are mounting safe (wood, tile, or concrete)

SAFETY AND COMPLIANCE

1. Reduce the risk of theft, the safe must be fixed on the wall or floor safety.
2. Please take good care of the emergency key and store it in a secret away from the safe. Do not put the emergency key into the safe, whether emergency key will not be used to open the safe when the battery runs
3. Do not place the product on an unsafe overhead, so as to avoid falli damaging the product or injuring people.
4. Do not spill liquid on the control panel, or it may cause electric shock internal electronic components and prevent them from working properly.

WARMLY REMINDER

1. Because it is purely handmade, inside solder joint or rust stains are r phenomenon.
2. Please keep emergency keys, secret cabinet keys and external power supply box safe.
3. The emergency key cannot open the safe of other brands or the same which is unique.
   (Please do not try, to avoid damage to the safe and the unmatched key be taken out)
4. The protective film on the knob cover can be torn off.
5. Before closing the door, do not remove the emergency key or adjust direction, which can avoid the lock bolt from jamming, and knob operation be more smooth.
6. The door won't shut: Make sure there are no obstructions. If the door are extended, re-enter the user code and turn the knob clockwise to retra them.

AFTER-SALES SERVICE

1. If the product you received has other problems such as usage problem please feel free to contact us, and reply to online customer service within hours to serve you.
2. Our products support 90 days for no reason to return or exchange.
3. I wish you a happy online shopping.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
