Product Type	Mechanic's Creeper
Brand	Vevor
Model	XF8101
Maximum Load Capacity	136 kg (300 lb)
Length	101.6 cm (40 inches)
Frame Material	Steel
Casters	6 swivel casters with brake
Height Adjustment	2 speeds with adjustment lever
Intended Use	Under-vehicle work
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online
Recommended Storage	Dry place to avoid rust
Included Accessories	Hex key, tube nuts, spring washers
Safety	Inspect before each use; do not exceed maximum load
Assembly	Instructions included; assembly required

Frequently Asked Questions - XF8101 Vevor

What is the maximum load capacity of the Vevor XF8101?

The maximum load capacity is 136 kg (300 lb). Never exceed this limit.

How to assemble the creeper casters?

Place each caster into the tube slot, then tighten the tube nut using the provided hex key. Lock all six casters one by one.

How to adjust the height of the creeper?

Move the adjustment lever to the desired position. Two height speeds are available. Make sure the locking pin engages into the gear hole.

Is the creeper suitable for heavy-duty use?

Yes, but it is important to respect the maximum load and check the condition of parts before each use. Sudden dynamic load can damage the product.

How to maintain the Vevor XF8101?

Store it in a dry place to avoid rust. Regularly inspect the casters and fasteners. Clean it with a damp cloth if necessary.

What accessories are included in the package?

The package contains: a frame with padding, 6 casters, 6 tube nuts, 2 spring washers, and a hex key.

Can I use this creeper on uneven ground?

It is recommended to use the creeper on a flat and stable surface. Uneven ground may compromise stability and safety.

How to get technical support for my Vevor XF8101?

Visit www.vevor.com/support for technical support and the electronic warranty certificate.

Is the creeper foldable or disassemblable for storage?

The creeper is not foldable, but it can be partially disassembled. Follow the assembly instructions in reverse for storage.

What safety precautions should I take when using?

Keep children and pets away. Inspect the creeper before each use. Do not use if parts are loose or damaged. Respect the maximum load and avoid sudden load changes.

USER MANUAL XF8101 Vevor

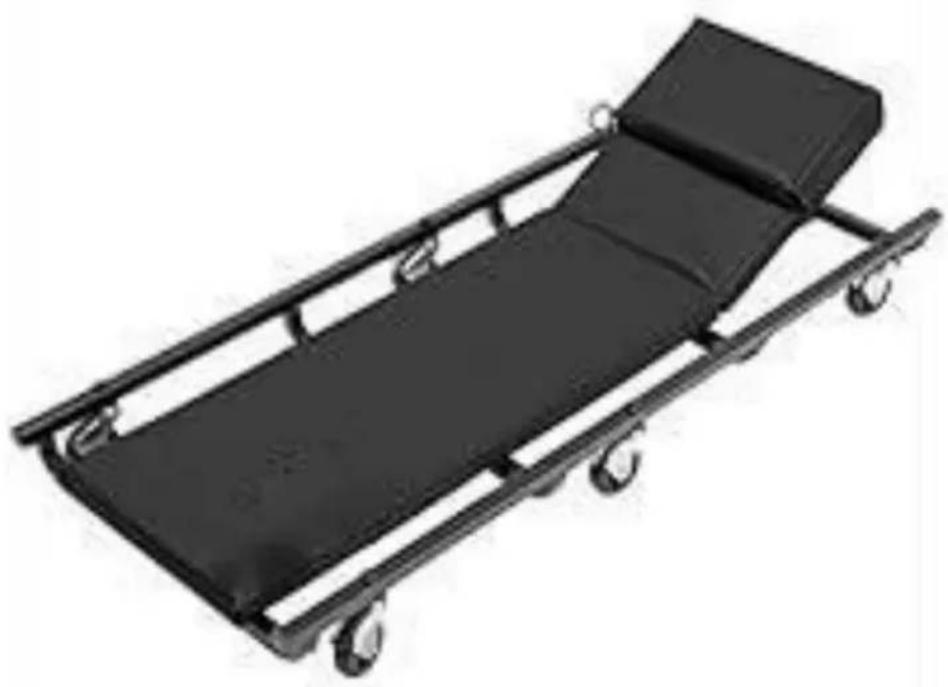

Non-foldable Garage Creeper

Model: XF8101

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only reflect an estimate of savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean that all categories of tools offered will result in saving half compared to the top major brands. We kindly remind you to verify carefully when placing an order with us.

Model: XF8101

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS ASSEMBLY PRECAUTIONS

• Assemble only according to these instructions. Improper assembly can create hazards.
• Keep children, pets, and bystanders out of the area during assembly. Distractions can cause you to lose control of tools, injuring yourself or others.
• Weight capacity and other product capabilities apply to properly and completely assembled product only. Do not use if incompletely or improperly assembled.

USE PRECAUTIONS

• This product is not a toy. Do not allow children to play with or near this product. Store out of reach of children.
• Use the Creeper and accessories as intended and in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the Rolling creeper for operations different from those intended could result in a hazardous situation.
• Inspect before every use; do not use if parts are loose or damaged.
• Do not exceed weight capacity of 300 lbs. (136 kg).
• NOTE: Be aware of dynamic loading! Sudden shifts in the load may briefly create excess load, which may result in product failure.
• Store idle equipment. When not in use, this product must be stored in a location to inhibit rust.
• The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product but must be supplied by the operator.

PARAMETER LIST

Model	XF8101
Maximum load bearing	300lbs
Length	40inch

PARTS LIST

ITEM	DESCRIPTION	QTY	ITEM	DESCRIPTION	QTY
1	Frame with Padding	1	4	Spring Washer	6
2	Casters	6	5	Hex Key	1
3	Tube Nuts	6

①

② ③ ④

INSTRUCTIONS

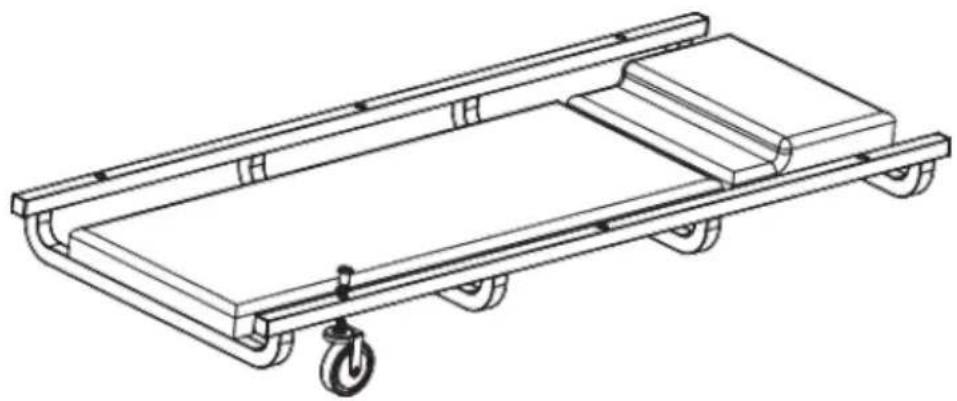

1. Put the casters into the pipe slot as shown, and then screw tube nuts into the socket with the hex key.

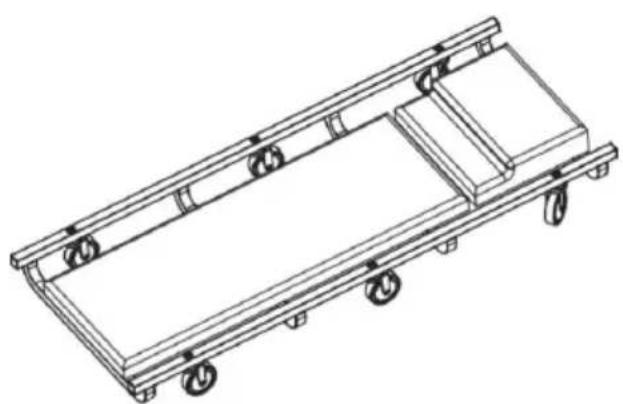

1. Lock the six casters in turn.

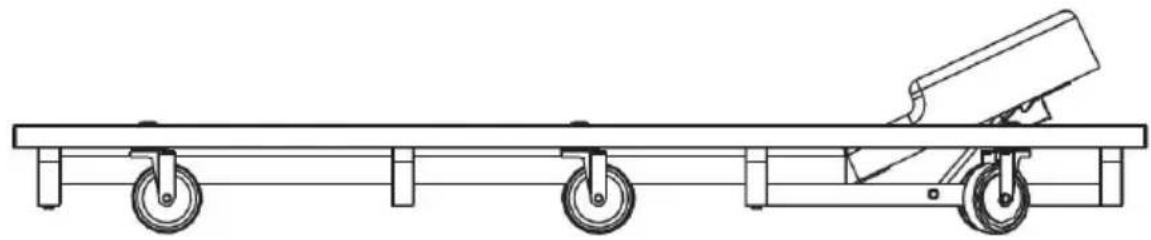

1. Put the creeper flat on the ground. You must pinch the unlock button to press the spring, and you can adjust the backrest. Note that when adjusting, the creeper must be in the horizontal position. When the locking pin falls into the gear iron hole, the adjustment is completed. Please be careful with your hands.

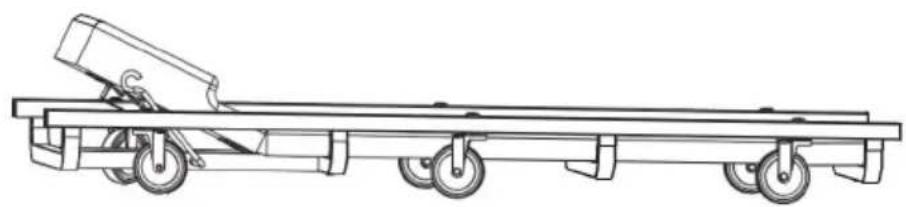

1. Move the adjusting lever to the position of the adjusting cover plate to adjust the height, and two gears can be adjusted.
