USER MANUAL XF8109 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

NON FOLDABLE GARAGE CREEPER

MODEL:XF8109

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

NON FOLDABLE GARAGE CREEPER

MODEL:XF8109

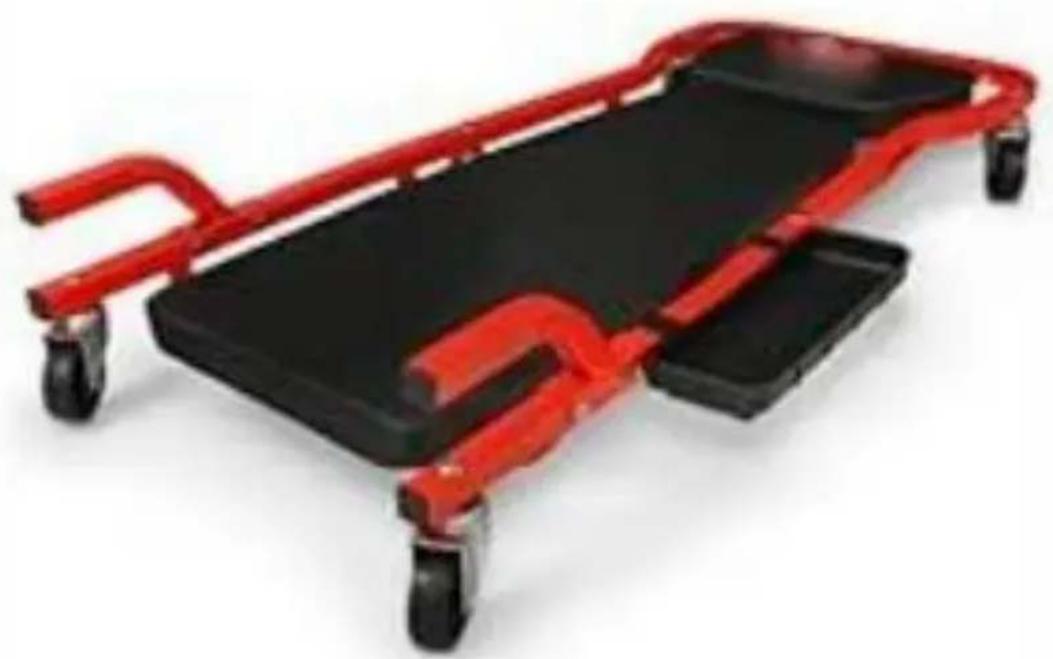

Red and black plastic cart with wheels, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS ASSEMBLY PRECAUTIONS

- Assemble only according to these instructions. Improper assembly can create hazards.

- Keep children, pets, and bystanders out of the area during assembly. Distractions can cause you to lose control of tools, in yourself or others.

- Weight capacity and other product capabilities apply to properly and completely assembled product only. Do not use if incomplete or improperly assembled.

USE PRECAUTIONS

- This product is not a toy. Do not allow children to play with or near this store out of reach of children.

- Use the Creeper and accessories as intended and in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the Rolling creeper for operations different from those inter could result in a hazardous situation.

- Inspect before every use; do not use if parts are loose or damaged.

- Do not exceed weight capacity of 300 lbs. (136kg).

- NOTE: Be aware of dynamic loading! Sudden shifts in the load may briefly create excess load, which may result in product failure.

- Store idle equipment. When not in use, this product must be stored in a location to inhibit rust.

- The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product but must be supplied by the operator.

PARAMETER LIST

Model	XF8109
Maximum load bearing	300lbs
Length	44inch

PAPTS LIST

ITEM	DESCRIPTION	QTY	picture
1	Body Frame	1
2	Caster Wheels	6
3	Support frame	2
4	M10 tube type nut	6	[2KAB]
5	M8 Screws	4
6	Removable plastic tray	1
7	14mm Wrench	1
8	L-shaped hexagon wrench(5mm)	2
9	L-shaped hexagon wrench (6mm)	1
10	Spring Washer	6
11	M8 tube type nut	4

INSTRUCTIONS

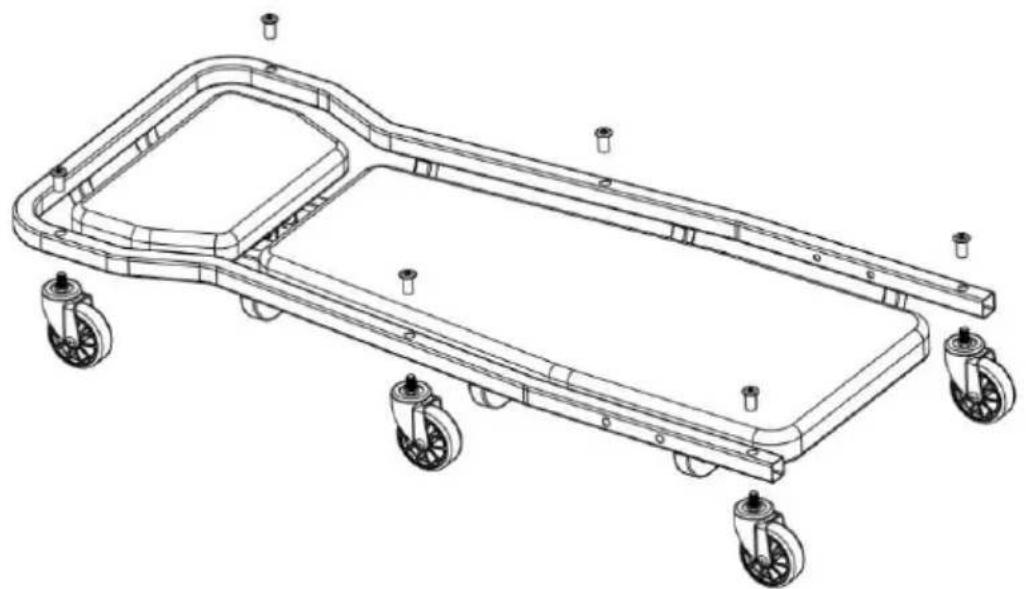

1. Assemble the 6pcs 3" caster one by one on the product fasten them with Tube type nuts, as shown in the figure.

Technical line drawing of a four-wheeled cart chassis (no text or symbols)

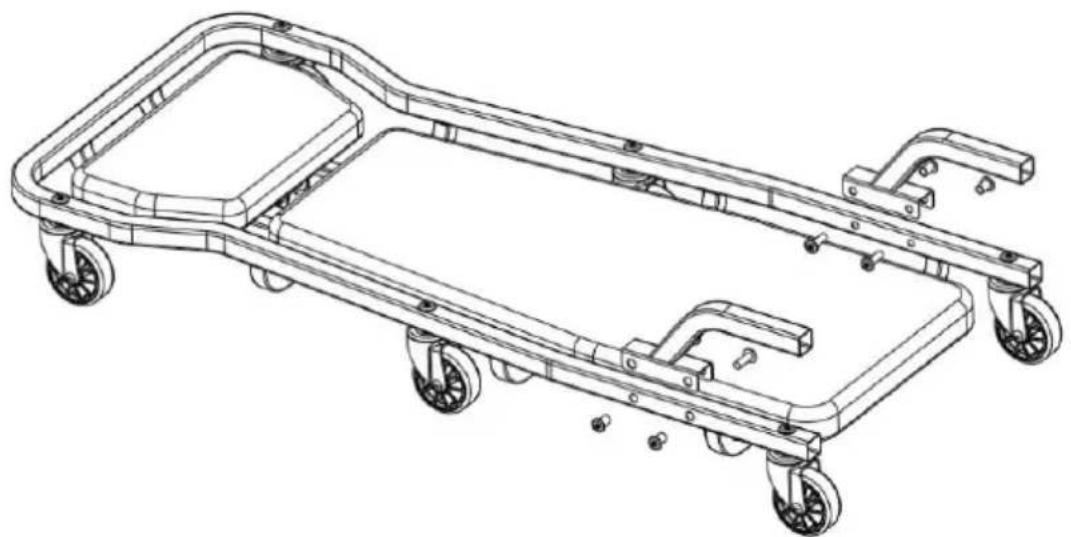

1. Install the support brackets at both ends with screws and nuts, as shown in the figure.

Technical line drawing of a two-wheeled vehicle chassis (no text or symbols)

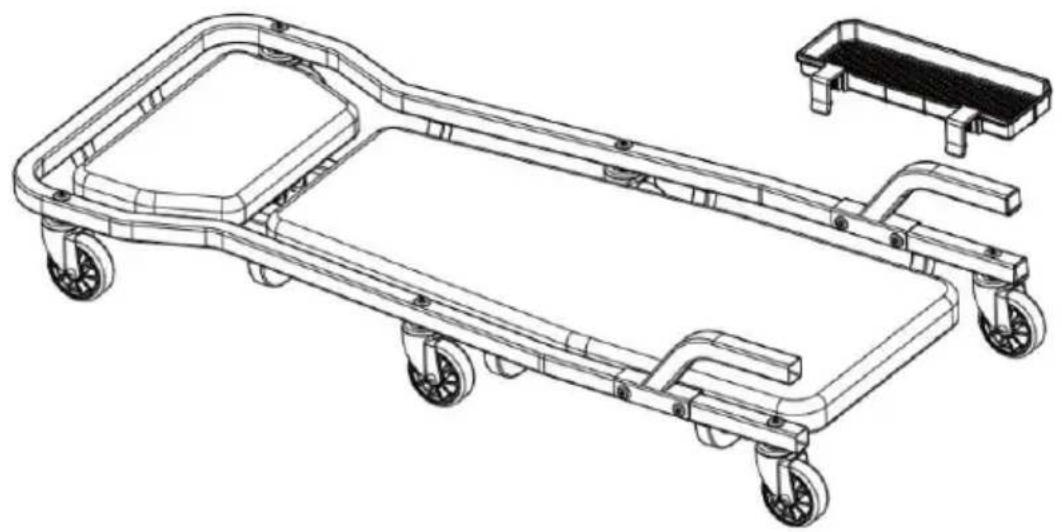

1. Place the plastic tray on the body frame, as shown in the figure.

Technical line drawing of a car chassis with wheels and a side panel (no text or symbols)
