USER MANUAL PM18 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

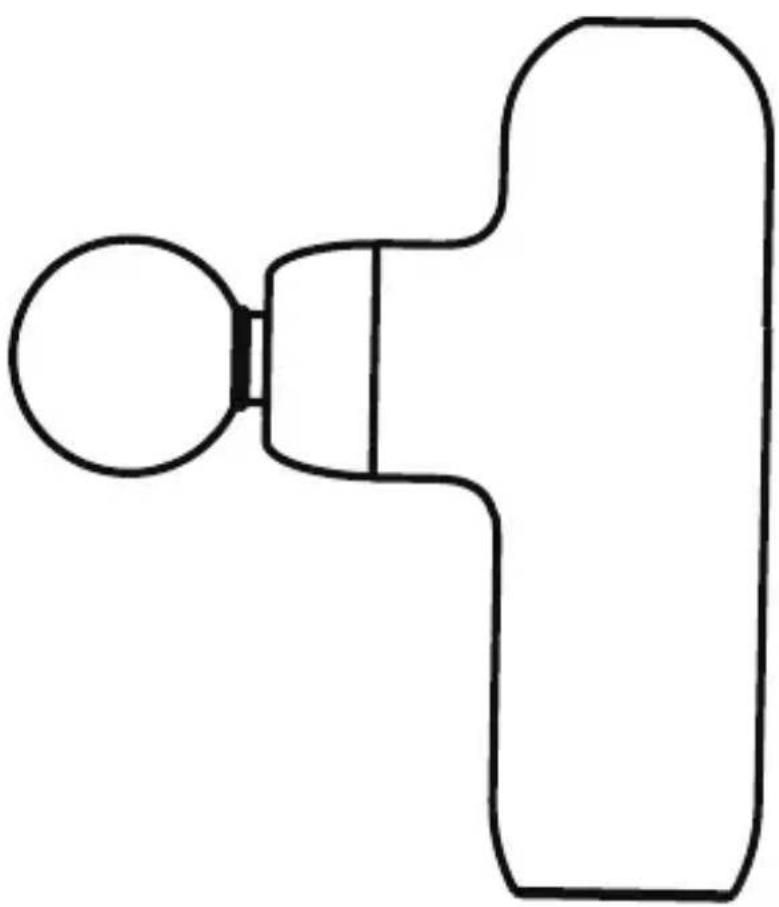

MASSAGE GUN

PM18

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

Pure electrical circuit lines without any symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feelfree to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Statement

Note

In order to reduce the broke of the device, electric shock, fire and injury, Please read the directions before using

1. Underaged children are not allowed to use this product. this product is not allowed to use when the muscle injury.
2. Do not use it under non-dry and non-clean skin and Press and move the skin for about 60 seconds.
3. Please do not use for the neck and less muscle coverage area and do not use only on soft tissues of the body where no pain or discomfort part.
4. Do not use in case of bruising, pain or discomfort.
5. Do not immerse the product in water.
6. Do not put the product in fire or nearby fire.
7. Do not drop this product intentionally.
8. Children under the age of 6 should use it under the supervision of parents
9. Do not disassemble the product in any way.
10. Do not put fingers, hair or other parts of the body near the shaft and back of themassage head, It will get caught

Prohibition sign showing a hand holding a device with a red circle and diagonal line

Do not touch this part of the product when the massage head is not installed

Prohibition sign with hand holding a device, enclosed in a red circle

Do not touch the device when install massager headinstall

Safety Instruction

1. Make sure massage head is not blocked by external force when device is power on. If it is blocked, it will pause for a while and try to restart
2. DO NOT contact the product with water or other liquid for the Pe rcussion Massage Device is not waterproof
3. DO NOT disassemble the product except marked detachable. It need send to after-sales or authorized service center to fix it if you accidentally disassemble it and cause abnormal work. The relevant costs are borne by user.
   .4. Prolonged continuous operation may cause the motor surface temperature to rise, please operate carefully.
4. DO NOT drop or strike the product. If the product is abnormal, contact After-sales support.

Usage

(1) Relaxation and recovery before and after physical training. (2) Rehabilitation training. (3) Wake up and activate muscles. (4) Relieve muscle pain and fascia adhesion. (5) Enhance joint flexibility. (6) Prevent muscle strain. (7) Accelerate recovery after fitness training. (8) Promote blood circulation and hydration between skin, fascia and muscle.

Contraindications

( )Do not use it for cancer patients. (2) It is forbidden to use the metal bone needle for internal fixation.(3) Massage the same part for no more than 45 minutes. (4) Do not use it for patients with osteoporosis.(5) Do not use it for patients with venous thrombosis and pu lisation. (6) Do not massage facial muscles.(7) Be careful not to use it near the abdomen for pregnant women. (8) Do not massage the cervical spine.

Use operation

1. Press and hold for 1.5 seconds to turn on the machine and enter the first gear. Each time you press the button, the gear will increase by one gear until you reach the fourth gear. When in gear 4, short press the button to enter standby mode (gear 0), and work in gear 4 to gear 0, and you need to press it again to restart Press the key to enter the first gear, and use it in this way.
   2 In any gear, long press to enter the shutdown state.
2. The last operation in operation will automatically shut down without operation for 15 minutes.

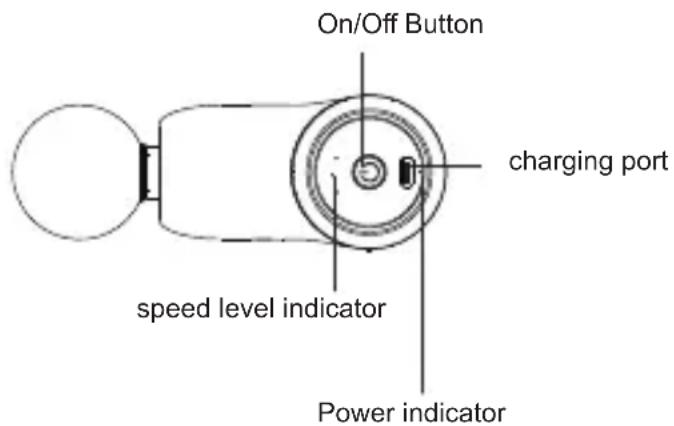

On/Off Button charging port speed level indicator Power indicator

Four replaceable massage heads

ball head

Suitable for massaging arms, waist and back Large muscle groups such as buttocks and thighs

U-shaped head

Suitable for neck massage At the spine

Flat head

Suitable for abdominal muscles And muscle groups in sensitive areas

Thumb head

Suitable for impacting deep tissue Such as meridians, joints, palms, soles

Technical Data

Product Model: PM-18 Rat ed power: 40W±10% Rat ed voltage: 7.4v Battery life: ≈2-3H Battery capacity: 2500mAh Product charging: TYPE-C

Simple line drawing of a mechanical lever or handle (no text or symbols)

PM-18 Fascia Gun

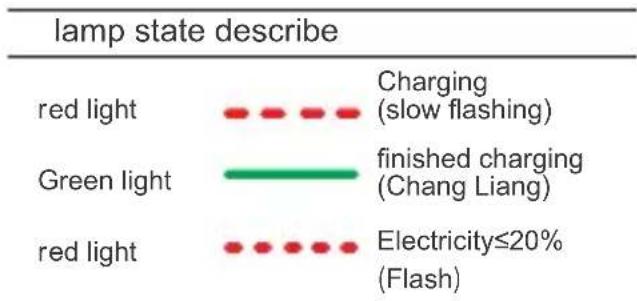

Indicator light

Battery indicator light

Gear Indicator

lamp state describe
Blue light		First gear
Blue light		Second gear
Blue light		Third gear
Blue light		Fourth gear
(The running light flashes)

Installation method

Power off the product, aim at the groove of the massage nozzle (red part in picture 1) and slowly insert it.

PUSH

Simple line drawing of a bullet with segmented body (no text or symbols)

Figure 1. Correct installation direction Figure 2. Installation complete

Protection information

1. Products stored in clean, dry, ventilated indoor, should avoid contact with corrosive substances, should be away from fire and heat sources.
   2 products should be packed into boxes for transportation, in the process of transportation should prevent violent vibration, impact or extrusion, prevent the sun and rain, can use cars, trains, ships, aircraft and other means of transportation.

Common Problem

Unusual phenomenon	Reason	Handling method
can't turn on	battery is low	Please charge the product
Shut down during use	battery is low	Please charge the product
Weak massage
Can't charg e	Charger voltage and current error	Replace the charger required by the manual to charge
No response to charging	Charger or charging cable failure	Replace the charger or charging cable

In the process of using this product, if you feel that there is something abnormal or can not work normally, please read the instructions again and confirm the above points

Note: To prevent product charging failure, the 3-in-1 charging cable cannot be connected to a fast charging head for charging.

When disposing of this product, please ensure that it is disposed of in accordance with local regulations.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

BATTERY DISPOSAL

Li-lon

To minimize hazards to health and the environment at the end of this product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this product at a suitable collection facility where it will be sent in order to remove the batteries and for appropriate recycling. Please contact your local authorities for more details on recycling and safe disposal of these in your area.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product. Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: SHENZHEN BAICHANG TECHNOLOGY CO., LTD.

Address: 202, Building1, Sha'er Industrial Zone, HaoxiangRoad, Sha'er Community, Shajing Street, Bao'an District Shenzhen, GUANGDONG, 518101, CHINA

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
