USER MANUAL XSJ-24-N010 Vevor

Affordable. Reliable. Home Improvement.

SKID STEER ATTACHMENT

MODEL:XSJ-24-N010

MODEL: XSJ-24-N010

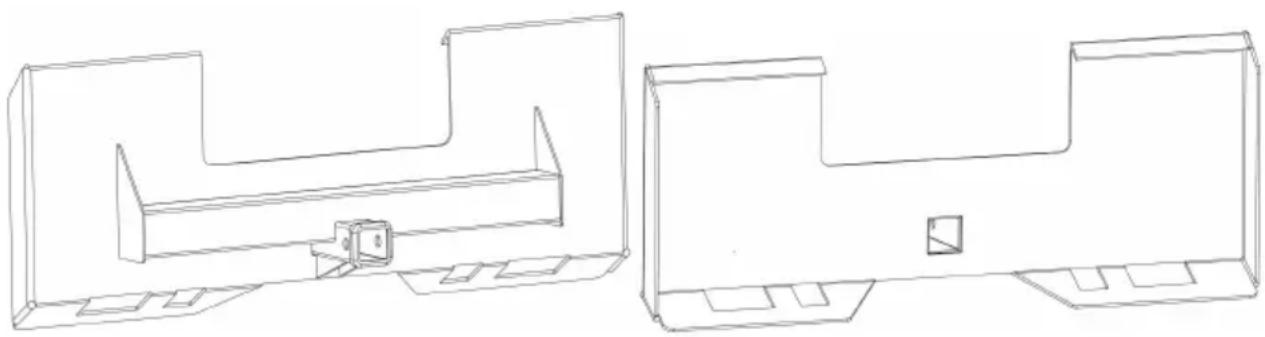

Technical line drawing of two 3D mechanical components with mounting holes and internal features (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

1. Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assembly.
3. Do not try to assemble the product when feeling tired or wr under the influence of alcohol, drugs or medication.
4. Separate and count all parts and hardware.
5. Two people are required for assembly.
6. Follow the intended uses only. Do not sit or stand on the a

SAVE THESE INSTRUCTIONS

TECHNICAL PARAMETERS

MODEL	Material	L (mm)	H (mm)	W (mm)	Thickness (mm)
XSJ-24-N010	50#	1160	458	235	6

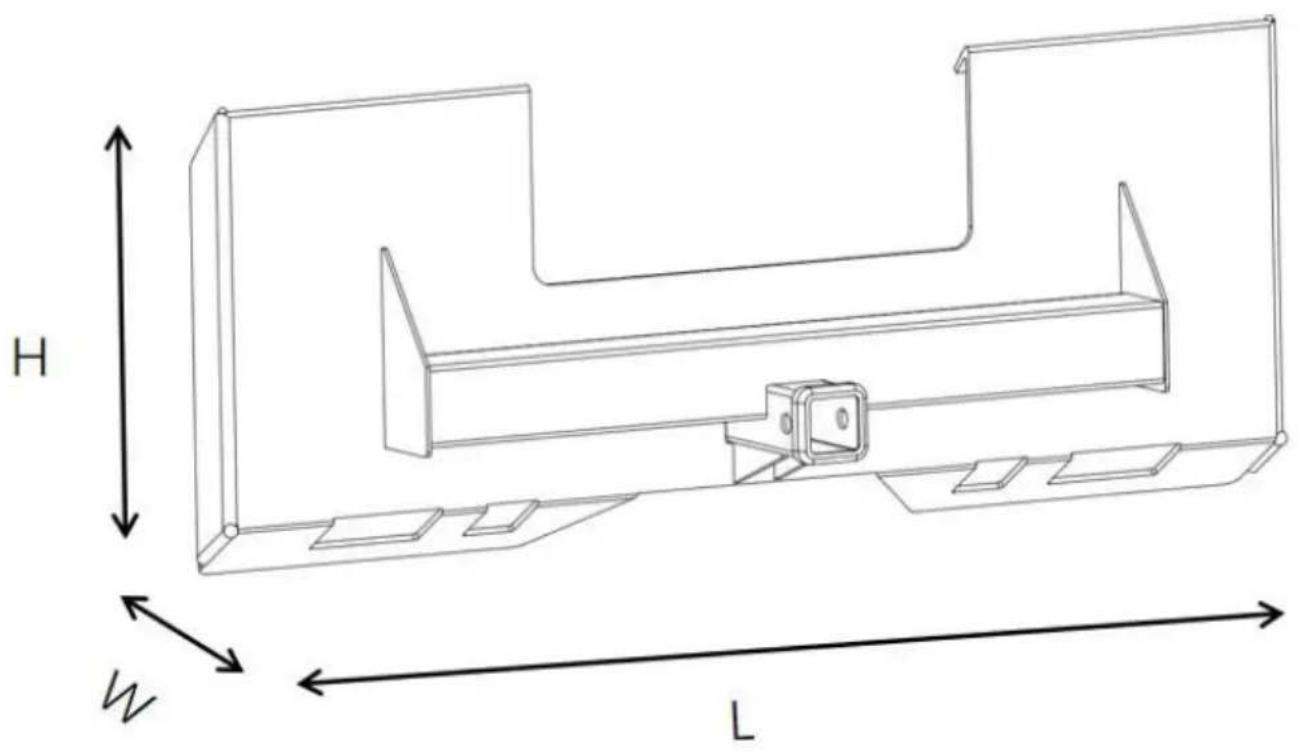

Technical line drawing of a mechanical component with dimension labels H, L, and W (no text or symbols beyond measurement indicators)

• Constructed from heavy-duty grade 50 structural steel.
• Integrated bending molding process, the thickness around is the same as the plate thickness, so the product bearing capacity stronger, the product is more sturdy as the bending interface full welding.
• Easy installation, quick installation and welding of accessories.
• With universal towing hook mounting port.

APPLICATIONS

The product can be attached directly to the vehicle before use, then welded to other accessories such as plows, forks or haystack spears. Assist users to complete various farm work. When you're done, you can uninstall it.

The quick connection slip steering plate can be used with a va machines, such as loaders or tractors, to clear deep snow, remove farm waste or remove factory waste.

Several examples of application below:

Blue tractor pulling a red agricultural machine in a grassy field (no visible text or symbols)
