USER MANUAL PM13 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MASSAGE GUN

PM13

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

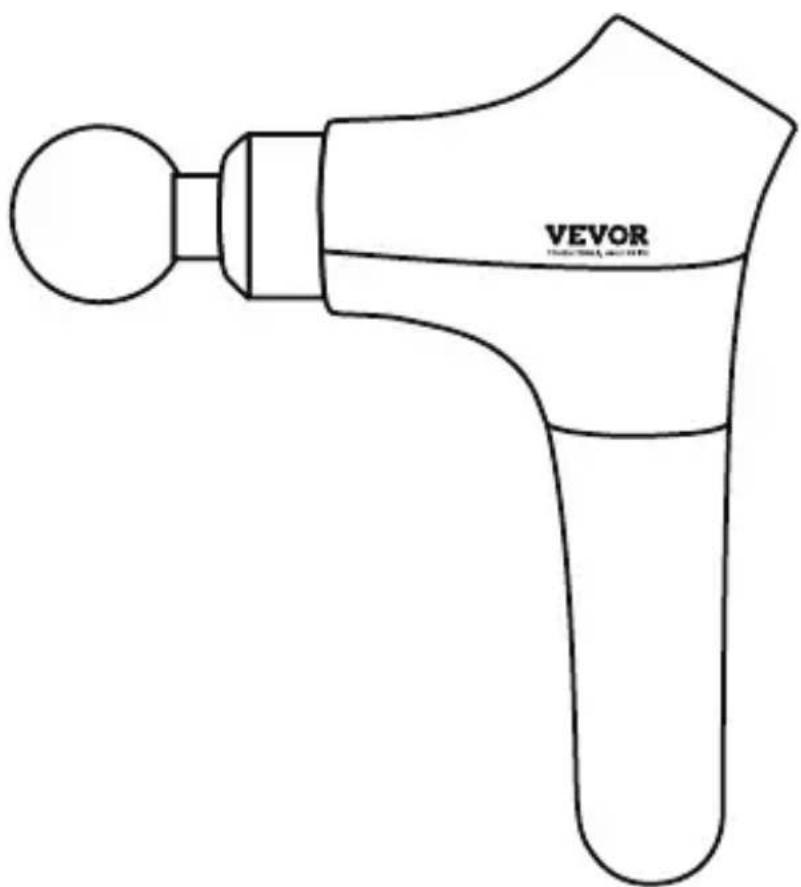

Line drawing of a Vevor handheld device with a circular handle and body (no text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feelfree to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

STATEMENT

Note

reduce the risk of malfunction, electric shock, injury, fire, death and edevice damage. Please read the instruction and warning

1. Underaged children are not allowed to use this product. This product is not allowed to use when the muscle injury.
2. Do not use it under non-dry and non-clean skin and and do not press and move to the skin for more than 60 seconds
3. Please do not use for the neck and less muscle coverage area and do not use only on soft tissues of the body where no pain or discomfort part.
4. Do not use in case of bruising, pain or discomfort.
5. Do not immerse the product in water.
6. Do not put the product in fire or nearby fire.
7. Do not drop this product intentionally.
8. Children under 13 years old should be supervised by their parents
9. Do not disassemble the product in any way.
10. Do not put fingers, hair or other parts of the body near the shaft and back of the massage head, It will get caught.

Prohibition sign showing a hand holding a mug against a red circle, indicating no use or prohibition.

Do not touch the device when the massage head is not install

Prohibition sign with hand holding a device and crossed-out circle, commonly used in safety or preventive measures

Do not touch the device when install massager head install

WARNINGS AND REMINDERS

1. Stay away from liquids or heat and please use in a dry environment.
2. Pull out the adapter from the host after full charging.
3. Only our massage head can reach perfect vibration effect
4. Please use the massager gun in accordance with instructions.
5. It is recommended to charging the device for over 5v2A
6. Please check the device carefully before use.

IMPORTANT INFORMATION

Do not use this product in following situations without approval from your doctor.

Pregnancy, diabetes complications (such as neuropathy or retina injury), wearing a pacemaker, or having Surgery operation, epilepsy or migraines, herniated discs, spondylolisthesis, spondylolysis or Cervical Spondylosis, recently had a joint replacement or an IUD, a metal needle, or a steel plate, or anything related to your health problem These contraindications does not mean that you are unable to use he device, we suggest you that consult your doctor before use

It must be using the advice with doctor, specialist or physical therapist

PRODUCT DESCRIPTION

1. 2. 3. 4. 5. 6. 1. Brushless High silent technologs 2. Customized s that provide con experience mea damage. 3. Rechargeable 4. Wireless, light 5. The handle is silica gel materi more comfortab 6. 6 adjustable

1. Brushless High-torque Motor, silent technology
2. Customized soft massage head that provide comfortable massage, experience meantime reduce bone damage.
3. Rechargeable lithium ion battery
4. Wireless, lightness, portable
5. The handle is made of smooth silica gel material, which makes it more comfortable to use.
6. 6 adjustable speed levels

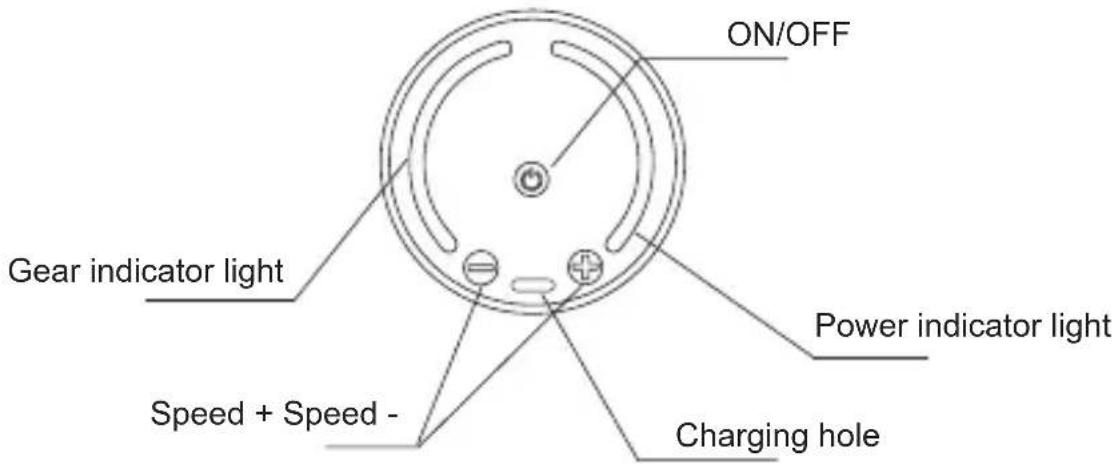

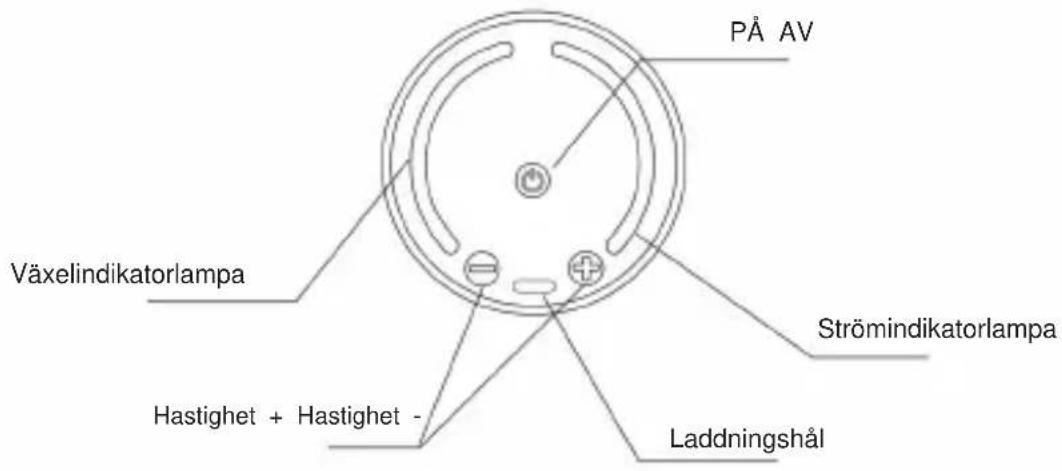

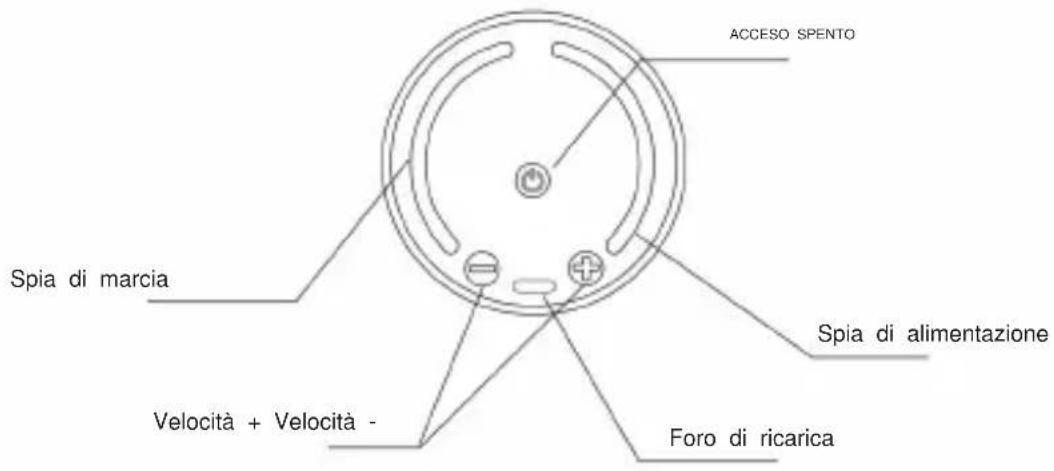

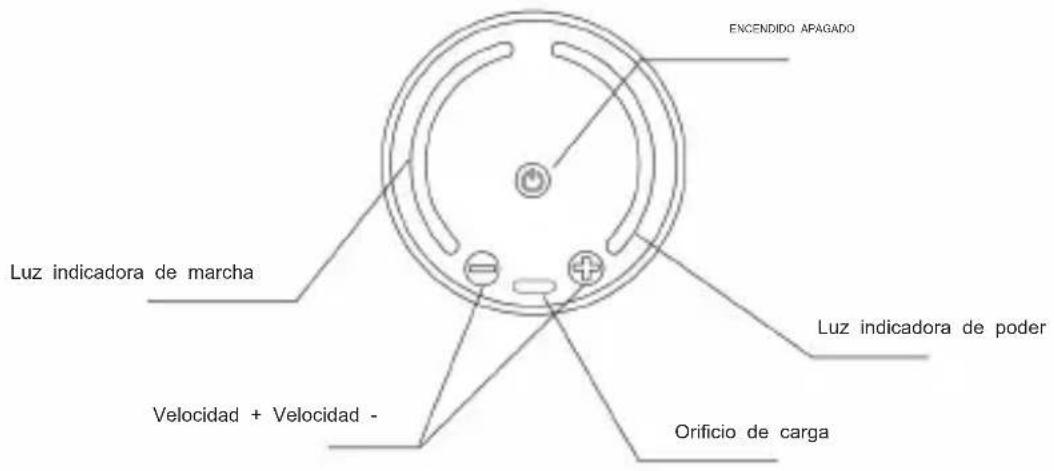

ON/OFF Gear indicator light Power indicator light Speed + Speed - Charging hole

1. Gear indicator: 1-6 (blue light)
2. Battery indicator light: after power on, 6 lights is long bright, indicating 100% capacity; 5 lights is long bright, indicating 90% to 70% capacity; 4 lights is long bright 70 to 50% capacity; 3 light s is long bright 50% to 30% ; 2 lights is long bright 30 to 10% ; 1 bright lights, indicating that the battery is not enough and needs to be charged in time (red light).
   3." speed - or speed +" button: short press the "speed - or speed +" switch to adjust gears, and gears from 1 to 6." speed - or speed +" button: short press the "speed - or speed +" switch to adjust gears, and gears from 1 to 6
3. On/off key: press on/off key when the product is running, no matter in any position or state Stop running
4. Charging hole: please charge the product with its own charger
5. Automatic shutdown in standby for 15 seconds

FOUR MASSAGE HEADS

for arms, waist and back

U-shaped head
suitable for the neck and the spine

Bullet headBall head Flat head
suitable for impacting the deep-tissue

Suitable for relaxation and shaping of various muscle parts

TECHNICAL DATA

Name	Massager gun (PM13)
Battery capacity	2500mAh
Amplitude stroke	10mm
The working time	≈ 2H-3.5H
The intensity gear	6 gear
rated power	50w±10%
Charging	TYPE-C / 5V-2A

CHARGING INFORMATION

hile using this product, if you feel abnormal or it can't work normalplease read this manual again and check the following points.

USE OPERATION

1. Press the button to start the standby mode (0) in the 6 gears. press the speed +button to adjust 1 speed to 6 speed and Press the speed - button to decrease speed, recycle operation.
2. Press the ON/OFF button to turn off the device in any speed states
3. Single press can be directly power off in standby states,

INSTALLATION METHOD

Power off the product, aim at the groove of the massage nozzle (red part inpicture 1) and slowly insert it.

PUSH

Figure 1. Correct installation direction

Simple line drawing of a fuse or connector (no text or symbols)

Figure 2. Installation complete

PROTECTION INFORMATION

1. Clean the device with a towel or paper towel, then wipe dry
2. For storage or travel, place in the package.
3. It should be stored in a dry, well-ventilated place with no corrosive gas and no less than a distance from the ground 250mm, no more than 5 layers.
4. If it is not used for a long time, it should be clean then packed and stored, and charging for every 6 months. This product is suitable for transportation by car, train, ship and air.
5. The product should fix in during transportation, prevent violent vibration, collision, tumbling and falling, upward, light and keep away from rain.

COMMON PROBLEM

Unusual phenomenon	Reason	Solution
Can't turn on	Battery is low	Please charge the product
Shut down during use	Battery is low	Please charge the product
Shut down automatically before the time is up
Can't charge	Charger voltage and current error	Replace the charger required by the manual to charge
No response to charging	Charger or charging cable failure	Replace the charger or charging cable

While using this product, if you feel abnormal or it can't work normally please read this manual again and check the following points.

Note: in order to prevent charging failure of the product, the three in one charging line cannot be connected to the fast charging head to charge it

When disposing of this product, be sure to dispose of it with local regulations.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

BATTERY DISPOSAL

Li-Ion

To minimize hazards to health and the environment at the end of this product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this product at a suitable collection facility where it will be sent in order to remove the batteries and for appropriate recycling. Please contact your local authorities for more details on recycling and safe disposal of these in your area.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product. Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: SHENZHEN BAICHANG TECHNOLOGY CO., LTD. Address: 202, Building1, Sha'er Industrial Zone, Haoxiang Road, Sha'er Community, Shajing Street, Bao'an District Shenzhen, GUANGDONG, 518101, CHINA Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld device with a circular head and handle (no text or symbols on the device itself)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

Machine Translated by Google

DÉCLARATION

Note

Prohibition sign showing a hand holding a device with a red circle and diagonal line

Prohibition sign with hand holding a circular object, crossed out by red circle and white rectangle

Machine Translated by Google

Simple line drawing of a fuse or connector (no text or symbols)

Bureau 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld device with a circular head and handle (no text or symbols on the device itself)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

www.vevor.com/support

Prohibition sign showing a hand holding a device with a red circle and diagonal line

Prohibition sign with hand holding a circular object, enclosed in a red circle

Machine Translated by Google

INSTALLATIONSMETHODE

Simple line drawing of a fuse or connector (no text or symbols)

Adresse: 202, Building1, Sha'er Industrial Zone, HaoxiangRoad, Sha'er Community, Shajing

Street, Bao'an District Shenzhen, GUANGDONG, 518101, CHINA

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Büro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld device with a circular head and handle (no text or symbols on the device itself)

HO BISOGNO DI AIUTO? CONTATTACI!

www.vevor.com/support

Machine Translated by Google

DICHIARAZIONE

Nota

Prohibition sign showing a hand holding a device with a red circle and diagonal line

Prohibition sign showing a hand holding a device against a red circle, indicating no use or prohibition.

Machine Translated by Google

Simple line drawing of a fuse or connector (no text or symbols)

Indirizzo: 202, Building1, Sha'er Industrial Zone, Haoxiang Road, Sha'er

Community, Shajing Street, Bao'an District Shenzhen, GUANGDONG, 518101, CINA

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Francoforte sul Meno.

C/O YH Consulting Limited Ufficio 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld device with a circular head and handle (no text or symbols on the device itself)

www.vevor.com/support

Machine Translated by Google

DECLARACIÓN

Nota

Prohibition sign showing a hand holding a device with a red circle and diagonal line

Prohibition sign with hand holding a circular object, enclosed in a red circle

Machine Translated by Google

Pure electrical circuit lines without any symbols

1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines upon Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld device with a circular head and handle (no text or symbols on the device itself)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

www.vevor.com/support

Machine Translated by Google

OŚWIADCZENIE

Notatka

Prohibition sign showing a hand holding a device with a red circle and crossed-out rectangle

Prohibition sign showing a hand holding a device against a red circle, indicating no use or prohibition.

Machine Translated by Google

Pure electrical circuit lines without any symbols

INFORMACJE O OCHRONIE

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt nad Menem.

YH CONSULTING SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld device with a circular head and handle (no text or symbols on the device itself)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Machine Translated by Google

STELLING

Opmerking

Prohibition sign showing a hand holding a device with a red circle and diagonal line

Prohibition sign with hand holding a circular object, crossed out by red circle and white rectangle

WAARSCHUWINGEN EN HERINNERING

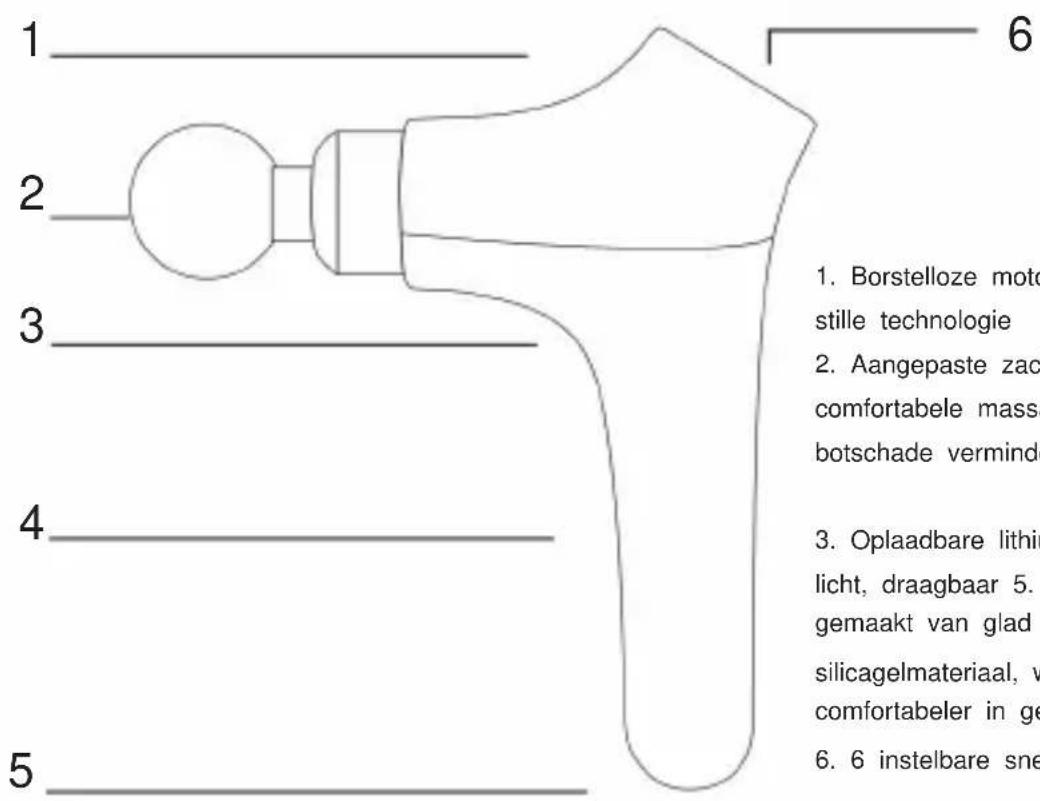

PRODUCT BESCHRIJVING

1. 2. 3. 4. 5. 6 1. Borstelloze mot stille technologie 2. Aangepaste zac comfortabele mass botschade vermind 3. Oplaadbare lithi licht, draagbaar 5. gemaakt van glad silicagelmateriaal, v comfortabeler in ge 6. 6 instelbare sne

Machine Translated by Google

Simple line drawing of a fuse or connector (no text or symbols)

BESCHERMINGSINFORMATIE

Adres: 202, Building1, Sha'er Industrial Zone, Haoxiang Road, Sha'er Community, Shajing

Street, Bao'an District Shenzhen, GUANGDONG, 518101, CHINA

C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld device with a circular head and handle (no text or symbols on the device itself)

BEHÖVS HJÄLP? KONTAKTA OSS!

www.vevor.com/support

Prohibition sign showing a hand holding a device with a red circle and diagonal line

Prohibition sign showing a hand holding a device with a circular symbol, enclosed in a red circle.

VARNINGAR OCH PÅMINNELSER

Machine Translated by Google

SKJUTA PÅ

Figur 1. Korrekt installationsriktning

Pure electrical circuit lines without any symbols

Adress: 202, Building1, Sha'er Industrial Zone, Haoxiang Road, Sha'er Community,

Shajing Street, Bao'an District Shenzhen, GUANGDONG, 518101,KINA

Importerad till AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE
