USER MANUAL MPR25 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL DOUGH SHEETERS USER MANUAL

MODEL: MPR25

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Commercial Dough Sheeters

MODEL:MPR25

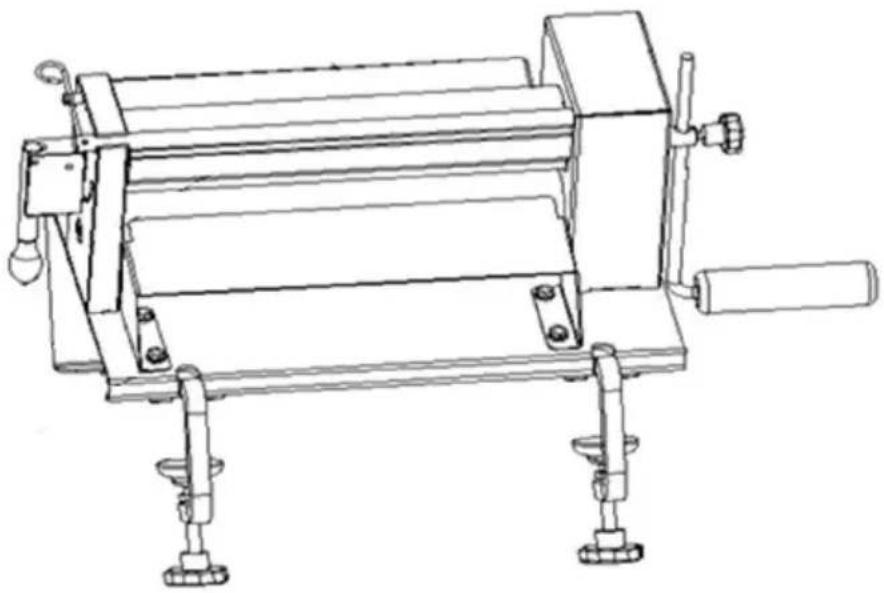

Technical line drawing of a mechanical device with clamps and a handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

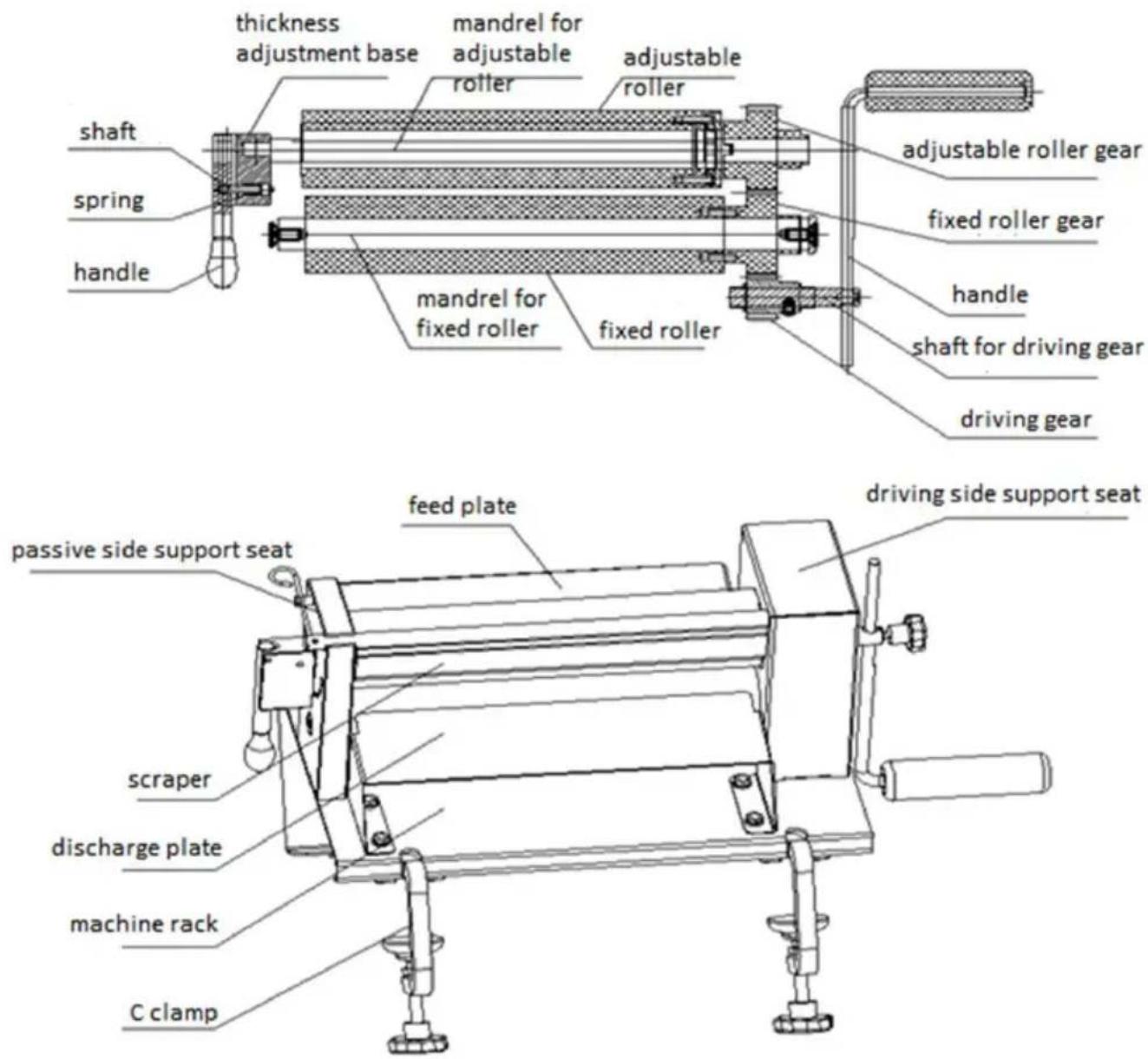

MACHINE STRUCTURE

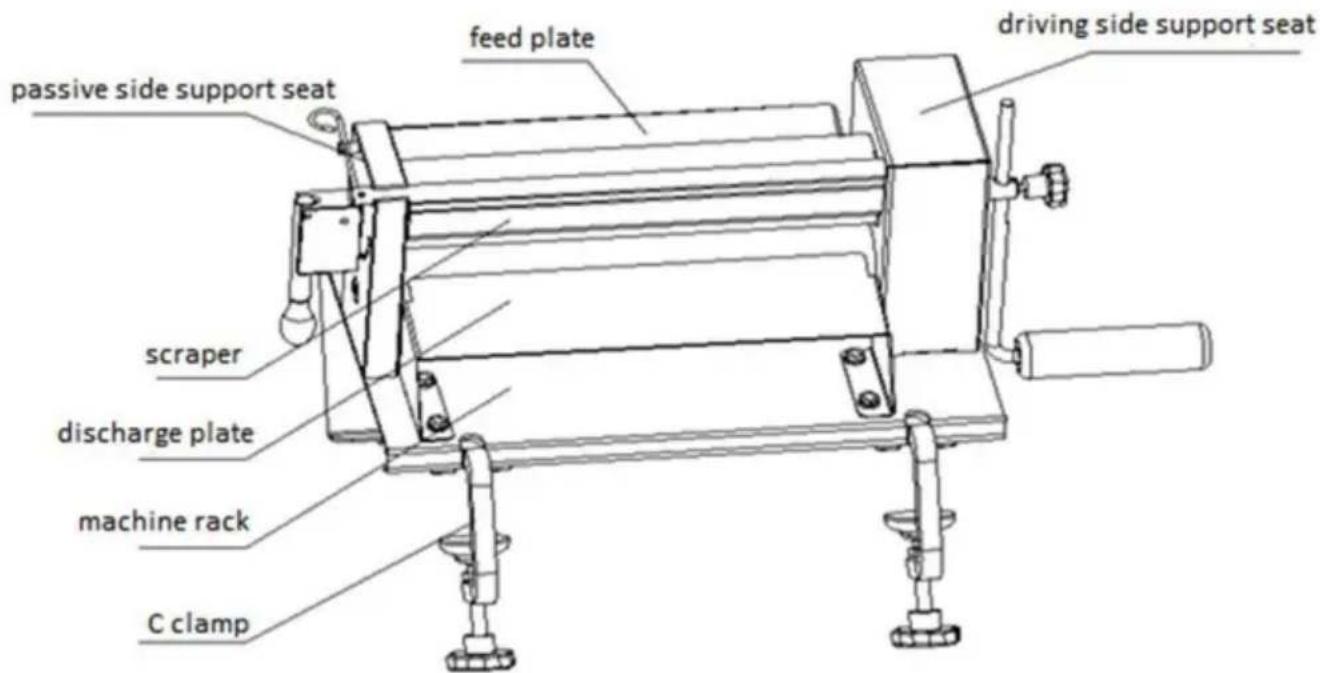

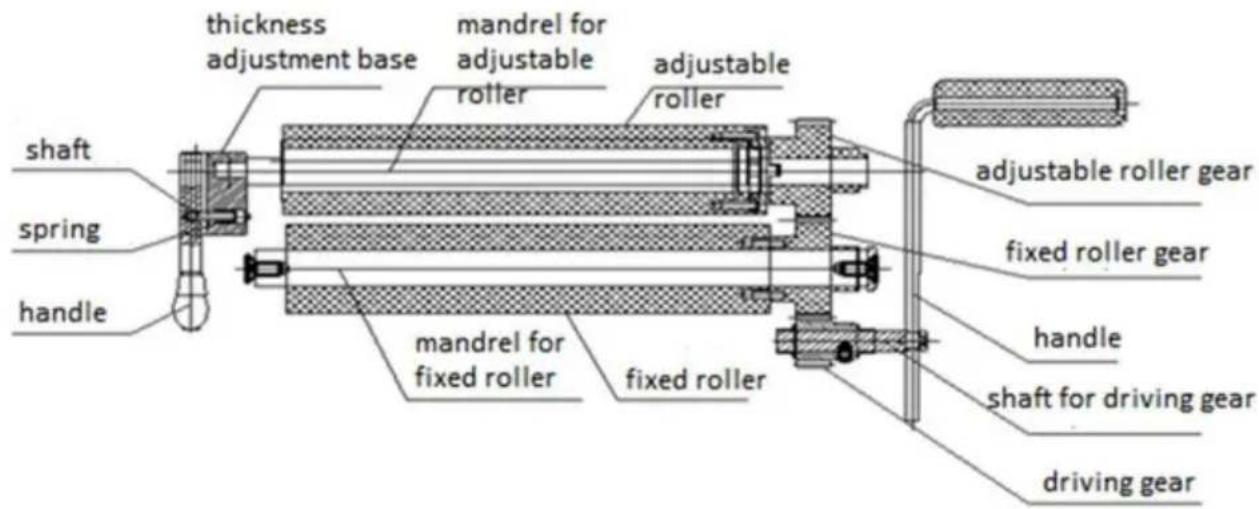

thickness adjustment base mandrel for adjustable roller adjustable roller shaft spring handle mandrel for fixed roller fixed roller adjustable roller gear fixed roller gear handle shaft for driving gear driving gear passive side support seat scraper discharge plate machine rack C clamp feed plate driving side support seat

OPERATION

1. Fixed the machine on the working table by the two C-clamps.
2. To rotate the handle and press the dough easily,
3. The distance between the fixed roller and the adjustable roller can be adjusted by adjusting the handle, thickness is 0-12mm.
4. The dough is placed on the feed plate and slides out from the cplate by the extrusion of the rollers.
5. The adjustable roller is equipped with a scraper to prevent the do from being stick on the roller.
6. Adjustable roller adjustment principle: pull out the adjustment handle make the adjustment mandrel out of the positioning hole, rotate the h to choose the suitable thickness, then fix the adjustment handle.

MAINTENANCE

1. Please clean the machine in time after use to avoid bacterial growth ensure food hygiene.
2. The working surface of the roll should be kept clean. If there is accumulation, check whether the contact between the scraper and the is tight, and whether the pressure of the compression spring is sufficient the pressure of the compression spring is insufficient, it should be ad if the surface of the roll is damaged, it should be replaced. The sur the roll should not be scraped with a sharp tool to prevent the surface being scratched and shaved.
3. When the equipment is abnormal, please stop using it and check problem. If there is a problem cannot be solved, please contact with sales department for maintenance services.

PACKING LIST

No.	Item	Qty	Remark
1	Commercial Dough Sheeters	1 set
2	Screw	1 pack
3	C clamp	2 pcs
4	Manual	1 pcs

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical device with clamps and supports (no text or symbols)

STRUCTURE DE LA MACHINE

thickness adjustment base mandrel for adjustable roller adjustable roller shaft spring handle mandrel for fixed roller fixed roller adjustable roller gear fixed roller gear handle shaft for driving gear driving gear

feed plate driving side support seat passive side support seat scraper discharge plate machine rack C clamp

OPÉRATION

Technical line drawing of a mechanical device with clamps and supports (no text or symbols)

thickness adjustment base mandrel for adjustable roller adjustable roller adjustable roller gear shast spring handle mandrel for fixed roller fixed roller fixed roller handle shaft for driving gear driving gear passive side support seat feed plate driving side support seat scraper discharge plate machine rack C clamp

BETRIEB

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical device with clamps and supports (no text or symbols)

thickness adjustment base mandrel for adjustable roller adjustable roller adjustable roller gear shast spring handle mandrel for fixed roller fixed roller fixed roller handle shaft for driving gear driving gear passive side support seat feed plate driving side support seat scraper discharge plate machine rack C clamp

OPERAZIONE

elettronica https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical device with clamps and supports (no text or symbols)

thickness adjustment base mandrel for adjustable roller adjustable roller adjustable roller gear shast spring handle mandrel for fixed roller fixed roller fixed roller handle shaft for driving gear driving gear passive side support seat feed plate driving side support seat scraper discharge plate machine rack C clamp

OPERACIÓN

Technical line drawing of a mechanical device with clamps and supports (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical line drawing of a mechanical device with clamps and supports (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

thickness adjustment base mandrel for adjustable roller adjustable roller shaft spring handle mandrel for fixed roller fixed roller adjustable roller gear fixed roller gear handle shaft for driving gear driving gear

feed plate driving side support seat passive side support seat scraper discharge plate machine rack C clamp

WERKING

Technical line drawing of a mechanical device with clamps and supports (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

www.vevor.com/support

thickness adjustment base mandrel for adjustable roller adjustable roller adjustable roller gear shast spring handle mandrel for fixed roller fixed roller fixed roller handle shaft for driving gear driving gear passive side support seat feed plate driving side support seat scraper discharge plate machine rack C clamp

DRIFT

www.vevor.com/support
