USER MANUAL MST002 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

OFFICE STOOLS

USER MANUAL

MODEL:MST003-4/MST002

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

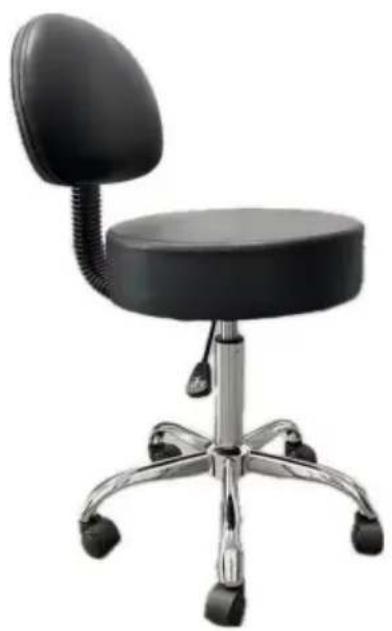

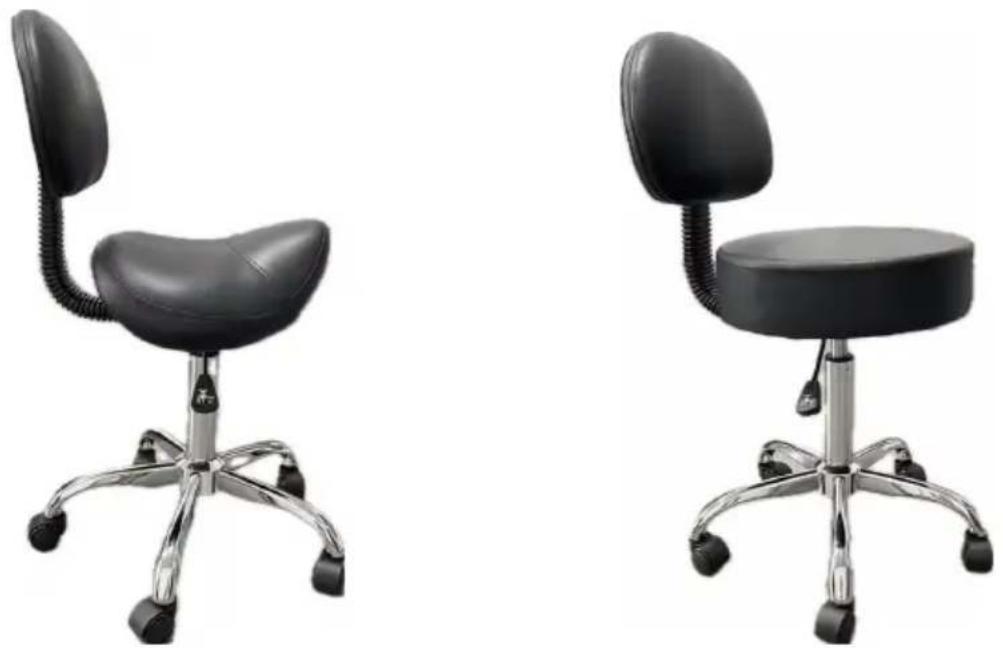

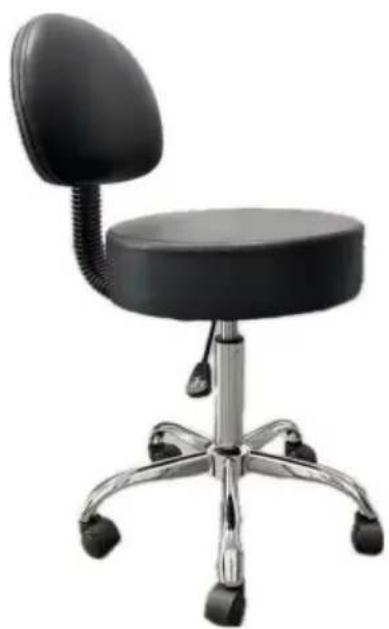

OFFICE STOOLS

MODEL : MST003-4 MST002

Two black office chair models with adjustable armrests and wheels, shown from different angles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly may create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Office Stool.
8. For additional information regarding the parts listed in the following page please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. This product is not a toy. Do not allow children to play with or near
2. Do not exceed weight capacities.
3. Do not use alcohol based cleaners when cleaning the vinyl. This could cause damage to the vinyl material. Use warm soapy water and wipe
4. Use only on a flat, level, hard and smooth surface capable of safely supporting a fully loaded Office Stool.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PRODUCT PARAMETER

Model	MST003-4	MST002
Maximum Loaded Weight	450 lbs
Adjustable Height	560-720 mm	545-705 mm
Product Size	540x540xH840-1000 mm
Colour	Black
Net Weight	6.75 kg	7.15 kg

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PARTS LIST

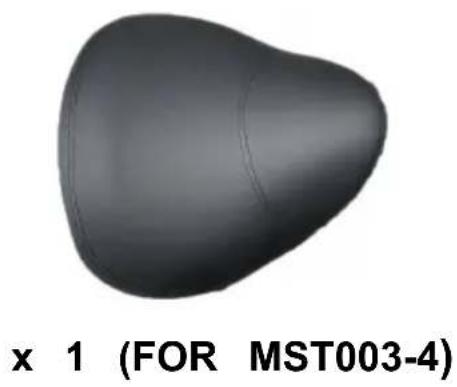

3D-rendered black object with smooth curved surface, labeled 'x 1 (FOR MST003-4)' below (no other text or symbols)

Gray circular object with rounded edges, labeled 'x 1 (FOR MST002)' below (no other text or symbols)

Black ergonomic chair with a flat top and adjustable arm (no text or symbols visible)

Close-up of a metallic cylindrical device with a black handle and a small protruding tip, labeled 'x 1' below (no other text or symbols)

Metallic six-petal flower-like object with a central hub, labeled 'x 1' below (no other text or symbols)

Close-up of a black mechanical component with a metallic fitting, labeled 'x 5' below (no other text or symbols)

ASSEMBLY STEP

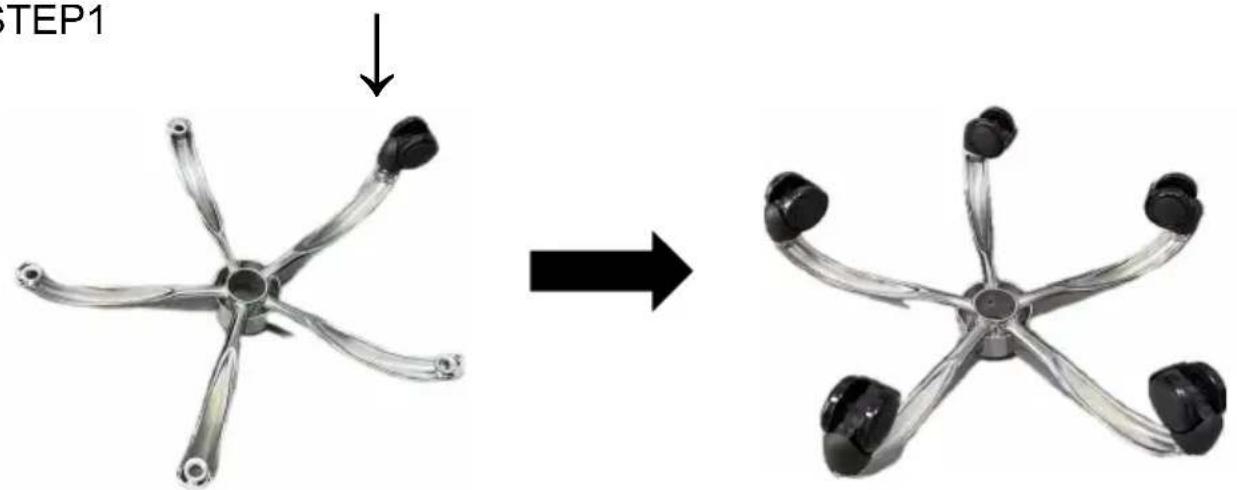

STEP1

STEP1 →

Insert the wheels to the five star base, please make sure that wheels can match the base very well.

STEP2

Close-up of a metallic cylindrical object with a red arrow pointing to a black textured tip (no text or symbols visible)

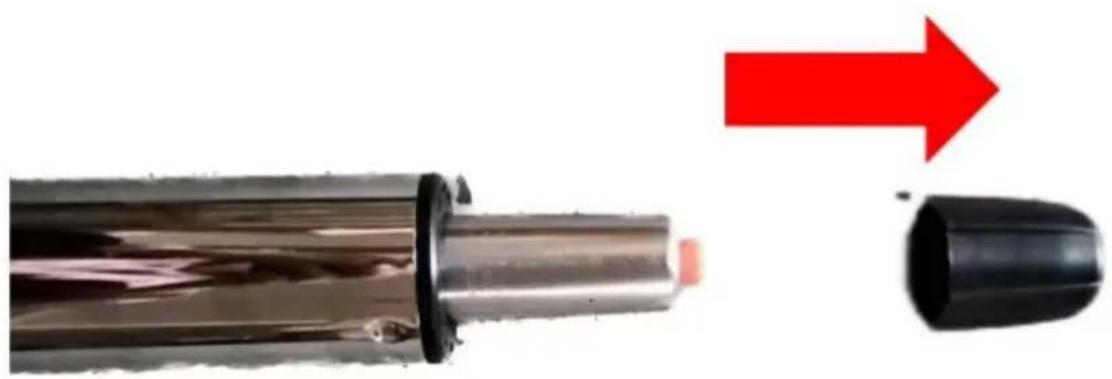

Remove the black cover from the cylinder. (Tip:The black lid difficult to remove,you can borrow tools or destroy it.)

STEP3

Close-up of a metallic office chair with four legs and black wheels, no text or symbols visible

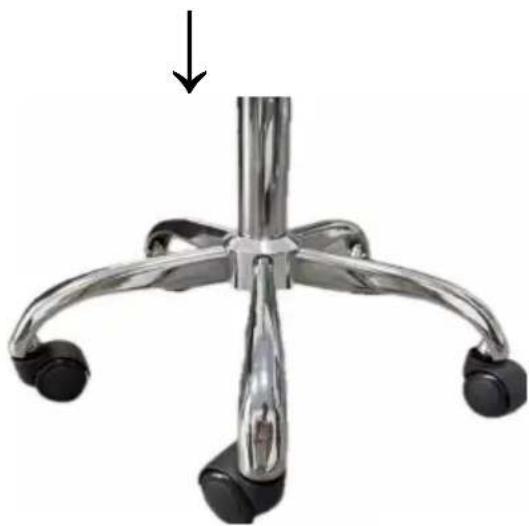

Insert the gas lift into the hole of the five star base

STEP4

FOR MST003-4

Close-up of hands holding a black plastic bag with a handle, no visible text or symbols

FOR MST002

Person using a tool to press or adjust a black object on a circular surface (no text or symbols visible)

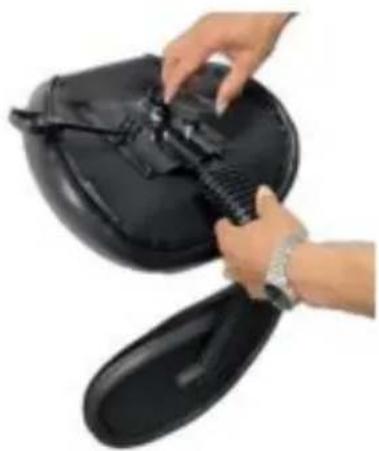

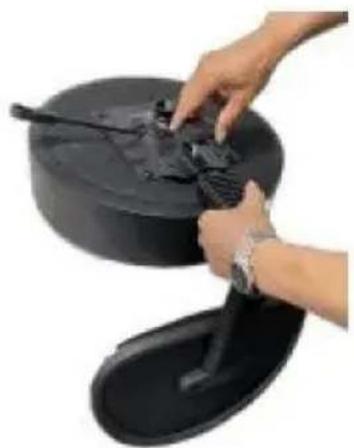

Insert the Backrest of the stool into the hole of the seat Ba then fix them together by a screw

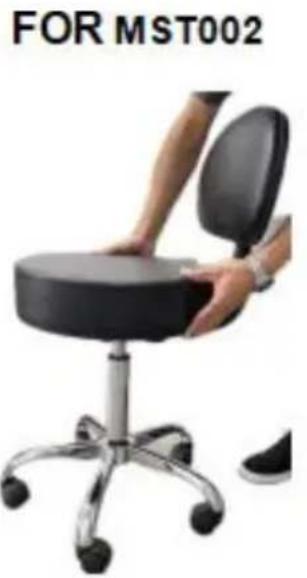

STEP5

Person adjusting a black office chair with a wrist strap, labeled 'FOR MST003-4' (no other text or symbols visible)

Person holding a black office chair with a circular seat, no visible text or symbols on the chair itself

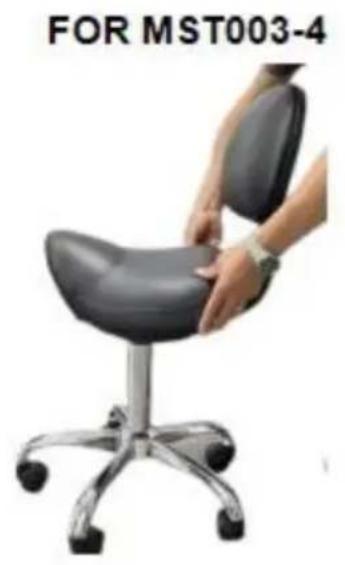

Put the seat pad on the gas lift.

STEP6

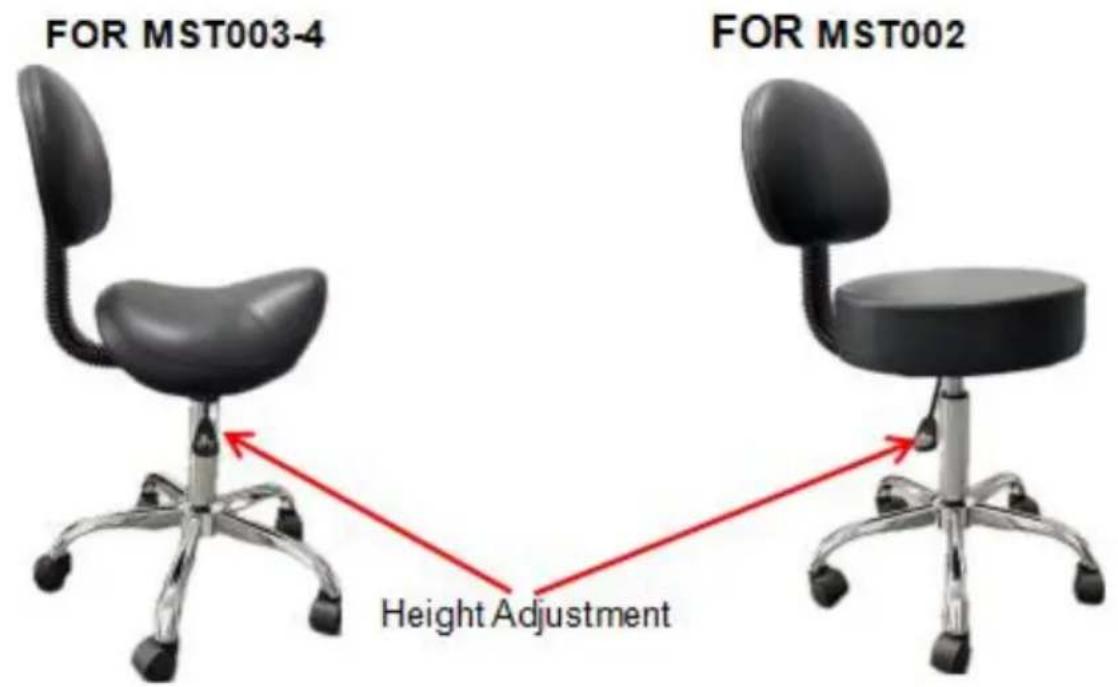

FOR MST003-4 FOR MST002 Height Adjustment

sit on the stool, and then adjust the height of the stool to make you feel comfortable.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black office chair with adjustable arm and four legs, no visible text or symbols

Black office chair with adjustable armrest and four legs, no visible text or symbols

BESOIN D'AIDE? CONTACTEZ-NOUS!

3D-rendered black conical object with smooth surface and rounded edges (no text or symbols)

x 1 (POUR MST003-4)

Smooth gray circular object with a slightly rounded base (no text or symbols)

x 1 (POUR MST002)

)

)

Close-up of a black ergonomic chair seat with a curved arm attachment (no text or symbols visible)

x 1

x 1

Metal five-petal flower-like object with six arms, no text or symbols visible

x 1

Close-up of a black mechanical component with a metallic threaded end (no visible text or symbols)

x 5

ÉTAPE D'ASSEMBLAGE

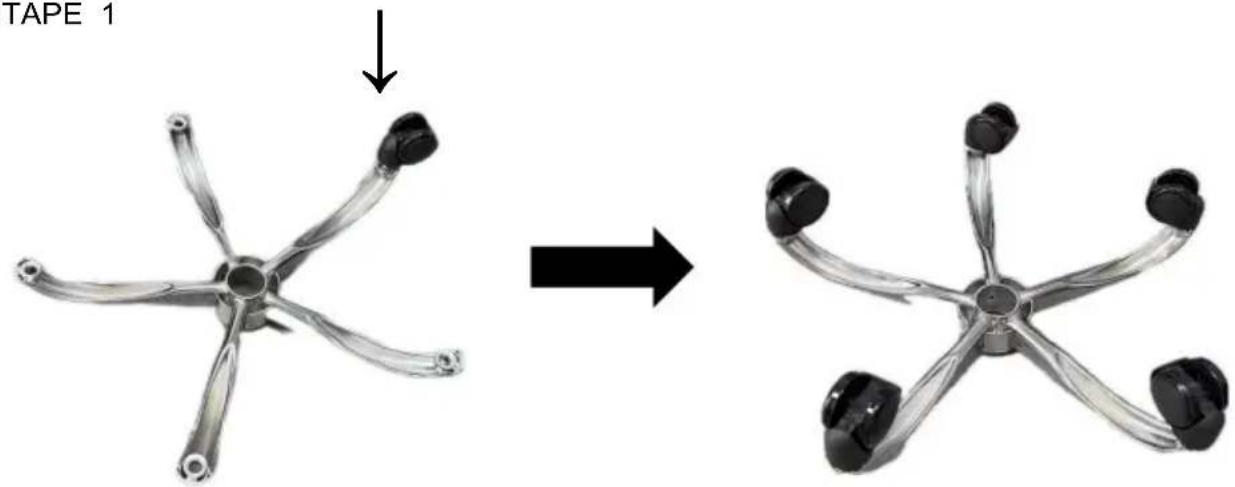

ÉTAPE 1

TAPE 1 →

Close-up of a metallic lipstick with a red arrow pointing to its tip, alongside a black plastic clip (no text or symbols)

Close-up of a metallic office chair with four curved legs and black wheels, no text or symbols visible

Close-up of hands adjusting a black leather seatbelt with a spring (no text or symbols visible)

FOR MST002

Close-up of hands cleaning a black circular object with a tool, no visible text or symbols

A/S YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black office chair with adjustable arm and four legs, no visible text or symbols

Black office chair with adjustable armrest and circular head (no text or symbols visible)

3D-rendered black conical object with smooth surface and rounded edges (no text or symbols)

x 1 (FÜR MST003-4)

Smooth gray circular object with rounded edges, no text or symbols visible

x 1 (FÜR MST002)

)

)

Close-up of a black ergonomic chair seat with a flexible arm strap (no text or symbols visible)

x 1

Close-up of a metallic cylindrical electronic device with a black tip and black end (no visible text or symbols)

x 1

Metal five-petal flower-like object with six arms, no text or symbols visible

x 1

Close-up of a black mechanical component with a metallic threaded end (no visible text or symbols)

x 5

MONTAGESTRITT

SCHRITT 1

CHRITT 1 ÿ →

Close-up of a metallic lipstick with a red arrow pointing to its tip, alongside a black plastic clip (no text or symbols)

Close-up of a metallic office chair with four arms and black wheels (no text or symbols visible)

Close-up of hands adjusting a black leather seatbelt with a spring (no text or symbols visible)

FOR MST002

Close-up of hands cleaning a black circular object with a tool, no visible text or symbols

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black office chair with adjustable arm and four legs, no visible text or symbols

Black office chair with adjustable armrest and circular head, five arms (no text or symbols visible)

3D-rendered black conical object with smooth surface and rounded edges (no text or symbols)

x 1 (PER MST003-4)

Smooth gray circular object with a slightly rounded edge (no text or symbols)

x 1 (PER MST002)

)

)

3D rendered image of a black ergonomic chair seat with a curved arm attachment (no text or symbols visible)

una volta 1

Close-up of a metallic cylindrical object with a black handle (no visible text or symbols)

una volta 1

Metal five-petal flower-like object with radial arms (no text or symbols)

una volta 1

Close-up of a black mechanical component with a metallic threaded end (no visible text or symbols)

ogni 5

FASE DI MONTAGGIO

PASSO 1

ä ASso 1

Close-up of a metallic lipstick with a red arrow pointing to its tip, alongside a black plastic clip (no text or symbols)

Close-up of a metallic office chair with four arms and black wheels, labeled 'ÿ' in the top-left corner (no other text or symbols)

Close-up of hands adjusting a black leather seat with a spring (no text or symbols visible)

FOR MST002

Close-up of hands cleaning a black circular object with a tool, no visible text or symbols

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames, Surrey, TW184AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black office chair with adjustable arm and four legs, no visible text or symbols

Black office chair with adjustable armrest and circular head (no text or symbols visible)

Smooth, dark gray 3D-rendered object with smooth curved surface (no text or symbols)

x 1 (PARA MST003-4)

Smooth gray circular object with a slightly rounded edge (no text or symbols)

x 1 (PARA MST002)

)

)

Close-up of a black ergonomic chair seat with a flexible arm strap (no text or symbols visible)

x1

Close-up of a metallic cylindrical electronic device with a black tip and black end (no visible text or symbols)

x1

Metal five-petal flower-like object with radial arms (no text or symbols)

x1

Close-up of a black mechanical component with a metallic fitting (no visible text or symbols)

x5

PASO DE MONTAJE

PASO 1

ASO 1 →

Close-up of a metallic lipstick with a red arrow pointing to its tip, alongside a black plastic clip (no text or symbols)

Close-up of a metallic office chair with four legs and black wheels, no text or symbols visible

Close-up of hands adjusting a black leather seatbelt with a spring (no text or symbols visible)

FOR MST002

Close-up of hands cleaning a black circular object with a tool, no visible text or symbols

Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black office chair with adjustable arm and four legs, no visible text or symbols

Black office chair with adjustable armrest and circular head, five arms (no text or symbols visible)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Smooth, dark gray 3D-rendered object with smooth curved surface (no text or symbols)

x 1 (DLA MST003-4)

)

Smooth gray circular object with a slightly rounded edge (no text or symbols)

x 1 (DLA MST002)

)

3D rendered image of a black ergonomic chair seat with a curved arm attachment (no text or symbols visible)

x1

x1

Metal five-petal flower-like object with six arms, no text or symbols visible

x1

Close-up of a black mechanical component with a metallic threaded end (no visible text or symbols)

5x

)

)

)

)

KROK MONTAŻU

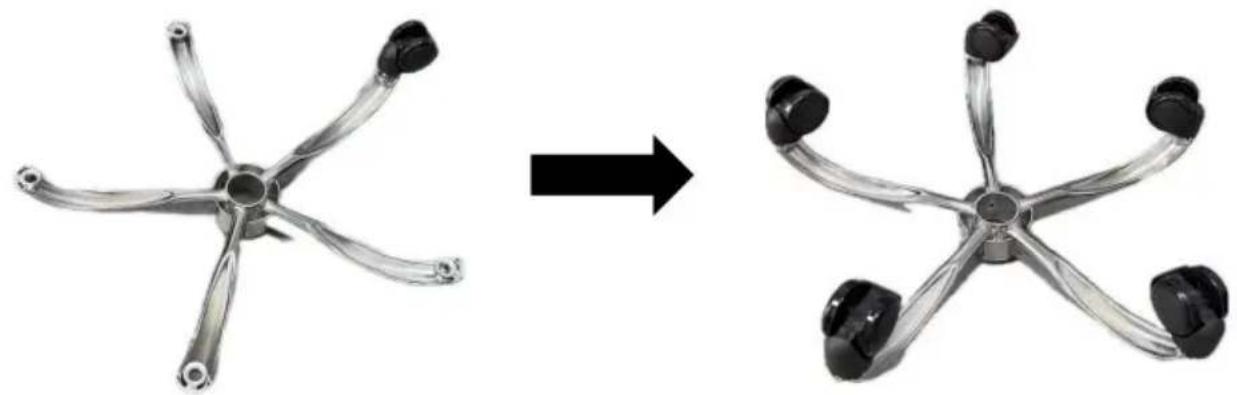

KROK 1

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Close-up of a metallic lipstick with a red arrow pointing to its tip, alongside a black plastic clip (no text or symbols)

Close-up of a metallic office chair with four curved legs and black wheels (no text or symbols visible)

Close-up of hands adjusting a black leather seatbelt with a spring (no text or symbols visible)

FOR MST002

Close-up of hands cleaning a black circular object with a tool, no visible text or symbols

C/O YH Consulting Limited Biuro 147, Centurion

Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

KANTOORKRUKKEN

GEBRUIKERSHANDLEIDING

MODEL: MST003-4/MST002

Black office chair with adjustable arm and four legs, no visible text or symbols

Black office chair with adjustable armrest and four legs, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

3D-rendered black conical object with smooth surface and rounded edges (no text or symbols)

x 1 (VOOR MST003-4)

Smooth gray circular object with rounded edges, no text or symbols visible

x 1 (VOOR MST002)

)

)

Close-up of a black ergonomic chair seat with a flexible arm strap (no text or symbols visible)

1x

Close-up of a metallic cylindrical electronic component with a black tip (no visible text or symbols)

1x

Metal five-petal flower-like object with radial arms (no text or symbols)

1x

Close-up of a black cylindrical mechanical component with a metallic fitting (no visible text or symbols)

5x

)

)

)

)

MONTAGESTAP

STAP 1

y TAP T

Close-up of a metallic lipstick with a red arrow pointing to its tip, alongside a black plastic clip (no text or symbols)

Close-up of a metallic office chair with four curved legs and black wheels, labeled 'ÿ' in the top-left corner (no other text or symbols)

Close-up of hands adjusting a black leather seatbelt with a spring (no text or symbols visible)

FOR MST002

Close-up of hands cleaning a black circular object with a tool, no visible text or symbols

C/O YH Consulting Limited Kantoor 147, Centurion

Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black office chair with adjustable arm and five arms, no visible text or symbols

Black office chair with adjustable armrest and four legs, no visible text or symbols

BEHÖVER HJÄLP? KONTAKTA OSS!

www.vevor.com/support

Smooth, dark gray 3D-rendered object with smooth curved surface (no text or symbols)

x 1 (FÖR MST003-4)

Smooth gray circular object with a slightly rounded edge (no text or symbols)

x 1 (FÖR MST002)

)

)

3D rendered image of a black ergonomic chair seat with a curved arm attachment (no text or symbols visible)

x 1

Close-up of a metallic cylindrical electronic component with a black tip (no visible text or symbols)

x 1

Metal five-petal flower-like object with radial arms (no text or symbols)

x 1

Close-up of a black mechanical component with a metallic threaded end (no visible text or symbols)

x 5

MONTERINGSTEG

STEG1

y →

Close-up of a metallic cylindrical object with a red arrow pointing to a black textured tip (no text or symbols visible)

Close-up of a metallic office chair with four curved legs and black wheels, labeled 'ÿ' in the top-left corner (no other text or symbols)

Close-up of hands adjusting a black leather seatbelt with a spring (no text or symbols visible)

FOR MST002

Close-up of hands cleaning a black circular object with a tool, no visible text or symbols

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
