BED RAIL

MODEL: LQX-110050

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: LQX-110050

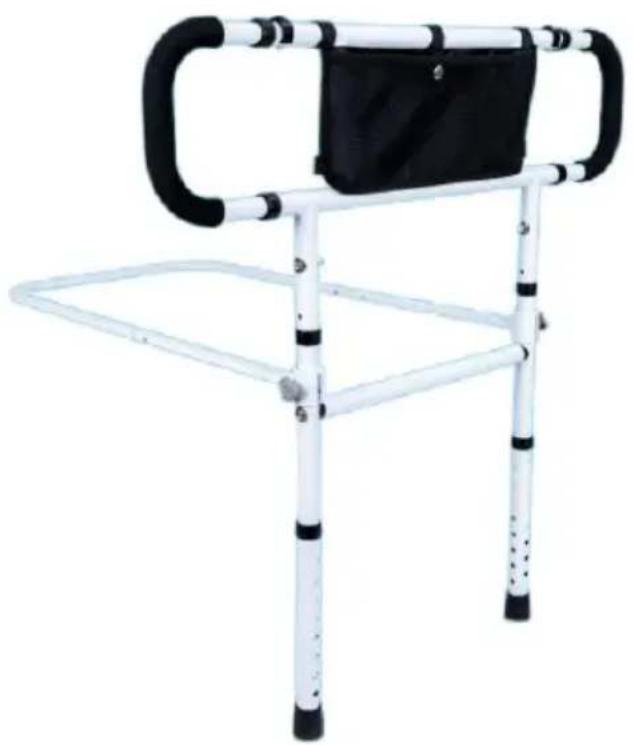

White metal mobility device with black handle and black seat, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this bed rail. Please read all of the instructions before using it. The information will help you achieve the possible results.

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities only apply to a who correctly assembled product.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. Assembly should be done by adults only.
8. WARNING: This product contains small parts. If swallowed, it will choking hazard. Keep these small parts away from children when assembling!

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. Use as intended only. Do not sit or stand on the product.
2. Inspect before every use. Do not use it if parts are loose or dan

3. This product is only used in bed, need with nursing bed.

4. If any parts are missing, broken, damaged, or worn, stop using this until repairs are made and/or factory replacement parts are installed.

5. The maximum weight-bearing capacity of this product is 450 lbs

Part List

NO.	Part name	Pictorial view	Quantity
A	Folding frame		1
B	U-shaped flat tube		1
C	I-shaped tube		2
D	U-shaped armrest tube		2
E	Safety belt		1
F	Storage bag		1
G	C-shaped buckle		4
H	Grip nut		2

ASSEMBLY STEPS

STP1:

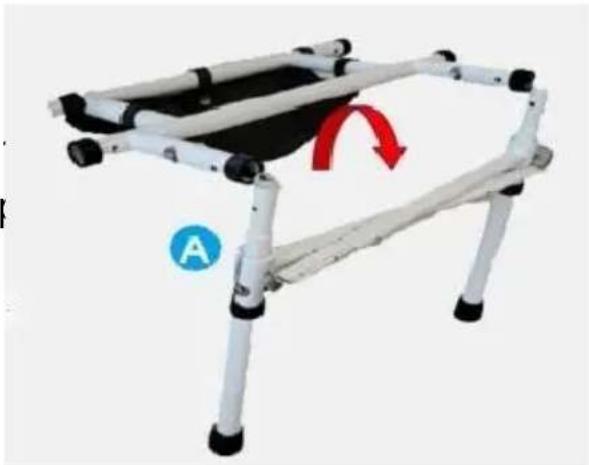

Take out the folding frame, unfold it and assemble the upper and lower together.

Exterior view of a quadrupedal robotic platform with black legs and a red curved arrow indicating rotation (no text or symbols)

STP2:

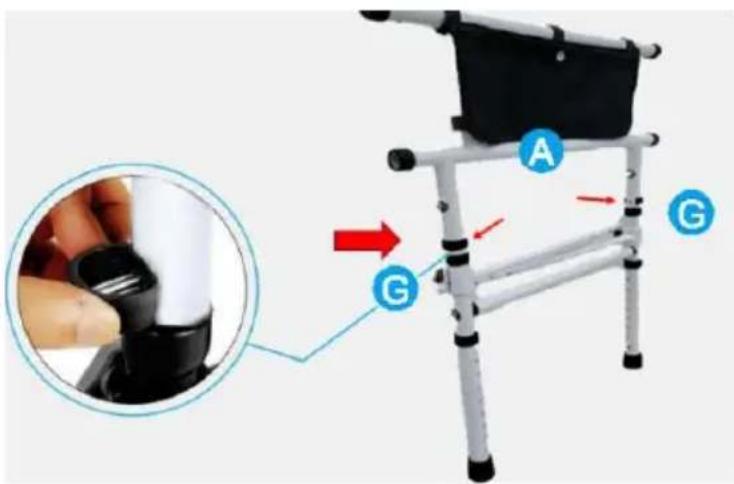

Insert C-shaped buckles on sides to fix.

Diagram showing a device with labeled parts A and G, including a magnified inset of a hand holding a black object.

STP3:

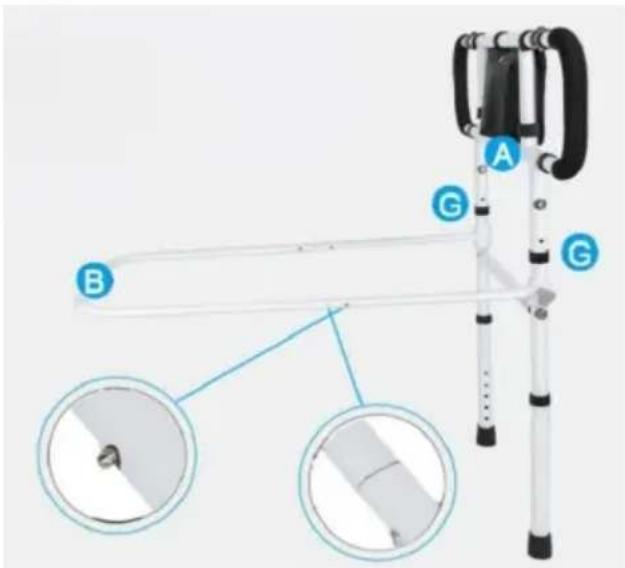

Align the supporting flat tubes on sides at 90^ , and then press th marbles on both sides to insert i U-shaped flat tubes. After insertion the marbles will pop out to be f fixed.

A G B G

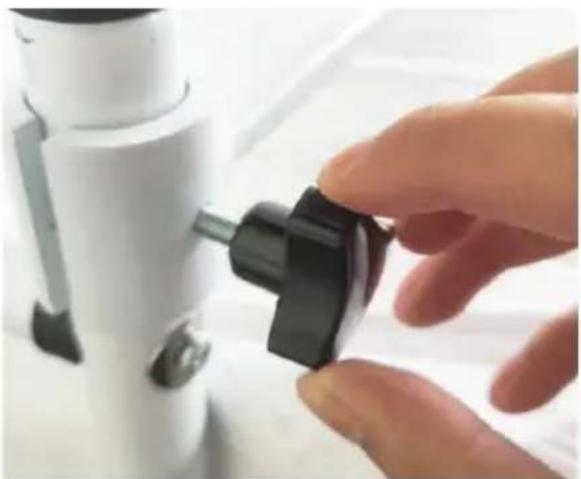

STP4:Turn the plastic screws on the side of the handrail to lock the U-shaped flat tube

Close-up of a hand adjusting a black mechanical component with a white base (no visible text or symbols)

STP5:

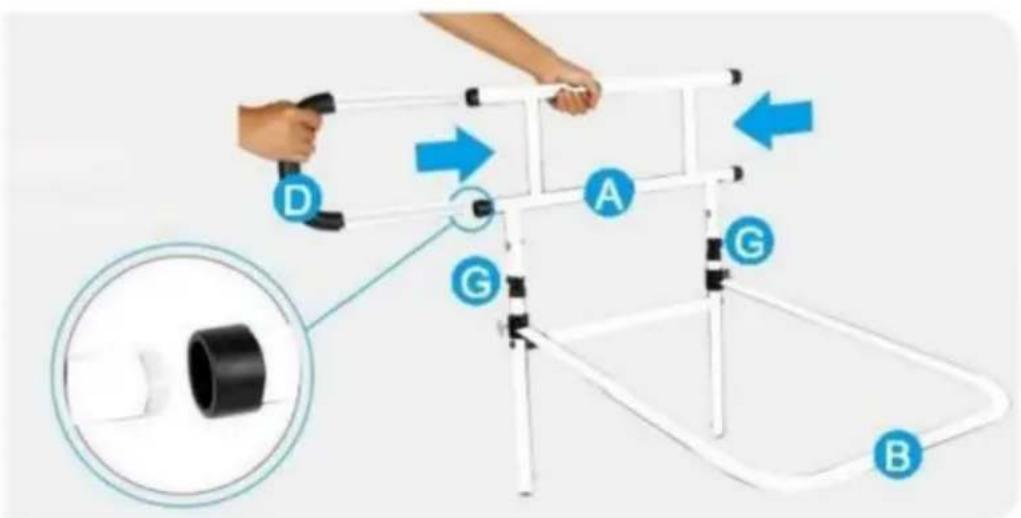

Take out the U-shaped handrail tube and insert it on both sides.

A B C D G G

STP6:

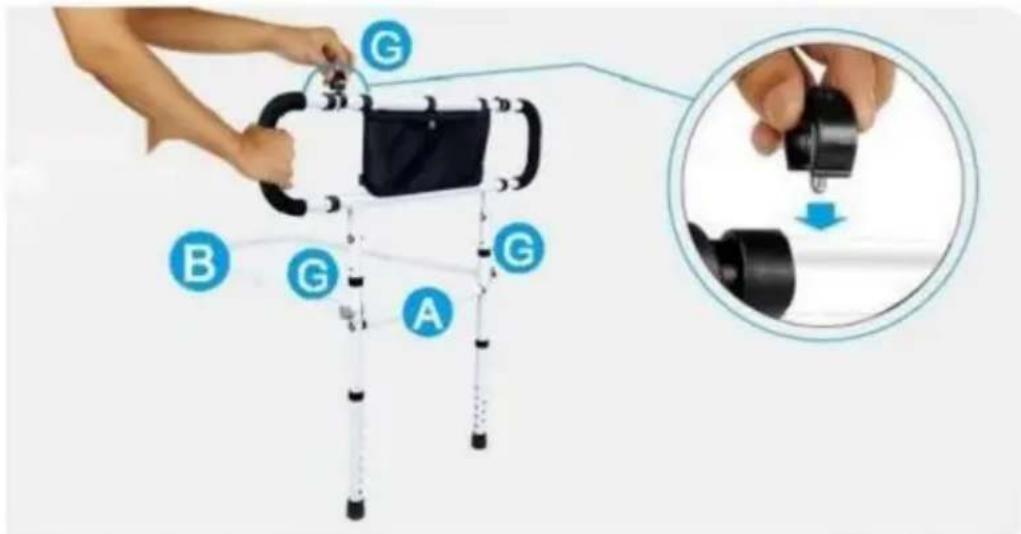

Insert C-shaped buckles on both sides to fix.

G B G G A

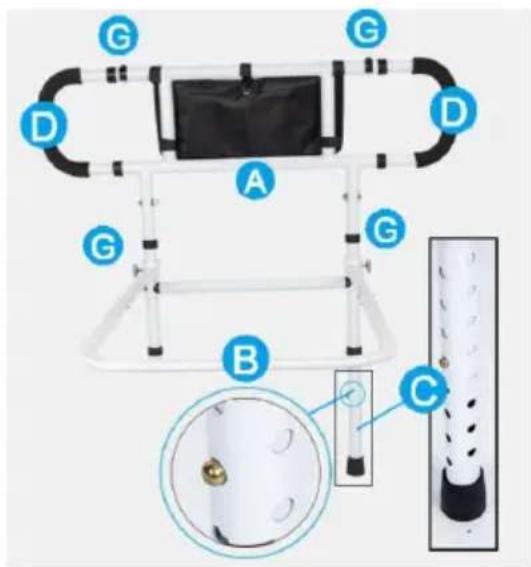

STP7:

Install-shaped tube on both sides

G D A G G B C

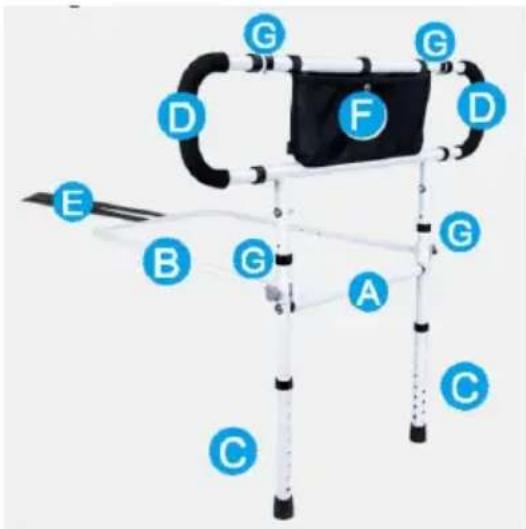

STP8:

Finally, install the storage bag on the product

G D F D E B G A C C

TIP:

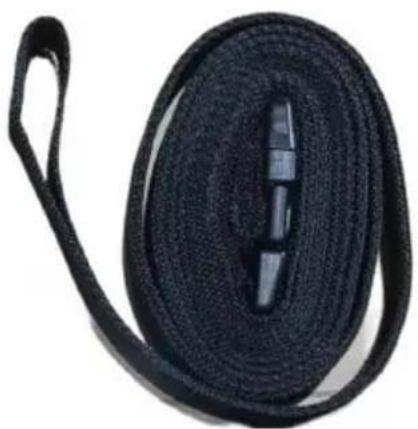

With a fixed tape for the user to secure fixation (You can choose to use it or not it.)

Black rubber strap with a loop handle, shown in side profile (no text or symbols visible)
