USER MANUAL HT-811E Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL SANDWICH PANINI PRESS GRILL

MODEL: HT-811 / HT-811A / HT-811E / HT-812 HT-813/ HT-813A / HT-813E

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMMERCIAL SANDWICH

PANINI PRESS GRILI

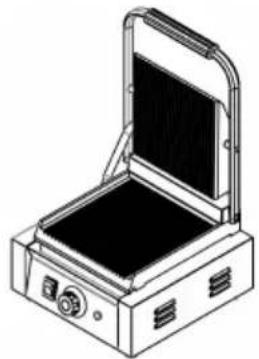

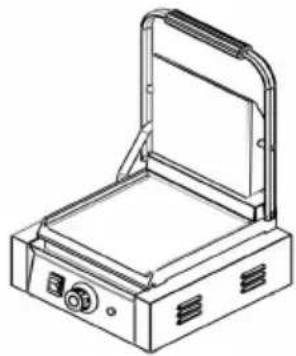

MODEL: HT-811 MODEL: HT-811A MODEL: HT-811E MODEL: HT-812

Line drawing of a portable electronic device with open lid and control panel (no text or symbols)

Line drawing of a portable electronic device with a black panel and open lid (no text or symbols)

Line drawing of a portable flat-screen grating device with open lid and control panel (no text or symbols)

Line drawing of a rectangular electronic device with an open lid and control panel (no text or symbols)

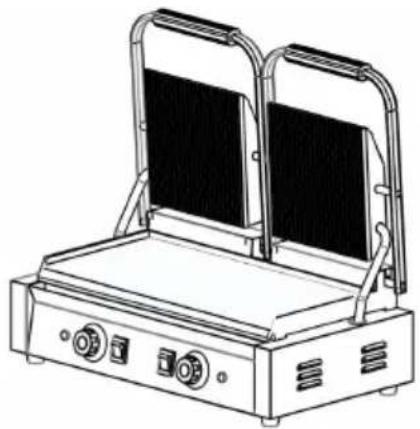

MODEL: HT-813 MODEL: HT-813A MODEL: HT-813E

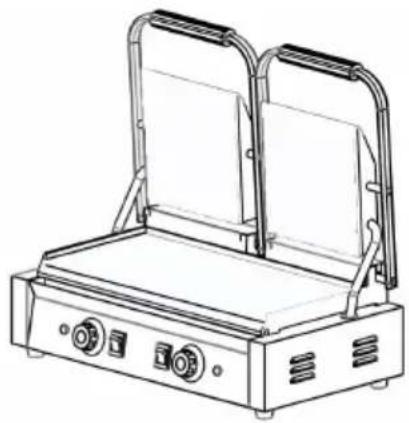

Line drawing of a two-glass grating machine with two side panels and control knobs (no text or symbols)

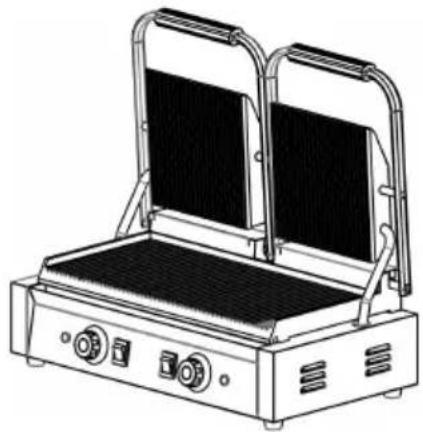

Line drawing of a two-glass grating appliance with side panels and control knobs (no text or symbols)

Line drawing of a two-glass grating machine with side panels and control buttons (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to

us: Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully operating. VEVOR reserves a clear interpretation of our user manual. The app the product shall be subject to the product you received. Please forgive us inform you again if there are any technology or software updates on our

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Indoor use only.
	Pay attention to high temperatures to prevent burns.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices
	Compliance is a EC & UK security certification.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please call a doctor.

Please read ALL the instructions before using your machine.

1. Make sure the voltage in your outlet is the same as the voltage indicated by appliance's rating label.
2. Do not let children and minors and pet get close to or touch the machir
3. Do not touch the hot surface directly with your hands. Always use the hat knob for operation.
4. To prevent electrical shock, do not immerse the cord or plug into water of liquids.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning. the appliance before installing or removing parts and before cleaning.
7. Cool down the HOT parts before operation and cleaning.
8. Do not operate the device with damaged cord or plug, malfunction or with mechanical damage. Send it to your nearest authorized service centre for examination and repair (ONLY technicians should open up the unit).
9. Using any accessories or attachments that are not provided or recommend by the manufacturer may cause injury.
10. If the machine is not to be used for a long period of time, unplug it, cover it and store it in a dry and safe place.
11. Do not leave the power cord hanging over the edge of table or counter come into contact with any hot surfaces.
12. Do not place the unit on or near hot air, electric burners or heaters. 13 switch off the power to the socket before plugging in or unplugging. Hold the instead of pulling on the cord.
13. Do not apply this unit to any other purposes than the indicated usage.
14. KEEP IT OUT OF CHILDREN'S REACH. Never leave it unattended while use.
15. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
16. Always check that this machine is plugged into a grounded outlet with the appropriate electrical supply. Ensure that the wall outlet being used is properly grounded. If not, you must install a grounded outlet. Have the work performed by a certified electrician who is properly qualified to meet local safety and el codes.
17. Ensure that the power outlet, plug and cord being used are in good work condition. Damaged components should be repaired by a certified electrician with is qualified to meet local safety and electrical codes. Even if your power core functioning properly, keep it away from water and avoid letting it run over car or heating devices.
18. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.
19. Do not move the machine before cooling and during heating
20. Do not operate the machine in an appliance garage or under a wall call. Always unplug the unit from the electrical outlet when storing in an appliance garage. Otherwise, it would cause a risk of fire, especially if the machine to the garage wall or the door touches it as it closes.
21. Type Y attachment: If the supply cord is damaged, it must be replaced

manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

1. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Inspect before every use.
3. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
4. Never leave it unattended while in use. Never leave the child unattended
5. Pet urine and feces can damage the product, please keep away.

⚠ WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

⚠ Warning: Pay attention to the template clamp when using and cleaning.

PRODUCT PARAMETERS

MODEL	Region	Voltage	Power	Plug Type
HT-811	North America	AC120V 60Hz	1800W	American PLUG
	Europe	AC220-240V 50Hz	3200W	European PLUG
HT-811A	North America	AC120 V 60H	1800W	American PLUG
	Europe	AC220-240V 50Hz	3200W	European PLUG
HT-811E	North America	AC120 V 60H	1800W	American PLUG
	Europe	AC220-240V 50Hz	3200W	European PLUG
HT-812	North America	AC120 V 60H	1800W	American PLUG
	Europe	AC220-240V 50Hz	3200W	European PLUG
HT-813	North America	AC120 V 60H	3600W	American PLUG
	Europe	AC220-240V 50Hz	3600W	European PLUG
HT-813A	North America	AC120 V 60H	3600W	American PLUG
	Europe	AC220-240V 50Hz	3600W	European PLUG
HT-813E	North America	AC120 V 60H	3600W	American PLUG
	Europe	AC220-240V 50Hz	3600W	European PLUG

Attention:

1. Please use an appropriate external power supply according to the pro voltage.
2. Do not exceed the maximum load specified in the product manual.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional material packaging materials, and check that the cooking plates are clean and free of If necessary, wipe them over with a damp cloth. Spread over with an absorb kitchen towel and wipe off any excess oil.

Note: When your appliance is heated for the first time, it may emit slight smoke or odor, which is normal for many heating appliances, and will not affect the safety of your appliance.

Warning: Please make sure the oil pan is installed correctly.

1. Place the machine on a clean, dry, level surface near a plug base outlet
2. Adjust the temperature knob to the lowest temperature position, check again whether the product and power cord are intact, and connect the plug to the
3. After plugging in the socket, you need to press the green button to turn power.
4. Adjust the temperature knob to the required temperature, the orange light turn on and the machine will start heating.
5. When the machine temperature reaches the set temperature, the orange lig goes out. You can start making food.
6. After finished, for safety, please turn the temperature knob counterclockwise the limit position and cut off the power.

Note: It works in this way repeatedly in order to make sure temperature is in a range. During the operation of the machine, the orange light will cycle off.

TIPS

1. Food surfaces should be kept dry to avoid oil and water splashing.
2. The oil drip tray can be used to collect the remaining oil or grease. It is emptied frequently to avoid overflow.

CLEANING AND MAINTENANCE

1. After use, turn the temperature knob to the lowest temperature, unplug, ar for the product to cool down.
2. Use a soft brush to clean the residue and oil on the mold surface.
3. For the exterior, wipe with a soft, dry cloth. dry cloth. Never use an abra cleanser or harsh pad.
4. Please clean regularly to avoid dirt.

Note: Do not use hard and sharp objects to clean the mold to avoid damaging the non-stick coating.

Notes: Before using it again, reassemble according to the instructions.

Warning: Do not use liquid to rinse the product directly to avoid water damage to internal components.

Warning: Pay attention to the mold drop grip when cleaning.

STORAGE

1. Always unplug the machine before storage.
2. Always ensure the machine is cleaned, cooled, and dried before the string
3. Before storage, place pearl cotton or oil-absorbing paper between the upper and lower molds to protect the non-stick coating.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

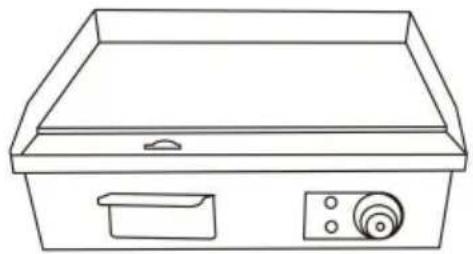

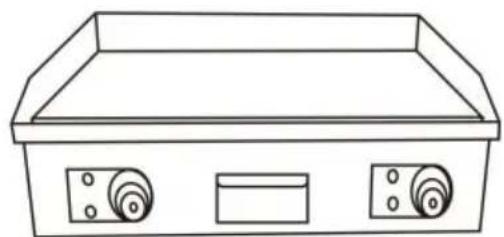

Line drawing of a rectangular appliance with lid and side panel (no text or symbols)

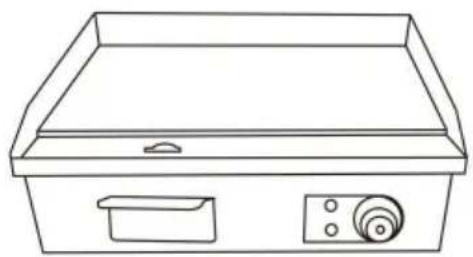

MODEL: HT-610 /HT-820

Line drawing of a rectangular kitchen appliance with a lid, drawer, and button (no text or symbols)

MODEL: HT-822

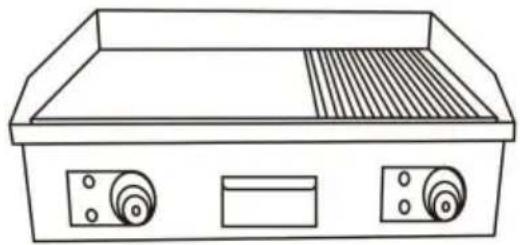

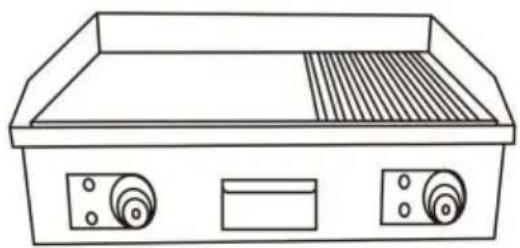

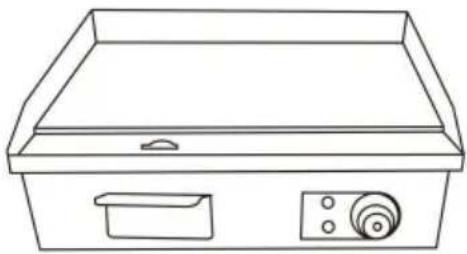

Line drawing of a rectangular box with two circular buttons on the front and top (no text or symbols)

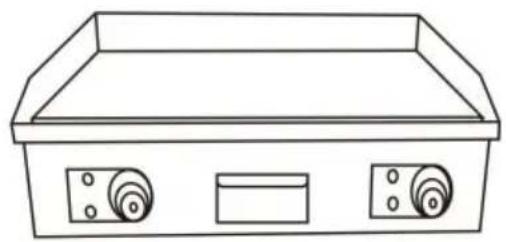

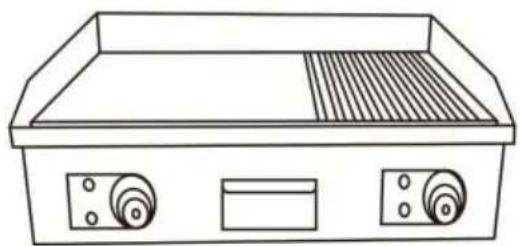

Line drawing of a rectangular appliance with two side outlets and a side panel (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

www.vevor.com/support

Cable from Power Supply Live Wire (L) Live Wire (L) Ground Wire (E) Neutral Wire (N) Junction Box Cable from Appliance

C/O YH Consulting Limited Biuro 147, Dom Centuriona, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

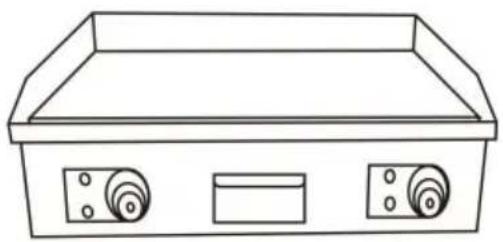

Line drawing of a rectangular appliance with a lid and button (no text or symbols)

MODELL: HT-610 / HT-820

Line drawing of a rectangular appliance with lid, side panel, and button (no text or symbols)

MODELL: HT-822

Line drawing of a rectangular box with two side compartments and circular cutouts (no text or symbols)

Line drawing of a rectangular kitchen appliance with side panels and ventilation slots (no text or symbols)

www.vevor.com/support

Cable from Power Supply Live Wire (L) Live Wire (L) Ground Wire (E) Neutral Wire (N) Junction Box Cable from Appliance

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

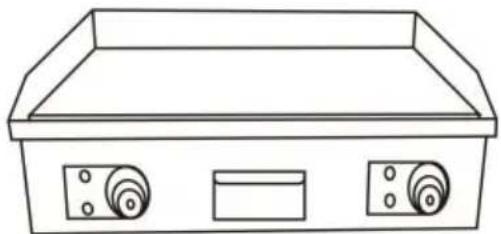

Line drawing of a rectangular appliance with lid and side panel (no text or symbols)

MODÈLE : HT-610 /HT-820

Line drawing of a rectangular appliance with lid, side panel, and button (no text or symbols)

MODÈLE : HT-822

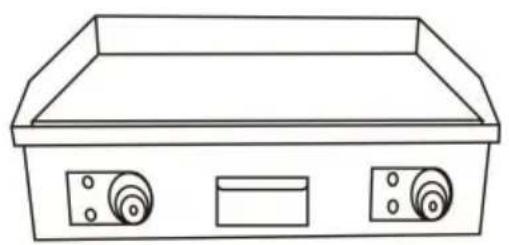

Line drawing of a rectangular box with two side compartments and circular cutouts (no text or symbols)
