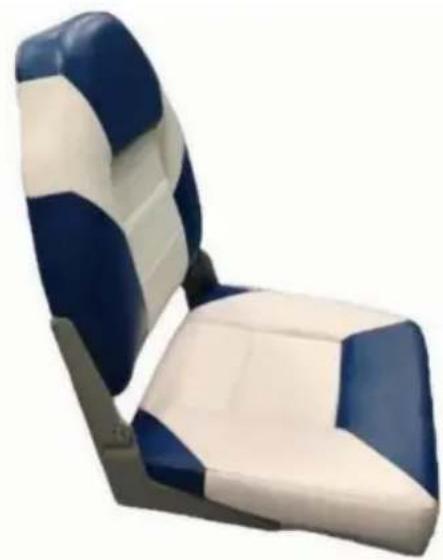

Blue and white patterned off-screen vehicle seat (no text or symbols visible)

Blue and white patterned off-screen vehicle seat (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.
  ● While assembling and using this product, keep work area clean and well lighted, and keep spectators and children out of the work area.
• Assemble only according to boat seat parameter. Improper assembly can create hazards.
• Use as intended only. Product capabilities apply to properly and completely assembled product only.
• Keep anyone not wearing the appropriate safety equipment away from the work area when assembly.
• Flammable: Keep away from open flame. This product will ignite and burn if brought into contact with an open flame.
• Keep away from sharp points, blades and other items, so as not to scratch the product.
  ● Control the boat seat, personal movement, and the work environment to avoid personal injury or damage to the tool.
• Do not operate any product when tired or under the influence of drugs, alcohol or medications.
• Do not overreach when operating the product. Proper balance enables better control in unexpected situations.
• Do NOT operate if any part is damaged or broken.
• Be careful not to trap fingers or hands in any of the moving parts when opening and closing the rolling boat seat.

SAVE THESE INSTRUCTIONS

PRODUCT CONFIGURATION

Model	AD75185	AD75186	AD75187C
Backrest Height (inch/mm)	21.5 / 550
Colour	Black and Red	Black and Grey	Camouflage

PARTS LIST

ITEM	Name	Picture	Q'TY	Remarks
1	Backrest		2PCS
2	Cushion		2PCS
3	Left Hinge		2PCS
4	Right Hinge		2PCS
5	1/4*35 Cross bolt		8PCS
6	6 Flat Washer		8PCS
7	ST6*25 Self-tapping Screws		16PCS	Pre-installed at the factory
8	1/4*35 Cross Bolt		4PCS
9	Manual		1PCS

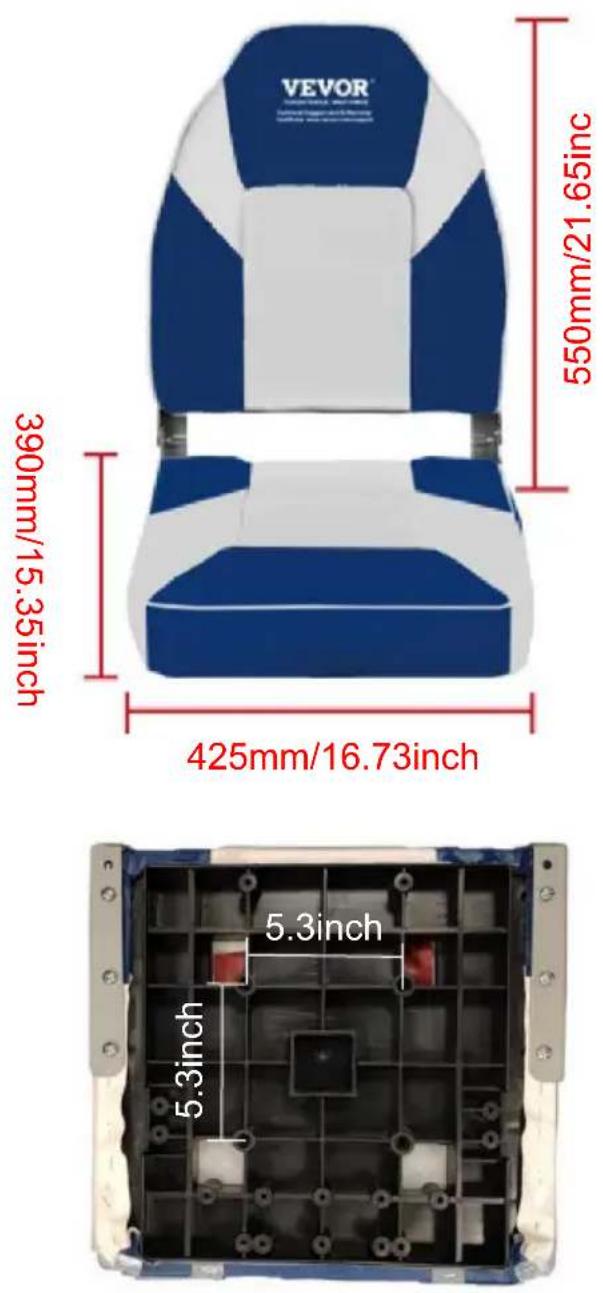

PRODUCT INTRODUCTION

Note: The marked size is manual measurement, there will be deviation, please refer to the actual.

VEVOR 390mm/15.35inch 425mm/16.73inch 550mm/21.65inch 5.3inch 5.3inch

ASSEMBLY INSTRUCTIONS

Notice: When tightening screws, it is recommended to use electric or pneumatic power tools to easily complete the installation.

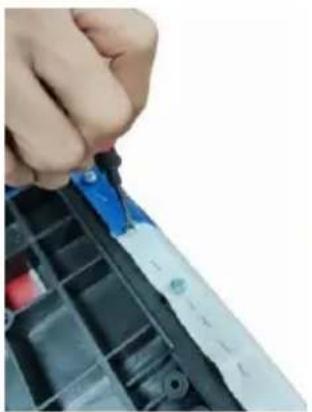

STEP 1:

20 bolts are pre installed before the product leaves the factory. Please remove these 20 bolts before installation and mark the position of the bolts before leaving the factory.

Close-up of a hand inserting a component into a battery pack (no visible text or symbols)

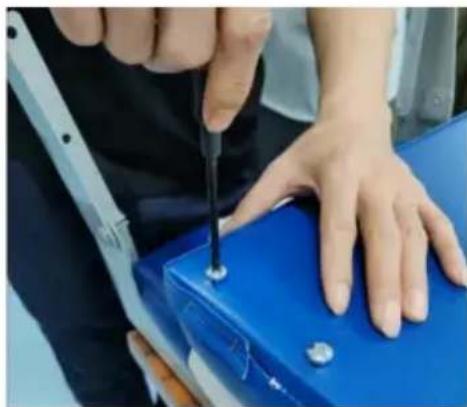

Close-up of hands using a screwdriver to adjust or install a blue plastic component (no visible text or symbols)

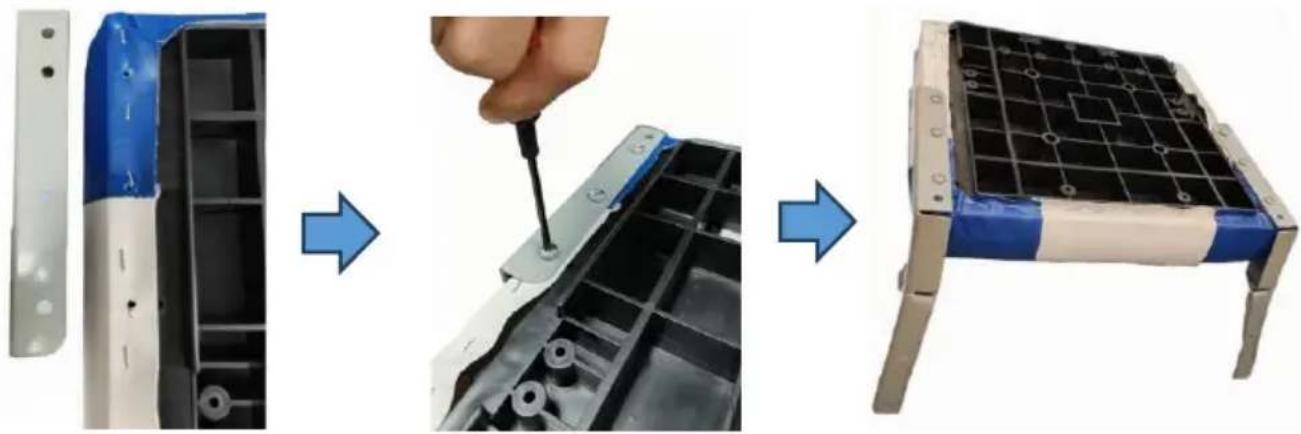

STEP 2:

Take out two hinges (two relatively symmetrical hinges should be taken), align the hinges on the seat cushion as shown in the diagram, and lock them with the original removed bolts.

Three-step assembly process showing metal frame installation, screwdriver tool, and solar panel assembly (no text or symbols)

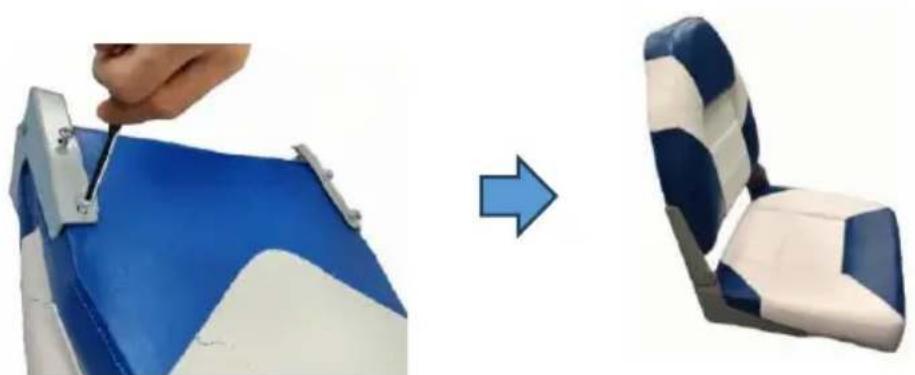

STEP 3:

Align the hinge on the backrest as shown in the diagram and lock it with the original removed bolts.

Two-step illustration showing a blue and white object being adjusted to form a 3D-printed car seat (no text or symbols)

USUALLY SUITABLE FOR THE FOLLOWING BASES

Black cylindrical mechanical component with mounting flanges and a red letter 'A' on the right side (no text or symbols on the component itself)

Metal mechanical component with flange and central hub, no visible text or symbols

Mechanical assembly component with a metallic base and mounting flange, labeled 'C' in red (no readable text or symbols on the component itself)

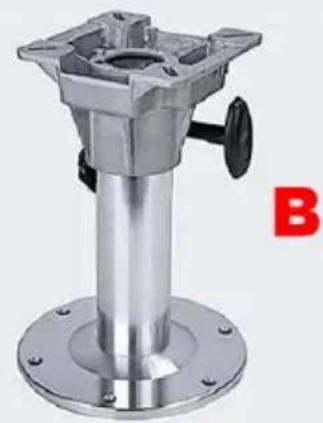

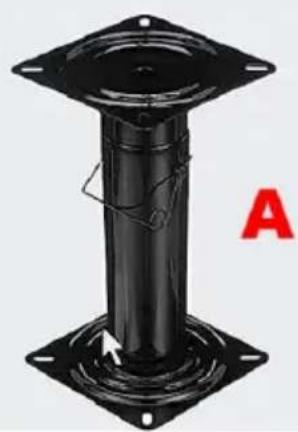

◆ A&B is a base with 5*5-inch holes.

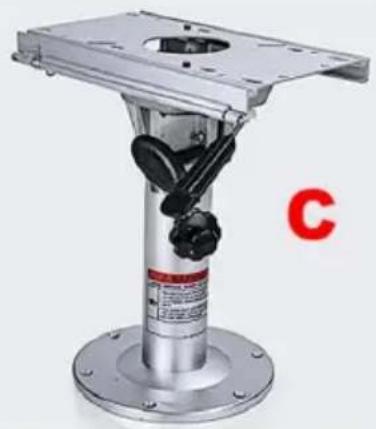

◆ C is a base with 5*12-inch holes.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
