QLDZ16 - Measuring equipment Vevor - Free user manual and instructions

Product Type	Mechanical Measuring Wheel
Brand	Vevor
Model	QLDZ16
Maximum Measuring Distance	9999.9 m
Measuring Accuracy	±0.5%
Minimum Display Value	0.1 m
Operating Temperature	-10 to 45 °C
Wheel Diameter	159 mm (6.3 in)
Measurement Unit	Meter (m)
Wheel Material	ABS plastic with TPR rubber coating
Rod Material	Telescopic aluminum alloy
Counter Type	Mechanical gear counter
Reset Button	Yes, resets the counter to zero
Handle	Non-slip with surface treatment
Telescopic	Yes, 2 levels of telescoping
Maintenance	Use in dry environment; do not expose to high temperatures; store in a dry place
Safety	Do not use as a children's toy
Technical Support	www.vevor.com/support

Frequently Asked Questions - QLDZ16 Vevor

How to measure a distance with the QLDZ16 measuring wheel?

Adjust the telescopic rod to the desired length, press the reset button to zero the counter, align the bottom of the wheel with the starting point, then push the wheel in a straight line to the end point. Read the value displayed on the counter.

How to reset the counter of the measuring wheel?

Press the reset button located on the counter to set the display to zero before each new measurement.

What is the measuring accuracy of the QLDZ16 wheel?

The accuracy is ±0.5% of the measured distance, with a minimum display value of 0.1 m.

Can the measuring wheel be used on uneven terrain?

It is recommended to measure on a flat and straight surface to ensure accuracy. Uneven surfaces may reduce accuracy.

How to adjust the telescopic rod of the wheel?

Hold the lower end of the rod and turn the adjustment rod counterclockwise to unlock. Adjust to the desired length, then tighten clockwise to lock. The rod offers two levels of telescoping.

What is the recommended operating temperature?

The appropriate operating temperature is between -10 °C and 45 °C. Avoid using or storing the device in high-temperature environments.

How to maintain the Vevor measuring wheel?

Use the device in a dry environment. Do not expose it to high temperatures. If you do not use it for a long time, store it in a dry and suitable place.

What to do if the counter does not display correctly?

Check that the counter is not jammed. Press the reset button to zero it. If the problem persists, contact technical support via www.vevor.com/support.

Is the device suitable for children?

No, this device is not a toy. Keep it out of reach of children to avoid injury.

Where to find technical support or warranty certificate?

Go to www.vevor.com/support to get technical support and the electronic warranty certificate.

USER MANUAL QLDZ16 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

MECHANICAL MEASURING WHEEL USER MANUAL

MODEL: QLDZ16

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

QLDZ16

Close-up of a metal measuring tool with orange and black components (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.

1.Product Introduction

Thank you for choosing our product , the mechanical measuring wheel is a suitable tool for long distance measurement , Widely used in professional surveying and mapping operations , road engineering , measurement and evaluation of pipeline laying works , wire and cable works , construction sur of garden scenery and golf course , measurement of distance location of tr accidents and the measurement of farmland construction management . It is worthy tool that adopts high-tech and humanized design , durable and convenient .

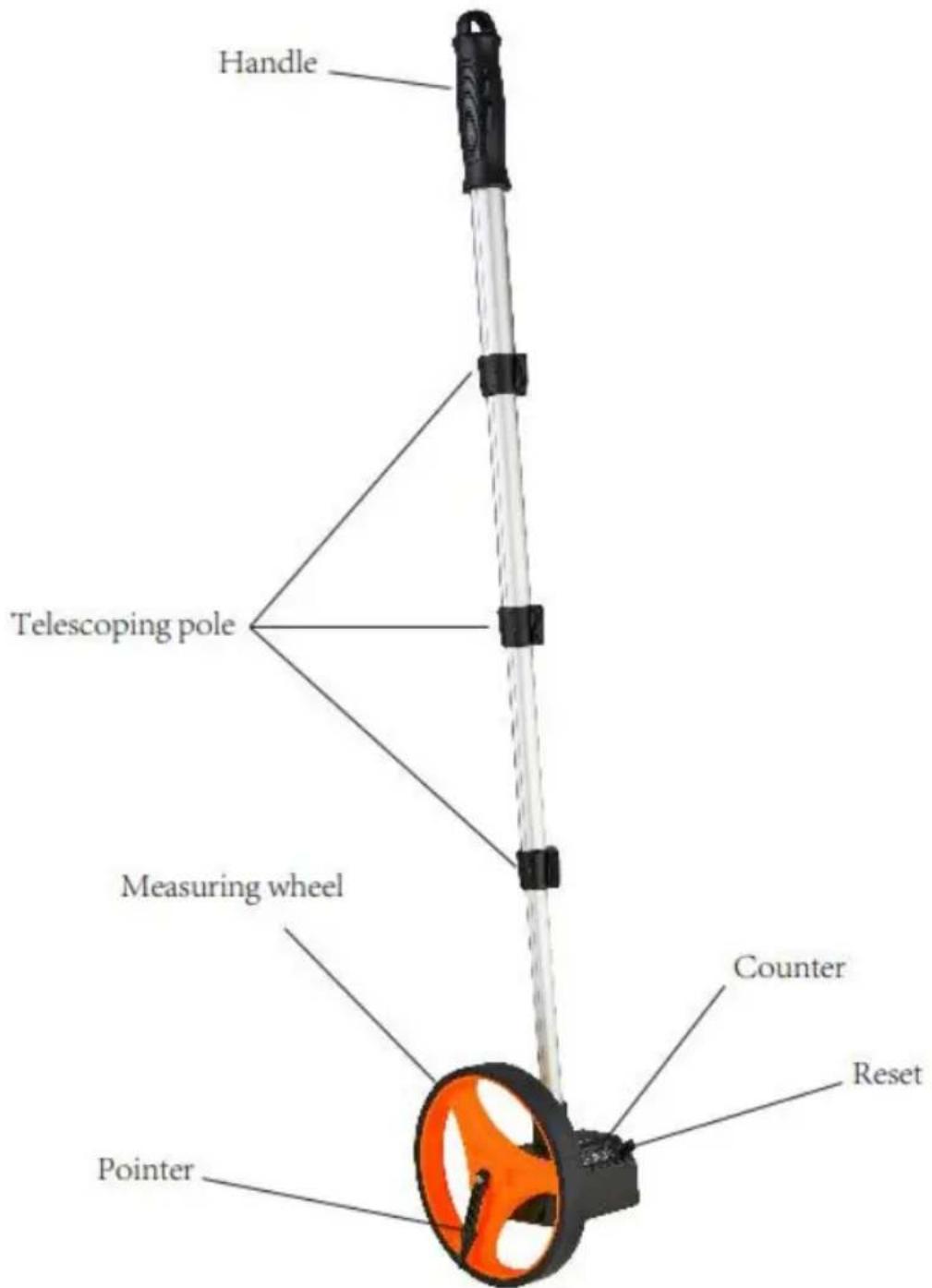

2.Parts

3.Technical Data

Maximum Measuring Distance : 9999.9 m

Measurement Accuracy : ±0 . 5%

Minimum Display Value : 0 . 1m

Suitable Use Temperature : -10°C-45°C

Wheel Diameter : 6.3 in / 159 mm

Measurement Unit : Meter ( m )

4.How to Use

1. Using the aluminum alloy telescopic rod: Hold the bottom end of the rod and twist the adjusting rod counter-clockwise; freely adjust the telescopic rod the appropriate length required; it can achieve 2 levels of telescopic it by tightening it clockwise, easy for storage.

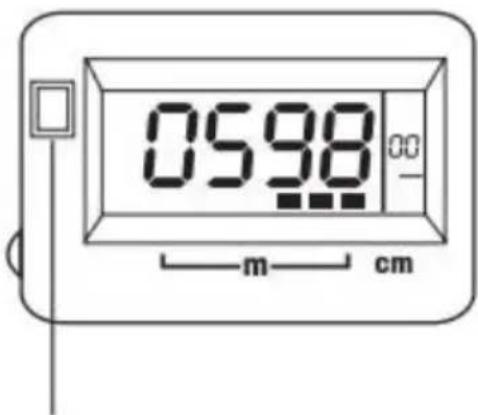

2. Use the reset button: Press the reset button to clear the counter.

3 . The steps to use : First, adjust the lifting rod to the proper length

Press the reset button; the counter is reset to zero.

The bottom of the wheel is aligned with the starting position. Hold the hand push the wheel forward, and the counter starts counting. When the bottom of the wheel reaches the end of the measurement, read the counter value.

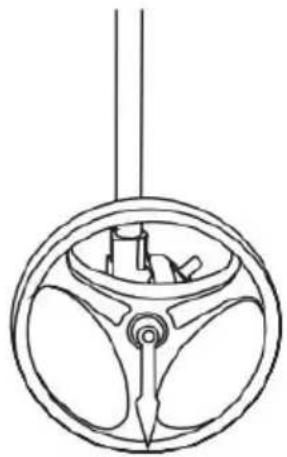

Press the reset button to reset the counter

The lowermost part of the wheel is aligned with the measurement starting

position , the handle is held to push the wheel forward , the counter startscounting until the lowermost part of the wheel reaches the measurementendpoint . The value of the counter is the result you measured.

Technical line drawing of a circular mechanical component with internal components and a vertical line (no text or symbols)

5. Product Characteristics

1. The wheels are made of new ABS engineering plastics and covered with TPR soft rubber, which is strong and durable.

2. The measuring rod is designed to rotate in two -stage lifting and contra which can be easily put into a backpack, and is easy to carry, light and convenient.

3. Finely machined gear counter, stable transmission and accurate measurement.

4 . Anti-skid design of handle , fine and beautiful surface treatment lines.

6. Precautions

1. If measuring a straight line, walk straight to ensure the accuracy of the measurement.

2. Do not measure uneven surfaces, which will reduce the accuracy of measurement.

3. Please use this product in a dry environment.

4. Do not measure in high temperature environment and do not store this instrument in high temperature place.

5. If you do not use this instrument for a long time, please put it in a suitable place for storage.

6 . Do not use the instrument as a child s toy to avoid injury.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
