Brand	Tognana
Model	Iridea D2DFA12IRVE
Product type	Oil-free Airfryer
Capacity	6 liters
Power	1700 W
Supply voltage	220-240 V~ 50-60 Hz
Dimensions (L x D x H)	38.5 x 29.7 x 28.9 cm
Net weight	5.4 kg
Temperature range	80 to 200 °C
Timer	1 to 60 minutes
Basket material	SPCC steel with Teflon coating, glass window
Cooking grid	SPCC steel with Teflon coating, silicone
Preset programs	Fries, Chicken thigh, Steaks, Fish, Cakes, Pizza, Vegetables, Custom, Defrost
Special functions	Preheat, Shake (SHAKE), Interior light, Automatic stop when door opens
Control type	Digital touch panel
Cleaning of basket and grid	Dishwasher washing at max 55 °C or by hand with non-abrasive sponge
Cleaning of exterior	Slightly damp soft cloth, do not immerse
Safety	Overheat protection, automatic shut-off, grounding required
Standby consumption	0.23 W
Warranty	2 years
Included accessories	Cooking grid, user manual, recipe book

Frequently Asked Questions - Iridea D2DFA12IRVE Tognana

How to use the preset programs?

Press the menu selection button (5) to choose a program. The default time and temperature are displayed. You can adjust them with the +/- buttons (16,17). Confirm with the Start button (8). The program starts, some with preheating.

Can I add oil to the fryer?

Do not add oil directly into the basket. For homemade fries, mix the food with a maximum of 1/2 tablespoon of oil before cooking. Excess oil may cause a fire hazard.

How to clean the basket and grid?

Wash the basket and grid with warm water and a mild detergent using a non-abrasive sponge. They can also be washed in the dishwasher at a maximum of 55 °C. Never use steel wool or abrasive products.

What to do if the appliance does not turn on?

Check that the plug is properly connected and that the cooking basket is inserted correctly. If the problem persists, the overheat protection may have been activated: turn off the appliance, let it cool completely, then turn it on again.

How to set the temperature and time manually?

Press the temperature/time selection button (7). The temperature flashes, use the -/+ buttons (16,17) to adjust in steps of 5 °C. Press (7) again to set the time from 1 to 60 minutes. Confirm with Start (8).

Why does white smoke come out of the appliance?

This is normal when cooking fatty foods. It does not affect the appliance or the result. If the smoke is excessive, clean the basket after each use to remove grease residues.

Can I use parchment paper or aluminum foil?

Yes, but use a sheet of appropriate size that does not touch the heating elements. Do not cover the entire grid to allow air circulation.

How to defrost frozen foods?

Select the Defrost program (18) by pressing this button. The time can be adjusted with the -/+ buttons (16,17). The temperature is fixed. Press Start (8) to start. Use the Start/Pause button to pause if necessary.

What is the maximum capacity of the fryer?

The capacity is 6 liters. Do not exceed the recommended quantity for each food, otherwise cooking will not be uniform. Refer to the quantity table in the manual.

How to activate the interior light?

Press the interior light button (19) to turn on the light and monitor cooking. The light also activates automatically when the door opens.

USER MANUAL Iridea D2DFA12IRVE Tognana

Cod. D2DFA12IRZU

Cod. D2DFA12IRCH

Cod. D2DFA12IRRO

Cod. D2DFA12IRVE

B

Bosnian

114

D

German

68

E

English

20

Spanish

52

F

French

35

H

Croatian

85

/

Italian

4

s

Serbian

129

Slovenian

100

Dear Customer,

Ingredients

- Potatoes

500 g

- Oil

2 teaspoons

- Salt

to taste

- Pepper

to taste

Ingredients

- Chicken wings

350 g

- Garlic

2 cloves

- Oil

2 teaspoons

- Salt

1 teaspoon

- Pepper

1 teaspoon

Ingredients

Ingredients

• Fresh sausage • Oil

250 g

1 teaspoon

Ingredients

- Fresh shrimp

300 g

• Oil

1 teaspoon

Semolina flour

to taste

Salt

to taste

Thank you for choosing our air fryer for cooking and heating food for home consumption. Tognana Porcellane S.p.A. declines any liability for any damage that may arise, directly or indirectly, for persons, things, and pets as a result of failure to comply with all the requirements indicated in the appropriate “Manual of Use” regarding the installation, use, and maintenance of the appliance.

SYMBOLS IN THE MANUAL/PRODUCT AND THEIR MEANING

	This symbol indicates that you need to read this manual carefully before use. Pay particular attention to safety guidance. Keep this manual as an integral part of the product.
	DANGER: the word indicates a potential imminent danger with a high level of risk that, if not avoided, has a high probability of causing serious injury or death.
	WARNING: the word indicates a potential hazard with an average level of risk that, if not avoided, has a high probability of causing serious injury or death.
	ATTENTION: the word indicates a potential hazard with a low level of risk that, if not avoided, could lead to minor or moderate injuries.
	this symbol indicates that the protection of the appliance is not based solely on the main insulation, but requires an additional safety measure.
	ATTENTION – HOT SURFACE!: The symbol indicates that the surface temperature of the area of application can reach become dangerously high and for this reason direct contact with the skin and heat sensitive fabrics/materials should be avoided.
	IMPORTANT NOTICE: the words indicate useful information for the correct use of the product.
	This symbol on the product or packaging indicates that the appliance at the end of its useful life must be collected separately from other waste for proper treatment and recycling.
	This symbol indicates that the appliance complies with the safety requirements laid down in EU regulations/directives.
	This symbol indicates that the materials and objects in contact with food (MOCA) are suitable for food contact.

IMPORTANT NOTES ON CORRECT USE

1. This appliance is intended exclusively for cooking and heating food for domestic consumption.
2. This appliance is intended for domestic use and similar applications, such as:

*Kitchen areas of shop staff; *Agrotourism; *Customers of hotels, guesthouses, and other residential environments; *Rooms like bed and breakfast.

1. This product is not a toy.
2. Do not leave parts of the packaging (plastic bags, polystyrene foam, etc.) within reach of children or dependent persons, as these objects are potential sources of danger (e.g., risk of suffocation).
3. Use the product for the sole purpose for which it was designed. The manufacturer is not liable for damage or injury caused by improper use.
4. Unauthorized repairs or modifications will invalidate the warranty.
5. Do not use outdoors.
6. Never leave the turned on appliance unattended.
7. Do not place on or near a gas or electric stove, or in a hot oven.
8. Before use, place the appliance on a solid, flat, horizontal and non-flammable surface.
9. To turn off the appliance manually, press the shutdown button.
10. Do not soak the appliance in water or rinse it under the tap, as it contains electronic components and heating elements.
11. Use only original or manufacturer-recommended spare parts and accessories.

DANGER

PRODUCT

1. Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds to the voltage available in your home. Connect the appliance to a power outlet equipped with efficient grounding. The manufacturer cannot be held responsible for any

accidents caused by the lack of grounding of the system.

1. The appliance may be used by children of at least 8 years of age and by persons with reduced physical, sensory or mental abilities, or without experience or knowledge, provided that they are supervised or have received instructions on the safe use of the appliance and the understanding of the hazards inherent thereto. Children should not play with the appliance. Cleaning and maintenance intended to be carried out by the user shall not be carried out by children without supervision.
2. Supervise the children so that they do not play with the appliance.
3. Do not insert metal objects into the slots of the appliance.
4. Do not cover the air inlet and outlet when the appliance is in operation or when it is connected to the power outlet.
5. Do not place the product against the wall or other objects: the back of the product, the middle side and the upper side of the product must have a free space of at least 10 cm. Do not place objects on top of the product.
6. Do not add oil to the air fryer as this may cause a fire hazard.
7. To avoid short circuits, do not put bulky food that can touch the resistors in the oven. In addition, do not put food wrapped in aluminium or metal tools in the oven.
8. Disconnect the appliance from the socket when moving and not in use.
9. Let the appliance cool about 30 minutes before cleaning.
10. Remove any burnt food residues.
11. Incorrect use of the product can cause damage or injury.
12. In order to avoid electric shocks, do not immerse the body of the product in water or other liquids.
13. This product does not contain repairable parts. Don't try to fix it yourself. Have maintenance performed by a qualified service centre using only identical spare parts. This will ensure that the safety of the product is maintained.
14. Do not use the appliance at high temperatures, in very humid or wet environments or in the vicinity of flammable material (curtains, tablecloths, etc.).
15. Do not use if the appliance has fallen or has been damaged in any way. Do not attempt repairs yourself. Contact your dealer for repair/replacement, if under warranty, or customer support.
16. If the product emits black smoke, disconnect the power supply

immediately. Wait until the product has stopped emitting smoke before you remove the basket from the fryer.

DANGER OF SCALDING!

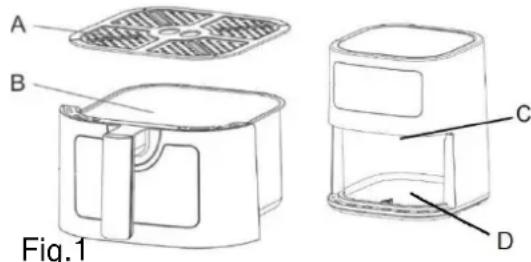

1. Do not touch the hot parts of the appliance to avoid burns (See A, B, C, D on Fig. 1). Use handles, tongs or suitable protective equipment to remove food from the basket.

1. This appliance can release heat, steam or condensation during and after operation. Hands and face should be kept safe from steam and air intakes. Also pay attention to hot steam and heat when removing accessories to prevent the risk of burns, scalds or other injuries, as well as property damage.
2. When the appliance is in operation and for a few minutes after the end of operation, the temperature of the outside surface and air outlet can be very high. Do not touch or move the appliance to avoid danger of burns.
3. For the air fryer you can use baking paper or aluminum/tin film of suitable size. Do not use too large sheets to prevent them from touching the heating elements during operation.

CABLE AND PLUG

1. The power cord must be connected to an AC electrical outlet (standard household current). Do not use other electrical outlets.
2. In case of incompatibility between the socket and the plug of the appliance, have the socket replaced by another suitable type by qualified personnel. The use of adapters, multiple sockets, and/or extensions is not recommended. Should their use be necessary, use only simple or multiple adapters and extensions complying with the current safety standards, taking care not to exceed the power limit marked on the adapter and/or extension.
3. Do not use the power cord if damaged.
4. Use only the power cord supplied in the package.
5. In order to avoid electric shock, do not immerse the power cord in water or other liquids.
6. The power cord should be used in a dry and clean place. Use in wet or dirty environments may lead to risks of fire, electric shock or electrocution.
7. Do not touch the cable or power plug with wet hands.
8. Do not let the cable dangle or fall down from a countertop.
9. Be careful not to pull or trip over the power cord. Keep the cable away from sources of heat, hot objects or open flames.
10. Disconnect the cable from the power outlet before cleaning and when the appliance is not in use. To disconnect, turn off the appliance, then remove the plug from the wall outlet. Don't pull the cable but grab the plug.
11. Always connect the plug to the appliance first, then connect the cable to the wall outlet. Make sure the cable is fully extended.
12. The cable should not be twisted or wrapped around the appliance.
13. Do not use the appliance if the power cord is damaged. Do not attempt repairs yourself. Contact your dealer for repair/replacement, if under warranty, or customer support.
14. Do not use extension cables or timer devices.

CONFORMITY OF THE PRODUCT

The manufacturer Tognana Porcellane S.p.A. declares that the product Air fryer 6L Mod. Iridea complies with Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The manufacturer Tognana Porcellane S.p.A. declares that the product Air fryer 6L Mod. Iridea complies with Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment intended for use within certain voltage limits.

The manufacturer Tognana Porcellane S.p.A. declares that the product Air fryer 6L Mod. Iridea complies with Directive 2009/125/EU of the European Parliament and of the Council of 21 October 2009 on the establishment of a framework for the development of specifications for the ecodesign of energy-related products

The manufacturer Tognana Porcellane S.p.A. declares that the product Air fryer 6L Mod. Iridea complies with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 and subsequent Commission Delegated Directive 2015/863 on restriction the use of certain hazardous substances in electrical and electronic equipment.

TECHNICAL DATA

• Power: 1700 W - Capacity: 6L - Input voltage: 220-240 Vac ~ 50–60 Hz • Dimensions: 38.5 x 29.7 x 28.9 cm - Net weight: 5.4 kg

ENERGY CONSUMPTION

Product information for energy consumption and maximum time to reach the applicable low power mode.

Standby mode	0.23 W
Maximum time required for the appliance to automatically reach the applicable low power mode or condition.	0 minutes

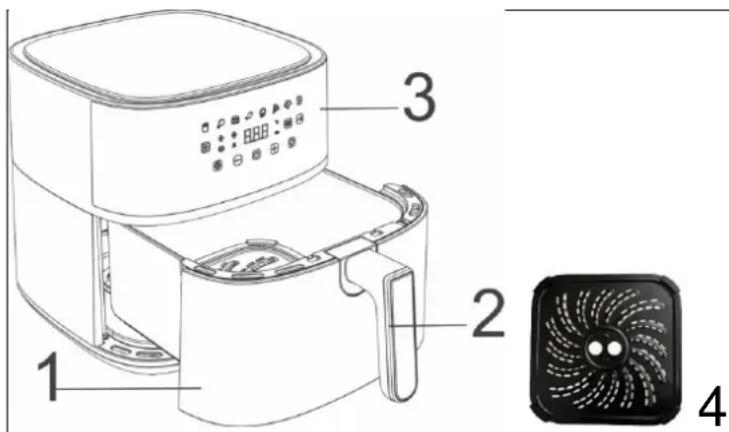

COMPONENTS

1. SPCC steel basket with Teflon coating, glass window, SUS304 steel screws, silicone
2. Basket handle
3. Digital touch control panel
4. SPCC steel cooking grid with Teflon coating, silicone

BEFORE FIRST USE

1. Remove the different components from the packaging, check that they are complete and intact, carefully remove any protections and labels. The package contains:
2. No. 1 Air fryer • No. 1 Cooking grill • No. 1 User Manual
3. Make sure that all parts are assembled correctly and in place before use.
4. If you are using the fryer for the first time, it is recommended that you wash all removable parts that will come into contact with food following the instructions in the section "CLEANING AND MAINTENANCE".
5. Operate the empty appliance at 200 °C without food for 10 - 15 minutes. The appliance may emit smoke and odours due to the residues of the manufacturing process. This is normal and does not indicate any defect or danger.

DISPLAY BUTTONS DESCRIPTION

1. Pre-set menu selection button
2. On/Off button
3. Temperature/time selection button
4. Start/pause button
5. Shake function indicator "SHAKE"
6. Preheating function indicator "PRE-H"
7. Pre-set menus
8. Fan indicator
9. Heating element indicator
10. Set temperature indicator (°C)
11. Set time indicator (min)
12. Temperature/time adjustment button (-)
13. Temperature/time adjustment button (+)
14. Defrost button
15. Internal light on/off button

5 Pre-set menu selection button

Select the desired menu by pressing this button; the indicator for the selected program will flash, and the display will show the default time and temperature. These values can be changed by pressing the temperature and time adjust buttons (16-17). Confirm the program by pressing the start button.

6 On/off button

Once the appliance is plugged into the power outlet, the indicator light for the power on/off button will illuminate. Press the button, and the entire control panel will light up.

7 Temperature/time selection button

This button allows you to adjust the cooking temperature or time.

Press the button once, the display will indicate the preset temperature. Press the -/+ buttons (16,17) to adjust the desired temperature in 5°C intervals. Press the button again, the display will show the preset time.

Press the -/+ buttons (16,17) to adjust the desired cooking time per minute, from 1 to 60 minutes in all modes.

You can change the default time and temperature of the menu by pressing and holding the temperature/time adjustment button for about 5 seconds until you hear three beeps. The new settings will replace the original ones and will be saved accordingly.

8 Start/Pause button

Confirm the setting by pressing this button, and the appliance will start operating. Press this button again to pause the function during the cooking cycle.

18 Defrost button

Confirm the setting by pressing this button, and the appliance will start operating. To pause the function during the defrost cycle, press the Start/Pause button.

You can adjust the time by pressing the -/+ buttons (16,17), while the temperature is fixed.

19 Internal light

Pressing this button allows you to monitor the cooking progress while the appliance is in operation. Opening the door during the cooking process will pause the appliance. The internal light activates when the door is opened.

INSTRUCTIONS FOR USE

1. Place the appliance on a flat, stable, heat-resistant, and dry surface.
2. Insert the power plug into a grounded wall outlet; an audible signal will be emitted, indicating that the air fryer-oven is in standby mode, and the display will show the power on/off button indicator (6).
3. Take out the basket and insert the grill properly.
4. Place food in the basket.
5. Insert the basket properly into its compartment.
6. Press the on/off button (6) ⏻, and the preset temperature and time will be displayed on the screen.
7. At this point, you can manually adjust the time and temperature using the time and temperature adjustment buttons -/+ (16,17) or select one of the menu functions by pressing the pre-set menu selection button (5).
8. Press the start button (8) to start cooking.
9. Some cooking programs start with a preheating phase of about 3 minutes. During the preheating

phase, the indicator light (10), the fan indicator (12) and the heating element indicator (13) will light up. At the end of the preheating cycle, the appliance will emit 3 beeps to indicate the start of the cooking cycle.

1. Shaking indicator (9) SHAKE: The shake indicator is signaled by an audible sound during the cooking cycle of certain programs (refer to the "pre-set menu" table). This function allows you to shake the food inside, ensuring more even cooking. Note: If you do not open the door and shake the food, the SHAKE light on the control panel will continue to flash. Once the door is opened, the shake indicator (SHAKE) will stop flashing.
2. At the end of the cooking cycle, an audible signal will be emitted, and "END" will be displayed on the screen.

PRESET MENU TABLE

Menu		Suggested weight (g)	Set time (min)	Set temperature (°C)	Adjustable temperature	Shake function active	Pre-heating
1.	French Fries	500	18	200	80-200	YES	YES
2.	Chicken thighs	700	20	200	80-200	YES	YES
3.	Steaks	300	12	180	80-200	YES	YES
4.	Fish	500	18	190	80-200	YES	YES
5.	Cakes	500	35	150	80-200	N/A	N/A
6.	PIZZA	200	8	180	80-200	N/A	YES
7.	Vegetables	300	10	120	80-120	YES	YES
8.	Custom		15	180	80-200	YES	YES
9.	Defrost		15	60	N/A	N/A	N/A

The table "Preset menu" is suggestive; the cooking time and temperature depend on the type of food and its consistency. Therefore, the pre-set values are to be understood only as a reference.

NOTES:

• We advise you never to use the basket without the grill in it.
• Avoid overturning the basket with the tray still inserted, as any excess oil accumulated at the bottom of the basket may drip onto the ingredients.
• The temperature adjustment range is between 80 and 200°C.
• The time adjustment range is between 1 and 60 minutes.
• The appliance automatically shuts off when the door is opened. Once the door is closed, the appliance restarts and continues the cooking process.
• During use, steam may escape from the appliance. This is normal and does not indicate any defect or danger.
• At the end of cooking, the motor may continue to run for about 1 minute, then the appliance will start to cool down and enter standby mode.
• The cooking time in the air fryer is different from that of a traditional oven.
• Smaller foods and smaller quantities of food require only slightly shorter preparation times than larger ones.
• For optimal results, it is recommended to use pre-cooked French fries (the ideal quantity is 500g). If you want to prepare homemade French fries, follow the steps outlined in the recipe book.
• Do not prepare very fatty food in the appliance. • To bake a cake/quiche or fry delicate or filled foods, place a baking tray or dish in the basket.
• If the food is not yet ready, simply reinsert the basket into the appliance and cook for a few more minutes.

USEFUL SUGGESTIONS:

• During use, you can adjust the cooking time and temperature at any time.
• It may be necessary to check and shake some foods during the cooking cycle. Shaking small-sized foods optimizes the final result and prevents uneven cooking. Remove the basket from the main unit and shake it lightly. Reinsert the basket into the main unit to continue the cooking process.

ATTENTION: The basket/grill can be very hot. We recommend you always hold the basket by its handle.

COOKING TIPS

Food	Quantity (gr) min-max	Cooking time (min)	Temperature (°C)	Shake	Notes
Potatoes and fries
Thin frozen fries	300-700	9-16	200	yes
Thick frozen fries	300-700	11-20	200	yes
Homemade French fries (8x8 mm)	300-800	10-16	200	yes	Add 1/2 tablespoon of oil
Homemade potato wedges	300-800	18-22	180	yes	Add 1/2 tablespoon of oil
Homemade potato cubes	300-750	15-18	180	yes	Add 1/2 tablespoon of oil
Potato gratin	500	15-18	200	yes
Meat and poultry
Steak	100-500	8-12	180	yes
Pork ribs	100-500	10-14	180	yes
Hamburger	100-500	7-14	180	yes
Sausage	100-500	13-15	200	yes
Chicken nuggets	100-500	18-22	180	yes
Chicken breast	100-500	10-15	180	yes
Bacon	100-500	10-12	180	yes
Snacks
Spring rolls	100-400	8-10	200	-
Frozen chicken nuggets	100-500	6-10	200	yes
Frozen fish sticks	100-400	6-10	200	-
Frozen cheese snacks	100-400	8-10	180	-
Stuffed vegetables	100-400	1-10	160	-
Cakes
Cakes	300	20-25	160	-	Use a baking trey
Quiche	400	20-22	180	-	Use a baking trey
Muffins	300	15-18	200	-	Use a baking trey
Sweet snacks	400	1-20	160	-	Use a baking trey

Notes:

• Cooking time and temperature depend on the type of food and its consistency. Therefore, the values indicated are only to be considered as reference.
• Add a maximum of 1/2 tablespoon of oil. Exceeding quantities may compromise the integrity of the appliance.

CLEANING AND MAINTENANCE

Before proceeding with the cleaning, always disconnect the plate from the power outlet and let it cool completely.

Remove the cooking basket to expedite cooling of the appliance.

The appliance should be cleaned immediately after each use.

1. CLEANING

Cleaning the outside of the air fryer oven

Clean the outside of the oven with a soft cloth or a slightly moistened sponge and dry with a cloth.

DANGER! DO NOT PUT IN THE DISHWASHER OR SOAK IN AIDS.

Clean the basket and the cooking grill

Clean the basket and cooking grill by using warm water, mild dish detergent, and a non-abrasive sponge. Otherwise, the non-stick coating will be damaged.

The grill and basket are dishwasher safe at temperatures not exceeding 55°C.

IMPORTANT NOTE: Do not use chemical detergents, steel wool or abrasive cleaners for cleaning.

Cleaning the heating element

Clean with a brush to remove any food residues.

2. STORING

Allow the appliance to cool completely before storing it or wrapping the supply cable around it.

Check that there are no food residues inside the appliance.

Make sure all parts are clean and dry before storing them.

Never store the appliance when it is still wet.

It is recommended to store the appliance in a dry place, clean and away from moisture and dust.

TROUBLESHOOTING

Problem	Possible cause	Solution
The appliance is not working	The plug has not been inserted correctly	Connect the plug into the power outlet
	The cooking basket has not been inserted	Insert the cooking basket properly
	The cooking time and temperature were not selected	Set the time and the desired cooking temperature
	Protection against overheating has been activated	Turn off the appliance and wait for it to cool completely before turning it back on
The food is not well cooked	The amount of food is excessive	Reduce the amount of food
	The temperature set is too low	Set a higher temperature
	The cooking time set is too short	Set a longer cooking time
The food is not cooked evenly	The food should be shaken halfway through the cooking process	Shake the food and check if it is done
The snacks are not crispy	Ensure that snacks suitable for air frying have been used	Use oven-ready snacks or brush some oil on the snacks
The cooking basket does	Too much food in the basket	Do not overfill the basket
not fit correctly in the main unit
From the appliance white smoke comes out and the outside of the appliance is warmer than usual	Greasy foods are being cooked.	Normal phenomenon that does not affect the appliance or the result of cooking
	The cooking basket contains grease from previous cooking	Clean the container after each use
Fresh fries are unevenly cooked or are not crispy	The potato sticks were not rinsed and dried properly before cooking	Rinse the potato sticks well to remove starch and dry thoroughly
	The potato sticks are too large	Cut the sticks into smaller pieces
	Insufficient oil	Add a bit more oil
The problem is not solved		Contact an authorized service center

COOKBOOK

1. French fries with fresh potatoes

Ingredients:

- Potatoes

500 g

- Oil

2 teaspoons

- Salt

to taste

- Pepper

to taste

a. Peel the potatoes and cut them into sticks.

b. Soak the potato sticks in salted water for at least 20 minutes and boil for 2 minutes, then dry the sticks with kitchen paper.

c. Pour 1/2 tablespoon olive oil into a bowl, pour in the sticks and stir until they are coated with oil.

d. Remove the sticks from the bowl with your fingers or a kitchen utensil so that excess oil remains in the bowl.

e. Arrange the potato sticks evenly on the grill inside the basket, insert the basket into the appliance, and set the 'French fries' program, or adjust the time and temperature according to the size and quantity of the fries, or until they become golden brown.

f. At the end of cooking, place the potatoes in a bowl, add salt and pepper to taste, and serve.

TIP: for better results, shake the basket with the fries halfway through cooking.

2. Fried chicken wings

Ingredients:

- Chicken wings

350 g

- Garlic

2 cloves

- Oil

2 teaspoons

- Salt

1 teaspoon

- Pepper

1 teaspoon

a. Mix the wings with oil, garlic, salt, and pepper, and let marinate for 20 minutes. b. Arrange the chicken wings evenly in the cooking basket on the grill inside the basket, insert the basket into the appliance, and set the 'Chicken Thighs' program

or set the time and temperature according to the size and quantity of the wings or until the wings become golden brown.

c. At the end of cooking, place the wings in a bowl and serve.

TIP: for best results, shake the basket with the wings halfway through cooking.

3. Beef steak

Ingredients:

- Beef steak

350 g

- Garlic powder

1 teaspoon

• Oil

2 teaspoons

- Salt

1/2 teaspoon

- Pepper

1 teaspoon

- Soy sauce

to taste

a. Mix the steak with oil, garlic, soy sauce, salt, and pepper, and let marinate for 20 minutes.

b. Place the steak on the grill inside the basket, insert the basket into the appliance, and set the "Steaks" program or adjust the time and temperature according to the size and quantity of the steaks until they become golden brown.

c. Halfway through cooking, turn the steak, reduce the temperature to 150°C, and cook for another

4 minutes or until golden brown.

TIP: for best results, flip the steak halfway through cooking.

4. Grilled sausage

Ingredients:

- Fresh sausage

250 g

• Oil

1 teaspoon

a. Mix the sausages with the oil.

b. Arrange the sausages evenly on the grill inside the basket, insert the basket into the appliance, and set the program to "Sausages" or adjust the time and temperature according to the size and quantity of sausages until they become golden brown.

c. At the end of cooking, place the sausages in a bowl and serve.

TIP: for best results, shake the basket with the sausages halfway through cooking.

5. Fried shrimps

Ingredients:

• Fresh shrimps
• Oil
• Semolina flour
• Salt

300 g

1 teaspoon

as needed

as needed

a. Clean the shrimps, wash them and dry them very well with paper towels. b. Take a bowl and put the shrimps into the bowl. c. Season with a little oil and coat with semolina flour. d. Sprinkle some oil over the shrimps. e. Arrange the shrimp evenly on the grill inside the basket, place the basket in the appliance, and set the "Fish" program or adjust the time and temperature according to the size and quantity of the shrimp, or until they become golden brown. f. At the end of cooking, place the shrimps in a bowl, add salt, and serve.

TIP: for best results, shake the shrimps halfway through the cooking process.

INFORMATION ON THE DISPOSAL OF THE PRODUCT

PRODUCT

Pursuant to art. 26 of Legislative Decree No. 49 of 14 March 2014 “Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”, the presence of the wheeled bin symbol indicates that this product is not to be considered urban waste: Non-separate disposal can be a potential harm to the environment and health. This product may be returned to the distributor upon purchase of a new

appliance.

Improper disposal of the product constitutes fraudulent conduct and is subject to sanctions by the Public Safety Authority. For more information, please contact the local environmental authority.

PACKAGING

For information on how to properly dispose of the packaging that protects this product and its parts and/or accessories, follow the instructions in the packaging.

"TOGNANA" SMALL APPLIANCES WARRANTY

The Company Tognana Porcellane S.p.A. thanks its Customers for their choice and guarantees that its appliances are the result of the latest technologies and research.

This warranty applies only to small appliances marked with the "Tognana" brand and is valid as a conventional warranty pursuant to Article 135-quinquies of the Italian Consumer Code (Legislative Decree 206 of 6 September 2005). This warranty does not in any way affect the rights expressly provided for in favour of the consumer by the regulations on the sale of consumer movable goods, whether Italian or of the consumer's country of residence: the consumer can therefore always assert his rights against the retailer from which he purchased the appliance, under the conditions and within the terms provided for by these regulations.

Under this warranty, the appliance is covered by the conventional warranty for a period of two years from the date of purchase by the first user.

It is up to the consumer - through a delivery document issued by the retailer (or by Tognana Porcellane S.p.A. itself, in the case of a purchase made by the consumer directly in the online shop of the latter) or by another evidentiary document (for example, tax receipt, cash receipt or similar, purchase order, etc.), which shows the name of the retailer and the date on which the sale was made - to demonstrate that this warranty is still valid at the time of filing the complaint of defect of the appliance.

In the event of a defect in the appliance, pursuant to this warranty, the consumer may highlight this defect by contacting the appliance dealer or by contacting Tognana Porcellane S.p.A. directly at the e-mail address [e-mail], or at the telephone number [phone].

Tognana Porcellane S.p.A. guarantees the free repair or replacement of the appliance and/or its components that have defects due to ascertained causes of manufacture and/or malfunctions, directly or through affiliated service centres (check any contacts on the Tognana Porcellane S.p.A. website:

www.tognana.com). Tognana Porcellane S.p.A. reserves the right to completely replace the appliance, if repairability is impossible or too expensive, with another identical or similar appliance (or one that has functional and aesthetic characteristics similar to those of the purchased appliance), without the consumer being able, in this second hypothesis, to contest the choice made by Tognana Porcellane S.p.A.

When submitting a complaint, the consumer must specify the defect found and, if necessary for verifying the defect, provide photographic documentation. They must also provide their personal data—name and surname, residential address, email, and phone number—for all subsequent communications. For the replacement or repair to be successful, the consumer must follow the instructions given by Tognana Porcellane S.p.A. or the authorized service center.

All costs for repair and delivery of the replacement appliance or defect-free components will be fully borne by Tognana Porcellane S.p.A., which will also cover the costs of returning the defective appliance or component, if expressly requested by the consumer.

Please note that after replacement or repair, the warranty's effective date remains the original purchase date; therefore, warranty service does not extend the warranty period.

For this warranty to be valid, the appliance must be used exclusively for domestic purposes; any other use voids the warranty. Additionally, the appliance is not considered defective if it needs to be adapted or modified to comply with national or local safety and/or technical standards in the consumer's country, if outside the European Union.

In any case, this warranty does not cover:

- parts subject to wear and tear, or those requiring periodic replacement and/or maintenance;

- negligence or carelessness in using the appliance (e.g., failure to follow the operating instructions);

- professional use of the appliance;

- defects caused by incorrect installation, configuration, or software/BIOS/firmware updates not performed by authorized Tognana Porcellane S.p.A. personnel;

- repairs or interventions carried out by personnel not authorized by Tognana Porcellane S.p.A.;

- tampering with appliance components or, where applicable, software;

- other circumstances that cannot be attributed to manufacturing defects in the appliance.

Tognana Porcellane S.p.A. disclaims all liability for any damage, direct or indirect, to people, property, or pets resulting from failure to comply with all requirements in the instruction booklet, especially warnings regarding installation, use, and maintenance of the device.

Further claims, in particular if they relate to claims, are excluded, unless the liability arises from express provision of law. At the end of the period of validity of this warranty, or for goods that are not covered by it, Tognana Porcellane S.p.A. remains available to the customer for any questions or information. Further information is available on the website: www.tognana.com.

Dear customer,

PRODUCT CONFORMITY

Ingredients:

- Potatoes

500 g

- Oil

2 teaspoons

- Salt

to taste

- Pepper

to taste

Ingredients:

Ingredients:

Ingredients:

Ingredients:

PRODUCT COMPLIANCE

Ingredients:

Ingredients:

Ingredients:

Ingredients:

- Fresh sausage

250 g

- Oil

1 teaspoon

Ingredients:

• Fresh shrimp

300 g

- Oil

1 teaspoon

- Semolina flour

as needed

- Salt

as needed

PRODUCT COMPLIANCE

Ingredients:

Ingredients:

Ingredients:

- Fresh sausage

250 g

• Oil

1 teaspoon

Ingredients:

- Fresh shrimp

300 g

• Oil

1 teaspoon

• Semolina flour

as needed

- Salt

as needed

BEFORE FIRST USE

Ingredients:

- potatoes

500 g

- oil

2 tablespoons

- salt

to taste

- pepper

a. Peel the potatoes and cut them into sticks. b. Soak the potatoes in salted water for at least 20 minutes, then boil them for 2 minutes and dry them with paper towels. c. Pour half a tablespoon of olive oil into a bowl, add the potatoes and stir until they are well coated with oil. d. Remove the potatoes from the bowl with your fingers or kitchen tongs so that excess oil remains in the bowl. e. Place the potatoes in the basket, insert the basket into the appliance, select the "Fries" program or adjust the cooking time and temperature according to the size and thickness of the fries, or cook until golden brown. f. At the end of cooking, put the fries in a bowl, add salt and pepper, and serve.

TIP: For better results, shake the basket with the fries halfway through cooking.

2. Fried chicken wings

Ingredients:

- chicken wings

350 g

- garlic

2 cloves

- oil

2 tablespoons

- salt

1 tablespoon

- pepper

1 tablespoon

a. Mix the wings with oil, garlic, salt, and pepper, and let them marinate for 20 minutes. b. Place the wings on the grill rack, insert the rack into the appliance, select the "Chicken Drumsticks" program or adjust the cooking time and temperature according to the size and quantity of the wings, or cook until they are golden brown.

Ingredients:

• Beef steak 350 g - garlic powder 1 tablespoon • oil 2 tablespoons • salt 1/2 tablespoon • pepper 1 tablespoon - soy sauce to taste

a. Mix the beef steak with oil, garlic, soy sauce, salt, and pepper, and let it marinate for 20 minutes. b. Place the steak in the basket, insert the basket into the appliance, select the "Steaks" program or adjust the cooking time and temperature according to the size and thickness of the steak, or cook until it is golden brown. c. Halfway through cooking, turn the steak over, reduce the temperature to 150 °C and cook for another 4 minutes until it is golden brown.

TIP: For best results, turn the steak over halfway through cooking.

4. Grilled sausage

Ingredients:

Ingredients:

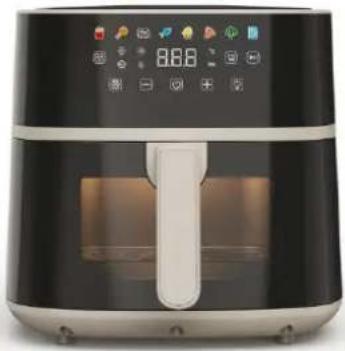

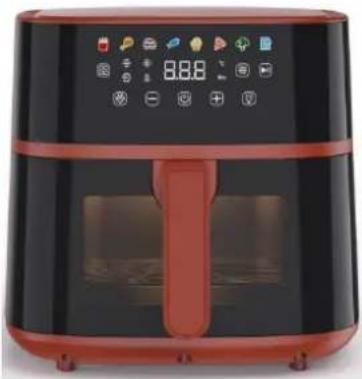

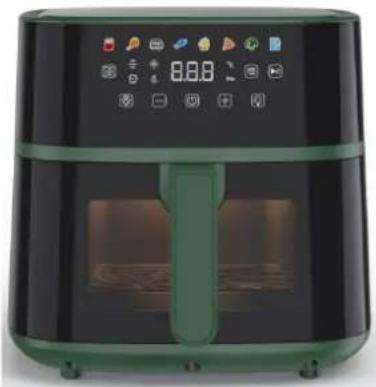

1. Basket made of SPCC steel with Teflon coating, glass window, screws made of SUS304 steel, silicone
2. Basket handle
3. Digital touch screen
4. Cooking rack made of SPCC steel with Teflon coating, silicone

INSTRUCTIONS FOR USE

Ingredients:

• Potatoes 500 g
• Oil 2 teaspoons
• Salt to taste
• Pepper to taste

Ingredients:

Ingredients:

- Beef steak

350 g

- Garlic powder

1 teaspoon

• Oil

2 teaspoons

- Salt

1/2 teaspoon

- Pepper

1 teaspoon

- Soy sauce

to taste

a. Mix the steak with oil, garlic, salt, and pepper, and let it marinate for 20 minutes. b. Place the steak in the basket, insert the basket into the appliance, select the "Steaks" program or adjust the cooking time and temperature according to the size and thickness of the steak, or cook until golden brown. c. Halfway through cooking, turn the steak, lower the temperature to 150 °C, and cook for another 4 minutes until golden brown.

TIP: for best results, turn the steak halfway through cooking.

4. Grilled sausage

Ingredients:

- Fresh sausage

250 g

- Oil

1 teaspoon

a. Mix the sausages with oil. b. Place the sausages on the rack in the basket, insert the basket into the appliance, and select the "Sausages" program or adjust the cooking time and temperature according to the size and thickness of the sausages, or cook until golden brown. c. After cooking, transfer the sausages to a bowl and serve.

TIP: for best results, shake the basket for the sausages halfway through cooking.

5. Fried shrimp

Ingredients:

- Fresh shrimp

300 g

• Oil

1 teaspoon

- Wheat flour

to taste

- Salt

to taste

a. Clean the shrimp, wash them, and dry them well with paper towels. b. Take a bowl and place the shrimp in it. c. Season with a little oil and coat them with flour. d. Sprinkle some oil on the shrimp. e. Place the shrimp on the rack in the basket, insert the basket into the appliance, select the "Fish" program or adjust the cooking time and temperature according to the size and thickness of the shrimp, or cook until golden brown. f. After cooking, transfer the shrimp to a bowl and serve.

TIP: for best results, turn the shrimp halfway through cooking.

PRODUCT DISPOSAL INFORMATION

PRODUCT

Authorized service center:

SC PREŠEREN D.O.Otijska cesta 12A00 Ljubljana – SLO-540-10-00,[e-mail] do PET med 7:00 in 17:00

PSC PREŠEREN D.O.O. PE MBPtujska cesta 92000 Maribor - SLO02-331-64-00, 031-620-900,[e-mail] PON do PET med 7:00 in 16:00

Dear customers,

Thank you for choosing our air fryer for cooking and heating food for household use. Tognana Porcellane S.p.A. will not be responsible for any damage that may occur, directly or indirectly, to persons, property, and pets as a result of not following all the conditions set out in the relevant "Instruction Manual" regarding the installation, use, and maintenance of the appliance.

SYMBOLS INDICATED IN THE INSTRUCTIONS/ ON THE DEVICE AND THEIR MEANING

	Ovaj simbol označava da je potrebno pozorno pročitati ova uputstva prije upotrebe. Obratite posebnu pozornost na sigurnosne informacije. Čuvajte ova uputstva na sigurnom mjestu jer su ona sastavni dio samog proizvoda.
	OPASNOST: riječ označava potencijalnu neizbježnu opasnost s visokim nivoom rizika koja, ako se ne izbjegne, ima veliku mogućnost da izazove ozbiljne ozljede ili smrt.
	UPOZORENJE: riječ označava potencijalnu neizbježnu opasnost sa srednjim nivoom rizika koja, ako se ne izbjegne, ima veliku mogućnost da izazove ozbiljne ozljede ili smrt
	OPREZ: riječ označava potencijalnu opasnost s niskim nivoom rizika koja, ako se ne izbjegne, mogla bi da dovede do manjih ili srednjih ozljeda.
	ovaj simbol označava da se zaštita opreme ne zasniva samo na osnovnoj izolaciji, već zahtijeva dodatne sigurnosne mjere.
	POZORNOST – VRUĆA POVRŠINA!: Simbol ukazuje na to da temperatura površine može postati opasno visoka i stoga treba izbjegavati direktan kontakt sa kožom i tkaninama/materijalima osjetljivim na toplotu.
	VAŽNA NAPOMENA: ove riječi označavaju korisne informacije za upotrebu proizvoda.
	Ovaj simbol na proizvodu ili ambalaži označava da se uređaj na kraju svojega vijeka trajanja mora zbrinuti odvojeno od drugog otpada zbog pravilne obrade i recikliranja.
	Ovaj simbol pokazuje da je uređaj usklađen sa sigurnosnim zahtjevima kojeg predviđaju uredbe/direktive Evropske zajednice.

PRODUCT SAFETY

IMPORTANT NOTES ON CORRECT USE

1. This device is intended exclusively for cooking and heating food for household use.
2. This device is intended for household use and similar applications, such as: * staff kitchen areas in shops, offices; * in agritourism; * by guests in hotels, guesthouses, and other residential environments; * in bed and breakfast settings.
3. This product is not a toy.
4. Do not leave packaging parts (plastic bags, polystyrene foam, etc.) within reach of children or other persons, as these items are potential sources of danger (e.g., risk of suffocation).
5. Use the product only for its intended purpose. The manufacturer is not responsible for damage or injuries caused by improper use.
6. Unauthorized repairs or modifications void the warranty.
7. Do not use outdoors.
8. Never leave the device switched on unattended.
9. Do not place the device near a gas or electric stove or in a hot oven.
10. Before use, place the device on a solid, flat, horizontal, and non-flammable surface.
11. To manually switch off the device, press the off button.
12. Do not immerse the device in water or rinse it under running water, as it contains electronic components and heating elements.
13. Use only original accessories and spare parts or those recommended by the manufacturer.

DANGER

PRODUCT

1. Before connecting the device to the electrical mains, check that the voltage on the device matches the voltage in your home.

Plug the appliance into an earthed socket. The manufacturer cannot be held responsible for accidents caused by a lack of earthing.

1. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Supervise children to ensure they do not play with the appliance.
3. Do not insert metal objects into the slots of the appliance.
4. Do not cover the air inlet and outlet while the product is operating or connected to the power outlet.
5. Do not place the appliance against a wall or other objects: ensure at least 10 cm of free space on each side of the appliance. Do not place objects on top of the appliance.
6. Do not add oil to the air fryer as this may cause a fire hazard.
7. To avoid a short circuit, do not place large food items in the oven that may touch the oven heating elements. Additionally, do not place food wrapped in aluminum foil or metal utensils in the oven.
8. Unplug the device from the outlet when moving it and when not in use.
9. Allow the device to cool for about 30 minutes before cleaning.
10. Remove all burnt food residues.
11. Improper use of the product may cause damage or injury.
12. To avoid electric shock, do not immerse the product in water or any other liquid.
13. This product contains no user-serviceable parts. Do not attempt to repair it yourself. Have maintenance performed by a qualified service center using only identical replacement parts. This will ensure that the safety of the product is maintained.
14. Do not use the appliance in high temperatures, in very humid or wet environments, or near flammable materials (tablecloths, curtains).
15. Do not attempt to repair it yourself if it has fallen or been damaged in any way. Do not attempt to repair it yourself. Contact a service technician for repair/replacement if the product is under warranty.

1. Basket made of SPCC steel with Teflon coating, glass window, screws made of SUS304 steel, silicone
2. Basket handle
3. Digital touch control panel
4. Cooking grid made of SPCC steel with Teflon coating, silicone

BEFORE FIRST USE

Ingredients

• potatoes 500 g • oil 2 tablespoons • salt to taste - pepper to taste

a. Peel the potatoes and cut them into sticks. b. Soak the potatoes in salted water for at least 20 minutes, then boil them for 2 minutes and then dry them with kitchen paper. c. Pour half a tablespoon of olive oil into a bowl, add the potatoes and stir until they are well coated with oil. d. Remove the potatoes from the bowl with your fingers or kitchen utensils so that the excess oil remains in the bowl. e. Place the potatoes in the basket, insert the basket into the appliance, select the "Fries" program or adjust the cooking time and temperature according to the size and thickness of the fries, or cook until they are golden brown. f. At the end of cooking, place the fries in a bowl, add salt and pepper, and serve.

TIP: for better results, shake the basket with the fries halfway through cooking.

2. Fried chicken wings

Ingredients

• chicken wings 350 g
• garlic 2 cloves
• oil 2 tablespoons • salt 1 tablespoon

a. Mix the wings with oil, garlic, salt, and pepper, and let them marinate for 20 minutes. b. Place the wings on the rack, insert the rack into the appliance, select the "Chicken Drumsticks" program or adjust the cooking time and temperature according to the size and quantity of the wings, or cook until golden brown. c. At the end of cooking, place the wings in a bowl and serve.

TIP: For best results, shake the basket with the wings halfway through cooking.

3. Beef Steak

Ingredients

• beef steak 350 g - garlic powder 1 tablespoon • oil 2 tablespoons • salt 1/2 tablespoon • pepper 1 tablespoon - soy sauce to taste

a. Mix the beef steak with oil, garlic, soy sauce, salt, and pepper, and let it marinate for 20 minutes. b. Place the steak in the basket, insert the basket into the appliance, select the "Steaks" program or adjust the cooking time and temperature according to the size and thickness of the steak, or cook until golden brown. c. Halfway through cooking, turn the steak over, reduce the temperature to 150 °C, and cook for another 4 minutes until it turns golden brown.

TIP: For best results, turn the steak over halfway through cooking.

4. Grilled Sausage

Ingredients

• fresh shrimp 300 g - oil 1 tablespoon • wheat flour to taste • salt to taste

a. Clean the shrimp, wash them, and dry them well with kitchen towels. b. Take a bowl and place the shrimp in the bowl. c. Season with a little oil and sprinkle with wheat flour.

d. Spray a little oil on the shrimp.

e. Place the shrimp on the rack in the basket, insert the basket into the appliance, select the "Fish" program or adjust the cooking time and temperature according to the size and thickness of the shrimp, or cook until golden brown.

f. At the end of cooking, place the shrimp in a bowl and serve.

1. Basket made of SPCC steel with Teflon coating, glass window, screws made of SUS304 steel, silicone
2. Basket handle
3. Touch-sensitive digital screen
4. Cooking rack made of SPCC steel with Teflon coating, silicone

BEFORE FIRST USE

1. Remove the various components from the packaging, check that they are undamaged and complete, and carefully remove all protective materials and labels. The packaging contains:
2. 1 air fryer
3. 1 rack • 1 user manual
4. Check that all parts are properly assembled and in place before use.
5. It is recommended to wash all removable parts that will come into contact with food according to the instructions in the "CLEANING and MAINTENANCE" section.
6. Turn on the empty appliance at 200 °C without food for 10-15 minutes. The appliance may emit smoke and odors due to residues from the manufacturing process. This is normal and does not indicate any defects or dangers.

Ingredients

• potatoes 500 g
• oil 2 tablespoons • salt to taste • pepper to taste

Ingredients

• chicken wings 350 g
• garlic 2 cloves
• oil 2 tablespoons • salt 1 tablespoon • pepper 1 tablespoon

a. Mix the wings with oil, garlic, salt, and pepper and let them marinate for 20 minutes. b. Place the wings on the rack, insert the rack into the appliance, select the "Chicken drumsticks" program or adjust the time and baking temperature according to the size and quantity of the wings, or bake until golden brown. c. At the end of cooking, put the wings in a bowl and serve.

TIP: For best results, shake the basket with the wings halfway through cooking.

3. Steak

Ingredients

• steak 350 g • garlic powder 1 tablespoon • oil 2 tablespoons • salt 1/2 tablespoon • pepper 1 tablespoon - soy sauce to taste

a. Mix the steak with oil, garlic, salt, and pepper and let it marinate for 20 minutes. b. Place the steak in the basket, insert the basket into the appliance, select the "Steaks" program or set the cooking time and temperature according to the size and quantity of the steak, or cook until browned. c. Halfway through cooking, turn the steak, reduce the temperature to 150 °C, and cook for another 4 minutes until golden brown.

TIP: for best results, turn the steak halfway through cooking.

4. Grilled sausage

Ingredients

• fresh sausage 250 g - oil 1 tablespoon

a. Mix the sausages with oil. b. Place the sausages on the grill, insert the basket into the appliance, select the "Sausages" program or set the cooking time and temperature according to the size and quantity of the sausages, or cook until browned. c. At the end of cooking, place the sausages in a bowl and serve.

TIP: for best results, shake the basket with the sausages halfway through cooking.

5. Fried shrimp

Ingredients
