USER MANUAL SCD-625 LENCO

Blue and white portable electronic device with a microphone, displaying a digital clock (no visible text or symbols)

User manual – Portable Bluetooth radio/CD player with microphone Handleiding – Draagbare Bluetooth radio/CD-speler met microfoon Bedienungsanleitung – Tragbarer Bluetooth-Radio/CD-Player mit Mikrofon Guide d’utilisation – Lecteur Bluetooth radio/CD portable avec microphone Manual del usuario – Reproductor Bluetooth portátil de radio/ CD con micrófono

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.

23. Do not allow children access to plastic bags.

24. Only use attachments/accessories specified by the manufacturer.

25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

27. If the product is delivered with power cable or AC power adaptor:

28. If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.

29. Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
    ● Unplug this device during lightning storms or when unused for a long period.
    ● The socket outlet must be installed near the equipment and must be easily accessible.
    ● Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
    ● Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
    ● Devices with class 2 construction do not require a earthed connection.
    ● Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

30. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

31. If the product contains or is delivered with a remote control containing coin/cell batteries:

Warning:

• “Do not ingest battery, Chemical Burn Hazard” or equivalent working.
  ● [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

• Caution about the use of Batteries:

● Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
● Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
● Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
- Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
● Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
● A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
● Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

- Unpack all parts and remove protective material.

- Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

CONTENTS

Power cord

Line drawing of a coiled electrical plug with two terminal pins (no text or symbols)

Microphone

Line drawing of a handheld microphone with coiled cable (no text or symbols)

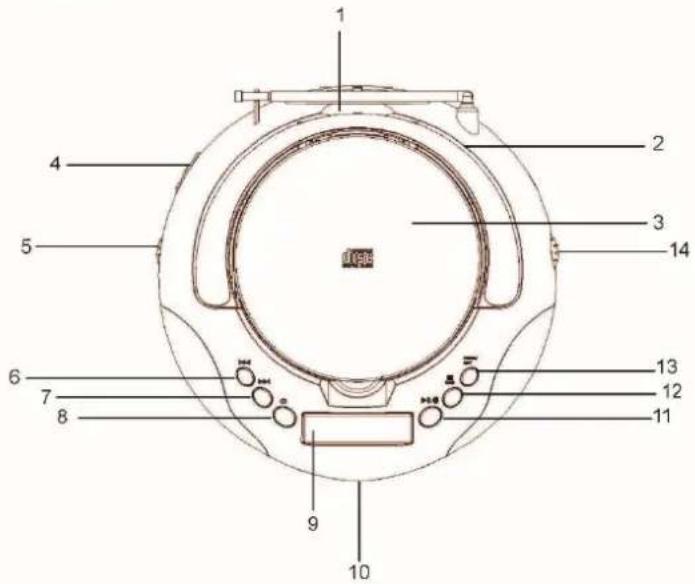

LOCATION OF CONTROLS

1. ANTENNA
2. HANDLE
3. CD DOOR
4. FUNCTION SWITCH
5. VOLUME KNOB
6. SKIP-
7. SKIP+
8. POWER ON/OFF
9. LED DISPLAY/FUNCTION INDICATOR
10. MICROPHONE JACK (3.5MM)
11. PLAY/PAUSE/BLUETOOTH
12. STOP/PAIR
13. PROGRAM/REPEAT
14. TUNING KNOB
15. AUX IN JACK (3.5MM)
16. HEADPHONE JACK (3.5MM)
17. AC SOCKET

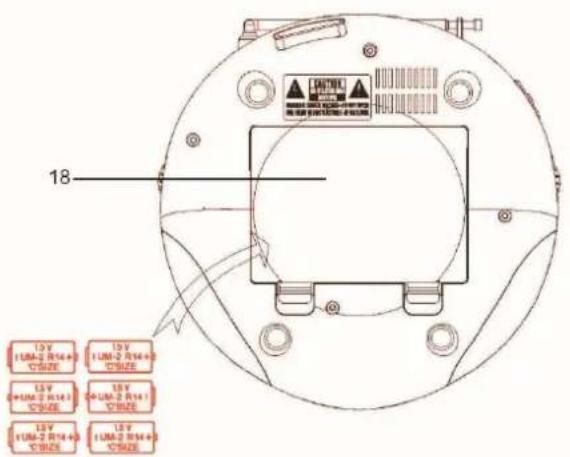

18. BATTERY COMPARTMENT

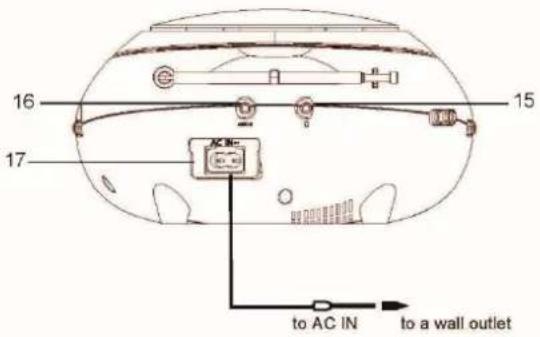

LOCATION OF CONTROLS

LOCATION OF CONTROLS

1 2 3 4 5 6 7 8 9 10 11 12 13 14

16 17 15 to AC IN to a wall outlet

18 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+1 C/SIZE 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+0 C/SIZE

POWER SUPPLY

1. To power the device, plug the AC power cord into the AC power input on the rear of the unit and a standard power outlet
2. For battery power, this unit requires 6 x C size batteries (Not included).

POWER SOURCE

Press the "POWER" button to turn the device.

Set the "FUNTION" switch to select different mode

CD/AUX
● FM

VOLUME

Adjust the "VOLUME" knob to the desired volume level.

ANTENNA

Use Antenna to improve the signal reception.

1. Extend the antenna
2. Adjust the position of the antenna for the best reception

CD

Select the CD mode.

1. Put CD into the CD door insides
2. Auto CD reading & playing from first track
3. Press the "PLAY/PAUSE" button to do playback or pause playback temporarily
4. Press the "SKIP+/-" button to skip the next or previous tracks
5. Press and Hold the "SKIP+/-" button search the point of sound quickly
6. Press the "STOP" button to stop the playback

PROGRAMMED (CD MODE)

CD = max 20 tracks

1. Press "PROGRAM" button (Sure to press "STOP" button before)

* Program Indicator flashing

1. P01 will appear blinking in the display, press "SKIP+/-" to select the track Press "PROGRAM" button again to save the selected track
2. Press "PLAY/PAUSE" button to play the programmed track list "PROGRAM" indicator on
3. Press "STOP" button twice to cancel the programmed track list

* Repeat One and Repeat All function is available for programmed track list

REPEAT

Press "REPEAT" Button to choose the different function in CD mode as follows:

1. Repeat One = Repeat indicator on
2. Repeat All = Repeat indicator flashing
3. Normal Playback = No Repeat indicator

FM RADIO

1. Select the FM Radio mode.
2. Adjust the "TUNING" knob to the desired station

BLUETOOTH

1. Select the Bluetooth mode and hold "BLUETOOTH" button into the Bluetooth mode.
2. Turn on the Bluetooth function of your Bluetooth device and enable the search "Lenco SCD-625" from the pairing list (*Bluetooth flashing on display)
3. Pair the unit with your device. If you are asked for a password, enter "0000".
4. Once connection success, a brief welcome melody will be heard and Bluetooth indicator will change to solid on
5. Press "PLAY/PAUSE" button to do playback or pause playback temporarily
6. Press "SKIP+/-" button to skip the next or previous tracks
7. Hold "PAIR" button to cancel the collection

AUX IN

1. Select the Aux mode.
2. Use 3.5mm jack Aux In cable (not included) to connect the Aux in jack and external audio player Control the music from the external audio player
3. Change the volume level on this item or External Music Device separately

HEADPHONE JACK

Use 3.5mm headphone plug (not included) to connect the 3.5mm headphone jack

MICROPHONE JACK

1. Use 3.5mm microphone plug to connect the 3.5mm microphone jack
2. Control the music from the device
3. Change the volume level on this item
4. Enjoy the singalong function

ENERGY SAVING

To comply with the energy saving requirement this device will automatically switch to standby mode when no music has been playing for 15 minutes.

TECHINCAL SPECIFICATIONS

Power supply:

AC 230 \~ 50Hz

DC 9V 6 x 1.5V "C" TYPE BATTERIES

Frequency range:

FM 88-108 MHz

Power consumption: 13W

Audio power output: 2 x 1W

Dimensions (W x D x H): 217 x 220 x 118mm

Weight: 1 kg

Guarantee

Commaxx B.V. offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Commaxx B.V. directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Disposal of the Old Device

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

DECLARATION OF CONFORMITY

Hereby, Commaxx declares that the radio equipment type [Lenco SCD-625] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://commaxx-certificates.com/doc/scd-625_doc.pdf

Type RF	Frequency range (MHz)	Power (dBm)
Bluetooth	2402-2480	<6
FM	87.5-108	-

Service

For more information and helpdesk support, please visit www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG, Kerkrade, The Netherlands.

Nederlands

VOORZICHTIG:

Line drawing of a coiled electrical plug with two terminal pins (no text or symbols)

Microfoon

Line drawing of a handheld microphone with coiled cable (no text or symbols)

16 17 15 to AC IN to a wall outlet

18 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE

GEPROGRAMMEERD (CD-MODUS)

CD = max 20 liedjes

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Line drawing of a cable with two terminal plugs (no text or symbols)

Mikrofon

Line drawing of a handheld microphone with coiled cable (no text or symbols)

LAGE DER BEDIENELEMENTE

1. ANTENNE
2. GRIFF
3. CD-FACH
4. FUNKTIONSUMSCHALTER
5. LAUTSTÄRKEREGLER
6. ZURÜCKSPRINGEN
7. VORSPRINGEN
8. EIN/AUS
9. LED-DISPLAY/FUNKTIONSANZEIGE
10. MIKROFONBUCHSE (3,5 MM)
11. WIEDERGABE/PAUSE/BLUETOOTH
12. STOPP/PAIR
13. PROGRAMMIERUNG/WIEDERHOLUNG
14. ABSTIMMREGLER
15. AUX-EINGANGSBUCHSE (3,5 MM)
16. KOPFHÖRERBUCHSE (3,5 MM)
17. AC-NETZANSCHLUSSBUCHSE
18. BATTERIEFACH

LAGE DER BEDIENELEMENTE

LOCATION OF CONTROLS

1 2 3 4 5 6 7 8 9 10 11 12 13 14

16 17 15 to AC IN to a wall outlet

18 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+1 C/SIZE 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+0 C/SIZE

EN	DE
LOCATION OF CONTROLS	LAGE DER BEDIENELEMENTE
to AC IN	Zur Netzanschlussbuchse
to a wall outlet	Zur Netzsteckdose

STROMVERSORGUNG

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Line drawing of a cable with two terminal plugs, no text or symbols present

Microphone

Line drawing of a handheld microphone with coiled cable (no text or symbols)

EMPLACEMENT DES COMMANDES

1. ANTENNE
2. POIGNÉE
3. COMPARTIMENT CD
4. INTERRUPTEUR DE FONCTION
5. MOLETTE DE VOLUME
6. PISTE-
7. PISTE+
8. MARCHE/ARRÊT
9. AFFICHAGE/TÉMOIN DE FONCTION LED
10. PRISE MICROPHONE (3,5 MM)
11. LECTURE/PAUSE/BLUETOOTH
12. STOP/COUPLAGE
13. PROGRAMME/RÉPÉTER
14. MOLETTE DE SYNTONISATION
15. PRISE D'ENTRÉE AUXILIAIRE (3,5 MM)
16. PRISE CASQUE (3,5 MM)
17. PRISE SECTEUR
18. COMPARTIMENT À PILES

EMPLACEMENT DES COMMANDES

LOCATION OF CONTROLS

1 2 3 4 5 6 7 8 9 10 11 12 13 14

16 17 15 to AC IN to a wall outlet

18 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+1 C/SIZE 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+0 C/SIZE

SOURCE D'ALIMENTATION

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

DÉCLARATION DE CONFORMITÉ

Line drawing of a coiled electrical plug with two terminal pins (no text or symbols)

Micrófono

Line drawing of a handheld microphone with coiled cable (no text or symbols)

16 17 15 to AC IN to a wall outlet

18 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+1 C/SIZE 12V LUM-2 R14+0 C/SIZE 12V LUM-2 R14+0 C/SIZE

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Line drawing of a coiled electrical plug with two terminal pins (no text or symbols)

Mikrofon

Line drawing of a handheld microphone with coiled cable (no text or symbols)

16 17 15 to AC IN to a wall outlet

18 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE

EN	DK
LOCATION OF CONTROLS	KNAPPER OG KONTROLLER
to AC IN	til AC IN
to a wall outlet	til en stikkontakt

STR∅MFORSYNING

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Line drawing of a coiled electrical plug with two terminal pins (no text or symbols)

Mikrofon

Line drawing of a handheld microphone with coiled cable (no text or symbols)

REGLAGENS PLACERING

1. ANTENN
2. HANDTAG
3. CD-LUCKA
4. FUNKTIONSKNAPP
5. VOLYMVRED
6. SKIP-
7. SKIP +
8. STRÖM PÅ/AV
9. LED-DISPLAY/FUNKTIONSINDIKATOR
10. MIKROFONUTTAG (3,5 MM)
11. SPELA UPP/PAUS/BLUETOOTH
12. STOPPA/PARA IHOP
13. PROGRAM/REPEAT
14. INSTÄLLNINGSVRED
15. AUX IN-UTTAG (3,5 MM)
16. HÖRLURSUTTAG (3,5 MM)
17. AC-KONTAKT
18. BATTERIFACK

LOCATION OF CONTROLS

1 2 3 4 5 6 7 8 9 10 11 12 13 14

16 17 15 to AC IN to a wall outlet

18 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE 12V LUM-2 R14+0 CTSIZE

EN	SE
LOCATION OF CONTROLS	REGLAGENS PLACERING
to AC IN	till AC IN
to a wall outlet	till ett eluttag

STRÖMFÖRSÖRJNING

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)
