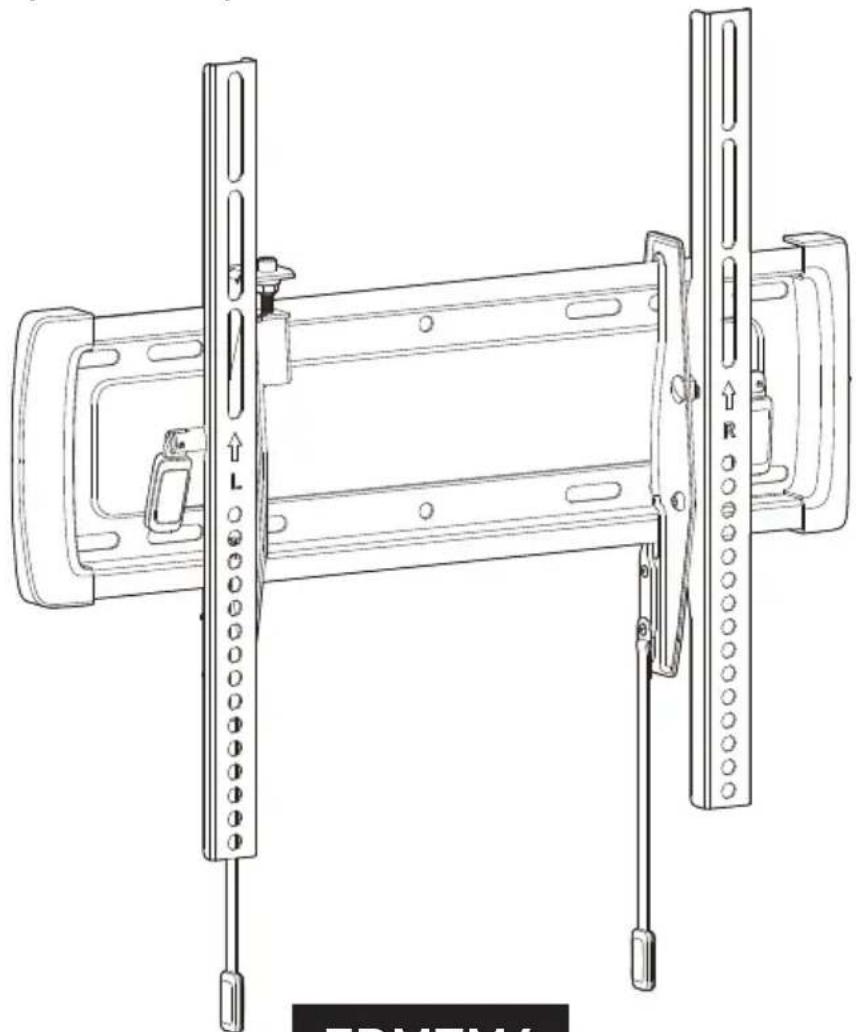

USER MANUAL ERMTM6-01B ErgoAV

Medium Tilt TV Mount Instruction Manual

Rev00

English 02-14 Français 15-27 Espanol 28-40

ERMTM6

Thank you for choosing ErgoAV!

At ErgoAV, our goal is to add value to your AV experience by providing the highest quality products and services in the industry. We offer a 5-year warranty. If you have any questions or concerns, please contact us.

ErgoAV

9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

[phone] Mon-Fri 8am - 8pm (CST)

[e-mail]

www.ergoav.com

BEFORE GETTING STARTED, LET'S MAKE SURE THIS MOUNT IS COMPATIBLE

1

Check VESA Pattern Compatibility

Compatible VESA Patterns:

100 × 100mm 200 × 400mm 400 × 300mm
200× 100mm 300× 200mm 400× 400mm
200× 200mm 300× 300mm
200× 300mm 400× 200mm

Maximum/Minimum:

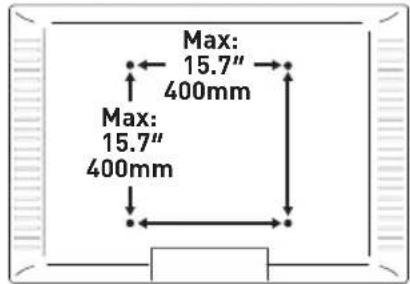

400 × 400 ~mm [15.7 × 15.7"]

100 × 100 ~mm (3.9 × 3.9^ )

If this mount is not compatible, please contact product support.

2

Check Max Load

WARNING

DO NOT exceed the Max Load. Use with products heavier than the Max Load may result in failure of the mount and its accessories, causing possible damage and/or injury.

If your TV weighs more, this mount is NOT compatible.

3

Verify Wall Type

WARNING

DO NOT install on drywall alone.

Wood Studs (with Drywall)

Concrete and Concrete Block Walls

Unsure?

Contact us.

4

Tools Needed (not included)

Electric Drill

Pencil

Phillips
Screwdriver

Tape Measure

1/2" (13mm) Socket Wrench

Level

For Wood Stud Walls

Stud Finder Awl

7/32" (5.5mm)
Wood Drill Bit

For Concrete and Concrete Block Walls

Hammer

3/8" (10mm)
Concrete Drill Bit

5

Important Safety Information

DANGER: Please carefully read all instructions before attempting installation. If you DO NOT understand the instructions or have any questions or concerns, please call technical support or email customer service.
CAUTION: Avoid the risk of personal injury and property damage!
WARNING: All fasteners must be firmly tightened!
- This mount can only be installed on wood studs, concrete and concrete block walls. DO NOT install on drywall alone.
- The wall must be capable of supporting four times the weight of the TV and mount combined.
- This product contains small parts that may pose a choking hazard.
- DO NOT use this product for any purpose that is NOT explicitly specified in this manual. DO NOT exceed the maximum weight capacity. We are not liable for damage or injury caused by incorrect assembly, improper mounting, or inappropriate use.
- Use this mounting system only for its intended purpose as described in these instructions. DO NOT use attachments not recommended by the manufacturer.
DO NOT use outdoors.
- Route cords and cables properly to avoid mechanical damage.

SAVE THESE INSTRUCTIONS

Allen Key

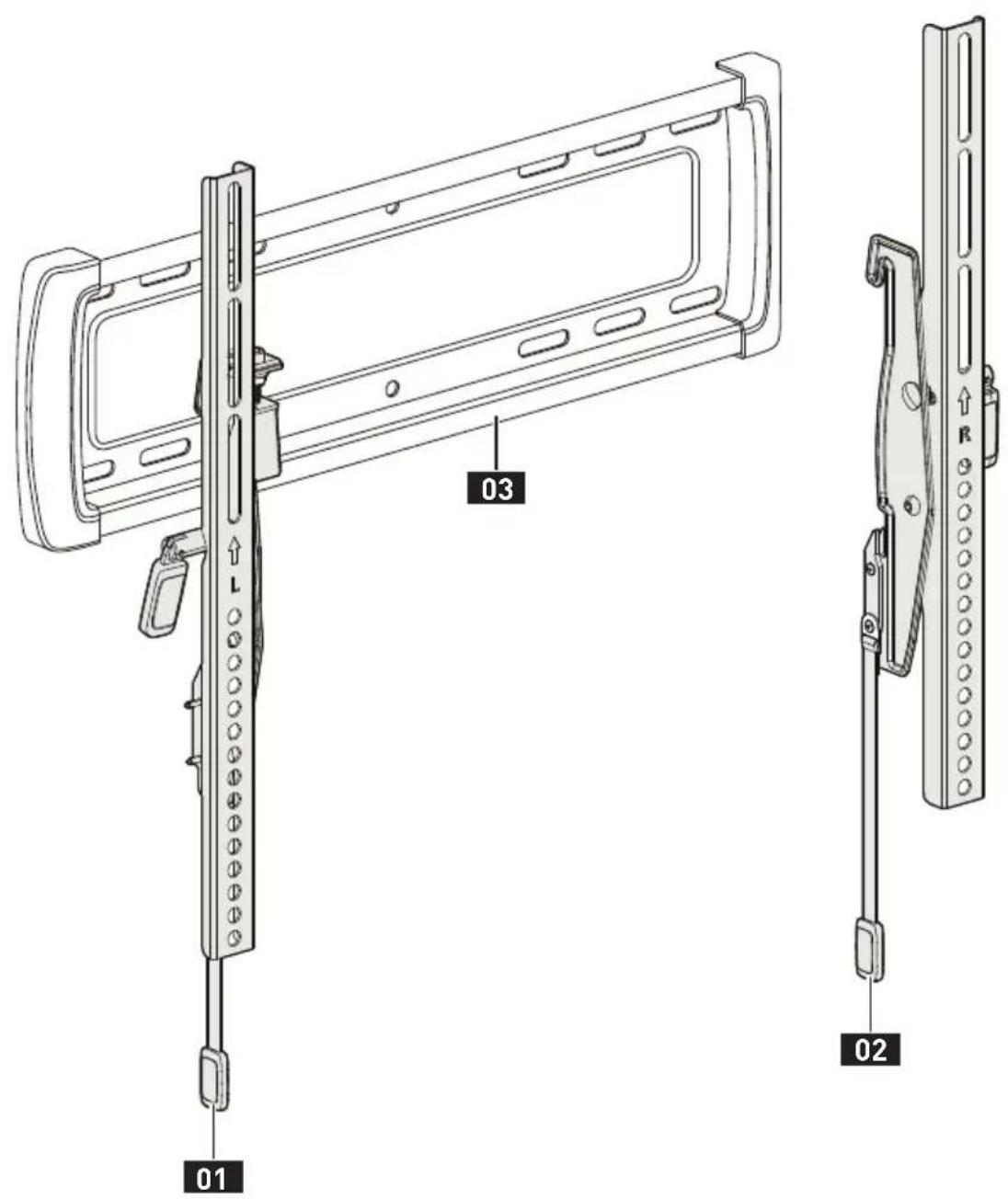

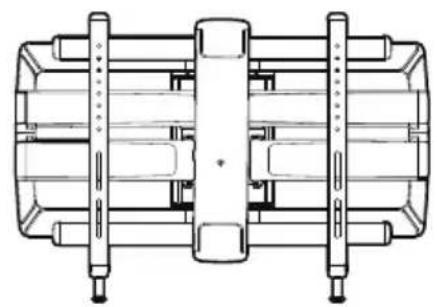

01 LTV Bracket

02 RTV Bracket

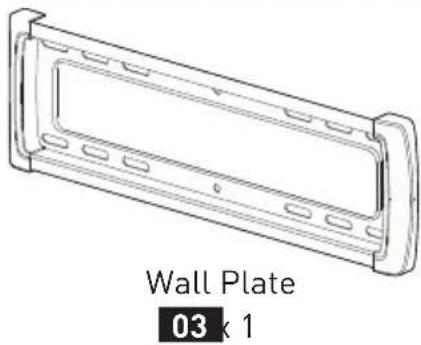

03 Wall Plate

04 Wall Plate Template

INSTALLATION

Supplied Parts and Hardware for Step 1

Not all hardware included in this package will be used.

L TV Bracket

R TV Bracket
02k1

M4/M5
Washer
B1x4

M6/M8
Washer
B2x4

L2.5mm
Spacer
F1×8

L10mm
Spacer
F2×4

L22mm
Spacer
F3 4

M4×12mm TVBolt
C1 4

M4 x 30mm TV Bolt
C24

M6 x 15mm
TV Bolt
D1 4

M6 x 35mm
TV Bolt
D2 4

M8 x 25mm TV Bolt

E14
M8×50mm
TV Bolt
E2 4

STEP 1 Attach the TV Brackets to Your TV

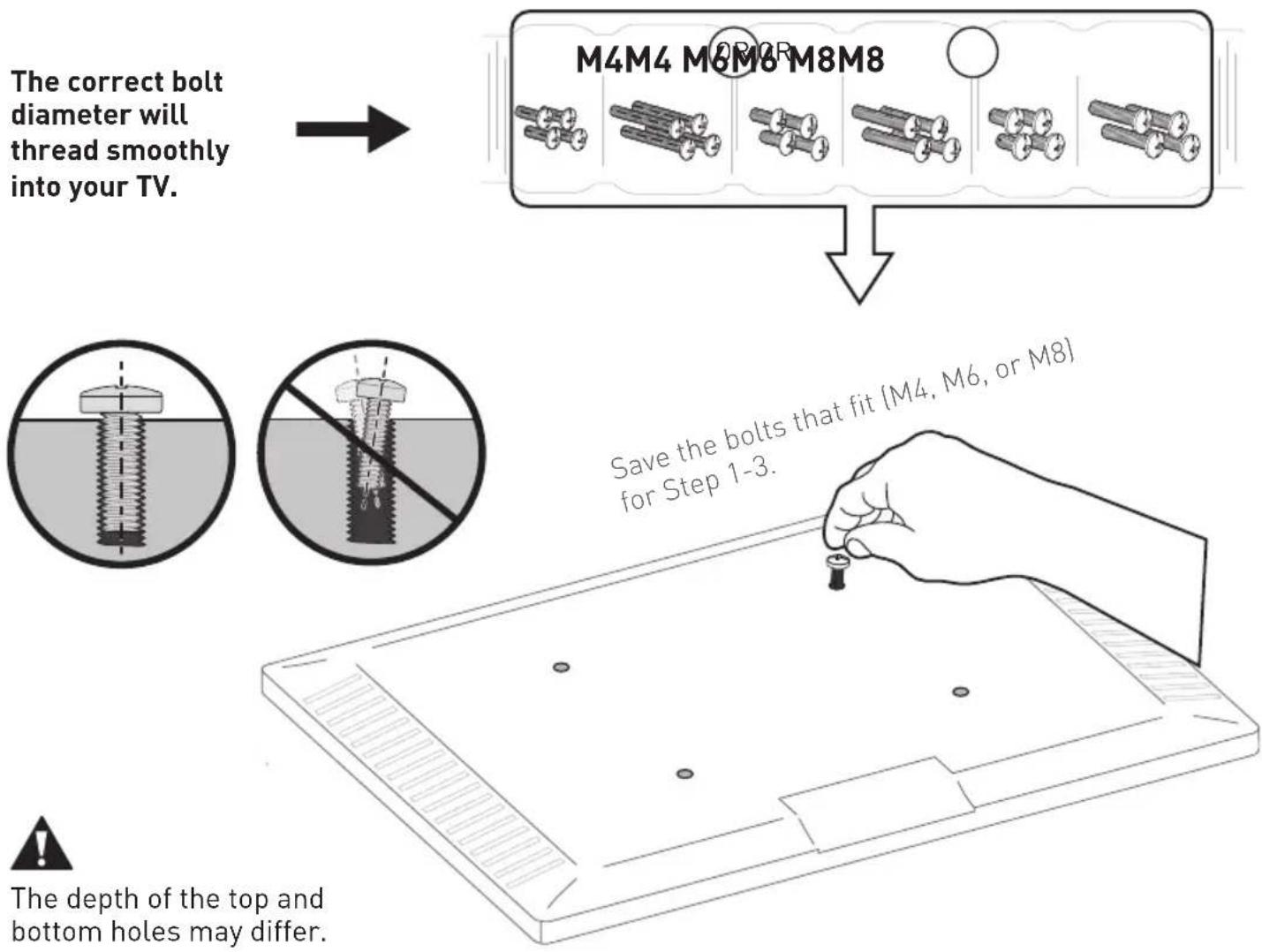

1-1 Select TV Bolts

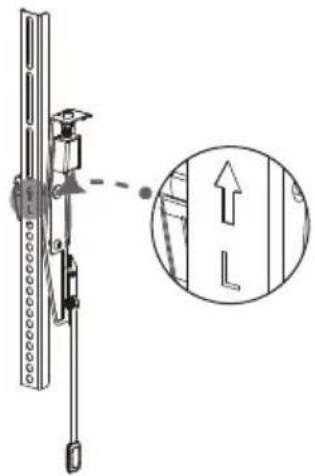

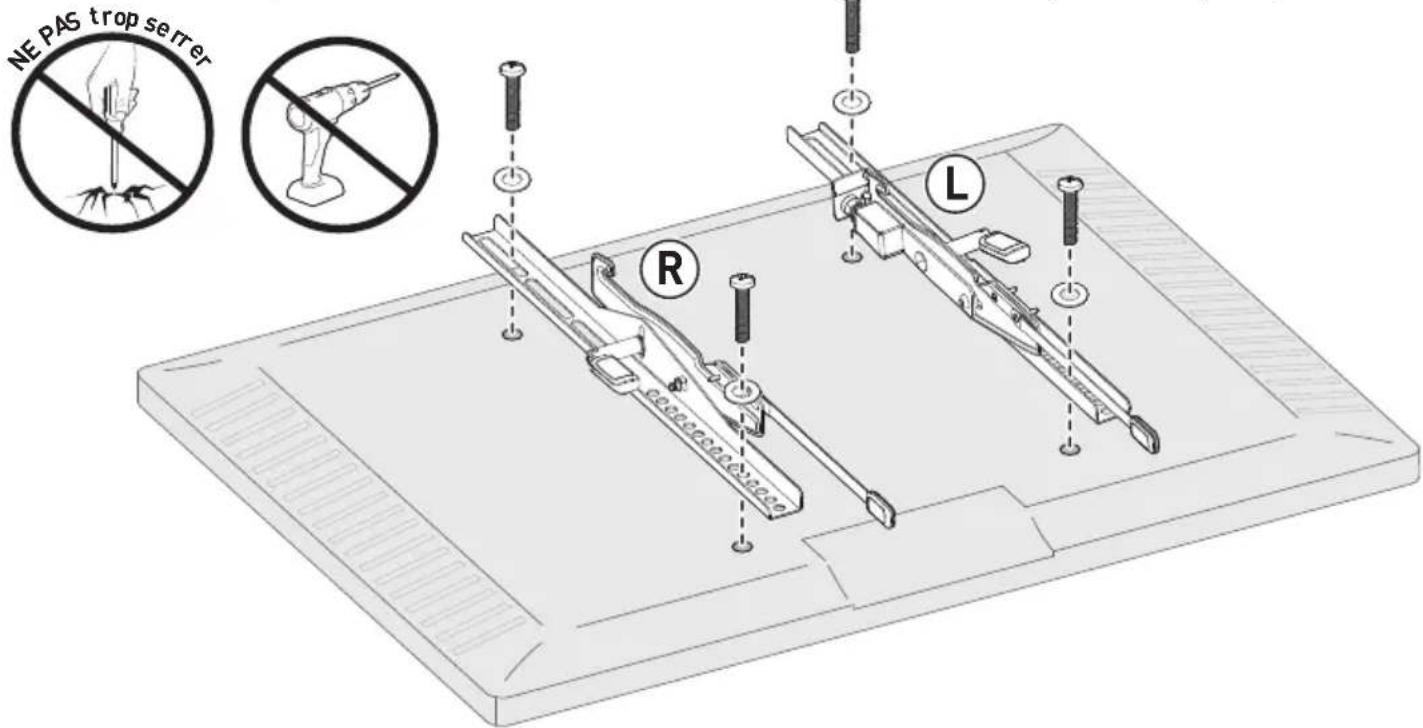

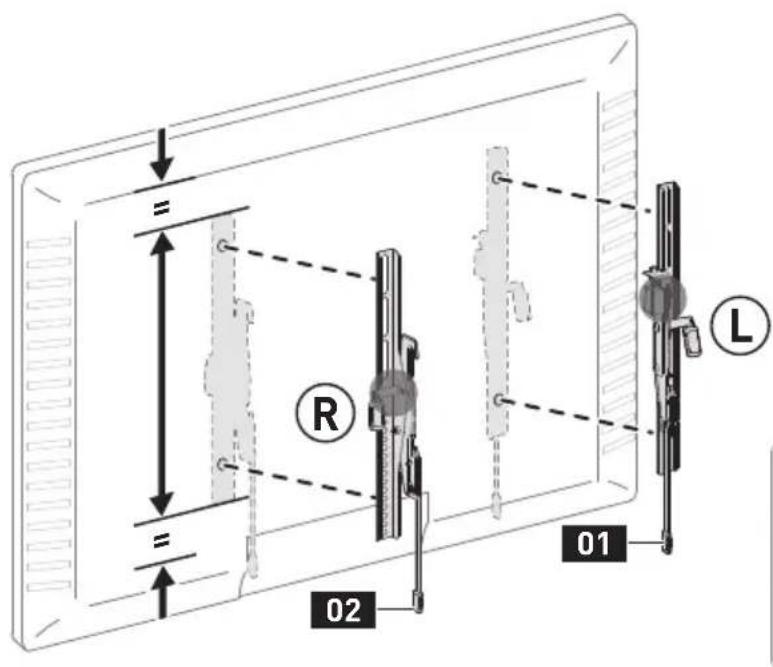

1-2 Position the TV Brackets

Arrow Up

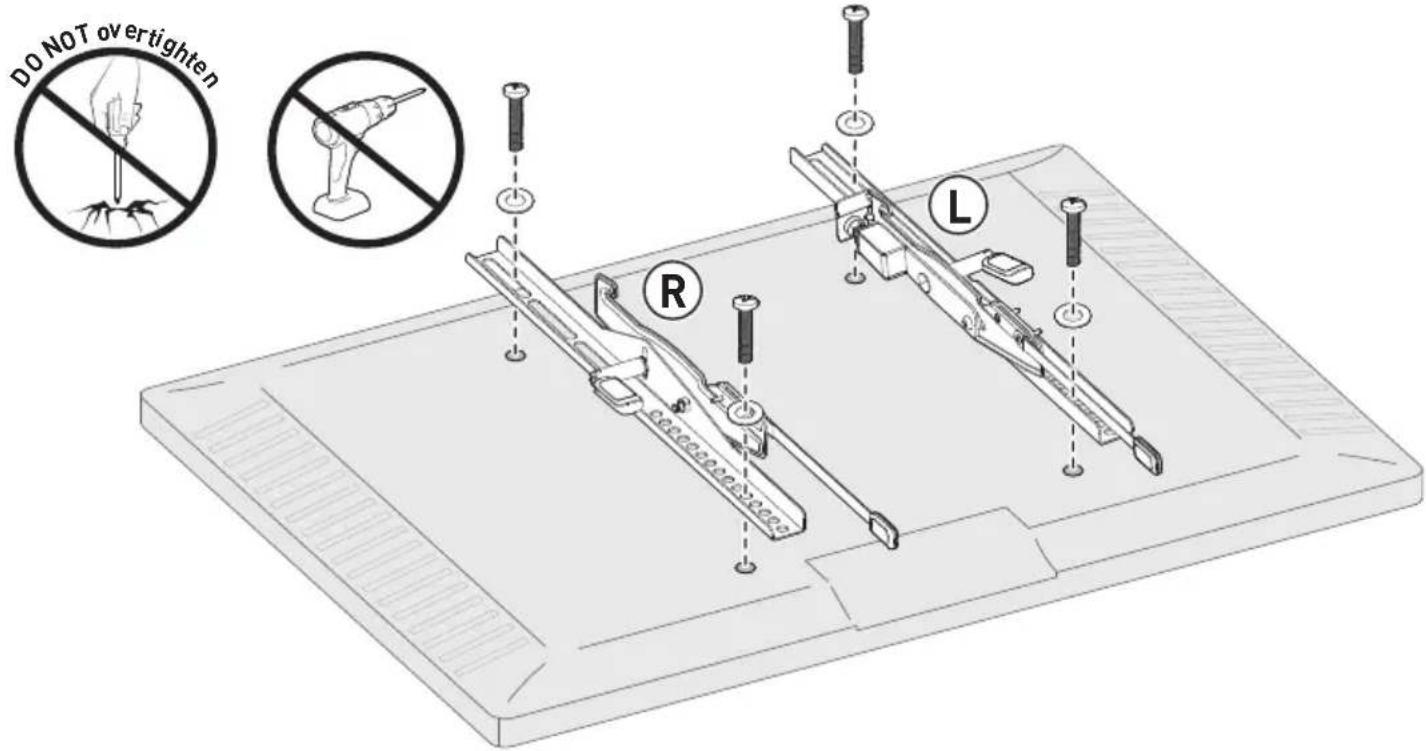

1-3 Secure the TV Brackets

For Flat-Back TV, go to Option A on this page.

For Bump, Curved TV, Recessed Holes and Cables, go to Option B on next page.

WARNING:

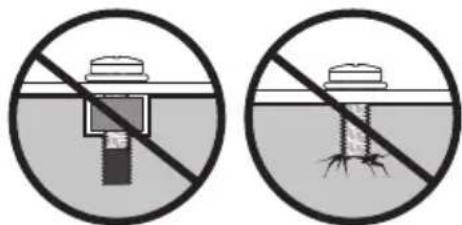

• DO NOT turn the bolt past the bottom of the hole.
• If the bolt is too short, it may not adequately support the TV.
• If the bolt is too long, it could damage the TV.
• At least 4-5 turns into the threading is required.
• The depth of the bottom holes may be different from the top holes.

Too Short Too Long

Option A

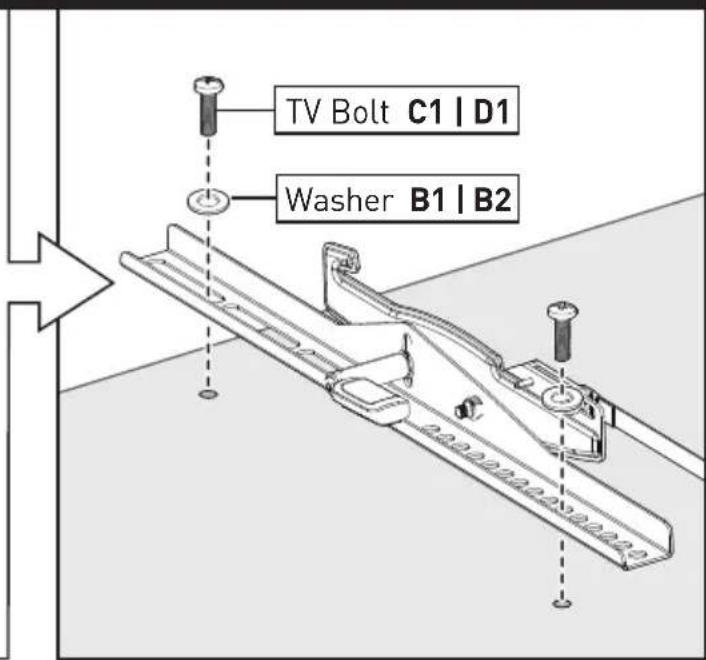

Use short TV bolts with washers.

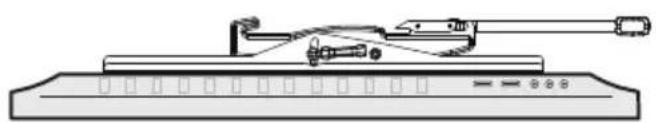

Flat-Back TV

Option B

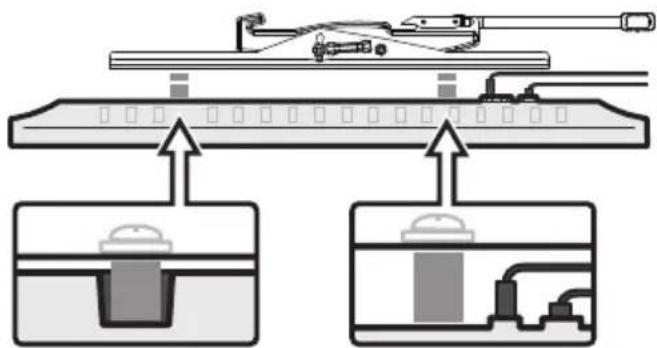

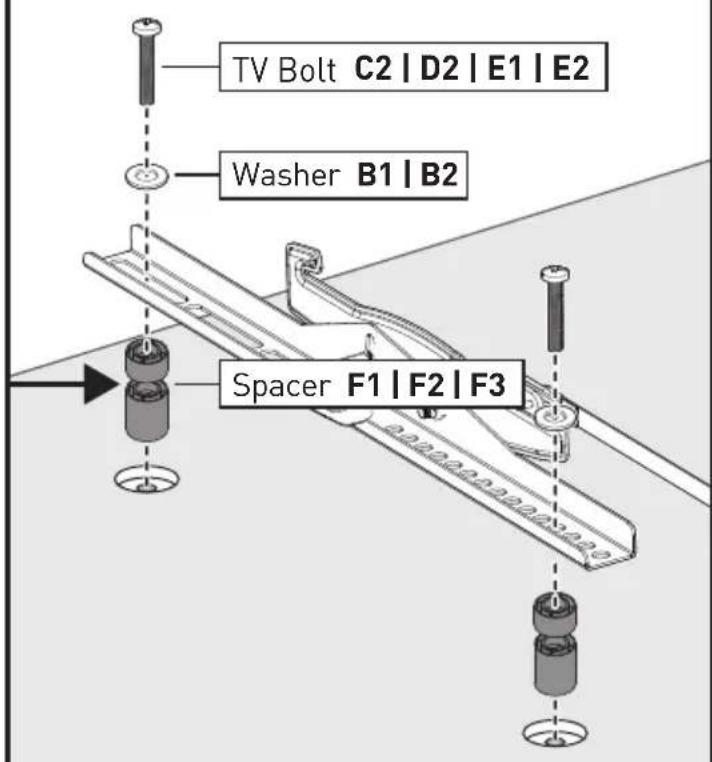

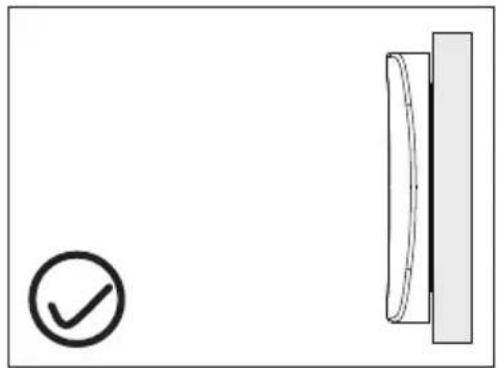

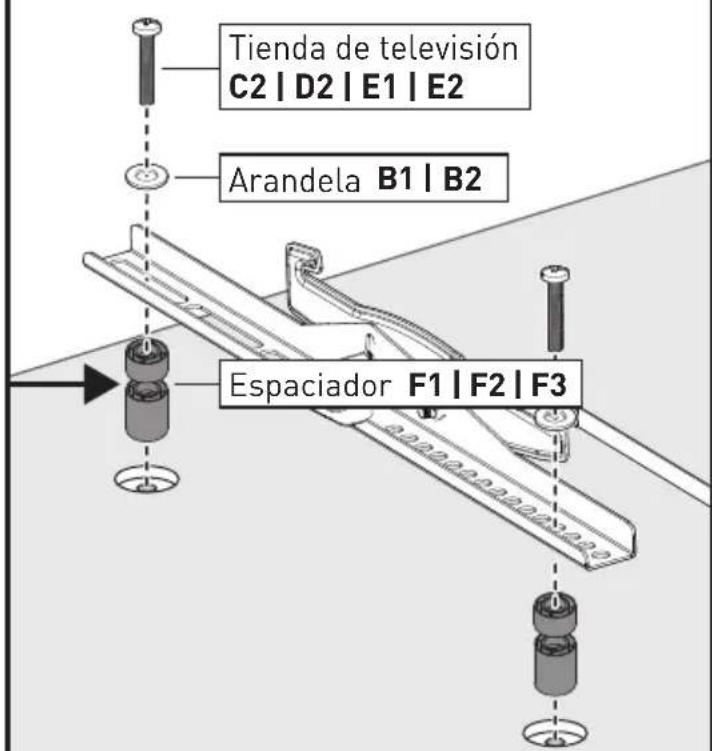

Use long TV bolts with washers and spacers to create extra space between the TV and brackets.

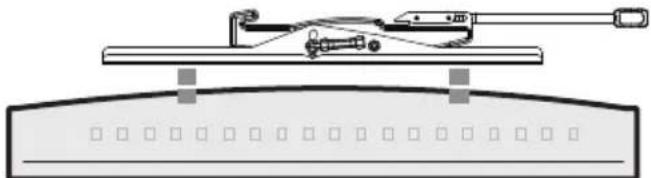

Curved TV

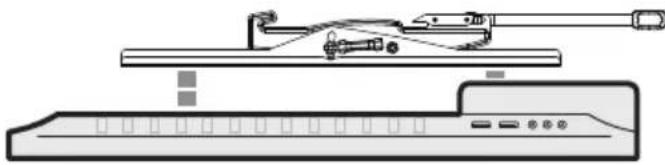

TV with Mounting RestrictionsBump
Recessed Holes Protruding Cables

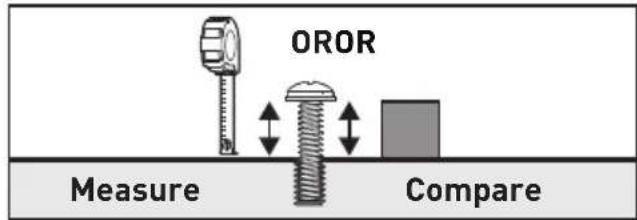

You can use a tape measure to measure the protruding bolts or hold spacers next to them to choose the right spacer combination.

Note:

There are many possible spacer combinations that can be used.

[877] 419-7832

Mon-Fri 8am - 8pm (CST)

[e-mail]

Supplied Parts and Hardware for Step 2

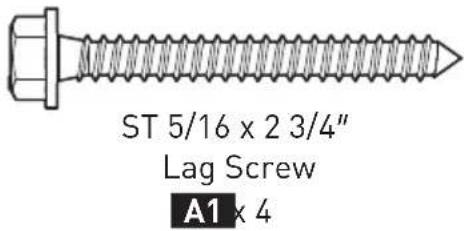

Wall Anchor

A2×4

CAUTION!

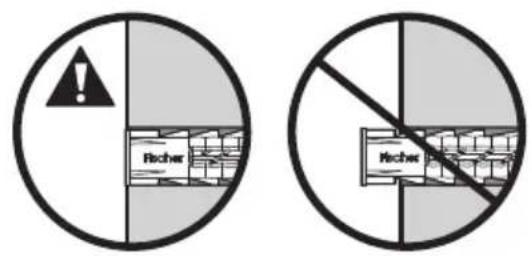

This anchor is for concrete and concrete block walls ONLY. DO NOT use them in drywall or wood studs.

STEP 2 Mount the Wall Plate on the Wall

For mounting on wood stud walls, go to Option A on page 08 to 09. For mounting on concrete and concrete block walls, go to Option B on page 10 to 11.

Option A

For Wood Stud Installation

Tools Needed (Not Included)

Level

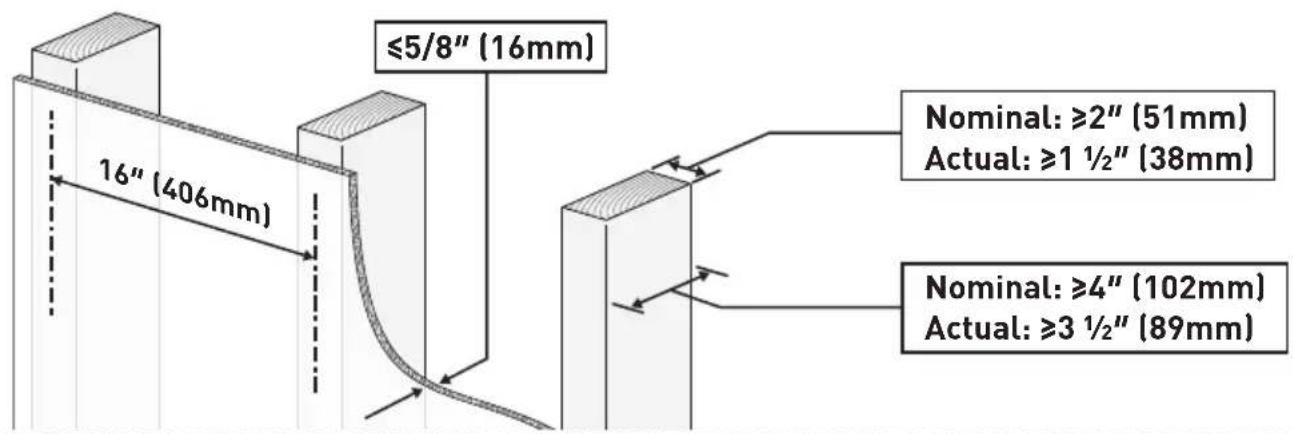

Nominal: ≥slant 2^ (51mm)

Actual: ≥slant 112'' (38mm)

Nominal: ≥slant 4'' (102mm)

Actual: ≥slant 312'' (89mm)

7/32" (5.5mm) 1/2" (13mm)

Wood Drill BitStubEkradeWawich

WARNING:

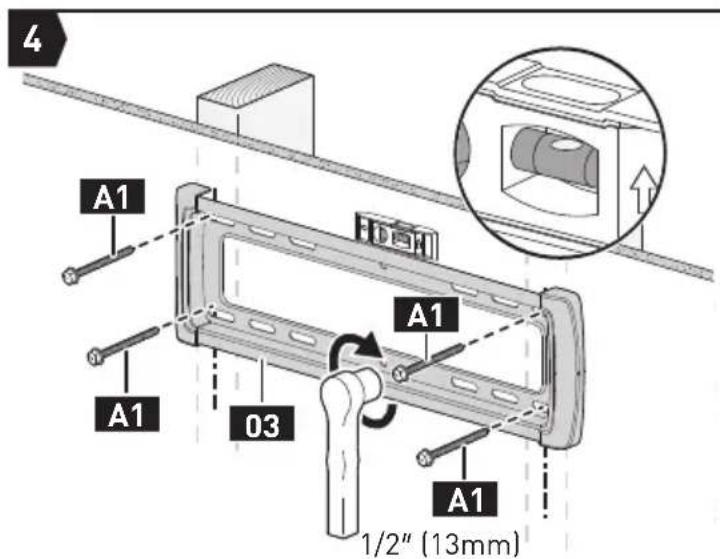

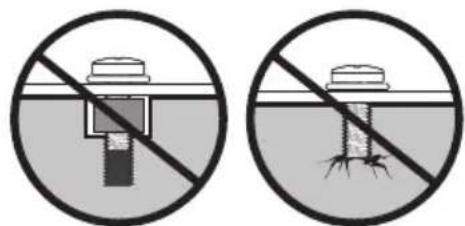

• Avoid the risk of personal injury or property damage! Tighten the lag screws A1 only until they are pulled firmly against the wall plate (DO NOT overtighten). DO NOT use a drill; only use a socket wrench.
  DO NOT use wall anchors A2 for this mounting option.

A2

Wall Anchor

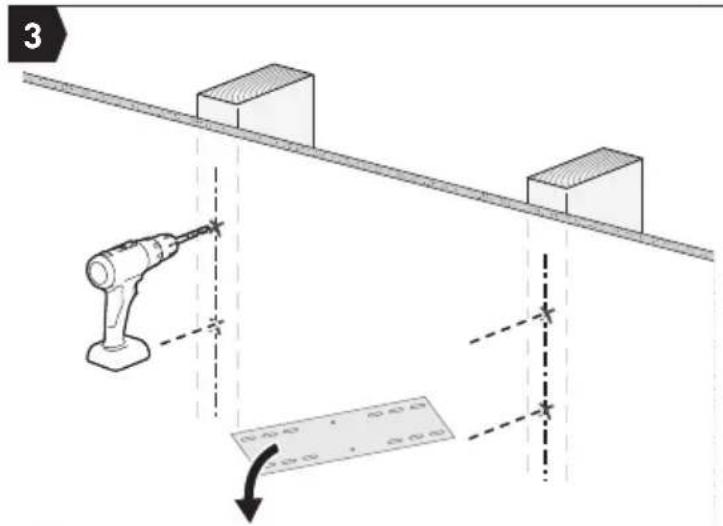

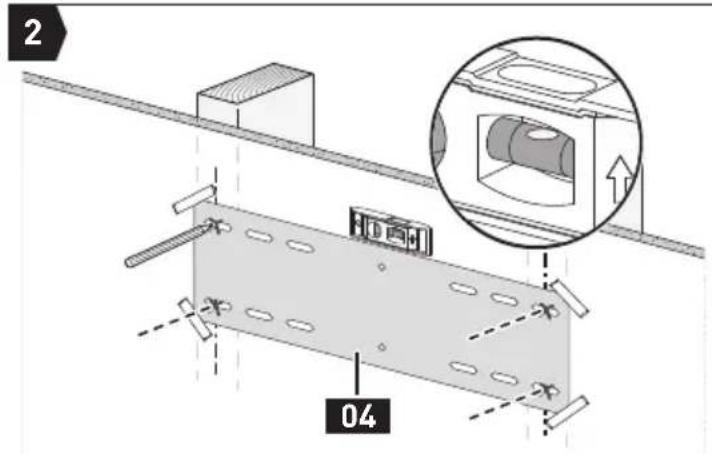

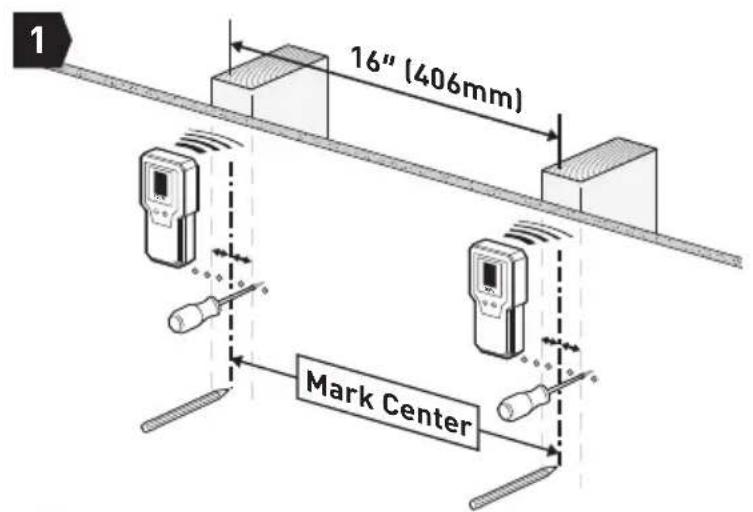

Find Studs and Mark Holes

Mark 4 Hole Positions

Drill 4 Holes

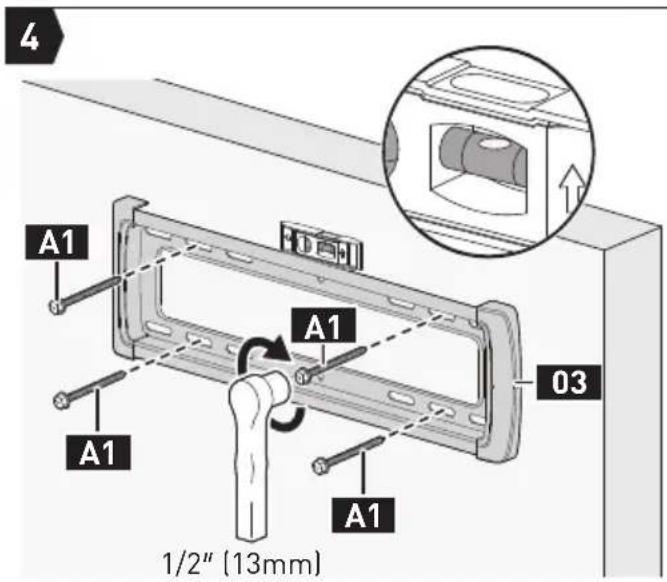

Secure the Wall Plate

Go to Step 3 on Page 11

Option B

For Concrete and Concrete Block Wall Installation

Tools Needed (Not Included)

3/8" [10mm]

Concrete Drill BitHarSmkefflAteerDrill Pei

WARNING:

• Avoid the risk of personal injury or property damage! Tighten the lag screws A1 only until they are pulled firmly against the wall plate (DO NOT overtighten). DO NOT use a drill; only use a socket wrench.
• Use wall anchors A2 for this mounting option.
• Mount the wall plate directly on the concrete surface.

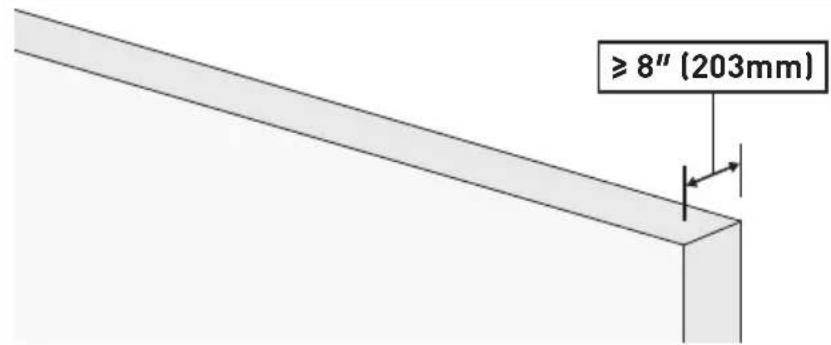

• Minimum concrete block size: 8'' × 8'' × 16'' (203 x 203 x 406mm)

A2

Wall Anchor

1

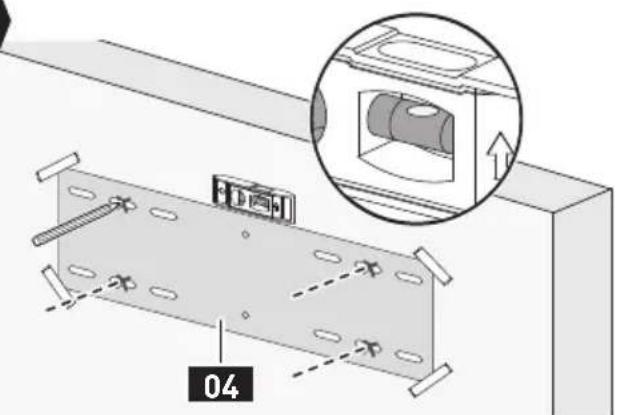

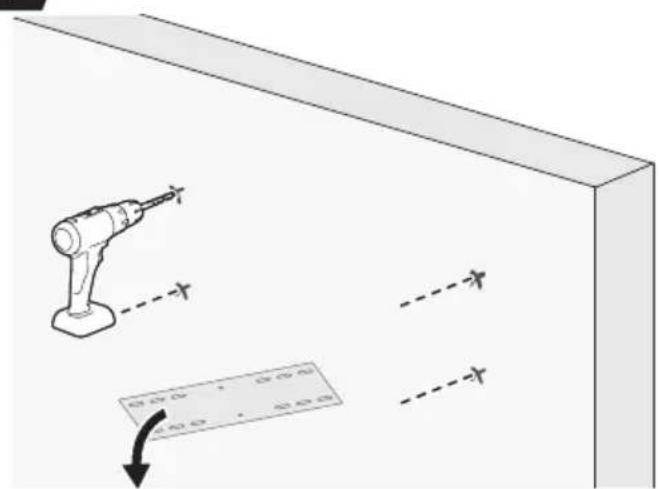

Mark 4 Hole Positions

2

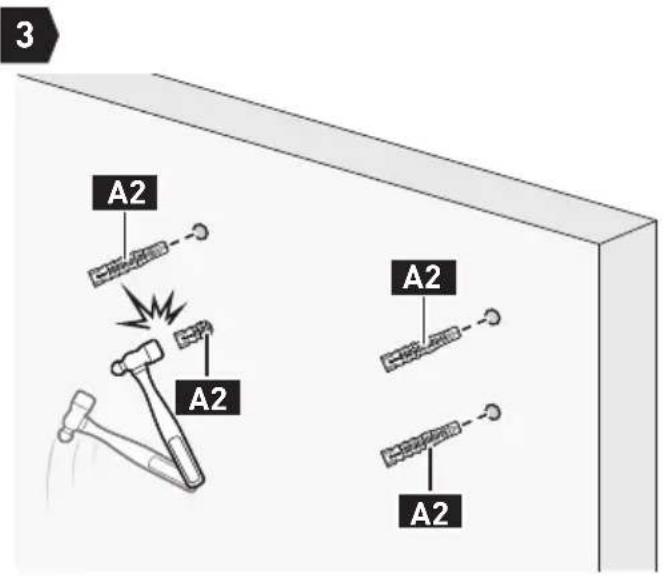

Drill 4 Holes

Note:

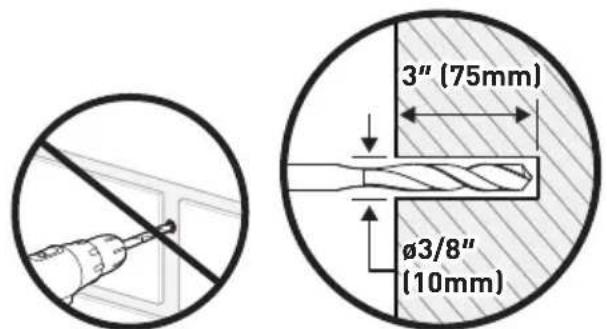

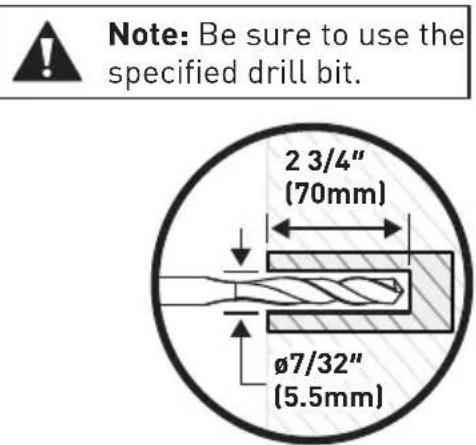

• Be sure to use the specified drill bit.

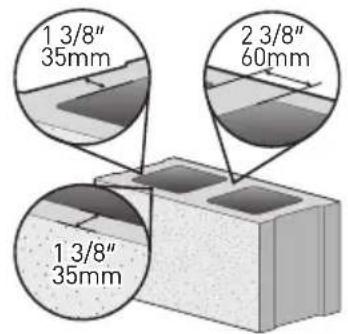

• Never drill into the mortar between blocks.

Secure the Wall Plate

STEP 3 Verify Wall Plate is Firmly Mounted

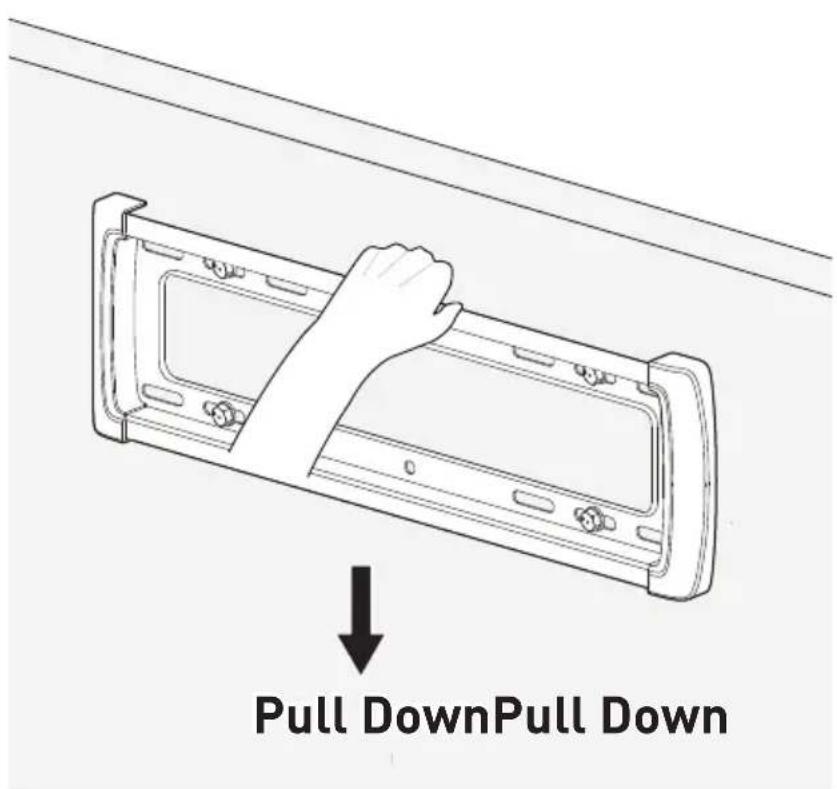

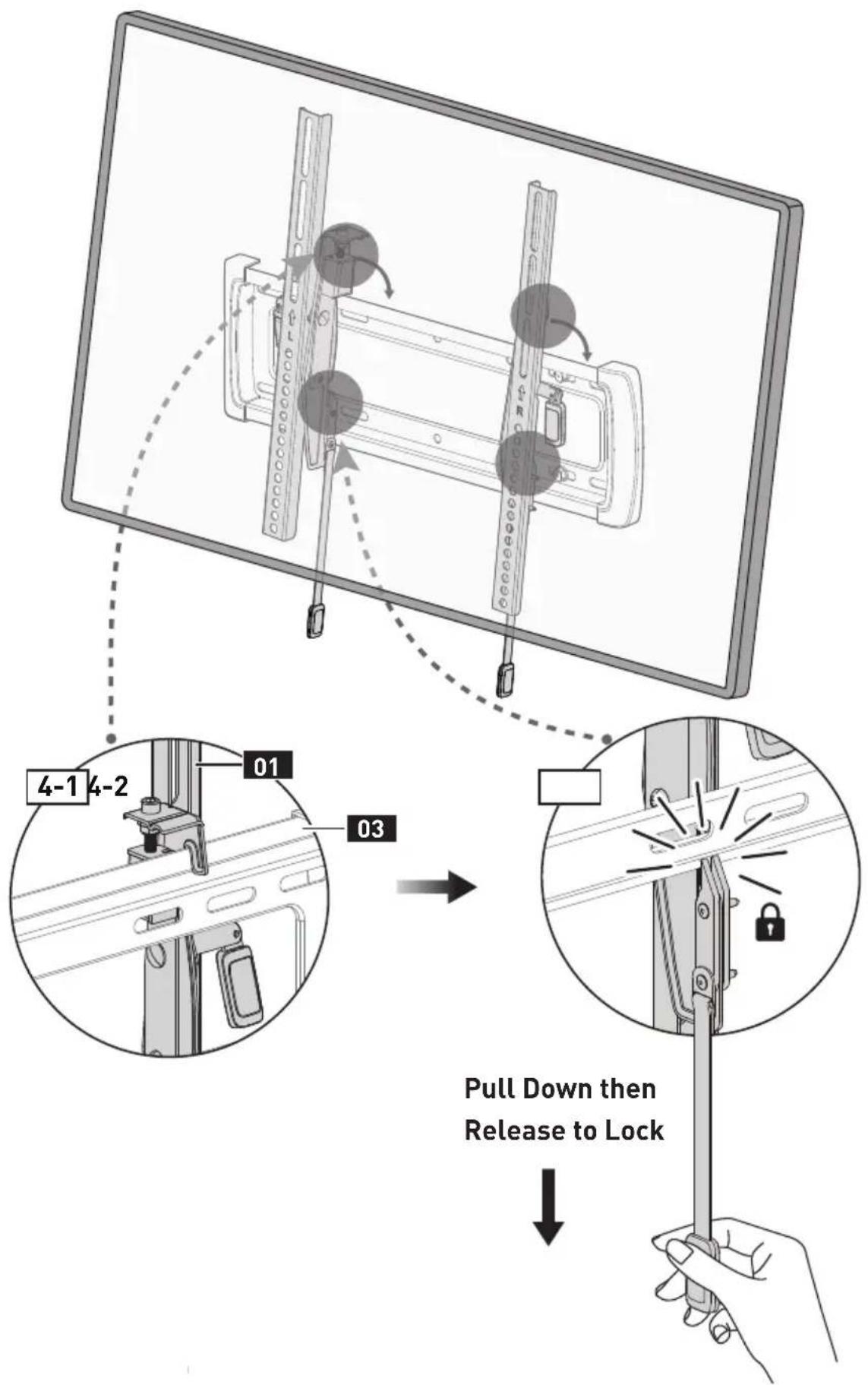

STEP4 Hang the TV on the Wall Plate

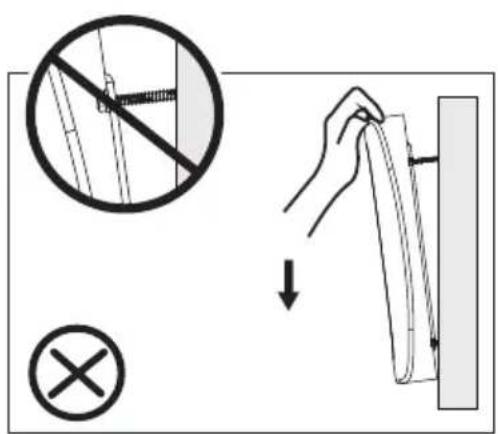

HEAVY! You may need assistance with this step.

Supplied Parts and Hardware for Step 5

3/16" (5mm)

Allen Key

X1

STEP5 Level Adjustment

Level

Note:

Please DO NOT overtighten

or overloosen the bolt L.

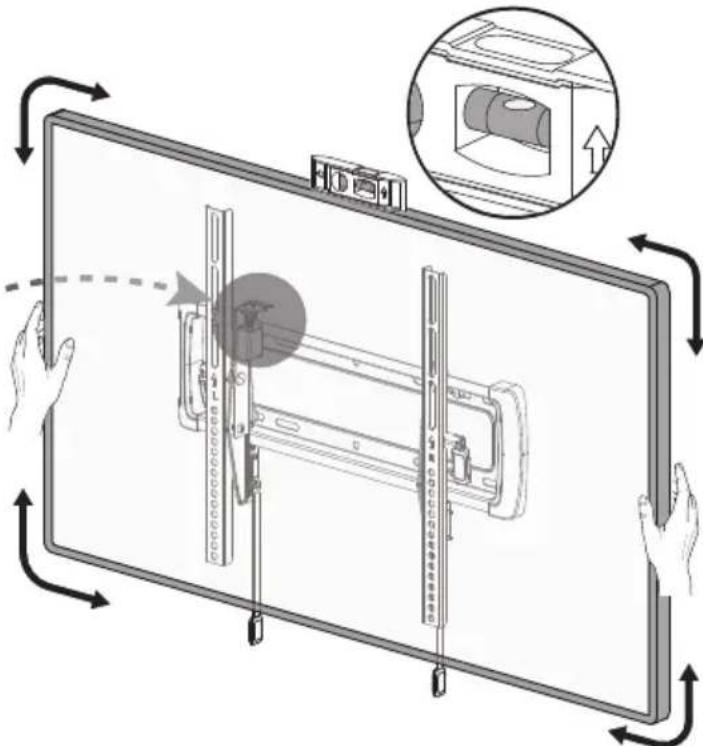

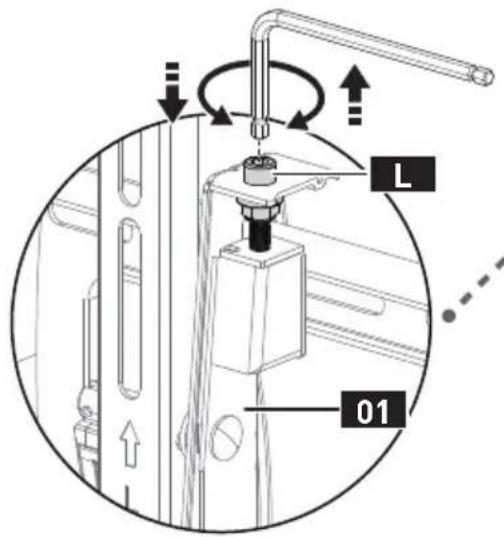

To level the TV, turn the bolt L on the L TV bracket 01 clockwise to raise or counter-clockwise to lower the left side of the TV.

STEP 6 Filt Adjustment

Tilt

Note:

Please DO NOT overtighten or overloosen the levers T.

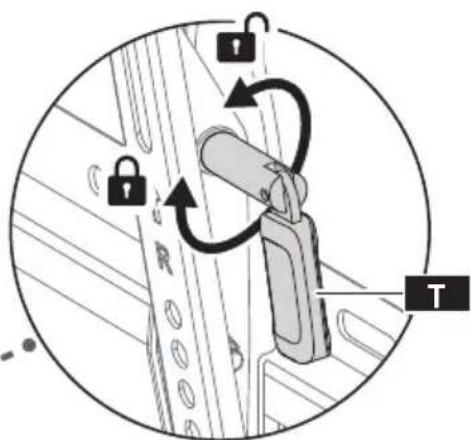

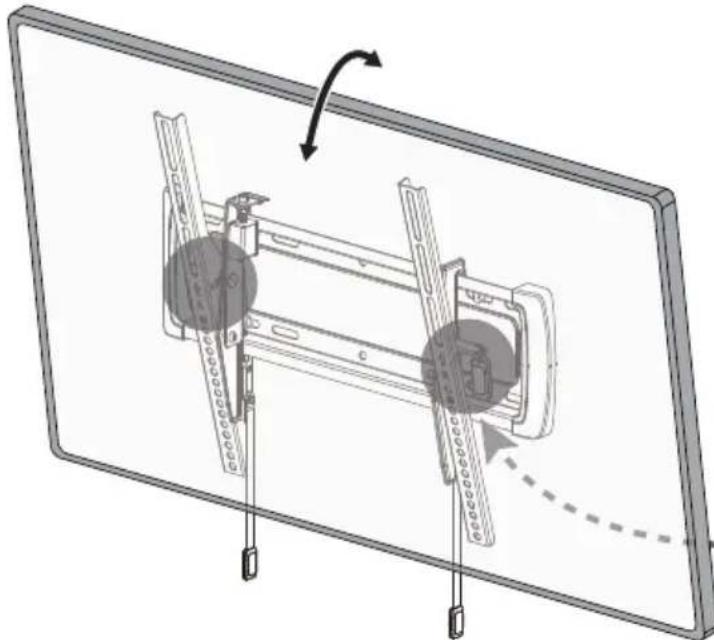

Slightly loosen the levers T. Tilt the TV to the desired angle. Retighten the levers T to hold the TV in position.

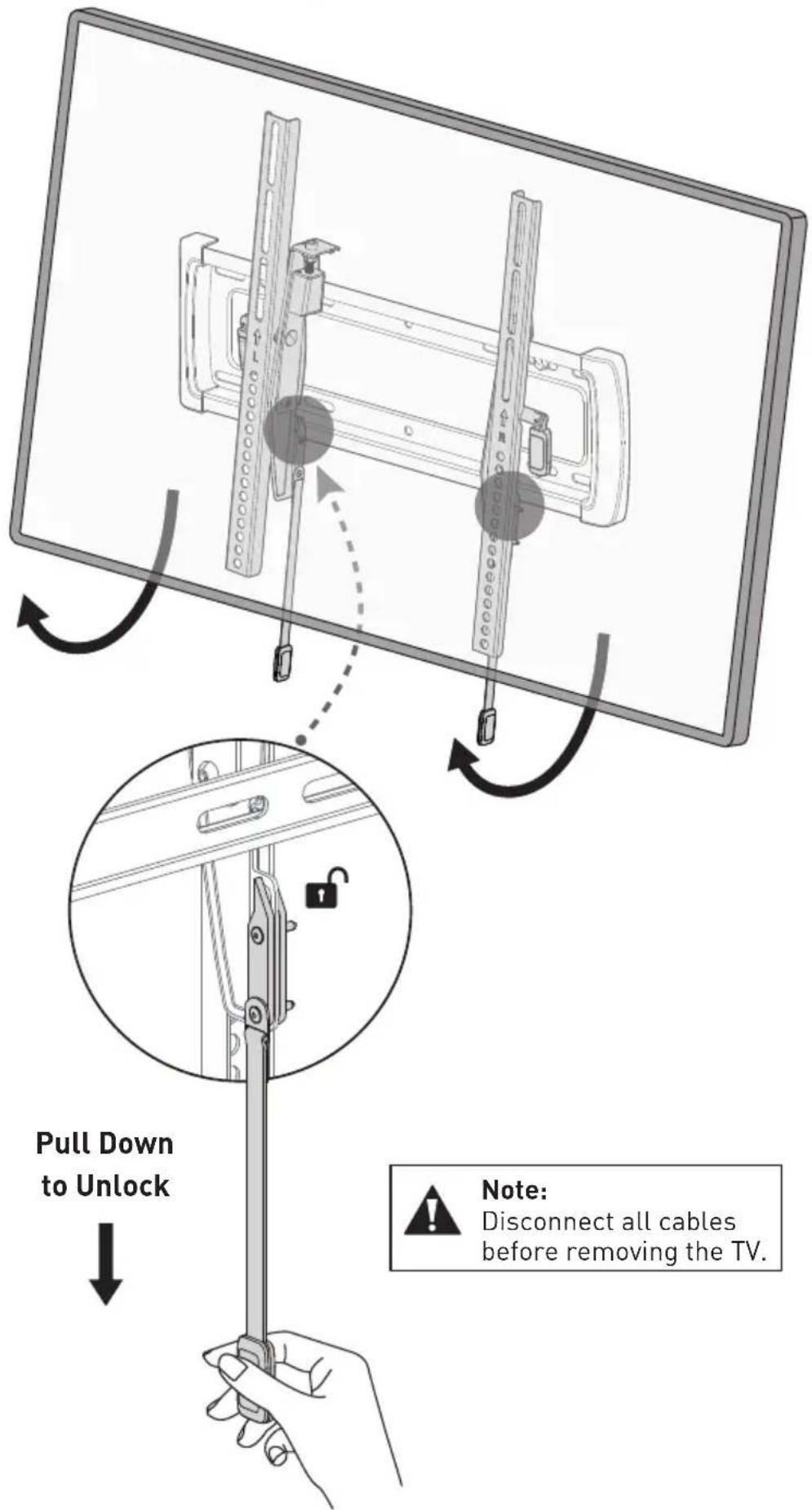

STEP7 How to Remove the TV

HEAVY! You may need assistance with this step.
