USER MANUAL Lumina NRS 120 FALMEC

UK - Measurements for installation.

DK - Mal for installation.

SE - Installationsatgarder.

FI - Mitat asennusta varten.

Technical diagram illustrating two mechanical or electrical setups labeled B and C, showing hand positions, rotating components, and a sliding mechanism.

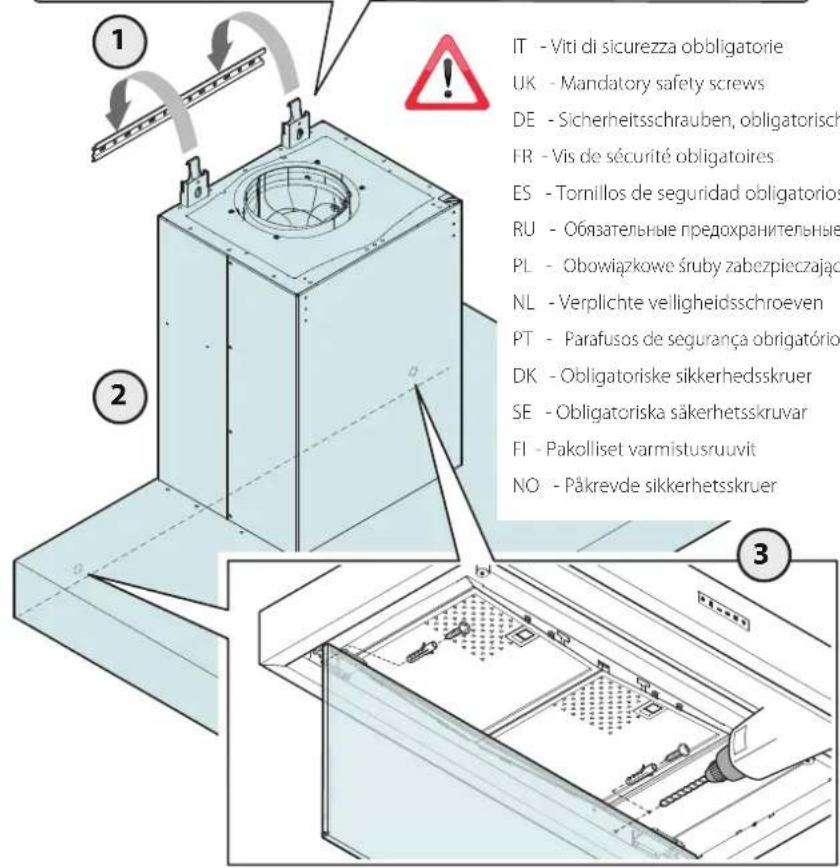

IT - Viti di sicurezza obbligatorie UK - Mandatory safety screws DE - Sicherheitsschrauben, obligatorisch FR - Vis de sécurité obligatoires ES - Tornillos de seguridad obligatorios RU - Обязательные предохранительные PL - Obowiązkowe śruby zabezpieczające NL - Verplichte veiligheidsschroeven PT - Parafusos de segurança obrigatórios DK - Obligatoriske sikkerhedsskruer SE - Obligatoriska säkerhetsskruvar FI - Pakolliset varmistusruuvit NO - Påkrevde sikkerhetsskruer

2

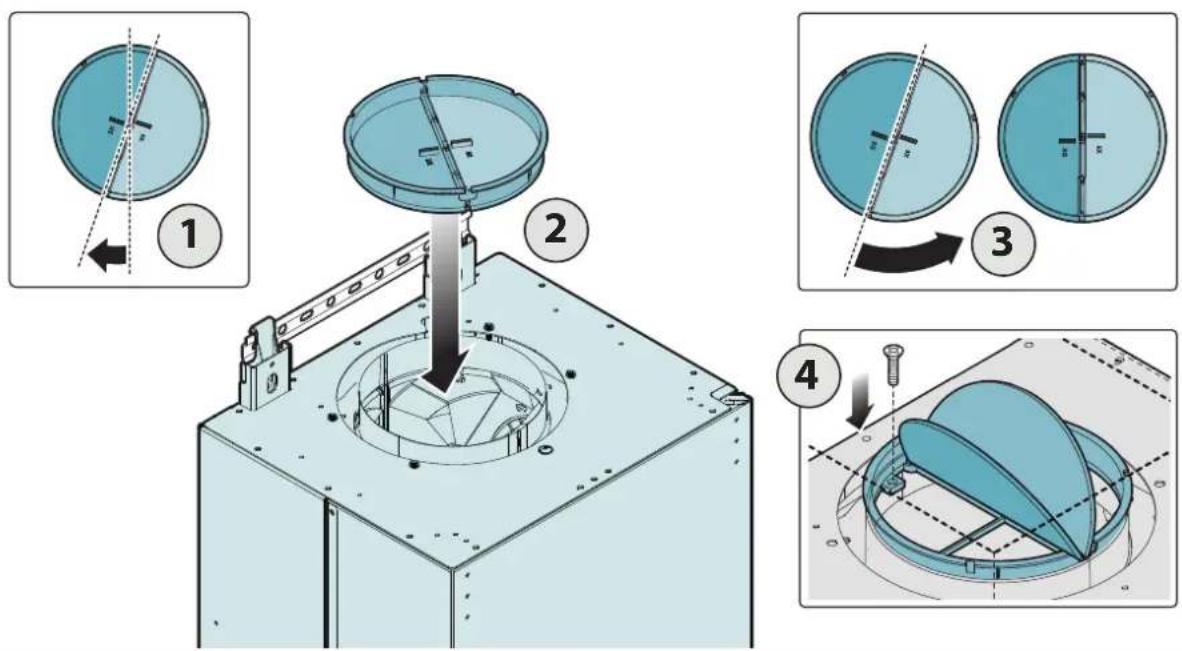

Technical diagram illustrating four steps of a mechanical assembly with labeled components and directional arrows.

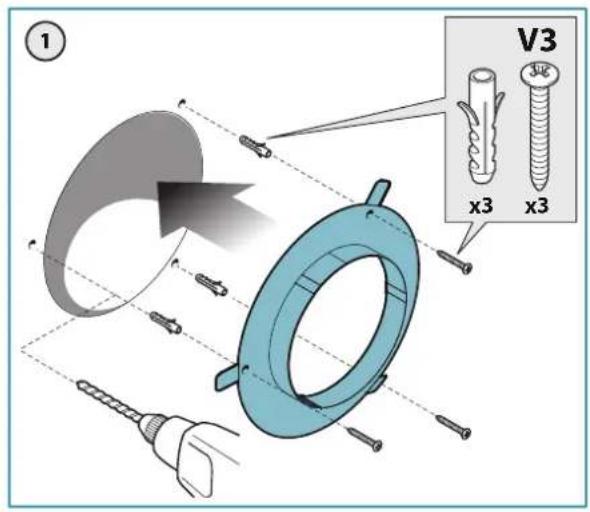

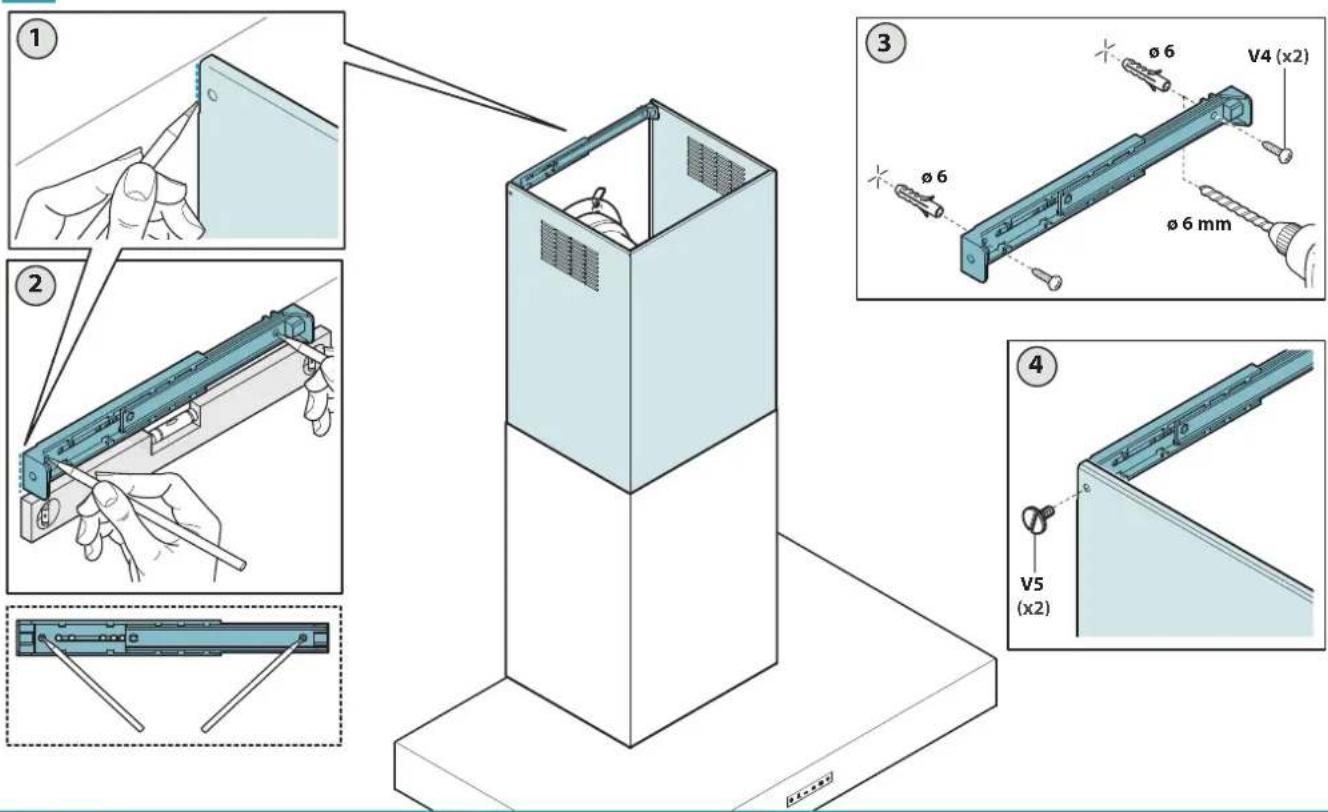

UK - Fastening of NRS

Technical diagram of a mechanical testing setup with labeled components and measurement indicators

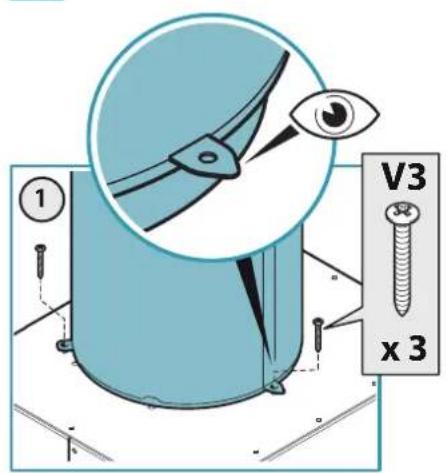

① V3 x3 x3

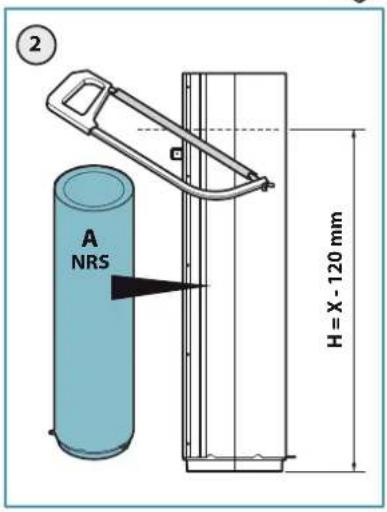

② A NRS H = X - 120 mm

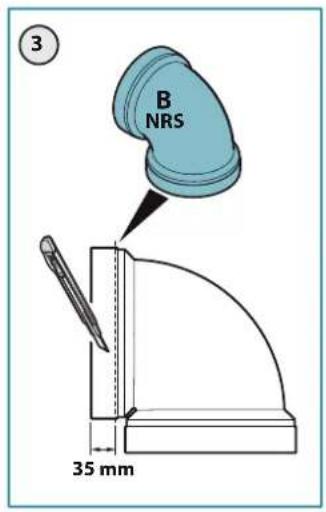

B NRS 35 mm

4

V3 x 3

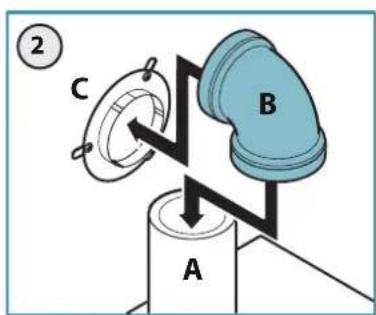

② C B A

Illustration of a hand using a tool to adjust or install a blue mechanical component, no text or symbols present

Technical diagram of a mechanical assembly with a power outlet and cable, no visible text or symbols

6

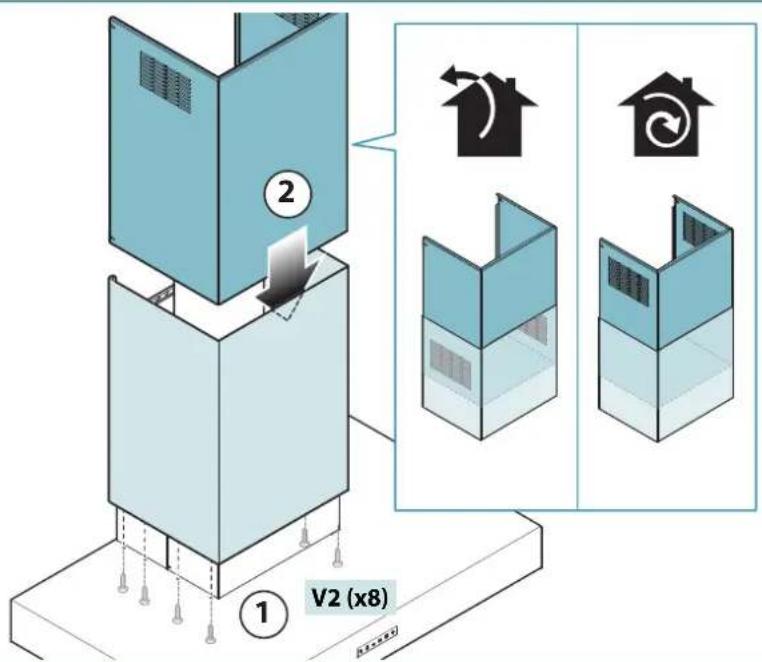

① V2 (x8) ②

7

Technical diagram illustrating four steps of a mechanical assembly with labeled components and tool paths

(8 (NO PLANE)

9

Diagram illustrating a door panel installation with labeled components and a hand inserting a component, showing steps 1 and 2.

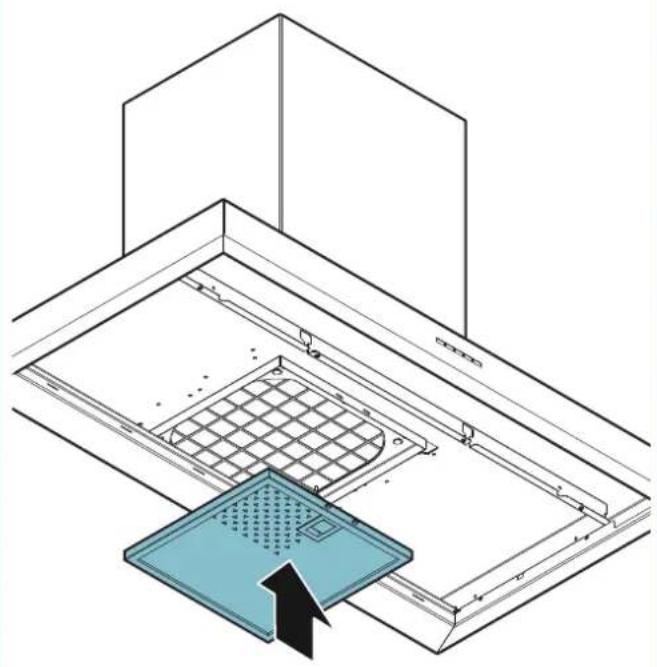

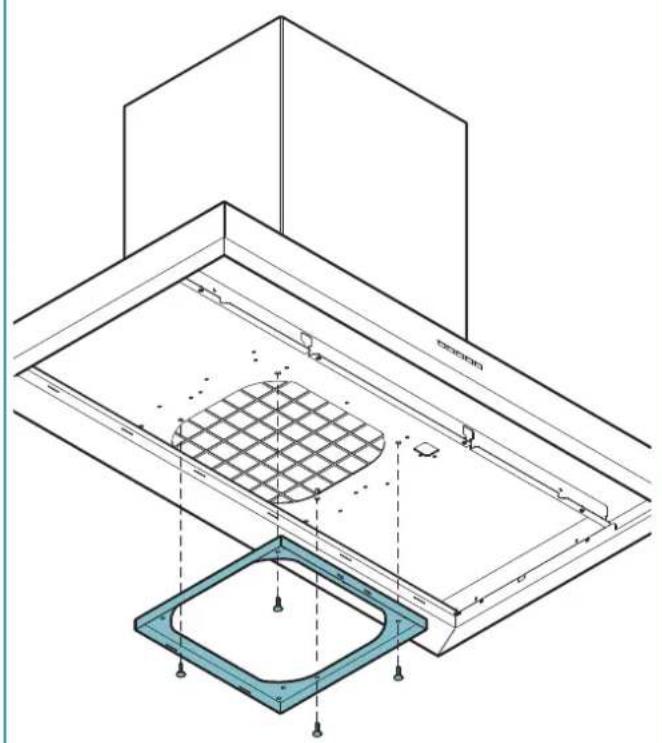

PLANE

Diagram illustrating a door panel installation with labeled components and a hand interacting with a touchscreen interface.

11

Isometric technical diagram of a structural assembly with nested components and mounting points (no text or symbols)

Isometric diagram of a kitchen sink with a blue filter component inserted, showing structural details without any text or symbols.

Weather and weather icons showing clock, plus, minus, and sun symbols

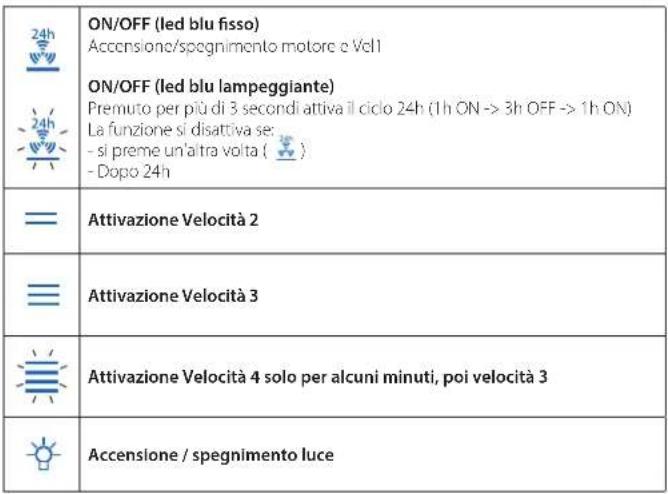

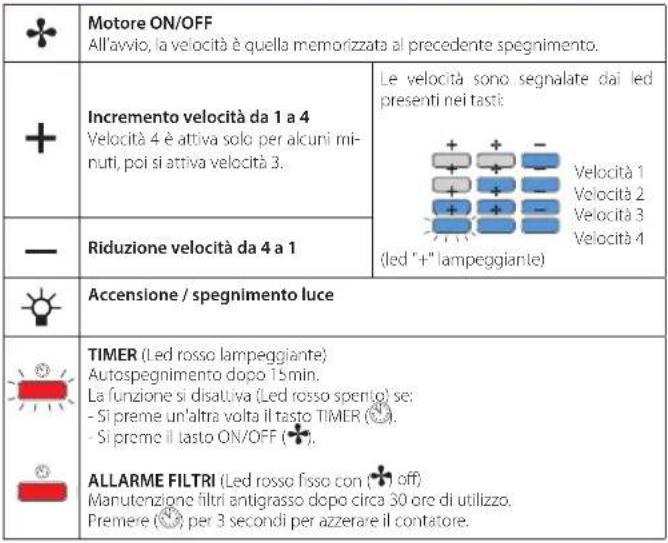

PULSANTIERA TOUCH

Weather and time icons including sun, lightbulb, equals sign, 24-hour signal, and clock

Diagram showing two electrical setups with labeled components: one with a lever and arrow, the other with a 12V power connection and cable.

ILLUMINAZIONE (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

SAFETY INSTRUCTIONS AND WARNINGS

Installation operations are to be carried out by skilled and qualified installers in accordance with the instructions in this booklet and in compliance with the regulations in force.

DO NOT use the hood if the power supply cable or other components are damaged: disconnect the hood from the electrical power supply and contact the Dealer or an authorised Servicing Dealer for repairs.

Do not modify the electrical, mechanical or functional structure of the equipment.

Do not personally try to carry out repairs or replacements. Interventions carried out by incompetent and unauthorised persons can cause serious damage to the unit or physical and personal harm, not covered by the Manufacturer's warranty.

WARNINGS FOR THE INSTALLER

TECHNICAL SAFETY

Before installing the hood, check the integrity and function of each part. Should anomalies be noted, do not proceed with installation and contact the Dealer.

Do NOT install the hood if an aesthetic (or cosmetic) defect has been detected. Put it back into its original package and contact the dealer.

No claim can be made for aesthetic (or cosmetic) defects once it has been installed.

During installation, always use personal protective equipment (e.g.: Safety shoes) and adopt prudent and proper conduct.

The installation kit (screws and plugs) supplied with the hood is only to be used on masonry walls: in case of installation on walls of a different material, assess other installation options keeping in mind the type of wall surface and the weight of the hood (indicated on page 2). Keep in mind that installations with different types of fastening systems from those supplied, or which are not compliant, can cause electrical and mechanical seal danger.

Do not install the hood outdoors and do not expose it to atmospheric elements (rain, wind, etc.).

ELECTRICAL SAFETY

The electrical system to which the hood is to be connected must be in accordance with local standards and supplied with earthed connection in compliance with safety regulations in the country of use. It must also comply with European standards regarding radio antistatic properties.

Before installing the hood, check that the electrical mains power supply corresponds with what is reported on the identification plate located inside the hood.

The socket used to connect the installed equipment to the electrical power supply must be within reach; otherwise, install a mains switch to disconnect the hood when required.

Any changes to the electrical system must be carried out by a qualified electrician.

The maximum length of the flue fastening screws (supplied by the manufacturer) must be 13 mm. Use of non-compliant screws with these instructions can lead to danger of an electrical nature.

Do not try to solve the problem yourself in the event of equipment malfunction, but contact the Dealer or an authorised Servicing Department for repairs.

When installing the hood, disconnect the equipment by removing the plug or switching off the main switch.

FUMES DISCHARGE SAFETY

Do no connect the equipment to discharge pipes of fumes produced from combustion (for example boilers, fireplaces, etc.).

Before installing the hood, ensure that all standards in force regarding discharge of air out of the room have been complied with.

USER WARNINGS

These warnings have been drawn up for your personal safety and those of others. You are therefore kindly asked to read the booklet carefully in its entirety before using the or cleaning the equipment.

The Manufacturer declines all responsibility for any damage caused directly, or indirectly, to persons, things and pets as a consequence of failing to comply with the safety warnings indicated in this booklet.

It is imperative that this instructions booklet is kept together with the equipment for any future consultation.

If the equipment is sold or transferred to another person, make sure that the booklet is also supplied so that the new user can be made aware of the hood's operation and relative warnings.

After the stainless steel hood has been installed, it will need to be cleaned to remove any residues remaining from the protection adhesive as well as any grease and oil stains which, if not removed, can cause irreversible damage to the hood surface. To properly clean the unit, the manufacturer recommends using the supplied moist wipes, which are also available sold separately.

insist on original spare parts.

INTENDED USE

The equipment is solely intended to be used to extract fumes generated from cooking food in non-professional domestic kitchens: any other use is improper. Improper use can cause damage to persons, things, pets and exempts the Manufacturer from any liability.

The equipment can be used by children over the age of 8 and by persons with reduced physical, sensory and mental abilities, or with no experience or knowledge, as long as they do so under supervision or after having received relative instructions regarding safe use of the equipment and understanding of the dangers connected to it.

Children are not to play with the equipment. Cleaning and maintenance by the user must not be carried out by children without supervision.

USE AND CLEANING WARNINGS

Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.

Do not use the hood with wet hands or bare feet.

Always check that all electrical parts (lights, extractor fan) are off when the equipment is not being used.

The maximum overall weight of any objects placed or hung (if applicable) on the hood must not exceed 1.5 Kg.

Always supervise the cooking process during the use of deep fryers. Overheated oil can catch fire.

Do not leave open, unattended flames under the hood.

Do not prepare food over an open flame under the hood.

Never use the hood without the metal anti-grease filters: in this case, grease and dirt will deposit in the equipment and compromise its operation.

Accessible parts of the hood can be hot when used at the same time as the cooking appliances.

Do not carry out any cleaning operations when parts of the hood are still hot.

There can be a risk of fire if cleaning is not carried out according to the instructions and products indicated in this booklet.

Disconnect the main switch when the equipment is not used for long periods of time.

If other appliances that use gas or other fuels are being used at the same time (boiler, stove, fireplaces, etc.), make sure the room where the fumes are discharged is well-ventilated, in compliance with the local regulations.

INSTALLATION only intended for qualified personnel

Before Installing the hood, carefully read the chapter 'SAFETY INSTRUCTIONS AND WARNINGS'.

TECHNICAL FEATURES

The technical specifications are exhibited on the labels located inside the hood.

POSITIONING

The minimum distance between the highest part of the cooking equipment and the lowest part of the hood is indicated in the installation instructions.

Generally, when the hood is placed over gas cookers, the distance must be at least 65 cm (25.6"). However, according to an interpretation of standard EN50335-2-31 dated 11-07-2002 of TC61 (sub-clause 7.12.1 meeting 15 agenda item 10.11), the minimum distance between the cooker and lower part of the hood can be reduced to the quota reported in the installation instructions.

Should the instructions for the gas cooker specify a greater distance, this must be taken into consideration.

Do not install the hood outdoors and do not expose it to outdoor environment (rain, wind, etc.).

ELECTRICAL CONNECTION

(only intended for qualified personnel)

Disconnect the equipment from electrical mains power supply before carrying out any operations on the hood.

Ensure that the wires inside the hood are not disconnected or cut: in the event of damage, contact your nearest Servicing Department.

Refer to qualified personnel for electrical connections.

Connection must be carried out in compliance with the provisions of law in force. Before connecting the hood to the electrical mains power supply, check that:

• voltage supply corresponds with what is reported on the data plate located inside the hood;
• the electrical system is compliant and can withstand the load (see the technical specifications located inside the hood);
• the power supply plug and cable do not come into contact with temperatures exceeding 70 °C;
• the power supply system is effectively and properly connected to earth in compliance with regulations in force;
  • the socket used to connect the hood is within reach.

In case of:

• devices fitted with cables without a plug: the type of plug to use is a "standardised" one. The wires must be connected as follows: yellow-green for earthing, blue for neutral and brown for the phase. The plug must be connected to an adequate safety socket.
• fixed equipment not provided with a power supply cable and plug, or any other device that ensures disconnection from the electrical mains, with an opening gap of the contacts that enables total disconnection in overvoltage category III conditions.
  Said disconnection devices must be provided in the mains power supply in compliance with installation regulations.

The yellow/green earth cable must not be cut off by the switch.

The Manufacturer declines all responsibility for failure to comply with the safety regulations.

FUMES DISCHARGE

EXTERNAL EXHAUST HOOD (SUCTION)

In this version the fumes and vapours are discharged outside through the exhaust pipe.

To this end, the hood outlet fitting must be connected via a pipe, to an external output.

The outlet pipe must have:

• a diameter not less than that of the hood fitting.
- a slight slope downwards (drop) in the horizontal sections to prevent condensation from flowing back into the motor.
• the minimum required number of bends.

- the minimum required length to avoid vibrations and reduce the suction performance of the hood.

You are required to insulate the pipes if it passes through cold environments.

In the presence of motors with 800m ^3 /h or higher, a check valve is present to prevent external air flowing back.

Deviation for Germany:

when the kitchen hood is used at the same time as appliances that are powered by energy other than electricity, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

HOOD WITH INTERNAL RECIRCULATION (FILTERING)

In this model, air passes through the active carbon filters HP (optional) to be purified and is then recycled into the environment.

Ensure that the active carbon filters HP are assembled into the hood, if not, install them as indicated in the assembly instructions.

In this version the check valve must not be assembled: remove it if it is on the air outlet fitting of the motor.

ASSEMBLY INSTRUCTIONS

only intended for personnel qualified

The hood can be installed in various configurations.

The generic assembly steps apply to all installations; for each case, follow the specific steps provided for the required installation.

OPERATION

WHEN TO TURN ON THE HOOD?

Switch on the hood at least one minute before starting to cook to direct fumes and vapours towards the suction surface.

After cooking, leave the hood operating until complete extraction of all vapours and odours. By means of the Timer function, it is possible to set auto switch-off function which will allow the hood to turn off automatically after 15 minutes of operation.

WHICH SPEED IS TO BE SELECTED?

1st speed: maintains the circulation of clean air with low electricity consumption.

2nd speed: normal conditions of use.

3rd speed: presence of strong odours and vapours.

4th speed: rapid disposal of odours and vapours.

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal filters must be cleaned every 30 hours of operation.

The active carbon filters must be replaced every 3-4 months, depending on the use of the hood.

For further details see the "MAINTENANCE" chap.

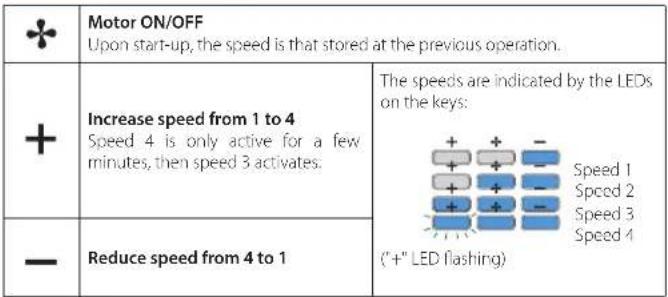

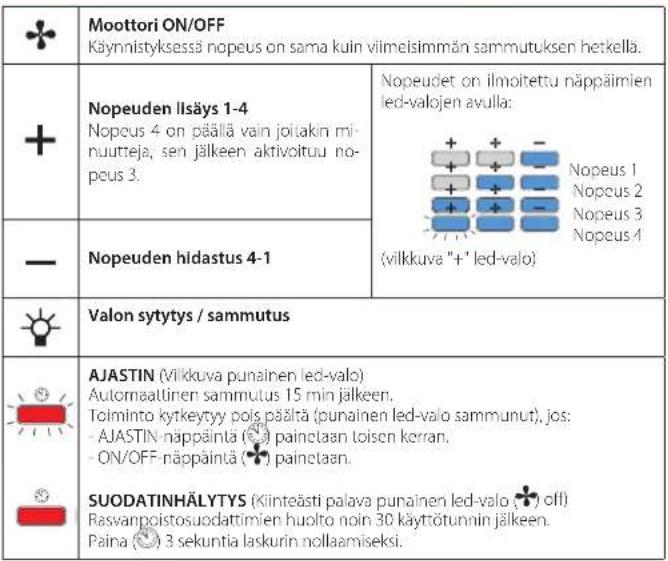

ELECTRONIC PUSHBUTTON PANEL (STILO e PLANE)

	ON/OFF (Blue led steady on)Motor on/off and Speed 1
	ON/OFF (blue led flashing)If pressed for more than 3 seconds, it activates the 24h cycle (1h ON -> 3h OFF -> 1h ON)the function deactivates if:- The motor turns off (key )- After 24h
	Speed 2 activation
	Speed 3 activation
	Speed 4 activation for a few minutes only

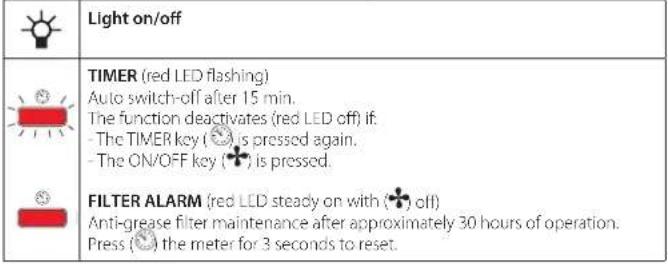

	Light on/off

TIMER (Red LED flashing)

Auto switch-off after 15 min.

The function deactivates (red LED off) if:

- The motor turns off (key 📋)

- The speed is changed.

FILTER ALARM (red LED steady on)

Anti-grease filter maintenance after approximately 30 hours of operation.

Press the meter for 3 seconds to reset.

MAINTENANCE

Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.

Do not use detergents containing abrasive, acidic or corrosive substances or abrasive cloths.

Regular maintenance guarantees proper operation and performance over time.

Special attention is to be paid to the metal anti-grease filters : frequent cleaning of the filters and their supports ensures that no flammable grease is accumulated.

CLEANING OF EXTERNAL SURFACES

You are advised to clean the external surfaces of the hood at least once every 15 days to prevent oily substances and grease from sticking to them. To clean the brushed stainless steel hood, the Manufacturer recommends using "Magic Steel" wipes.

Alternatively and for all the other types of surfaces, it can be cleaned using a damp cloth, slightly moistened with mild, liquid detergent or denatured alcohol.

Complete cleaning by rinsing well and drying with soft cloths.

Do not use too much moisture or water around the push button control panel and lighting devices in order to prevent humidity from reaching electronic parts.

The glass panels can only be cleaned with specific, non-corrosive or non-abrasive detergents using a soft cloth.

The Manufacturer declines all responsibility for failure to comply with these instructions.

CLEANING OF INTERNAL SURFACES

Do not clean electrical parts, or parts related to the motor inside the hood, with liquids or solvents.

For the internal metal parts, see the previous paragraph.

METAL ANTI-GREASE FILTERS

It is advised to frequently wash the metal filters (at least once a month) leaving them to soak in boiling water and cleaning solution for 1 hour, taking care not to bend them.

Do not use corrosive, acid or alkaline detergents.

Rinse them well and wait for them to be completely dry before reassembling them.

Washing in a dishwasher is permitted, however, it may cause the filter material to darken: to reduce the possibility of this problem from happening, use low-temperature washes (55°C max.).

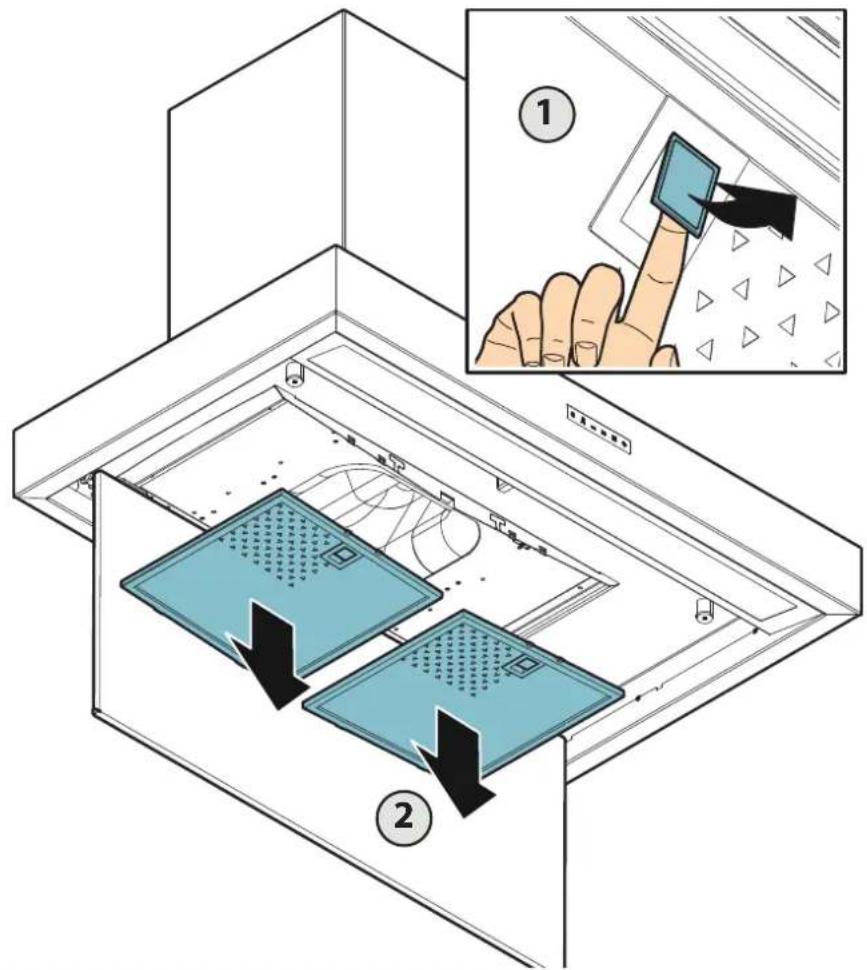

To extract and insert the metal anti-grease filters see the assembly instructions.

HP/ACTIVE CARBON FILTERS (optional)

These filters retain the odours in the air that passes through them. The purified air is recirculated into the environment.

The HP active carbon filters reactivate by washing them in the dishwasher with a normal detergent at a maximum temperature of 65°C and passing them in the oven at 80°C for 20 minutes.

The maximum duration of the filter is 2/3 years with a maximum of 10 washings per year.

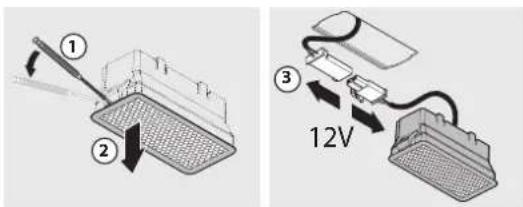

LIGHTING (STILO e PLANE)

The range hood is equipped with high efficiency, low consumption LED spotlights with an extremely long life span under normal use conditions.

Should the LED spotlight need to be replaced, proceed as shown in the figure.

Diagram showing two electrical setups with labeled components: one with a lever and handle, the other with a 12V power connection and cable.

LIGHTING (VELA)

The range hood is equipped with high efficiency, low consumption LED with an extremely long life-span under normal use conditions.

Should the LED spotlight need to be replaced, contact the service centre.

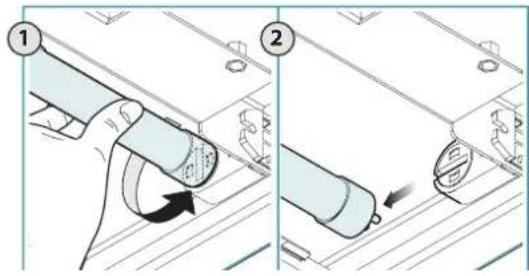

LIGHTING (HORIZON e LUMINA)

The hood has fluorescent lamp lighting.

If the lamp ever needs to be replaced, proceed as shown in the figure.

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

DISPOSAL AFTER END OF USEFUL LIFE

The crossed-out trash or refuse bin symbol on the appliance means that the product is WEEE, i.e. "Waste electrical and electronic equipment", accordingly it must not be disposed of with regular unsorted waste (i.e. with "mixed household waste"), but it must be disposed of separately so that it can undergo specific

processing for its re-use, or a specific treatment, to remove and safely dispose of any substances that may be harmful to the environment and remove the raw materials that can be recycled. Proper disposal of these products contributes to saving valuable resources and avoid potential negative effects on personal health and the environment, which may be caused by inappropriate disposal of waste.

You are kindly asked to contact your local authorities for further information regarding the designated waste collection points nearest to you. Penalties for improper disposal of such waste can be applied in compliance with national regulations.

INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES

The EU WEEE Directive was implemented differently in each country, accordingly, if you wish to dispose of this appliance we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.

INFORMATION ON DISPOSAL IN NON-EUROPEAN UNION COUNTRIES

The crossed-out trash or refuse bin symbol is only valid in the European Union: if you wish to dispose of this appliance in other countries, we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.

WARNING!

The Manufacturer reserves the right to make changes to the equipment at any time and without prior notice. Printing, translation and reproduction, even partial, of this manual are bound by the Manufacturer's authorisation.

Technical information, graphic representations and specifications in this manual are for information purposes and cannot be divulged.

This manual is written in Italian. The Manufacturer is not responsible for any transcription or translation errors.

Diagram showing two labeled components (① and ②) of a mechanical or electrical component with directional arrows indicating movement.

③ 12V

BELEUCHTUNG (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

Diagram showing two electrical setups with labeled components: one with a lever and arrow, the other with a 12V power connection and cable.

ÉCLAIRAGE (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

ÉLIMINATION EN FIN DE VIE

Diagram showing a device with labeled parts and directional arrows indicating movement or force

③ 12V

ILUMINACIÓN (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

Diagram showing two electrical setups with labeled components: one with a lever and arrow, the other connected to a 12V power supply.

ОСВЕЩЕНИЕ (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

Diagram showing two electrical setups with labeled components: one with a lever and net, the other connected to a 12V power supply.

OŚWIETLENIE (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

UTYLIZACJA PO ZAKOŃCZENIU OKRESU EKSPLOATACJI

VEILIGHEIDSINSTRUCTIES EN WAARSCHUWINGEN

AFZUIGKAP MET AFVOER NAAR BUITEN

TIMER (Knipperende rode led)

Diagram showing a lever mechanism with labeled parts ① and ②, indicating movement or force direction.

③ 12V

VERLICHTING (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion or movement.

Diagram showing two electrical setups with labeled components: one with a lever and grid, the other with a 12V power connection.

ILUMINAÇÃO (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

HVILKEN HASTIGHED SKAL MAN VÄLGE?

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow, likely illustrating a mechanical or electrical assembly.

③ 12V

BELYSNING (VELA)

Technical diagram showing two-step assembly process with labeled components and directional arrows indicating motion

BORTSKAFFELSE VED ENDT LEVETID

Diagram showing two electrical setups with labeled components: one with a lever and arrow, the other with a 12V power connection and cable.

BELYSNING (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion or movement.

KASSERING I SLUTET AV LIVSLÄNGDEN

Weather rating scale with icons for clock, plus sign, minus sign, and sun

KOSKETUSNÄPPÄIMISTÖ

Weather and time icons including sun, light, equals sign, 24-hour signal, and clock

Diagram showing a lever mechanism with labeled parts ① and ②, indicating directional movement or force vectors.

③ 12V

VALAISTUS (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

HÄVITTÄMINEN KÄYTÖN LOPUTTUA

Diagram showing two electrical setups with labeled components: one with a lever and handle, the other with a 12V power connection to a device.

BELYSNING (VELA)

Technical diagram showing two-step assembly process with labeled parts and directional arrows indicating motion

KASSERING VED ENDT LEVETID
