GUD3C04PWRKIT - Network switch IOGEAR - Free user manual and instructions

Product Type	2-Port USB-C KVM Switch
Model	GUD3C04PWRKIT
Brand	IOGEAR
Input Ports	2 USB-C ports (with power delivery support)
Video Output Port	1 HDMI port (up to 3840 x 2160 at 30Hz for laptop, 1920 x 1200 at 60Hz for smartphone)
Peripheral Ports	2 USB-A 3.0 ports
Remote Control Port	1 2.5mm jack port for remote switch
Power Supply	Optional external USB-C power adapter (100W PD recommended, not included)
Power Distribution	Up to 75W on port #1, 10W on port #2 (with 100W adapter)
Maximum Video Resolution	4K (3840 x 2160) at 30Hz
Compatible Operating Systems	Windows 10 (32/64-bit)+, macOS 10.12+, iPadOS 12.1+, Android 8+
Required Hardware	HDMI monitor, wired USB keyboard and mouse
Dimensions (approx.)	Approximately 10 x 6 x 2 cm (estimated)
Weight (approx.)	Approximately 80 g (estimated)
Care and Cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	FCC (Class B) and CE compliant
Warranty	3-year limited warranty
Package Contents	KVM switch, 2 USB-C cables, remote switch, quick start guide, warranty card

Frequently Asked Questions - GUD3C04PWRKIT IOGEAR

Which computers are compatible with this KVM switch?

This KVM switch is compatible with computers equipped with a USB-C port supporting DisplayPort Alt Mode (DP Alt) and Thunderbolt 3 devices. Supported operating systems are Windows 10+, macOS 10.12+, iPadOS 12.1+ and Android 8+.

Do I need an external power supply?

External power is optional but highly recommended for optimal performance. If you use a 100W PD certified LPS adapter, the KVM can provide up to 75W on port #1 and 10W on port #2. Without power, the KVM consumes 15W from the computer connected to port #1.

What is the maximum supported resolution?

The maximum resolution is 3840 x 2160 (4K) at 30Hz for USB-C laptop sources, and up to 1920 x 1200 at 60Hz for USB-C smartphone sources.

How do I switch between the two computers?

You can switch by pressing the included remote switch (connected to the 2.5mm jack port) or, depending on the model, possibly via a button on the device. The LED indicator shows the active port.

Can I use USB-A peripherals with this KVM?

Yes, the switch has 2 USB-A 3.0 ports to share peripherals like a mouse, keyboard, or USB flash drive between the two computers.

Is this product compatible with Samsung DeX?

Yes, the KVM supports Samsung DeX on compatible devices (Galaxy S10/S10+/S10e, Note9, S9/S9+, Note8, S8/S8+, Tab S4). Other Android devices must support screen mirroring.

Is the HDMI cable included?

No, the HDMI cable is not included in the package. You must use your own HDMI cable to connect the switch to a monitor.

What if the LED indicators are blinking?

If the port #1 and #2 LEDs are blinking, it means the KVM is consuming more than 15W and must be connected to an external USB-C power supply to function properly.

How to clean the KVM switch?

Use a soft, dry cloth to wipe the surface. Do not use chemicals, solvents, or abrasive cleaners.

What is the warranty period?

This product has a 3-year limited warranty. For more details, visit https://www.iogear.com/support/warranty.

USER MANUAL GUD3C04PWRKIT IOGEAR

2-Port USB-C™ KVM Switch with Power Delivery

1 x 2-Port USB-C KVM Switch
2 x USB-C to USB-C Cables
1 x Remote Port Selector
1 x Quick Start Guide
1 x Warranty

System Requirements

Console

HDMI monitor
- Standard wired USB keyboard
- Standard 3-button wired USB mouse

Computers

• USB-C sources with DP Alt mode over USB-C
• Thunderbolt™ 3 device compatible

Power

• For optimal performance, we recommend using a Limited Power Source (LPS) certified USB-C PD 100W power supply

Operating Systems

• Windows® 10 (32/64 bit)+
  MacOSX10.12+
• iPadOS® 12.1+, iPad Pro® 3rd generation (2018)
  AndroidTM 8 + 2

For better HID experience, iPadOS 13+ is recommended

Samsung DeX® supported on Galaxy S10/S10+/S10e, Note9, S9/S9+, Note8, S8/8+, and Tab S4. Other Android devices support mirror screen.

USB Type-C and USB-C are trademarks of USB Implementers Forum. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Mac, macOS, iPadOS and iPad Pro are trademarks of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Android is a trademark of Google LLC. Samsung and Samsung DeX are trademarks of Samsung Electronics Corp., Ltd. All other trademarks are the properties of their respective owners. Samsung DeX supported on Galaxy S10/S10+/S10e, Note9, S9/S9+, Note8, S8/8+, and Tab S4. Other Android devices support mirror screen. This product is not manufactured, sponsored, licensed or distributed by Samsung Electronics.

Overview

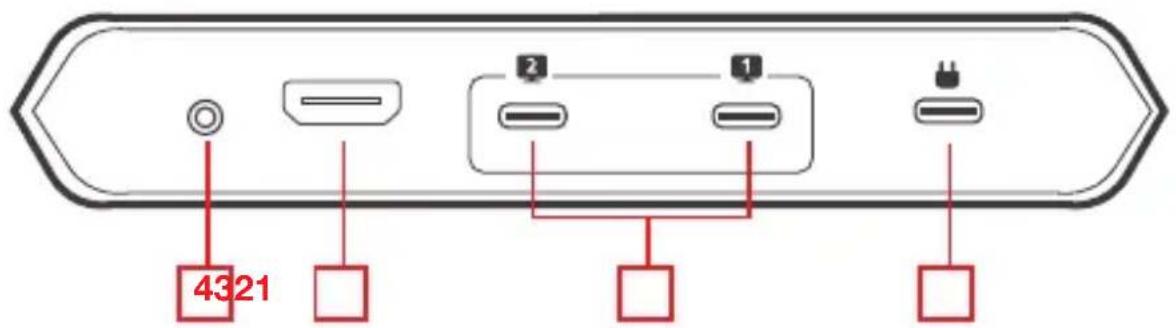

1. USB-C power port (USB-C power supply not included in the package).
2. Power Delivery pass-through requires USB-C external power adapter. For optimal performance, please use a Limited Power Source (LPS) certified USB-C PD 100W power supply The first 15W will supply the KVM, the next 10W will supply USB-C device connected to port #2, the last 75W will supply USB-C device connected to port #1. If no external power is connected, the KVM will draw 15W from USB-C device connected to port #1.
3. HDMI video output

Up to 3840 x 2160 @30Hz for USB-C laptop sources

Up to 1920 x 1200 @60Hz for USB-C smartphone sources

1. Remote selector port.

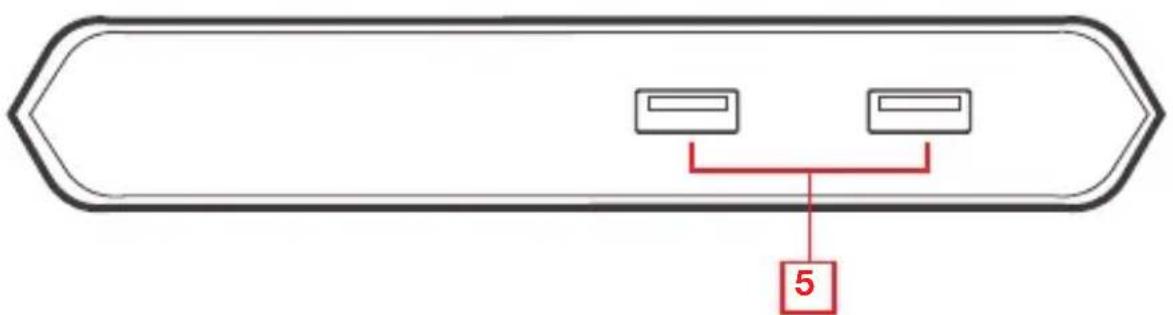

   5.2 x USB 3.0 Type A ports for peripheral sharing.

Hardware Installation

Step 1

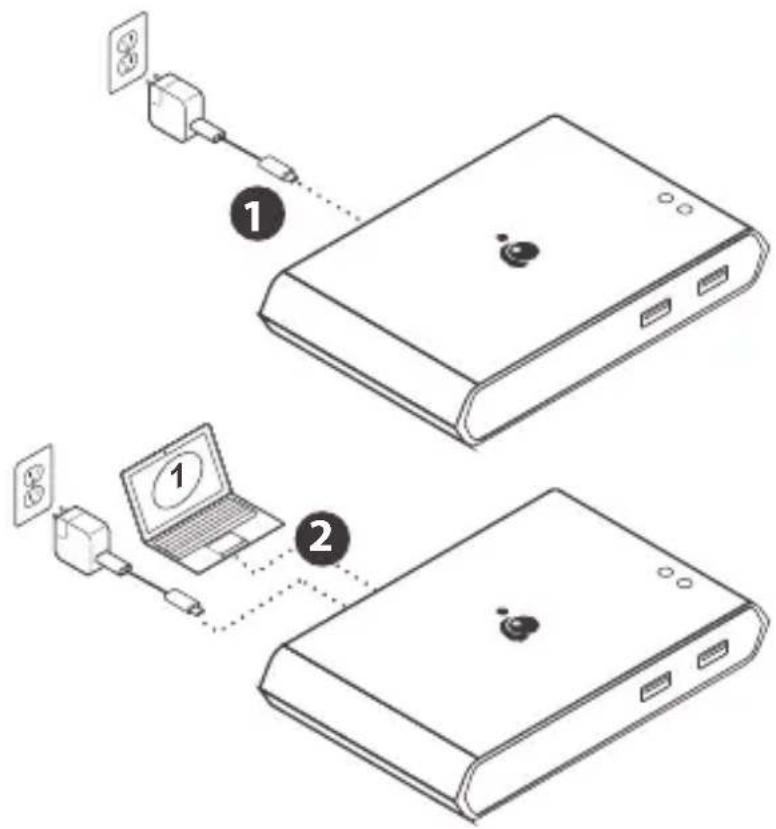

Connect an external USB-C power adapter (optional and not included) to the power port and the power source to support Power Delivery. We recommend not removing power source during setup.

Step 2

Connect the included USB-C cable from your USB-C computer to primary port #1 (up to 75W power delivery when an external USB-C power is connected).

Step 3

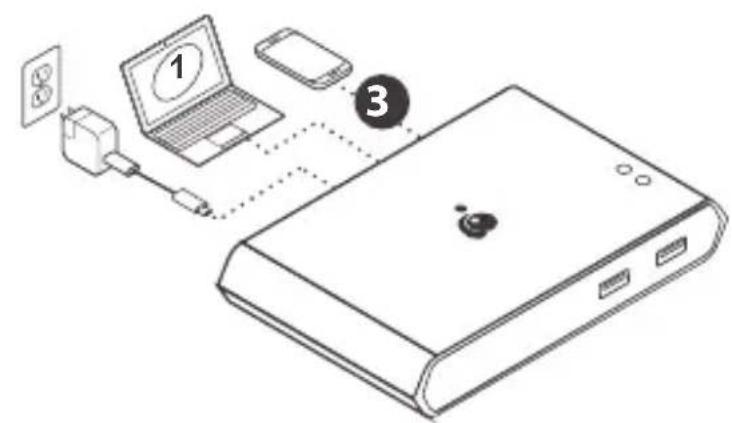

Connect the included USB-C cable from your second USB-C device to port #2 (up to 10W power delivery when an external USB-C power is connected).

Step 4

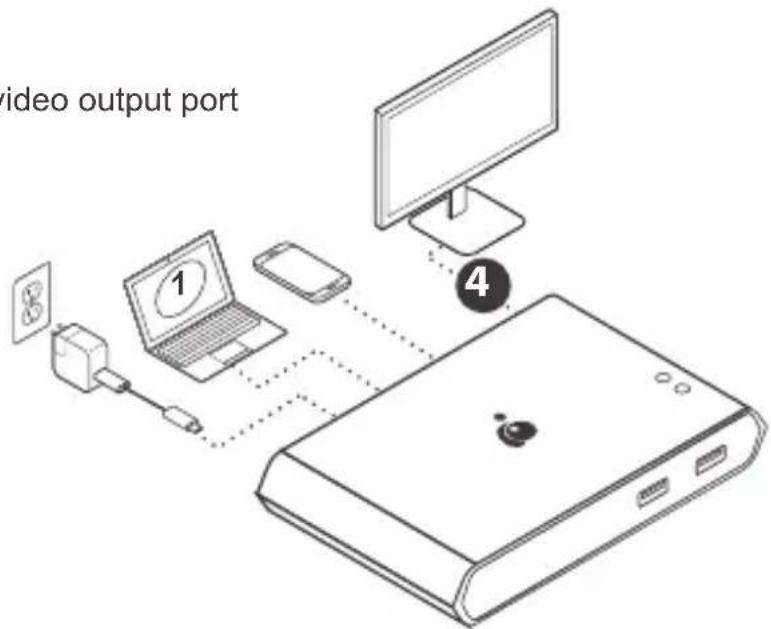

Connect an HDMI cable to the video output port and to an HDMI monitor.

Step 5

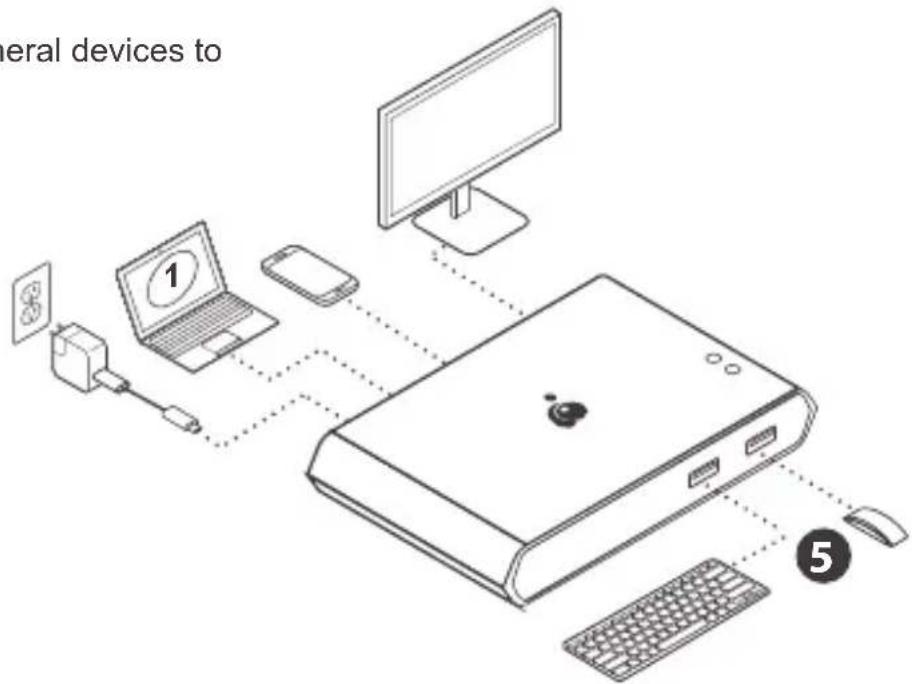

Connect the USB-A peripheral devices to the USB-A ports.

Step 6

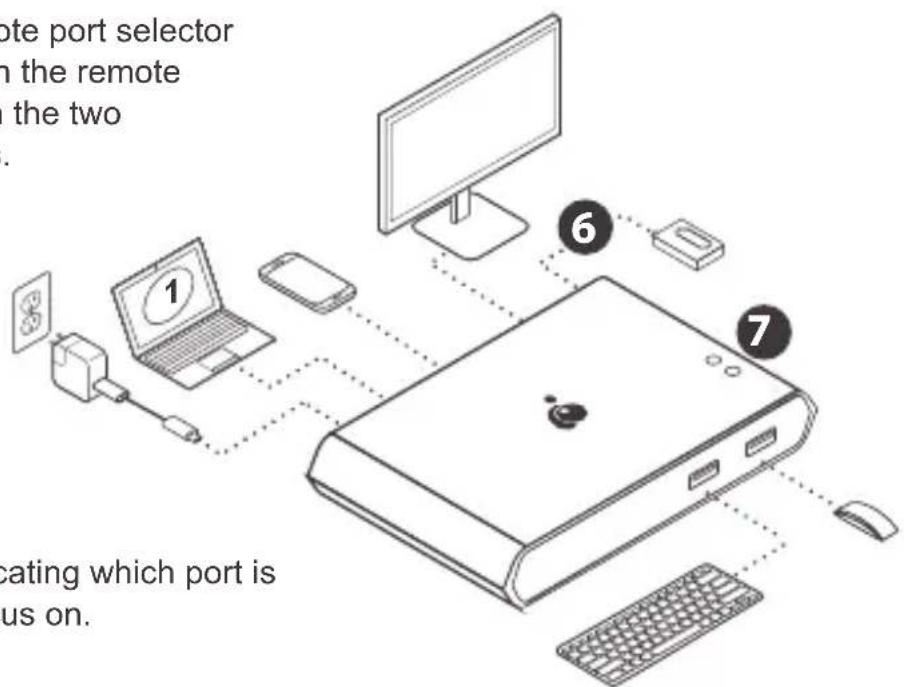

Connect the included remote port selector to the 2.5mm port. Click on the remote selector to switch between the two connected USB-C devices.

Step 7

Port LED will light up, indicating which port is selected and has KVM focus on.

Both port #1 and port #2 LED will flash if the KVM is drawing power more than 15W, and thus, needs to be connected to an external USB-C power adapter.
