USER MANUAL COOLPIX S225 NIKON

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

CE NIKON CORPORATION Fu id 2-3 Marunouchi 3-chome. ï Chiyadarku Tokyo 100-8391, Japan Pri ee » en

© 2009 Nikon Corporation 6MM69711-01

UOIN STTS/0O7TS XId100D Nikon

DIGITAL CAMERA COOLPIX S220/S225 User's Manual

Trademark Information Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries Macintosh, Mac OS, and QuickTime are trademarks of Apple Inc.

Adobe and Acrobat are registered trademarks of Adobe Systems Inc.

The SD logo is a trademark of the SD Card Association.

PictBridge is a trademark.

All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders.

Introduction First Steps

© 8asicPhotography and Playback: Auto Mode

fi Shooting Suited forthe Scene

Automatic Shooting of a Smiling Face D] More on Playback L |

Voice Recordings Connecting to Television, Computers and Printers

MENU Shooting, Playback and Setup Menus

To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equipment. Keep these safety instructions where all those who use the product will read them.

The consequences that could result from failure to observe the precautions listed in this section are indicated by the following symbol:

This icon marks warnings, information that should be read before using this Nikon

product, to prevent possible injury.

À Turn off in the event of malfunction Should you notice smoke or an unusual smell coming from the camera or AC adapter, unplug the AC adapter and remove the battery immediately, taking care to avoid burns. Continued operation could result in injury. After removing or disconnecting the power source, take the equipment to a Nikon-authorized service representative for inspection.

À Do not disassemble

Touching the internal parts of the camera or AC adapter could result in injury. Repairs should be performed only by qualified technicians. Should the camera or AC adapter break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection, after unplugging the product and/or removing the battery.

À Do not use the camera or AC adapter in the presence of flammable gas

Do not use electronic equipment in

the presence of flammable gas, as this

could result in explosion or fire.

À Handle the camera strap with care

Never place the strap around the neck

of an infant or child:

A Keep out ofreach of children Particular care should be taken to prevent infants from putting the battery or other small parts into their mouths.

A Observe caution when handling the battery The battery may leak or explode if improperly handled. Observe the following precautions when handling the battery for use in this product: Before replacing the battery, turn the product off. If you are using the AC adapter, be sure it is unplugged. Only use a Rechargeable Li-ion Battery EN-EL10 (supplied). Charge the battery by inserting it in a Battery Charger MH-63 (supplied When inserting the battery, do not attempt to insert it upside down or backwards. Do not short or disassemble the battery or attempt to remove or break the battery insulation or casing, Do not expose the battery to flame or to excessive heat. Do not immerse in or expose to water. Return the battery to the battery case for transportation. Do not transport or store with metal objects such as necklaces or hairpins. The battery is prone to leakage when fully discharged. To avoid damage to the product, be sure to remove the battery when no charge remains. Discontinue use immediately should you notice any change in the battery, such as discoloration or deformation Ifliquid from the damaged battery comes in contact with clothing or

skin, rinse immediately with plenty of water.

À Observe the following precautions when handling the battery charger

+ Keep dry. Faïlure to observe this

precaution could result in fire or electric shock.

+_ Dust on or near the metal parts of

the plug should be removed with a dry cloth. Continued use could result in fire.

+_ Do not handle the power cable or

go near the battery charger during lightning storms. Failure to observe this precaution could result in electric shock.

+ Do not damage, modify, forcibly tug

or bend the power cable, place it

under heavy objects, or expose it to heat or flames. Should the insulation be damaged and the wires become exposed, take it to a Nikon- authorized service representative for inspection. Failure to observe these precautions could result in fire or electric shock.

Do not handle the plug or battery

charger with wet hands. Failure to

observe this precaution could result in electric shock.

+_ Do not use with travel converters or

adapters designed to convert from one voltage to another or with DC- to-AC inverters. Failure to observe this precaution could damage the product or cause overheating or fire.

A Use appropriate cables

When connecting cables to the input and output jacks, use only the cables provided or sold by Nikon for the purpose, to maintain compliance with product regulations.

À Handle moving parts with care

Be careful that your fingers or other

objects are not pinched by the lens

cover or other moving parts.

The CD-ROMS supplied with this device should not be played back on audio CD equipment. Playing CD- ROMS on an audio CD player could cause hearing loss or damage the equipment.

À Observe caution when using the flash

Using the flash close to your subject's eyes could cause temporary visual impairment. Particular care should be observed if photographing infants, when the flash should be no less than one meter (3 ft. 4 in) from the subject

A Do not operate the flash with the flash window touching a person or object

Failure to observe this precaution

could result in burns or fire.

A Avoid contact with liquid crystal

Should the monitor break, care should

be taken to avoid injury caused by

broken glass and to prevent liquid

crystal from the monitor touching the

skin or entering the eyes or mouth.

Notice for Customers in the U.S.A.

Federal Communications Commission (FCC) Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in à particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antennal

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/television technician for help.

Nikon COOLPIX S220/S225

CAUTIONS Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not express|y approved by Nikon Corporation may void the users authority to operate the equipment.

Use the interface cables sold or provided by Nikon for your equipment. Using other interface cables may exceed the limits of Class B Part 15 of the FCC rules.

Notice for customers in the State of California

WARNING Handling the cord on this product will expose ou to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

Notice for customers in Canada

CAUTION This Class B digital apparatus complies with Canadian ICES-003.

ATTENTION Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada

Notice for customers in Europe This symbol indicates that

this product is to be

collected separately.

The following apply only to “ag users in European countries:

This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste

For more information, contact the retailer or the local authorities in charge of waste management.

This symbol on the battery

indicates that the battery is

to be collected separately.

The following apply only to

users in European countries:

All batteries, whether marked with this symbol or not, are designated for separate collection at an appropriate collection point. Do not dispose of as household waste

For more information, contact the retailer or the local authorities in charge of waste management.

WARNINGS ï Notices v Introduction About This Manual 1 Information and Precautions. 2 Parts of the Camera 4 The Camera Body 4 The Monitor. 6 Basic Operations 8 The À (Shooting Mode) Button. 8 The D] (Playback) Button. 8 The Mui Selector. 9 The MENU Button 10 Switching Between Tabs. 10 Help Displays. n Shutter-release Button nl Atraching the Camera Strap n

First Steps. Charging the Battery Inserting the Battery

Removing the Battery Turning On and Off the Camera: Setting Display Language, Date and Time Inserting Memory Cards Removing Memory Cards.

Basic Photography and Playback: Auto Modi Step 1 Turn the Camera On and Select Ê (Auto) Mode. Indicators Displayed in 63 (Auto) Mode. Step 2 Frame a Picture Using the Zoom. Step 3 Focus and Shoot Step 4 Playing Back and Deleting Pictures Playing Back Pictures (Playback Mode). Deleting Pictures. Using the Flash. Setting the Flash Mode. Taking Pictures with the Self-timer

Macro Mode. Exposure Compensatio

I Shooting Suited for the Scene.

Shooting in Scene Mode.

Setting the Scene Mode. 3 Features 34 Shooting in the Scene Mode Selected by the Camera (Scene Auto Selector)…… 40 Taking Pictures in Food Mode. 41 Taking Pictures for à Panorama 43

LE Automatic Shooting of a Smiling Face.

Shooting in Smile Mode Blink Proof Function.

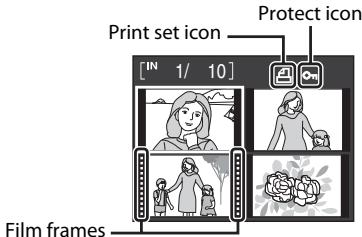

Viewing Multiple Pictures: Thumbnail Playback . Calendar Display:

Editing Pictures Quick Retouch Enhancing Brightness and Contrast: D-Lighting 52 Creating a Cropped Copy Crop Resizing Pictures: Small Picture.

Voice Memos: Recording and Playback. Recording Voice Memos Playing Voice Memos Deleting Voice Memos.

Viewing Pictures by Date (List by Date Mode). Selecting a Date in List by Date Mode Using List by Date Mode List by Date Menu

Image Searching in Auto Sort Mode Displaying Pictures in Auto Sort Mode Using Auto Sort Mode Auto Sort Menu

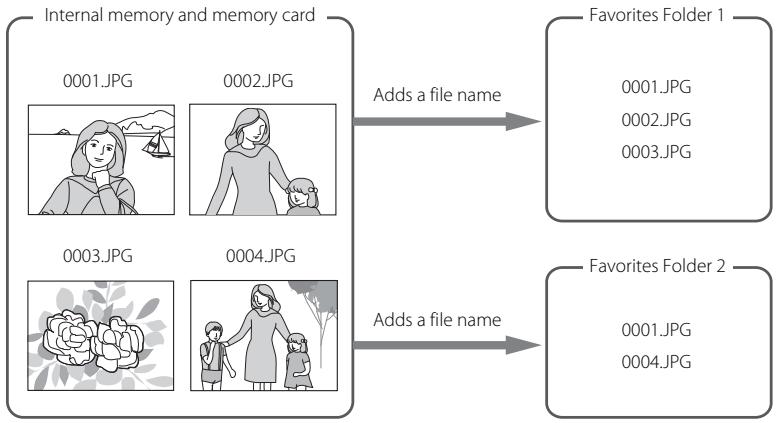

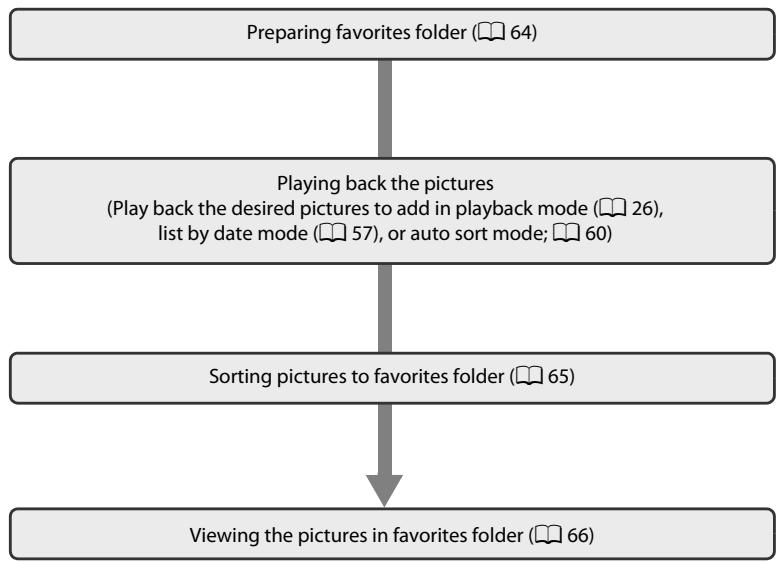

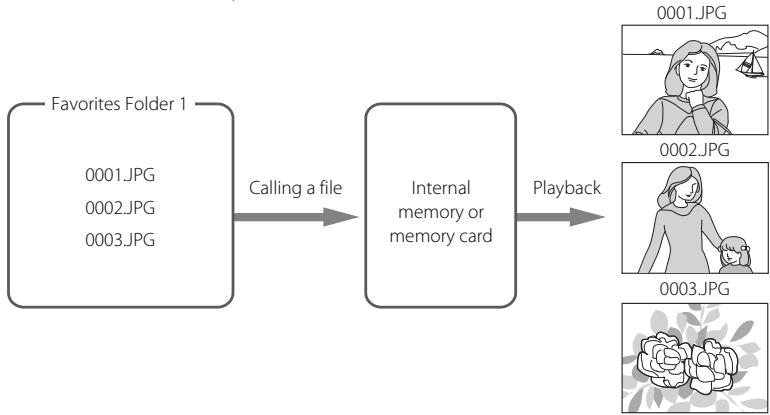

Sorting Favorite Pictures (Favorite Pictures Mode) Preparing Favorites Folder.

Sorting Pictures to a Favorites Folder Viewing the Pictures in Favorites Folder Removing Pictures from Favorites.

Using Favorite Pictures Mode. 67 Favorite Pictures Menu 68 M Movies Recording Movies 70 The Movie Men ; M Movie Options. 71 & Electronic VR 72 Movie Playback

Deleting Movie Files. 3

& Voice Recording: Making Voice Recordings. Playing Voice Recordings.

Deleting Sound Files. Copying Voice Recording,

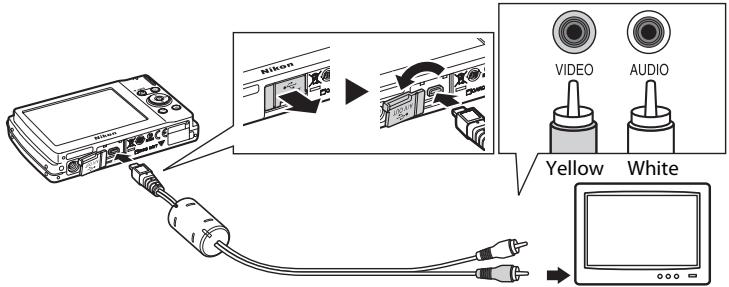

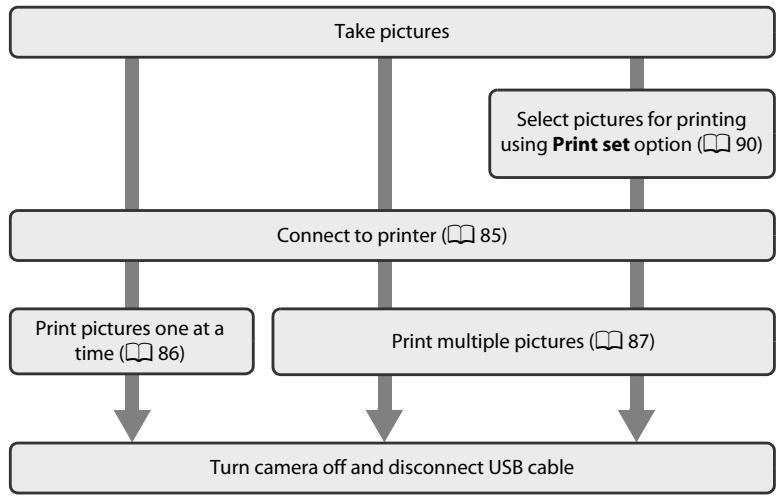

Connecting to Televisions, Computers and Printers Connecting to a TV. Connecting to a Computer.

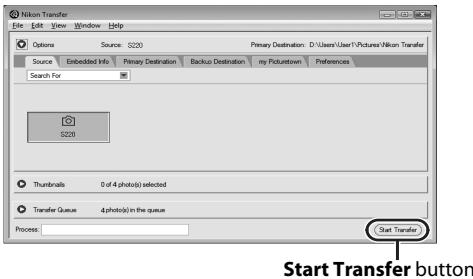

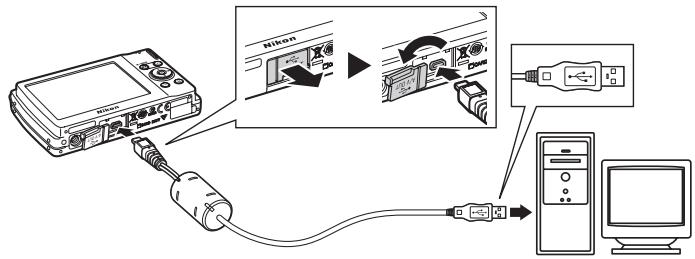

Before Connecting the Camera 80 Transferring Pictures from à Camera to a Computer 81 Connecting to a Printer.

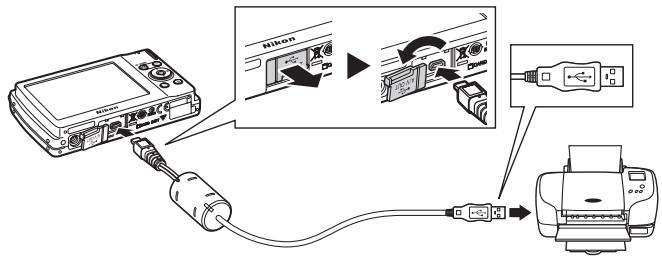

Connecting the Camera and Printer. 85 Printing Pictures One at a Time Printing Multiple Pictures

Creating a DPOF Print Order: Print Set.

MENU Shooting, Playback and Setup Menus Shooting Options: The Shooting Menu. Displaying the Shooting Menu € Image Mode. UE White Balance ©} Continuous IS 1SO Sensitivity G Color Options

E# AF Area Mode. 100 @ Distorion Control 103 Functions that Cannot Be Applied Simultaneously 104

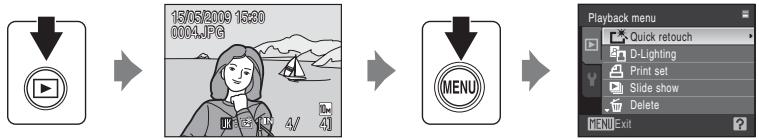

Playback Options: The Playback Menu .… Displaying the Playback Menu Bi Side Show f Delete On Protect € Rotate Image. EH Copy Basic Camera Setup: The Setup Menu. Displaying the Setup Menu 4 Electronic VR Æ Menus. 1H Welcome Screen © Date ID Monitor Settings Date Imprint Motion Detection Digital Zoom © Sound Settings

Format Memory/Ê] Format Card. 123

Technical Notes Optional Accessories . Approved Memory Cards Image/Sound File and Folder Names . Caring for the Camera Cleaning Storage Error Messages. Troubleshootin Specifications Supported Standards Index

Thank you for your purchase of a Nikon COOLPIX 5220/5225 digital camera. This manual was written to help you enjoy taking pictures with your Nikon digital camera. Read this manual thoroughly before use, and keep it where all those who use the product will read it.

Symbols and Conventions To make it easier to find the information you need, the following symbols and conventions are used:

+_ A Secure Digital (SD) memory card is referred to as a ‘memory card."

+ The setting at the time of purchase is referred to as the “default setting."

+_ The names of menu items displayed in the camera monitor, and the names of buttons or messages displayed in the computer monitor appear in bold.

Screen Samples In this manual, images are sometimes omitted from monitor display samples so that monitor indicators can be more clearly shown.

ustrations and Screen Display Illustrations and text displays shown in this manual may differ from actual display.

Internal Memory and Memory Cards

Pictures taken with this camera can be stored in the camera internal memory or on removable memory cards. Ifa memory cards inserted, all new pictures will be stored on the memory card and delete, playback and format operations will apply only to the pictures on the memory card. The memory card must be removed before the internal memory can be formatted or used to store pictures to, or delete, or view pictures.

Life-Long Learning AS part of Nikon's“Life-Long Learning" commitment to ongoing product support and education, continually updated information is available online at the following sites. + For users in the USA: htip//mwnikonusa com + For users in Europe and Africa: http//wwweurope-nikon.com/support/ + For users in Asia, Oceania, and the Middle East htpy/www.nikon-asia.com/ Visit these sites to keep up-to-date with the latest product information, tips, answers to frequentiy asked questions (FAQS), and general advice on digital imaging and photography. Additional information may be available from the Nikon representative in your area, See the URL below for contact information:

http//imaging nikon com

Use Only Nikon Brand Electronic Accessories

Nikon COOLPIX cameras are designed to the highest standards and include complex electronic: circuitry. Only Nikon brand electronic accessories (including battery chargers, batteries and AC adapters) certfied by Nikon specifically for use with this Nikon digital camera are engineered and proven to operate within the operational and safety requirements of this electronic circuitry. THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND MAY VOID YOUR NIKON WARRANTY.

The use ofthird-party rechargeable Li-ion batteries not bearing the Nikon holographic seal could interfere with normal aperation ofthe camera or result in the batteries overheating, igniting, rupturing, or leaking Holograpl Identifies this device as an authentic Nikon product.

For more information about Nikon brand accessories, contact a local authorized Nikon dealer.

Before Taking Important Pictures

Before taking pictures on important occasions (such as at weddings or before taking the camera on trip) take a test shot to ensure that the camera is functioning normally. Nikon will not be held able for damages or lost profits that may result from product malfunction.

+ No part ofthe manuals included with this product may be reproduced, transmitted, transcribed, stored in à retrieval system, or translated into any language in any form, by any means, without Nikon's prior written permission.

+ Nikon reserves the right to change the specifications ofthe hardware and software described in these manuals at any time and without prior notice.

+ Nikon will not be held liable for any damages resulting from the use of this product.

+ While every effort was made to ensure that the information in these manuals is accurate and complete, we would appreciate it were you to bring any errors or omissions to the attention ofthe Nikon representative in your area (address provided separately)

Information and Precautions

Notice Concerning Prohibition of Copying or Reproduction

Note that simply being in possession of material that was digitally copied or reproduced by means

ofa scanner, digital camera or other device may be punishable by law.

+ Items prohibited by law from being copied or reproduced Do not copy or reproduce paper money, coins, securities, government bands or local government bonds, even if such copies or reproductions are stamped “Sample " The copying or reproduction of paper money, coins, ar securities which are circulated in a foreign country is prohibited. Unless the prior permission of the govemment was obtained, the copying or reproduction of unused postage stamps or post cards issued by the govemment is prohibited. The copying or reproduction of stamps issued by the govemment and of certified documents stipulated by law is prohibited!

+ Cautions on certain copies and reproductions The government has issued cautions on copies or reproductions of securities issued by private companies (shares, bill, checks, gift certiicates, etc), commuter passes or coupon tickets, except when a minimum of necessary copies are to be provided for business use by a company. AÏso, do not copy or reproduce passpors issued by the government, licenses issued by public agencies and private groups, ID cards and tickets, such as passes and meal coupons.

+ Comply with copyright notices The copying or reproduction of copyrighted creative works such as books, music, paintings, woodeut prints, maps, drawings, movies and photographs is governed by national and international copyright laws. Do not use this product for the purpose of making illegal copies or to infinge copyright laws.

Disposing of Data Storage Devices

Please note that deleting images or farmatting data storage devices such as memory cards or built in camera memory does not completely erase the original image data. Deleted files can sometimes be recovered from discarded storage devices using commercially available software, potentially resukting in the malicious use of personal image data. Ensuring the privacy of such data is the users responsibility.

Before discarding a data storage device or transfering ownership to another person, erase all data using commercial deletion software, or format the device and then completely refill it with images containing no private information (for example, pictures of empty sky). Be sure to also replace any pictures selected far the welcome screen ((]] 114). Care should be taken to avoid injury or damage ta property when physically destroying data storage devices.

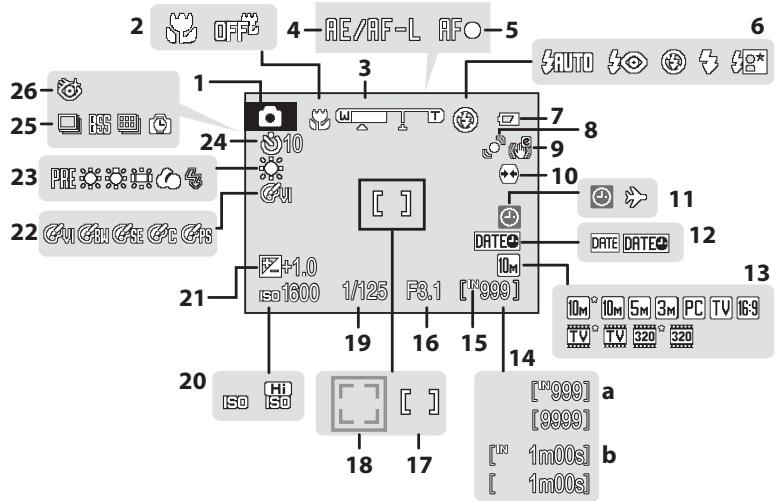

The Monitor The following indicators may appear in the monitor during shooting and playback {actual display varies with current camera settings). The indicators that appear in the monitor during shooting and playback disappear after a few seconds (|

6 ” Differs according to the current shooting mode.

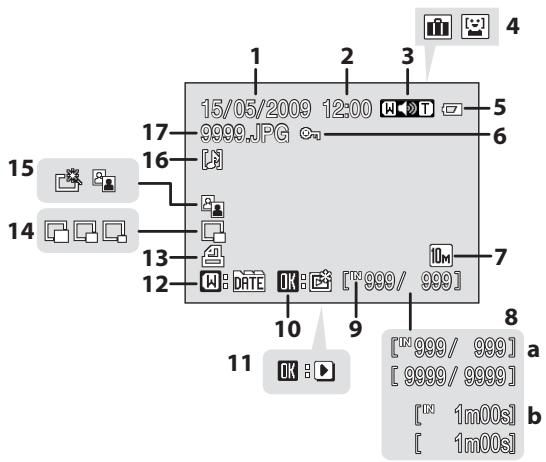

Playback 4 1 2 3 | Et 18/05/2009 12:00 æ 17 RPC En —

1 The icon for the selected category in auto sort mode or the favorites folder currently . selected in playback mode is displayed 2° Differs according to the settings configured during shooting.

The À (Shooting Mode) Button

+ Press the Êÿ button in playback mode to enter shooting mode.

+_ Press the Ê button in shooting mode to display the shooting-mode selection menu.

D The Shooting-mode Selection Menu In the shooting-mode selection menu, use the multi selector to change the

To return to the shooting mode while the shooting-mode selection menu is displayed, press the À button again

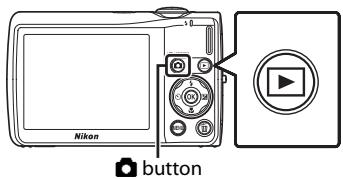

The] (Playback) Button

+ Press the [De] button in shooting mode to enter playback mode.

+ Press the [æ] button in playback mode to display the playback-mode selection menu.

+_lfthe camera is turned off, hold down the [>] button to turn the camera on in playback mode.

The Playback-mode Selection Menu In the playback-mode selection menu, use the multi selector to change the

. Æ Favorite pictures mode (CA 63) Auto sort mode (11 60)

M List by date mode (0 57)

To return to the playback mode while the playback-mode selection menu is displayed, press the [e] button again.

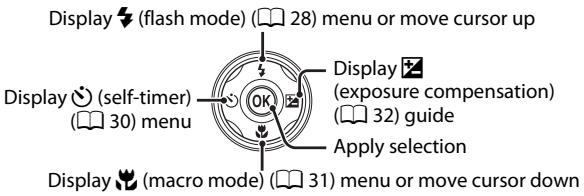

The Multi Selector This section describes standard uses of the multi selector to select modes, select menu options and to apply selection. For Shooting

AN Display ) (self-timer) LS exposure compensation) (a) à (C1 32) guide pret Ka C Apply selection

Display Ÿ (macro mode) ((]] 31) menu or move cursor down

Select previous picture

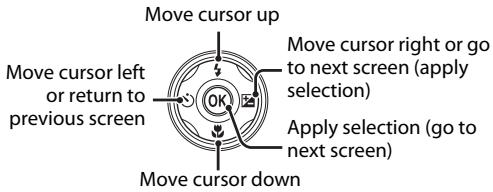

Move cursor up Move cursor right or go Move cursor left to next screen (apply

CS re or return to @ F selection) previous screen KS 7” Apply selection (go to ==

next screen) apunss Lin

Note on the Multi Selector

In the manual, the button indicating up, down, left and right ofthe multi selectoris shown as À, V,

Displayed when the menu contains two or more pages

- Bottom tab: Display the setup

Displayed when there are one The selected option ‘or more menu items to follow

Displayed when there are more previous SE menu items n EE Manual

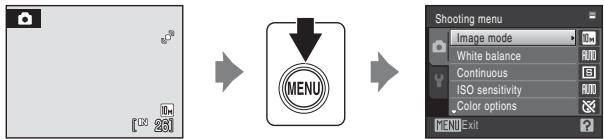

Press the @ button or the Press the @ button orthe multi selector b to multi selector b to apply proceed to the nextsetof selection

LEELCELR Press the multi selector Press the multi selector The selected menu is < to highlight the tab A or Y to select the displayed tab, and press either the

Rotate the zoom control to T (@) when ()/@ is displayed at the lower right of the menu screen to view a description of the currently selected menu option. To return to the original menu, rotate the zoom control to T (@) again.

WB vite For accurae color reproduction, choose a seing fat matches eight source.

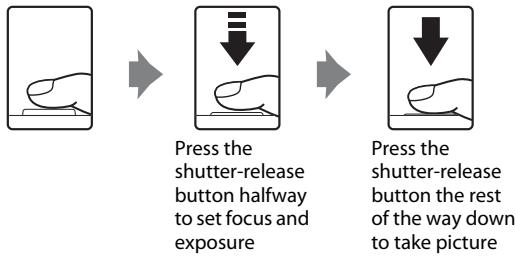

Shutter-release Button

The camera features a two-stage shutter-release button. To set focus and exposure, press the shutter-release button halfway, stopping when you feel resistance. Focus and exposure lock while the shutter-release button is held in this position. To release the shutter and take a picture, press the shutter-release button the rest of the way down. Do not use force when pressing the shutter-release button, as this may result in camera shake and blurred pictures.

LA AUPE Press the Press the shutter-release shutter-release button halfway button the rest to set focus and ofthe way down exposure to take picture

Attaching the Camera Strap

The camera uses a Rechargeable Li-ion Battery EN-EL10 (supplied). Charge the battery with the Battery Charger MH-63 (supplied) before first use or when the battery is running low.

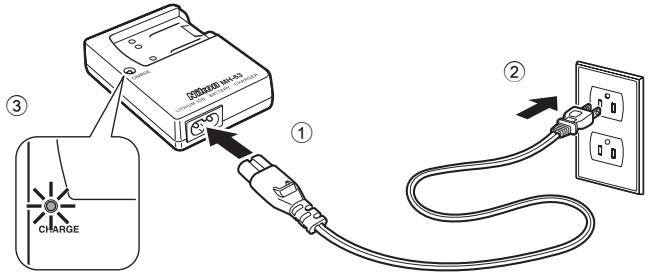

T Connectthe power cable.

Connect the power cable to the battery charger (D and insert the wall plug into a power outlet @). The CHARGE lamp will light to show that the charger is on ().

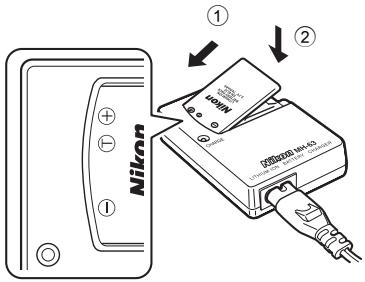

2 Charge the battery. Insert the battery at an angle as

shown ®, and set it in the battery charger @).

CHARGE lamp starts blinking when battery is inserted (8). Charging is complete when lamp stops blinking @). About 100 minutes are required to charge a fully depleted battery

Charging the Battery

The following chart explains CHARGE lamp status.

CHARGE lamp Description Blinks Battery charging. On Battery fully charged

+_ The battery is not inserted correctiy. Remove the battery and reinsert it into the battery charger so that the battery is Iying flat.

+ Charge the battery indoors with an ambient temperature of 5 *C to 35 °C (41 *F to 95 *F) before use.

+_ The battery is faulty. Stop charging immediately, unplug the charger, and take both the battery and charger to your retailer or Nikon service representative.

3 Remove the battery and unplug the charger when charging is complete.

TZ Notes on the Battery Charger

+ The supplied battery charger is for use only with the Rechargeable Li-ion Battery EN-EL10. Be sure to use anly genuine Nikon brand rechargeable batteries,

«Be sure to read and follow the wamings for the battery charger on pages ii before using the battery charger.

TZ Notes on the Battery

+ Be sure to read and follow the warnings for the battery on page il and the section, The Battery” (CA 132) before using the battery.

+ Ifthe battery is not used for an extended period, recharge it at least once every six months and'run it lat before retuing it to storage.

To power the camera continuously for extended periods, use an AC Adapter EH-62D (available separately from Nikon) (EL 129). Do not, under any circumstances, use another make or model of AC adapter. Failure to observe this precaution could result in overheating or in damage to the camera

Insert a Rechargeable Li-ion Battery EN-EL10 (supplied) into your camera: + Charge the battery before the first use or when the battery is running lowr

T Open the battery-chamber/memory card slot cover.

2 insertthe battery. Confirm that the positive (+) and negative (-) rerminals are oriented correctly as described on the label at the entrance of the battery chamber, and insert the battery

Use the battery to push the orange battery latch in the direction indicated by the arrow (D and fully insert the battery @). When the battery is fully inserted, the battery latch wil lock it in place.

LZ inserting the Battery

Inserting the battery upside down or backwards could damage the camera. Be sure to checkthe battery is in the correct arientation:

3 Close the battery-chamber/memory card slot cover.

Removing the Battery

Turn the camera off and make sure that the power-on

lamp and the monitor have gone out before opening

the battery-chamber/memory card slot cover.

To eject the battery, open the battery-chamber/

memory card slot cover and slide the orange battery

latch in the direction indicated by the arrow ®. The

battery can then be removed by hand @)

+_ Note that the battery may become hot during use: observe due caution when removing the battery.

Turning On and Off the Camera

To turn on the camera, press the power switch. The power-on lamp (green) will light for a moment and the monitor will turn on.

To turn offthe camera, press the power switch again.

When the camera is turned off, both the power-on lamp and monitor will turn off.

Inserting the Battery

+_lfthe camera is turned off, hold down the [1 button to turn the camera on in

BA auto Power Off in Shooting Mode (Standby Mode)

no operations are performed for about a minute (default setting), the monitor will turn off automatically and the camera will enter standby mode. no operations are performed for another

three minutes, the camera will turn off automatically (the auto off function)

Pressing the power switch, or the shutter-release button, while the monitor is off in standby mode

will reactivate the monitor.

The time allowed to elapse from before the camera enters standby mode can be changed from the

Auto off option (CI 122) in the setup menu (D 111)

A language-selection dialog is displayed the first time the camera is turned on.

T Press the power switch to turn on the camera.

The power-on lamp (green) wil light for à moment and the monitor will turn on.

2 Use the multi selector to choose ——_———

3 Choose Yes and press the @® button. IFNo is selected, the date and time will not be set. ime and date?

4 Press the multi selector € or B to select your home time zone ([]1 117) and press the @ button.

EX paylight Saving Time

If daylight saving time is in effect, press the multi selector À in the time zone selection screen displayed in step 4 to turn on the daylight saving time option.

When the daylight saving time option is enabled, is displayed at the top of the monitor. To turn off the daylight saving time option,

press W Setting Display Language, Date and Time

5 Editthe date and time. Press À or Y to edit the highlighted item. Press b to move the highlight in the following order. D (day) — M (month) —+ Y (year) — hour + minute —+ DMY (the order in which the day, month, and year are displayed) Press 4 to return to the previous item

6 Choose the order in which the day, month and year are displayed and press the @ button or press D.

The settings are applied and monitor display exits to. shooting mode.

EX changing the Date and Time

+ Select Date from the Date item ((] 115) in the setup menu (O] 111) to change the current date and time and follow the procedure described in step 5 above.

+ Select Time zone from the Date item in the setup menu to change the time zone and daylight saving time settings (CD 115).

Image, sound, and movie files are stored in the camera's internal memory (approximately 44 MB) or on removable Secure Digital (SD) memory cards (available separately) (CU 129)

If a memory card is inserted in the camera, data are automatically stored on the memory card and data recorded to the memory card can be played back, deleted or transferred. Remove the memory card to store data inthe internal memory, or play back, delete or transfer data from the internal memory.

Ÿ_ Confirm the power-on lamp and the monitor are off and open the battery-chamber/ memory card slot cover.

Be sure to turn off the camera before opening the battery-chamber/memory card slot cover.

2 insert the memory card.

Slide the memory card in correctly until it clicks into: place.

Close the battery-chamber/memory card slot cover.

LZ inserting Memory Cards

Inserting the memory cardupside down or backwards could damage the camera orthe memory card, Be sure to check the memory card is in the correct orientation.

Removing Memory Cards

Before removing memory cards, turn the camera off and confirm that the power-on lamp and monitor are off. Open the battery-chamber/memory card slot cover and press the card in (D to partially eject the card. The card can then be removed by hand. Do not attempt to remove the card at an angle @).

Inserting Memory Cards

TZ Formatting Memory Cards

(O Ithe message at right is displayed, the memory card must be Cards not format.

formatted before use (CA 123). Note that formatting permanently Format card?

deletes all pictures and other data on the memory card. Be sure

ta make copies of any pictures you wish to keep before formatting

Use the multi selector to choose Yes and press the @ button. The

confirmation dialog wi be displayed. To start formatting, choose

Format and press the @ button.

+ Do not tum the camera off ar apen the battery-chamber/memory card slot cover until formatting is complete.

+ The first time you insert the memory cards used in other devices into the COOLPIX 5220/5225, be sure to format them using this camera (CL 123)

TZ the Write Protect Switch

Memory cards are equipped with a write protect switch, When … Write protect switch this switch is in the “lock” position, data cannot be written to,

or deleted from, the memory card. the switch is in the “lock”

position, unlock it by sliding the switch to the “write” position

to record or delete pictures, or to format the memory card

+ Use only Secure Digital memory cards. + Do not perform the following during formatting, while data is being written to or deleted from the memory card, or during data transfer to a computer. Failure to observe this precaution could result in the loss of data or in damage to the camera or memory card Take out the battery or memory card Turn off the camera Disconnect the AC adapter Do not format the memory card using a computer. Do not disassemble or modify. Do not drop, bend, or expose to water or strong physical shocks. Do not touch the metal terminals with your fingers or metal objects. Do not affix labels or stickers to the memory card. Do not leave in direct sunlight, closed vehicles or areas exposed to high temperatures. Do not expose to humidity, dust, or to corrosive gases.

Basic Photography and Playback: Auto Mode

This section describes how to take pictures in Ê (auto) mode, an automatic, “point-and-shoot” mode recommended for first-time users of digital cameras.

T Press the power switch to turn on the camera.

The power-on lamp (green) wil light for à moment and the monitor will turn on, The lens will also extend

Proceed to step 4 when SM is displayed

2 Press the Ê button.

Press the multi selector À or Y to choose 3 and press the @ button.

The camera enters (auto) mode.

4 Checkthe battery level and the number of exposures remaining.

Battery level indicator

Battery Level Monitor Description NOINDICATOR | Battery fully charged = Battery low. Prepare to charge or replace the battery. e Cannot take pictures. Recharge or Number of exposures Battery replace with a fully charged remaining exhausted. | battery.

Number of Exposures Remaining The number of pictures that can be stored depends on the capacity of the internal memory or memory card and image mode setting (C1 94).

Step 1 Turn the Camera On and Select Ê (Auto) Mode

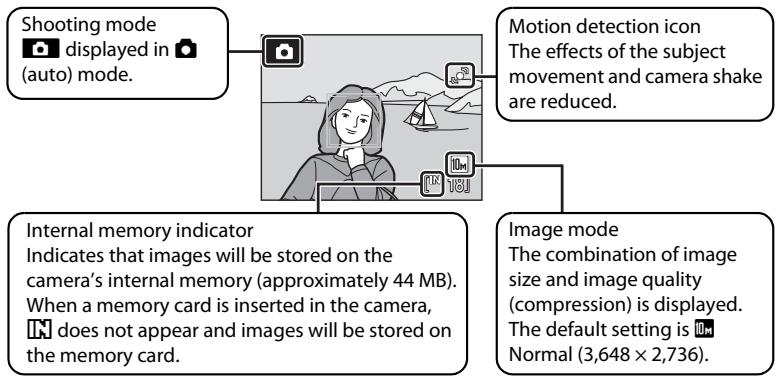

Indicators Displayed in Ê (Auto) Mode

Shooting mode Motion detection icon

I displayed in Q The effects of the subject (auto) mode. movement and camera shake are reduced.

Internal memory indicator image mode

Indicates that images will be stored on the The combination of image cameras internal memory (approximately 44 MB). | _ | size and image quality When a memory card is inserted in the camera, (compression) is displayed. I does not appear and images will be stored on | _ | The default setting is the memory card. Normal (3,648 x 2,736).

The indicators and photo info displayed during shooting and playback will turn off after à few seconds (1 118). When the monitor has turned off in standby mode to save power, press the power switch or the shutter-release button to reactivate it

pou oiny opeqfel pue AudeuBoyoug 21524

EX runctions Available in Ô (Auto) Mode

n A (auto) mode, macro mode (FA 31) and exposure compensation (C1 32) can be applied and pictures can be taken using the flash mode (CD) 28) and selftimer (C1) 301. Pressing the MENU button n (auto) mode allows you to specify settings for all shooting menu items (11 92) depending upon the shooting situations.

When Auto (defaut setting) is selected for the Motion detection option (C1 120) in the setup menu and the camera detects camera shake and subject movement, the camera increases shutter speed to reduce blurring,

When the camera detects camera shake or subject movement and increases shutter speed, the motion detection icon will turn green.

EX Electronic Vibration Reduction

When the flash mode (C1 28) is set to ® (off) or #4 (slow sync) with Electronic VR ([] 113) inthe setup menu set to Auto, the ef icon may appear in the monitor. The appearance of #3 indicates shooting conditions in which the effects of camera shake can be pronounced. In these situations, the camera reduces the effects of camera shake in pictures before recording them.

Hold the camera steadily in both hands, keeping your fingers and other objects away from the lens, flash, microphone, and speaker.

When taking pictures in ‘tal orientation, turn the camera so that the built-in flash is above the lens,

apoun oinv apeqteld pue AudesBoioug >1seg

When the camera recognizes a face looking toward the ns) ©)

camera, that face will be framed by a yellow double La, border (default setting). If more than one face is fc) recognized, the face nearest to the camera will be framed

by a double border and the rest by a single border. te

/AF area will not appear when shooting pictures of subjects other than people, or framing a subject with which no face is recognized!

Step 2 Frame a Picture

Use the zoom control to activate optical zoom. Rotate the zoom control to T to zoom in so that the subject fills a larger area of the frame, or W to zoom out, thus increasing the area visible in the frame.

AZzoom indicator is displayed at the top of the monitor when the zoom control is rotated.

Optical Digital zoom zoom

When the camera is zoomed in to the maximum optical zoom position, rotating and holding the zoom control at T triggers digital zoom. The subject is magnified up to 4x the maximum optical zoom ratio

Focus will be on the center of the screen (without active focus area display) when digital zoom is in effect.

x. Css qu w. CE Maximum optical zoom Digital zoom is

ZA vigital Zoom and Interpolation

Unlike optical zoom, digital zoom uses a digital imaging process known as interpolation to magnify images, resulting in slight deterioration of picture quality.

Interpolation is applied at zoom positions beyond #4. When zoom is increased beyond the £a position, interpolation is initiated and the zoom indicator turns yellow to indicate that interpolation is being applied. The position of &3 moves to the right as image size decreases, allowing for confirmation of the zoom positions at which shooting without interpolation is possible at the current image mode setting.

ES When an image size is small

Digital zoom can be disabled from the Digital zoom option (C[ 121) in the setup menu (CA 111)

pou oiny opeqfel pue AudeuBoyoug 21524

T Press the shutter-release button halfway.

When a face looking toward the camera is recognized: Camera will focus on the face surrounded by the double border active focus area. When the subject is in focus, the double border glows green.

Shutter speed _ Aperture

When shooting pictures of subjects other than people or framing a subject with which no face is recognized: 2 Camera automatically selects the focus area (one of nine) containing the subject closest to the camera. When the subject is in focus, the active focus area glows green

T Il Shutterspeed Aperture

When digital zoom is used, the focus area is not displayed

and the camera focuses at the center of the frame. Once focus has been acquired, the focus indicator (M 6) will glow green.

When you press the shutter-release button halfway, the shutter speed and aperture values also appear.

Focus and exposure remain locked while the shutter-release button is pressed halfay. While the shutter-release button is pressed halfway, the double border for face recognition may blink, or the focus area or focus indicator may blink red. All of these cases indicate that the camera does not focus. Change the composition and press the shutrer-release button halfay again

See *AF Area Mode” (CI 100) or “Face Priority” (CA 102) for more information about Face Priority.

2 Press the shutter-release button the rest of y

The shutteris released and the picture will be recorded to Ca the memory card or internal memory.

Step 3 Focus and Shoot

TZ During Recording While pictures are being recorded, the number of exposures remaining will blink. Do not open the battery-chamber/memory card slot cover while pictures are being recorded. Cutting power or

removing the memory card in these circumstances could resul in loss of data or in damage ta the camera or card

Autofocus may not perform as expected in the following situations. In some rare cases, the subject may not be in focus despite the fact that the active focus area and the focus indicator glow green: Subject is very dark

Objects of sharply differing brightness are included in the scene (e.g.the sun is behind the subject and is in deep shadow)

No contrast between the subject and surroundings (e.g. when the subject is standing in front of a white wall wearing a white shirt)

Several objects are at different distances from the camera (eg. the subject is inside à cage)

+ Subject is moving rapidiy

In the situations noted above, try pressing the shutter-release button halfway to refocus several times, or focus on another subject and use focus lock (CL) 101). When using focus lock, be sure that the distance between the camera and the subject with which focus was locked is the same as that for the actual subject

Ifthe blink warning screen is displayed shortiy after a picture is taken in face priority mode, the eyes of human subjects may have been closed when the picture was taken. Check the picture and decide whether or not another picture should be taken.

+ The portrait subject, whose eyes may have been closed when the picture was taken, il be framed by a yellow border in the blink Warning screen.

Press the @ button, or press the shutter-release button, to return to shooting mode.

See ‘Blink Warning” (CA 124) or “Operating the Blink Warning Screen” (CA 125) for more information.

Ithe subject is poorly lit, the flash may fire by pressing the shutter-release button all the way down

Press the [>] button.

The last picture taken will be displayed in full- frame playback mode.

Press the multi selector À, W, or B to view additional pictures

Pictures may be displayed briefly at lowr resolution while being read from the memory. card or internal memory.

Press the © button or the shutter-release button to switch to shooting mode.

When playing back pictures stored on the cameras internal memory, [M] appears. When à memory card is inserted in the camera, [M] does not appear and images stored on the

memory card are played back.

Internal memory indicator

À Press the ff button to delete the picture currently displayed in the monitor.

2 Use the multi selector to select Yes and press the @ button.

To exit without deleting the

picture, choose No and press the @ button.

Step 4 Playing Back and Deleting Pictures

Options Available in Playback Mode

The following options are available in full-frame playback mode.

Option Description (ea] Rotate the zoom control to T to enlarge the picture up ta 10x. RE Press the @ button to return tofull-frame | #? playback mode.

Rotate the zoom control to W to display 4,9 or 16 picture thumbnails or to apply | 47 the calendar display.

View thumbnails/ apply calendar display

Add favorite pictures Rad ie piqure curenty dsplyeg to = favorite pictures. Press the [e] button to display the playback-mode selection menu and 57,60, Eine playpscémoce change to list by date, auto sort, or 66

favarite pictures mode.

Press the A button orthe shutter-release button to switch ta the shooting mode 26 selected in the shooting-mode selection

Pressing the [#] Button to Turn On the Camera When the camera is off, holding down the [#7] button wil turn the camera on in playback mode. Te lens will not extend

+ Pictures stored in the internal memory can only be viewed if no memory card is inserted

+ When pictures in which a face was detected during shooting are displayed in full-frame playback, the pictures may be automatically rotated for playback display, depending upon the orientation of the detected face

+ When the monitor has turned of in standby mode to save power, press the [E] button or the power switch to reactivate it (CL) 122).

Deleting the Last Picture Taken While in Shooting Mode In shooting mode, press the 1 button to delete the last picture taken

EX peleting Multiple Pictures Multiple pictures can be deleted from the Delete option (CL 108) in the playback menu (CL 105), the list by date menu (OÙ 59), the auto sort menu (0 62), or the favorite pictures menu (CA 68).

The flash has a range of 0.6-46 m (2-15 ft) when the camera is zoomed out all the way. With maximum optical zoom applied, the range is 0.6-2.5 m (2-8 ft) (when

ity is set to Auto). The following flash modes are available

Flash fires automatically when lighting is poor. Auto with red-eye reduction

Reduce “red-eye” in portraits (CL 29)

Flash will not fire even when lighting is poor. Fill flash

Flash fires when a picture is taken. Use to ‘filin' (lluminate) shadows and backit subjects.

SAUT (auto) is combined with slow shutter speed Flash illuminates main subject; slow shutter speeds are used to capture background at night or under dim light.

À Press # (flash mode).

The flash menus displayed

2 Use the multi selector to choose the desired flash mode and press the @ button. The icon for the selected flash mode is displayed at the top of the monitor.

When SAUTB (auto) is applied, SM is only displayed for a few seconds, regardless of Photo info settings (CO) 118)

If a setting is not applied by pressing the @ button

within à few seconds, the selection will be cancelled.

TZ shooting When Lighting is Poor and the Flash is Disabled (©)

+ Use of a ipod is recommended to stabilize the camera during shooting and avoid the effects of camera shake.

+ The FD indicator is displayed when the camera automatically increases sensitivity. Pictures taken when F9 is displayed may be slightly mottled.

TZ Note on Using the Flash

When using the flash, reflections from dust particles in the air may appear as bright spots in pictures. To reduce these reflections, set the flash to ® (Off,

The flash lamp indicates flash status when the shutter-

release button is pressed halfway.

+ On: Flash will fire when picture is taken.

« Blinks: Flash charging. Wait a few seconds and try again

+ Off Flash will not fire when picture is taken.

Kthe battery is low, the monitor display will turn off, and remain off, until the flash is fully charged.

The Flash Mode Setting

The default flash mode setting varies with shooting mode.

+ @ Guior SAME (auto)

+ M (scene): varies with the selected scene mode (CD) 34)

{smile}: fxed at ® (off) when On is selected for Blink proof, SAUT (auto) when Off is selected for Blink proof (CL) 46)

The flash mode setting applied in É (auto) mode is stored in the camera's memory even after the

camera is turned off, and reapplied the next time É (auto) mode is selected.

This camera uses advanced red-eye reduction (‘In-Camera Red-Eye Fix), The flash ires several times at low intensity (pre-flash} before the main flash, reducing ‘red eye The camera then analyzes the picture: ifred-eye is detected, the affected area wi be processed ta further reduce red-eye before the picture is saved. Note that because there is a slight lag between the shutter-release button being pressed and the picture being shot, this mode is not recommended when a quick shutter response is required, The time before the next picture can be shot also increases slightly. Advanced red-eye reduction may not produce the desired results in all situations. In extremely rare instances, areas not subject to red-eye may be affected by advanced red-eye reduction processing; in these cases, choose another mode and try again.

The camera is equipped with a ten-second and two-second timer for self-portraits. This feature is useful for reducing the effects of camera shake that occurs when pressing the shutter-release button. When using the self-timer, use of a tripod is recommended.

Press &) (self-timen).

The selftimer menu is displayed

Use the multi selector to choose 10 s or 2s and press the @ button.

10 (ten seconds): Suited for important occasions (such as weddings)

25 (wo seconds). Suited for preventing camera shake The mode selected for self-timer is displayed

If a setting is not applied by pressing the @ button within a few seconds, the selection

Frame the picture and press the shutter-release button halfway.

Focus and exposure will be set.

Press the shutter-release button the rest of the way down.

The self-timer starts, and the number of seconds remaining before the shutter is

released is displayed in the monitor. The self- timer lamp blinks while the timer is counting down. About one second before the shutter is released, the lamp remains lit and stops linking

When the shurter is released, the self-timer will be set to OF.

To stop the timer before a picture is taken, press the shutter-release button again.

Macro mode is used for taking pictures of objects as close as 10 cm (4 in). Note that the flash may be unable to light entire subject at distances of less than 60 cm ef)

À Press # (macro mode).

The macro menu is displayed

2 Use the multi selector to choose ON and press the @ button.

The macro mode icon (43) is displayed.

If a setting is not applied by pressing the @ button within a few seconds, the selection will be cancelled

3 Rotate the zoom control to frame the picture.

The camera can focus at a distance of 10 cm (4 in) at the Zoom position at which 8 glows green (the zoom indicator is positioned before 2).

In macro mode, the camera focuses continuously until the shutter-release button is pressed halfway to lock focus and exposure.

The Macro Mode Setting

The macro mode setting applied in Ê (auto) mode is stored in the cameras memory even afterthe camera is turned off, and reapplied the next time Id (auto) mode is selected.

spon oiny apeqfeld pue AudeBoioug >1seg

Exposure compensation is used to alter exposure from the value suggested by the camera to make pictures brighter or darker.

À Press 4 (exposure compensation). The exposure compensation guide is displayed.

2 Use the multi selector to adjust exposure and press the @ button. When the picture is too dark adjust the exposure compensation to "+" side.

When the picture is too bright: adjust the exposure compensation to "-" side.

Exposure compensation can be set to values between -2.0 and +20.

If a setting is not applied by pressing the @ button within a few seconds, the selection will be cancelled

3 Thesettingis applied. os

The value is displayed with the F2 icon in the monitor.

apoun oinv apeqteld pue AudesBoioug >1seg

Exposure Compensation Value

The exposure compensation value applied in Êà (auto) mode is stored in the camera's memory even after the camera is tumed off, and reapplied the next time IN (auto) mode is selected.

EX using Exposure Compensation

The camera tends ta lower exposure when the frame is dominated by brightiy lit objects and to increase exposure when the frame is mostly dark. Positive compensation may therefore be required to capture the brillancy of very bright objects that fl the frame (for example, sunilit expanses of water, sand, or snow) or when the background is much brighter than the main subject. Negative compensation may be called for when large areas of the frame contain very dark objects (for example, a swath of dark green leaves) or when the background is much darker than the main

Shooting Suited for the Scene

Camera settings are automatically optimized for the selected subject type. The following scene modes are available.

8% Scene auto select] Portrait la Landscape | Sports M Night portrait M Party/indoor [8 Beach/snow | Sunset ii Dusk/dawn [EB Nighlandscape % Close-up F1 Food Museum HS Fireworks show [CD Copy Backight [PA Panoramaassist$ Voice recording

* See Voice Recordings” (7 74) for details.

Setting the Scene Mode

T Press the Ê button in shooting mode to display the shooting-mode selection menu and press the multi selector À or Y to select a scene icon.

The icon for the last scene mode selected is displayed. The default setting is EE (Scene auto selector)

2 Press the multi selector and press A, Y, or to choose the desired scene, and then press the @ button.

3 Frame the subject and shoot.

When the MENU button is pressed in scene mode, Image mode {C1 93) can be adjusted. Change made to this setting applies to all shooting modes (except for movie menu)

au22S au104 pouns Bunoous

Shooting in Scene Mode

ÆX Scene auto selector

By simply framing a picture, the camera automatically selects the optimum scene mode. See “Shooting in the Scene Mode Selected by the Camera (Scene Auto Selecton) (C1 40)

for more information.

has selected. Can be changed to ®. 2 Other settings can be selected ? Changed to On when the camera selects Close-up scene mode.

Use this mode for portraits in which the main subject stands out clearly. Portrait subjects exhibit smooth, natura-looking skin tones.

+ The camera detects and focuses on a face looking toward the camera. See ‘Face Priority" (CI 102) for more information

+_ Ifthe camera detects a smiling face of the subject, the smile indicator increases or decreases

+_lfmore than one face is recognized, focus will be on the face nearest to the camera.

+_ Ifno faces are recognized, focus will be on the center of the screen.

+ Digital zoom is not available.

* Other settings can be selected

Œ} For those scene modes with (Æ) use of a tripod is recommended

For those scene modes with fi, noise reduction is carried out automatically so the time taken to

save an image will be longer than usual.

Icons Used for Descriptions

The following icons are used for descriptions in this section: $, flash mode (OÙ 28); ©), self-timer

(22 30); %, macro mode (1 31); 4, exposure compensation (C2 32).

Shooting in Scene Mode

Use this mode for vivid landscapes and cityscapes.

+ Camera focuses at infinity. The focus area or focus indicator (C1 6) always glows green when the shutter-release button is pressed halfway. Note, however, that objects in the foreground may not always be in focus.

#5] © [oo] or [#] or [EI oc

* Other settings can be selected.

& Sports Use this mode for dynamic action shots that freeze the action in a single shot and record motion in a series of pictures.

+ The camera focuses continuously until focus is locked by pressing the shutrer-release button halfway.

While the shutter-release button is held down, pictures are taken at rate of up to about 1.2 frames per second (fps) when image mode is set to FM Normal (3648). This rate is maintained for up to 6 pictures,

The maximum frame rate with continuous shooting may vary depending upon the current image mode setting and the memory card used.

+ Motion detection ([[] 120) is not activated

* Other settings can be selected.

Use this mode to achieve a natural balance between the main

subject and background lighting in portraits taken at night.

+ The camera detects and focuses on a face looking toward the camera. See “Face Priority" (CI 102) for more information.

+_ lfmore than one face is recognized, focus will be on the face nearest to the camera.

+_ lfno faces are recognized, focus will be on the center of the screen.

+ Digital zoom is not available.

+ Motion detection ([[] 120) is not activated

1° Fill flash with slow sync and red-eye reduction. 2 Other settings can be selected

auaxs ayr10y pouns Bunoous

Shooting in Scene Mode

Captures the effects of candielight and other indoor

background lighting,

+ Camera focuses on subject in the center of the frame.

+ As pictures are easily affected by camera shake, hold the camera steadily. Use of a tripod is recommended for dark locations.

[ET The flash may change to slow sync with red-eye reduction. Other settings can be selected

2 Other settings can be selected

Captures the brightness of such subjects as snowields, beaches, or sunlit expanses of water. + Camera focuses on subject in the center of the frame.

au22S au104 pouns Bunoous

&[ mm [ol oo [@[ or [m] oo * Other settings can be selected Sunset @ reserves the deep hues seen in sunsets and sunrises. + Camera focuses on subject in the center of the frame. 5 SOL [EL «x [E]

* Other settings can be selected.

Œ} For those scene modes with (Æ) use of a tripod is recommended

i For those scene modes with fi, noise reduction is carried out automatically so the time taken to

save an image will be longer than usual.

Shooting in Scene Mode

Preserves the colors seen in the weak natural light before

sunrise or after sunset.

+ Camera focuses at infinity. The focus area or focus indicator (6) always glows green when the shutter-release button is pressed halfway. Note, however, that objects in the foreground may not always be in focus.

+ Motion detection (LU 120) is not activated

* Other settings can be selected.

Slow shutter speeds are used to produce stunning night

+ Camera focuses at infinity. The focus area or focus indicator (16) always glows green when the shutter-release button is pressed halfway. Note, however, that objects in the foreground may not always be in focus.

+ Motion detection (LU 120) is not activated

* Other settings can be selected.

Photograph flowers, insects and other small objects at close range.

Macro mode (1 31) will be turned on and the camera automatically zooms to the position at the closest distance at which the camera can focus.

The camera can focus at a distance of 10 cm (4 in) at the z00m position at which £ glows green (the zoom indicator is positioned before 2). The closest possible shooting position may vary according to the zoom position

+ AF area mode is set to Manual ([[] 100). Press the @ button to choose the focus area in which focus is acquired.

The camera focuses continuously until focus is locked by pressing the shutter-release button halfway.

#[ mm [&[ om [@[ oo [&] oo

* Othersettings can be selected. Note that the flash may be unable to light entire subject at distances of less than 60 cm (2 ft

auaxs ayr10y pouns Bunoous

aus3s ayr10} pouns Bunoous

Shooting in Scene Mode

Use when taking pictures of food. See ‘Taking Pictures in Food

Mode” (C1 41) for details.

+ AF area mode is set to Manual (C[] 100). Press the @ button to choose the focus area in which focus is acquired

* Other settings can be selected.

Use indoors where flash photography is prohibited (for example, in museurns and art galleries) or in other settings in which you do not want to use the flash

+ Camera focuses on subject in the center of the frame. +_BSS (best shot selector) can be used to shoot (1 97).

+ Motion detection ([[] 120) is not activated

* Other settings can be selected.

Slow shutter speeds are used to capture the expanding burst oflight from a irework

+ Camera focuses at infinity. The focus indicator (CI 6) always glows green when the shutter-release button is pressed halfway. Note, however, that objects in the foreground may not always be in focus,

Motion detection (C1 120) is not activated

8 lorthose scene modes with (Æ) use of a ipod is recommended

Shooting in Scene Mode

Provides clear pictures of text or drawings on a white board or in print

+ Camera focuses on subject in the center of the frame.

+ Use macro mode ((] 31) to focus at short ranges.

+ Colored text and drawings may not show up well

* Other settings can be selected.

Use when light is coming from behind subject, throwing features or details into shadow. The flash fires automatically to “fil in” (iluminate) shadows.

+ Camera focuses on subject in the center of the frame.

+ Motion detection ([[] 120) is not activated

* Other settings can be selected.

Use when taking a series of pictures that will later be joined to form a single panorama using the supplied Panorama Maker software. See ‘Taking Pictures for a Panorama” (CI) 43) for details.

* Other settings can be selected.

au22S au104 pouns Bunoous

Shooting in Scene Mode

Shooting in the Scene Mode Selected by the Camera

(Scene Auto Selector)

By simply framing a picture, the camera automatically selects the optimum scene mode for simpler shooting.

When the camera is aimed at a subject in £# scene auto selector scene mode, the camera automatically selects one of the following scene modes:

+ Auto (C1 20) + Portrait (1 34) + Landscape (1135) + Night portrait (135) + Nightlandscape (137) + Close-up (137) + Backlight (01 39)

T Press the Ê button in shooting mode to displaythe shooting-mode selection menu and use the multi selector to select £% (Scene auto selector) (LL 33).

The camera enters scene auto selector scene mode.

2 Frame the subject and take the picture.

When the camera automatically selects a scene mode, the shooting mode icon changes to that for the scene mode currently enabled.

Eu HE Night landscape Ecrit E Cose-up ES Lendscape ES Beckignt

ES Night portrait Press the shutter-release button halfway to set focus and exposure: Press the shutrer-release button the rest of the way down to take the picture. TZ Note on Scene Auto Selector Scene Mode Depending upon shooting conditions, the camera may not select the desired scene mode. Should this occur, switch to A (auto) mode (CL 20) or select the desired scene mode manually (CA 33). Flash Mode in Scene Auto Selector Scene Mode SAUT (Auto) (default setting) and ® (Of? flash mode settings can be applied (CI 28) + When SAITD (Auto) is applied, the camera automatically selects the optimum flash mode setting forthe scene mode it has selected. When ® (Of is applied, the flash does not fre, regardess of shooting conditions. Functions Restricted in Scene Auto Selector Scene Mode + Digital zoom is not available. + The macro mode button on the multi selector (1 9, 31) is disabled. + AF area mode {[[] 100) is set to Auto in KE (Close-up) mode.

Taking Pictures in Food Mode Use this mode to take pictures of food.

T Press the Ê button in shooting mode to display the shooting-mode selection menu and use the multi selector to select T1 (Food) (L[] 33). Macro mode (CU 31) will be turned on and the camera automatically zooms to the position at the closest distance at which the camera can focus.

2 Press the multi selector A or Y to choose white balance.

Press A to increase the amount of red, or Y to increase the amount of blue.

3 Framethe picture. The camera can focus at distances as close as 10 cm (4 in) atthe wide-angle zoom position at which &3 and the 200m indicator glow green (the zoom indicator is before A). The closest distance at which the camera can focus varies depending upon zoom position:

AF area mode is set to Manual ([[] 100). Press the @ button to move the focus area. Press the multi selector A, V, @orb 10 select à focus area and press the @ button again to activate the selected focus area: Self-timer (AA 30) and exposure compensation (C] 32) settings can be adjusted while the focus area is locked

4 Press the shutter-release button to take the picture. Focus is locked when the shurter-release button is pressed halfñaÿ, and a picture is taken when the shutter- release button is pressed the rest of the way down When the cameras unable to focus, the focus area biinks red. Change the composition and press the shurter- release button halfway again

Shooting in Scene Mode

auaxs ayr10y pouns Bunoous

au22S au104 pouns Bunoous

Shooting in Scene Mode

TZ Note on Food Mode Flash mode is disabled. Macro mode setting (OÙ) 31) is fixed at ON.

BA write Balance Setting in Food Mode «increasing the amount of red or blue will decrease illumination effects. « Changing white balance in food mode will not affect white balance in the shooting menu (EL 95).

+ The white balance setting applied in food mode is stared in the camera's memory even afterthe camera is tumed off, and reapplied the next time food mode is selected.

Shooting in Scene Mode

Taking Pictures for a Panorama The camera focuses on the subject in the center of the frame. Use a tripod for the best results.

T Press the Ê button in shooting mode to display the shooting-mode selection menu and use the multi selector to select HA (Panorama assist) (CU 33).

Panorama direction icons (D) are displayed to show the direction in which pictures will be joined.

2 Use the multi selector to choose the direction and press the @ button.

Select how pictures will be joined together in the completed panorama; right D), left (, up (25) or down (w)

The yellow panorama direction icon (> D) will move to the direction pressed and press the 6 button to choose the direction. À white panorama direction icon (D) will be displayed in the chosen direction

Apply flash mode (A 28), self-timer (CA 30), macro mode (CA 31) and exposure compensation (([] 32) settings with this step, if necessary.

Press the @ button again to reselect the direction.

3 Take the first picture.

One third of the last picture taken will be displayed partially transparent.

4 Take the next picture. Compose the next picture so that one-third of the frame overlaps the previous picture. Repeat until you have taken the necessary number of pictures to complete the scene.

Shooting in Scene Mode

5 Press the @ button when shootingis complete. The camera returns to step 2.

Flash mode, self-timer, macro mode and exposure compensation settings cannot be adjusted after the first picture is taken. Pictures cannot be deleted, nor can zoom or image mode setting (CL 93) be adjusted until all pictures in the series have been taken.

Shooting for the panorama series is terminated ifthe auto off function (O1 122] initiates standby mode during shooting. Setting the time allowed to elapse before the auto off function is enabled to a longer setting is recommended

RE/RF-L is displayed to indicate that exposure, white balance, and focus have been locked at the values set with the first shot. AIl pictures taken in a panorama series have the same exposure, white balance, and focus settings.

Install Panorama Maker from the supplied Software Suite CD. Transfer pictures to a computer {CA 80) and use Panorama Maker ((] 83) to join them in a single panorama.

See “image/Sound File and Folder Names” (130) for more information

The camera detects that a face recognized with face priority is smiling and shoots automatically.

À Enter smile mode by pressing the @ button in shooting mode and selecting 1 (press the multi selector À or W), and then pressing the @ button.

2 Framea picture. Point the camera at the subject. When the camera detects a face looking toward the camera, the focus area containing the face will be displayed with a yellow double border. The camera

focuses on the face framed by the double border. The double border will glow green and focus will be locked:

Up to three faces can be detected. When the camera detects more than one face, the face closest to the center of the frame is framed by à double border and the others by single borders

3 The shutter is automatically released.

EJ0 Bunoous 2newoMmY Ifthe camera detects that the face framed by the double barder is smiling, the shutter is automatically released.

When the camera detects a face, the self-timer lamp (A 4) blinks. immediately after the shutter is released with detection of a smiling face, the self-timer lamp flickers.

Each time the shutter is released, the camera automatically take pictures using the recognizing face and the detecting smiling face features repeatedly.

At default settings, the blink proof function is activated (I) 46)

4 Exit smile mode by pressing the Éd button. Change to another shooting mode.

SEE Face Priority and Smiling Face Detection Features

When the camera is pointed at a face looking toward the camera in smile mode, the face is automatically recognized and the smiling face of the recognized one is detected

+ In some shooting conditions, face recagnition does not wark and faces cannot be detected + See “Face Priority" (OÙ 102) for more information.

20e Bus e jo Bunoous >newoMnY

Shooting in Smile Mode

Blink Proof Function

The blink proof function is available in smile mode. Each time a picture is taken, the camera automatically takes two consecutive Shots. Of the two shots, the shot in which the subjects eyes are open takes priority and is saved.

Ifthe camera detects that it has saved a picture in which the subject's eyes may have closed, the

warning shown at right is displayed for a few may have seconds. .

+ To enable or disable the blink proof function, press the MENU button in smile mode to display the smile

menu and select Blink proof. The current setting is displayed in the monitor (C1 6).

Operation of Shutter-Release Button

Press the shutter-release button to take pictures.

+ When the Face priority takes effect, the shutter can be released with the focus lockedi on the recognized face even before the camera detects the subject is smiling

+ When the Face priarity doesn't take effect, the camera focuses on subject in the center ofthe frame.

BE Functions Available in Smile Mode

+ Flash is disabled when On is selected for the Blink proof option. When Off is selected for the Blink proof option, flash mode (C[] 28) is set to SITE (auto). Other flash modes can be selected.

+ Exposure compensation (CL 32) is available.

+ Digital zoom is nat available.

+ When the MENU button is pressed, the smile menu is displayed and Image mode (20193) can be adjusted. Change made to the image mode setting applies to al shooting modes (except the movie menu)

Auto Power Off in Smile Mode

In smile mode, the auto power off function (F1 122)is activated andthe camera turns offwhen either ofthe situations indicated below persists and no other operations are performed.

+ The camera does not recognize any faces

+ The camera recognized the face but cannot detect a smiling face

See “Autofocus” ([Ù] 25) for more information.

Rotate the zoom control to W (ÆE) in full-frame playback mode (( 26) to display pictures in “contact sheets” of thumbnail images. The following operations are available while thumbnails are displayed.

Choose pictures Press the multi selector À, Y, or B- 9

Rotate the zoom control to W (Æ3) to increase

Increase the the number of picture thumbnails displayed: 4 number of —+ 9 16. Rotate the zoom control to W (EE) pictures we |irie 16piaure thumbnail display to applythe | displayed/apply calendar display (1 48), and pictures can be

the calendar found by the date on which they were taken

display Rotate the zoom control to T (®) to return to

Rotate the zoom control ta T (®) to decrease

the number of picture thumbnails displayed: 16 u —+9 — 4, Rotate the zoom control to T (@) in - HEURE 4-picture thumbnail display to return to full-

Decrease the number of TQ

displayed frame playback mode. Cancel thumbnail Eee ® Press the @ button. 26 C] 5 Press the button or the shutter-release Sriente q ocon wretun to the last shooting mode 26 Shooting mode ana

A Thumbnail Playback Mode Display When pictures for which Print set (CL) 90) and Protect icon Protect ([[] 108) settings have been configured Print set icon are selected, the icons in the illustration to the

right appear. Movies are displayed as film frames.

Thumbnail Display in Auto Sort and Favorite Pictures Mode

+ When thumbnails are displayed in auto sort mode (CL 60), the category icon ofthe pictures will appear at the right top ofthe screen.

+ When thumbnails are displayed in favorite pictures mode (CI 63) the favorite pictures icon will appear at the right top ofthe screen.

Rotate the zoom control to W (El) when the pictures are displayed in 16-thumbnail (O1 47) in playback mode DIRE to apply the calendar display. Selecting a date displays the first picture taken on that MibiLe GE date in full-frame playback mode. The dates on which ÉLL

the pictures were taken are underlined in yellow

The following operations are available in calendar display

To Use Description ea] Select a date Press the multi selector À, #, € orb. 9 Return to full- @ | fistpicture taken on the selected date is 26

frame playback displayed full frame.

humbnall de play Rotate the zoom control to T (@) 47

[7% Notes on Calendar Display

+ Pictures taken before the date and time have been set are recognized as having been taken on 01/ 01/2009 in the calendar display.

+ The ff button and MENU button are not available in calendar display.

EX List by Date Mode

Only the pictures taken on the same date can be played back in list by date mode (A1 57). The playback menu operations (CD 59) are also available only for the pictures taken on the selected dates.

Rotating the zoom control to T (@) during full-frame playback mode (1 26) zooms the current picture, with the center of the picture displayed in the monitor.

The guide at lower right shows which portion of the picture is enlarged.

The following operations are available while pictures are | EG) z00med in ET To Use Description A] nn TQ@ [Zoom increases each timethe zoom contrlis : rotated to T (@), to a maximurn of 10x. Zoom decreases each time the zoom control is rotated to W (Æ). When the magnification ratio Éoomut WE |éches 1x, the display returns to full-freme : playback mode. View other areas Press the multi selector À, Ÿ, € or tomove | ofpicture the display area to other areas of the picture Switch to full- ane rx Press the @ button. 26 ; Press the MENU button to crop current picture to EPERUE MENU | Éntain oniy the portion visible in the monitor 5 Gti Press the button or the shutter-release RE re q fosonoreumitnerstsnooung mode 2 selected

Pictures Taken in Face Priority

When z0oming in (playback zoom) on a picture taken using the face-priority function (EL 102) by rotating the zoom control to T (@), the picture will be enlarged with the face detected with shooting at the center of the monitor.

If more than one face was detected, the picture will be enlarged with the face on which focus was acquired at the center of the monitor. Press the rotary multi selector À, Y, € or B to display other faces that were detected. When the zoom control is rotated to T (@) or W (Es) to adjust the zoom ratio, the center of the picture (normal playback zoom display), rather than the face, is displayed at the center of the monitor.

Use the COOLPIX 5220/5225 to edit pictures in-camera and store them as separate files (11 130). The editing features described below are available.

Editing function Description

Easy create retouched copies in which contrast and saturation have been enhanced.

Create a copy of the current picture with enhanced brightness

Quick retouch (1 51)

D-Lighting (C1 52) and contrast, brightening dark portions of the picture. Enlarge the image orrefine the composition and create à copy Crop (153) containing only the portion visible in the monitor.

Create a small copy of pictures suitable for use on web pages or

Srelpicture(tnI5é) as e-mail attachments.

+ Pictures taken at an Image mode setting of Æ 16:9 (3584) (C[] 93) cannot be edited.

+ The COOLPIX 5220/5225 editing functions are not available for pictures taken with non- COOLPIX 5220/5225 digital cameras.

+ Ifa copy created using the COOLPIX 5220/5225 is viewed on a different digital camera, the picture may not be displayed or may not be transferred to a computer.

+ Editing functions are not available when there is not enough free space in the internal memory or on the memory card.

Restrictions on Picture Editing (W'avalable,- not available) 2ndediting

Tstediting Quickretouch | _D-Lighting Crop Small picture

Quick retouch - _ la la

Small picture = = = =

+ Pictures cannot be edited twice with the same editing function

+ When pictures will be edited with both the quick retouch or Dlighting option and the crop or small picture option, the quick retouch or D-lighting option should be applied first.

EX original Pictures and Edited

+ Copies created with editing functions are not deleted ifthe original pictures are deleted. The original pictures are not deleted if copies created with edlting functions are deleted

+ Edited copies are stored with the same recording date and time as the original.

+ Print set ([[] 90) and Protect ([] 108) settings configured for original pictures are not reflected in their edited copies.

Quick Retouch Quick retouch can be used to easily create retouched copies in which contrast and saturation have been enhanced. Copies created with the quick retouch option are stored as separate files.

À Select the desired picture from full-frame

{1 26) or thumbnail (11 47) playback mode

and press the MENU button.

The playback menu is displayed. 2 Use the multi selector to choose P Quick

retouch and press the @ button.

The original version is displayed on the left and the edited

version is displayed on the right.

3 Press the multi selector À or Y to choose the

amount of enhancement performed and press the @ button.

A new copy with enhanced contrast and saturation is created (the time taken to create a copy might be long)

To cancel retouching, press the MENU button.

Copies created with the quick retouch option can be recognized by the E3 icon displayed during playback

See “Image/Sound File and Folder Names” (130) for more information

Enhancing Brightness and Contrast: D-Lighting

D-Lighting can be used to create copies with enhanced brightness and contrast, brightening dark portions of a picture. Enhanced copies are stored as separate files.

À Select the desired picture from full-frame {1 26) or thumbnail (11 47) playback mode and press the MENU button.

The playback menu is displayed.

2 Use the multi selector to choose Eh D-Lighting x and press the @ button. NET The original version is displayed on the left and the edited version is displayed on the right. ETS

3 Choose OK and press the @® button.

A new copy with enhanced brightness and contrast is created

peqkeld UO >10U To cancel D-Lighting, choose Cancel and press the @ button.

D-Lighting copies can be recognized by the Ek icon displayed during playback

EX more Information 52 See “Image/Sound File and Folder Names” ([]] 130) for more information.

Creating a Cropped Copy: Crop

Create a copy containing only the portion visible in the monitor when M: X is displayed with playback zoom ([[1 49) enabled. Cropped copies are stored as separate files.

T Rotate the zoom control to T (Q) in full-frame playback mode to zoom in on the image.

To crop a picture displayed in ‘tall (portrait) orientation, Zoom in on the picture until the black bars displayed on the both sides ofthe monitor disappear. The cropped picture will be displayed in landscape orientation.

To crop the picture in its current “tal” (portrait) orientation, first, use the Rotate image option ([]] 109) to rotate the picture so that it is displayed in landscape orientation. Next, enlarge the picture for cropping, crop the picture, and then rotate the cropped picture back to “tall” (portrait) orientation:

2 Refine copy composition. Rotate the zoom control to T (@) or W (Æ) to adjust the Zoom ratio. Press the multi selector À, Ÿ, or B to scroll the picture

until only the portion you want to copy is visible in the monitor.

3 Press the HENU button.

4 Use the multi selector to choose Yes and press the @ button. À new picture, containing only the portion visible in the monitor, is created.

To cancel creating a cropped copy, choose Ne and press the @ button.

As the area to be saved is reduced, the image size (pixels) of the cropped copy is also redut When the size of the cropped copy is 320 x 240 or 160 X 120, the small picture icon Ca or displayed on the left ofthe screen in fullframe playback mode.

EX more Information See “Image/Sound File and Folder Names” ([]] 130) for more information.

Resizing Pictures: Small Picture Create a small copy of the current picture. Small copies are stored as JPEG files with a compression ratio of 1:16. The following sizes are available.

Option Description La 640x480 Suited to television playback. Ca 320x240 Suited to display on web pages. L1160x120 Suited to e-mail attachments.

À Select the desired picture from full-frame {1 26) or thumbnail (11 47) playback mode and press the MENU button.

The playback menu is displayed.

2 Use the multi selector to choose Fa Small

picture and press the @ button. “on Protect ÉJ Rotate image

3 Choose the desired copy size and pressthe © pere button. La 640x 480 à ox 240 160x 120

4 Choose Yes and press the @ button. A new, smaller copy is created!

To cancel creating a copy at a smaller size, choose No and press the @ button.

The copy is displayed with a gray frame.

EX more Information 54 See “Image/Sound File and Folder Names” ([]] 130) for more information.

Use the cameras built-in microphone to record voice memos for pictures.

Recording Voice Memos

T Display the desired picture in full-frame playback mode ([1 26) and press the MENU button.

The playback menu is displayed.

2 Use the multi selector to choose $ Voice

memo and press the @ button. on Protect

E É Rotate image The screen for recording voice memos is displayed 2

3 Pressandholdthe@ buttontorecorda voice [py memo.

Recording ends after about 20 seconds or when the @ button is released

Do not touch the built-in microphone during recording.

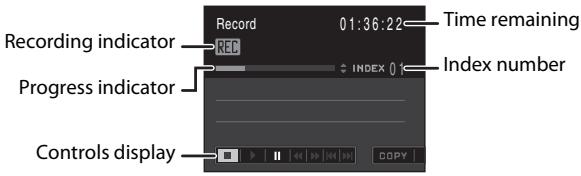

During recording, FEB and [É3 blink in the monitor.

When recording ends, the voice memo playback screen is displayed. Follow the instructions in step 3 of "Playing Voice Memos” (CA 56) to play the voice memo.

Press the MENU button before or after recording a voice memo to return to fullframe playback mode.

See “Image/Sound File and Folder Names’ (130) for more information.

Pictures for which voice memos have been recorded are indicated by [3 in full- frame playback mode

À Display the desired picture in full- frame playback mode (1 26) and press the MENU button.

The playback menu is displayed.

2 Use the multi selector to choose 8 Voice Pa baton

memo and press the @ button. “on Protect

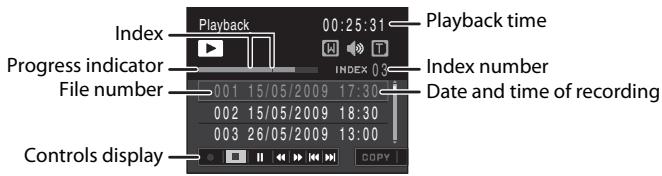

[oi J Rotate image The screen for playing voice memos is displayed. L

3 Press the @® button to listen to the voice memo.

Playback ends when the voice memo ends or the @ button is pressed again.

Rotate the zoom control T or W to adjust the volume.

Press the MENU button before or after playing a voice memo to return to fullrame playback mode.

Select a picture with a voice memo and press the Îj button. Use the multi selector to choose [A] and press the @ button. Only the voice memo will be deleted

+ When a picture with a voice memo attached is deleted, both the picture and its voice memo are deleted.

+ fa voice memo already exists forthe current picture, it must be deleted before a new voice memo can be recorded.

+ The COOLPIX 5220/5225 is not able to attach a voice memo to pictures recorded by other pes

list by date mode, playback of only pictures taken on a specified date is possible. In full-frame playback mode, just as with normal playback mode, picture display can be enlarged, pictures can be edited, and voice memos can be recorded and played back, movies can be played back, and still pictures can be added to favorites folders. When the MENU button is pressed, the list by date menu (ÆA 59) is displayed, and all pictures taken on a specified date can be selected for deletion, printing, and protection.

g a Date in List by Date Mode

À Press the[#] button in playback mode to display the playback-mode selection menu and press the multi selector À or Y to choose HE, and © then press the @ button.

Dates for which pictures exist will be listed.

2 Choose the desired date and press the ® button. Camera lists up to 29 dates. f pictures exist for more than

29 dates, all pictures recorded earlier than most recent 29 dates will be listed together as Others.

The first picture taken on the selected date will be displayed ful-frame.

Pressing the @ button sorts the displayed images to the favorites folder (1 65).

Rotate the zoom control to W (Æ3) in full-frame playback

mode to return ta the list by date screen.

TZ Notes on List by Date Mode + Up to 9,000 pictures can be displayed in list by date mode. If more pictures exist, ** is displayed next to the number.

Pictures taken before the date and time have been set are recognized as having been taken on 01/ 01/2009.

Viewing Pictures by Date (List by Date Mode)

Using List by Date Mode The following operations are available in the list by date screen.

To Use Description Es] Select date Press the multi selector À or Y to selecta date. | 9 Press the @ button to display the first picture TAC taken on the selected date. frame playback @ Rotate the zoom control to W (Æ) in full-frame | 26 Play playback mode to return to the list by date screen. Press the ff button to delete all pictures taken on Delete picture Ÿ the selected date. Choose Yes on the 26 confirmation dialog to be displayed. Viewlistbydate | gygy [Press the MENU buttonto dispayhelistbydate | 9 menu menu. Change playback | 3 [Press the [I button to display the playback. 8 mode mode selection menu. Switch to Press the I button or the shutter-release button | ;$

to return to the last shooting mode selected

Viewing Pictures by Date (List by Date Mode)

Press the MENU button in list by date mode to display the following menus for only the pictures taken on the specified date.

Quick retouch* 051 D-Lighting* 05 Print set 0090 Slide show 00107 Delete C0 108 Protect C0 108 Rotate image* 02109 Small picture* 0054 Voice memo* 55

* During ful-frame playback only

When the MENU button is pressed in the list by date screen ([[] 57), options can be applied to all pictures taken on the same date, or all pictures taken on the same date can be deleted. To apply options to individual pictures, or to select individual pictures for deletion, display a picture full-frame and press the MENU button.

When print marking already exists or pictures taken on dates other than that specified, a confirmation dialog Save print marking for other dates? wil be displayed

+ Yes: Add the previously marked pictures ta the current print set.

+ No: Remove print marking from the pictures previously marked.

Pictures and movies will automatically be sorted in any of the following folders during shooting. IF ÉÈ auto sort mode is selected, pictures and movies can be viewed by selecting the folder to which they were sorted with shooting.

1 Smile & Portraits Food BJ Landscape FA Dusk to dawn $ Close-ups M Movie BA Retouched copies

In full-frame playback mode, just as with the normal playback mode, picture display can be enlarged, pictures can be displayed in thumbnails, edited, and voice memos can be recorded and played back movies can be played back, and still pictures can be added to favorites folders. When the MENU button is pressed, the auto sort menu (11 62) is displayed, and all pictures sorted to the same category can be selected for deletion, printing, and protection.

Displaying Pictures in Auto Sort Mode

À Press the[#] button in playback mode to display the playback-mode selection menu and press the multi selector À or Y to choose ME, and then press the @ button.

A list of categories appears. For details of categories, see “Categories and the Contents” Con.

The pictures in the folder are displayed

2 Choose the desired folder icon and press the @ button.

The picture in the selected folder will be displayed in full- frame playback mode.

The icon ofthe category currently played back will be displayed in the top right ofthe screen.

Pressing the @ button sorts the displayed images to the favorites folder (1 65).

Image Searching in Auto Sort Mode

Folder name Description 1 Smile Pictures taken in smile mode (CA 45) are displayed. Pictures taken with Face Priority (CI) 102) in à (auto) mode £ Portraits {CA 20) or those taken in Portrait*, Night Portrait”, Party/ indoor, or Backlight* scene mode (CL] 33) are displayed. Hj Landscape Pictures taken in Landscape” scene mode (EL 33) are displayed Pictures taken in Night landscape*, Sunset, Dusk/dawn or EDusk to dawn Fireworks show scene mode (CL 33) are displayed Pictures taken in Close-up* scene mode (1 33) or with macro Bcoseups (C1 31) in (auto) mode are displayed Food Pictures taken in Food scene mode ([[ 41) are displayed. M Movie Movies recorded in movie mode (CA) 70) are displayed.

Pictures created using quick retouch (CD 51), D-Lighting (A 52), crop (CA 53) or small picture (C1 54) are displayed.

AI pictures that are not included in the other folders are displayed

“The pictures taken in Scene auto selector scene mode (C[] 40) are included:

TZ Notes on Auto Sort Mode

Up ta 999 pictures and movie files can be added to each folder in auto sart mode. Ifthe desired

folder already contains 999 pictures, new pictures or movies cannot be added or displayed in auto sort mode. Display pictures and movies that could not be added to a folder in normal playback mode ((] 26) or list by date mode (CO 57).

Pictures or movies copied from the internal memory or the memory card ([Ù] 109) cannot be

displayed in auto sort mode.

Pictures or movies recorded by a camera other than the COOLPIX 5220/5225 cannot be displayed

Using Auto Sort Mode The following operations are available in the category list screen.

To Description ça] Select the folder Press the multiselector À, Ÿ, orb toselect| name the folder.

Switchtoful-frame | @ |Pressthe@burontodispleythefistpicturein |» playback the selected folder.

Press the ff button after selecting a category, and a confirmation dialogue will be displayed

BSRRGEUE ® |Choose Yes and press the ® button to delee | 2 all pictures sorted to that category.

Change playback m fresteEbuonvdispaymepanet |

When print marking already exists for pictures sorted to categories other than that specified, a confirmation dialog Save print marking for other images? wl| be displayed!

+ Yes: Add the previously marked pictures to the current print set.

+ No: Remove print marking from the pictures previously marked.

Pictures can be added to the favorites folder sorted by each event such as travel or wedding. Once pictures are added to the favorites folder, only pictures in the selected folder can be played back. One picture can be added to multiple folders.

Sorting/Playback Procedure

( Preparing favorites folder (CL 64) ]

Sorting pictures to favorites folder (C1 65)

( Viewing the pictures in favorites folder (C1 66) ]

peqkeld UO >10U Sorting Favorite Pictures (Favorite Pictures Mode)

Changing the display icons for favorites folders enables you to see which pictures have been added to a favorites folder. The icons can be changed again after pictures have been added to the folders.

À Press the[#] button in playback mode to display the playback-mode selection menu and press the multi selector À or Y to choose Æë, and then press the @ button.

Alist of favorite folders is displayed.

2 Choose the favorites folder and press the MENU button.

Icon selection screen is displayed

3 Use the multi selector € or & to choose an icon color and press the 6 button.

4 Use the multi selector À, Y, € or to choose an icon and press the @ button.

The icon will be changed and the monitor display will return ta the list of favorite folders screen as in step 2.

TZ icons for Favorites Folder

Choose icons for favorites folders separately for the internal memory and for every memory card used. When favorite pictures stored to the internal memory, or a memory card, are played back without an icon having been selected, icons are displayed as numbers (default setting). Remove the

64 memory card from the camera to change icons for the internal memory,

Sorting Favorite Pictures (Favorite Pictures Mode)

Sorting Pictures to a Favorites Folder

Pictures can be added to favorites folders and sorted. Adding the pictures enables easier and faster searching,

À Playbackthe pictures in playback mode (E1 26), list by date mode {1 57), or auto sort mode (11 60).

2 Select your favorite picture and press the ® button.

Select ful-frame playback mode and press the @ button. The favorites folders selection screen is displayed

3 Use the multi selector to choose the favorites folder and press the @ button.

The pictures are added to the selected favorites folder

D Notes on Adding Favorite Pictures

+ A favorites folder can contain up to 200 pictures.

+ Ifthe selected picture has been already added to the favorites folder, the checkbox on the selected folder will have the On mark (W].

+ One picture can be added to multiple favorite folder.

+ When pictures are added to a favorites folder, they are not physically copied to a favorites folder or moved from the folder to which they were originally recorded (CL 69)

+ Movies cannot be added to favorites folders.

See "Removing Pictures from Favorites” (CL 66) for more information. 65

Sorting Favorite Pictures (Favorite Pictures Mode)

Viewing the Pictures in Favorites Folder

Pictures can be displayed by selecting the favorites folder to which they were added in Æ favorite pictures mode. In full-frame playback mode, just as with normal playback mode, picture display can be enlarged or pictures can be displayed in thumbnails, edited, or voice memos can be recorded or played back.

À Press the[#] button in playback mode to display the playback-mode selection menu, press the multi selector À or Y to choose Æ, and press the @ button.

Alist of favorites folders is displayed

Ifthe pictures have been added to the favorites folders pictures in those favorites folders are displayed

2 Choose the desired favorite folder and press the @ button.

The pictures in the selected favorites folder will be displayed in full-frame playback mode.

The icon of the favorites folder currently played back will be displayed on the top right of the screen.

Removing Pictures from Favorites

Press the @ button in the full-frame display in step 2 above and the removing favorites screen will be displayed

To remove the picture from favorites, choose Yes and press the @ button. To cancel removing, choose No and press the @ button

TZ Difference between Removing and Deleting Favorites

In favorite pictures mode, pictures that have been added to the favorites folder are displayed (169) Deleting a picture during playback will delete the original picture that has been added to the favorites folder. To remove a picture from favorites without deleting it just remove the desired picture from favorites folder.

Sorting Favorite Pictures (Favorite Pictures Mode)

Using Favorite Pictures Mode The following operations are available in the favorites folders list screen.

To Use Description ee] Select favorites folder Press the multi selector À, W, € orb- 9 Switchtoful-frame | @ |Pressthe®butontodiplaytheñistpiaurein | playback the favorites folder. Press the ff button after selecting a favorites folder, and a confirmation dialogue will be Delete picture Ÿ displayed. Choose Yes and press the @ button | 26 0 delete all pictures sorted to that favorites folder. Change the icon for Evarites folder! MENU | Change the icon for favorites folder. 64 Change playback pe] [Press the BI buiton to display the playback 8 mode mode selection menu. . Press the M button or the shutter-release Santo dresin button to return to the last shooting mode 26

Favorite Pictures Menu Press the MENU button in full-frame playback mode in favorite pictures mode to display the following menus.

Quick retouch 051 D-Lighting 05 Print set 0090 Slide show C0 107 Delete C0 108 Protect C0 108 Rotate image 02109 Small picture 0054 Voice memo 55

When print marking already exists for pictures sorted to folders other than that specified, a confirmation dialog Save print marking for other images? will be displayed

+ Yes: Add the previously marked pictures to the current print set.

+ No:Remove print marking from the pictures previously marked.

Sorting Favorite Pictures (Favorite Pictures Mode)

Adding/Viewing Favorite Pictures

When pictures are added to a favorites folder, they are not physically copied to a favorites folder or moved from the folder to which they were ariginally recorded (130). Only the file names of pictures are added to favorites folders. In favorite pictures mode, pictures with file names that have been added to the favorites folder are played back Deleting a picture (CL 26, 67, 108) during playbackwil delete the original picture that has been added to favorites, so be careful when deleting pictures.

Internal memory and memory card Favorites Folder 1

To shoot movies with sound recorded via the built-in microphone, select shooting mode and follow the steps below.

À Enter movie mode by pressing the @ button in shooting mode and selecting M (press the multi selector A or Y), and then pressing the @ button.

The maximum length of the movie that can be recorded is displayed in the monitor.

2 Press the shutter-release button all the way down to start recording. Camera focuses on subject in the center of the frame.

À progress bar at the bottom of the monitor shows the amount of recording time remaining.

To end recording, press the shutter-release button all the way down a second time. Recording stops automatically when the internal memory or memory card becomes full, or recording time reaches 25 minutes.

+ Flash mode (]] 28), self-timer (M 30), and exposure compensation ((] 32) cannot be applied or changed. Macro mode (EL 31) is available.

+ Macro mode setting cannot be applied or changed wihile movies are being recorded. Apply or change setting as necessary before movie recording begins

+ Optical zoom cannot be adjusted once movie recording begins. Digital zoam cannot be applied before movie recording begins. However, digital zoom (up ta 2x) can be applied while movies are being recorded.

+ The angle of view (field of view) when recarding movies is smaller than when taking st pictures.

TZ Note on Recording Movies

When the movie has been fully recorded to the internal memory or memary card, the monitor display will revert to the normal shooting mode display. Do not open the battery-chamber/ memory card slot cover while movies are being recorded. Removing the memory card wihile movies are being recorded could result in loss of data or in damage to the camera or card.

EX changing Movie Settings

Movi ions (C[] 71) and Electronic VR (C] 72) settings can be changed.

Movie options and Electronic VR ([[1 72) settings can be changed from the movie menu. Press the MENU button in movie mode to display the movie menu and use the multi selector to modify and apply settings.

| Setto M (Movie) > MENU (Movie menu) > A Movie options

The movie menu offers the options shown below.

EA movie Options and Maximum Movie Length

; Internal memory Memory card Option (approx. 44 MB) (512M8) A TV movie 640%k (default setting) ‘0 Approx 7 min 105 AH TV movie 640 1 min 195 Approx. 14 min 105 E Small size 320% 1 min 195 Approx. 14 min 105 F1 Small size 320 2 min 365 Approx. 25 min

+ Al figures are approximate. The maximum recording time may vary with make of memory card. This camera can record movies up to 25 minutes in length. À maximum movie length of 25 minutes is displayed, regardless of memory card capacity.

See “image/Sound File and Folder Names” (130) for more information 71

| Set to M (Movie) > MENU (Movie menu) > 8 Electronic VR Choose whether to use electronic VR (vibration reduction) when shooting movies.

sf On Reduce the effects of camera shake in all movie modes.

OFF Off (default setting) | Disable electronic VR.

At settings other than Off, the icon for the current setting is displayed in the monitor (A1 9).

In full-frame playback mode (CL 26), movies are recognized by the Movie options icon (O1 71). To play à movie, display it in full-frame playback mode and press the @ button.

Rotate the zoom control to T or W to adjust playback

Playback controls appear at the top of the monitor. Press the multi selector 4 or B to choose a control, then press the @ button to perform the selected operation, The following operations are available.

playback indicator To Use Description Rewind a Rewind movie. Playback resumes when the 6 button is released Advance =" Advance movie. Playback resumes when the € button is released = Pause playback. 2 While paused, use the controls to perform the following ë operations. [Fe "na movie by one frame Rewind continues we the Pause [u)] @ button is pressed. @ [vence movie y one frame. Advance continues while the @ button is pressed. @ | Resume playback End © l'End playback and return to ful-frame playback

Deleting Movie Files

Press the 1} button when displayed in full-frame playback mode (11 26), or when selected in thumbnail playback mode ((Ù 47). A confirmation dialog is displayed. Choose Yes and press the @ button to delete the movie, or choose No and press the @ button to return to the normal playback display without deleting the movie.

Audio voice recordings can be recorded over the built-in microphone and played back over the built-in speaker.

T Press the Ê button in shooting mode to display the shooting-mode selection menu and press the multi selector À or Y to select a scene icon.

SEE The icon for the last scene mode selected is displayed. The default setting is EE (Scene auto selector)

2 Press the multi selectorb and press À, Y, 4, orb to select &, and then press the @ button.

The length of recording that can be made is displayed.

3 Press the multi selector € or R to choose © and press the @ button to start recording. The indicator lamp lights during recording. Afrer about 30 seconds, the camera's auto off function is enabled and the monitor turns off. Press the De] button to reactivate the monitor.

See “Operations During Recording” (EL 75) for more information

4 Press or to choose I and press the @ button to end recording.

Recording will end automatically ifthe internal memory or memory card becomes full, or after 120 minutes of recording on the memory card

EX more Information 74 See “Image/Sound File and Folder Names” ((]] 130) for more information.

Making Voice Recordings

Operations During Recording

Press the multi selector 4 or B-

M press the @ button to end recording,

IL: press the @ button to pause playback. Select while paused and press the @ button to resume recording

During recording, press the multi selector À or Ÿ to create index. Camera can skip to any index during playback. Start of recording is index number 01; other numbers are assigned in ascending order, to a maximum of 98.

+ The copied files can be played back using QuickTime or any other WAV-compatible audio players. Note that index points created with the camera cannot be used when voice recordings are played back on computers.

Press the button in shooting mode to display the shooting-mode selection menu and press the multi selector À or Y to select a scene icon.

Press the multi selector Bb and press À, W, 4,

or to select &, and then press the @ button.

The voice recording screen is displayed

Press the multi selector 4 or to select .

Press À or Y to choose the desired file and press the @ button.

For more information, see “Operations During Playback"

Playing Voice Recordings

Operations During Playback

Index number Date and time of recording

Rotate the zoom control to T or W to adjust playback volume.

Playback controls appear at the bottom of the monitor. Press the multi selector or to choose a control, then press the @ button to perform the selected operation. The following operations are available.

To Use Description Rewind ae emma voice recording Playback resumes whenthe @ button is teleased Advance voice recording. Playback resumes when the @ Gien button is released Skip to previous K& | Skip to previous index index Spin Skip to next index. index pause 11 Pause playback IN changes top D | Resume playback changes toIlL End M |End playback and retum to the voice recording screen

Deleting Sound Files Press the fj button during playback or after selecting à jee

sound file in the voice recording screen (use the multi File wil be deleted. OK? selecton). À confirmation dialog will be displayed. To delete the file, choose Yes and press the @ button. To cancel deletion, choose No and press the @ button

Copy voice recordings between the internal memory and a memory card. This option is available only when à memory card is inserted,.

À Press the multi selector € or B to select COPY in the voice recording screen ([[1 76, step 3) and press the @ button.

2 Use the multi selector to choose the option and press the @ button. MY]: Copy recordings from internal memory to memory card

Li: Copy recordings from memory card to internal memory.

s: Proceed 10 step 4. Copy all files: Proceed to step 5.

4 Choose the desired file. Press the multi selector B to select the file (GZ). Press the multi selector B again to cancel the selection.

+ Multiple files can be selected + Press the @ button to finalize file selection.

5 When a confirmation dialog is displayed, choose Yes and press the @® button. Copying starts.

BA voice Recordings The COOLPIX 5220/5225 may be unable to play or copy sound files created with another make of caméra

Connecting to Televisions, Computers and P Connect the camera to a television using the supplied audio/video cable (AV cable) to play back pictures on the television:

2 Connect the camera to the TV using the supplied AV cable.

Connect the yellow plug to the videc-in jack on the TV, and the white plug to the audio- in jack

siauug pue sianduo‘suorsnafe 01 una)

3 Tune the television to the video channel. See the documentation provided with your television for details.

4 Hold down the [>] button to turn on the camera.

The camera enters playback mode, and the pictures taken wi be displayed on the television.

While connected to the TV, the camera monitor will remain off.

TZ connecting an AV Cable

When connecting the AV cable, be sure that the camera connector is oriented correctly. Do not use force when connecting the AV cable to the camera. When disconnecting the AV cable, do not pull the connector at an angle.

Be sure that the camera‘ video mode setting confarms ta the standard used by our television. The

video mode setting is an option set in the setup menu (CL 111)>Video mode (C[] 124) 79

siuug pue sinduo D ‘suoIsnafE L 01 BuRTaUUOD

Use the supplied USB cable to connect the camera to a computer, and copy (transfer) pictures to a computer with the supplied Nikon Transfer software.

Before Connecting the Camera

Install the Software

Before connecting the camera to a computer, software, including Nikon Transfer and Panorama Maker for creating panorama images, must be installed from the supplied Software Suite CD. For more information on installing the software, refer to the Quick Start Guide.

Compatible Operating Systems

Preinstalled versions of Windows Vista Service Pack 1 (32-bit Home Basic/Home Premium/Business/Enterprise/Ultimate editions),

Windows XP Service Pack 3 (Home Edition/Professional)

Macintosh Mac OS X (version 10.39, 104.11, 10.5.5)

Refer to the Nikon website for the latest information on operating system compatibility.

TZ Notes on Power Source

+ When connecting the camera to a computer or printer, use a fully charged battery to prevent the camera from turning off unexpectedy.

+ Ifthe AC Adapter EH-62D (available separately) is used, COOLPIX 5220/5225 can be powered from a home electrical outlet. Do not use any ather AC adapters as it will cause the camera to heat up or malfunction.

Connecting to a Computer Transferring Pictures from a Camera to a Computer

1 Startthe computer to which Nikon Transfer was installed. 2 Tumoffthe camera.

3 Connect the camera to the computer using the supplied USB cable.

4 Turn onthe camera. The power-on lamp will light up. Windows Vista

N When the AutoPlay dialog is displayed, click Copy pictures to a folder on my computer using Transfer. Nikon Transfer wil start

To bypass this dialog in the future, check Always do this for this device.

Windows XP When the action selection dilog is displayed, select Nikon Transfer Copy pictures to a folder on my computer and click OK. Nikon Transfer will start

To bypass this dialog in the future, check Always use this program for this action.

Mac OS X Nikon Transfer will start automatically if Yes was selected in the Auto-Launch setting dialog when Nikon Transfer was first installed.

TZ connectingthe USB Cable

+ When connecting the USB cable, be sure that the connectors are oriented correct. Do not use force when connecting the USB cable. When disconnecting the USB cable, do not pull the connector at an angle.

+ Connection may not be recognized when the camera is connected to a computer via a USB hub.

siequug pur sieinduo) ‘suoIs ae L 01 Bup>auuo>

Connecting to a Computer

5 Transfer pictures when Nikon Transfer has finished loading.

Click Start Transfer in Nikon Transfer. Atthe default setting, all pictures are transferred to the computer.

Start Transfer button AA the Nikon Transfer default setting, the folder to which the pictures were transferred opens automatically when transfer ends.

IfViewNX has been installed, ViewNX will start automatically and transferred pictures can be viewed.

For more information on using Nikon Transfer or View, refer to help information contained in Nikon Transfer or View.

6 Disconnect the camera when transfer is complete. Turn the camera off and disconnect the USB cable

Connecting to a Computer

EX using a Card Reader The pictures stored on the memory card inserted into a card reader or similar device can also be transferred to the computer using Nikon Transfer.

+ Ifthe memory card has a capacity greater than 2 GB, or is SDHC-compliant, the intended device must support these features of the memory card.

+ Atthe Nikon Transfer default settings, Nikon Transfer wil start automatically when a memory card isinserted int the card reader or similar device. See step 5 of Transferring Pictures from a Camera 10 a Computer” (FI 82) and transfer pictures.

+ To transfer pictures stored inthe camera intemal memory ta the computer, the pictures must fist be copied to a memory card using the camera (CD) 78, 109)

EX using Standard OS Operations to Open Camera Files

+ Navigate to the folder on the computers hard disk to which pictures were saved and open à picture in the viewer supplied with your operating system.

+ Sound files copied to the computer can be played back using QuickTime or any other WAV compatible audio player.

EX Panorama Creation with Panorama Maker

Use a series of pictures taken using the Panorama assist option in scene mode (OL 39) to create a single panorama photo with Panorama Maker. Panorama Maker can be installed to a computer using the supplied Software Suite CD.

After installation is complete, follow the procedure described below to start Panorama Maker. Windows

Choose Start menu>All Programs>AreSoft Panorama Maker 4>Panorama Maker 4. Macintosh

Open Applications by selecting Applications from the Go menu, and double-clickthe Panorama Maker 4 icon

For more information on using Panorama Maker, efer to the on-screen instructions and help information contained in Panorama Maker.

EX image File Names and Folder Names

See “image/Sound File and Folder Names” (130) for more information

siequug pur sieinduo) ‘suoIs ae L 01 Bup>auuo>

Users of PictBridge-compatible (C1 147) printers can connect the camera directly to the printer and print pictures without using a computer.

Select pictures for printing

using Print set option (CL 90) ( Connect to printer (CL 85) ] Print pictures one at a à ile où | time (CL 86) Print multiple pictures (C[ 87) ( Turn camera off and disconnect USB cable

TZ Notes on Power Source

+ When connecting the camera to a computer or printer, use a fully charged battery to prevent the camera from turning off unexpectedy.

+ Ifthe AC Adapter EH-62D (available separately) is used, COOLPIX 5220/5225 can be powered from a home electrical outlet. Do not use any ather AC adapters as it wil| cause the camera to heat up or malfunction.

EX printing Pictures

In addition to printing pictures transferred to a computer from your personal printer and printing over a direct camera-to-printer connection, the following options are also available for printing pictures

+ Insert a memory card into a DPOF-compatible printer card slot

+ Take a memory card to a digital photo lab

For printing using these methods, specify the pictures and the number of prints each using your camera's Print set menu (CU) 90)

Connecting to a Printer

Connecting the Camera and Printer

2 Tumonthe printer. Check printer settings.

3 Connect the camera to the printer using the supplied USB cable.

siauug pue sianduo‘suorsnafe 01 una)

4 Turn onthe camera.

When connected correctiy, the PictBridge startup screen @ will be displayed in the camera monitor. Then the print selection screen will be displayed (2).

TZ connectingthe USB Cable

When connecting the USB cable, be sure that the connectors are oriented correctly. Da not use force when connecting the USB cable. When disconnecting the USB cable, do not pull the connector at an angle.

Siequud pue s1PNduOD ‘SUOISNOIE L O1 BuR>aUUOD

Connecting to a Printer

Printing Pictures One at a Time

After connecting the camera to the printer correctly (O1 85), print pictures by following the procedures below

À Use the multi selector to choose the desired picture and press the @ button.

Rotate the zoom control to W (ES) to switch to 12- thumbnail display, and to T (@) to switch back to full- frame playback

2 Choose Copies and press the @® button.

3 Choose the number of copies (up to nine) and press the @ button.

5 Choose the desired Paper size and press the @ button.

Connecting to a Printer

6 Choose Start print and press the @ button.

Monitor display returns to the print selection screen (step 1) when printing is complete.

To cancel before all copies have been printed, press the @ button.

Current print/ total number of prints

Printing Multiple Pictures After connecting the camera to the printer correctly (O1 85), print pictures by following the procedures below. T When the print selection screen is displayed, press the MENU button. The print menu is displayed.

siauug pue sianduo‘suorsnafe 01 una)

2 Use the multi selector to choose Paper size in mens and press the @ button. Print selection

Connecting to a Printer

4 Choose Print selection, Print all images or

Print menu DPOF printing and press the @ button.

Choose the pictures (up 10 99) and the number of copies (up to nine) of each,

Press the multi selector 4 or B to select pictures, and press À or Y to set the number of copies for each

Picture selected for printing can be recognized by the check mark (&7) and the numeral indicating the number of copies to be printed Check marks are not displayed with pictures for which no copies have been specified and these pictures will not be printed.

Rotate the zoom control to T (Q to switch to fullframe playback

Rotate the zoom control to W (#3) to switch back to 12-thumbnail display.

Press the @ button when setting is complete.

The menu shown at right will be displayed

To print, choose Start print and press the @ - _

button. REP Choose Cancel and press the @ button to

return to the print menu.

C All pictures stored in the internal memory or on JERNRRENNR the memory card, are printed one at a time: En The menu shown at right will be displayed To print, choose Start print and press the @) button

Choose Cancel and press the @ button to return to the print menu.

Connecting to a Printer

DPOF printing Print pictures for which a print order was created in Print set (CL 90). The menu shown at right will be displayed To print, choose Start print and press the @) button Vie images Choose Cancel and press the @ button to ms return to the print menu.

To view the current print order, choose Viewr images and press the @ button, To print pictures, press the @ button again.

Monitor display returns to the print menu (step 2) when printing is complete.

To cancel before all copies have been printed, press the @® button

Current print/ total number of prints

The camera supports the following paper sizes: Default (the default paper size for the current printer) 3.5x5 in, 5x7 in. 100x150 mm, 4x6 in, 8x10 in, Letter, A3, and A4. Only sizes supported by the current printer will be displayed. To specify paper size using printer settings, choose Default in the paper size menu

siauug pue sianduo‘suorsnafe 01 una)

The Print set option in the playback menu is used to create digital “print orders” for printing on DPOF-compatible devices (CL 147)

When the camera is connected to a PictBridge-compatible printer, pictures can be printed from the printer according to the DPOF print order you have created for pictures on the memory card. If the memory card is removed from the camera, you can create the DPOF print order for pictures in the internal memory and print pictures according to the DPOF print order.

T Press the MENU button in playback mode. The playback menu is displayed.

2 Use the multi selector to choose & Print set and press the @ button.

3 Choose Select images and press the ® button. [Seiectimages

siauug pur s1enduu07 ‘sUOISIAD L 01 BURIUUO D

4 Choose the pictures (up to 99) and the number of copies (up to nine) for each.

Press the multi selector 4 or Be to select pictures, and press À or Y to set the number of copies for each Picture selected for printing can be recognized by the check mark (&) icon and the numeral indicating the number of copies to be printed. Check marks are not displayed with pictures for which no copies have been specified and these pictures will not be printed

Rotate the zoom control to T (@) to switch to full-frame playback. Rotate the zoom control to W (Œ) to switch back to 12-thumbnail display. Press the @ button when setting is complete.

Creating a DPOF Print Order: Print Set

5 Choose whether or not to print shooting date and photo information. Choose Date and press the @ button to print the shooting date on all pictures in the print order.

Choose Info and press the @ button to print shutter speed and aperture information on al pictures in the print order.

Choose Dene and press the @ button to complete the print order and exit.

Pictures selected for printing are recognized by the icon displayed with playback

TZ Notes on Printing Shooting Date and Photo Information

When the Date and Info options are enabled in the Print set menu, shooting date and photo information are printed on pictures when a DPOF-compatible (C[ 147) printer which supports printing of shooting date and photo information is used.

+ Photo information cannot be printed when the camera is connected directly to a printer, via the supplied USB cable, for DPOF printing (CL 89).

+ Date and Info are reset each time the print set menu is displayed!

siequug pur sieinduo) ‘suoIs ae L 01 Bup>auuo>

BA Deleting All Print Orders

Choose Delete print set in step 3 and press the @ button. Print orders for all pictures will be deleted

Note on the Print Set Date Option

‘The date and time printed on pictures with DPOF printing when. Date in the Print set menu is enabled, are those recorded with the picture as it was taken. Date and time printed using this option are not affected when the cameras date and time setting are changed from the setup menu after pictures are recorded

EX pate Imprint When date and time of recording are imprinted on pictures using the Date Imprint option

{A 119) in the setup menu, pictures with the date and time imprinted on them can be printed from printers that do not support printing of the date and time on pictures. Only the date with the Date imprint option will be printed, even if Print set is enabled with Date selected in the print set screen.

snuam dmas pue 1>eq{eld ‘Bunoous

Shooting, Playback and Setup Menus

The shooting menu contains the following options.

Choose image size and quality.

Match white balance to the light source.

Change settings for Continuous or BSS (best shot selector)

Control camera's sensitivity to light.

Apply color effects to pictures as they are recorded

Choose where the camera focuses.

@ Distortion control Correct the distortion.

*_ The Image mode setting is also available from other shooting menus (except the movie

+_Use the multi selector to choose and apply settings (EL 9). + To exit the shooting menu, press the MENU button.

TZ Functions that Cannot Be Applied Simultaneously

Some functions cannot be enabled in conjunction with others (CD 104)

Shooting Options: The Shooting Menu

Set to À (auto) > MENU (Shooting menu) > € Image mode

Choose an image mode, which is the combination of image size and image quality (compression), according to how you plan to use the picture and the capacity of the internal memory or memory card. The larger the image, the larger the size at which it can be printed or displayed without becoming noticeably “grainy," limiting the number of pictures that can be recorded.

Option Size (pixels) Description

Highest quality, suitable for enlargements ΠHigh(3648%) 3,648x 2736 | orhigh-quality prints. The compression ratio is approximately 1.

Normal (3648) nl (default setting) 3648 x 2,736 | Best choice in most situations. The

compression ratio is approximately 1:8

Normal (2592) 2592 x 1,944

Smaller size allows more pictures to be Normal (2048) 2048x 1,536 | stored. The compression ratio is approximately 1:8.

Suited to display on a computer monitor. The compression ratio is approximately 1:8.

PC screen (1024) 1,024 x 768

Suited to full-screen display on a television, Æ TVscreen (640) 640x 480 | or distribution by e-mail. The compression ratio is approximately 1:8.

Pictures with an aspect ratio of 16:9 can be 16:9 (3584) 3,584x 2016 | taken. The compression ratio is approximately 128.

The icon for the current setting is displayed in the monitor in shooting and playback modes (21 6, 7).

Image Mode Change made to this setting applies to all shooting modes (except the movie menu)

snuayy dmes pue peqhej Bunoous

snuam dmas pue 1>eq{eld ‘Bunoous

Shooting Options: The Shooting Menu

Number of Exposures Remaining

‘The following table lists the approximate number of pictures that can be stored in internal memory and on a 512 MB memory card. Note that the number of pictures that can be stored will differ depending on the composition ofthe picture (due to JPEG compression). In addition, this number may differ depending on the make of memory card, even ifthe capacity for the memory card is the same.

Seting ane | CUng | Prntaie(emvn) High (3648%) 9 95 31x 23/122x 9 Normal (3648) 18 190 31x 23/122x 9 Normal (2592) 35 375 22x 165/87 x 65 Normal (2048) 55 590 17x 13/67%x 51 PC screen (1024) 188 2010 9x 7/35 x 28 TV screen (640) 353 3775 5x 4/2X 16 16:9 (3584) 25 265 30x 17/118x 67

1° Ifthe number of exposures remaining is 10,000 or more, the number of exposures remaining display shows "9999".

2 All figures are approximate. Print size at an output resolution of 300 dpi. Print sizes are calculated by dividing the number of pixels by printer resolution (dpi) and multiplying by 2.54 cm (1 in). However, at the same image size, pictures printed at higher resolutions wi print smaller than the size indicated, and those printed at lower resolutions wil print larger than the size indicated

Shooting Options: The Shooting Menu

Set to Ê (auto) > MENU (Shooting menu) > WE White balance

The color of light reflected from an object varies with the color of the light source. The human brain is able to adapt to changes in the color of the light source, with the result that white objects appear white whether seen in the shade, direct sunlight, or under incandescent lighting. Digital cameras can mimic this adjustment by processing images according to the color of the light source. This is known as “white balance." For natural coloration, choose a white balance setting that matches the light source before shooting. Although the default setting, Auto, can be used under most types oflighting, you can apply the white balance setting suited to a particular light source to achieve more accurate results.

AUD Auto (default setting)

White balance automatically adjusted to suit lighting conditions, Best choice in most situations

Neutral-colored object used as reference to set white balance under unusual lighting conditions. Refer to “Preset Manual" for more information (1 %6)

# Daylight White balance adjusted for direct sunlight. # _Incandescent Use under incandescent lighting, % Fluorescent Use under most types of fluorescent lighting

@ Cioudy Use when taking pictures under overcast skies. & Flash

Use with the flash mode.

The effects of the selected option can be previewed in the monitor. At settings other than Auto, the icon for the current setting is displayed in the monitor

TZ Flash Mode At white-balance settings other than Auto or Flash, turn the flash off (®) (CU 28).

Shooting Options: The Shooting Menu

Preset manual is used with mixed lighting or to compensate for light sources with a strong color cast (for example, to make pictures taken under a lamp with a red shade look as though they had been taken under white light).

À Place a white or gray reference object under the lighting that will be used during shooting.

2 Use the multi selector to choose PRE Preset

manual in the White balance menu and press | an ET

the @ button. The camera zooms in.

To apply the most recently measured value for preset manual choose Cancel and press the @ button.

4 Frame the reference object.

Reference object frame

5 Pressthe@® button. The shurteris released and the new white-balance value is set No pictures are recorded.

TZ Note on Preset Manual

Regardless of the flash mode selected, the flash wil not fire when the @ button is pressed in step 5. Therefore, a white-balance value cannot be measured when the flash fires.

Shooting Options: The Shooting Menu

Set to Ê (auto) > MENU (Shooting menu) > Eh Continuous

Change settings to Continuous or BSS (best shot selector). Flash will be switched off for Continuous, BSS or Multi-shot 16, and focus, exposure and white balance are fixed at the values for the first picture in each series.

Single (default setting) One shot is taken each time shutter-release button is pressedl

ΠContinuous While the shutter-release button is held down, up to 6 pictures are taken at a rate of about 1.2 frames per second (fps) when Image mode is set 10 M Normal (3648)

BS$ B5s (Best Shot Selector) The “best shot selector" is recommended when shooting with the flash off or the camera zoomed in, or in other situations in which inadvertent motion can result in blurred pictures. When BSS is on, the camera takes up to ten pictures while the shutter-release button is held down. The sharpest picture in the series is automatically selected and saved

Æ Multi-shot16 Each time the shutter-release button is pressed, camera takes 16 shots at about 7 frames per second and arranges them in à single picture with Image mode setting set to EM Normal (2592). Digital zoom is not available. 150 sensitivity (CL 99) is fixed at Auto and Color options (9) is fixed at Standard color.

@ _intvitimershooting Camera takes pictures automatically at specified interval (A1 98)

At settings other than Single, the indicator for the current setting is displayed in the monitor (11 6)

TZ Note on Continuous Shooting The maximum frame rate with continuous shooting may vary, depending upon the current image mode setting and the memory card used.

TZ Note on Multi-shot 16

Hbright objects such as the sun or electric lights are captured during shooting with the Multi-shot 16 option, vertical streaks of light may appear in the recorded images. We recommend that you avoid capturing bright objects during shooting with the Multi-shot 16 option.

[Z NoteonBss BSS may not produce the desired results ifthe subject moves or the composition changes while the shutter-release button is pressed all the way down.

snuayy dmes pue peqhej Bunoous

Shooting Options: The Shooting Menu

Interval Timer Photography Pictures are taken automatically at specified intervals.

Choose an interval of 30 s, 1 min, 5 mi

Use the multi selector to choose Intvl timer shooting in the Continuous menu and press the @ button.

2 Choose interval between shots and press the

3 Press the HENU button to exit the menu.

The camera returns to shooting mode.

4 Press the shutter-release button all the way

down to take the first picture and initiate interval timer shooting. Monitor turns off and power-on lamp blinks between shots.

The monitor tums on automatically right before the next shot is taken.

Single Connuous Bss Mulishot 16 A ini mer shooting

Press the shutter-release button all the way down again to end

Recording will end automatically the internal memory or memory card becomes full,

or when the maximum number of pictures have been taken.

T3 Notes on Power Source + To prevent the camera from turing off unexpectedly during recording, use a fully charged battery. + Ifthe AC Adapter EH-62D (available separately) is used, COOLPIX 5220/5225 can be powered from

a home electrical outlet. Do not use anÿ other AC adapters as it will cause the camera to heat up or

EX more Information See “Image/Sound File and Folder Names” ([]] 130) for more information.

Shooting Options: The Shooting Menu

[Set to 8 (auto) -> HENL (Shooting menu) ISDISO sensitivity

Sensitivity is a measure ofhow quickly the camera reacts to light. The higher the Sensitivity, the less light needed to make an exposure. Although a high ISO rating is suited for taking pictures of subjects in action or in poor lighting, high sensitivity is often associated with “noise” - randomly spaced, brightly colored pixels concentrated in dark parts of the image. Auto (default setting) Sensitivity is 150 80 under normal conditions; when lighting is poor and the flash is off, the camera compensates by raising sensitivity 10 à maximum of ISO 800. High ISO sensitivity auto ISO sensitivity is automatically adjusted within the range between 80 and 1600, depending upon the brightness of the scene. 80, 100, 200, 400, 800, 1600, 2000 Sensitivity will be locked at the specified value. Motion detection ([[] 120) does not function when any option other than Auto is selected. Atthe settings other than Auto, the current setting is displayed in the monitor (A6). f Auto is selected and the sensitivity is raised above ISO 80, the [D icon will be displayed (C1 29). When High ISO sensitivity auto is selected,

[ Set to Ê (auto) > MENU (Shooting menu) > G Color options

Make colors more vivid or record pictures in monochrome. & Standard color (default setting)

Use for pictures exhibiting natural color. Vivid color

Use to achieve a vivid, "photoprint’ effect Black-and-white

Record pictures in black-and-white.

8 & & & A The effects of the selected option can be previewed in the monitor. At settings other than Standard color, the icon for the current setting is displayed in the monitor (1 6)

snuey dmes pue eqfejg 'Bunoous

Shooting Options: The Shooting Menu

Set to Ê (auto) > MENU (Shooting menu) > FH AF area mode

Use this option to determine where the camera focuses. When digital zoom is in effect, focus will be on the center of the screen regardless of the settings used:

183 Face priority (default setting)

When the camera recognizes a face looking toward the camera, the camera will focus an that face. See “Face Priority" (CA 102) for more information. If more than one face is recognized, focus will be on the face closest to the camera

When shooting pictures of subjects other than people, or framing a subject with which no face is recognized, AF area mode wil| switch 10 Auto, and the camera will automatically select the focus area {one of nine) containing the subject closest to the camera

Camera automatically selects the focus area (one of

nine) containing the subject closest to the camera. Press the shutter-release button halfway to activate the focus area. When the shutter-release button is pressed halfay, the focus area selected by the camera wil be displayed in the monitor.

snuam dmas pue 1>eq{eld ‘Bunoous

This option is suited to situations in which the Focus area intended subject is relatively still and not positioned in the center of the frame.

Press the multi selector À, #, or B to select from 99 focus areas in the frame. Pictures can be taken while focus-area selection screen is displayed.

To end focus-area selection and adjust the flash, macro, self-timer and exposure compensation L ] settings, press the @ button. To return to the focus I area selection screen, press the @ button again.

J L Selectable focus area

Shooting Options: The Shooting Menu

Camera focuses on subject in the center ofthe frame. Center focus area is always displayed.

‘To focus on off-center subjects when Center is selected for AF area mode, use focus lock as

described below. 1 Position the subject in the center of the frame.

2 Press the shutter-release button halfay. + Canfirm that the focus area is green. + Focus and exposure are locked

3 Continue holding down the shutter-release button halfway and recompose the picture. + Be sure that the distance between the camera and the subject does not change

4 Press the shutter-release button the rest ofthe way down to take the picture.

See “Autofocus” ([Ù] 25) for more information.

Shooting Options: The Shooting Menu

The face-priority function is activated when Face priority (default setting) is selected for AF area mode (CL 100), when shooting in Scene auto selector (C2 34), Portrait (CL 34), or Night portrait (CL 35) scene mode, or when shooting in smile mode (C1 45)

The camera automatically detects and focuses on a face looking toward the camera

À Frame a picture. When the camera recognizes a face looking toward the camera, that face will be framed by a yellow double border.

When the camera detects more than one face, operation varies, depending upon the shooting mode, as follows.

Shooting mode Faces framed by a double border | Te number offaces to be recognized @ (auto) mode {Face priority) The face closest to the camera

Scene mode:Scene auto |* The other faces are framed by | Upto 12 selector, Portrait, Night | 2 single border. portrait

The face closest 10 the center of

*_ The other faces are framed by 2 single border.

2 Press the shutter-release button halfway. Focus will be on the face framed by the double border. The double border will glow green once focus has been locked When the camera is unable to focus, the double border wéll blink. Press the shutter-release button halfway again and focus Press the shutter-release button the rest of the way down to take the picture.

You don't need to press the shutter-release button halfway in smile mode. Ifthe camera detects the smiling face, the shutter is automatically released (C1 45)

Shooting Options: The Shooting Menu

TZ Notes on Face-Priority

+ In Face priority, f the shutter-release button is pressed halfway when no faces are recognized, AF area mode will be set to Auto.

+ Ina face is detected when the shutter-release button is pressed halfway in Portrait or Night portrait scene mode, or smile mode, the camera will focus on the subject in the center focus area.

+ The camera may be unable to detect faces in the following situations:

When faces are partially hidden by sunglasses or other obstructions When the subject is not looking directly at the camera When faces take up too much or too little ofthe frame

+ The cameras ability to detect faces depends on a variety of factors, including whether or not the subject is facing the camera.

+ In some rare cases, the subject may not be in focus despite the fact that the double border glows green (25). Should this occur, switch to A (auto) mode and set AF area mode to Manual or Center, refocus on another subject positioned at the same distance from the camera as the actual portrait subject and use focus lock (CI 101)

+ When pictures in which a face was detected during shooting are played back the pictures will be automatically rotated for playback display, according to the orientation of the face detected

@ Distortion Control

Set to (auto) > MENU (Shooting menu) > @ Distortion control

Specify whether or not the distortion is corrected. Enabling distortion control reduces the size of the frame. On Distortion at frame peripheries is correctedl Of (default setting) No distortion correction performed.

Atsettings other than Off, the icon for the current setting is displayed in the monitor (A1 6).

snuayy dmes pue peqhej Bunoous

Shooting Options: The Shooting Menu

Functions that Cannot Be Applied Simultaneously Restrictions apply to the following settings in (auto) mode.

Flash mode is automatically fixed at ® (Of) when Continuous, BSS, or Mu 16 is selected for the Continuous setting, Selecting Single or Intyl timer shooting for Continuous setting restores the last flash mode setting applied

I self-timer is on, only one picture will be taken when the shutter is released, regardiess of settings selected for the Continuous setting. The last Continuous setting applied is restored when picture is taken or self-timer is turned of.

Continuous Image mode is automatically fixed at FA Normal (2592), ISO sensitivity is automatically fixed at Auto, and Color options is automatically fixed at Standard color when Multi-shot 16 is selected for the Continuous setting;

The last settings applied for Image mode, ISO sensitivity, and Color options are restored when any setting other than Multi-shot 16 is selected for the Continuous setting,

White balance and Color options

White balance is automatically fixed at Auto when Black-and-white, Sepia or Cyanotype is selected for Color options.

Applied white balance setting is restored when Standard color, Vivid color, or Pastel is selected

When Distortion control is set 10 On, the Continuous setting is automatically set to Single.

Even when the Distortion control option is disabled, the Continuous setting does not change.

The playback menu contains the following options.

L# Quickretouch ms Easily create retouched copies in which contrast and saturation have been enhanced

Eh D-Lighting as Enhances brightness and contrast in dark portions of pictures

& Printset Ms Select pictures to print and the number of copies for each,

View pictures stored in the internal memory or on à memory card in an automatic slide show.

f Delete 08 Delete al or selected pictures

On Protect 108 Protect selected pictures from accidental deletion. e

Æ Rotate image io à Change the orientation of pictures. ë

F& Small picture ms > Create a small copy ofthe current picture. Ë

% Voice memo m5 & Record voice memos for pictures È

EI Copy Qi À Copy files between memory card and internal memory. z

Selecting Pictures The picture selection screen, as shown at right, will be displayed with the following menus:

Copy>Selected images (C[] 109) + Setupmenu: Welcome screen (1 114)

Follow the procedures described below to choose the pictures.

T Press the multi selector € or B to choose the desired picture. Only one picture can be selected for Rotate image and Welcome screen. Proceed 10 step 3 Rotate the zoom control to T (@) to switch to full-frame playback Rotate the zoom control to W (ES) to switch back to 12-thumbnail display.

2 Press A or Y to select ON or OFF (orthe

When ON is selected a check mark (&Z) is displayed in the top left corner ofthe current picture. Repeat steps 1 and 2 to select additional pictures.

3 Press the @ button to apply picture selection.

Play back pictures, stored in the internal memory or on a memory card, one by one in an automated "slide show."

Use the multi selector to choose Start and press the @ button.

To change the inteval berween pictures, choose Frame intvl, select the desired interval time, and press the @ button before choosing Start

To repea the slide show automatically, enable Loop and press the @ button before choosing Start. The check mark (W) will be added to the loop option when enabled

The slide show begins. While the slide show is in progress, the following operations are available:

Press the multi selector Be to display the subsequent picture or 4 to display the previous picture. Hold down either button to fast forward or rewind.

Press the @ button to pause the slide show.

Choose End or Restart.

When the slide show ends or is paused, choose End and press the @ button to return to the playback menu, or choose Restart 10 play the slide show again

UZ Notes on Slide Show + Onby the first frame of movies (A 73) included in slide shows is displayed « Even if Loop is selected, the maximum playback duration for a slide show is 30 minutes (CI 122)

Delete selected pictures or all pictures.

Erase selected images

Delete selected pictures (CA 106). Erase all images

Delete all pictures.

TZ Notes on Deletion

+ Once deleted, pictures cannot be recovered! Transfer important images to a computer before deletion.

+ Pictures marked with the @x icon are protected and cannot be deleted.

Press the [#] button (Playback mode) > MENU (Playback menu) > On Protect

Protect selected pictures from accidental deletion.

Choose pictures in the picture selection screen to apply the protect option (Selecting Pictures — C] 106)

Note, however, that formatting the camera's internal memory or the memory card will permanently erase protected files (([] 123).

Protected pictures are recognized by the @a icon (O1 7, 47)

Playback Options: The Playback Menu

Press the [#] button (Playback mode) > HENU (Playback menu) > ÉJ Rotate image

After shooting, set the orientation in which pictures are displayed during playback. Pictures can be rotated 90° clockwise or counterclockwise. Pictures that were recorded in the portrait (vertical) orientation can be rotated up to 180° in either direction.

Select a picture in the picture selection screen (1 106). When the Rotate image screen is displayed, press the multi selector € or B to rotate the picture 90°.

Rotate 90° Rotate 90° clockwise counterclockwise Press the @ button to set the orientation displayed, and save the orientation data with the picture.

Press the [#] button (Playback mode) > HENU (Playback menu) > EE Copy

Copy pictures between the internal memory and a memory card.

À Select an option from the copy screen using the multi selector and press the @ button. ME: Copy pictures from internal memory to

Éæ: Copy pictures from memory card to internal memory.

Selected images: Copy pictures selected from the picture selection screen (C[] 106). All images

Allimages: Copy all pictures

[7% Notes on Copying Pictures

+ JPEG, AVI, and WAV-format images can be copied. Images recorded in any other formats cannot be copied.

If voice memos (] 55) are attached to pictures selected for copying, voice memos are copied with the pictures.

Sound les recorded using Voice Recording (AA 74) can be copied using the Copy sound files option ((] 78) in audio playback mode.

Pictures taken with another make of camera or that have been modified on a computer cannot be copied

When copying pictures for which Print set (CI 90) options are enabled, the print set settings will not be copied. However, when copying pictures for which Protect (LL 108) is enabled, the protect setting will be copied

Pictures copied from the intemal memory or a memory card cannot be displayed in auto sort mode (O1 60). Even if a picture added to favorites folder (OA 65) is copied, the contents of the favorites folder will not be copied.

EA memory contains no images. Message

Ithere are no pictures stored on the memory card when playback mode is applied, the message Memory contains no images. will be displayed. Press the MENU button to display the copy option screen, and copy the pictures stored in the cameras internal memory to the memory card.

170 52e "mage/Sound File and Folder Names” (1 130) for more information

The setup menu contains the following options.

Electronic VR (RARE) Specify the electronic vibration reduction seting for taking st pictures.

Menus ia Choose how menus are displayed

Welcome screen ua Select screen displayed when camera is turned on.

Date Qus Set camera clock and choose home and destination time zones.

Monitor settings Qus

Adjust photo information display, post-shooting image review, and monitor brightness settings.

Date imprint Que Imprint date on pictures. Motion detection M2

Adjust the motion detection setting to reduce the effects of subject movement and camera shake when taking still pictures

Digital zoom (mari Adjust settings for using digital zoom:

Sound settings (mari Adjust sound settings.

Auto off 2 Set time before camera enters standby mode.

Format memory/Format card D: Format internal memory or memory card

Language CD 124 Choose the language used for camera monitor display.

Video mode 124 Adjust settings necessary for connection to television.

Set whether or not to detect human subjects with eyes closed when shooting with the face priority (CA 102).

Reset all Mrs Restore camera settings to default values. Firmware version Mrs

Display camera firmware version:

4 Press orthe @® button.

The setup menu items are selectable.

Use the mul selector to choose and apply settings (ab)

To exit the setup menu, press the HENU button or 4 to select other tabs.

When all ofthe following conditions are met while taking stil pictures, electronic VR is applied and the effects of camera shake are reduced +_The flash is turned off or set to slow sync mode. +_The shutter speed is slow +_ The Continuous setting is set 10 Single. Off (default setting)

Electronic VR is disabled.

When Auto is selected, $ appears on the monitor (16), and electronic VR is applied depending on shooting conditions.

TZ Notes on Electronic Vibration Reduction

+ Except during slow sync mode, Electronic VR wil not activate when flash is used.

+ Ifthe exposure period exceeds a certain period oftime, Electronic VR will not function

+ The effectiveness of Electronic VR decreases as camera shake increases.

+ Saving a picture on which Electronic VRis applied may take some time.

+ Electronic VR will not activate when sensitivity is 150 800 or above.

+ Electronic VR cannot be used together with date imprint (CL 119]. When using date imprint, setting Electronic VR to Auto automatically changes the date imprint setting to Off.

+ Electronic VR and auto flash with red-eye reduction cannot be used together.

VR does not reduce the effects of subject movement.

EX Electronic VR for Movies

To compensate for vibration while shooting a movie, go ta the movie menu ([ 71) and enable Electronic VR (C] 72)

snuey dmes pue eqfejg 'Bunoous

You can select the welcome screen to be displayed when the camera is turned on.

None (default setting) No welcome screen wil be displayed

COOLPIX Displays a welcome screen.

Select an image Select à picture in the internal memory or on the memory card for the welcome screen. Choose a picture in the picture selection screen and press the @ button. As the selected image is stored in the camera, the image will appear in the welcome screen even if the original picture is deleted Pictures taken at an Image mode setting of Æ 16:9 (3584) (C1 93), and copies created at a size of 320 x 240 size or smaller using the crop (OC) 53) or small picture (CA 54) function, cannot be used.

| Press the MENU button > Ÿ (Setup menu) (1 112) > © Date

Set the camera clock and choose home and travel destination time zones.

Date Set camera clock to current date and time. Use the following controls to set the date and time. + and :highlight a different item (day, month, year, hour, minute, and the order in which day, month, and year are displayed) + A and Y edit the highlighted item + The @ button: apply the setting

À (home time zone) can be specified and daylight saving enabled or disabled from Time zone options. When % (travel destination) is selected, the time difference (CA 117) is automatically calculated and the date and time in the selected region are recorded. Useful when travelling.

Setting Travel Destination Time Zone

À Use the multi selector to choose Time zone and press the @ button.

The time zone menu is displayed

2 Choose } and press the @ button.

The date and time displayed on the monitor change

according to the region currently selected. | ie

© A Home time zone QCL> ravi cesinaton | L'Eus LE4

The time zone selection screen is displayed. CHALET London, Casablanca

[ © À Home time zone D rare cesinaion

4 Press or B to choose the travel destination time zone. Ifthe daylight saving time is in effect, press À to turn on the daylight saving time option. When the option is enabled, & is displayed at the top ofthe monitor, and the time is advanced one hour.

To turn offthe daylight saving time option, press W. Press the @ button to choose the travel destination time zone.

While the travel destination time zone is selected, the #> icon will be displayed in the monitor when the camera is in shooting mode.

TZ The Clock Battery

The clock battery charges when the main battery is installed or an AC adapter is connected, and can provide several days of backup power after about ten hours of charging.

À (Home Time Zone) + To switch to the home time zone, choose @ Home time zone in step 2 and press the @ button.

+ To change the home time zone, choose À Home time zone in step 2 and perform steps 3 and 4, to set the home time zone.

Daylight Saving Time When daylight saving time starts or ends, turn the daylight saving time option on or off from the time zone selection screen displayed in step 4

‘The camera supports the time zones listed below. For time differences not listed below, set the

camera clock to local time.

Basic Camera Setup: The Setup Menu

| Press the HENU button > Ÿ (Setup menu) (1 112) > IE Monitor settings

Choose whether or not to display information in the monitor, and set the monitor brightness.

Photo info Choose information displayed in the monitor during shooting and playback mode. Image review On (default setting): Picture is automatically displayed in the monitor immediately after i is taken and the monitor display returns to shooting mode. Off. Picture is not displayed after it is taken. Brightness Choose from five settings for monitor brightness, The default setting is 3

Photo Info The following display options are available. See "The Monitor” (01 6) for information on indicators in the monitor.

Shooting mode Playback mode

Show info Auto info The current settings or operation guide 1 displayed for a few seconds, as in (default setting) | Show info above. After a few seconds, display will be the same as Hide info. Framing grid

In & auto) mode, a framing grid | The current settings or

appears to help frame pictures, in | operation quide is displayed, as

addition to Auto info display in Auto info above

information. In ather modes, the

display is the same Auto info.

Basic Camera Setup: The Setup Menu

The date and time of recording can be imprinted directly onto pictures, allowing the information to be printed even from printers that do not support date printing

Off (default setting) Date and time are not imprinted on pictures Date

Date is imprinted on the bottom right comer of pictures taken while this option is in effect

Date and time are imprinted on the bottom right corner of pictures taken while this option is in effect

At settings other than Off, the icon for the current setting is displayed in the monitor (A1 6).

[% Date Imprint + Imprinted dates form a permanent part ofimage data and cannot be deleted. Date cannot be imprinted on pictures after they are taken + Dates imprinted at an Image mode setting (C1 93) of A TV screen (640) may be dificult to read. Choose F PC screen (1024) or larger when using date imprint + The date is recorded using the format selected in the setup menu Date item (CI) 16, 115). + Date imprint cannot be used together with Electronie VR (CI 113). Selecting date imprint while Electronic VR is set 10 Auto automatically changes Electronic VR 10 Off. + The date is notimprinted in the following situations: pictures taken in Sports (CI 35), Museum (C[] 38), or Panorama assist (C[] 39) scene mode pictures taken with On selected for Blink proof (CI 46) in smile mode pictures taken with Continuous or BSS selected for the Continuous setting in the shooting menu (C1 97) movies ([Ù 70)

Date Imprint and Print Set

When printing from DPOF-compatible printers which support printing of shooting date and photo information, the date and information can be printed on pictures without date and time imprinted on them, using options in the Print set menu (CL) 90).

snuey dmes pue eqfejg 'Bunoous

Enable motion detection to reduce the effects of subject movement and camera shake when shooting still pictures.

Auto (default setting)

When the camera detects the camera shake or subject movement, the shutter

speed will be increased for reducing the effects of them.

However, motion detection does not function in the following situations.

+ When the flash mode is set to % (fill flash)

+ When the ISO sensitivity option (L[ 9) is set to High ISO sensitivity auto or ISO sensitivity is fixed at a particular value in Ê (auto) mode

+ When Continuous ([[] 97) is set to Multi-shot 16

+ When shooting in some scene modes (CI 34)

Off Motion detection is not enabled

At settings other than Off, the icon for the current setting is displayed in the monitor (1 6, 21). When the camera detects subject movement or camera shake and the shutter speed is increased, the motion detection icon will turn green.

P% Notes on Motion Detection

+ Motion detection may be unable to completely eliminate the effects of the subject movement and camera shake in some situations.

+ Motion detection may not function ifthe subject exhibits significant movement or is too dark.

+ The pictures taken may become somewhat grainy.

Basic Camera Setup: The Setup Menu

Adjust settings for using digital zoom.

On (default setting)

When the camera is zoomed in to the maximum optical zoom position, rotating the 00m control to T triggers digital zoom (CA 23)

off Digital zoom wil| not be activated (except when shooting a movie)

DZ Notes on Digital Zoom + When digital zoom is in effect, AF area mode is set to Center (100) + Digital zoom cannot be used in the following situations, When Scene auto selector, Portrait, or Night portr When smile mode is selected When Continuous (C1 97) is set to Multi-shot 16 Just before recording a movie (Up to 2x zoom can be activated while recording movies)

is selected in scene mode

Press the MENU button > Ÿ (Setup menu) ([L1 112) > 4 Sound settings

Adjust the following sound settings.

Turn button sound On or Off.

When On (default setting) is selected, a beep wi sound once when operations are

completed successful}, rwice when focus has been locked, and three times when

an error is detected. Start-up sound wil also play when the camera is turned on. Shutter sound

Choose shutter sound from On (default setting) or Off.

snuey dmes pue eqfejg 'Bunoous

Press the MENU button > Ÿ (Setup menu) (1 112) > © Auto off

When the camera is on and a period of time passes without any operations having been performed, the camera will enter standby mode (A1 15) to save power. Once the camera has entered standby mode, the power-on lamp will blink, and if no operations are performed for another three minutes, the camera will turn off. Choose the time allowed to elapse before the camera enters standby mode if no operations are performed from 30 s, 1 min (default setting), 5 min, and 30 min

Canceling Standby Mode Cancel standby mode and reactivate the monitor by pressing any of the fallowing buttons. «the power switch + theshutter-release button + theÉMbutton + the[#] button

Regardless of the option selected, the monitor will remain on for three minutes when menus are displayed, a maximum of 30 minutes during slide show playback, and 30 minutes when the AC adapter is connected

Basic Camera Setup: The Setup Menu

M Format Memory/[] Format Card

Press the MENU button > Ÿ (Setup menu) (C1 112) > 1 Format memory/l] Format card

Use this option to format the internal memory or a memory card.

Formatting the Internal Memory

To format the internal memory, remove the memory En

card from the camera. Al images mil Be delete OK?

The Format memory option appears in the setup menu

Formatting a Memory Card en

When the memory card is inserted in the camera, the Al images will Format card option appears in the setup menu. Done

TZ Formatting Internal Memory and Memory Cards

+ Formatting the internal memory or memory cards permanentiy deletes all data. Be sure to transfer important pictures to a computer before formatting

« Formatting the internal memory or memory card restores favorites folder icon settings (CL 64) to the default setting (displayed as number)

+ Do not tum the camera off, or open the battery-chamber/memory card slot cover during formatting,

+ The first time you insert the memory cards used in other devices into the COOLPIX 5220/5225, be sure to format them using this camera

snuey dmes pue eqfejg 'Bunoous

[ Press the MENU button > Ÿ (Setup menu) (CL 112) > ie Language

Choose one of 24 languages for display of camera menus and messages

Cestina Czech Polski Polish

Dansk Danish Português Portuguese Deutsch German Pycckmñ Russian

English (default setting) Suomi Finnish

Français French ET Simplified Chinese Indonesia Indonesian ET Traditional Chinese Italiano ltalian B# Japanese

Magyar Hungarian Korean Nederlands Dutch amine Thaï

Norsk Norwegian AE Arabic

[Press the HENU button Ÿ (Setup menu) (11 112) > Æ Video mode

Adjust settings for connection to a television. Choose from NTSC and PAL.

[Press the MENU button > Ÿ (Setup menu) (1 112) ® E Biink waming

Set whether or not to detect human subjects with eyes closed when shooting with the face priority (CL 102) in A (auto) (C1 20), Scene auto selector scene made (1 40), Portrait scene mode (1 34), or Night portrait scene mode 35)

On (default setting)

When the camera detects that one or more human subjects may have closed eyes shorty after recognizing the faces and shooting them, the blink warning screen will appear in the monitor.

The face of à portrait subject, whose eyes may have been closed when the shutter was released, is framed by a yellow border. Should this occur, check the picture and decide whether or not another picture should be taken:

off Blink warning is not enabled.

Basic Camera Setup: The Setup Menu

Operating the Blink Warning Screen

When the camera detects any human subjects with closed eyes, the blink warning screen is displayed and then, the screen shown at right will appear.

The following operations are available in the blink warning screen.

no operations are performed for a few seconds, the camera automatically returns to shooting mode.

Option Use Description

Enlarge and display | 7 @

Fanteeed re Rotate the zoom control to T ()

Store WE) | Rotate the zoom control to W

D Ifthe camera detects more than one human subjects with their eyes closed, press À, Ÿ, € orb during the enlarged display to switch over the faces (up to 12 faces).

Selectthe face to display

Delete the picture Press the @ button.

Press the @ button or the shutter-release button. mode

Basic Camera Setup: The Setup Menu

When Reset is selected, the camera's settings will be restored to their default

Choosing Reset all also clears the current file number (OA 130) from the memory. Numbering will continue from the lowest number available. To reset file numbering to “0001” delete all pictures (CL 108) before selecting Reset all The following menu settings will remain unaffected when menus are reset with Reset all

Rechargeable battery Rechargeable Li-ion Battery EN-EL10

Battery charger Battery Charger MH-63

AC Adapter EH-62D <How to attach EH-62D>

AC adapter (Q@\ ) @\ : (Qi ©

Check that the AC adapter cord has been inserted correctiy into the battery chamber before closing the battery- chamber/memory card slot cover. f part ofthe cord has not been inserted into the chamber the cover may be damaged during closure.

USB cable USB Cable UC-E6 AV cable Audio Video Cable EG-CP14 Approved Memory Cards

The following Secure Digital (SD) memory cards have been tested and approved for use in this camera.

All cards of the designated make and capacity can be used, regardes of speed!

n SanDisk 512 MB, 1 GB, 2 GB!,4 GB2,8 GB?, 16 GB? È TOSHIBA 512 MB, 1 GB,2 GB!,4 GB?, 8 GB?, 16 GB? È Panasonic 512 MB, 1 GB,2 GB!,4 GB?, 8 GB?, 16 GB? A Lexar 1 GB, 2 GB/,4 G8?,8 GB?

1 ifthe memory card will be used with a card reader or similar device, check that the device

supports 2 GB cards.

Ifthe memory card will be used with a card reader or similar device, check that device supports SDHC.

Operation is not guaranteed with other makes of card. Contact the manufacturer for details on the above cards.

Pictures, movies, voice memos and voice recordings are assigned file names as follows

DSCNO001.JPG Identifier (not shown on camera monitor) Extension (signifies the file type) Original still pictures (voice Still pictures JPG memo attachment included), | DSCN Movies AV

movies, voice recordings

——————_—— — Voice memos Cropped copies (voice memo

attachment included) rseN Voice recordings

Small copies (voice memo

rh (MENT IE SSCN File number (assigned automatically in

ascending order, starting with “0001")

Quick retouch copies and D-Lighting copies (voice FSCN memo attachment included)

Files are stored in folders named with a folder number followed by a five- character identifier: “P_" plus a three-digit sequence number for pictures taken using Panorama assist (e.g."101P_001"; C1 43), INTVL" for interval timer photography (e.g."101INTVL"; CL] 98), "SOUND" for voice recordings (e.g. “101SOUND”"; ] 74), and NIKON" for all other pictures (e.g."100NIKON”). When the number of files within a folder reaches 9999, a new folder will be created. File numbers will be assigned automatically starting with "0001."

Voice memo file names have the same identifier and file number as the picture to which the voice memo is attached.

Files copied using Copy>Selected images or Copy sound files>Selected files are copied to the current folder, where they are assigned new file numbers in ascending order starting from the largest file number in memory. Copy>AIl images and Copy sound files>Copy all files copy all folders from the source medium; file names do not change but new folder numbers are assigned in ascending order, starting from the largest folder number on the destination medium (CA 78, 109)

A single folder can hold up to 200 pictures; ifthe current folder already contains 200 pictures, a new folder, named by adding one to the current folder name, will be created the next time a picture is taken. If the current folder is numbered 999 and contains 200 pictures, or à picture is numbered 9999, no further pictures can be taken until the internal memory or memory card is formatted (CA 123), or a new memory card is inserted.

To ensure continued enjoyment of this Nikon product, observe the following precautions when using or storing the device:

The device will be damaged ifimmersed in water or subjected to high humidity.

The product may malfunction if subjected to strong shock or vibration

TZ Handie the lens and all moving parts with care

Do not apply force to the lens, lens cover, monitor, memory card slot or battery chamber. These parts are easily damaged. Apphing force to the lens cover could result in camera malfunction or damage to the lens, Should the monitor break, care should be taken to avoid injury caused by broken glass and to prevent the liquid crystal from the display touching the skin ar entering the eyes or mouth

TZ Do not point the lens at strong light sources for extended periods

Avoid pointing the lens at the sun or ather strong light sources far extended periods when using or Storing the camera. Intense light may cause deterioration of the CCD image sensor, producing a white blur effect in photographs

TZ Keep away from strong magnetic fields

Do not use or store this device in the vicinity of equipment that generates strong electromagnetic: radiation or magnetic fields. Strong static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage data stored on the memory card, or affect the product internal circuitry

TZ avoid sudden changes in temperature

Sudden changes in temperature, such as when entering or leaving a heated building on a cold day, can cause condensation to form inside the device. To prevent condensation, place the device in à carying case or a plastic bag before exposing it to sudden changes in temperature.

TZ Turn the product off before removing or disconnecting the power source

Do not remove the battery while the product is on, or while images are being recorded or deleted. Forcibly cutting power in these circumstances could result in loss of data or in damage to product memory or internal circuitry.

Caring for the Camera

Check the battery level when taking the camera out, and charge the battery if necessary. Do not continue charging once the battery is fully charged, as this will result in reduced battery performance. If possible, carry a fully-charged spare battery when taking pictures on important occasions.

Do not use the battery at ambient temperatures below 0 *C (32 *F) or above 40 °C (104 °F). Charge the battery indoors with an ambient temperature of 5 to 35 *C (41 °F to 95 *F) before use.

Note that the battery may become hot during use; wait for the battery to cool before charging Failure to observe these precautions could damage the battery, impair its performance or prevent it from charging normal.

On cold days, the capacity of batteries tends to decrease. Be sure that the battery is fully charged before heading outside to take pictures in cold weather. Keep spare batteries in a warm place and exchange as necessary. Once warmed, a cold battery may recover some of its charge.

Dirt on the battery terminals can prevent the camera from functioning. Should the battery terminals become dirty, wipe them off with a clean, dry cloth before use.

Ifthe battery will not be used for some time, insert i in the camera and run it flat before removing it for storage. The battery should be stared in a cool location with an ambient temperature of 15 to 25 C (59 to 77 F1. Do not store the battery in hot or extremely cold locations.

Always remove the battery from the camera or battery charger when it is not being used. Left installed, minute amounts of current flowr even when unused, and the battery may become excessively drained and no longer function. Tuming the camera on or off while the battery is exhausted can result in reduced battery life.

Recharge it at least ance every six months and run it flat before returning it to storage.

After removing the battery from the camera or battery charger, place it in the supplied battery case and store in a cool place.

A marked drop in the time a fully-charged battery retains its charge, when used at room temperature, indicates that the battery needs to be replaced. Purchase a new EN-EL10 battery. Replace the battery when it no longer holds a charge. Used batteries are a valable resource. Recycle used batteries in accordance with local regulations.

Caring for the Camera

Avoid touching glass parts with your fingers. Remove dust or lint with a blower &ypically a small device with a rubber bulb attached to one end that is pumped to produce a stream of air out the other end), To remove fingerprints Lens or other stains that cannot be removed with a blower, wipe the lens with a soft cloth, using a spiral motion that starts at the center of the lens and working toward the edges. I this fails, clean the lens using a cloth lightly dampened with commercial lens cleaner

Remove dust or lint with à blower. To remove fingerprints and other stains,

Monitor | clean the monitor with a soft, dry clath, being careful not to apply pressure.

Use a blower to remove dust, dit or sand, then wipe gently with a soft, dry loth. After using the camera at the beach or seaside, wipe off any sand or salt Body | with a dry cloth lightiy dampened with fresh water, then dry thoroughiy. Note that foreign matter inside the camera could cause damage not covered by the warranty.

Do not use alcohol, thinner, or other volatile chemicals.

Turn the camera off when not in use. Check that the power-on lamp is off before

putting the camera away. Remove the battery if the camera will not be used for an

extended period. Do not store the camera with naphtha or camphor moth balls, or

in any of the following locations:

+_ Next to equipment that produces strong electromagnetic fields, such as televisions or radios

+ Exposed to temperatures below —10 *C (14 °F) or above 50 °C (122 °F)

+ Poorly ventilated or subject to humidities of over 60 %

To prevent mold or mildew, take the camera out of storage at least once a month.

Turn the camera on and release the shutter a few times before putting the camera

Notes on the Monitor

+ The monitor may contain a few pixels that are always li or that do not light. This is a characteristic common to all TFT LCD displays, and does not indicate a malfunction. mages recorded using the product will not be affected

+ When framing bright subjects, vertical comet-like streaks that witen toward either end may appear in the display. This phenomenon, known as *smear" does not appear in the final photograph and does not indicate a malfunction. In shooting modes other than multi-shot 16 continuous or movie, smear has no effect on the images that are recorded. When using multi-shot 16 continuous shooting and movie modes, however, we recommend that you avoid shooting bright objects.

+ Images in the monitor may be difficult to see under bright lighting

+ The monitor lit by an LED backlight. Should the monitor begin to dim or flicker, contact your Nikon-authorized service representative.

The following table lists the error messages and other warnings displayed in the monitor, as well as the solutions for dealing with them.

Display Problem Solution La] <blinks) Clock not set Set clock. T5 A Battery running lowt Prepare to charge or 2 change battery. 6 Battery exhausted Charge or change battery. | 12 Battery exhausted. Baterytemperatureis | Tumoffcamera andallow | 15 Battery temperature _ | high. battery to cool down high before resuming use. Afrer 5 seconds, this message wi disappear, the monitor will turn off, and the power-on lamp and flash lamp will blink rapidy. After the lamps blink for three minutes, the camera will turn off automatically. Pressing the power switch also turns off the camera. fFe (@ biinksred) | Camera cannot focus. + Refocus. 24,25 + Use focus lock. 101 Camera cannot perform | Waïtuntilmessage clears | 25 Please wait for the | other operations until from display automatically camera to finish recording is complete. when recording is recording. complete. 6 Wriie-protectswitchisin | Slidewrite-protectswitch | 19 Memory card is write | ‘lock’ position. to “write” position protected. Error accessing memory [+ Use approved card 129 This card cannotbe | card + Check that connectors 18 used are clean. + Confirm that memory 18 This card cannot be card is correctly inserted read. Memory card has not been | Choose Yes and pressthe | 19

Card is not formatted Format card?

@ button to format card, orturn camera off and replace card

+ Choose smaller image 3

+ Delete pictures or sound | 26,73, 77

+ Insert new memory card. | 18

+ Remove memory card 18 and use internal memory. © Error occurred while Format internal memory or | 123 Image cannot be recording picture. memory card.

Camera has run out of file numbers.

+ Insert new memory card. | 18 + Formatintemal memory | 123

or memory card Picture cannot be used for | Pictures taken with an 53,5, welcome screen. Image mode setting of 93 Œ16:9 (3584) or pictures

reduced to 320 x 240 size

cropping and smal picture

registered as welcome

screen There is insufficient space _ | Delete pictures from 108 10 save à Copy. destination.

6 Over 200 pictures have + Remove some pictures 66

Album is full. No already been added to from favorites folder.

further pictures can be | favorites folder. + Add to other favorites 65

Too many images selected. Remove print marking for other dates?

selected. Remove print marking from other images?

The total number of marked pictures, including those previously marked, is more than 99.

Select Yes and press the @ button to remove pictures marked earlier from the current print set. Select Cancel and press the @ button to remove pictures just marked from

Sound file cannot be saved.

Camera has run out of file numbers.

+ Insertnew memory card. | 18 + Format intemal memory | 123 or memory card.

One or more subjects may have closed their eyes

Recorded a picture in wéhich ane or more subjects may have closed their eyes when picture was taken.

Display Problem Solution [na] mn] Cannot edit selected Select picture that 50 Image cannot be picture. supports quick retouch, modified D-Lighting, crop, or small picture. Time out error while Choose memory card with | 129 Cannot record movie. | recording movie. faster write speed Li] No pictures in the internal | To copy picture from Memory contains no | memory or memory card. | internal memory to images. memory card, press the 100 MENU button. The copy option screen wi be displayed. No pictures are contained | Select the folder @ in the folder selected in | containing the sorted auto sort mode. pictures. No pictures can be played | Playback pictures using @ backin auto sort mode. | playback mode, list by date, or favorite pictures mode. The picture hasnotbeen [+ Addthe picture to 65 added to favorites folder. favorites folder. + Choose the favorites 66 folder that the picture has been added The memory card or Confirm the copy source 78 No sound file. internal memory contains _ | and destination no sound files. File not created with File cannot be viewed on File contains no image | COOLPIX 5220/5225. this camera. View ile using data the computer or any other devices which was usedto |” This ile cannot be create or edit this file. played back 6 Picture is protected. Disable protection. 108 This image cannot be deleted. © Destination in same time m7

Travel destination is in the current time zone.

Display Problem Solution pa]

Lens error Lens error. Tum camera offandthen | 20 on again. If error persists, contact retailer or Nikon- authorized service representative

© USB cable disconnected | Turn camera off and 81,85

Communications error | during data transfer to | reconnect cable

printer. System error Error has occurredin Tumcamerofremove | 14,20

camera internal circuitry.

and reinsert battery, and turn camera on. If error persists, contact retaller or Nikor-authorized service representative.

OK Printer error: check printer status.

Check printer. After soMng the problem, select Resume and press the @ button to resume printing *

Printer error: check paper

Specified size of papers not loaded in printer.

Load the specified paper, select Resume and press the @ button to resume printing*

Printer error: paper jam

Paper has jammed in the printer.

Ejectthe jammed paper, select Resume and press the @ button to resume printing*

Printer error: out of paper

No papers loaded in printer.

Printer error: check ink

Checkink, select Resume and press the @ button to resume printing*

OK Printer error: out of ink

Running our ofink or ink cartridge is empty.

Replace ink, select Resume and press the @ button to resume printing*

OK Printer error: file corrupt

An error caused by the image file has occurred.

Select Cancel and press the @ button to cancel printing,

* See the documentation provided with your printer for further guidance and information.

Ifthe camera fails to function as expected, check the list of common problems below before consulting your retailer or Nikon-authorized service representative.

Refer to the page numbers in the right-most column for more information.

Display, Settings and Power Supply

Problem Cause/Solution a] Monitor is blank. + Camerais off. 20 + Battery is exhaustedl 20 + Standby mode for saving power: press the power | 15,21 switch, the shutter-release button, the button, or the [>] button. + When flash lamp blinks red, wait until flash hs charged. | 29 + Camera and computer are connected via USB cable. | 81 + Camera and TV are connected via AV cable. 79 +_Interval timer photography in progress. 98 Monitor is hard toread.… [+ Adjust monitor brightness. 118 + Monitor is dirty. Clean monitor. 133 Cameraturns off without | + Battery is low 20 warning, + Camera has turned off automatically to save power. | 122 + Battery is cold 132 Date and time of + Pictures recorded before clock has been set, and | 16,48 recording are not correct. | “Date not set” indicator blinks during shooting, will have time stamp of “00/00/0000 00:00"; movies and voice recordings will be dated "01/01/2009 00:00 In calendar display or list by date mode, pictures are recognized as having been taken on 01/01/2009. Set the correct time and date from the Date option in the setup menu + Check camera clock regularly against more accurate | 115 timepieces and reset as required. No indicators displayed | Hide info is selected for Photo info. 118 in monitor. Select Show info. Date imprint not Camera clockhas not been set. 16, available. 115

Date not appearing on pictures even when Date imprint is enabled.

Date does not appear on movies, on pictures taken using & (Sports scene mode), ff (Museum scene mode), (Panorama assist scene mode), when Blink proof is set 10 On in smile mode, when the Continuous setting is set 10 Continuous or BSS, or when Electronic VR is set 10 Auto.

Camera settings reset.

Backup battery is exhausted all settings were restored to their default values.

Monitor turns off, and the power-on lamp and flash lamp blink rapid

Battery temperature is high, Turn off camera, and allow battery to cool down before resuming use. After the lamps blink for three minutes, the camera will turn off automatically. Pressing the power switch also turns off the camera

Electronically Controlled Cameras

In extremely rare instances, unusual characters may appear in the monitor and the camera may stop functioning. In most cases, this phenomenon is caused by a strong external static charge. Turn the camera off, remove and replace the battery, then turn the camera on again. In the event of continued malfunction, contact your retailer or Nikon-authorized service representative. Note that disconnecting the power source as described above may result in the loss of any data not recorded to internal memory or the memory card at the time the problem

occurred. Data already recorded will not be affected

Shooting Problem Cause/Solution cm No picture taken when shutter- [+ When camera is in playbackmode, pressthe | 26 release button is pressed @ burton or the shutter-release button. + When menus are displayed, press the MENU 10 button + Battery is exhaustedl 20 + When flash lamp blinks, flash is charging, 29 Camera cannot focus + The intended subject is one with which 25 autofocus does not perform well + Focus error. Turn camera off and then on 20

Problem Cause/Solution cm Pictures are blurred + Use flash 28 + Use ISO sensitivity>High ISO sensitivity 99 auto in the shooting menu. + Use electronic vibration reduction or motion | 113, detection. 120 + Use BSS. 97 + Use tripod and self-timer. 30 Bright specks appear in Flash is reflecting off particles in air. Turn flash 29 pictures taken with flash off. Flash does not fire. + Flash is off. 28 + Some scene modes that cannot turn on flash | 34-39 are selected + Mode is selected, 70 + Continuous, Multi-shot 16 or BSS is 97 selected for the Continuous setting, Optical zoom cannot be used. | Optical zoom cannot be used while recording 70 movies. Digital zoom cannot be used. | Digital zoom is set to Offin the setup menu. 121 Digital zoom is not available in the following situations. + When Scene auto selector, Portrait, or 34,35 Night portrait is selected for scene mode. + When shooting in smile mode 45 + Just before recording a movie (upto2x can | 70 be applied while recording movies). + When Multi-shot 16 is selected for the 97 Continuous setting, Image mode not available. Image mode cannot be adjusted when Multi- | 97 shot 16 is selected for the Continuous setting. No sound when shutter is + Offis selected for Sound settings>Shutter | 121 released. sound in setup menu. + Continuous, Multi-shot 16 or BSS is 97 selected for the Continuous setting in shooting menu. + & (Sports scene mode) or fl (Museum 35,38 scene mode) is selected + Mode is selected 70 + The speaker is being blocked. Do not cover it. | 4,22 Pictures appear smeared Lens is dirty. Clean lens. 133 Colors are unnatural White balance does not match light source: 95

Problem Cause/Solution cm Randomly spaced right pixels | Shutter speed too slow orISO sensitivityis high as noise”) appear in image. the subject is dark, Noise can be reduced by: + Using flash 28 + Specifying a lower ISO sensitivity setting 99 + Using a scene mode which has noïse 3439 reduction ability. Pictures are too dark + Flashs off. 28 {underexposed). + Flash window is blocked 2 + Subject is beyond flash range 28 + Adjust exposure compensation. 32 + Select High ISO sensitivity auto for ISO 99 Sensitivity in the shooting menu, or raise the ISO sensitivity + Subject is backlit. Select #3 (Backlight scene | 28,39 mode) or use fil flash. Pictures are too bright Adjust exposure compensation. 32 overexposed) Unexpected results when flash | Iftaking pictures with $® (auto with red-eye 28,35 set to $® (auto with red-eye _ | reduction) or fil flash with slow sync and red-eye reduction). reduction when scene mode is set to Night portrait, In-Camera Red Eye Fix may be applied to areas not affected by red-eye. Use any scene mode other than Night portrait, and change the flash to any other settings other than $® (auto with red-eye reduction) and try shooting again. Playback Problem Cause/Solution m File cannot be played back. | File orfolderwas overuriten orrenamed by | - computer or other make of camera: + Interval timer photography in progress ge

pictures cannot be played back until recording is complete.

Cannot z00m in on picture

Playback zoom cannot be used with movies, small pictures, or pictures that have been cropped to below 320 x 240

Problem Cause/Solution cm Cannot record or play back [+ Voice memos cannot be appended to movies. | 73 voice memos. + Voice memos cannot be attached to images | 56 taken with other cameras. Voice memos that are attached to the image using other cameras cannot be played back on this camera Cannot use quick retouch, + These options cannot be used with movies 73 D-Lighting, crop, or small + These options cannot be used with pictures | 93 picture options. taken when Æ 16:9 (3584) is applied in the Image mode setting + Select pictures that support quick retouch, 50 D-Lighting, crop, or small picture. + Camera is unable to edit pictures taken with | 50 other cameras. + Other cameras may be unable to play back 50 pictures recorded with this camera. Pictures not displayed on + Choose correct Video mode. 124 television. + Memory card contains no pictures. Replace 18 the memory card. Remove the memory card to play back pictures from the internal memory. Control settings for favorites | Data in the memory card may not be played folder restore to default settings, | back correctly if ovenwritten on a computer. or pictures added to favorites - are not displayed during favorite pictures playback The recorded pictures are not [+ The picture you want to displayissonedina | 60 displayed in auto sort mode. folder other than that you are browsing + Pictures recorded by à camera other than the a

S2JON EAUUDaL COOLPIX 5220/5225 or pictures copied using the copy option cannot be displayed in auto sort mode.

Pictures in the internal memory or memory card may not be played back correctiy if overwritten on a computer.

Up to 999 pictures and movie files can be added to each folder. the desired folder already contains 999 pictures, new pictures or movies cannot be added.

Problem Cause/Solution nm Nikon Transfer does not start | + Camera is off. 20 when camera is connected. [+ Batteryis exhausted. 20 + USB cable is not correctly connected. 81 + Camera is not recognized by the computer. - + Computer is not set to start Nikon Transfer - automaticall. For more information on Nikon Transfer, refer to help information contained in Nikon Transfer. + Check the compatible operating systems. 80 Pictures to be printed are not | Memory card contains no pictures. Replacethe | 18 displayed memory card. Remove the memory card to print pictures from the internal memory Cannot select paper size with _ | Paper size cannot be selected from the camera if | 86, 87

the printer does not support the paper sizes used by the camera, or the printer automatically selects the paper size. Use the printer to select paper size.

IImagesenso ‘2: in. CCD; total pixels: approx. 10.34 million

3x optical zoom, NIKKOR lens

Focal length 63-189mm (equivalent with 35mm [135] format picture angle: 35-105mm)

f/-number 3159 Construction 6 elements in 5 groups

Up to 4x (equivalent with 35mm [135] format picture angle: approx 420mm)

Contrast-detect AF Focusrange (from + Approx 60 cm (2ft)t0 lens) + Macro mode: Approx. 10 cm (4 in) to <elwhen the zoom indicator is positioned below #8 on wide-angle side)

Focus-area selection Auto (9-area automatic selection), center, manual with 99 focus areas, face priority

25-in, approx. 150k-dot, ET LCD and 5-level brightness Adjustment

Frame coverage Approx. 97 % horizontal and 97 % vertical shooting mode)

Frame coverage Approx. 100 % horizontal and 100 % vertical {playback mode)

Media + Intermal memory (approx. 44 MB) + SD (Secure Digital) memory cards

File system DCF, Exif 2.2, and DPOF compliant

Metering 256-segment matrix, center-weighted (digital zoom less than

2), spot (digital zoom 2x or more)

Exposure control Programmed auto exposure with motion detection and exposure compensation (22010 +20 EVin steps of 1/3 E)

Range (MI:03 to 147 EV

(507100) 2.1 10 164EV Electronically-contrelled preset aperture Range 2 steps (f/3.1 and f/4.6 [W])

SEM Can be selected from 10 and 2 second duration

Range (approx) DI:06 to 46 m (2 to 15 ft) {ISO sensitivity: Auto) [T]:06t025m(2to8ft)

Flash control TTL auto flash with monitor preflashes

HiSpeed USB Data Transfer Protocol MTP, PTP Can be selected from NTSC and PAL Audio video output/digital 1/0 (USB)

Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, Greek, German, Hungarian, Indonesian, ltalian, Japanese, Korean, Polish, Portuguese, Norwegian, Russian, Spanish, Swedish, Thai, Turkish

Mechanical and charge-coupled electronic shutter 1000-25 45 (when scene mode is set to Fireworks show)

One EN-EL10 Rechargeable Li-ion Battery (supplied AAC Adapter EH-62D (available separately)

(Batterylife” Approx. 180 shots (EN-EL 10) Approx, 895 x 55.5 x 18 mm (3.5 x 2.2 x 0.7 in) (excluding projections)

Approx. 100 g (3.5 oz) (without battery and SD memory card)

Temperature O to 40°C (32 to 104°F) Humidity Less than 85 % (no condensation)

+ Unless otherwise stated, all figures are for à camera with a fully-charged Rechargeable Li-ion Battery EN-EL10 operated at an ambient temperature of 25 °C (77).

* Based on Camera and Imaging Products Association (CIPA) standards for measuring the life of camera batteries. Measured at 23 °C (73 °F); zoom adjusted with each shot, flash fired with every other shot, image mode set to [M Normal (3648). Battery life may vary depending on shooting interval and length of time menus and images are displayed

Rechargeable Li-ion Battery EN-EL10

Rechargeable lithiurn-ion battery DC 3.7 V, 740 mAh Oto 40°C (32 to 104*F)

Approx 31.5 x 39.5 x 6 mm (1.2 x 1.6 x O2 in) (excluding projections)

Approx. 15 g (0.5 oz) (excluding battery case)

5 3 êË È [a} ë ä 2 = E4 & 8

AC 100-240 V, 50/60 Hz, 0.07-0.045 A

7108 VA DC42V,055 A Rechargeable Li-ion Battery EN-EL10

Approx, 100 minutes when battery is fully discharged Oto 40°C (3210 104°F)

Approx. 54 x 20 X 85 mm (2.1 x 08 x 33in) (excluding power cable)

Approx. 1.8 m (6 ft) Approx 55 g (1.9 02) (excluding power cable)

Nikon will not be held liable for any errors this manual may contain, The appearance of this product and its specifications are subject to change without notice.

DCF: Design Rule for Camera File System is a standard widely used in the digital camera industry to ensure compatibility among different makes of camera. DPOF: Digital Print Order Format is an industry-wide standard that allows pictures to be printed from print orders stored on the memory card.

Exif version 2.2: This camera supports Exif (Exchangeable Image File Format for Digital Still Cameras) version 2.2, a standard that allows information stored with photographs to be used for optimal color reproduction when images are output from Exif-compliant printers.

PictBridge: À standard developed cooperatively by the digital camera and printer industries, allowing photographs to be output directly to a printer without connecting the camera to a computer.

I List by date mode 57

Battery 12, 14,116 Battery charger 12, 129 Battery latch 5

Battery level 20 Battery-chamber 5

Battery-chamber/memory card slot cover

Best Shot Selector 97

Built-in microphone 4, 55

Compression ratio 93

Copying voice recordings 78

Eyelet for camera strap 4

Format memory card 19, 123 Formatting internal memory 123

Pin cover 5 Playback 26, 27, 47, 49

R Rechargeable battery 129 Rechargeable Li-ion battery 12, 14 Recording movies 70

Red-eye reduction 28, 29

Self-timer lamp 4, 30

I Thumbnail playback 47 Time zone 115, 117 Tripod 5

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

CE NIKON CORPORATION Fuï Bldg.. 2-3 Marunouchi 3-chome. Chiyoda-ku Tokyo 100-8331, Japan VP8LOI(T

© 2009 Nikon Corporation 6MM66011-01

UOIN GTTS/OTTS XId100D Nikon
