USER MANUAL UE75U8090FU SAMSUNG

Before Reading This Simple User Guide

This TV comes with this Simple User Guide and an embedded User guide.

(F6***F/H5***F: > left directional button > Settings >

Support > Open User guide)

(Other models: 📄 > left directional button > Settings >

Support > Tips and User Guides > Open User guide)

Warning! Important Safety Instructions

Please read the Safety Instructions before using your TV. Refer to the table below for an explanation of symbols which may be on your Samsung product.

CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK). THERE ARENO USER SERVICEABLE PARTS INSIDE. REFER ALLSERVICING TO QUALIFIED PERSONNEL.
	This symbol indicates that high voltage ispresent inside. It is dangerous to make anykind of contact with any internal part ofthis product.
	This symbol indicates that this producthas included important literatureconcerning operation and maintenance.
	Class II product: This symbol indicatesthat a safety connection to electrical earth(ground) is not required. If this symbolis not present on a product with a mainslead, the product MUST have a reliableconnection to protective earth (ground).
	AC voltage: Rated voltage marked withthis symbol is AC voltage.
	DC voltage: Rated voltage marked withthis symbol is DC voltage.
	Caution. Consult instructions for use:This symbol instructs the user to consultthe Simple User Guide for further safetyrelated information.

Power

- Do not overload wall outlets, extension cords, or adapters beyond their voltage and capacity. It may cause fire or electric shock.

Refer to the power specifications section of the manual or the power supply label on the product for voltage and amperage information.

• Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at the plug end, at wall outlets, and at the point where they exit from the appliance.
• Never insert anything metallic into the open parts of this apparatus. This may cause electric shock.
• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
• Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug it by pulling on the power cord. Do not touch the power cord with wet hands.
• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorised dealer or Samsung service centre.
• To protect this apparatus from a lightning storm, or to leave it unattended and unused for a long time, be sure to unplug it from the wall outlet and disconnect the antenna or cable system.

– Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or by causing the insulation to deteriorate.

• Use only a properly grounded plug and wall outlet.
• An improper ground may cause electric shock or equipment damage. (Class I Equipment only.)
• To turn off this apparatus completely, disconnect it from the wall outlet. To ensure you can unplug this apparatus quickly if necessary, make sure that the wall outlet and power plug are readily accessible.

Installation

• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.
• Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock.

• Do not expose this apparatus to rain or moisture.

• Be sure to contact an authorised Samsung service centre for information if you intend to install your TV in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failure to do so may lead to serious damage to your TV.

• Do not expose this apparatus to dripping or splashing.

Mounting the TV on a wall

If you mount this TV on a wall, follow the instructions exactly as set out by the manufacturer. If it is not correctly mounted, the TV may slide or fall and cause serious injury to a child or adult and serious damage to the TV.

• To order the Samsung wall mount kit, contact Samsung service centre.
• Samsung is not responsible for any damage to the product or injury to yourself or others if you choose to install the wall mount on your own.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or when the consumer fails to follow the product installation instructions.
• You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe personal injury.
• When installing a wall mount kit, we recommend you fasten all four VESA screws.
• If you want to install a wall mount kit that attaches to the wall using two top screws only, be sure to use a Samsung wall mount kit that supports this type of installation. (You may not be able to purchase this type of wall mount kit, depending on the geographical area.)
• Do not mount the TV at more than a 15 degree tilt.
• Standard dimensions for wall mount kits are shown in the table on the Unpacking and Installation Guide.

Do not install your wall mount kit while your TV is turned on. This may result in personal injury from electric shock.

- Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.

• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
• Always have two people mount the TV onto a wall.
• For 82 inch or larger models, have four people mount the TV onto a wall.

Providing proper ventilation for your TV

When you install your TV *and One Connect Box, maintain a distance of at least 10 cm between the TV *and One Connect Box with other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.

*: One Connect Box Supported Model Only

- When you install your TV with a stand or a wall mount, we strongly recommend you use parts provided by Samsung only. Using parts provided by another manufacturer may cause difficulties with the product or result in injury caused by the product falling.

Safety Precaution

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, do not hang on or destabilise the TV. This action may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the Safety Flyer included with your TV. For added stability and safety, you can purchase and install the anti-fall device, referring to "Preventing the TV from falling".

WARNING: Never place a television set in an unstable location. The television set may fall, causing serious personal injury or death. Many injuries can be avoided by taking simple precautions such as:

• Always use cabinets or stands or mounting methods recommended by Samsung.
• Always use furniture that can safely support the television set.
• Always ensure the television set is not overhanging the edge of the supporting furniture.
• Always educate about the dangers of climbing on furniture to reach the television set or its controls.

• Always route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
- Never place a television set in an unstable location.
- Never place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Never place the television set on cloth or other materials that may be located between the television set and supporting furniture.
- Never place items that might tempt to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

- When you have to relocate or lift the TV for replacement or cleaning, be sure not to pull out the stand.

Preventing the TV from falling

Technical diagram showing a mechanical assembly with a magnified inset of a component and a close-up view of a pin (no text or symbols present)

★: Wall-anchor (not supplied)

1. Using the appropriate screws, firmly fasten a set of brackets to the wall. Confirm that the screws are firmly attached to the wall.

- You may need additional material such as wall anchors depending on the type of wall.

1. Using the appropriately sized screws, firmly fasten a set of brackets to the TV.

- For the screw specifications, refer to the standard screw part in the table on the Unpacking and Installation Guide.

1. Connect the brackets fixed to the TV and the brackets fixed to the wall with a durable, heavy-duty string, and then tie the string tightly.

2. Install the TV near the wall so that it does not fall backwards.

3. Connect the string so that the brackets fixed to the wall are at the same height as or lower than the brackets fixed to the TV.

Precautions when installing the TV with a stand

(The Frame only)

When you install the TV with a stand, avoid placing the stand on the back part of the table surface. Failure to do so may cause the motion sensor at the bottom of the TV not to work properly.

Simple line drawing of a rectangular box with a flat panel on top, no text or symbols present.

Simple line drawing of a rectangular box with a flat top and a dashed line indicating a measurement or alignment (no text or symbols)

Operation

• This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.
• Store the accessories (remote control, batteries, or etc.) in a location safely out of the reach.
• Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a Samsung service centre.
• Do not dispose of remote control or batteries in a fire.
• Do not short-circuit, disassemble, or overheat the batteries
  • After removing the screen protective film, never remove the Polarising film.

- If the protective film removal label is not found, the protective film has already been removed.

• CAUTION: There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.
• WARNING - Do not use liquid fumigators containing chemicals, such as mosquito repellent or air freshener, around the product.

- If steam comes in contact with the product surface or enters the product, it may cause stains or malfunction.

- WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES AND OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Caring for the TV

• To clean this apparatus, unplug the power cord from the wall outlet and wipe the product with a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the appearance of the TV or erase the printing on the product.
• The exterior and screen of the TV can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using a soft cloth to prevent scratches.
• Do not spray water or any liquid directly onto the TV. Any liquid that goes into the product may cause a failure, fire, or electric shock.

01 What's in the Box?

Make sure the following items are included with your TV. If any items are missing, contact your dealer.

• Simple User Guide
• Warranty Card / Regulatory Guide (Not available in some locations)
  • *Samsung Smart Remote
  • *Remote Control & Batteries
  • *Standard Remote Control & Batteries
• *CI Card Adapter
  • *TV Power Cord
  • *Power Adapter
  • *Wall Mount Adapter x 2
• *Slim Power Cord
  • **Power Box
  • **Power Box Cable x 2
  • **C-type Power Adapter
  • **C to C Cable
• **Wireless One Connect Box
• **One Connect Box
  • **One Connect Box Power Cord
  • **One Connect Cable x 2
• **One Connect cable holder (for wall mount)

*: Some of the items specified above may not be included in the package, depending on the model or geographical area.
**: Some components may not be provided, depending on the One Connect connection method (wired or wireless connection).
**: The number of One Connect cables provided may differ depending on the model.

- The type of battery may vary depending on the model.

- The items' colours and shapes may vary depending on the models.

- Cables not included can be purchased separately.

- Check for any accessories hidden behind or in the packing materials when opening the box.

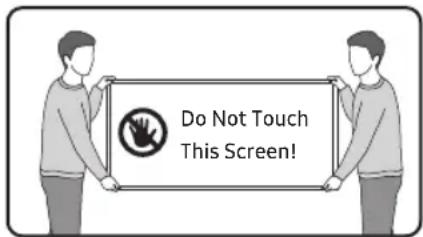

Warning: Screens can be damaged from direct pressure when handled incorrectly. We recommend lifting the TV at the edges, as shown. For more information about handling, refer to the Unpacking and Installation Guide came with this product.

Do Not Touch This Screen!

02 Connecting the TV to the One Connect Box

(One Connect Box Supported Model only)

For more information about how to connect via the One Connect Box, refer to Unpacking and Installation Guide.

• Do not use the One Connect Box in the upside-down or upright position.
  • Take care not to subject the cable to any of the actions below. The One Connect Cable contains a power circuit.

Bending Twisting Pulling

Pressing on Electric shock

CLASS 1 LASER PRODUCT (The Frame(LS03FA) only)

• Caution - Invisible laser radiation when open. Do not stare into beam.
• Do not bend the One Connect Cable excessively. Do not cut the cable.
• Do not place heavy objects on the cable.
• Do not disassemble either of the cable connectors.
• Caution - Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

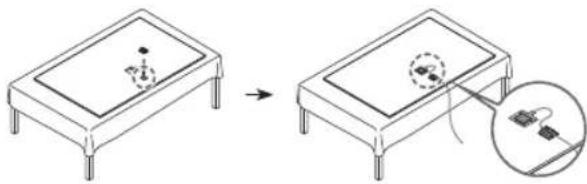

Using the One Connect cable holder

(S95F, The Frame(LS03FA) only)

You can use the One Connect cable holder to tidy up the cables while installing the wall mount.

Diagram showing a device being processed from a base to a display panel, with an inset close-up of the component (no text or symbols present)

- The image may differ depending on the model.

03 Initial Setup

When you turn on your TV for the first time, it immediately starts the Initial Setup. Follow the instructions displayed on the screen and configure the TV's basic settings to suit your viewing environment.

• You will need a Samsung Account to access our network-based smart services. If you choose not to log in, you will only get a connection to terrestrial TV (applicable to devices with tuners only) and external devices, e.g. via HDMI.

• When installing the 43LS03F model as a wall mount, it can be installed vertically and used.

• Some features may not support portrait mode or full screen.

• The initial setup is optimised for landscape mode.

Using the TV Controller

You can turn on the TV with the TV Controller button at the bottom of the TV, and then use the Control menu. The Control menu appears when the TV Controller button is pressed while the TV is On.

• The position and shape of the buttons at the bottom of the TV may differ depending on the model.
• The screen may dim if the protective film on the Samsung logo or the bottom of the TV is not detached. If protective film is attached, remove the film.
• On model LS03FW, the TV Control button / Remote Control Sensor may not be fixed in place and may move. This is not a defect, but part of the design to ensure smooth remote control sensing when a Customizable Frame is installed, which is sold separately.

A Control menu

B TV Controller button / Remote control sensor / Microphone switch / *Motion Sensor
C TV Controller button / Remote control sensor
D Microphone switch

*: The Frame only

English - 6

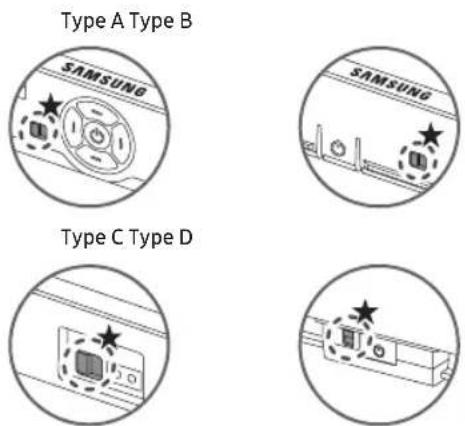

How to turn on and off the Microphone

* This image shows the appearance and location of the microphone. The appearance and location may differ, depending on the model.

★ : On/Off Switch

You can turn on or off the microphone by using the switch at the bottom or rear bottom of the TV. If microphone is turned off, All voice and sound features using microphone are not available.

• This function is supported only in QN9**F/Q8F/QN1EF/QN7*F/QN8*F/QN9*F/S8*F/S9*F/The Frame.
• The position and shape of the microphone switch may differ depending on the model.
• During analysis using data from the microphone, the data is not saved.

04 Troubleshooting and Maintenance

Troubleshooting

For more information, refer to "Troubleshooting" in the User guide.

(F6***F/H5***F: > left directional button > Settings >

Support > Open User guide > Troubleshooting)

(Other models: 📄 > left directional button > Settings

Support > Tips and User Guides > Open User guide > Troubleshooting)

If none of the troubleshooting tips apply, please visit "www.samsung.com" and click Support or contact the Samsung service centre.

• This panel is made up of sub pixels which require sophisticated technology to produce. There may be, however, a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
• To keep your TV in optimum condition, upgrade to the latest software. Use the Update Now or Auto update functions on the TV's menu (m) > left directional button > Settings >

Support > Software Update > Update Now or Auto update).

The TV won't turn on.

• Make sure that the power cord is securely plugged into the product and the wall outlet.
• Make sure that the wall outlet is working and the remote control sensor at the bottom of the TV is lit and glowing a solid red.
• Try pressing the TV Controller button at the bottom of the TV to make sure that the problem is not with the remote control. If the TV turns on, refer to "The remote control does not work".

The remote control does not work.

• Check if the remote control sensor at the bottom of the TV blinks when you press the ⏻ button on the remote control.
• H5***F/F6***F/U7***F/U8***F/QEF1/Q6F, Standard Remote Control: If it does not blink, replace the remote control's batteries. Make sure that the batteries are installed with their poles (+/-) in the correct direction. Alkaline batteries are recommended for longer battery life.

• Other models: When the remote's battery is discharged, charge the battery using the USB charging port (C-type), or turn over the remote to expose the solar cell to light.

• Try pointing the remote directly at the TV from 1.5-1.8 m away.

• If your TV came with a Samsung Smart Remote (Bluetooth Remote), make sure to pair the remote to the TV. To pair a Samsung Smart Remote, press the 📋 and 🔵 buttons together for 3 seconds.

Eco Sensor and screen brightness

(except for H5***F, F6***F)

Eco Sensor adjusts the brightness of the TV automatically. This feature measures the light in your room and optimises the brightness of the TV automatically to reduce power consumption. If you want to turn this off, go to 📋 > left directional button > Settings > All Settings > General & Privacy > Power and Energy Saving > Brightness Optimisation.

- The eco sensor is located at the bottom of the TV. Do not block the sensor with any object. This can decrease picture brightness.

Changing the TV's password

(F6***F/H5***F: left directional button > Settings >

All Settings > General & Privacy > System Manager >

Change PIN)

(Other models: 📄 > left directional button > Settings > All Settings > General & Privacy > Change PIN)

Run Change PIN and then enter the current PIN in the password field.

Enter a new PIN and then enter it again to confirm it. The PIN change is complete.

If you forgot your PIN, press the buttons in the following sequence to reset the PIN to "0000" (France: "1111"):

• Samsung Smart Remote or Remote control: Press +/- (Volume) button. > Volume Up > Volume Down > Volume Up >

- Standard Remote Control: Press button. > (Volume Up) > Press RETURN button. > (Volume Down) > Press RETURN button. > (Volume Up) > Press RETURN button.

05 Specifications and Other Information

Specifications

Display Resolution

QN9**F: 7680 x 4320

F6***F: 1920 x 1080

H5***F: 1366 x 768

Other models: 3840 x 2160

Sound (Output)

H5***F:10 W

F6***F (24"-32"): 10 W, F6***F (40"-43"): 20 W

U7***F/U8***F/Q6F/Q7F/QEF1/Q8F/QN7*F/QN1EF/S85F:20 W

QN80F/QN82F/QN83F: 30 W, QN85F: 40 W

S90F/S92F/S93F/S94F (42"): 20 W

S90F (48"-83"): 40 W

S92F/S93F/S94F (48"-83"): 60 W

QN9*F (43"): 20 W, QN9*F (50"): 40 W

QN9*F (55"-115"): 60 W

S95F/QN900F: 70 W

QN990F (65"-85"): 90 W, QN990F (98"): 120 W

LS03FW: 40 W

LS03FA (43"-50"): 20 W, LS03FA (55"-65"): 40 W

Operating Temperature

10 °C to 40 °C (50 °F to 104 °F)

Operating Humidity

10 % to 80 %, non-condensing

Storage Temperature

-20 °C to 45 °C (-4 °F to 113 °F)

Storage Humidity

5 % to 95 %, non-condensing

Notes

• This device is a Class B digital apparatus.
- For information about the power supply, and more information about power consumption, refer to the information on the label attached to the product.

• On most models, the label is attached to the back of the TV. (On some models, the label is inside the cover terminal.)
• On One Connect Box models, the label is attached to the bottom of the One Connect Box.

- Typical power consumption is measured according to IEC 62087.

- Typical power consumption is measured according to IEC 62087.

- To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps)

- Typical power consumption is measured according to IEC 62087. - To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps)

* Shielded Twisted Pair

• The images and specifications of the Unpacking and Installation Guide may differ from the actual product.
• Figures and illustrations in this Simple User Guide are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.
• The use of this product is restricted to and permanently located in buildings, trains with metal coated windows and aircraft. (QN990F, The Frame(LS03FW) only)
• Operation of this product shall be limited to indoor use only. (QN900F only)

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read).
(b) You bring the unit to the Samsung service centre, but it is found that the product has no defect (i.e., where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

Please visit samsung.com/support to find further information about external power adapter and remote control associated with EU Ecodesign directive - ErP regulation

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

Decreasing power consumption

When you shut the TV off, it enters Standby mode. In Standby mode, it continues to draw a small amount of power. To decrease power consumption, unplug the power cord when you don't intend to use the TV for a long time.

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements.

The full text of the declaration of conformity is available at the following internet address:

http://www.samsung.com go to Support and enter the model name.

This equipment may be operated in all EU countries and in the UK.

The 5 GHz and 6 GHz WLAN(Wi-Fi) function of this equipment may only be operated indoors.

RF max transmitter power :

[QN9\*\*F]

100 mW at 2.4 GHz - 2.4835 GHz,

200 mW at 5.15 GHz - 5.25 GHz,

100 mW at 5.25 GHz - 5.35 GHz & 5.47 GHz - 5.725 GHz,

25 mW at 5.725 GHz - 5.85 GHz (QN990F only),

200 mW at 5.945 GHz - 6.425 GHz.

[S9*F/S8*F/QN9*F/QN8*F/QN7*F/QN1EF/Q8F/Q7F/QEF1/Q6F/U8***F/U7***F/F6***F/H5***F]

100 mW at 2.4 GHz - 2.4835 GHz,

200 mW at 5.15 GHz - 5.25 GHz,

100 mW at 5.25 GHz - 5.35 GHz & 5.47 GHz - 5.725 GHz.

[The Frame(LS03FA)]

100 mW at 2.4 GHz - 2.4835 GHz,

200 mW at 5.15 GHz - 5.25 GHz,

100 mW at 5.25 GHz - 5.35 GHz & 5.47 GHz - 5.725 GHz,

100 mW at 61 GHz - 61.5 GHz.

[The Frame(LS03FW)]

100 mW at 2.4 GHz - 2.4835 GHz,

200 mW at 5.15 GHz - 5.25 GHz,

100 mW at 5.25 GHz - 5.35 GHz & 5.47 GHz - 5.725 GHz,

25 mW at 5.725 GHz - 5.85 GHz,

200 mW at 5.945 GHz - 6.425 GHz,

100 mW at 61 GHz - 61.5 GHz.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Removing the battery

• To remove the battery, contact an authorised service centre. To obtain battery removal instructions, please visit www.samsung.com/global/ecodesign_energy.
- For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe.

Correct disposal of batteries in this product (Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

- The type of battery may vary depending on the model.

Correct disposal of batteries in this product (Applicable in countries with separate collection systems)

The marking on the battery, manual or packaging indicates that the battery in this product should not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

The battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider. Do not attempt to remove the battery or dispose it in a fire. Do not disassemble, crush, or puncture the battery. If you intend to discard the product, the waste collection site will take the appropriate measures for the recycling and treatment of the product, including the battery.

- The type of battery may vary depending on the model.

Declaration of Conformity

Manufacturer

Name: Samsung

Registered Trade Name: Samsung Electronics Co., Ltd

Address: 129 Samsung-ro, Yeongtong-gu, Suwon-si,

Gyeonggi-do, Korea

Product Details

Product: Smart Control

Model(s): VG-TM2360S

Declaration and applicable standards

We hereby declare under our sole responsibility that the product above is in compliance with the essential requirements of the Radio Equipment Directive(2014/53/EU) by application of:

EMC

Safety

EN 301 489-1 V2.2.3

EN IEC 62368-

EN 301 489-17 V3.2.4

1:2020+A11:2020

EN IEC 62368-3 :2020

EN 62479:2010

Radio

EN 300 328 V2.2.2

and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances in electrical and electronic equipment by application of EN IEC 63000:2018.

Signed for and on behalf of : Samsung

Samsung Euro QA Lab, Saxony Way, Yateley, GU46 6GG, UK ^® 2023-11-14 (Place and date of signature)

Stephen Colclough – Director Regulatory Affairs

(Name and signature of authorized person)

※ This is not the address of Samsung Service Centre. Please see the address or the phone number of Samsung Service Centre in the warranty card or contact the retailer where you purchased your product.

- The model name of your Smart Control can be found in the label attached to the back of the remote control.

Declaration of Conformity

Manufacturer

Name: Samsung

Registered Trade Name: Samsung Electronics Co., Ltd

Address: 129 Samsung-ro, Yeongtong-gu, Suwon-si,

Gyeonggi-do, Korea

Product Details

Product: Smart Control

Model(s): VG-TM2560

Declaration and applicable standards

We hereby declare under our sole responsibility that the product above is in compliance with the essential requirements of the Radio Equipment Directive(2014/53/EU) by application of:

EMC

Safety

EN 301 489-1 V2.2.3

EN IEC 62368-

EN 301 489-17 V3.2.4

1:2020+A11:2020

EN IEC 62368-3 :2020

EN 62311:2008

Radio

EN 300 328 V2.2.2

and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances in electrical and electronic equipment by application of EN IEC 63000:2018.

Signed for and on behalf of : Samsung

Samsung Euro QA Lab, Saxony Way, Yateley, GU46 6GG, UK ^® 2024-12-12 (Place and date of signature)

Glenn Bodman – Director

Regulatory Compliance

(Name and signature of authorized person)

* This is not the address of Samsung Service Centre. Please see the address or the phone number of Samsung Service Centre in the warranty card or contact the retailer where you purchased your product.

- The model name of your Smart Control can be found in the label attached to the back of the remote control.

This page is intentionally left blank.

Technical illustration showing a hand operating a device with a magnified view of its screen (no text or symbols present)

Simple line drawing of a rectangular box with a flat panel on top, no text or symbols present.

Simple line drawing of a rectangular box with a vertical panel and a diagonal line, no text or symbols present.

Funktion

Diagram showing a device on a table before and after assembly, with an inset close-up of the component (no text or symbols)

Diagram showing three identical rectangular panels with labeled points A, B, C, D and connecting lines, likely illustrating a physics or engineering concept.

U7***F/U8***F/Q6F/Q7F/QEF1/Q8F/QN7*F/QN1EF/S85F:20 W

QN80F/QN82F/QN83F: 30 W, QN85F: 40 W

S90F/S92F/S93F/S94F (42"): 20 W

S90F (48"-83"): 40 W

S92F/S93F/S94F (48"-83"): 60 W

QN9*F (43"): 20 W, QN9*F (50"): 40 W

QN9*F (55"-115"): 60 W

S95F/QN900F: 70 W

QN990F (65"-85"): 90 W, QN990F (98"): 120 W

LS03FW: 40 W

LS03FA (43"-50"): 20 W, LS03FA (55"-65"): 40 W

* Shielded Twisted Pair

U8***F/U7***F/F6***F/H5***F]

EN IEC 62368-1:2020+A11:2020

EN 301 489-17 V3.2.4

EN IEC 62368-3:2020

EN 62479:2010

Funk

EN 300 328 V2.2.2

EN IEC 62368-1:2020+A11:2020

EN 301 489-17 V3.2.4

EN IEC 62368-3:2020

EN 62311:2008

Funk

EN 300 328 V2.2.2

Technical illustration showing a mechanical assembly with a magnified inset of a gear and a close-up of a pin (no text or symbols)

★ : Ancrage mural (non fourni)

Simple line drawing of a rectangular box with a flat panel and a circular element on top (no text or symbols)

Simple line drawing of a rectangular box with a vertical panel and a diagonal line, no text or symbols present.

Opération

Diagram showing a device being processed from a base to a display panel, with an inset close-up of the component (no text or symbols present)

Diagram showing three rectangular panels with labeled points A, B, C, D and a central component S, likely illustrating a physics or engineering concept.

A Menu de contrôle

U7***F/U8***F/Q6F/Q7F/QEF1/Q8F/QN7*F/QN1EF/S85F:20 W

QN80F/QN82F/QN83F: 30 W, QN85F: 40 W

S90F/S92F/S93F/S94F (42"): 20 W

S90F (48"-83"): 40 W

S92F/S93F/S94F (48"-83"): 60 W

QN9*F (43"): 20 W, QN9*F (50"): 40 W

QN9*F (55"-115"): 60 W

S95F/QN900F: 70 W

QN990F (65"-85"): 90 W, QN990F (98"): 120 W

LS03FW: 40 W

LS03FA (43"-50"): 20 W, LS03FA (55"-65"): 40 W

* Shielded Twisted Pair

[S9*F/S8*F/QN9*F/QN8*F/QN7*F/QN1EF/Q8F/Q7F/QEF1/Q6F/U8***F/U7***F/F6***F/H5***F]

Nom commercial depose: Samsung Electronics Co., Ltd

Adresse: 129 Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea

Détails du produit

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 62479:2010

Radio

EN 300 328 V2.2.2

Nom commercial depose: Samsung Electronics Co., Ltd

Adresse: 129 Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea

Détails du produit

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 62311:2008

Radio

EN 300 328 V2.2.2

Technical diagram showing a mechanical assembly with a magnified inset of a component and a close-up view of a pin (no text or symbols present)

Simple line drawing of a rectangular box with a flat panel on top, no text or symbols present.

Simple line drawing of a rectangular box with a vertical panel and dashed lines indicating hidden edges (no text or symbols)

Funzione

Diagram showing a device being processed from a base to a device with an inset close-up of its internal structure (no text or symbols present)

Diagram showing three rectangular panels with labeled points A, B, C, D and connecting lines, likely illustrating a physics or engineering concept.

A Menu di controllo

U7***F/U8***F/Q6F/Q7F/QEF1/Q8F/QN7*F/QN1EF/S85F:

20 W

QN80F/QN82F/QN83F: 30 W, QN85F: 40 W

S90F/S92F/S93F/S94F (42"): 20 W

S90F (48"-83"): 40 W

S92F/S93F/S94F (48"-83"): 60 W

QN9*F (43"): 20 W, QN9*F (50"): 40 W

QN9*F (55"-115"): 60 W

S95F/QN900F: 70 W

QN990F (65"-85"): 90 W, QN990F (98"): 120 W

LS03FW: 40 W

LS03FA (43"-50"): 20 W, LS03FA (55"-65"): 40 W

* Shielded Twisted Pair

[S9*F/S8*F/QN9*F/QN8*F/QN7*F/QN1EF/Q8F/Q7F/QEF1/Q6F/U8***F/U7***F/F6***F/H5***F]

100 mW a 2,4 GHz - 2,4835 GHz,

200 mW a 5,15 GHz - 5,25 GHz,

100 mW a 5,25 GHz - 5,35 GHz & 5,47 GHz - 5,725 GHz.

[The Frame(LS03FA)]

100 mW a 2,4 GHz - 2,4835 GHz,

200 mW a 5,15 GHz - 5,25 GHz,

100 mW a 5,25 GHz - 5,35 GHz & 5,47 GHz - 5,725 GHz,

100 mW a 61 GHz - 61,5 GHz.

[The Frame(LS03FW)]

100 mW a 2,4 GHz - 2,4835 GHz,

200 mW a 5,15 GHz - 5,25 GHz,

100 mW a 5,25 GHz - 5,35 GHz & 5,47 GHz - 5,725 GHz,

25 mW a 5,725 GHz - 5,85 GHz,

200 mW a 5,945 GHz - 6,425 GHz,

100 mW a 61 GHz - 61,5 GHz.

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 62479:2010

Radio

EN 300 328 V2.2.2

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 62311:2008

Radio

EN 300 328 V2.2.2

Technical diagram showing a mechanical assembly with a magnified inset of a component and a close-up view of a pin (no text or symbols)

Simple line drawing of a rectangular box with a flat panel on top, no text or symbols present.

Simple line drawing of a rectangular box with a flat top and a dashed bottom edge, no text or symbols present.

Bediening

KLASSE 1-LASERPRODUCT (alleen The Frame(LS03FA))

Diagram showing a device being processed from a base to a display panel, with an inset close-up of the component (no text or symbols present)

U7***F/U8***F/Q6F/Q7F/QEF1/Q8F/QN7*F/QN1EF/S85F:20 W

QN80F/QN82F/QN83F: 30 W, QN85F: 40 W

S90F/S92F/S93F/S94F (42"): 20 W

S90F (48"-83"): 40 W

S92F/S93F/S94F (48"-83"): 60 W

QN9*F (43"): 20 W, QN9*F (50"): 40 W

QN9*F (55"-115"): 60 W

S95F/QN900F: 70 W

QN990F (65"-85"): 90 W, QN990F (98"): 120 W

LS03FW: 40 W

LS03FA (43"-50"): 20 W, LS03FA (55"-65"): 40 W

Bedrijfstemperatuur

10 °C tot 40 °C (50 °F tot 104 °F)

* Shielded Twisted Pair

[S9*F/S8*F/QN9*F/QN8*F/QN7*F/QN1EF/Q8F/Q7F/QEF1/Q6F/U8***F/U7***F/F6***F/H5***F]

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 62479:2010

Radio

EN 300 328 V2.2.2

EN IEC 62368-1:2020+A11:2020

EN IEC 62368-3:2020

EN 62311:2008

Radio

EN 300 328 V2.2.2

Contact Samsung world wide
If you have any questions or comments relating to Samsung products, please contact the Samsung service centre.

Country/Region	Samsung Service Centre	Website
AUSTRIA 0800 72 67	864 (0800-SAMSUNG) www.samsung.com/at/support
BELGIUM 02-201-24	18	www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
BOSNIA 055 233 999	www.samsung.com/ba/support
DENMARK 707 019 70	www.samsung.com/dk/support
FINLAND 030-6227	515 www.samsung.com/fi/support
FRANCE 01 48 63 00	00 www.samsung.com/fr/support
GERMANY 06196 77	555 77 www.samsung.com/de/support
ITALIA 800-SAMSUNG	(800.7267864) www.samsung.com/it/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
MONTENEGRO	020 405 888	www.samsung.com/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
PORTUGAL	210 608 098	www.samsung.com/pt/support
KOSOVO	038 40 30 90	www.samsung.com/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN 0771-400 300	www.samsung.com/se/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
