USER MANUAL BRB38G703EWW SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

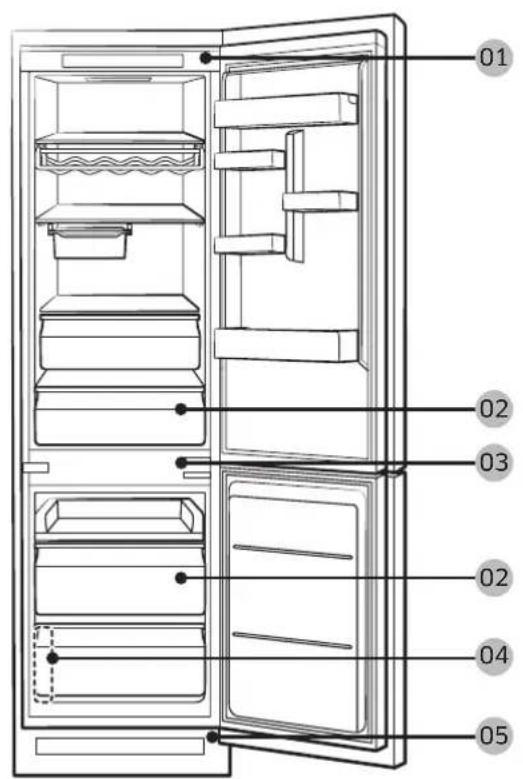

01 02 03 02 04 05

01 Upper hinge 02 Drawer
03 Hinge Mid 04 Barcode label
05 Bottom hinge

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

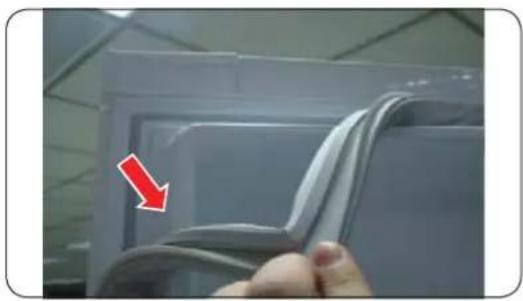

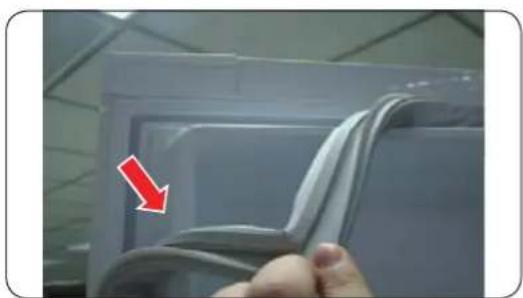

To remove the gasket

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, inside a refrigerator (no text or symbols visible)

Open the door and remove the gasket from the door.

To replace the gasket

Attach a new gasket to the refrigerator door.

Make sure there is no gap between the newgasket and the door.

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

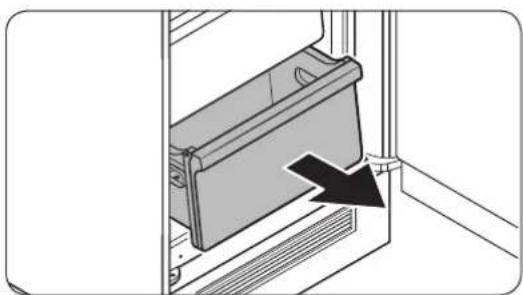

To remove the drawer

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Gently lift up the front of the drawer and slide out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
• If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is firmly tightened on the hinge.
• Check that the hinge is firmly attached to the cabinet.
  • Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

English

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 12 mm socket wrench

Three-panel photo showing a kitchen appliance interior with red arrows pointing to the door panel, no visible text or symbols.

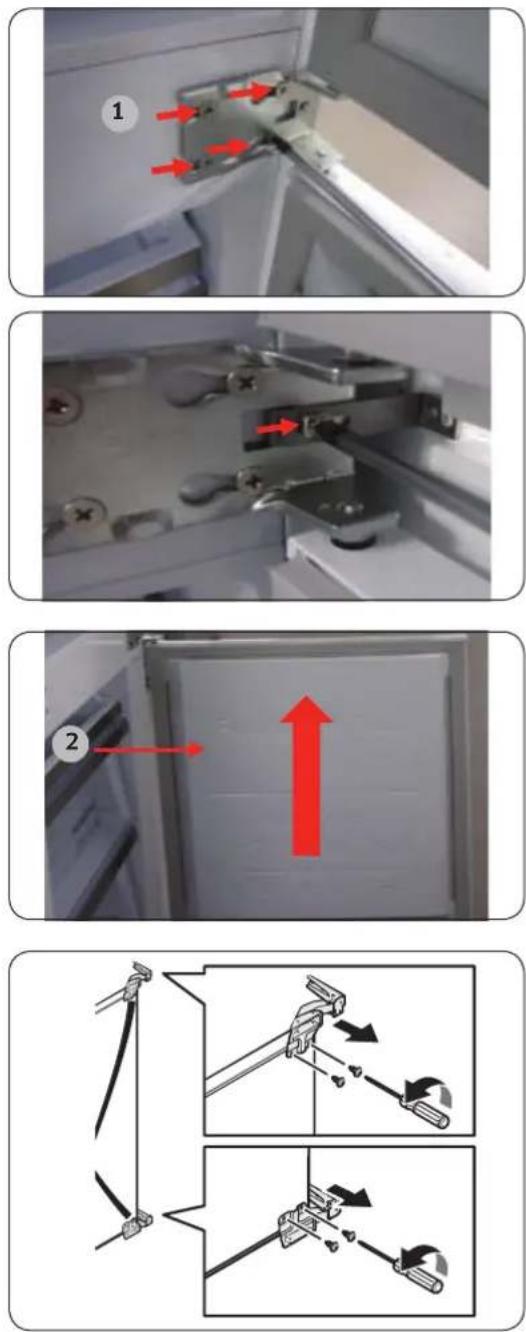

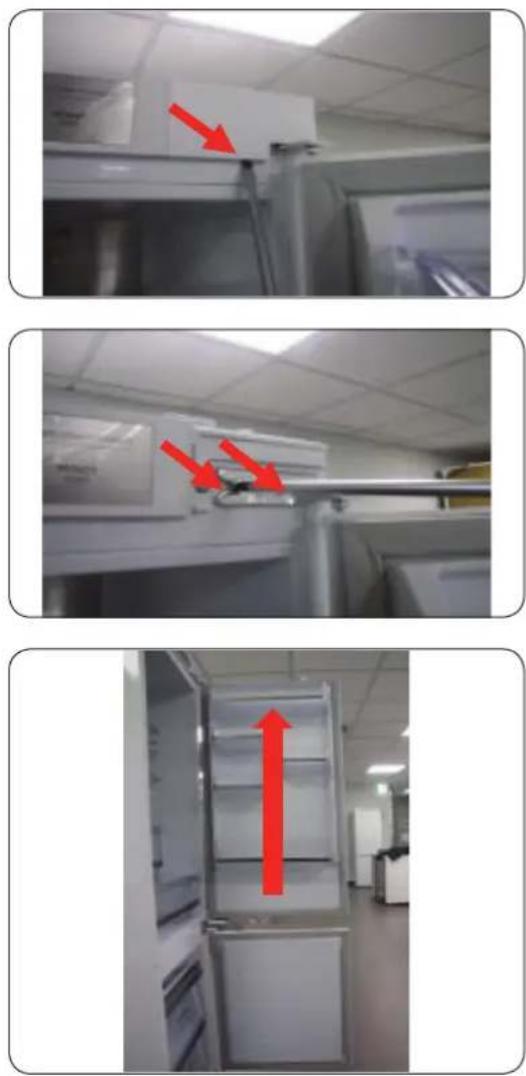

1. Remove the Cover Hinge UP.

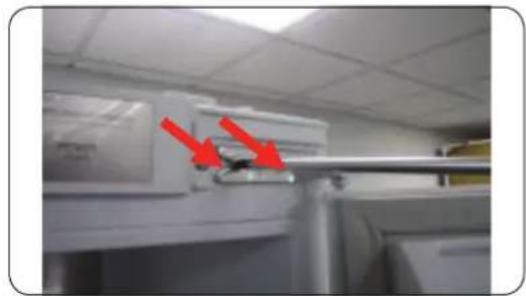

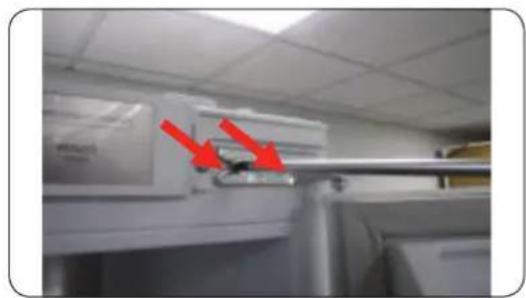

2. Remove the 2 screws in the upper hinge of the upper refrigerator compartment door.

3. Remove the hinge.

CAUTION

It is highly recommended to ask somebody to hold the door while removing the hinge.

1. Remove the Support-Rail cover.
   CAUTION

Be careful not to scratch.

English

1. After unscrewing and removing Five screws, disassemble the ASSY HINGE MID (1).

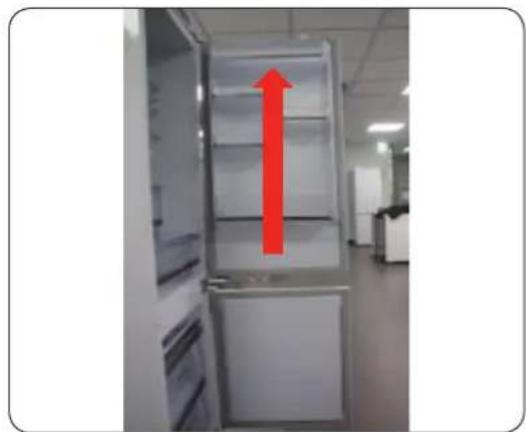

2. Remove the door by carefully lifting the door (2).

CAUTION

Be careful not to scratch.

1. Use the screwdriver to loosen and remove the upper, middle, and bottom hinges on the fridge's door or the freezer's door in the arrow direction as shown.

2. Reassemble in the opposite order of disassembly after replacing the Hinge Up, Hinge Mid, and/or Hinge Low.

CAUTION

• Make sure the wire connectors are connected properly.

- Be careful not to damage the wires when fastening the top cover.

English

Guide de réparation

Diagram of an open refrigerator with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, inside a refrigerator (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a white panel on the wall (no visible text or symbols)

Interior view of a modern office or lab space with a metallic fixture and red arrows pointing to a small object (no visible text or symbols)

Interior view of a modern kitchen appliance with a red upward arrow indicating storage or ventilation (no text or symbols visible)

Diagram of an refrigerator interior with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a modern office or lab space with a metallic fixture and red arrows pointing to a component (no visible text or symbols)

Interior view of a modern refrigerator with a red upward arrow indicating storage or ventilation (no text or symbols visible)

Diagram of a refrigerator interior with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Interior view of a kitchen appliance with a white cabinet and red arrow pointing to a wall (no visible text or symbols)

Interior view of a laboratory or lab facility with a metal rod and red arrows pointing to features (no visible text or symbols)

Interior view of a stainless steel refrigerator with a red upward arrow indicating storage or ventilation (no text or symbols visible)

Diagram of a refrigerator interior with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a kitchen appliance with a white cabinet and red arrow pointing to a wall-mounted fixture (no visible text or symbols)

Interior view of a modern office or lab space with a metallic fixture and red arrows pointing to a small object (no visible text or symbols)

Interior view of a modern refrigerator with a red upward arrow indicating storage or ventilation (no text or symbols visible)

Diagram of an refrigerator interior with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a white cabinet (no visible text or symbols)

Interior view of an office or lab space with a metal rod and two red arrows pointing to a small object (no visible text or symbols)

Interior view of a refrigerator with an upward red arrow pointing to the door (no text or symbols visible)

Diagram of an refrigerator interior with numbered labels pointing to different compartments

01 Dobradiça superior 02 Gaveta
03 Dobradiça central 04 Etiqueta de código de barras
05 Dobradiça inferior

Português

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, inside a refrigerator (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Interior view of a kitchen appliance with a white cabinet and red arrow pointing to a wall-mounted fixture (no visible text or symbols)

Interior view of a modern office or lab space with ceiling lights and a glass bench, featuring two red arrows pointing to a small object on the wall (no visible text or symbols)

Interior view of a modern refrigerator with a red upward arrow indicating storage or ventilation (no text or symbols visible)

Technical diagram of an open refrigerator with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Three-panel photo showing a refrigerator interior with red arrows pointing to the exterior panel, and a close-up of the refrigerator in the interior (no text or symbols visible)

Technical diagram of a refrigerator with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of an office or lab space with a metal shelf and a wall-mounted device, featuring two red arrows pointing to a component (no visible text or symbols)

Interior view of a refrigerator with open doors and a red upward arrow indicating storage direction (no text or symbols on the refrigerator itself)

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, inside a refrigerator (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a room with a metal railing and ceiling fixtures, featuring two red arrows pointing to a small object (no visible text or symbols)

Interior view of a refrigerator with a red upward arrow indicating storage or lifting (no text or symbols visible)

Diagram of a refrigerator interior with numbered labels pointing to different compartments

01 Topphengsel 02 Skuff
03 Midthengsel 04 Strekkodeetikett
05 Bunnhengsel

Norsk

Close-up of a hand holding a white plastic door with a red arrow pointing to the side panel (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a modern office or lab space with ceiling lights and a metal shelf (no visible text or symbols)

Interior view of a refrigerator with a red upward arrow indicating storage or ventilation (no text or symbols visible)

Diagram of a refrigerator interior with numbered labels pointing to different compartments

01 Yläsarana 02 Lokero
03 Sarana, keski 04 Viivakooditarra
05 Alasarana

Suomi

Tiivisteen vaihto

HUOMIO

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

1. Irrota saranasuojus YLÖSPÄIN.

Interior view of a modern office or lab space with ceiling lights and a metal shelf (no visible text or symbols)

Interior view of a refrigerator with an upward red arrow indicating storage or ventilation (no text or symbols visible)

Diagram of a refrigerator interior with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a modern office or lab space with ceiling lights and a metal shelf, featuring two red arrows pointing to a small mechanical component (no visible text or symbols)

Interior view of a refrigerator with an upward red arrow indicating storage or ventilation (no text or symbols visible)

Technical diagram of a refrigerator with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a modern office or lab space with ceiling lights and a metal shelf, featuring two red arrows pointing to a small mechanical component (no visible text or symbols)

Interior view of a refrigerator with an upward red arrow pointing to the door (no text or symbols visible)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Otvorte dvierka a zložte z nich tesnenie.

Osadenie tesnenia

K dvierkam chladničky upevnite nové tesnenie.

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Opatrne uchopte prednú stranu zásuvky a vytiahnite ju.

Three-panel photo showing a kitchen appliance interior with red arrows pointing to the door panel, no visible text or symbols.

1. Demontujte kryt pántu v hornej časti.

2. Odskrutkujte 2 skrutky v hornom pánte horných dvierok priestoru chladničky.

3. Demontujte pánt.

POZOR

Diagram of a refrigerator interior with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Three-panel photo showing a refrigerator interior with red arrows pointing to the doors and a refrigerator in the foreground (no text or symbols)

Diagram of a refrigerator interior with numbered labels pointing to different compartments

01 Горна панта 02 Чекмежке
03 Средна панта 04 Емукем с барког
05 Долна панта

Български

Close-up of a hand holding a white plastic sheet with a red arrow pointing to it, no visible text or symbols.

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a server room with a whiteboard and red arrow pointing to a component (no visible text or symbols)

Interior view of a room with ceiling fixtures and a metal shelf, featuring two red arrows pointing to a small object (no visible text or symbols)

Interior view of a modern refrigerator with a red upward arrow pointing to the front panel (no text or symbols visible)

Български

Diagram of a refrigerator interior with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Three-panel photo showing a kitchen appliance interior with red arrows pointing to the door panel, no visible text or symbols.

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Otvorite vrata i sa njih skinite zaptivnu gumu.

Da biste zamenili zaptivnu gumu

Postavite novu zaptivnu gumu na vrata frižidera.

Uverite se da između nove zaptivne gume i vrata nema razmaka.

Srpski

Zamena fioke

OPREZ

Tokom postavljanja, proverite da li je fioka pravilno umetnuta u vodice.

Da biste skinuli fioku

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Pažljivo podignite prednju stranu fioke i izvucite je.

Da biste vratili fioke

Three-panel photo showing a kitchen appliance interior with red arrows pointing to the door panel, no visible text or symbols.

1. Uklonite poklopac šarke nagore.

2. Uklonite 2 zavrtnja u gornjoj šarki vrata gornjeg odeljka frižidera.

3. Uklonite šarku.

OPREZ

Diagram of an open refrigerator with numbered labels pointing to different compartments

01 Gornja šarka 02 Ladica
03 Srednja šarka 04 Naljepnica s crtičnim kodom
05 Donja šarka

Hrvatski

Zamjena brtve

OPREZ

Pobrinite se da čvrsto pričvrstite brtvu. U suprotnome bi hladan zrak iz hladnjaka mogao izlaziti van.

Za uklanjanje brtve

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Otvorite vrata i uklonite brtvu s vrata.

Za zamjenu brtve

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Pažljivo podignite prednji dio ladice i izvucite je.

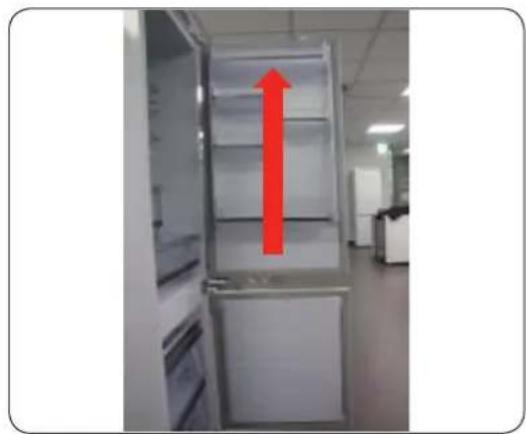

Ponovno postavljanje ladica

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of an office or lab space with a metal bench and wall-mounted equipment (no visible text or symbols)

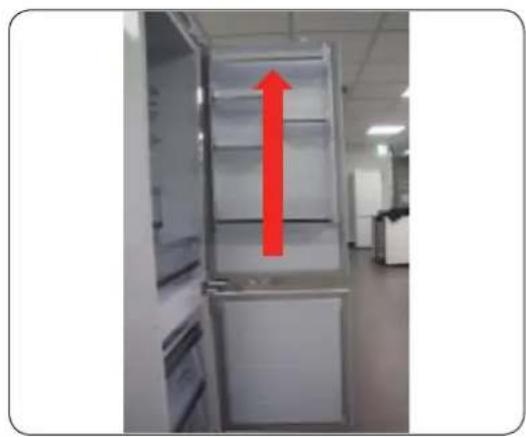

Interior view of a modern refrigerator with a red upward arrow indicating storage or ventilation (no text or symbols visible)

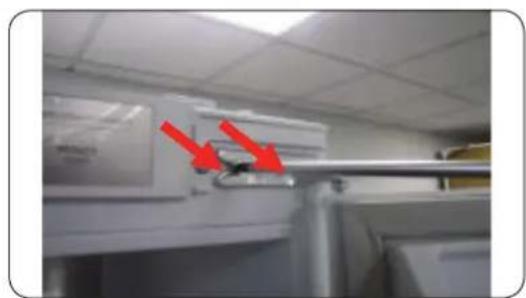

1. Uklonite poklopac šarke prema GORE.

2. Uklonite 2 vijka gornje šarke na vratima gornjeg odjeljka hladnjaka.

3. Uklonite šarku.

OPREZ

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a modern office or lab space with ceiling lights and a metal railing, featuring two red arrows pointing to a small mechanical component (no visible text or symbols)

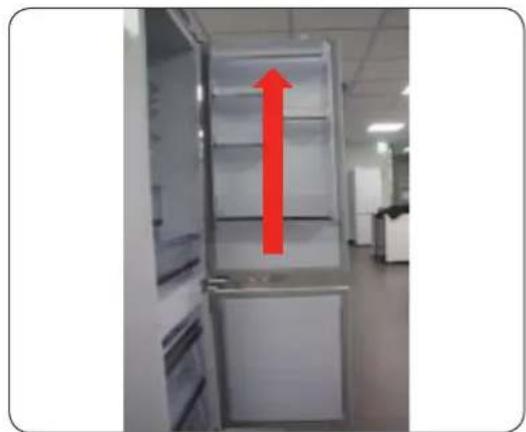

Interior view of a refrigerator with a red upward arrow indicating storage or lifting (no text or symbols visible)

Close-up of a hand holding a white plastic container with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a kitchen or kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a laboratory or lab facility with two red arrows pointing to a mechanical component (no visible text or symbols)

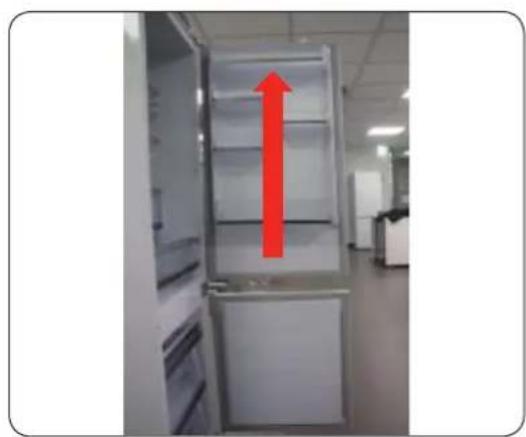

Interior view of a refrigerator with open doors and a red upward arrow indicating storage direction (no text or symbols)

Diagram of an open refrigerator with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a modern office or lab space with ceiling lights and a metal railing, featuring two red arrows pointing to a small mechanical component (no visible text or symbols)

Interior view of a refrigerator with an upward red arrow pointing to the door (no text or symbols visible)

Technical diagram of an open refrigerator with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Diagram of a door handle assembly with a black arrow pointing to a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

1. Nuimkite VIRŠUTINl lanksto dangtelj.

Interior view of a modern office or lab space with ceiling lights and a metal shelf (no visible text or symbols)

Interior view of a refrigerator with an upward red arrow indicating storage or ventilation (no text or symbols visible)

Diagram of an refrigerator interior with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Atveriet durvis un iznemiet blivi no durvim.

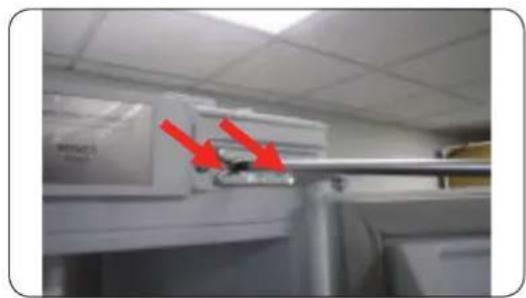

Lai nomainītu blīvi

Pievienojiet jaunu blīvi pie ledusskapja durvīm.

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a modern office or lab space with a metal shelf and red arrows pointing to a small object (no visible text or symbols)

Interior view of a modern refrigerator with a red upward arrow indicating storage or ventilation (no text or symbols visible)

Technical diagram of a refrigerator with numbered labels pointing to different compartments

Close-up of a hand holding a white plastic bag with a red arrow pointing to the side (no text or symbols visible)

Odprite vrata in z vrat odstranite tesnilo.

Zamenjava tesnila

Na vrata hladilnika pritrdite novo tesnilo.

Prepričajte se, da med novim tesnilom in vrati ni vrzeli.

Slovenščina

Zamenjava predala

PREVIDNO

Diagram of a door handle assembly with a black arrow indicating a component (no text or symbols present)

Previdno dvignite sprednji del predala in ga izvlecite.

Ponovna namestitev predala

Interior view of a kitchen appliance with a red arrow pointing to a whiteboard (no visible text or symbols)

Interior view of a modern office or lab space with ceiling lights and a metal shelf, featuring two red arrows pointing to a small mechanical component (no visible text or symbols)

Interior view of a refrigerator with an upward red arrow indicating storage or ventilation (no text or symbols visible)

1. Odstranite pokrov podpornega vodila.

PREVIDNO

Pazite, da ga ne opraskate.

Slovenščina

1. Ko odvijete in odstranite pet vijakov, razstavite SKLOP SREDNJEGA TEČAJA (1).

2. Vrata odstranite, tako da jih previdno dvignete (2).

PREVIDNO

Pazite, da jih ne opraskate.
